traub lathes used for sale

Machining diameter max: 36 mm Maximum spindle speed: 6300 rpm No. of Spindles: 2 Controller: Traub TX8i Toolchanger 1: No. of tools: 12 positions X-axis travel: 50 mm Z-axis travel: 50 mm Toolchanger fronside: No. of tools: 7 positions Speeds: 150 - 3000 Rpm 300 - 6000 Rpm Max. diameter: 40 mm X-axis travel: 370 mm Z-axis travel: 250 mm Toolchanger backside: No. of tools: 5 Speeds: 150 - 3000 Rpm 300 - 6000 Rpm Max. diameter: 40 mm X-axis travel: 73 mm Barfeeder: FMB Turbo 5-42 Barlength: 3200 mm Bardiameter: 5 - 42 mm Country of origin: Germany Machine LxWxH: 3400 x 1300 x 1700 mm Machine weight: 4000 kg

Article: Programme-controlled automatic lathe Manufacturer: Traub Type: TF60 / 140 Yob: 1978 Bar automat Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

TRAUB Sonim TND 200 CNC Lathe YOM 1994 CNC Lathe – Inclined Bed Type TRAUB TX8F CNC control Turning diameter 350 mm Turning length 200 mm Total power requirement 20 kW Turning diameter over bed slide 200 mm X-axis 180 mm Z-axis 300 mm Spindle bore 42 mm Spindle motor 12 kW Spindle turning speed range 10 – 5000 rpm Feed speed X:155, Z:250 mm/min Rapid Travel Speed X-Axis 15 m/min Rapid Travel Speed Z-Axis 25 m/min Weight of the machine ca. 4 t Dimensions of the machine ca. 6.5 × 1.5 × 1.75 m 12-fold revolving head Traub Bar loader 3-fold power chuck Chip conveyer

Fully functional Traub lathe built in 1972 Location of the machines: 76661 Philippsburg The machines can be viewed on site at any time. They are in our warehouse and work perfectly. You can make an appointment for a viewing at any time before bidding on +49 (0) 72 55 / 39 73 337. We would love to hear from you.

Universal CNC lathe INDEX G 400 RATIO Line Hersteller [manufacturer]: INDEX Type [ type]: G 400 Control unit: Siemens C200-4D incl. milling of cylindrical tracks Incl. handwheel Baujahr[construction year]: 10/2004 Turning length 1250 Main spindle D102 with swing-in gear 1700 Nm Size 11 Hollow Clamping Cylinder 102 ARB-SPI ALIGNMENT. AND SWITCHING DEVICE TOOL CARRIER 1 COMPL. AXES X,Y,Z,B with turning/milling operation Disc turret VDI40 10 stations MILLING SPINDLE HSK A63 Tool carrier axles 2 XZ Disc turret VDI40 10 stations SUB-SPINDLE D102 DIRECT DRIVE 1300Nm Size 11 Hollow Clamping Cylinder 102 ARB-SPI ALIGNMENT. AND SWITCHING DEVICE DISC MAGAZINE ON THE LEFT OF THE HSK63 SINGLE-SWING GEARBOX WITH 32 TOOL HOLDERS DISC MAGAZINE RIGHT COMPL. M.32 TOOL HOLDERS HSK 63A Travel path: X= 320mm Z=1250mm Displacement measuring system X-axis glass mast. (abs) Fe ...

CNC Swiss Automatic Lathe TRAUB TNL 32 9P With control TX 8 i - p Year of Make: 2016 Spindle bore: 32 mm MAIN SPINDLE Speed range: Max. 6400 rpm C Axis SUB-SPINDLE Speed range: Max. 6000 rpm C Axis TOOL TURRET TOP: Speed range: Max. 12000 rpm 10 speed turret ( All driven ) TOOL TURRET ABOVE: Speed range: Max. 12000 rpm 9 speed turret ( All driven ) REAR UNIT Number of stations: 8 Of which powered: 3 ( T 12 , 13 and 14 ) Speed T12 + T 14 ( 12000 rpm ) Speed T 13 : ( 4000 rpm ) With the following accessories: Full protection cab with interior lighting Various powered tools Various tool holders IEMCA Boss 338 Bar Feeder - HD KSS Pump 20 bar Chip conveyor Operating Instructions

Post driven tools from a Traub CNC lathe VDI 40 As well as some measuring geraete for Traub Rest according to photos Special price

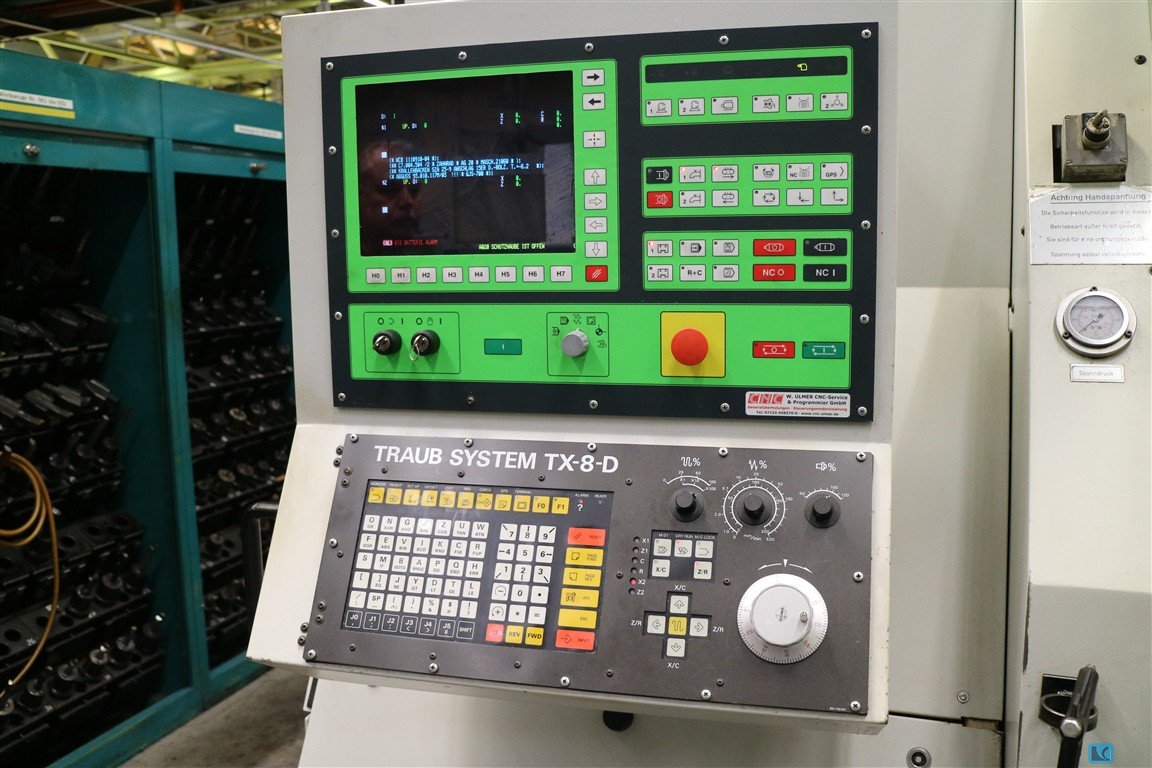

CNC Control Traub System TX 8D C-axis/ Driven tools Bar feeder Stamag DN42 Collector of the finished parts Chip conveyor Internal liquid cooling Very good condition Max. bar diameter 42 mm Turning length 220 mm Hydraulic chuck Chuck- max. turning dia. 140 mm Max. turning diameter 140 mm Max. turning diameter over bed 390 mm Spindle boring 42 mm Number of turret heads- 3 -1st turret 12 tools -2nd turret 12 tools -3rd turret 4 tool Tool holders VDI 30 X axis travel 200 mm Z axis travel 300 mm Spindle speed 5600 rpm Max. bar length 4200 mm Max. working bars in dia. 42- 7 Total power requirement 34 kW Interlocking cover Total dimensions: 7400x1900x2400 mm Weight 4500 kg

Two drawer cabinets with roller drawers incl. accessories for CNC lathe Traub TNS30 are offered. Accessories e.g. Traub Adjusting Microscope Traub Adjustment Tool VDI30 Soft top jaws approx. 82 set (3 jaws each) approx. 5 driven tools (partially disassembled) approx. 80 tool holders Approx. 72 collets approx. 32 collets Lot of parting chisel Lot of turning chisels Post Milling Cutter Dial gauge Lot of centering drill bits Post of interchangeable tips for moving tips Lot of Inserts Lot of spare parts Traub Without the pictured 3-jaw chuck Cabinet Height 1m, Width 70cm Depth 70cm The photos do not show the complete scope of delivery. More photos on request or by visiting on site. Listing without guarantee! Sale price

CNC automatic lathe Traub TNL 32-7 • Version TNL32/TNL32K alternating mode • Control TX8i-s • Main spindle passage 32 mm, with C-axis • Counter spindle incl. partial hollow stress • Revolver top X/Y/Z/H axis: 10 shots dual drive • Revolver bottom X/Y/Z/H axis: 9 shots total drive; Counter spindle sep. Drive • RAPP 8-fold; Total drive 3 tools IK • Workpiece deflection unit with linear gripper • Coolant supply 3 bar • Coolant supply 8 bar • Hinge belt chip conveyor, discharge height 1000mm • Glass scale X-axis turret top/bottom • Compact belt filter for cooling lubricant: filter fineness approx. 30-40 μm • Bar loading magazine FMB LSK 38, for rods 3.2 m (original price at that time 340.000,- €uro)

Machine Details Stock number 1105-03756 Machine type CNC turning and milling center Brand TRAUB Type TNA 300 Year of construction 1996 Control type CNC Control Traub TX 8 H Storage location warehouse Country of origin Germany Delivery time by arrangement Freight base EXW Technical details Turning length 450 mm Control Traub TX 8F Turning diameter above the paddling carriage 275 mm Turning diameter over bed 400 mm Speed range 4000 rpm Number of tools 12 pcs. Sledge path plan 210 mm Sledge path lengthwise 450 mm Quill diameter 75 mm Quill stroke 125 mm Total power requirement 22 kW Machine weight ca. 3.2 t Space requirement approx. 3 x 2.00 x 2.10 m Information 3 AXIS MACHINE WITH LIVE TOOLS incl. chip conveyor 12-cavity tool turret SAUTER with 12-cavity tool turret VDI 30 MIT DRIVEN TOOL HOLDERS AND C AXIS Towing tailstock with quill Three-jaw power chuc ...

turning diameter:500 mm turning length:1000 mm weight of the machine ca.:7,3 t dimensions of the machine ca.:6,5 x 4,45 x 2,21 m

Key data: 360 mm, 800 mm, 5000 1/min

High Quality CNC Lathe Traub TND 360 We offer a precision CNC lathe from the renowned Traub brand. The Traub TND 360 was manufactured in 1981 and allows for efficient and accurate machining, which meets current requirements Technical details: - Diameter: 360 mm - Turning length: 800 mm - Tailstock: MT 3, hydraulically operated - Revolver: 8 stations - Power consumption: 380V, 32 kW This CNC lathe stands out for its reliability and precision, allowing versatile machining of workpieces. The machine needs an inspection due to an unknown problem in the control system. It is also in very good condition and has been regularly maintained. The price is net, free to load. The Traub TND 360 can be viewed by prior appointment. If you have any questions, just call or write. 016096679844 Maschinenhandel Nord Gerstenstraße 2 17034 Neubrandenburg Technical specificat ...

bar material dia.: max. 85 mm bar length: 3000 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: mm turning length: mm control: 0 total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Traub TNL 12 K lathe for sale year of construction 2005 Removal and loading on truck at buyer´s expense Delivery ex works excl. transport insurance Find more here - / Contact us at -

Key data: 65 mm

CNC Turning and Milling Center CNC lathe used CNC universal lathe Manufacturer: Traub Type: TNA 300 Year of Make: 1996 Spindle ø 65mm Tailstock Powered tools Conveyor Control TX8H FlexIPS Collet chuck with collets from 5mm to 65mm Three-jaw chuck Various tool holders fixed, rotating and angle-rotating Etc... incl. bar loading magazine Traub DNH 61 3000, year of construction 1996 incl. many accessories! Location of the machine: Nahe 93047 Regensburg The machine can be viewed on site. It is still energized and works perfectly. We would love to hear from you.

Turning length: 450mm, spindle clearance: 65mm, speed: 4000rpm, main spindle/counter spindle power: 18.5kW/11kW, tool positions: 10, driven tools: 10, hydraulic capacity: 150l, hydraulic pressure: 60bar, connected load: 39kW. Rapid traverse X1/X2: 15m/min, feed force: 5000N, feed path: 140mm. Rapid traverse Z1/Z2: 30m/min, feed force: 8000N, feed path: 450mm. Rapid traverse Y1: 6m/min, feed force: 8000N, feed path: +/-35mm. Machine dimensions X/Y/Z: approx. 4150mm/2000mm/1800mm, weight: approx. 4750kg, control: Traub System TX 8F, operating hours: 78825h. Documentation available. On-site inspection is possible.

A CNC double-spindle lathe Traub overhauled in 2025 is available. Turning length: 450mm, spindle clearance: 65mm, speed: 4000rpm, main spindle/counter spindle power: 18.5kW/11kW, tool positions: 10, driven tools: 10, hydraulic capacity: 150l, hydraulic pressure: 60bar, connected load: 39kW. Rapid traverse X1/X2: 15m/min, feed force: 5000N, feed path: 140mm. Rapid traverse Z1/Z2: 30m/min, feed force: 8000N, feed path: 450mm. Rapid traverse Y1: 6m/min, feed force: 8000N, feed path: +/-35mm. Machine dimensions X/Y/Z: approx. 4150mm/2000mm/1800mm, weight: approx. 4750kg, control: Traub System TX 8F, operating hours: 12938h. Including chip conveyor and bar loader LNS Quick Load. Documentation available. On-site inspection is possible.

Turning diameter over bed/face slide: 360mm/160mm, center distance: 800mm, travel X/Z: 205mm/810mm, speed: 3150rpm, spindle bore: 60mm, tool positions: 8, rapid traverse X/Z: 10m/min. Machine dimensions X/Y/Z: approx. 3300mm/1800mm/1800mm, weight: approx. 3300kg, control: Traub System TX-8. An on-site inspection is possible.

turning diameter: 250 mm turning length: 450 mm control: TX8D bore: 80 mm spindle speed:: 3150 U/min. CNC Lathe with Bar Feed and 3 Turrets Very large spindle bore, with bar loading device Please ask for further details. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC swiss type lathe Traub TNL 32-7, - Model TNL32/TNL32K, - Controller TX8i-s, - Main spindle max. diameter 32 mm, with C-axis, - Counter spindle including parts discharge, - Top revolver X/Y/Z/H-axis: 10 tools dual drive, - Bottom revolver X/Y/Z/H-axis: 9 tools same drive; counter spindle independent drive, - Conveyor belt for finished parts with gripper, - Coolant pump 3 bar, - Coolant pump 8 bar, - Swarf conveyor, hinged belt type H=1000 mm, - Linear encoder X-axis for revolver top/bottom, - Fabric filtration for coolant: grade of filtration ca. 30-40 µm, - High pressure coolant pump 20 bar, - CO2 fire fight system Kraft & Bauer, - Auto bar loader FMB LSK 38, max. bar length 3,2 m, Machine worked only with cutting oil, Country of origin: Germany, Control: TX8i-s, Operating hours: 55.000 | 36.000, Max bar dia. [mm]: 32, Spindle speed [rpm]: 8.000, Spindle stock stroke [mm]: 305, Weig ...

turning diameter: 700 mm turning length: 1250 mm control: TX8_i total power requirement: kW weight of the machine ca.: 15 t dimensions of the machine ca.: 6,0 x 2,5 x 2,2 m CNC control TX8_i 9 CNC axes (X1, X2, Z1, Z2, Y1, B1, B2, C1, C2) Software functions: Tool life monitoring, Polyform, 3D-Helical IP, synchronous threads without L compensation, WOP Traub Win_Flex IPS incl. Mouse, MAIN SPINDLE (direct drive, adjustable hollow shaft motor) Spindle connection A-11 > DIN 55026/ 55021 Alignment and switching device Hollow clamping cylinder > spindle passage max. 102 mm speed max. 3,000 rpm Front bearing dm170 mm Drive power 100/40% ED 53 / 68 kW, torque 675 / 900 Nm C-axis resolution 0.001 ° Spindle locking for extreme roughing work 2.5 ° Counter spindle (direct drive, adjustable hollow shaft motor) Spindle connection A-11 > DIN 55026/ 55021 Alignment and switching device Full clamping c ...

Turning diameter: 320mm, turning length: 1000mm, spindle clearance: 80mm, speed: 3150rpm, travel X/Z: 265mm/1000mm. Machine dimensions X/Y/Z: approx. 5500mm/2400mm/2400mm, weight: approx. 7000kg, control: Traub System TX-8. Including a tool set, three-jaw chuck and bar chuck with collets. Documentation available. On-site inspection is possible.

Inv. Num. : 8535 Type: TNL 18P Producer: TRAUB Created: 2013 Parameters: Control system: TRAUB SYSTEM TX 8i-p Max. rod diameter: 20 mm Maximum turning length: 180 mm Number of Spindles: 2 pieces Maximum spindle speed: 8000 1/min Length: 2500 mm Width: 1460 mm Height: 2250 mm Weight: 4000 kg Equipment: Bar Feeder

Z640 Mixed Lot (134 pieces) Feed Pliers Automatic Lathe Lathe Turning Center probably for Index Traub or Schütte or similar machines

max. bar material dia.: 65 mm max. swing diameter: 175 mm max. bar length: 3.000 mm control: System TX 8F travel -x axis: 140 mm travel -z axis: 520 mm CNC lathe | TRAUB - TNC 42/65 DG equipped with bar loader. The machine is in a well-maintained condition and can be inspected at any time under power. The machine videos from the production plant will be shared on request. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: TNC65 | TNC-65 |TNC 42-65 DG | TNC 42/65DG The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 32 mm, 32 mm, 305 mm

CNC Swiss Automatic Lathe Manufacturer : Traub Model : TNL 32 T-9 Control : TX8i-s Year of construction : 2013 Location : Sweden , still in production Delivery period : from January / February 2026 Operating hours : approx. 40 000 h Specifications Spindle Passage mm: 32 Speed max. min-1: 8,000 Power (100% / 25% ED) kW: 6.7 / 10.7 Torque (100% / 40% ED) Nm: 21 / 32 C-Axis Resolution Degree : 0.001 Z - slide travel mm : 305 / 127 (sliding head / short turn) Rapid traverse Z m/min : 20 Sub-spindle Spindle passage mm: 30 Speed max. min-1: 6,400 Power (100% / 25% ED)kW : 3.7 / 5.5 Torque (100% / 40% ED) Nm: 29.4 / 43.7 C-Axis Resolution Degree : 0.001 X - Carriage path , Rapid traverse mm / m/min : 140 / 20 Z-slide travel, rapid traverse mm / m/min : 300 / 20 Tool carrier 1 Can be equipped as a revolver Number of stations : 10 Speed max. min-1: 12,000 Pow ...

turning diameter: 275 mm turning length: 900 mm control: TRAUB TX8i Main- opposite spindle: spindle passage: 65 mm power capacity at 100 % load: 25,20 kW power capacity at 40 % load: 30,20 KW max. torque at 40% / 100% load: 180 / 135 Nm spindle turning speed - stepless: 1 - 5.000 U/min spindle diameter in front bearing: 110 mm C-axis: 1 - 500 U/min worktool support: No. 1 x-axis: 290 mm y-axis: 165 mm z-axis: 600/950 mm B - axis: 360 ° rapid traverse X/Y/Z: 18 / 18 / 30 m/min feed capacity X/Y/Z: 10 / 10 / 7 kN number of tools: 2x2 + 2x2 number of driven tools: 2x2 + 2x2 mm toolpiece turning speed range: 8.000 / 2.000 U/min power capacity at 25 % load: 5,80 kW max. torque at 25% load: 4x18,6 / 4x74 Nm tool taper: TRAUB Ø60 worktool support: No.2 / No.3 / No.4 x-axis: 170 mm z-axis: 600/950 mm y-axis: +/- 60 mm rapid traverse X/Y/Z: 18 / 15 / 30 m/min feed capacity X/Y/Z: 10 / 10 / 7 k ...

Traub TNA500 SN 253 Year of manufacture 1997 Spindle 2800 1/min 12-Tool Turret It has powered tools Power 46kVA

Spindle bore: 42mm, max. workpiece diameter: 115mm, speed: 3150rpm, power: 9kW, bar length: 5200mm. Machine dimensions X/Y: approx. 2100mm/1000mm, weight: approx. 1500kg. Including bar feeder Stamag D 5000 and various accessories such as collets and feed collets. Documentation available. An on site inspection is possible.

TRAUB TNM 28 sliding head lathe was built in Germany by TRAUB Drehmaschinen GmbH. The machine, which is distinguished by its high efficiency, is the perfect choice for precise, multi-axis machining of workpieces with a maximum length of 200 mm. All machining processes, i.e. drilling, threading and turning, are performed fully automatically inside a large work space. In order to obtain excellent repeatability of the manufactured parts, the TRAUB TNM is equipped with components of the best technical parameters, i.e. two reliable spindles and an 8-position turret. All this is complemented by an easy-to-use CNC controller with many useful functions. The TRAUB TNM 28 CNC automatic lathe weighs approximately 3000 kg. Technical specifications of the TRAUB TNM 28 CNC turning center - feed in the X/Z axis: 60/200 mm - rapid traverse in the X/X2/Z axis: 15/15/30 m/min - driven tool rotationa ...

A slant bed lathe Traub Sonim is available. Turning diameter over bed/cross slide: 350mm/160mm, turning length: 200mm, speed: 5000rpm. Machine dimensions X/Y/Z: approx. 3200mm/1500mm/1700mm, weight: approx. 3500kg. An on-site inspection is possible.

turning diameter: 12,7 mm turning length: 50 mm control: Traub System TX 8i turning speeds: 12000 U/min c-axis: 0,001° c-axis: 0,001 ° gripping station: 12,7 mm speeds: 12000 U/min rapid traverse: 15 m/min turret (x-stations): 6 worktool system: 5+3 worktool system: 3 Werkzeugsysteme total power requirement: 2,5/4 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 2,4 x 1,1 x 1,7 m driven tools: 6+4+4 Rev+S7+S8 CNC turning machine Traub TNL 12K with barloader LNS Tryton 112 Motor drive S8 (rear working with driven tools possible) Motor drive S7 (front working with driven tools possible) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CONTROLS   CNC controls TRAUB TX 8 BASIC FUNCTIONS   number of spindles: 1   number of x/z slides: 1   number of turrets: 1   live positions: yes   number of c-axes: 1 WORKING RANGE TURNING   swing diameter (max): 450 mm   turning diameter (max): 350 mm   bar diameter (max): 60 mm   worpiece length max.: 490 mm MAIN SPINDLE   spindle revolutions (max): 4000 /min   c-axis: yes TOOL MAGAZINE   number of positions: 12 ELECTRICAL SPECIFICATIONS   total power consumption: 39 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 3150 mm   space requirements -front/back-: 2100 mm   total height: 2100 mm   total weight approx.: 4000 kg ATTA ...

BASIC FUNCTIONS   number of spindles: 1   number of turrets: 1   live positions: yes WORKING RANGE TURNING   swing diameter (max): 560 mm   turning diameter (max): 275 mm   bar diameter (max): 42 mm   worpiece length max.: 450 mm MAIN SPINDLE   spindle revolutions (min): 5600 /min   drive power: 11 kW X/Z SLIDE   number of tool positions (total): 11   number of live positions: 11   - rotation speeds (max): 4500 /min TAILSTOCK   sleeve stroke: 60 mm   sleeve diameter: 70 mm   holding force (max.): 8600 kN ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 2700 mm   space requirements -front/back-: 1600 mm   to ...

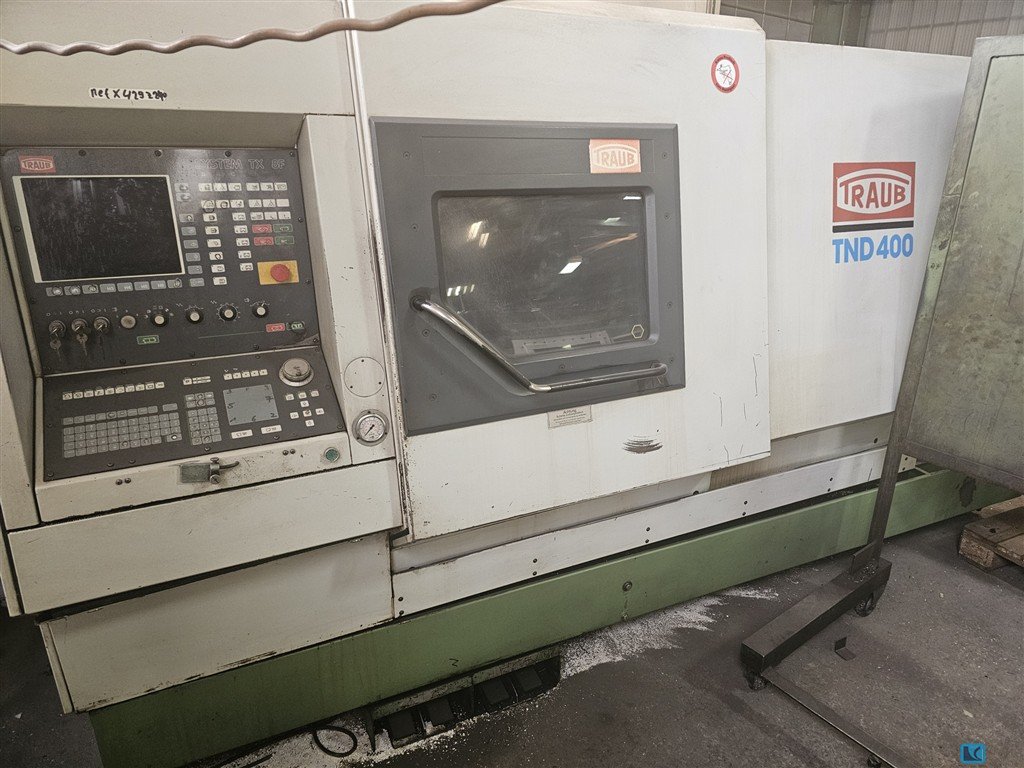

Offered is a Traub TND 400. Center distance: 800mm, turning diameter approx. 250mm, travel X/Y approx. 220mm/850mm, spindle bore: 65mm, speed range: 40-4000rpm, 12-position disc turret, tool holder: VDI40 DIN69880, integrated coolant system, dimensions X/Y/Z approx. 3000mm/2000mm/2000mm, weight approx. 4300kg-4500kg. Inspection by appointment possible.

This 9-axis TRAUB TNL 32 swiss type turning machine was manufactured in 2014. It features a TX8i-s control with a 64-bit RISC CNC/PLC processor, color TFT display, and electronic handwheel. The main spindle supports a 32 mm bore, and the machine includes a sub-spindle with a C-axis. It offers a dual-driven upper tool turret and a lower turret with nine tool holders. Consider the opportunity to buy this TRAUB TNL 32 swiss type turning machine. Contact us for more information.

TRAUB TNS 65 D / 5 - Axis CNC Lathe -For complete technical data, see data sheets -Control TX8 D -Built in 1994 -Rod passage 65 mm -Hydraulic bar loading magazine -Various driven tool holders -Tool holder -Three-jaw chuck -Complete documentation Hebkn Auovug Uls S Tel

GENERAL Project No.: 905832 Quantity: 1 pcs. Manufacturer: TRAUB Type: TNL 20 - 9B Control: Traub TX 8i-s Year of Make: 2022 Condition: Used machine Approx. (hrs): 33180 Program run approx. (hrs.): 16914 DESCRIPTION TURNING Max. turning diameter 20 mm Max. speed main spindle 10,000 1/min Spindle aperture main spindle 20 mm Axes on the main spindle unit C Max. speed sub-spindle 10,000 1/min Spindle passage sub-spindle 20 mm Axes on the sub-spindle unit X/Z/C Tool carrier at the top Number of stations 8 Axes X/Y/Z/H/B Bottom Tool Carrier Number of stations 8 Axes X/Y/Z/H Residual apparatus Number of stations 4 OTHER EQUIPMENT Tool breakage monitoring Splash protection cladding with fully encapsulated working area Lighting in the work area Oil/Emulsion Mist Extraction System Hinge belt chip conveyor Engine is/was operated with oil Co ...

This 7-axis TRAUB TNL 32-7 horizontal turning machine was manufactured in 2013. Ideal for precision turning operations, it offers robust performance and reliability. Consider the opportunity to buy this TRAUB TNL 32-7 horizontal turning machine. Contact us for more information.

Traub TNL 20 – 9B Machine No. 11920182 Year of construction 2022 TX8i-s control (with Polyform / Helical / 19" multi-touch with gesture technology) Alternating operation: Use as a short or long-turning lathe Main spindle D20 (with 10,000 rpm) with C-axis Sub-spindle D20 with X/Z/C axis Tool carrier top X/Y/Z/H/B axis with 8 tool holders Tool carrier lower X/Y/Z/H axis with 8 tool holders Recirculating apparatus with 4 tool positions Cooling lubricant mist extraction and filter system Automatic CO2 extinguishing system Accuracy Package Tool breakage control device (Wkz beam above) Tool breakage control device (Wkz beam below) Hinge Belt Chip Conveyor Coolant system with 20 to 80 bar pump Charging magazine FMB Turbo 2-20 Sliding device for loading magazine Portal workpiece removal unit Workpiece conveyor belt

turning diameter: 480 mm turning length: 800 mm control: System TX8F turning diameter over slide: 240 mm spindle passage: 65 mm chuck diameter: 200 mm turning speeds: 4000 U/min power capacity: 30 kW total power requirement: kW weight of the machine ca.: 4,3 t dimensions of the machine ca.: m powered tools The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle passage: 80 mm max. turning diameter: 460 mm Max. Turning length: 1.000 mm control: System TX 8F max. Spindle speed: 2.800 U/min. CNC lathe | TRAUB - TNA 500 The machine is in a well-maintained condition. The machine videos from the production plant will be shared on request. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags:TNA500 | TNA-500 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle passage: 80 mm max. turning diameter: 395 mm Max. Turning length: 750 mm control: System TX 8H max. Spindle speed: 3.150 U/min. CNC lathe | TRAUB - TNA 400 The machine is in a well-maintained condition. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags:TNA400 | TNA-400 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

dial indicator, dial gauge, measuring probe, measuring probe, precision dial gauge -Manufacturer: Traub, precision dial gauge -Measuring range: 0-5 mm -Reading accuracy: 0.01 mm -Art.No.: Hoffmann 43250 5/40 -Number: 4x dial gauge available -Price: per piece -Case dimensions: 105/60/H25 mm -Weight: 0.1 kg/piece

CONTROLS   CNC controls TRAUB TX8I-S BASIC FUNCTIONS   number of spindles: 2   number of c-axes: 2 WORKING RANGE TURNING   turning diameter (max): 20 mm   bar diameter (max): 20 mm MAIN SPINDLE   spindle revolutions (max): 10000 /min   c-axis: yes COUNTER SPINDLE   spindle revolutions (max): 10000 /min   c-axis: yes ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz ATTACHMENTS (TURNING)   chip conveyor: yes   through spindle coolant attachment: yes   hydraulic system: yes   European CE standards: yes - Interchangeable operation: Can be used as a short- or long-turning lathe Equipment: Number of axes: 12 (15) - Main spindle C - Sub-spindle D20 with X/Z/C axes - Upper tool gantry with X/Y/Z/H/B axes and 8 tool ho ...

4 x Lathes Traub TND 400

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment

Tip height: 330 mm centre distance: 1500 mm circular diameter: bed 690 mm spindle bore: 82 mm spindle retainer: short taper size 8 taper tailstock: 6 MK spindle speed: 7.1-1400 rpm feeds: longitudinal/plan 0.05 112/0.025 56 mm / U thread pitches: 0.25-560 mm electrical connection: 380 V, 15 kW space: 3350 x 1800 x 1400 mm weight: 4800 kg

Tip height: about quilt 300 mm centre distance: 1500 mm circular diameter: upper bed 640 mm spindle bore: 67 mm spindle retainer: Gr. 8 taper tailstock: 5 MK spindle speed: 18 - 900 rpm feeds: longitudinal/plan 0.063 0.032 2.1 mm / U thread pitches: 0.5-14 mm electrical connection: 380 V, approx. 7.5 kW space: 1550 x 3100 x 1250 mm weight: approx. 3500 kg hardly used and therefore well-preserved bed lathe

Made in Italy machine according to DIN 8606 Tip height: 260 mm Turning diameter over bed: 520 mm Swing over carriage: 300 mm Centre distance: 1500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (24) 9-1600 rpm (option 11-2000 U/min) Engine output: 5.5 kW (option: 7.5 kW) feed Z-axis: (93) 0.028 6.43 mm / Rev Feed x axis: (93) 0.012 2.73 mm / Rev Thread, metric: (54) 0.5-224 mm Thread, Witworth: (55) 72 - 1/8 TPI Thread, module: (54) 0.5-112 mm Thread, Diametral Pitch: (54) 64 - 1/4 D.P.. Cross slide Lxw: 650 x 230 mm Transversal carriage stroke: 340 mm Upper carriage Lxw: 350 x 150 mm Upper carriage stroke: 150 mm Tailstock Quill diameter: 85 mm Tailstock Quill stroke: 200 mm Tailstock taper: MK 5 Weight: 3,100 kg Facilities: -Movement of the tailstock pneumatically supported -Acceptance Protocol according to DIN 8605, ...

Precision lathe with cycle automatic Make: Hamlet Model: E 70 x 2000 Year of construction: 1997 For food and feed shaft machining Technical data: Workspace Turning length: 2000 mm Swing over bed: 720 mm Swing over cross slide plan: 430 mm Displacement of the plan slide: 410 mm Bed width: 480 mm 3prpek3uq Spindle nose ACC. to DIN 55027: size 11 Spindle diameter in front bearing: 150 mm Spindle bore: 106 mm Inside taper of the main spindle: 112 metric Control: Siemens 805 Spindle gearbox newly stored according to the manufacturer ca. 2.500 EUR

Made in Italy machine according to DIN 8605: lathe with increased accuracy. Tip height: 215 mm Turning diameter over bed: 430 mm Swing over carriage: 240 mm Top width: 1,000 mm Bed width: 290 mm Spindle bore: 52 mm Spindle nose: Camlock 6 " Spindle speeds variable: 6 Spindle speeds: 60-2,000 rpm S6/S1 engine power: 4 kW (option: 5.5 kW) feed Z-axis: (38) 0.05 - 1.88 mm / Rev Feed x axis: (38) 0.02 1,084 mm / Rev Thread cutting, metric: (30) 0.45-20 mm Thread cutting, Witworth: (35) 80-1 3/4 TPI Thread cutting, module: (25) 0.25-10 mm Thread cutting, Diametral Pitch: (30) 160-3 1/2 D.P.. Cross slide Lxw: 370 x 190 mm Transversal carriage stroke: 240 mm Upper carriage Lxw: 275 x 115 mm Upper carriage stroke: 120 mm Tailstock Quill diameter: 60 mm Tailstock Quill stroke: 135 mm Tailstock taper: MK 4 Weight: approx. 2,000 kg Facilities: -Infinitely variable  ...

Made in Italy Peak: 300 mm Rotary diameter over bed: 600 mm Rotary diameter via sled: 380 mm Peak: 1,500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (12) 16-1200 U/min Engine power: 9.2 kW (special equipment/standard: 7.5 kW) Reprimor Z-axis: (93) 0.028-6.43 mm/U Feed X-axis: (93) 0.012-2.73 mm/U Thread, metric: (54) 0.5-224 mm Threads, Witworth: (55) 72-1/4 x8 TPI Thread, module: (54) 0.5-112 mm Threads, Diametral Pitch: (54) 64 -1/4 D.P. Crossleigh hub: 340 mm Oberslitten hub: 150 mm Riding stock pinol diameter: 85 mm Riding stove pinol stroke: 200 mm Ridstock cone: MK 5 Weight: About 3,200 kg Facilities: -3-axis digital display -Step-by-step speed adjustment -Automatic lubrication of the management railways -LED lighting -Micrometer bed strike -9.2 kW engine instead of 7.5 kW -Quick change holder system mul ...

Tip width: 700 mm Tip height: 150 mm Circulation diameter over bed: 300 mm Bed width: 180 mm Spindle bore: 38 mm Mounting in the spindle bore: MK 5 Speed range, infinitely variable: 30 - 450 / 150 - 3000 rpm Range of longitudinal feeds: (14) 0.07 - 0.65 mm/U Area of plan feeds: (11) 0.03 - 0.12 mm/U Metric threads: (18) 0.2 - 3.5 mm Inch Thread: (21) 8 - 56 Gg/1" Pinole path: 85 mm Pinole holder: MK 3 Engine power S1 100%: 1.5 kW / 400 V Motor recording power S6 40%: 2.2 kW / 400 V Machine dimensions (W x D x H): 1380 x 640 x 500 mm Weight approx.: 235 kg without base Delivery: - Digital display - 3-jaw chuck PO3-160 mm steel version - Feed flange 160 mm - Solid grain tips - Interchangeable wheels - Quick-release steel holder size 20-2 with 2 straight inserts - Slip clutch - Micrometer longitudinal stop - Plan sled with top support - Frequency inverter ...

1 x L+Z lathe Colchester Mascot 1600/600 Built: c.1975 Very stable lathe. Ideal machine for locksmiths or agricultural machine mechanics. Technical data: Turning diameter over crimson: 710 mm Turning diameter over bed:432 mm Turning diameter via support:267 mm Turning length: 1,000 mm Spindle speeds:20 - 1600 rpm Spindle bore:76 mm Drive motor:5.6 kW Feeds: 0.6 - 10 mm/u Metric threads: 40 (0.4 - 14 mm incline) Machine weight approx.:2000 kg Room requirements approx.:l:2.65 x w:1.1 x h:1.6 m Accessories: 3 - Jaw lining UVA 310 mm 4 Set of change jaws Bfraed8ae0 Tripan quick-change system 4 x Interchangeable holder running counter tip in tailstock (MK 5) Countertip in spindle Alternating wheels Manual Mudguard complete documentation The machine can be inspected at our warehouse in Reichenbach under electricity.

Stepless guide and pull spindle lathe TC 250 V Peak height: 250 mm Circulation diameter via slide: 350 mm Orbital diameter in the croation: 695 mm Tip width: 1500 mm Spindle nose: DIN 55029, Camlock, size 6 Bed width: 305 mm Cross slide path: 272 mm Upper slide path: 155 mm Spindle bore: 80 mm Speed range, infinitely variable: (3) 30 - 2200 rpm Whitworth Thread: (45) 2 - 72 TPI Metric Thread: (39) 0.2 - 14 mm Diametral Thread: (21) 8 - 44 D.P.I Module Thread: (18) 0.3 - 3.5 module Longitudinal feeds: 0.04 - 1.00 mm/U Flat feeds: 0.02 - 0.50 mm/U Engine power: 5.5 kW Dimensions LxWxH, approx.: 2900 x 1175 x 2040 mm Weight, approx.: 2,200 kg characteristics: - Toolmaker accuracy - Stepless speed control (3 pre-level steps) - Finely-balanced main spindle - Stable machine bed with hardened and ground guides - One-piece cast base - Adjustable precision cone roll ...

Machine details Stock number 1105-03330 Machine type guide and pull spindle lathe Make ERNAULT-SOMUA Type Cholet 550 Year of construction 1990 Control type conventional Storage location FRANCE Country of origin France Delivery time immediately Freight base EX WORK price Technical details Turning diameter over bed 550 mm Turning diameter via support 500 mm Turning length 1100 mm Tip height 250 mm Spindle bore 52 mm Inner cone 136 Spindle speeds 32-1800 rpm Feeds - bed slide / lengthwise 0.05-07 mm/w Feeds flat slide 0.033-0.45 mm/min Total power requirement 13 kW Weight of the machine ca. 2,3 t Space requirement approx. 2870 x 940 x 1400 m Information accessories: PARAT steel holder 4 STUCK 3 bake lining dia 250mm 2 AXIS DIGITAL

Maximum diameter to turn on the bench 2,110 mm Maximum diameter to turn on trolley 1,600 mm Maximum distance between platforms 12,830 mm Spindle hole diameter 155 mm Cone on spindle no. 120 metric Cone on spindle (with reduction) no. 6 clamps Cone on the counterpoint (6-bit reduction) no. 120 metrics Maximum stroke of the counterpoint 400 mm DSeed from the tool support plane to the axis of the 80 mm centers Main engine power 100 HP Spindle speed from 0.9 to 90 rpm with continuous variation Longitudinal feed no. 36: 0.2 to 12.8 Transverse advances No. 36: 0.1 to 6.6 Metric fillets #26: 1 to 42 Whitwoth fillets #17: 0.5 to 11 Quick forwards Maximum permissible load on the tips 50-60 ton Refrigerant liquid system

Peak height 2,600 mm Point distance 10,000 mm Closed bench 2,000x6,000 mm To be completed with CNC

Max length 8,000 mm Maximum turning diameter above wagon 1,250 mm Max vault over guides 1,650 mm Maximum turning diameter under spindle 2,000x700 mm Displayed – two axes

IN THE RETROFITTING PHASE Height tips 900 mm Point distance 7,000 mm Turnerable diameter on the bench 1,850 mm Turnerable diameter on trolley 1,350 mm Turnerable diameter on recess 2,150 mm Bench width 1,000 mm Bar passage diameter 206 mm ASA A1 15" spindle attachment Top speed 300 RPM Diameter of the tank counterpoint 220 mm Row stroke counterpoint 450 mm Withworth threads - metrics - diametrics - module Weight allowed between tips without lunettes 15 ton Weight allowed between tips with a 20-ton bezel

Height tips 220 mm Useful length 1,000 mm 42 mm bar pass

Equipped with no. 03 guides Overhauled with: guide grinding, CN conversion, new electrical and hydraulic system, hydraulic self-centering installation, shaving conveyor; CN Fagor 8055 Numerical Control – BT Maximum turnerable diameter 1800 mm 3-grife hydraulic self-centering with a diameter of 1450 mm with tightening force 30 Ton with 30 bar clamp L max turnerable 3000 mm Spindle engine power 110 Kw Maximum rotation speed 180 rpm Fast value axles 4000 mm/min M3/M4 Spindle Rotation Inversion Possibility 4 speed ranges Hydraulic counterpoint Maximum capacity of workpiece on counterpoint 12500 Kg It is currently possible to work details of up to 3000 mm length but the extension pallet is available to be able to work details up to 8 m in length. (un revised); Machine installed and working

Maximum turnerable diameter: 1040 mm Turning diameter above the wagon: 620 mm Maximum workable length: 5200 mm Spindle power: 40 kW CNC ECS Optical line measurement system Maximum flow between tips: 10 tons Machine complete with chip evacuator, 4-position hydraulic turret, safety shelters in compliance and spindle 3-jaw hydraulic self-centering AUTOBLOCK; Various accessories available (tool case, stretchers, lunettes...) EC 2018 remarking possibility

Platò diameter: 1300 mm Used lathe in good condition, available unless sold.

peak heights: 250 mm point distance: 1500 mm bar pass: 105 mm

Main technical data: - Tip distance: 6000 mm - Tip height: 640 mm - Lathe complete with spindle, tailstock and tool turret

Code 2841 Description Centerlathe Make Graziano Model SAG 12 Serial No. SAG 12 N 4475 Year 1976 Distance between centers 800 mm Swing over bed 320 mm Swing over gap 420 mm Swing over crossslide 176 mm Spindle bore 41 mm Number of spindle speeds 8 Spindle speeds 75-2000 rpm Feeds Longitude and cross Motor power 2 and 3 kW – 380 Volts Thread cutting Metric, W.W., Modul and D.P. Accessoiries 3 chuck Condition Machine is in normal condition.

Code 2876 Description Centerlathe Make Graziano Model SAG 12 Serial No. SAG 12 N 5150 Year 1980 Distance between centers 800 mm Swing over bed 320 mm Swing over gap 420 mm Swing over crossslide 176 mm Spindle bore 41 mm Number of spindle speeds 8 Spindle speeds 75-2000 rpm Feeds Longitude and cross Motor power 2 and 3 kW – 380 Volts Thread cutting Metric, W.W., Modul and D.P. Accessoiries 3 chuck Steadies Rapid toolpost Condition Machine is in normal condition.

Machine Details Warehouse number 1105-03364 Machine type lead and pull spindle lathe Make CAZENEUVE Type HB 525 X 1000 Year of construction 1965 Conventional control type Storage location HAGUENAU Country of origin France Delivery time Immediate Freight base EX WAREHOUSE Technical details Turning diameter over bed 500 mm Turning diameter via support 220 mm Turning length 1000 mm Spindle speeds 25-2000 rpm various accessories YES Information IN GOOD WORKING CONDITION LOT OFF ACCESSORIS WITH MULTIFIXE TOOL HOLDER SYSTEMS

Tip height: 250 mm Center width: 1500 mm Circulation Ø: over bed 500 mm Spindle bore: 63 mm Spindle holder: Size 8 Mounting cone tailstock: 5 MK Spindle speeds: 170 - 2240 rpm Feeds: longitudinal/flat 0.014-1/0.0063-0.45 mm/U Thread pitches: 0.1 - 112 mm electrical connection: 380 V, 7.5 kW Space requirement: 2300 x 1000 x 1400 mm Weight: 2360 kg

Figure shows MIOTAL® TC 180 x 1000 Center width: 750 mm Center height: 165 mm Orbit diameter over bed: Ø 330 mm Bed width: 190 mm Travel cross slide: 160 mm Travel upper carriage: 90 mm Spindle connection: DIN 55029 (Camlock) D 1 - 4 Spindle bore: Ø 40 mm chuck diameter: Ø 200 mm Spindle speed, infinitely variable: 30 - 2000 rpm Mechanical counters: 3 Motor power: 2.2 kW Longitudinal feeds Z: (40) 0.044 - 1.96 mm/rev Feed rates X: (40) 0.022 - 0.98 mm/rev Thread Metric: (32) 0.4 - 7.0 mm Thread inch: (32) 4 - 56 gg/inch Thread module: (32) 0.4 - 7,0 Diametrical thread: (32) 7.5 - 112 Quill diameter tailstock: Ø 40 mm Inner cone of the quill tailstock: MK 3 Quill stroke: 100 mm Lateral adjustment: ± 10 mm Weight, approx.: 650 kg Characteristics: - Acceptance protocol according to DIN - Precise, hardened and ground guides - Robust headstock with circula ...

Center height: 205 mm Orbit diameter over bed: 410 mm Center width: 1000 mm Bed width: 260 mm Spindle nose: DIN 55029 (Camlock) 9, size 6 Travel cross slide: 220 mm Travel upper slide: 125 mm Spindle bore: 52.5 mm Spindle speeds: 20 - 3000 min-1 Speed control: Infinitely variable Mechanical counters: 2 Motor power: 3.75 kW Coolant pump: 0.13 kW Longitudinal feeds Z: 0.05 - 1.7 mm/rev Face feeds X: 0.025 - 0.85 mm/rev Whitworth Thread: (45) 2 - 72 TPI Metric threads: (39) 0.2 - 14.0 mm Diametric thread: (21) 8 - 44 DP Module thread: (18) 0.3 - 3.5 MP Quill diameter: 52 mm Inner cone quilt: MK 4 Quill stroke: 150 mm Dimensions: 2270 x 1120 x 1900 mm Weight, approx.: 1500 kg Characteristics: - Tool mesh accuracy according to DIN 8605 - Infinitely variable speed control (2 countershafts) - Finely balanced main spindle - Stable machine bed with hardened and gro ...

Center width: 1000 mm Center height: 178 mm Orbit diameter over bed: Ø 356 mm Bed width: 190 mm Travel cross slide: 160 mm Travel upper carriage: 90 mm Spindle connection: DIN 55029 (Camlock) D 1 - 4 Spindle bore: Ø 40 mm chuck diameter: Ø 200 mm Spindle speed, infinitely variable: 30 - 2000 rpm Mechanical counters: 3 Motor power: 2.2 kW Longitudinal feeds Z: (40) 0.044 - 1.96 mm/rev Feed rates X: (40) 0.022 - 0.98 mm/rev Thread Metric: (32) 0.4 - 7.0 mm Thread inch: (32) 4 - 56 gg/inch Thread module: (32) 0.4 - 7,0  Diametrical thread: (32) 7.5 - 112  Quill diameter tailstock: Ø 40 mm Inner cone of the quill tailstock: MK 3 Quill stroke: 100 mm Lateral adjustment: ± 10 mm Weight, approx.: 750 kg Characteristics: - Acceptance protocol according to DIN - Precise, hardened and ground guides - Robust headstock with circulating oil lubrication, precision-be ...
