stanko boring mills and machining centers used for sale

HBM STANKO 2A622 CNC

STANKO 2N636GF1 Horizontal boring mill MITSUBISHI controler, new 2013 Spindle 125 mm Table 1600 x 1800 mm Max. horizontal (axial) movement of the spindle (Z') - 1000 mm Max. vertical movement of the headstock (Y)- 1400 mm Max. longitudinal movement of table (Z, W) - 1600 mm Max. lateral movement of table (X) - 1400 mm The largest mass of the processed product - 8 tons Spindle speed - 8 ... 1250 rpm Spindle Drive Electric Motor - 20 kW The weight of the machine is full - 34.6 tons

1 Pc Used Single Column Carousel Lathe Make STANKO Mod. 1514 Bauj. 1988 Face plate diameter 1400 mm Circumferential diameter 1600 mm Turning height 1000 mm Workpiece weight 8 t Face plate speed range 3Stages 1 - 355 rpm Main drive motor 55 kW Machine weight approx. 25 t CNC SIEMENS SINUMERIK 810T 1 pc. used two-stand vertical lathe Brand STANKO Mod. 1514 year of construction 1988 Face plate diameter 1400 mm Swing diameter 1600 mm Turning height 1000 mm Workpiece weight 8 t Face plate speed range 1 - 355 rpm Main drive motor 55 kW Machine weight approx. 25 t CNC SIEMENS SINUMERIK 810 T

Single column - eccentric press, STANKO, K 1430 A - 100t BJ. 1985 Tech. Condition very good, - pressure: 100 t -Projection: 320 mm -Stroke: 10-130 mm -Mounting height: 400 mm -Table size: 850 x 560 mm x 100 mm -Tappet adjustment: 100 mm -Stroke: 50-53 / per min. -Machine weight: 8800 kg -Dimensions (W x D x H): 1.60 x 1.85 x 2.9 m Camshaft gear ROSS/Herion Herion valve Auxiliary brake DESCH Lutex ZB 200 Two hand release -transverse eccentric shaft and pneumatically actuated clutch / brake Komi nation -suitable for inlays in two-hand operation -secure setting -Single stroke, continuous stroke MOT testing in 04/2016

Max. diameter of initial blank: 30 mm Blank length: -Min.: 120 mm -Max.: 300 mm Max. diameter of upset flange: 60 mm Upset slide nominal force: 2500 kN Max. force on clamping slide with dies closed: 2500 kN Stroke: -Movable die: 100 mm -Upset slide (full): 220 mm -Die closing: 140 mm Slide strokes per minute: 45 Machine overall dimensions: -Length: 6050 mm -Width: 4600 mm -Height: 2260 mm Machine weight: 24680 kg

Sell a well-preserved triple honing machine from Stanko. The machine was in use until it was dismantled. The dimensions of the machine are LXWXH 800mm x 1100mm x 1650mm. The weight is 800kg. The dimensions of the control cabinet are LxWxH 350mm x 950mm x 1550mm. The weight is approx. 150kg. If you have any questions, just get in touch. The machine can be viewed by prior appointment. Shipping, on 2 pallets, is no problem. Please inquire about shipping costs with zip code. Furthermore, the machine can be delivered and unloaded in the immediate vicinity with its own crane truck and against assumption of costs. On-site loading is no problem and free of charge. The sale is without warranty and guarantee. The return is excluded. All information without guarantee.

Flat slider for drilling rig for mounting in the drilling spindle Tool holder SK50

Capacity, ton 800 Movable die stroke, mm 180 Max. upsetting ram stroke, mm 380 Upsetting ram workstore, mm 250 Upsetting ram return stroke with closed dies, mm 130 Distance bentween upsetting ram and dies stroke forward, mm 140 Number of ram strokes per minute 35 Die dimensions, mm 590 x 220 x 660 Electric motor power, kW 40 Dimensions: mm 6300 x 3900 x 2850 Weight: kg app. 80800

Max. diameter of initial blank: 30 mm Blank length: -Min.: 120 mm -Max.: 300 mm Max. diameter of upset flange: 60 mm Upset slide nominal force: 2500 kN Max. force on clamping slide with dies closed: 2500 kN Stroke: -Movable die: 100 mm -Upset slide (full): 220 mm -Die closing: 140 mm Slide strokes per minute: 45 Machine overall dimensions: -Length: 6050 mm -Width: 4600 mm -Height: 2260 mm Machine weight: 24680 kg

- The largest diameter of the workpiece, mm 90 - The maximum diameter of the planted flange, mm 120 - Rated force of the landing slide, kN 6300 - The force perceived by the clamping slide with closed dies, kN 6300 - stroke of the landing slider, mm 350 - The stroke of the landing slide after closing the dies, mm 230 - The frequency of continuous idle slider per minute, not less than 42 - Power of the electric motor 45 - Dimensions, mm length 4835 width 3450 height 2880

Semi-automatic machine Workpiece diameter 40-400 mm Max. workpiece length 2000 mm Spindle rotation frequency 16-1460 rpm Workpiece spindle speed 3-180 rpm Max. diameter of grinding: -In steady rest 120 mm -Without steady rest 360 mm Max. grinding length 1800 mm Height of centers above the table- 210 mm Max. work-piece weight- 1000 kg Grinding wheel dia min/max 500-750 mm Max. length of table travel- 1800 mm Spindle taper- Morze 6 Motor power: 13 kW Periodical feed of grinding headstock: -Max.: 0,030±0,0025 mm -Min.: 0,0025±0,0006 mm Max. axial travel of grinding headstock spindle: ±2,5 mm

Stanko Ø 400 mm

grinding diameter: 610 mm grinding length: 3000 mm centre height: mm total power requirement: 30 kW weight of the machine ca.: t dimensions of the machine ca.: m Stocknumber 1310015 Type of machine Cylindric grinder Make STANKO Type 3M193/149 Build in 1988 Max. grinding diameter 610 Max. grinding length 3000 Grinding wheel diameter 700 Grinding wheel widht 75 Total Power (KW) 30 Additional information Incl. 2 staedys The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Gear hobbing machine 53A50H, STANKO, with change gears

Gear slotting 5140, Russia production, with change gears

faceplate diameter: 1130 mm swing diameter: 1500 mm turning height: 1100 mm faceplate diameter: mm swing diameter: mm total power requirement: 30 kW weight of the machine ca.: t dimensions of the machine ca.: m Brand: STANKO TYPEL 1512 Build in: 1977 with pneumatick 3-jaw stuck 1130 mm max. turning diameter 1500 mm max. turning height 1100 mm Motor 30 KW The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Dreh-Øüber Bett: 400 mm Dreh-Øüber Support: 220 mm turning length: 1000 mm spindle turning speed range: 12,5 - 2000 U/min spindle taper: Bajonett 55022 spindle bore: 47 mm feeds - longitudinal: 0,07 - 4,16 mm/U feeds - cross: 0.035 - 2,08 mm/U thread - mm pitch: 0,87 - 192 mm thread - inch: 2 - 24 Gang/ inch. rapid travel - longitudinal/face: 3,4 / 1,7 m/min spindle drive: 11 kW power capacity: 13 kW weight of the machine ca.: 2,8 t dimensions of the machine ca.: 2,8 x 1,2 x 1,5 m • 3-jaw chuck Ø 250 mm, 4-jaw chuck 200 mm, • 2-axis- digital display, ANILAM WIZARD LATHE - refinished in 1992, The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Nominal weight of the falling parts: 750 kg Max. number of blows per minute: 105 Kinetic energy: 1900 kg Distance from an axis of the slider up to bed: 750 mm Cylinder diameter: 600 mm Diameter of the plunger: 630 mm Max. headstock travel: 835 mm Dimensions: -Left-to-right: 3940 mm -Front-to-back: 1430 mm Height above floor level: 3260 mm Weight: -With an anvil-block: 25600 kg -Without an anvil-block: 16600 kg

x-travel:630 mm y-travel:200 mm z-travel:360 mm total power requirement:7,5 kW weight of the machine ca.:2,5 t dimensions of the machine ca.:1500 x 1800 x 1900 mm spindle taper:SK40 table-size:250 x 1100 mm

rotary table dia.:400 mm weight of the machine ca.:130 kg dimensions of the machine ca.:500 x 600 x 160 mm

faceplate diameter:400 mm weight of the machine ca.:60 kg

Thread milling machine STANKO 5350 without change gears.

Key data: 50 mm, 2000 1/min

Solid bench boring mill of the brand Stanko-Import, model 2H125 Stanko import Type: 2H125 Year of construction approx. 1975 massive rod drill with MK4 mount in good condition. Dimensions: L860 x W850 x H2400 Weight approx.: 1050 kg Motor 2,2Kw 380V Drilling depth gauge Automatic threading (RE-LI)up to M24 Drehz. 45 -2000 in 12 stages Feed 0.1-1.6 / Umdr.in 9 levels Projection 200mm Adjustment ranges: quill stroke 280mm Drill head 170mm Table 270mm, 400x400 The machine can be viewed at any time. On-site loading can be easily carried out with a forklift. Transport possible throughout Germany via freight forwarder.

model is 5B 150P - table diameter is 800mm - max stroke is 160mm - control is Omron NS12 - logic equipment and sensors: Omron CS1 series CPU control cards Electric drawings and safety and instructions for use are updated at 2004 same as the modernisation

Max. diameter of initial blank: 30 mm Blank length: -Min.: 120 mm -Max.: 300 mm Max. diameter of upset flange: 60 mm Upset slide nominal force: 2500 kN Max. force on clamping slide with dies closed: 2500 kN Stroke: -Movable die: 100 mm -Upset slide (full): 220 mm -Die closing: 140 mm Slide strokes per minute: 45 Machine overall dimensions: -Length: 6050 mm -Width: 4600 mm -Height: 2260 mm Machine weight: 24680 kg

Various fixed steady rests for lathes up to center height approx. 600 mm

for production of forgings by forging of ferrous, non-ferrous metals and alloys in the hammer dies model M212 Impact energy, 50 kJ Nominal weight of falling parts, kg 2000 Stroke woman, mm 1200 Stroke woman, mm 1200 Machine dimensions Length Width Height (mm) 3650X1660X5310 Weight kg 58.310, spare parts available

faceplate diameter: 2200 mm swing diameter: 2500 mm turning height: 1600 mm Control: Siemens chip conveyor: total power requirement: 100 kW weight of the machine ca.: 35 t dimensions of the machine ca.: m vertical lathe with two RAM, faceplate Ø 2000 mm, SPS supported control for storable cycles, RAM/channel 1 two Capto recordings C8 with Internal tool cooling, RAM/channel 2, two Capto mounts C8 with internal tool cooling, Chip conveyor / spindle Z-axis as new / without KSS Filter unit / 3 glass scales are missing / control panel is disconnected but complete and OK, a 90 degree angle is missing from the control panel arm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Machine vise STANKO / BZSP (Made in USSR) jaw width: 300 mm span: 20 - 275 mm on rotary table with graduation solid design ! Dimensions: 550 x 370 x 225 mm

Rotary table STANKO 720440023 Ø 400 mm Table height: 160 mm used, tested ! Dimensions: 500 x 600 x 160 mm

Machine vise STANKO / BZSP (Made in USSR) Model: 7200-0221 jaw width: 200 mm jaw height: 65 mm Span: 0...260 mm on rotary table with graduation 360° rotatable solid design !' Dimensions: 600 x 370 x 185 mm

Machine vise STANKO jaw width: 250 mm span: 220 mm jaw height: 70 mm good condition ! Dimensions: 650 x 300 x 180 mm

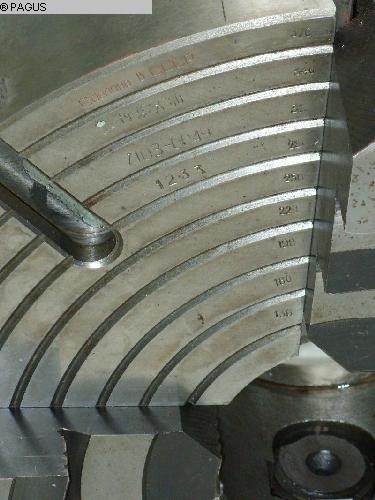

Face Plate STANKO 7103-0049 Outer Ø: 400 mm Bolt Circle Ø : 135 mm Bore Ø: 100 mm New ! preserved ! Dimensions: 400 x 400 x 165 mm

Clamping jaws, jaw boxes for face plate type 1516

Spline shaft Grinding machine STANKO 3M451B/1500 with accessories.

sheet width: 2050 mm plate thickness: 8 mm distance between columns: mm electrical: . weight of the machine ca.: 6,3 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 40 t throat: 225 mm stroke: mm total power requirement: 4,7 kW weight of the machine ca.: 3,45 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 75 mm total power requirement: 14 kW weight of the machine ca.: 10 t - capacity at boring: 75 mm ( St 45 ) - spindle diam. 115 mm - taper in spindle: 110 mm/ Morse 6 - distance column to drilling spindel: 500.. . 2000 mm - vertical adjustment of arm: max. 1100 mm - distance column to drilling spindel: 450.. 2000 mm - drilling depth: 450 mm - range of speeds: 12,5 ...1600 U/ min // rpm - feed: 0,63 ... 3,15 mm / U - angle of arm: 360 ° The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Vertical turning lathe SEDIN 1512 CNC CNC control- Eastern origin Table diameter: 1120 mm Max work-piece: -Diameter: 1250 mm -Height: 1000 mm -Weight: 3200 kg Table speeds range per 1 min: 5-250 Tool dimensions: 25×40 Max horizontal travel of the vertical ram: 775 mm Max vertical travel of the vertical ram: 700 mm Max horizontal travel of the horizontal ram: 630 mm Max vertical travel of the horizontal ram: 1000 mm Max turning angle of the vertical ram: 45 degree Cross rail: -Travel: 660 mm -Speed: 400 mm/min Main motor power: 30 kW Overall dimensions: 2750×2975×4100 mm Machine weight: 15700 kg

SEDIN 1516 Vertical Turret Lathe Turning diameter: 1600 mm Table diameter: 1400 mm Max workpiece height: 1000 mm Max table loading: 5000 kg Max horizontal ram travel: 630 mm Max horizontal carriage travel: 975 mm Max vertical ram travel: 700 mm Max vertical carriage travel: 1000 mm No of feed carriages: 16 Carriages feed range: 0,07-12,5 mm/rev Distance between table and ram: 0-1225mm Fast stroke: 2000 mm/min Main motor power: 30 kW Speeds range: 4 - 200 rpm Dimensions: 3190x3360x4100 mm Weight: 19200 kg Side support

SEDIN 1516 CNC Vertical Turret Lathe CNC control- Eastern origin Turning diameter: 1600 mm Table diameter: 1400 mm Max workpiece height: 1000 mm Max table loading: 5000 kg Max horizontal ram travel: 630 mm Max horizontal carriage travel: 975 mm Max vertical ram travel: 700 mm Max vertical carriage travel: 1000 mm No of feed carriages: 16 Carriages feed range: 0,07-12,5 mm/rev Distance between table and ram: 0-1225mm Fast stroke: 2000 mm/min Main motor power: 30 kW Speeds range: 4 - 200 rpm Dimensions: 3190x3360x4100 mm Weight: 18200 kg

Gear hobbing machine STANKO 5K32 with accessories.

pressure: 100 t throat: 355 mm stroke: mm total power requirement: 11,5 kW weight of the machine ca.: 8,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Capacity (ton) 315 Table size, mm 2500 x 1250 Slider stroke, mm 400 Shut height,mm 750 Strokes per min 25 Press weight, kg 50900

STANKO 5K822B Thread Grinding machine Grinding diameter 200 mm Grinding length 500 mm Max. grinding wheel diameter 400 mm Max. workpiece weight 30 kg Machine weight: approx. 4500 kg -for grinding of cylindrical and tapered, left and right, single-start and multi-start internal and outernal threads of various profiles.

I am selling this machine. Plugged in, can be tested. We can send a video of the machine via WhatsApp. The machine is well equipped Horizontal Gear Hobbing Machine Kolomna model 5B370. YOM – 1974. Max.working diameter- 500 mm; Max. module - 20; Max.workpiece lenght- 3 000mm; Very good working condition. Main technical data: Max working diameter:500 mm; Max diam. of workpiece:900 mm; Max workpiece length:3000 mm; Max modul of workpiece, mm: -by hobbing cutter 20; -by disk cutter 25; Max tilt angle:+45; Max weight of workpiece: 4000kg; Max diam. of hobbing cutters: 300mm; Max length of hobbing cutters:400 mm; Axial feeding: 0,02-575mm/min; Radial feeding: 0,36-7,1mm/min; Overall dimensions, mm: -length: 10770; -width: 4070; -height: 2580; Weight: 27100 kg.

- Table rotation 360 Gr - Head tilting possible up to 10 Gr - Big Cabinet with slotting key way tools - Lubrication  - Complete Overhauled in 1994

gebr. Milling machine, Fabr. Stanko Type 6175 Travel X/Y/Z: 320/210/300 mm Spindle speed: 50 - 2040 rpm Feed speed: 13 - 395 mm/min Drive power: 1.5 kW Tool holder: 4 MK Groove width: 14 mm Number of grooves: 3 pieces Groove spacing: 50 mm

max. grinding diameter: 200 mm grinding length: 450 mm workpiece length: / mm workpiece height: 220 mm total power requirement: 1,14 kW weight of the machine ca.: 1,5 t dimensions of the machine ca.: 1,7 x 1,6 x 1,6 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter over bed: 1020 mm turning diameter over slide rest: 660 mm turning length: 5000 mm min./max workpiece dia.: 210 - 880 mm spindle diameter: 115 mm spindle taper: 140 spindle turning speed range: 5 - 500 U/min feeds - longitudinal: 0,20 - 3,05 mm/U feeds - cross: 0,07 - 1,04 mm/U slide adjustment: longitudinal: 5000 mm cross: 680 mm workpiece weight: 5000 kg main drive motor: 22 kW thread - mm pitch: 1 - 120 mm thread - module: 0,5 - 30 thread - inch: 28 / 1/4 spindle bore: 84 mm tail stock: tailstock quill taper MT: 5 tailstock quill stroke: 300 mm total power requirement: 27 kW weight of the machine ca.: 15,5 t dimensions of the machine ca.: 6,5 x 2,2 x 1,8 m - 1 fixed bezel - Faceplate Ø 1000 mm - 4-fold steel holder - Tailstock - 2-track bed design The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Nominal weight of the falling parts: 750 kg Max. number of blows per minute: 105 Kinetic energy: 1900 kg Distance from an axis of the slider up to bed: 750 mm Cylinder diameter: 600 mm Diameter of the plunger: 630 mm Max. headstock travel: 835 mm Dimensions: -Left-to-right: 3940 mm -Front-to-back: 1430 mm Height above floor level: 3260 mm Weight: -With an anvil-block: 25600 kg -Without an anvil-block: 16600 kg

Stanko 2K52 Admission in drilling-spindle (morse): Mk3 Base dimensions (1) Table dim (2) : 1.120 × 550 mm Longitudinal travel drilling-head (X-axis): 500 mm DEPTH OF THROAT: 800 mm Speeds: 63 tot ~ 1.600 rpm Height: 1900 mm Weight: 900 mm ACCESSORIES: 2000 mm Cooling system: 1620 kg Clamping system: yes

turning diameter over bed: 500 mm turning diameter over slide rest: 320 mm turning length: 2100 mm centre height: 250 mm : mm spindle bore: 60 mm spindle turning speed range: 11 - 2000 U/min total power requirement: 7,0 kW weight of the machine ca.: 2,9 t dimensions of the machine ca.: 4,3 x 1,2 x 1,3 mm Lathes with: - 4-position tool post - 3-jaw chuck 315mm - Centering point The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Gear slotting machine STANKO 7403

Gear slotting machine STANKO 5140

Gear Slotting machine 5A140

arm length: 1600 mm taper MK: 5 : Würfel The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

SEDIN 1512 vertical lathe YOM 1987 Table diameter 1120 mm Max. turning diameter 1250 mm Max. workpiece height 1000 mm Max. workpiece weight: - 3200 mm (5…80 rpm) - 1000 mm (250 rpm) Main motor power 30 kW Installed power 37 kW Dimensions L/W/H 2750/2975/4100 mm Weight 16000 kg

Stanko 2M55 Mk5 Admission in drilling-spindle (morse): Mk5 Max drilling capacity: 50 mm Base dimensions (1) Table dim (2) : 1650 x 830 mm Longitudinal travel drilling-head (X-axis): 1375 mm Height-travel arm (Y-axis): 1200 mm Max dist.round column -- drillingspindle: 1600 mm Speeds: 20 -> 2000 rpm Power on the spindle: 4.5 kW Cooling system: 4,7 ton

Cylindrical grinder STANKO 3A164/2000

centre distance: 2000 mm : 600 weight of the machine ca.: 3,2 t Passage 49 mm Digital Lynette The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Universal lathe STANKO 1M63/1250

faceplate diameter: 7100 mm swing diameter: 8000 mm turning height: 5030 mm distance between table and cross rail: 5495 mm workpiece weight: 200 t faceplate turning speed range: 0,3 - 19 U/min main drive motor: 125 kW cross travel: 4400 mm swivel range of slides - vertical: +30 / -15 ° Control: FANUC 18i-TB total power requirement: ca. 155 kW weight of the machine ca.: 291 t dimensions of the machine ca.: 8,6 x 17,6 x 8,3 m 2003 Retrofit and change to CNC - CNC Control Fanuc 18i-TB --2-Axis simultanous (X- & Z) - Z-Axe with hydraulic balance - Digital Scale in X and Z Axis - 2 rams on crossrail The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Machine Stanko 166, 6.3 meter DBC. Completely overhauled in 2024. Electric tailstock. Cable guides installed. Machine in like-new condition. Manual available. Dismantling and loading are included in the price. All headstock components are the same as on the DIP 500. An operator who already operates the DIP 500 can easily operate the 166 DIP 600 without retraining. The machine comes complete with two lunettes, a Ø 300-600 and a new Ø600-1050. Work piece maximum diameter: – above bed: 1250mm – above support: 900mm Work piece maximum length: 6300 mm Spindle speed(rpm): 5…214 Max workpiece weight: 10000 kg Motor power: 30 Kw Machine overall dimensions: – length: 10100mm – width: 2320mm – height: 2000mm Machine weight: 25000kg

faceplate diameter: 4500 mm swing diameter: 5000 mm turning height: 2500 mm workpiece weight max.: 63 t no. of the slides: 2 max. ram stroke: 1600 mm faceplate turning speed range: 0,3 - 32 U/min Anzahl der Drehzahlstufen: 4 total power requirement: 130 kW weight of the machine ca.: 145 t dimensions of the machine ca.: 6,6 x 11,4 x 8,4 m - DRO - 2 swivable Rams (-15° / +40°) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

OIL LATHE STANKO SPINDEL BORE 300 mm

CAPASITY 11 KJ 400 KG

Key data: 840 mm, 3000 mm, 490 mm

Circumferential. over bed 840 mm, over cross slide 490 mm Center width 3000 mm Speed range 10-1250 rpm, spindle nose DIN 55022 Gr. 11 Spindle bore 105 mm Feeds 0.060 - 1.4 mm // 0.024 - 0.518 mm Thread metric 1 - 224 mm Drive power 18.5 kW Quill path / cone 220 mm / MK 6 incl. Hardened and ground bed guides, electromagnetic brake of the main spindle mechanically driven upper support, rapid traverse longitudinal/transverse Multifix steel holder, fixed bezel 2-axis digital display,

Boring power:10 mm weight:590 kg connected load:2 kW dimensions::1500 x 1300 x 2300 mm

Shell end mills, shell mill cutters, milling cutters, disc milling cutters, slot milling cutters -Disc milling cutter: 105 x 19 mm, cross-cut -Socket: Ø 27 mm -Weight: 0.8 kg

Retrofitted in 2005 electrical / CNC control Siemens 840 d Retrofitted in 2012 and 2019 mechanical what made. Technical datas: Rotary spindle speed: 1.25-600 tr/min Spindle maximum power: 55 kW 215 tr/min Horizontal run of the upright on the bench - X 15,000/30,000 mm . X travel 30,000 mm is for both machine Vertical stroke of carriage on upright - Y (mm) 5,600 mm Spindle stroke - 1,100 mm Z: Flowing stroke - w: 1,100 mm Advance - X: 3-5000 mm / min Feed - Y: 3-5000 mm / min Feedrate - Z: 1.5 2,500 mm / min Total weight: 100,000 kg Foundation pit OSTEO. for both machine Length x width x height: 40,000 x 5,000 x 1,800 mm all accessories are available and can be sold at extra costs. For both machines are the following attachments available: â?¢ Chip conveyor For both machines including lubrication and coolend unit for the cutting operation &aci ...

Code 71145 Description Horizontal table borer Make UNION Model BFT 80 / 3-1 Serial number 18301 / 34 Year 1986 Spindle 80 mm Spindle taper ISO 40 Spindle out (W) 710 mm Table 1120 x 1000 mm Cross (X) 1000 mm Longitudinal (Z) 1600 mm Vertical (Y) 1000 mm Distance table-spindle 0 – 1000 mm 24 Spindlespeeds 8 - 1600 rpm Feeds 1 - 2500 mm/min Rapids 3 m/min. Motor 11 kW 380 Volts Size L x W x H 5500 x 3200 x 2800 mm Weigth 9 ton Accessoiries Facing head Ø 460 mm with 180 mm stroke 3 x DRO Heidenhain ( X-Y-Z ) Tool clamping Guideway protection Pendel control Cooling equipment Option ( extra price ) Universal millinghead Condition Machine is in good condition

Code 61080 Description Horizontal table borer Make UNION Model BFT 90/3 at Serial number 25 742 Year 1979 ( 1980 in use ) Control Heidenhain TNC 121 Spindle 102 mm Spindle taper ISO 50 Spindle out (W) 710 mm Table 1400 x 1250 mm Cross (X) 1000 mm Longitudinal (Z) 1600 mm Vertical (Y) 1000 mm Distance table-spindle 0 – 1000 mm Weight on table 3000 kg 24 Spindlespeeds 8 - 1600 rpm Feeds 1 - 3000 mm/min Rapids 3 m/min. Motor 11 kW 380 Volts Accessoiries 3 x DRO Heidenhain ( X-Y-Z ) Tool clamping Guideway protection Pendel control Cooling equipment Option ( extra price ) Universal millinghead with 600 mm gap

SCHARMANN HEAVYCUT 2 WFT 150 CNC Floor type Boring Mill Year 1978 Spindle Diameter: 5.9" (150mm) Milling Spindle Diameter: 11.02 (280mm) Spindle Taper: CAT 50 Ram Cross Section: 11.81" x 11.81" (300x300mm) Vertical Head Travel, Y-Axis: 137.79" (3500mm) Column Travel, X-Axis: 712.59" (18000mm) Quill Travel, Z-Axis: 23.43 (595mm) Ram Travel, W-Axis: 27.6" (700mm) Z & W Axis, Combined: 51.03" (1296mm) Spindle Speeds: 5.5-1000 RPM Spindle Feed Range: 0.003-240 IPM Rapid Traverse: 396 IPM Spindle Motor: 70 HP/ 105 HP EQUIPPED WITH: Heidenhain TNC 407 CNC Controls Ram and Spindle Travel Sliding Way Covers On X-Axis Bed Right Angle Head With 1 Degree Manual Indexing Hardened Ways Re-pained recently
