spinner boring mills and machining centers used for sale

Table clamping area: 600 x 1300 mm Travel x/y/z: 810/580/560 mm Spindle holder: SK 40 ISA Spindle speeds: 8000 rpm Number of toolslots: 40 pieces Feeds: 24000 mm/min Spindle drive: 25 kW electr. Connection: 380/400 V kW Space requirement: 3200 x 2500 x 2900 mm Weight: 9000 kg Control: SIEMENS 810 EN

Key data: 1520 mm, 520 mm, 460 mm

The machine is currently still in Italy and will be available from the end of January 2026. Specifications: Manufacturer: Spinner Type: U5-1520 Year of Make: 2013 Control: Heidenhain TNC 640 Travels X/Y/Z axes: X 1,520 mm Y 520 mm Z 460 mm Travel C-axis| 360° B-axis travel: -5° (-90°)/+110° Milling spindle Speed: 20,000 rpm ("Built-In" direct drive) Tool Tool changer: for 54 tools HSK63 (double arm changer) Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: The machine is closed at the top. Hydraulic brake in both rotary axes B/C TNC Software Option "Automatic Kinematics Measurement Using Test System Cycles" TNC software option "5-axis simultaneous interpolation and 3D machining" Laser probe U-series for non-contact tool measurement Preparation Interface for Blum Infrared Probe TC50/TC52/TC54-20/ ...

General Manufacturer: Spinner Type: U5-1520 Year of Make: 2012 Control: Heidenhain TNC 620 Travel X/Y/Z: X 1,520 mm Y 520 mm Z 460 mm Travel C-axis: 360° B-axis travel: -5°(-50°)/+130° Rapid traverse: 48 m/min Spindle Spindle speed: 12,000 rpm Tool changer: 32-fold Work table Table load: Max. 300 kg Table dimensions: 720×540 mm Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Portable Handwheel HR410 TNC620 Option "Software option 2" TNC620 Option "Software option 3" Glass scales in X/Y/Z Preparation for high-pressure flushing Preparation of the interface for Blum infrared probes

CNC turning center SPINNER TTS 65-Triplex Year of construction 2019 Fanuc Series 31i Model B Travel: X1/X3: 180 mm X2: 180 mm Y1/Y3: 90 mm Z1/Z2: 620 mm Rapid traverse X,Y,Z: 30 m/min Main spindle 22 kW Max. speed: 5,000 rpm Max. bar passage: 65 mm Sub-spindle 22 kW Max. speed: 7,000 rpm 3 x 12-cavity tool turret 3 x 12 powered tool stations Max. speed: 8,000 rpm Separate coolant system with coolant filtration and high-pressure pumps Hyfra coolant temperature control Top Automazioni X-files Bar Feeders, Bars up to 3,000 mm Conveyor CE mark

Key data: 2 mm, 810 mm, 700 mm

General Manufacturer: Spinner Type: MVC1600-B Year of Make: 2006 Switch-on hours: 30,240 h Control: Siemens 810D ShopMill Travels: X 1,600 mm Y 810 mm Z 700 mm Spindle Speed: 6,000 rpm Power: 25 kW Tool holder: SK50 Tool Changer Number of stations: 24-fold with double arm Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Conveyor Blow-out device for spindle High-pressure system IKZ 26 bar Preparation 4th axis Preparation of workpiece probes

Inv. Num. : 8226 Type: VC 810 Producer: Spinner Created: 2005 Parameters: Control system: Siemens Work table length: 1000 mm Work table width: 600 mm Maximum vertical spindle speed: 8000 1/min X-axis travel: 800 mm Y-axis travel: 600 mm Travel Z-axis: 510 mm Machine height: 2600 mm Machine length: 2400 mm Machine width: 2200 mm Machine weight: 6000 kg

Inv. Num. : 8242 Type: VC 560 Producer: Spinner Created: 2007 Parameters: Control system: Siemens Work table length: 650 mm Work table width: 480 mm Maximum vertical spindle speed: 6000 1/min X-axis travel: 560 mm Y-axis travel: 400 mm Travel Z axis: 400 mm Cone: SK 40 Number of all tools: 16 pieces Equipment: Cooling

Control Heidenhain TNC 620 V2 Travel X/Y/Z 760/480/480 mm Speed 12000 rpm. Tool magazine for 24 tools SK40 Table size 900x410 mm Conveyor

General Manufacturer: Spinner Type: TC800-110-MCY Year of Make: 2009 Control: Siemens 840D SolutionLine Travel: X 360 mm Z 900 mm Y -55/+65 mm Switch-on hours: 22,551 h Working spindle Speed: 3,200 rpm Power: 28/35 kW Torque: 175/875 Nm Tool/movement Tool holder: VDI40 Tool turret: 16-speed Condition Condition: Used Functional: tested and fully functional Other equipment and accessories included: C-axis for spindle incl. software option "Transmit" Hydraulic hollow clamping cylinder Electrical interface for connecting rod feeds 840D-SL Software Package "Turning with Shoturn" Tool monitoring 840D-SL 3D Simulation of the Precast Part Tailstock Chip conveyor High Pressure Pump Double filter Mahle Parts catcher V2 TC800 Clamping force control via differential pressure for main spindle

Key data: 850 mm, 510 mm, 510 mm

General Manufacturer: Spinner Type: VC 850 Year of Make: 2021 Control: Siemens 840DE ShopMill Travel X/Y/Z: X 850 mm Y 510 mm Z 510 mm Working spindle Spindle speed: 18,000 rpm Tool holder: HSK63 Tool changer: 32-fold Voltage Operating voltage: 3x400V +/-10% Power frequency: 50Hz (+/-2%) Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Direct measuring systems in X/Y/Z Multifunction handheld operator Chip conveyor Preparation of spindle stylus

Key data: 850 mm, 510 mm, 510 mm

General Manufacturer: Spinner Type: VC 850 Year of Make: 2021 Control: Siemens 840DE ShopMill Travel X/Y/Z: X 850 mm Y 510 mm Z 510 mm Working spindle Spindle speed: 18,000 rpm Tool holder: HSK63 Tool changer: 32-fold Voltage Operating voltage: 3x400V +/-10% Power frequency: 50Hz (+/-2%) Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Direct measuring systems in X/Y/Z Multifunction handheld operator Chip conveyor Preparation of standard probes

Key data: 850 mm, 510 mm, 510 mm

General Manufacturer: Spinner Type: VC 850 Year of Make: 2022 Control: Siemens 840DE ShopMill Travel X/Y/Z: X 850 mm Y 510 mm Z 510 mm Working spindle Spindle speed: 18,000 rpm Tool holder: HSK63 Tool changer: 32-fold Voltage Operating voltage: 3x400V +/-10% Power frequency: 50Hz (+/-2%) Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Direct measuring systems in X/Y/Z Multifunction handheld operator Chip conveyor Preparation of standard probes

X Travel 1100 mm Y Travel 610 mm Z Travel 610 mm Spindle speed 10.000 Rpm Controller Siemens 840 Dsl

Ref. -No.: 10304 Manufacturer: SPINNER Year of construction: 2007 Type of control: CNC Control: Siemens 840 D with SHOP Mill Storage location: Halberstadt Country of origin: Germany X-Travel: 1100 mm Y-Travel: 610 mm Z-Travel: 610 mm B-Axis: 0.001 prepared for 4 th axis ° Main spindle drive power: 25 kW Main spindle speed range: 6000 RPM Table surface: 1200 x 600 mm Table Load: 1000 kg Tool Taper: SK 50 Numbers Of Tools In Magazin: 24 axes: 4 Rapid Traverse X-Axis: 18 m / min Rapid Travel Y-Axis: 18 m / min Rapid Traverse Z-Axis: 15 m / min Main Drive: 25 kW Weight Of The Machine Ca.: 8 t Further information: - additional 4 axis (Dividing head)

Table size 900x400 mm X Travel 750 mm Y, Travel 450 mm Z Travel 450 mm Spindle speed 12.000 rpm Controller Siemens 840D Sl Spindle taper SK40 Number of tools in magazine 24 Can be tested under power

BAZ Spinner VZ 750 Year of construction: 2011 Hours : 6910 Spindle hours: 5114 Control Type: Fanuc OIMD-Alpha-Drive-HV-Technology Accessories: Chip conveyor Equipment: SK 40 Tool Pack

Key data: 760 mm, 460 mm, 460 mm

Vertical Machining Center Spinner VC 750 Year of construction: 2011 Control Fanuc OiMD X x Y x Z 760 x 460 x 460 mm Tool Changer 24 Fold Blow-out device SK 40 Tool Holder 5,100 spindle hours 10,000 rpm Conveyor Cooling via spindle Very good condition!

X,Y,Z Travels 630,530,465 mm Spindle speed 18.000 rpm Tool holder SK40 Number of tools 32 Controller Heidenhain iTNC 530 With Tool and workpiece measuring probe With chip conveyor

This 3-axis SPINNER VC 750 was manufactured in 2013. Ideal for precision CNC milling, this machine offers robust performance and reliability. Consider the opportunity to buy this SPINNER VC 750 CNC milling machine. Contact us for more information.

This 3-axis SPINNER MVC 1600-N was manufactured in 2016. Ideal for precision machining, this vertical machining centre ensures reliable performance and durability. Consider the opportunity to buy this SPINNER MVC 1600-N vertical machining centre. Contact us for more information.

This SPINNER VC 450 Vertical Machining center was manufactured in the year 2014 in Germany. The machine has a spindle speed of 15000 rpm and a spindle motor power of 16 kW.

Key data: 1020 mm, 610 mm, 610 mm

Technical data: Manufacturer: Spinner Type: VC1020 Year of Make: 2001 Control: Siemens 810D ShopMill Travel distances: X 1,020 mm, Y 610 mm, Z 610mm Switch-on hours: 31,983 h Spindle Speed: 8,000 rpm Torque: 105/70 Nm Work table Dimensions L/W: 1,200 x 600 mm Table load: 1,000 kg Tools Tool holder: SK40 Tool changer: 32-fold Dimensions and weight Dimensions L/W/H: 2,900 mm x 2,300 mm x 2,600 mm Weight: 6,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Internal mould cooling with high-pressure system Workroom with LED work lights Chip conveyor

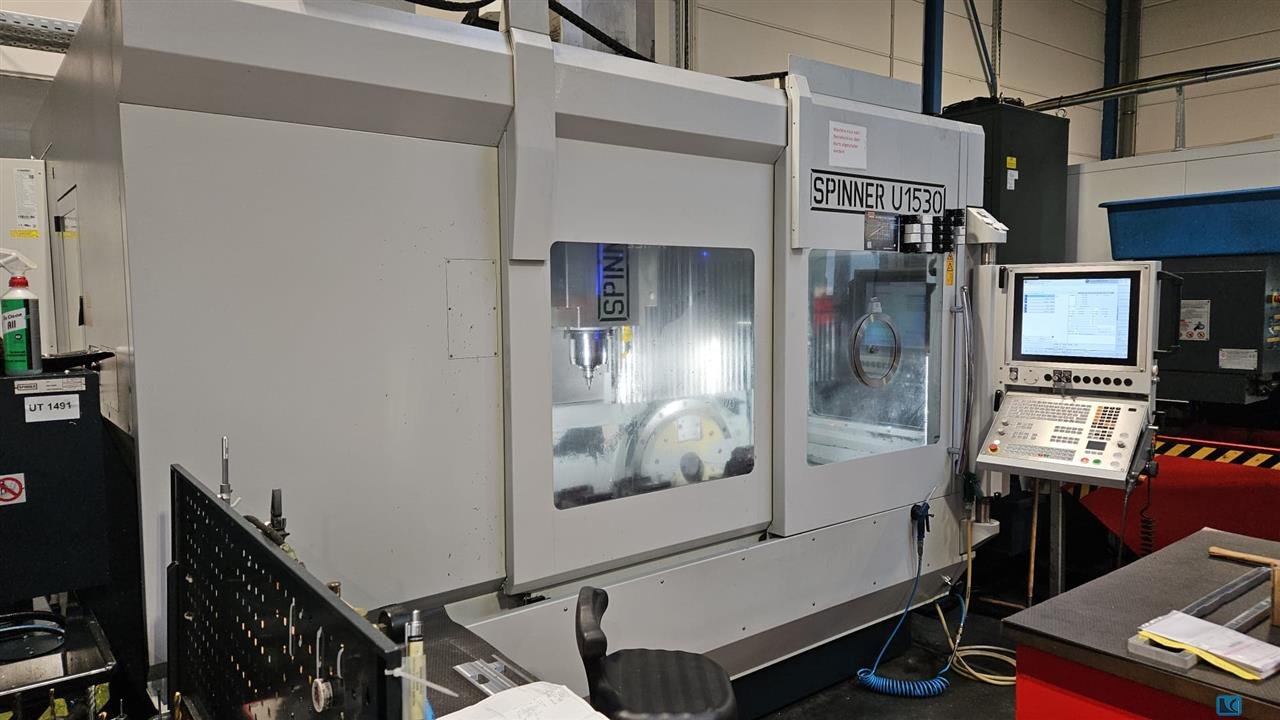

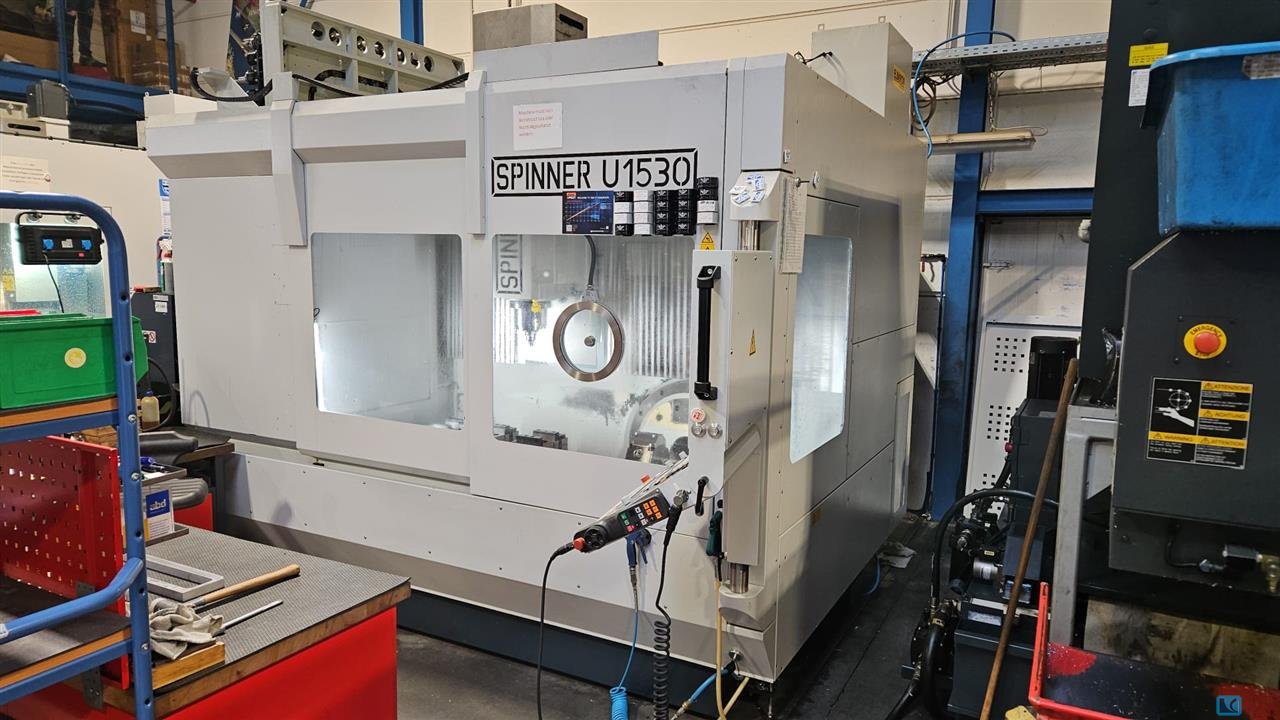

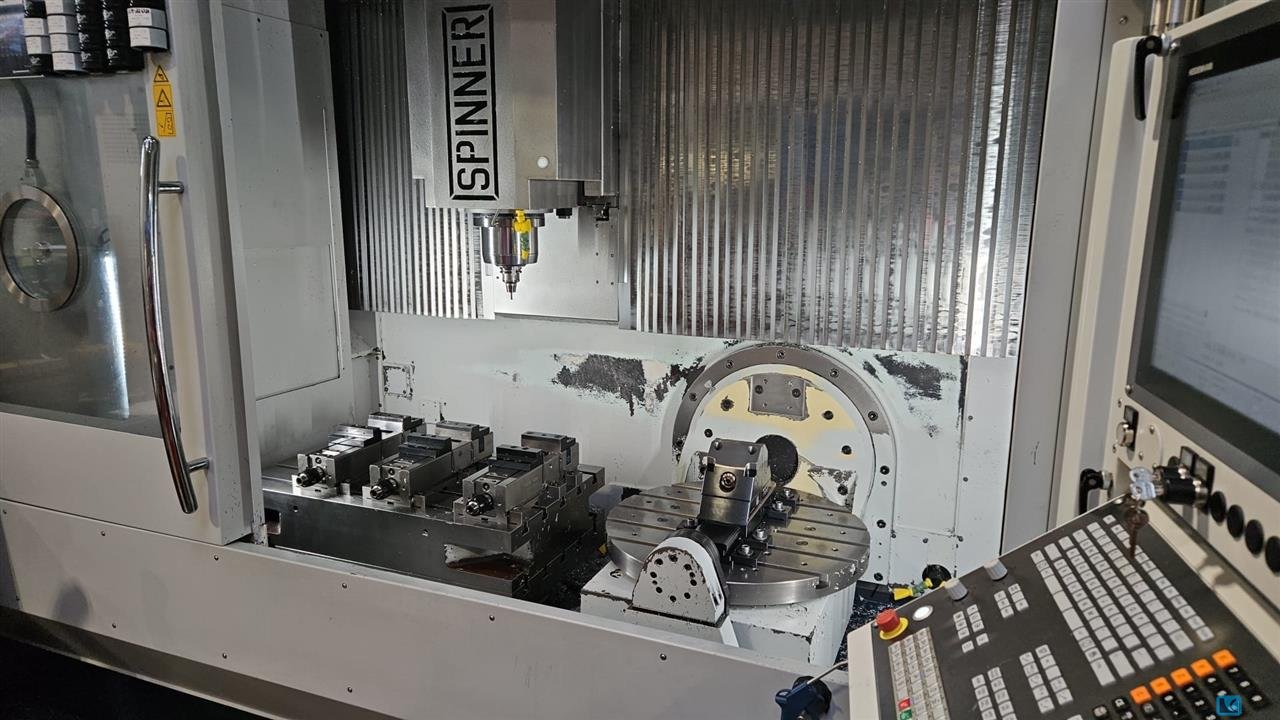

This 5-axis SPINNER U-1520 was manufactured in 2012. It features a Heidenhain iTNC630 control, a 3D measuring probe, and both internal and air cooling systems. The machine includes an 89-position tool changer with travels of X=1520mm, Y=700mm, and Z=600mm. If you are looking to get high-quality milling capabilities, consider the SPINNER U-1520 machine we have for sale. Contact us for more information.

This 3-axis SPINNER VC 450 was manufactured in 2011. It features a Fanuc 0i-MD control unit, X/Y/Z travels of 450/400/400 mm, and a rapid traverse rate of 36 m/min. The spindle operates at up to 15,000 rpm with a power of 7.5 kW. It includes a 24-tool changer, linear guideways, and a chip conveyor. If you are looking to get high-quality milling capabilities consider the SPINNER VC 450 machine we have for sale. Contact us for more information.

This 4-axis SPINNER H630 horizontal machining center was manufactured in 2012. Ideal for precision engineering, it offers robust construction and reliability for various machining tasks. Consider the opportunity to buy this SPINNER H630 horizontal machining center. Contact us for more information.

This 3s SPINNER VC 750 vertical machining centre was manufactured in 2016. It features a Siemens 840D sl control system, a spindle speed of up to 12,000 RPM, and a high-speed double-arm tool changer with 24 tool stations. With low spindle hours and a focus on prototyping applications, consider the opportunity to buy this SPINNER VC 750 vertical machining centre. Contact us for further details.

This 3s SPINNER VC 560s was manufactured in 2007. It is a CNC Milling Machine featuring a 3-axis configuration, prepared for a 4th axis (included but not installed). The machine is operational and comes complete with all tooling and a tool cabinet. With a maximum spindle speed of 12,000 rpm and rapid traverse of 48 m/min, consider the opportunity to buy this SPINNER VC 560 vertical machining centre. Contact us for further details.

x-travel:1530 mm y-travel:530 mm z-travel:465 mm side by side, right side fixed table X =:925 mm side by side left side 2 axis table X =:780 mm control:Heidenhain TNC 640 tool magazin::122 SK 40 spindle turning speed - stepless:12.000 1/min Spindle Torque:120 Nm power capacity:22 kW Fixed Table Dimensions:920 x 540 mm Table load fixed table:2000 kg Max. parts size on fixed table:900 x 500 x 400 mm Diameter of integrated 2-axis rotary table:650 mm Table load rotary table:500 kg B-axis swivel angle:-90°/+110° ° / deg Max. parts size on rotary table:600 x 500 x 400 mm Max. Parts size over both tables:1500 x 500 x 400 mm internal coolant system feed:70 bar bar weight of the machine ca.:10,5 t dimensions of the machine ca.:3,65 x 2,53 x 2,81 m pendant hand wheel:HR 510 FS Measuring probe for work piece:Blum TC 52 The SpinnerU5 1530 5-axis machine with Heidenhain iTNC 640 control is as new ...

This 3-axis SPINNER MVC 1600 was manufactured in 2013. It features an impressive X-axis travel of 1600 mm, Y-axis travel of 810 mm, and Z-axis travel of 700 mm. The machine includes a robust table size of 1800 x 810 mm and a maximum workpiece weight of 2000 kg. If you are looking to get high-quality machining capabilities, consider the SPINNER MVC 1600 vertical machining centre we have for sale. Contact us for further details.

Turning Diameter 400 mm Turning Lenght 650 mm With C ,Y axes and subspindle Control Unit Fanuc 31i Can be inspected under power

Machine Details Stock-No. 1105-03620 Type of machine CNC Lathe Make SPINNER Type TC 32 Year of manufacture 1999 Type of control CNC Storage location HAGUENAU Country of origin Germany Delivery time Immediate Freight basis ex Site Technical details turning diameter 150 mm turning length 300 mm control SIEMENS 810 D swing diameter 300 mm swing diameter over face slide 150 mm x-axis 400 mm z-axis 285 mm spindle passage 32 mm spindle motor 7.5 kW spindle turning speed - stepless 8000 rpm c-axis 0.001° Turret positions 12-speed VDI 25 work piece power 1.2 kW toolpiece turning speed range 6000 rpm weight of the machine approx. 1.8 t dimensions of the machine ca. 2 X 1 X 1.6 m Additional information CNC CONTROL SIEMENS 810 D

Key data: 250 mm, 285 mm, 5 1/min

Precision CNC Lathe Spinner SB - CNC with Siemens 840D Control PLC missing, parameters & circuit diagrams available The Spinner SB - CNC was built in 1996 and is equipped with a reliable Siemens 840D control system. This precise lathe is ideal for a wide range of applications and is characterized by its high performance. Specifications: - Manufacturer: Spinner - Type: SB - CNC - Year of construction: 1996 - Control: Siemens 840D - Travels: X 250 mm, Z 285 mm Spindle: - Max. speed: 5,000 rpm - Spindle passage: 42 mm Revolver: - Number of stations: 12 - Tool holder: VDI16 Dimensions and weight: - Dimensions: 2.1 m x 0.8 m x 1.6 m - Weight: 1,500 kg The Spinner SB - CNC is in a used, but very neat condition. All functions have been carefully checked, and the machine is fully functional. The SB-CNC spinner is ideal for precise machining in a variety of appl ...

Key data: 500 mm, 700 mm, 3500 1/min

Make: Spinner Model : TC 110 SMCY Control Siemens 840 D ShopTurn Year of construction 2006 Specifications: Turning diameter 500 mm Circulation diameter 690 mm Turning length 900 mm Y-axis -55/+65 mmmm C-axis 0.001° Spindle passage main spindle 110 mm Spindle passage counter spindle 66 mm Main spindle motor 28 kw High-speed main spindle 3200 rpm. Counter spindle speed 5000 rpm. Rapid traverse x/y/z 24 m/min. Sauter Star Revolver VDI 50 Number of stations 12-fold Driven tools 12 Speed driven tools 4000 rpm. Machine weight approx. 7800 kg Dimensions set-up (L x W x H) with chip conveyor 5500 x 2200 x 1800 mm Accessories: automatic pick-up device Measuring arm Bar feeder preparation Conveyor 3D Renishaw Probe Coolant gun Increased coolant pump Hainbuch Collet Chuck for Main Spindle 3 Jaw chuck counter spindle Various tool holders Documentation

General Manufacturer: Spinner Type: TTC300 65SMMCY Control: Siemens 840D SL ShopTurn Year of Make: 2015 Travel X1 / X2 / Z / Y: 180 / 110 / 450 / +40-40 mm Rapid traverse X1 / X2 / Z / Y: 15 / 15 / 15 / 24 m/min Turning Spindle 1 Speed: 4,000 rpm Chuck size: 250 mm Spindle passage: 52 mm Spindle power S1 / S6: 21 / 27 kW Torque S1 / S6: 201 / 258 Nm Turning spindle 2 Speed: 7,000 rpm Chuck size: 130 mm Spindle power S1 / S3: 6 / 8.5 kW Torque S1 / S3: 49 / 68 Nm Revolver Number of tools: 12 + 12 (BMT45) Rotating Tools: 12+12 (BMT45) Speed: 6,000 rpm Power S1 / S3: 2.3 / 3.5 kW Torque S1 / S3: 7 / 11 Nm Dimensions and weight Dimensions: 2,700 mm x 1,900 mm x 2,165 mm Weight: 5,100 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: IKZ 50 bar with belt filter system Parts Conveyor Belt w ...

General: Year of construction 2003 Switch-on hours 33,321 h Working hours 10,144 h Control Siemens 840D ShopTurn Travel X 400 mm Z 400 mm Rapid traverse 12 mm/min Spindle: Spindle speed 8,000 rpm Rod passage 32 mm Turning diameter 120 mm Revolver: Number of stations 16-fold Number of driven tools 8 Tool holder VDI16 Dimensions and weight: Dimensions 2.500 x 1.400 x 1.700 mm Weight approx. 2,300 kg Other equipment and included accessories: Tailstock programmable Electronic handwheel Oil mist extraction Preparation for bar loaders

CNC lathe, brand Spinner, TypeTC67H-MC, YEAR 1999 with chip conveyor, underlays, various tools. The price is net.

Control SIEMENS Swing diameter over bed 350 mm Turning diameter 180 mm Distance between centers 500 mm Spindle speed 4000 min-1 Tailstock Multifix Accessories

SPINNER TTC 300- 52 SMMCY CNC Lathe YOM 2012 Twin-opposed-spindle, twin-turret lathe Control FANUC 31iT Swing diameter 400 mm Max. turning dia ~200-250 mm Max. turning length 400 mm Travels: X1 180 mm, X2 110 mm, Z 450 mm, Y +40/-40 mm Rapid traverse: X1 15 m/min, X2 15 m/min, Z 24 m/min, Y 15 m/min With C-axis Main Spindle 1: Motor spindle with water cooling With hollow shaft measuring system for C-axis drive mounted directly on the spindle shaft Spindle bore 52 mm Spindle speed 0-5000 rpm/ 19 kW Performance Pmax 23,5 kW Torque 150 Nm Spindle nose A6/DIN Sub-Spindle 2: Motor spindle with water cooling With hollow shaft measuring system for C-axis drive mounted directly on the spindle shaft Can be moved on a slide to take over spindle 1 Spindle speed 0-7000 rpm/ 8 kW Performance Pmax 13,8 kW Torque 189 Nm Spindle nose 100 mm Turret 1: At the top of the ...

turning length:140 mm dimensions of the machine ca.:4 x 2 x 1,9 m

1 CNC lathe spinner type CNC TC82 Fanuc 1998 2 CNC machining machine (miling) Stama type CNC 014 Fanuc 2000 3 CNC BAZ milling machine AXA type VHC 2-M Haidenhain 1999 4 CNC lathe (lathe) Takisawa type TS 20 Fanuc 1985 5 CNC Drawing Machine (lathe) Unitec Type UT6 Siemens 2008 6 CNC lathe (lathe) spinner type TC 108 Fanuc 2003 Note: Machine parameters must be fed into item 1, but otherwise works perfectly. Pos. 2 also works single-wall, but a heat sensor must be replaced

General Manufacturer: Spinner Type: SB 32-V4 Year of Make: 2016 Control: Fanuc Series 32i Model B Travels: X 250 mm Z 285 mm Switch-on hours: 46,318 h Spindle Spindle speed: 8,000 rpm Spindle Passage: 32 mmin Dimensions and weight Dimensions: 2,100 mm x 800 mm x 1,600 mm Weight: approx. 1,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: C-axis Preparation Interface Bar Feeder Linear Tool Carriers Collet chuck

turning diameter: 400 mm turning length: 730 mm control: FANUC 21i rapid traverse: 15/24 mm/min spindle turning speed range: 4000 U/min spindle motor: 19 kW x-axis: 240 mm z-axis: 640 mm rapid travel (x and z-axis): 18 /24 m/min spindle bore: 66 mm tailstock quill taper MT: 5 tailstock quill stroke: 120 mm total power requirement: 50 kVA weight of the machine ca.: 5,5 t dimensions of the machine ca.: 3 x 1,7 x 1,8 m - CNC control FANUC 21i-TB (with Manual Guide I) - hydraulic hollow clamping cylinder - 12-position tool turret, driven tools 4000 rpm, 2.8 kW - Tool monitoring - SMW Autoblok KNCS N225-65 chuck - C-axis (with disk brake for milling operation, Transmit software for end face machining and cylinder interpolation for shell machining) - B-axis - Tailstock (MK 5) - Chip conveyor - Coolant system with high-pressure pump - Parts catcher - Radial and axial milling heads Translated wi ...

turning diameter: 120 mm turning length: 380 mm control: Fanuc 18 iTB max. swing diameter: 300 mm : : 8000 min/-1 : 7,5 kW : 26 Nm spindle nose: 100 mm spindle passage: 32 mm A-Axis: : 8000 min/-1 : 5,5 kW : 23 Nm spindle nose: 100 mm spindle passage: 32 mm : : 12 pos. tool taper: VDI 16 Sub Spindle: x-axis: 400 mm z-axis: 400 mm feeds:: rapid traverse: 12 m/min total power requirement: 20 kW weight of the machine ca.: 2,3 t dimensions of the machine ca.: 2,8 x 2 x 1,7 m 2022 New glass scale Heidenhain and replacement of smaller parts, new FANUC CNC Keyboard CNC - Ultra precision turning centre (X-, Z-, E-, C-Axe) - CNC control Fanuc 18iTB - Main and counter spindle - SAUTER tool turret 16-fold (0.5.480.510) VDI 16 - Linear tool slide - automatic doors - Chip tray - Coolant system with fine filter (high Pressure Pump) - 3 jaw chucks - Various clamping devices/pressure collets - Vari ...

Inv. Num. : 8228 Type: TC-42 Producer: Spinner Created: 2004 Parameters: Control system: Siemens Max. machining length: 500 mm Maximum turning diameter over bed: 400 mm Maximum main spindle power: 12 kW Maximum spindle speed: 4500 1/min Spindle bore: 42 mm Equipment: Powered tools

Inv. Num. : 8227 Type: U-620 Producer: Spinner Created: 2011 Parameters: Control system: Siemens Number of axles: 5 pieces X-axis travel: 620 mm Y-axis travel: 520 mm Travel travel Z-axis: 460 mm Maximum vertical spindle speed: 10000 1/min

Inv. Num. : 8229 Type: PD-CNC Producer: Spinner Created: 2007 Parameters: Control system: Siemens Max. turning diameter: 120 mm Maximum length of travel in the X-axis: 400 mm Maximum feed rate in the Z-axis: 400 mm Maximum spindle speed: 8000 1/min Length: 2500 mm Width: 1400 mm Height: 1700 mm Weight: 2300 kg

Specifications: Manufacturer: Spinner Type: SB-CNC Year of Make: 1998 Control: Siemens 840D Travels: X 250 mm Z 285 mm Switch-on hours: 32,156 h Main spindle: Spindle speed: 5,000 rpm Spindle passage: 42 mm Tool holder: Tool holder: Multifix A on linear beam Dimensions and weight Dimensions: 2,100 mm x 800 mm x 1,600 mm Weight: approx. 1,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Collet chuck Interface for bar feeders The machine has a headstock elevation of 10 mm.

x-travel: 1520 mm y-travel: 520 mm z-travel: 460 mm Control: Siemens 840D turning speeds: 12.000 U/min tool change unit: 32-fach tool taper: SK 40 0: 19 kW rapid traverse: 32 m/min B-axis (table): +110 / -90 ° total power requirement: kW weight of the machine ca.: 10,5 t dimensions of the machine ca.: 3,5x2,6x3,0 m 5 axes simultaneous machining - CNC control Siemens 840D - 32-position tool changer (SK 40) - Blast air through spindle - Internal coolant supply 80 bar - Automatic door - Rotary and tilting table: 650x540mm, 500kg - Fixed table: 920x540mm approx. 5000h running hours The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

A simultaneous turning center Spinner with three turrets and extensive accessories, spare parts and tools is available. Travel X1/X2/X3: 180mm, travel Y1/Y2: +/-45mm, travel Z1/Z3: 704mm, travel Z2/E2: 620mm/720mm, rapid traverse X/Y/Z: 30m/min, acceleration: 0.5g. Spindle 1: Speed: 5000rpm, nose: A6, bore: 65mm, chuck diameter: 210mm, power: 18kW, torque: 115Nm. Spindle 2: Speed: 700rpm, nose diameter: 110mm, bore: 42mm, max. chuck diameter: 140mm, max. chuck jaw weight: 1.25kg, power: 16.6kW, torque: 100Nm. Turret 1/2/3: Turret stations: 3x12, speed: 8000rpm, tool holder: BMT 45, power: 4.3kW, torque: 13.6Nm. Machine dimensions X/Y/Z: approx. 2880mm/2130mm/1990mm, weight: approx. 7500kg, operating hours: 27102h, control: Fanuc 31i. Including loading magazine Top Automazioni, cooling/high pressure system with 80bar, chip conveyor, fire extinguishing system, a comprehensive tool package  ...

turning diameter: max. 250 mm turning length: max. 900 mm control: FANUC SERIE 0-T turning spindle: Durchlass 75mm chuck diameter: 250 mm turning speeds: 0-3700 U/min transmission ratio: 2 tool numbers: 12 feed speeds: X/Z 15/20 mm/min quill stroke: 100 mm diameter of quill: 110 mm tool adaptor: MK 4 coolant tank: 130 l weight - pallet system: 5500 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: max. 420 mm turning length: 1090 mm control: FANUC Serie 18i-TB turning spindle: Durchlass 108 mm : 250 / 315 turning speed range: 0-3750 U/min Feed speed: 18/24 m/min. workpiece: 12 quill stroke: 100 mm diameter of quill: 110 mm taper MK: 4 number of driven tools: 12 mm turning speeds: 3000 U/min : 22 nm coolant tank: 140 l total power requirement: 22/18,5 kW weight of the machine ca.: 6500 KG dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer: Spinner Model: TG 52-MC Year of Manufacture:2004 Electrical Specifications: - Voltage: 400 V (3 Phase + PE) - Frequency: 50/60 Hz - Current (Nominal): 35 A - Current (Operating): 34 A The machine is equipped with an FMB bar loader 5-55. Find more here - / Contact us at -

Key data: 32 mm, 8000 1/min

Specifications: Manufacturer: Spinner Type: SB 32-V4 Year of Make: 2017 Control: Fanuc Series 32i Model B Travels: X 250 mm Z 285 mm Switch-on hours: 39,131 h Spindle Spindle speed: 8,000 rpm Spindle passage: 32 mm Dimensions and weight Dimensions: 2,100 mm x 800 mm x 1,600 mm Weight: approx. 1,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: C-axis Preparation Interface Bar Feeder Linear Tool Carriers Collet chuck

Specifications: Manufacturer: Spinner Type: SB 32-V4 Year of Make: 2017 Control: Fanuc Series 32i Model B Travels: X 250 mm Z 285 mm Switch-on hours: 39,616 h Spindle Spindle speed: 8,000 rpm Spindle passage: 32 mm Dimensions and weight Dimensions: 2,100 mm x 800 mm x 1,600 mm Weight: approx. 1,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: C-axis Preparation Interface Bar Feeder Linear Tool Carriers Collet chuck

Specifications: Manufacturer: Spinner Type: SB 32-V4 Year of Make: 2017 Control: Fanuc Series 32i Model B Travels: X 250 mm Z 285 mm Switch-on hours: 39,889 h Spindle Spindle speed: 8,000 rpm Spindle passage: 32 mm Dimensions and weight Dimensions: 2,100 mm x 800 mm x 1,600 mm Weight: approx. 1,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: C-axis Preparation Interface Bar Feeder Linear Tool Carriers Collet chuck

Key data: 32 mm, 8000 1/min

Specifications: Manufacturer: Spinner Type: SB 32-V4 Year of Make: 2015 Control: Fanuc Series 32i Model B Travels: X 250 mm Z 285 mm Switch-on hours: 52,356 h Spindle Spindle speed: 8,000 rpm Spindle passage: 32 mm Dimensions and weight Dimensions: 2,100 mm x 800 mm x 1,600 mm Weight: approx. 1,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: C-axis Preparation Interface Bar Feeder Linear Tool Carriers Collet chuck

X1-/ X3-axis: 180mm, X2-axis: 180mm, Y1-/ Y3-axis: ±45mm, Z1-/ Z3-axis: 704mm, Z2-axis: 620mm, E2-axis: 720mm, rapid traverse X, Y, Z-axis: 30m/min, spindle 1: max. speed: 5000/min, spindle bore: 65mm, chuck diameter: 210mm, spindle 2: max. speed: 7000/min, spindle bore: 42mm, max. chuck diameter: 140mm, spindle nose diameter: 110mm, max. chuck jaw weight: 1.25kg, number of stations: 2x12, number of driven tool stations: 2x12, max. speed: 8000/min, power S3 25%: 4.3kW, torque S3 25%: 13.6Nm. Length: 2880mm, width: 2130mm, height: 1990mm, weight: 7.5t, operating hours: 16,597.7h. Including bar feeder Top Automazioni X-FILES S, year of manufacture 2020, 4x tool holders, straight, left-right square mount, external coolant, 4x machine interface: BT45A, 1x milling head 90°/BMT 45 Spinner, angled milling head/ BMT45/ ESX-25 right and left twin-spindle, Spinner flat coupling, ER25 max. speed: ...

Manufacturer: SPINNER Model: SERVO - LOAD 80 - 1200 Year of Manufacture: 2011 Voltage (U): 3/PE ~ 400 V Frequency (f): 50/60 Hz Input Current (Iᵍ): 5 A Fuse Rating (Iₙ): 10 A Find more here - / Contact us at -

Key data: 280 mm, 500 mm

Turning lenght 500 mm Turning diameter 280 mm Controller Fanuc 32i 12 stations VDI30 tool holder

turning diameter: 310 mm turning length: 600 mm control: Sinumerik 810 D PL Siemens turning diameter over bed: 425 mm Main spindle: turning speed range - main spindle: 500 - 4.500 min/-1 max. Torque: 280 Nm power capacity - main spindel: 16,5 kW Spindle diameter: 100 mm C-Axis: 360 ° chucking diameter: 210-52 mm spindle bearing diameter: 120 mm clamping cylinder: 65 mm Bar feed: max. 65 / (52) mm spindle nose: A8 DIN 55026 axis stroke:: x-axis: 230 mm z-axis: 740 mm rapid traverse X-axis: 15 m/min rapid traverse Z-axis: 24 m/min turret:: tool positions turret: 12 pos. driven statition: 12 pos. tool taper: VDI 30 DIN 69880 Spindle speed driven tools: 6.000 min -1 power capacity - driven tools: 3,7 kW max. Torque: 9,5 Nm tail stock: dia. of quill: MK 4 80 mm quill stroke: 120 mm tailstock adjustment: 475 mm tension force: 500 daN total power requirement: - kW weight of the machine ca. ...

A CNC milling machine Spinner is available. Travel X/Y/Z: 760mm/460mm/460mm, table dimensions X/Y: 900mm/410mm, max workpiece weight: 350kg, tool stations: 24, max tool weight: 8kg, max tool length: 200mm, speed: 12000rpm, max tool diameter: 80mm, tool holder: SK40. Machine dimensions X/Y/Z: approx. 2600mm/1600mm/2850mm, weight: approx. 4000kg. Including automation and robot M10. Documentation available. An on site inspection is possible.

A lathe (Universal Turning Solution) is offered, control: Fanuc, tool turret: 12-station, tailstock, 3-jaw chuck. Tool setting arm: Renishaw HPRA. Inspection is possible by arrangement.

turning diameter: 250 mm turning length: 600 mm control: FANUC Series 31i-Model A travel -x axis: 180 mm travel -y axis: +/-45 mm - - - - - Main spindle - - - - -: - - - - - - turning speeds: 0 - 5.000 U/min bar capacity: 65 mm --- Subspindle ---: - - - - - - turning speeds: 0 - 7.000 U/min bar capacity: 42 mm --- upper turret 1 ---: - - - - - - numbers of positions in the tool changer: 12 tool taper: BMT 45 Number of axles: X1 / Y1 / Z1 St. Tools speed: 8.000 U/min --- upper turret 2 ---: - - - numbers of positions in the tool changer: 12 tool taper: BMT 45 Tools speed: 8.000 U/min Number of axles: X3 /Y3 / Z3 St. --- lower turret 3 ---: - - - numbers of positions in the tool changer: 12 tool taper: BMT 45 Number of axles: X2 / Z2 St. Tools speed: 8.000 U/min CNC Turning- and Milling Center | SPINNER - TTS 65 Triplex equipped with a main spindle and a sub-spindle, each including a C-axi ...

Turning diameter: 120mm, turning length: 400mm, travel X/Z: 400mm/400mm, spindle bore: 42mm, speed: 8000rpm, chuck diameter: 150mm, tool stations: 12, tool interface: VDI 20. Machine dimensions X/Y/Z: approx. 2500mm/1400mm/1700mm, weight: approx. 2500kg. Documentation available. On-site inspection is possible.

Offered is a CNC lathe (sub-spindle, milling/C-axis, Y-axis). Equipped with bar feeder for balls 120mm, incl. Fanuc six-axis robot M-16iB with R-30iA control for automated loading and unloading as well as a bunker for raw material supply. Machine is operational. Inspection possible by prior arrangement.

Inv. Num. : 8904 Type: SB-CNC Producer: SPINNER Created: 1999 Parameters: Maximum turning length: 250 mm Maximum turning diameter: 285 mm Spindle diameter: 42 mm Maximum spindle speed: 8000 1/min Weight: 1500 kg

This 2-axis SPINNER TC 600-65MC horizontal turning machine was manufactured in 2017, featuring a Siemens 840D control system and a 16-position indexing turret. It includes a main spindle with a speed of up to 4,000 rpm and a power of 24 kW. The machine offers a swing diameter over bed of 425 mm and a maximum turning diameter of 310 mm. Consider the opportunity to buy this SPINNER TC 600-65MC horizontal turning machine. Contact us for more information about this machine.

This SPINNER PD-CNC was manufactured in 2006. A reliable horizontal turning machine, it offers solid performance for your machining needs. Consider the opportunity to buy this SPINNER PD-CNC horizontal turning machine. Contact us for more information.

This SPINNER TC46-COMPACT was manufactured in 1999. A robust horizontal turning machine, it offers reliable performance for precision machining. Ideal for those looking to enhance their turning capabilities. Contact us for more information.

This SPINNER JCL-75/1000-TC 82 was manufactured in 2003. A robust horizontal turning machine featuring a max turning diameter over bed of 555 mm and over carriage of 350 mm. It includes a 12-station turret with a VDI 40 tool interface and a spindle motor power of 30 kW. Consider the opportunity to buy this SPINNER JCL-75/1000-TC 82 horizontal turning machine. Contact us for more information about this machine.

This SPINNER TTS 42 Lathe was manufactured in the year 2020 in Germany and has 25585 production hours. It is equipped with a Fanuc Series 31i-MODEL B control unit. The machine has a spindle speed of 7000 rpm. See tech specs file as PDF (German) attached for more details.

This 7-axis SPINNER TTS 65-DUPLEX horizontal turning machine was manufactured in 2020. It features a spindle bore of Ø65 mm, a chuck diameter of 210 mm, and a maximum spindle speed of 5000 rpm. The machine includes a 3-meter bar loader, enhancing its productivity. With rapid traverses of 30 m/min and an acceleration of 0.5 g, it ensures efficient operations. If you are looking to get high-quality turning capabilities, consider the SPINNER TTS 65-DUPLEX machine we have for sale.Contact us for more information.

This SPINNER MT 350/750 was manufactured in 2001. A reliable horizontal turning machine, it offers solid performance for various machining tasks. Consider the opportunity to buy this SPINNER MT 350/750 horizontal turning machine. Contact us for more information.

This 4-axis SPINNER TC 110 was manufactured in 2007. A horizontal turning machine, it offers robust performance for precision tasks. Ideal for those seeking reliable turning capabilities. Contact us for more information.

This SPINNER TC65-MC was manufactured in 2005. A horizontal turning machine featuring a turret with driven tools, it handles a turning diameter of 310 mm and a length of 600 mm. Consider the opportunity to buy this SPINNER TC65-MC horizontal turning machine. Contact us for more information.

This SPINNER MT 350/750 was manufactured in 2002. A robust horizontal turning machine featuring a travel distance of X 155 mm and Z 800 mm, a circulation diameter over bed of 350 mm, and a turning length of 750 mm. Powered by a 9/11 kW drive and controlled by SINUMERIK 810 D, consider the opportunity to buy this SPINNER MT 350/750 horizontal turning machine. Contact us for more information.

This SPINNER TC 82 -MC was manufactured in 1998. A robust horizontal turning machine featuring a Siemens Sinumerik control system, it offers a max turning diameter of 400-520 mm and length up to 1100 mm. With a spindle speed of 3750 rpm and a 12-position VDI 40 turret with live tooling, its ideal for precise turning tasks. Dimensions are 4200 × 2000 × 2100 mm. Contact us for more information about this machine.

This 4-axis SPINNER TC 77 was manufactured in 2007. A robust horizontal turning machine, it offers precision and reliability for various turning applications. If you are looking to get high-quality turning capabilities, consider the SPINNER TC 77 machine we have for sale. Contact us for more information.

Boring power:10 mm weight:590 kg connected load:2 kW dimensions::1500 x 1300 x 2300 mm

Shell end mills, shell mill cutters, milling cutters, disc milling cutters, slot milling cutters -Disc milling cutter: 105 x 19 mm, cross-cut -Socket: Ø 27 mm -Weight: 0.8 kg

Retrofitted in 2005 electrical / CNC control Siemens 840 d Retrofitted in 2012 and 2019 mechanical what made. Technical datas: Rotary spindle speed: 1.25-600 tr/min Spindle maximum power: 55 kW 215 tr/min Horizontal run of the upright on the bench - X 15,000/30,000 mm . X travel 30,000 mm is for both machine Vertical stroke of carriage on upright - Y (mm) 5,600 mm Spindle stroke - 1,100 mm Z: Flowing stroke - w: 1,100 mm Advance - X: 3-5000 mm / min Feed - Y: 3-5000 mm / min Feedrate - Z: 1.5 2,500 mm / min Total weight: 100,000 kg Foundation pit OSTEO. for both machine Length x width x height: 40,000 x 5,000 x 1,800 mm all accessories are available and can be sold at extra costs. For both machines are the following attachments available: â?¢ Chip conveyor For both machines including lubrication and coolend unit for the cutting operation &aci ...

Code 71145 Description Horizontal table borer Make UNION Model BFT 80 / 3-1 Serial number 18301 / 34 Year 1986 Spindle 80 mm Spindle taper ISO 40 Spindle out (W) 710 mm Table 1120 x 1000 mm Cross (X) 1000 mm Longitudinal (Z) 1600 mm Vertical (Y) 1000 mm Distance table-spindle 0 – 1000 mm 24 Spindlespeeds 8 - 1600 rpm Feeds 1 - 2500 mm/min Rapids 3 m/min. Motor 11 kW 380 Volts Size L x W x H 5500 x 3200 x 2800 mm Weigth 9 ton Accessoiries Facing head Ø 460 mm with 180 mm stroke 3 x DRO Heidenhain ( X-Y-Z ) Tool clamping Guideway protection Pendel control Cooling equipment Option ( extra price ) Universal millinghead Condition Machine is in good condition
