niles simmons lathes used for sale

overhauled: 2007 Control Siemens ... Sinumerik 840 D Max. workpiece diameter ... 2500mm Table diameter ... 2240mm Max. workpiece height ... 1250mm Axis Z ... 1000mm Max. workpiece weight ... 10000 kg Main engine power ... 55kW L x W x H 7000x4400x5500mm Machine weight ... 37900kg The machine is in good condition. More info on request.

turning diameter: 270 mm turning length: 630 mm control: SIN840D swing over bed: 400 mm swing diameter over slide rest: 220 mm longitudinal slide -travel: 745 mm cross slide - travel: 200 mm turning speeds: 10 - 4.000 U/min power capacity at 100 % load: 15,00 kW spindle head DIN 55026 - Size: 6 spindle bore: 62 mm chucking diameter: max. 315 mm feed x-axis: 1 - 12.000 mm/min rapid traverse X-axis: 12,00 m/min Feed z- axis: 1 - 20.000 mm / min. rapid traverse Z-axis: 20,00 m/min tailstock quill taper MT: 3 quill stroke: 112 mm quill pressure: 10,00 kN tool turret with 12 work positions: tool taper DIN 69880: Ø 30 mm Tool drive speed max.: 4.000 1/min total power requirement: 37,00 kW weight of the machine ca.: 4,00 t dimensions of the machine ca.: 4,00 x 2,75 x 2,30 m With SIEMENS SINUMERIK 840D control system, turret with driven tools, C-Axis, tailstock, chip conveyor, various tool hol ...

turning diameter: . mm turning length: 2000 mm control: Siemens 840 D sl mainspindle: turning speed max.: 3800 1/min mainspindle: torque max.: 1200 Nm tailstock:: diameter of quill: 140 mm center point: MK6 quill power: 5 - 30 kN feed rate Z-axis: 0,1 - 30000 mm/min rapid traverse Z-axis: 40 m/min feed rate X-axis: 0,1 - 18000 mm/min rapid traverse X-axis: 25 m/min total power requirement: 125 kW weight of the machine ca.: 20 t The machine can still be inspected under power at the production plant. The condition of the machine is good, the accuracy during turning operation is very good. The milling drive is not functional. A quotation from Niles for the repair of the milling drive is available on request. Including hydraulic steady rest. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

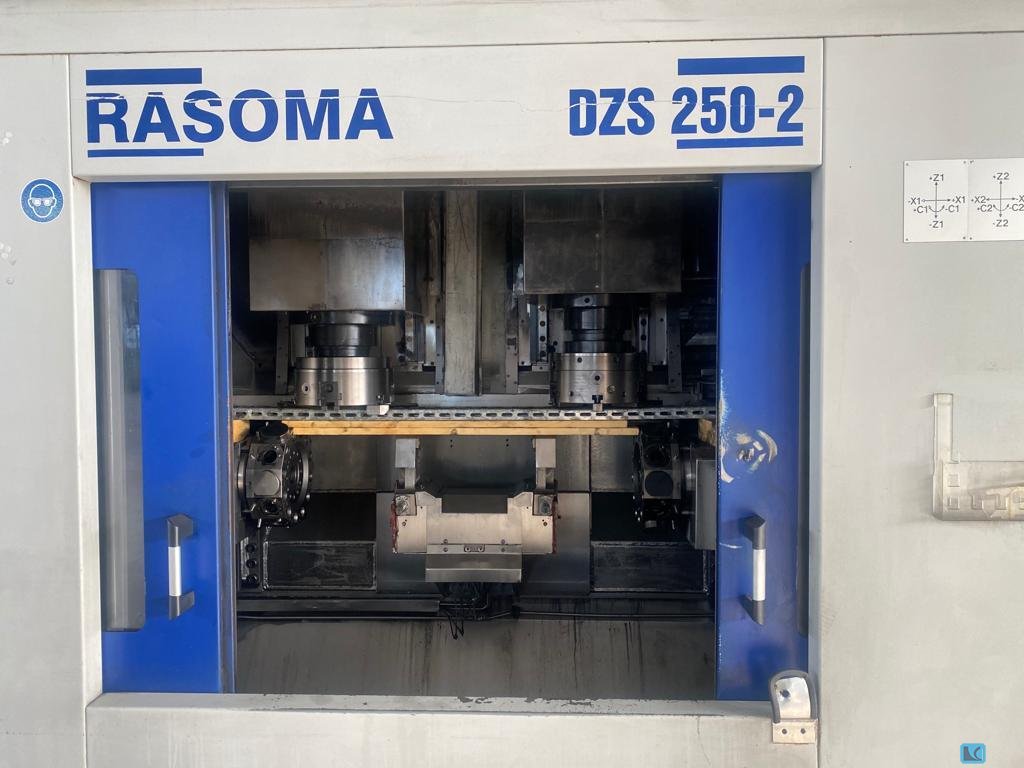

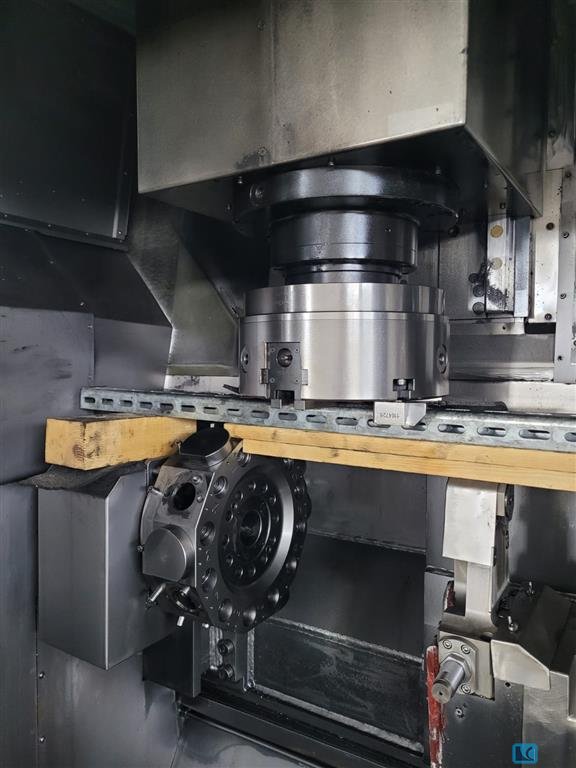

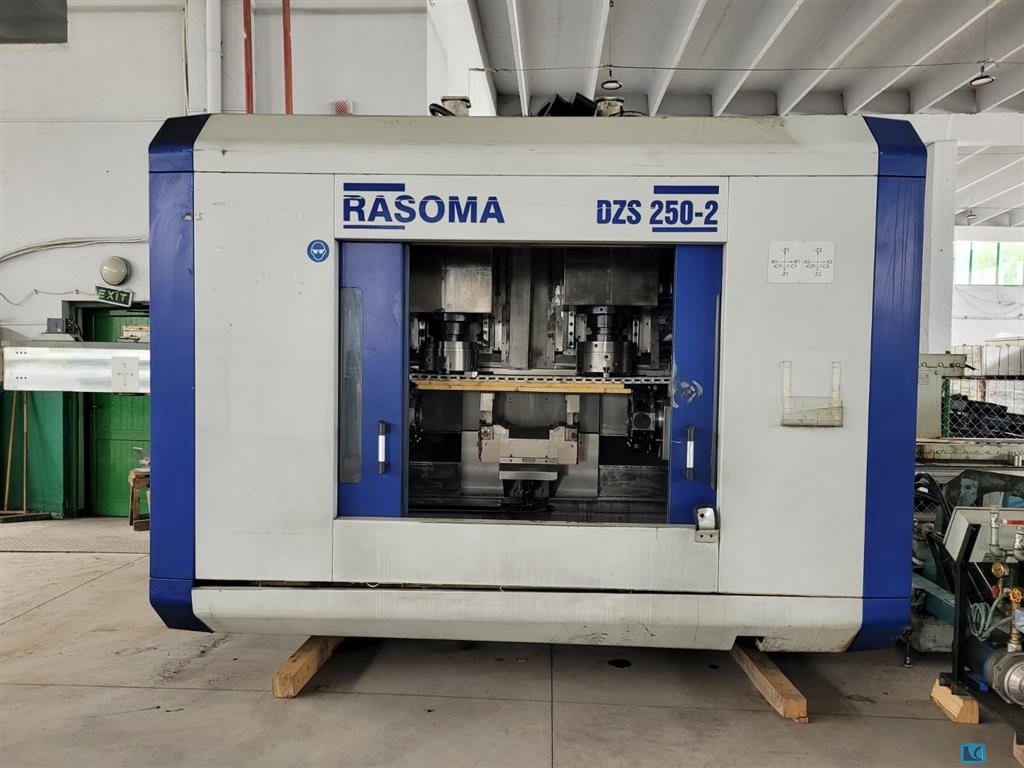

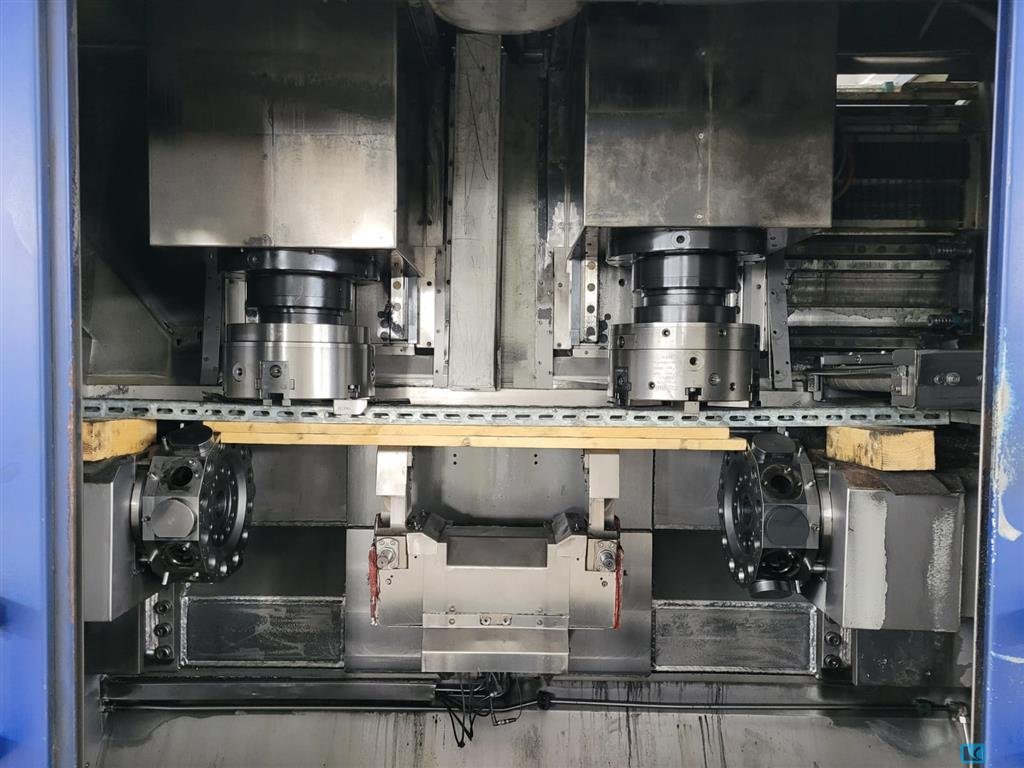

With two machining modules, X-axis: -50 to 725mm, Y-axis: -200 to 300 / -250 to 250mm, rapid traverse X-, Y-, Z-axis: 18/12/30m/min, control: Siemens Sinumerik, temperature range: 5–40°C, power type/frequency: 3 PEN / 50Hz, rated voltage: AC 400V, control voltage: DC 24V, auxiliary voltage: AC 230V, connected load: 102kVA, rated current: 148A, rated current (fast): 148A, fuse (slow): 160A, length: 8000mm, width: 3000mm, height: 4000mm, weight: approx. 17t, operating hours: approx. 80,000h. The machine is fully functional, the ball screw drive (recirculating spindle) of the Z-axis was renewed in 2024 and it has been regularly maintained. Comes with documentation, control cabinet, hydraulic unit, filter elements, and chip conveyor. An on-site inspection is possible.

turning length: 2500 mm control: Sinumerik 840 D spindle head: A 11 tool numbers: 48 swing diameter over bed slide: 750 mm swing over bed: 780 mm c-axis: 0,1-30 1/min diameter of quill: 160 mm taper bore: MK 5 tool length - max.: 500 mm weight of tools max.: 15 kg weight of the machine ca.: 27 t dimensions of the machine ca.: 8,4 x 4,0 x 2,5 m Technical details: Nominal turning length: 2,500 mm Swing diameter over bed slide: 750 mm Swing diameter over bed: 780 mm Working height: 1,300 mm Spindle head to DIN 55026: A 11 Bore through: 123 mm Diameter in front bearing: 200 mm Oriented spindle stop: 0-359 degrees Drive power at 100/60 % duty cycle: 37/45 kW Total speed range: 10-2,500 1/min Number of speed ranges: 2 Speed range I: 10-775 1/min Speed range II: 20-2,500 1/min Max. torque at 60 % duty cycle: 2,500 rpm. Torque at 60 % ED: 2,083 Nm (up to 186 rpm) The data for this ad was crea ...

turning length: 3.000 mm greates pass round over bed: 810 - 760 mm swing diameter over slide rest: 740 mm control: SIEMENS - 840 C max. turning diameter: 800 mm turning diameter over slide: 740 mm travel -x2 axis: 875 mm travel -z2 axis: 3.700 mm CNC Turning- and Milling Center | NILES-SIMMONS - N40 MC / 3000 equipped with a well as travelling lynette and tailstock. Additional equipment: - Centering points, - Jaw sets, - Clamping jaws, The machine is in a well-maintained condition and can be inspected at any time under power. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: N-40 | N 40 | N40MC3000 | N40MC The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning length: 1.300 mm spindle diameter: 120 mm spindle bore: 38 mm control: SIEMENS - 840 D numbers of positions in the tool changer: 12 tool taper: VDI 30 CNC Turning- and Milling Center | NILES-SIMMONS - N10 equipped with Y-axis, turret for driven tools, steady rest, and tailstock. The machine is in well-maintained condition. For further technical details, please refer to the attached offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: N-10 | N 10 | N10/2 | N10-2 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning length: 4.500 mm greates pass round over bed: 810 - 760 mm swing diameter over slide rest: 740 mm control: SIEMENS - 840 C max. turning diameter: 800 mm turning diameter over slide: 740 mm travel -x2 axis: 875 mm travel -z2 axis: 5.200 mm CNC Turning- and Milling Center | NILES-SIMMONS - N40 MCT 4500 equipped with a turret for driven tools as well as NC steady rest and tailstock. Additional equipment: - Centering points, - Jaw sets, - Clamping jaws, The machine is in a well-maintained condition and can be inspected at any time under power. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: N-40 | N 40 | N40MCT4500 | N40MCT The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: max. 750 mm turning length: 3.500 mm turning length: Standard: 3.071 mm control: Sinumerik 840 D Siemens Working height: 1.300 mm axis stroke:: x-travel: 435 mm z-travel: 3.071 mm max. workpiece weight between centers: 2.000 kg Main spindle:: turning speed range - main spindle: 10 - 3.000 min/-1 power capacity - main spindel: 61,2 / 195 kW max. Torque: 779 Nm spindle head: A 11 DIN 55026 spindle diameter in front bearing: 180 mm Subspindle:: Spindle speed range subspindle: 10 - 3.000 min/-1 power capacity - Sub spindle: 73 / 233 kW max. Torque: 932 Nm spindle head: A 11 DIN 55026 spindle diameter in front bearing: 180 mm Turret 1:: U-axis: min. -5 - max. 430 mm w-axis: min. 276 - max. 3.347 mm tool taper: VDI 50 number of toolpositions: 12 pos. Number of driven toolspositions: 12 pos. Spindle speed - driven tool stations: max. 3.000 min -1 power capacity - driven to ...

turning diameter:300 mm swing diameter:350 mm turning height:275 mm x-axis:925 mm z-axis:250 mm clamping chuck diameter:200 mm Feed speed:30 m/min. total power requirement:45 kW weight of the machine ca.:7 t Machine was used just from time to time in the last years - very good condition! with CNC SIEMENS 840 D 12-station turret head with driven toolings workpiece in and out conveyor belt coolantattachment and chip conveyor diverse accessories

turning diameter over bed: 500 mm turning diameter over slide rest: 330 mm turning diameter in the gap: 600 mm turning length: 3000 mm bed width: 505 mm spindle bore: 72 mm spindle head: DIN 55022 Gr. 8 taper in tailstock: MK 5 turning speed range: 22,4- 1120 U/min power requirement: 18,5 kW dimensions: 5,3 x 1,75 x 1,53 m weight of the machine ca.: 5,2 t used lathe in nice condition with digital scale - 2 axis digital scale - 4 jaw chuck Ø 250 mm - 3 jaw chuck Ø 260 mm - Multifix C toolholder system - some toolholders - steady The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Face plate diameter: 1.250mm Center height above foundation slab: 1,250mm Weight: 19t Power: 55Kw Max. torque on the face plate: 31,500Nm Maximum workpiece mass between centres: 16,000 kg Speed range: 2.24 – 224 rpm

Parallel Lathe WMW NILES type DLZ 500 IV L 1000 Between points: 1000 mm Maxi Ø on bench: 500 mm Maxi Ø over saddle: 300 mm Spindle diameter: Ø 50 mm Spindle speed: from 28 to 1400 RPM 3-jaws chuck Ø 200 mm Threadings: Metric + Whitworth Tailstock CM4 Auto Feeds transverse + longitudinal + rapid Lubricant pump Voltage: 380 V Dimensions (L x W x H): 3000 x 1400 x 1500 mm Weight: approx 2,5 T

WMW Niles Ø 1400 x 2000 mm Distance between centers: 2000 mm Swing over bed: 1400 mm Swing over cross-slide: 1100 mm Swing in gap: 1800 mm Diametre of main spindle bore: 90 mm Power on main spindle: 14 kW Number of speeds: 382 rpm Chuck (3/4 pinch) -- diametre: 1200 mm

Four-jaw chuck, four-jaw lathe chuck, 4 jaw chuck -Type: DH250x4/TGL30-2332 -Chuck size: Ø 250 mm -Throughout: Ø 80 mm -Rezess: Ø 210 mm -Hole circle: Ø 230 mm -Number: 3x available -Price: per piece -Weight: 18 kg

Three-jaw chuck, three-jaw lathe chuck -Chuck size: Ø 200 mm -Weight: 18 kg

Three-jaw chuck, three-jaw lathe chuck, 3-jaw chuck -Mouth size: Ø 200 mm -Short cone mount for: bayonet disc attachment -Cone size: 6 -Cone: Ø 106 mm -Bolt circle: Ø 133.4 mm -Through hole: Ø 54 mm -Weight: 15 kg

Three-jaw chuck, three-jaw lathe chuck, 3 jaw chuck -Chuck size: Ø 160 mm -DKRD Ø: 160 mm -Weight: 15.5 kg

three-jaw chuck, three-jaw lathe chuck -Handover: in current condition as viewed -Short cone: has been shortened -Chuck size: Ø 200 mm -Through hole: Ø 54 mm -Hole: cone Ø 104.5 mm -as per pictures, without additional accessories -Weight 14.4 kg

three-jaw chuck, three-jaw lathe chuck, 3 jaw chuck -Chuck size: Ø 250 mm -Cone: Short cone 8 Ø 139 mm -Bolt circle: Ø 170 mm -Through hole: Ø 80 mm -Weight: 24 kg

Wedge rod feed, swivel feed, swivel swivel feed, power clamp feed -Feed size: Ø 250 mm -Weight: 35.5 kg

Three-jaw chuck, three-jaw lathe chuck, 3-jaw chuck -Feed size: Ø 200 m -Through hole: Ø 54 mm -Weight: 12 kg

Three-jaw chuck, three-jaw lathe chuck, 3 jaw chuck -Chuck size: Ø 160 mm -TGL: 30-2312 -Weight: 11.2 kg

Three-jaw chuck, three-jaw lathe chuck, 3 jaw chuck -DH: 200x3-III -TGL: 30-2332 -Chuck size: Ø 200 mm -Weight: 16.7 kg

Three-jaw chuck, three-jaw lathe chuck, 3 jaw chuck -DH: B200x3x6 -TGL: 30-2332 -Chuck size: Ø 200 mm -Cone: Ø 104 mm -Hole circle: Ø 132 mm -Through hole: Ø 54 mm -Weight: 15 kg

Three-jaw chuck, three-jaw lathe chuck, 3-jaw chuck -Mouth size: Ø 250 mm -Recess: Ø 210 mm -Passage: Ø 80 mm -Weight: 20.7 kg

Three-jaw chuck, three-jaw lathe chuck, 3 jaw chuck -Chuck size: Ø 250 mm -Short taper: 6 -Throughout: Ø 80 mm -Weight: 25.9 kg

Three-jaw chuck, three-jaw lathe chuck, 3-jaw chuck -Feed size: Ø 200 m -Through hole: Ø 54 mm -Short cones: 5 -Bolt circle: 105 mm -Weight: 16.2 kg

Three-jaw chuck, three-jaw lathe chuck, 3-jaw chuck -Mouth size: Ø 200 mm -threaded mounting -Through hole: Ø 53 mm -Weight: 19.7 kg

Three-jaw chuck, three-jaw lathe chuck, 3-jaw chuck -Mouth size: Ø 250 mm -Recess inlet: Ø 210 mm -Through hole: Ø 80 mm -Weight: 18 kg

Three-jaw chuck, three-jaw lathe chuck -Chuck size: Ø 250 mm -one set: hard interchangeable jaws -Passage: 81 mm -Rezess: Ø 210 mm -Hole circle: Ø 230 mm -Weight: 19 kg

Three-jaw chuck, 3-jaw chuck -Type: DHB 200x3x5 TGL 30 2332 -Mouth size: Ø 200 mm -Passage: Ø 54 mm -max.: 3000 rpm -Short taper mount: Ø 105 mm -Weight: 24 kg

three-jaw chuck, three-jaw lathe chuck, 3 jaw chuck -DH250x3-III -TGL 30-2332 -Chuck size: Ø 250 mm -Cone: Short cone 8 Ø 140 mm -Bolt circle: Ø 172 mm -Through hole: Ø 80 mm -Weight: 28 kg

Grinding wheel, cup wheel, bench grinder, surface grinding machine, cylindrical grinding machine -Inside: Ø 32 mm -Outer: Ø 200 mm -Width: 6 mm -Number: 9x discs available -Price: per piece -Weight: 0.4 kg

Grinding wheel, cup wheel, bench grinder, surface grinding machine, cylindrical grinding machine -Inside: Ø 32 mm -Outer: Ø 250 mm -Width: 6 mm -Number: 2x discs available -Price: per piece -Minimum purchase: complete -Weight: 0.6 kg

Grinding wheel, cup wheel, bench grinder, surface grinding machine, cylindrical grinding machine -Inside: Ø 32 mm -Outer: Ø 250 mm -Width: 32 mm -Number: 1x discs available -Price: per piece -Weight: 3 kg

Grinding wheel, cup wheel, bench grinder, surface grinding machine, cylindrical grinding machine -Inside: Ø 51 mm -Outer: Ø 200 mm -Width: 19 mm -Number: 1x discs available -Price: per piece -Weight: 1.2 kg

Grinding wheel, cup wheel, bench grinder, surface grinding machine, cylindrical grinding machine -Inside: Ø 51 mm -Outer: Ø 200 mm -Width: 20 mm -Number: 1x discs available -Price: per piece -Weight: 1.3 kg

Grinding wheel, cup wheel, bench grinder, surface grinding machine, cylindrical grinding machine -Inside: Ø 32 mm -Outer: Ø 200 mm -Width: 32 mm -Number: 1x discs available -Price: per piece -Weight: 2.1 kg

Grinding wheel, cup wheel, bench grinder, surface grinding machine, cylindrical grinding machine -Inside: Ø 32 mm -Outer: Ø 200 mm -Width: 25 mm -Number: 3x discs available -Price: per piece -Weight: 1.9 kg

turning diameter over bed: 1650 mm turning diameter over slide rest: 1200 mm turning length: 7500 mm turning dia. in gap: 2500 mm spindle diameter: 105 mm speed: 3,55 - 180 (x24) U/min voltage: 380 V total power requirement: 45 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Grinding wheel, cup wheel, bench grinder, surface grinding machine, cylindrical grinding machine -Inside: Ø 32 mm -Outer: Ø 200 mm -Width: 30 mm -Number: 9x discs available -Price: per piece -Weight: 1.8 kg

Grinding wheel, cup wheel, bench grinder, surface grinding machine, cylindrical grinding machine -Inside: Ø 32 mm -Outer: Ø 200 mm -Width: 30 mm -Number: 6x discs available -Price: per piece -Weight: 1.8 kg

centre distance: 5000 mm turning diameter over bed: 4000 mm turning dia. in gap: 5000 mm spindle bore: 104 mm turning speeds: 1,4 - 71 (18x) U/min total power requirement: 30 kW weight of the machine ca.: t dimensions of the machine ca.: m 4-jaw face plate Ø 3.150 mm modular lathe! The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Grinding wheel, cup wheel, bench grinder, surface grinding machine, cylindrical grinding machine -Inside: Ø 51 mm -Outer: Ø 200 mm -Width: 40 mm -Price: per piece -Number: 8x available -Weight: 2.2 kg

Three-jaw chuck, three-jaw lathe chuck -DH200x3-III -TGL: 30-2332 -Mouth size: Ø 200 mm -Recess: Ø 155 mm -Bolt circle: Ø 174 mm -Through hole: Ø 57 mm -Weight: 12 kg

Grinding wheel, double bench grinder, surface grinder, cylindrical grinder -Inner diameter: 32 mm -Outer diameter: Ø 250 mm -Width: 6 mm Price: per piece -Quantity: 40x available -Weight: 0.6 kg

Grinding wheel, double bench grinder, surface grinder, cylindrical grinder -Inner diameter: 32 mm -Outer diameter: Ø 250 mm -Width: 8 mm Price: per piece -Quantity: 50x available -Weight: 0.9 kg

Grinding wheel, double bench grinder, surface grinder, cylindrical grinder -Inner diameter: 32 mm -Outer diameter: Ø 250 mm -Width: 8 mm -Price: per piece -Quantity: 10 available -Weight: 0.9 kg

Grinding wheel, cup wheel, double bench grinder, surface grinder, cylindrical grinder -Inner diameter: 50 mm -Outer diameter: Ø 200 mm -Width: 40 mm -Number: 12 grinding discs available Price: per piece -Weight: 2.1 kg

Grinding wheel, cup wheel, bench grinder, surface grinder, cylindrical grinder -Manufacturer: Niles, grinding wheel - Inside: Ø 32 mm -Outside: Ø 200 mm -Width: 20 mm -Number: 2x discs available -Price per piece -Weight: 1.4 kg/pc.

Grinding wheel, cup wheel, bench grinder, surface grinder, cylindrical grinder -Manufacturer: Niles, grinding wheel 20 Jot - Inside: Ø 32 mm -Outside: Ø 200 mm -Width: 20 mm -Weight: 1.3 kg

Grinding wheel, cup wheel, bench grinder, surface grinding machine, cylindrical grinding machine -Inside: Ø 51 mm -Outer: Ø 200 mm -Width: 40 mm -Number: 7x discs available -Price: per piece -Weight: 1.9 kg

weight of the machine ca.:3 t

diameter:315 mm Speed:max. 2400 min. -1 weight of the machine ca.:25 kg

max. width of grinding wheel: 50 mm ratio: 0 max. dia. of grinding wheel: 400 mm total power requirement: 3 kW weight of the machine ca.: 1000 kg dimensions of the machine ca.: m Pre-Dressing Device for Gear Grinding Wheels The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

3-jaw chuck, three-jaw chuck WMW DH-B 200x3x6 ( DH-B200x3x6 ) TGL 30-2332 Outer Ø: 200 mm Bolt circle Ø : 133.5 mm Bore Ø: 54 mm Height with jaws: 140 mm used, tested ! Dimensions: 200 x 200 x 121 mm

3- Jaw Chuck WMW NILES DHK 200x3 Outer Ø: 200 mm Flange: 155 mm Bore Ø: 60 mm Bolt circle: 175 mm Height with jaws: 125 mm Chuck number: 507 Dimensions: 200 x 200 x 125 mm

turning diameter over bed: 2000 mm turning diameter over slide rest: 1600 mm turning length: 10000 mm control: FANUC 0i TF workpiece weight: 25 t steady: 4 feed: 1 - 3000 mm/min main drive: 60 kW main spindle speeds:: 1,5 - 160 U/min bed width: 1150 mm faceplate: 1600 mm tail stock: tailstock quill diameter: 260 mm total power requirement: 110 kW weight of the machine ca.: 120 t the machine is currently being overhauled and equipped with - new electrics (Siemens, Schneider, cabinet) - CNC control FANUC 0i TF - new Fanuc motors - new hydraulic parts - complete mechanical overhaul - Ball screw (B-axis) - bed overhaul - three-track bed - Grinding device 1500 rpm - Milling Unit - Face plate with 4 jaws - 3 steady rests - incl 1 year warranty from overhauler on electrical and hydraulic components and 2 years on FANUC CNC Completion of overhaul after order (approx. 2 months) The data for th ...

max. wheel diameter: 630 mm gear width: 215 mm max. module: 12 min. module: 1 number of teeth: 5 - 140 stroke length max.: 225 mm table diameter: 500 mm table load: 400 kp grinding wheel diam. min/max.: 270-350 mm max.helical angle: 45 ° no. of strokes: 75 - 315 p.M. total power requirement: 8,5 kW weight of the machine ca.: 6,3 t dimensions of the machine ca.: 3,2 x 3,6 x 3,7 m change gears, program control, complete covering, coolant/Filtering attachment The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1250 mm gear width: 430 mm max. module: 30 min. module: 2 no. of teeth: 10 - 400 max.helical angle: 45 ° Stößelhublänge: 25 - 450 mm stroke position adjustment: 310 mm Doppelhubzahl - stufenlos: 70 - 190 U/min grinding wheel diam. min/max.: 290 - 400 mm table diameter: 1000 mm table load: 4000 kp dimensions of the machine ca.: 7,7 x 4,5 x 3,3 m total power requirement: 30 kW weight of the machine ca.: 28 t - Complete covering - Oil mist extraction - Coolant system - counter Holder - change Gears - The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

tip circle diameter: 650/800 mm workpiece length - max.: 1100 mm max. module: 20 (25) mm min. module: 0,5 mm control: Siemens Sinumerik 840 D total connected load: 62 kVA helical angle: -45 / + 120 ° weight of the machine ca.: 10 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 820 mm turning length: 6000 mm control: Siemens Si 840 D sl total power requirement: 155 kW weight of the machine ca.: 65 t dimensions of the machine ca.: 16350 x 3700 x 3850 m Purchase price EUR 1.550.000 Time recording from Feb. 2025 Operating hours = 38601 h Main spindle = 1958 h Milling spindle = 1760 h CNC control Si 840D sl Working area 6000 mm Working height 1390 mm Swing diameter over bed slide/bed 820 mm X-axis travel +850 -25 mm Z-axis travel 6820 mm C-axis, smallest increment +/-0.001° Workpiece spindle Spindle head according to DIN 55026 A15 Bathing through 160 mm Front diameter Bearing 240mm 2-stage gearbox, infinitely variable programmable Drive power at 100/60% duty cycle: 78/87kW Speed ranges: 2 Speed range I: 10-501 rpm Speed range II: 10-1750 rpm Torque I, 60% duty cycle: 8000 Nm Torque II, 60% duty cycle: 2308 Nm C-axis Holding torque with backlash-f ...

turning diameter:480 mm turning length:1250 mm control:H 645 weight of the machine ca.:8 t dimensions of the machine ca.:5 x 2 x 2 m centre distance:1580 mm swing over bed:495 mm swing diameter:üb.Querschlitten ca.350 mm working area:1600 mm control:H645 connected load:50 kW

control: Numeriksteuerung CNC 700 K total power requirement:28 KVA weight of the machine ca.:7,8 t dimensions of the machine ca.:6610 x 2280 x 2235 mm work height max.:1060 mm greates pass round over bed:305 mm spindle bore:82 mm Documents:vorhanden

turning length:630 mm total power requirement:16 kW weight of the machine ca.:5 t dimensions of the machine ca.:3400 x 1500 x 1600 mm swing diameter over slide rest:Hinterdrehschlitten 250 mm centre height:über Hinterdrehschlitten 150 mm center height over bed:300 mm turning spindle:Kopf DIN 55021 Gr. 8 centre distance:1000 mm accessories::2 Schränke Wechselräder

Tip height: 330 mm centre distance: 1500 mm circular diameter: bed 690 mm spindle bore: 82 mm spindle retainer: short taper size 8 taper tailstock: 6 MK spindle speed: 7.1-1400 rpm feeds: longitudinal/plan 0.05 112/0.025 56 mm / U thread pitches: 0.25-560 mm electrical connection: 380 V, 15 kW space: 3350 x 1800 x 1400 mm weight: 4800 kg

Tip height: about quilt 300 mm centre distance: 1500 mm circular diameter: upper bed 640 mm spindle bore: 67 mm spindle retainer: Gr. 8 taper tailstock: 5 MK spindle speed: 18 - 900 rpm feeds: longitudinal/plan 0.063 0.032 2.1 mm / U thread pitches: 0.5-14 mm electrical connection: 380 V, approx. 7.5 kW space: 1550 x 3100 x 1250 mm weight: approx. 3500 kg hardly used and therefore well-preserved bed lathe

Made in Italy machine according to DIN 8606 Tip height: 260 mm Turning diameter over bed: 520 mm Swing over carriage: 300 mm Centre distance: 1500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (24) 9-1600 rpm (option 11-2000 U/min) Engine output: 5.5 kW (option: 7.5 kW) feed Z-axis: (93) 0.028 6.43 mm / Rev Feed x axis: (93) 0.012 2.73 mm / Rev Thread, metric: (54) 0.5-224 mm Thread, Witworth: (55) 72 - 1/8 TPI Thread, module: (54) 0.5-112 mm Thread, Diametral Pitch: (54) 64 - 1/4 D.P.. Cross slide Lxw: 650 x 230 mm Transversal carriage stroke: 340 mm Upper carriage Lxw: 350 x 150 mm Upper carriage stroke: 150 mm Tailstock Quill diameter: 85 mm Tailstock Quill stroke: 200 mm Tailstock taper: MK 5 Weight: 3,100 kg Facilities: -Movement of the tailstock pneumatically supported -Acceptance Protocol according to DIN 8605, ...

Made in Italy machine according to DIN 8605: lathe with increased accuracy. Tip height: 215 mm Turning diameter over bed: 430 mm Swing over carriage: 240 mm Top width: 1,000 mm Bed width: 290 mm Spindle bore: 52 mm Spindle nose: Camlock 6 " Spindle speeds variable: 6 Spindle speeds: 60-2,000 rpm S6/S1 engine power: 4 kW (option: 5.5 kW) feed Z-axis: (38) 0.05 - 1.88 mm / Rev Feed x axis: (38) 0.02 1,084 mm / Rev Thread cutting, metric: (30) 0.45-20 mm Thread cutting, Witworth: (35) 80-1 3/4 TPI Thread cutting, module: (25) 0.25-10 mm Thread cutting, Diametral Pitch: (30) 160-3 1/2 D.P.. Cross slide Lxw: 370 x 190 mm Transversal carriage stroke: 240 mm Upper carriage Lxw: 275 x 115 mm Upper carriage stroke: 120 mm Tailstock Quill diameter: 60 mm Tailstock Quill stroke: 135 mm Tailstock taper: MK 4 Weight: approx. 2,000 kg Facilities: -Infinitely variable  ...

Precision lathe with cycle automatic Make: Hamlet Model: E 70 x 2000 Year of construction: 1997 For food and feed shaft machining Technical data: Workspace Turning length: 2000 mm Swing over bed: 720 mm Swing over cross slide plan: 430 mm Displacement of the plan slide: 410 mm Bed width: 480 mm 3prpek3uq Spindle nose ACC. to DIN 55027: size 11 Spindle diameter in front bearing: 150 mm Spindle bore: 106 mm Inside taper of the main spindle: 112 metric Control: Siemens 805 Spindle gearbox newly stored according to the manufacturer ca. 2.500 EUR

Made in Italy Peak: 300 mm Rotary diameter over bed: 600 mm Rotary diameter via sled: 380 mm Peak: 1,500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (12) 16-1200 U/min Engine power: 9.2 kW (special equipment/standard: 7.5 kW) Reprimor Z-axis: (93) 0.028-6.43 mm/U Feed X-axis: (93) 0.012-2.73 mm/U Thread, metric: (54) 0.5-224 mm Threads, Witworth: (55) 72-1/4 x8 TPI Thread, module: (54) 0.5-112 mm Threads, Diametral Pitch: (54) 64 -1/4 D.P. Crossleigh hub: 340 mm Oberslitten hub: 150 mm Riding stock pinol diameter: 85 mm Riding stove pinol stroke: 200 mm Ridstock cone: MK 5 Weight: About 3,200 kg Facilities: -3-axis digital display -Step-by-step speed adjustment -Automatic lubrication of the management railways -LED lighting -Micrometer bed strike -9.2 kW engine instead of 7.5 kW -Quick change holder system mul ...

Tip width: 700 mm Tip height: 150 mm Circulation diameter over bed: 300 mm Bed width: 180 mm Spindle bore: 38 mm Mounting in the spindle bore: MK 5 Speed range, infinitely variable: 30 - 450 / 150 - 3000 rpm Range of longitudinal feeds: (14) 0.07 - 0.65 mm/U Area of plan feeds: (11) 0.03 - 0.12 mm/U Metric threads: (18) 0.2 - 3.5 mm Inch Thread: (21) 8 - 56 Gg/1" Pinole path: 85 mm Pinole holder: MK 3 Engine power S1 100%: 1.5 kW / 400 V Motor recording power S6 40%: 2.2 kW / 400 V Machine dimensions (W x D x H): 1380 x 640 x 500 mm Weight approx.: 235 kg without base Delivery: - Digital display - 3-jaw chuck PO3-160 mm steel version - Feed flange 160 mm - Solid grain tips - Interchangeable wheels - Quick-release steel holder size 20-2 with 2 straight inserts - Slip clutch - Micrometer longitudinal stop - Plan sled with top support - Frequency inverter ...

1 x L+Z lathe Colchester Mascot 1600/600 Built: c.1975 Very stable lathe. Ideal machine for locksmiths or agricultural machine mechanics. Technical data: Turning diameter over crimson: 710 mm Turning diameter over bed:432 mm Turning diameter via support:267 mm Turning length: 1,000 mm Spindle speeds:20 - 1600 rpm Spindle bore:76 mm Drive motor:5.6 kW Feeds: 0.6 - 10 mm/u Metric threads: 40 (0.4 - 14 mm incline) Machine weight approx.:2000 kg Room requirements approx.:l:2.65 x w:1.1 x h:1.6 m Accessories: 3 - Jaw lining UVA 310 mm 4 Set of change jaws Bfraed8ae0 Tripan quick-change system 4 x Interchangeable holder running counter tip in tailstock (MK 5) Countertip in spindle Alternating wheels Manual Mudguard complete documentation The machine can be inspected at our warehouse in Reichenbach under electricity.

Stepless guide and pull spindle lathe TC 250 V Peak height: 250 mm Circulation diameter via slide: 350 mm Orbital diameter in the croation: 695 mm Tip width: 1500 mm Spindle nose: DIN 55029, Camlock, size 6 Bed width: 305 mm Cross slide path: 272 mm Upper slide path: 155 mm Spindle bore: 80 mm Speed range, infinitely variable: (3) 30 - 2200 rpm Whitworth Thread: (45) 2 - 72 TPI Metric Thread: (39) 0.2 - 14 mm Diametral Thread: (21) 8 - 44 D.P.I Module Thread: (18) 0.3 - 3.5 module Longitudinal feeds: 0.04 - 1.00 mm/U Flat feeds: 0.02 - 0.50 mm/U Engine power: 5.5 kW Dimensions LxWxH, approx.: 2900 x 1175 x 2040 mm Weight, approx.: 2,200 kg characteristics: - Toolmaker accuracy - Stepless speed control (3 pre-level steps) - Finely-balanced main spindle - Stable machine bed with hardened and ground guides - One-piece cast base - Adjustable precision cone roll ...

Maximum diameter to turn on the bench 2,110 mm Maximum diameter to turn on trolley 1,600 mm Maximum distance between platforms 12,830 mm Spindle hole diameter 155 mm Cone on spindle no. 120 metric Cone on spindle (with reduction) no. 6 clamps Cone on the counterpoint (6-bit reduction) no. 120 metrics Maximum stroke of the counterpoint 400 mm DSeed from the tool support plane to the axis of the 80 mm centers Main engine power 100 HP Spindle speed from 0.9 to 90 rpm with continuous variation Longitudinal feed no. 36: 0.2 to 12.8 Transverse advances No. 36: 0.1 to 6.6 Metric fillets #26: 1 to 42 Whitwoth fillets #17: 0.5 to 11 Quick forwards Maximum permissible load on the tips 50-60 ton Refrigerant liquid system

Peak height 2,600 mm Point distance 10,000 mm Closed bench 2,000x6,000 mm To be completed with CNC

IN THE RETROFITTING PHASE Height tips 900 mm Point distance 7,000 mm Turnerable diameter on the bench 1,850 mm Turnerable diameter on trolley 1,350 mm Turnerable diameter on recess 2,150 mm Bench width 1,000 mm Bar passage diameter 206 mm ASA A1 15" spindle attachment Top speed 300 RPM Diameter of the tank counterpoint 220 mm Row stroke counterpoint 450 mm Withworth threads - metrics - diametrics - module Weight allowed between tips without lunettes 15 ton Weight allowed between tips with a 20-ton bezel

Max length 8,000 mm Maximum turning diameter above wagon 1,250 mm Max vault over guides 1,650 mm Maximum turning diameter under spindle 2,000x700 mm Displayed – two axes

Height tips 220 mm Useful length 1,000 mm 42 mm bar pass

Maximum turnerable diameter: 1040 mm Turning diameter above the wagon: 620 mm Maximum workable length: 5200 mm Spindle power: 40 kW CNC ECS Optical line measurement system Maximum flow between tips: 10 tons Machine complete with chip evacuator, 4-position hydraulic turret, safety shelters in compliance and spindle 3-jaw hydraulic self-centering AUTOBLOCK; Various accessories available (tool case, stretchers, lunettes...) EC 2018 remarking possibility

Equipped with no. 03 guides Overhauled with: guide grinding, CN conversion, new electrical and hydraulic system, hydraulic self-centering installation, shaving conveyor; CN Fagor 8055 Numerical Control – BT Maximum turnerable diameter 1800 mm 3-grife hydraulic self-centering with a diameter of 1450 mm with tightening force 30 Ton with 30 bar clamp L max turnerable 3000 mm Spindle engine power 110 Kw Maximum rotation speed 180 rpm Fast value axles 4000 mm/min M3/M4 Spindle Rotation Inversion Possibility 4 speed ranges Hydraulic counterpoint Maximum capacity of workpiece on counterpoint 12500 Kg It is currently possible to work details of up to 3000 mm length but the extension pallet is available to be able to work details up to 8 m in length. (un revised); Machine installed and working

Platò diameter: 1300 mm Used lathe in good condition, available unless sold.

peak heights: 250 mm point distance: 1500 mm bar pass: 105 mm
