italian peripheral equipment e.g. heating,cooling,drying used for sale

CENTRIFUGAL DRYER for pellets (to go with an existing pelletizer), for a 350/400 kg/h capacity of PE PP ABS PS PC flakes, made of sturdy AISI304 stainless steel with vertical axis, driven by a 2.2 kW 3 Ph.asynchronous motor,, complete with soundproofed discharge cyclone, stainless steel tank for water recovery and recycling, 1.1 kW water ump,, equipped with drainage for overflowing, HEAT EXCHANGER GROUP, made of painted carbon steel, internal copper tube bundle, with removable head to facilitate cleaning, fixed to the tank using brackets, float with water replenishment valve, Electrical board of machine wiring, Users manual, CE compliance, installed power - used power in work: about 60-65% : 2.2, conditions: new machine, type: for granulate - this machine goes after the pelletizer, capacity: 300-450 kg/h

WATER RING HORIZONTAL PELLETIZER, Constructed in a stainless steel sturdy structure, 16.25 kw installed power, for PE PP production average 300-400 kg., steam extraction vent, water-water heat exchanging unit (to be connected to a chiller), N.1 die (customized to project), N.4 rotating knives, N.1 blade-holder, N.1 blade adjusting template, N.1 thermoregulated area, Heating power 6 kW, Cutting drive power 3 kW, No. 1 water pump for water re-circulation, ELECTRIC CABINET (OPTIONAL - can be connected to extruders cabinet), This machine is available in other sizes and in dry version., When submitting your enquiry, please give details of :, - MATERIAL type and size, - CAPACITY required, - if CABINET is needed or possible connection with existing extruder cabinet, installed power - used power in work: about 60-65% : 16.25, capacity: 300-400 kg/h

TWIN SCREW EXTRUSION LINE, Top Italian Constructor, for PVC both soft and rigid, max infeed 10-12 mm size, forced feeding hopper, dosing unit, 2 parallel, counter-rotating screws 118 mm diam. 25 L/D, pressure control;, nitrided steel barrel with degassing vent 2,2 kW, Barrel heating bands kW 76,00, Extruder cooling barrel motors power 4x 0,37 kw, n.7 Heating zones, Extruder a.c. motor 120 KW, Extruder tot power 205 kw, Extruder average absorbed power 105,00 kW, Extruder rpm 8-45, Lubrication pump 1,50 kW, Electric cabinet with inverter and modem for remote diagnosis, semi automatic screenchanger for PVC, granulating head, die face dry pelletizer, cooling unit, Installation and start up included (boarding and travel costs on Buyers charge), Total installed power: 205 kw - 105 kw average in use

HOT MICROPERFORATOR, Maximum working width 1.200 mm, Total roll width 1.300 mm., Maximum working speed 80 mt./min, Inner Ø 118 mm., Fitted with n.12 x 100 mm.bronze needle holding pieces, Nr.9 needles/sqcm, needle Ø 1,42 mm. (or bespoke to project),, 380 V 3Ph+N+E 50 Hz., Electric panel with digital thermometer to pre-set the working temperature, You can select the temperature on the different heaters (central and side), Pneumatic system to open/close the perforating roll., Roll rotation when in stand-by posittion, to avoid material overheating, Easy replacimg counter-roll in organic bristle., Micro-metric adjustment of needles pressure in work, The needle-holding roll can be very easily replaced to a different needle pattern., conditions: new machine, type: Hot microperforator for plastic films

USED VERTICAL MIXER, constructed in sturdy carbon steel, Total height 3.400 mm., Diameter 1.300 mm., Legs 2.150 mm., Barrel height 1.250 mm., Cone height 750 mm., inner screw 180 mm. diam., Nominal capacity 1.800 lt.ca, side discharging pipe, Discharging point 860 mm. from floor., hatch on barrel mm. 500 x 700, 1,5 kw drive, installed power - used power in work: about 60-65% : 1.5, capacity: 1800 lt.

USED VERTICAL MIXER, 24 m3 capacity, total height approx 5.400 mm including transmission group + cyclon, max Ø 2.800 mm., constructed in painted electro-welded carbon steel., inner auger diam.350 mm., lower loading hopper with safety grid and sampling shutter,, complete with anti-dust cover, mm.600x500, pulley and belt transmission, protected by carters, electric voltage: 400 V, 50 Hz,, conditions: good working conditions, availability: immediate, width: 2800 mm. special transport

Meccanica model Italian 92-liter Banbury and Meccanica model Italian 80-liter Banbury.

STRAND PELLETIZER 250 mm., Variable pitch, with synchronized pull off unit, 4 kW motor, 4 poles, IE3 motor drive, 1.1 kW motor on pull off unit, Transmission belts, Speed variation via inverter, Electrical panel compliant with CE standards - 400 V, 50 Hz with, 2 x 16 Amp sockets, width 250 mm, Rotor with 12 micrometrically adjustable rotating blades, Counter-blade made in widia, Hardened pressure roller, diameter 60 mm, straignt knurling, Hardened drive roller, diameter 40 mm, straight knurling, Pneumatic piston for presser roller adjustment, Chrome plated parts in contact with the material, Stainless steel discharge, Limit switch with safety lock, Mounted on anti-vibration support with sound proof panels, installed power - used power in work: about 60-65% : 5,1 kw, availability: 70 working days ca, working width: 250mm, conditions: new machine, type: strand pelletizer for extruders

STRAND PELLETIZER 250 mm., Fixed pitch, 4 kW motor, 4 poles, IE3 motor drive, Transmission belts, Speed variation via inverter, Electrical panel compliant with CE standards - 400 V, 50 Hz with, 2 x 16 Amp sockets, width 250 mm, Rotor with 12 micrometrically adjustable rotating blades, Counter-blade made in widia, Hardened pressure roller, diameter 60 mm, straignt knurling, Hardened drive roller, diameter 40 mm, straight knurling, Pneumatic piston for presser roller adjustment, Chrome plated parts in contact with the material, Stainless steel discharge, Limit switch with safety lock, Mounted on anti-vibration support with sound proof panels, installed power - used power in work: about 60-65% : 4,0 kw, availability: 70 working days ca, working width: 250 mm, conditions: new machine, type: strand pelletizer for extruders

ROTATING SCREEN, construction in Aisi304 stainless steel, previously working on a 160 mm extrusion line, stainless steel screen with 17 mm holes, 2 exits for lumps and good materials, 0,25 kw motor, Bonfiglioli gearbox, loading hopper 305 x 505 mm., excellent conditions, installed power - used power in work: about 60-65% : 0,25 kw, availability: immediate, conditions: excellent

Battenfeld UTR 300 heating controller for control of Unilog 4000 B

Laboratory Heating Press EHSP20H – Used Demonstration Machine Table press / electric screw press with pressing pressure 20 KN (2 tons) With heating device up to 200 °C from above and below. Press drive with screw jack gear, reduction ratio 1 : 12, spindle diameter 32 mm, Pitch 6 mm, pressing area approx. 100 150 mm, clear height and stroke approx. 300 mm. Geared motor 0.37 KW, 1,390 rpm, 4-pole, with spur gear i = 1 : 5, Speed 150 mm / min. Max. dynamic load 20 kN. With reversing control, control box and motor protection plug. Sturdy press frame made of steel. Undertable made of high-quality aluminium profiles 4545 mm, table surface 600600 mm, Table top made of multiplex board. Total weight approx. 100 kg. The table press has a pressing pressure of 20 kN (dynamic load). Typical applications are pressing work with exact lining. Suitable for pressing bonding, embo ...

Laboratory heating press REITZ EHSP5H – used demonstration machine Heating press with pressing pressure 5 KN (0.5 tons) With heating device up to 200 °C from above and below. - Electric screw press press press force 5 KN (0.5 to) - Screw jack with spindle 20 mm, pitch 5 mm - Gear reduction ratio 1 : 10, 0.5 mm spindle travel per revolution - Clear width approx. 60 mm - Pressing area 100150mm - Heating device with temperature control, 2 heating plates 100 x 150 mm - With TECO electric motor 0.18 KW - With reversing contactor control (up – down buttons) and emergency stop - Motor protection plug against overload, with main switch - Machine table made of aluminum profiles and multiplex plate 700 700 mm - Total weight approx. 100 kg . Suitable for foil bonding and embossing. Due to self-locking of the spindle, long holding time with constant pressure. The scr ...

Cooling tray type KW 1000-200-200 self-sufficient for strand cooling in the production of granules or filaments. - a mobile and height-adjustable base frame made of welded steel raw, left machine version, painted - Frame-height adjustment of the top edge of the water bath from 900 mm to 1050 mm - a VA cooling tray 1000x200x200mm - 2 pieces adjustable and mounted strand holder - clamped to water edge - 1 piece wiper bled for partial strand drying - 1 piece of adjustable tub plug for filling height adjustment - 1 piece of VA water tank (reservoir) as service water tank - 1 piece of bacon water pressure pump to supply the cooling tank with sufficient cooling water from the water tank - 1 piece of direct 1/2" fresh water connection via float switch and solenoid valve for connection to the customer's side Fresh water network - Tub overflow - drain pipe DN50 for connection to  ...

liter capacity: unbkt l coolant: unbkt pressure: unbkt t total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The mixer combines hot and cold mixing. After hot mixing, the material automatically enters the cold mixer for mechanical cooling. -hot tank 800 l. - cooling tank 2000 l. - hot stirring time from 6 to 10 min. - cooling time from 10 to 15 min. - engine power 110 kW The device is adapted to the production of WPC terrace boards. Components needed for the product, such as PVC and wood dust or MDF dust, can be combined.

This cooling tank from Primac is in machine storage at Plastima Used Machinery. The Cooling Tank is from 1994 and is in great condition. - Brand: Primac - Model: CV.2C. 125/6 - Pipe diameter max: 125 mm - Cooling length: 6000 mm - Year of construction: 1994

WATER COOLING TANK, for strand pelletizers, Constructed in AISI4304 stainless steel, On 4 wheels (2 with brakes), Overall dimensions : LxWxH 2,5 x 0,5 x 1,0 mt., tank : LxWxH 2,5 x 0,5 x 0,25 mt., conditions: very good

VENANZETTI COOLING TOWER, for granule. This system allows to cool the granule after extrusion with little space taken, READ CONSTRUCTORS DESCRIPTION :, Spiral elevators, The spiral elevator is the perfect solution for moving a product upwards while simultaneously treating it thermally in very small spaces., The conveyor surface is a rising helicoidal trough, or rather a spiral with a constant pitch. The width of the trough is determined by the difference between the helicoid’s external and internal diameter. The product moves upwards on the conveyor by means of an oscillating thrust movement with controlled frequency and amplitude, and the direction is inclined in order to throw the product upwards., The advantages of this solution are:, -, very small layout space;, - thermal treatments while the product is on the conveyor (heating, cooling, drying, curing, etc.);, - speed on the conve ...

An air-cooled monoblock water chiller Green Box for the plastics industry is available. Cooling capacity: approx. 20 injection molding machines, power: 25kW, refrigerant circuits: 2, refrigerant: R407C, cooling capacity: approx. 80kW, air flow rate: approx. 16500m³/h. Machine dimensions X/Y/Z: approx. 3300mm/1100mm/2100mm, weight: approx. 1300kg. Documentation available. An on-site inspection is possible.

A Sandern vacuum calibration and cooling tank is offered. Max. pipe diameter: 125mm, tank length: 6000mm, number of chambers: 2. Dimensions X/Y/Z: 6500mm/1000mm/1500mm, weight: 1500kg. Inspection by appointment possible.

Rotor diameter: 500 mm Rotor width: 1200 mm kW: 30

Dry air dryer Granulate dryer for drying and heating hygroscopic granules. Capacity 600 l. Heating capacity 4.5 kW. Optionally available with dehumidifier AZO LE 600 P.

Granule dryer for heating and drying hygroscopic plastic granules. Tank capacity 1200 l. Heating capacity 9 kW. Optionally available with air dryer AZO LE 400 K

AIR DRYING TUNNEL, for strands, dimensions 2.000 x 300 mm. (or bespoke), blower on bottom with 2 conveyors which send air through slits, constructed in AISI304 stainless steel

Drying container Piovan 2 x 100 L BJ 1998

A mechanical centrifugal dryer B+B Anlagenbau for plastic flakes and washed materials is available. 1) Mechanical dryer B+B Anlagenbau FH 50/150-V, year of manufacture: 2008, power: 30kW, max. relative humidity: 60%, machine dimensions X/Y/Z: approx. 4050mm/1150mm/3850mm, weight: approx. 1250kg. 2) Separation tank Weiss, material: stainless steel, machine dimensions X/Y/Z: approx. 3000mm/1500mm/1800mm. The motors and slides need to be overhauled. 3) Friction separator B+B Anlagenbau FAS 40-300, power: 22kW, speed: 1470rpm, max. relative humidity: 60%, separated material: PET/PE/PP. Total system dimensions X/Y/Z: approx. 6500mm/2100mm/3200mm, design: modular, cyclones: 2/bunker, process: conveying/separation/friction drying/final dewatering. Documentation available. An on-site inspection is possible.

Auction-ID: A1-49000-47

An essential ingredient for removing impurities from the material. With a specially developed rotor with replaceable blades, high friction is generated at the target fraction and thus ensures thorough cleaning. Maintenance hatches on both sides allow easy access to the interior. The housing and the screens underneath are made of stainless steel. A support frame is included as well as inlet and outlet nozzles for the water. More information on request!

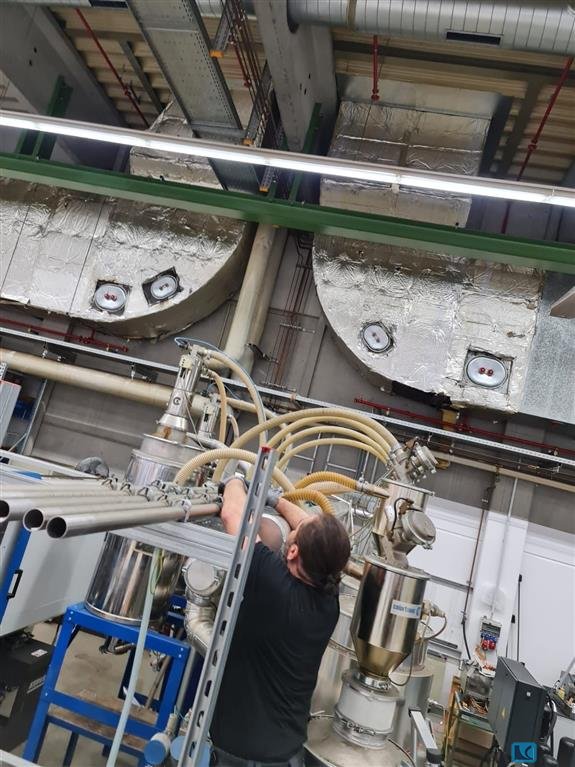

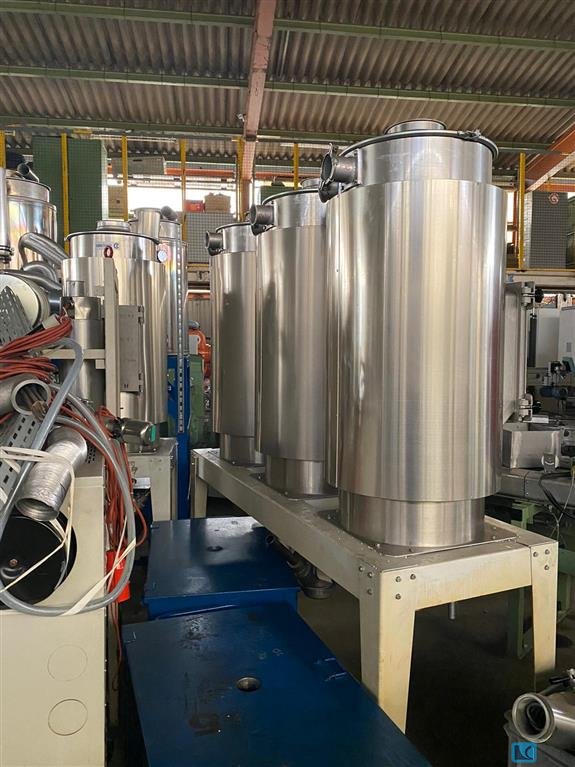

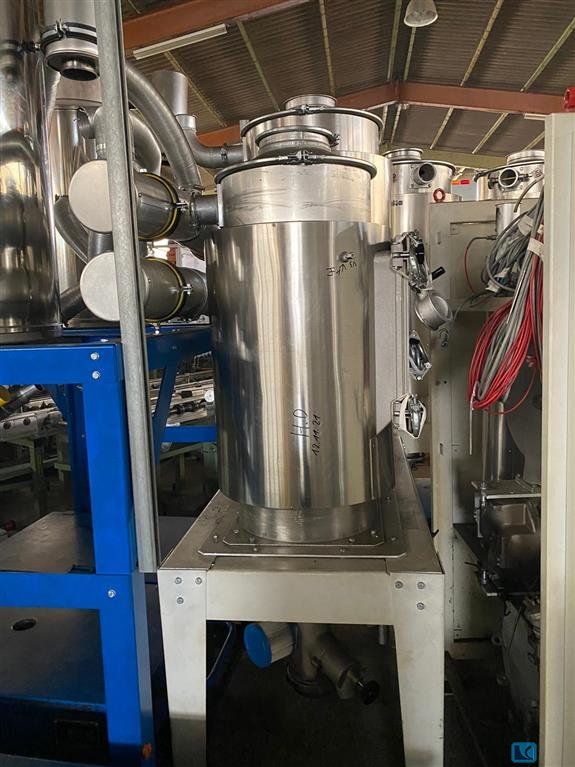

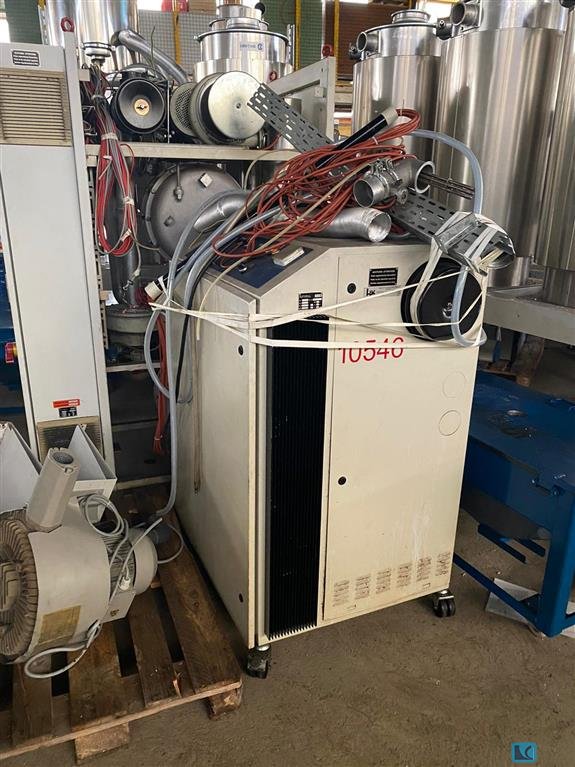

A complete central plastic granulate drying and conveying system Werner Koch, which was extensively expanded and modernized in 2021, is available. 1) Koch CKT 300 dry air dryer, year of manufacture: 2003, power: 41kW, air capacity: 300m³/h. 2) Koch CKT 500 dry air dryer, year of manufacture: 2021, power: 51kW, air capacity: 500m³/h, control system: Siemens S7. 3) 26x drying hoppers, volume: 11x40l, volume: 13x100l, volume: 2x150l. 4) 38x machine hoppers. 5) 2x Busch vacuum pumps. 6) Automatic Koch Navigator material distribution system, inputs: 26, outputs: 38. Including control cabinets and a central visualization and monitoring system Supervisione 9-7000. Documentation available. An on-site inspection is possible.

Brand: Rollepaal Pipe Extrusion Technology B.V. Model: RSV 8/1 Year of construction: 2005 Pipe outer diameter max: 8 mm Cooling length: 1000 mm Spray pump: 2.2 kW

available is a complete Plant with Equipment to produce Airspring! 3 Roll Calender with line and 84" Twin Mill Bias Cutter Several Building machine several hydraulic Curing presses testing machine 3 x assembly lines Winder ...

3 granule colouring machines for injection moulding or blow moulding machines, as good as new

Control System: Touch-screen operator panel Operation: Automatic color mixing and dosing Components of the Machine - Touch-screen control panel (CMA Challenger 151) - Integrated dosing & mixing system - Agitator / stirring unit (working components for mixing) - Pneumatic system / pressure control (pressure gauge and pneumatic connections) - Quick-release connections for tools/stirrers - Recipe management software (AURORA MIX / formula control system or equivalent), with integration into color-matching systems.

FIMIC RAS+REF 400 FULLY AUTOMATIC SCREENCHANGER, screening area 1.206cm², for PP / LDPE / LLDPE / HDPE / PS / EPS / ABS / PVB, possible setting as : continuous scraping OR scraping on an Amp.threshold OR backflush, it was mounted on extruder producing 800 kg/h with 100-150 my screening, Always used as RAS (REF equipment brand new), 30 kw drive, totally checked in 2024 by constructor, Immediately available, remote connection (Industry 4.0) with pressure control system from pulpit, 4-5 spare laser filters available, multipolar plug connectors, We can supply spare screens for this machine., Laser screen from 80 to 300 µ - Mesh from 180 to 50, Punched screen from 400 to 2.000 µ - Mesh from 40 to 10, installed power - used power in work: about 60-65% : 30

reifenhause, enka technica spunbond nonwoven spinerettes. hollow fiber spinerette , standard fiber spinerrete, fine fiber spinerettes. from 5.000 - 45.000 eur
