donau boring mills and machining centers used for sale

hobbing length: 2100 mm milling width: 300 mm max. module: 16/18 min. module: total power requirement: 10 kW weight of the machine ca.: 5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Works perfectly.

Code 81221 Description Position Controlled Fast Radial Drilling machine Make DONAU Model DR 32 NC Serial No. 7107 Year 1984 Control Heidenhain TNC 145 Drilling cap. in St. 60 in full 32 mm Drilling cap. in Castiron GG 22 in full 45 mm Thread cutting in St. 60 M 26 Thread cutting in Castiron GG 22 M 36 Table 1120 x 800 mm X – Axis 800 mm Y – Axis 630 mm Z – Axis ( Quill ) 170 mm Max. distance Column-Spindel 750 mm Vertical movement Spindelhead 400 mm Spindle taper MC 4 Spindle speeds 45 – 2240 rpm Quill movement 170 mm Rapide feed 8000 mm/min Feeds 4000 mm/min Motor 2,2 / 4,0 kW 380 Volts Dimension 5,0 x 4,0 x 2,7 meters (L x W x H) Weight 3000 kg Accessoiries Position controlled in X – Y – Z ( Quill ) Coolant Machine can also be used without control Condition Machine is in good  ...

Code 111258 Description Rapid Radial Drilling machine Make DONAU Model DR – 24 Serial No. 2300 – 3 Year 1984 Drilling cap. in St. 60 in full 28 mm Drilling cap. in Cast Iron 35 mm Tapping cap. in St. 60 M 20 Tapping cap. In Cast Iron M 30 Spindle taper 3 MK Spindle radius max / min. 1000 / 400 mm Min/max height spindle / top of table 80 / 650 mm Arm traverse 450 mm Spindle traverse 175 mm Number of speeds 18 steps Speed range 45 – 2240 rpm Number of feeds 4 Feed range 0,075 – 0,15 – 0,3 – 0,45 mm/rev. Working surface table 1200 x 500 mm Motor 1,1 / 1,6 kW – 380 Volts Dimension W x D x H 1200 x 1600 x 1910 mm Weight 1400 kg Accessoiries screw cutting Condition Machine is in normal condition

Rapid radial / Rapid radial / Snel radial DANUBE DR 13

Code 220406 Description of fast radial MK-4 Brand DONAU Type DR – 32 Machine r. 686 – 3 Year of construction ± 19.. Capacity in steel 60 32 mm Capacity in GG 45 mm Tapping in steel 60 M 26 Thread cutting in GG M 36 Spindle holder 4 MK Projection 900 mm Table 1200 x 600 mm Vertical movement of the boom 400 mm Spindle stroke 190 mm Spindle table min. – max. 80 – 650 mm 18 spindle speeds 31 – 1370 rpm Spindle feeds 0.1 – 0.15 – 0.2 – 0.3 mm/rev Power 1.5 / 2.2 kW – 380 volts Accessories tapping device Dimensions Br. x D x H 1200 x 1600 x 1910 mm Weight 1700 kgs Condition machine is in normal condition

Code 230302 Description of fast radials Brand DONAU Type DR – 13 G Machine r. 321 – 2 Year of construction 1966 Capacity in steel 60 13 mm Capacity in GG 16 mm Thread cutting capacity in steel M8 – M 10 Thread cutting capacity in cast iron M 10 – M 12 Spindle holder 2 MK Projection 820 mm Table 1000 x 700 mm Vertical movement of the boom 400 mm Spindle stroke 100 mm Spindle table min. – max. 180 – 580 mm Spindle speeds infinitely variable in 2 steps 200 – 1100 / 600 – 3400 rpm Power 0,37 / 0,44 kW – 380 Volt Dimensions Br. x D x H 1000 x 1300 x 1800 mm Weight 590 kgs Condition machine is in normal condition

Key data: 40 mm, 1007 mm

Code 231027 Rewriting Controlled Fast Radials Make DONAU Type DR 40 Machine No. 1137 – 3 Built in 1988 Drilling into full stem 60 40 mm Drilling into full GG 22 50 mm Tapping capacity into the St. 60 M 33 Tapping capacity into the GG 22 M 45 Steep taper of the drilling spindle SK 40 Feed normal ( 5x ) 0.075 – 0.6 mm/rev Drilling spindle speeds 18 pcs. 35 – 1800 rpm Drilling spindle stroke 200 mm Drilling radius min/max 350 / 1300 mm Projection min/max 120 / 1007 mm Height adjustment of the drilling spindle head 450 mm Distance drilling spindle/table min/max 350 / 800 mm Table top 1225 x 750 mm Power 2 / 3 kW 380 Volt Weight 2000 kgs Dimensions LxWxH 2300 x 1225 x 2400 mm Accessories for tapping device Coolant system Condition machine is in good condition

Specifications: - Drilling capacity into solid steel ST 60 28 mm - Drilling capacity GG 25 40 mm - Threading ST 60 M 30 - Threading GG 25 M 40 - Drilling spindle holder MK 3 - Spindle diameter 50 mm - Quill stroke 150 mm - 18 drilling spindle speeds 45 - 2240 rpm - 4 drill feeds 0.1 - 0.45 mm - min./ max. distance spindle – table 300 / 700 mm - Drilling radius min / max 305 / 1005 mm - Table height 820 mm - Table size 1200 x 600 mm - Drive 400 V / 6 kW - Space requirement approx. W 1300 x H 2800 x D 2300 mm - Weight approx. 1500 kg -with: - Tapping device - hydr. Columns + Boom Clamp - Coolant device - T – Vertical grooves on the left side of the machine

Key data: 40 mm, 900 mm

40 DONAU fully functional, Condition : well used

Key data: 32 mm

Boom travel approx. 600 mm Distance table - spindle nose min. 250, max. 650 mm Quill stroke 190 mm Speed range: 18 speeds 41-1,850 rpm Drill feeds: 4 pieces ( from 0.1 - 0.3 mm/rev ) Work table 600mm x 1200mm Tool holder MK 4

Drilling capacity steel/cast iron: 25mm/32mm, tapping capacity steel/cast iron: M20/M24, tool holder: MK4, spindle speed: 3500rpm, feed rate: 1050mm/min, throat range: 420mm-1320mm, cantilever travel: 900mm, column vertical travel: 430mm, quill stroke: 140mm, swivel range: 325°, table dimensions X/Y: 1200mm/600mm, drive power: 1.6kW, machine dimensions X/Y/Z: approx. 2500mm/900mm/1500mm, weight: approx. 2200kg. Documentation available. On-site inspection is possible.

hobbing length: 1750 mm milling width: 260 mm max. module: 10 min. module: 12 total power requirement: 8 kW weight of the machine ca.: 4500 kg dimensions of the machine ca.: m D O N A U - K N A P P (Germany) Universal Automatic Rack Milling Machine Model UZFM – V 300 H Year approx. 1980 Serial No. 80-234x Max. length of rack 1,750 mm Milling travel / milling width cross max. 260 mm Module, steel / cast iron 10 / 12 Table clamping size 275 x 1,850 mm Mounting height below cutter, depending on cutter Ø 136 – 410 mm Cutter Ø, min./max Ø 125 + 2 x cutting depth / Ø 160 mm Cutter width max. floating / with support 50 / 140 mm Cutter mandrel Ø max. 50 mm Milling spindle head, swivelling right / left 30 / 45 ° 9 spindle speeds 22 � ...

x-travel: 2900 mm y-travel: 1000 mm z-travel: 700 mm control: Heidenhain total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offered is a rapid radial/column drilling machine. Drilling capacity: up to approx. Ø50mm. Speed range: 58-1275rpm. Thread cutting device: available, outreach: 920mm, machine lamp: available, baseplate/table size X/Y: approx. 1100mm/400mm, T-slots: 2 at the rear left, motor power: approx. 1.5kW without coolant system, machine weight: approx. 1200kg. Inspection under power by arrangement possible.

Manufacturer: DONAU Model: DR 50 Find more here - / Contact us at -

hobbing length: 1750 mm milling width: 260 mm max. module: 10 mm table size incl. water gutter: 460 x 2100 mm table clamping surface:: 250 x 1850 mm cutter width - max.: 100 mm feed of the milling slide, stepless: 0 - 500 mm/min. rapid traverse feeds: 3000 mm/min milling head -swivable +/-: 30 ° Rotation speed range of milling head, in 9 steps: 29 - 178 rpm Milling head swivable 2 sides helical gearcutting: 30 ° total power requirement: kW weight of the machine ca.: 4 t dimensions of the machine ca.: 4 x 1,85 x 1,85 m Equipment/accessories - 7 vices - change wheels - Clamping devices - Documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

High speed radial drilling machine, radial drilling machine, drilling machine, boom drilling machine, high speed radial drilling machine -Clamping table: 400 x 1100 mm -Projection: 930 mm -Taper mount: MK4 -Engine power: 1.35/1.8 kW -Speed: 41-1700 rpm -Columns: Ø 200 mm -Spindle stroke: 125 mm -Thread cutting device: YES -Feed: 0.075 - 0.3 mm/rev -Dimensions: 1800/1235/H2240 mm -Weight: 1500kg

Offered is a used Donau DR 32 rapid radial drilling machine series 731. Tool holder: MK4, spindle stroke: 200mm, outreach: approx. 900mm-1050mm, height adjustment: approx. 400-600mm, speed range: 40-2000rpm, feeds: 0.1/0.2/0.3/0.4mm per revolution, integrated coolant system, equipped with swiveling arm, large T-slot table, weight approx. 1500kg-1800kg, machine dimensions X/Y/Z approx. 1800mm/1000mm/2200mm. Inspection is possible by appointment.

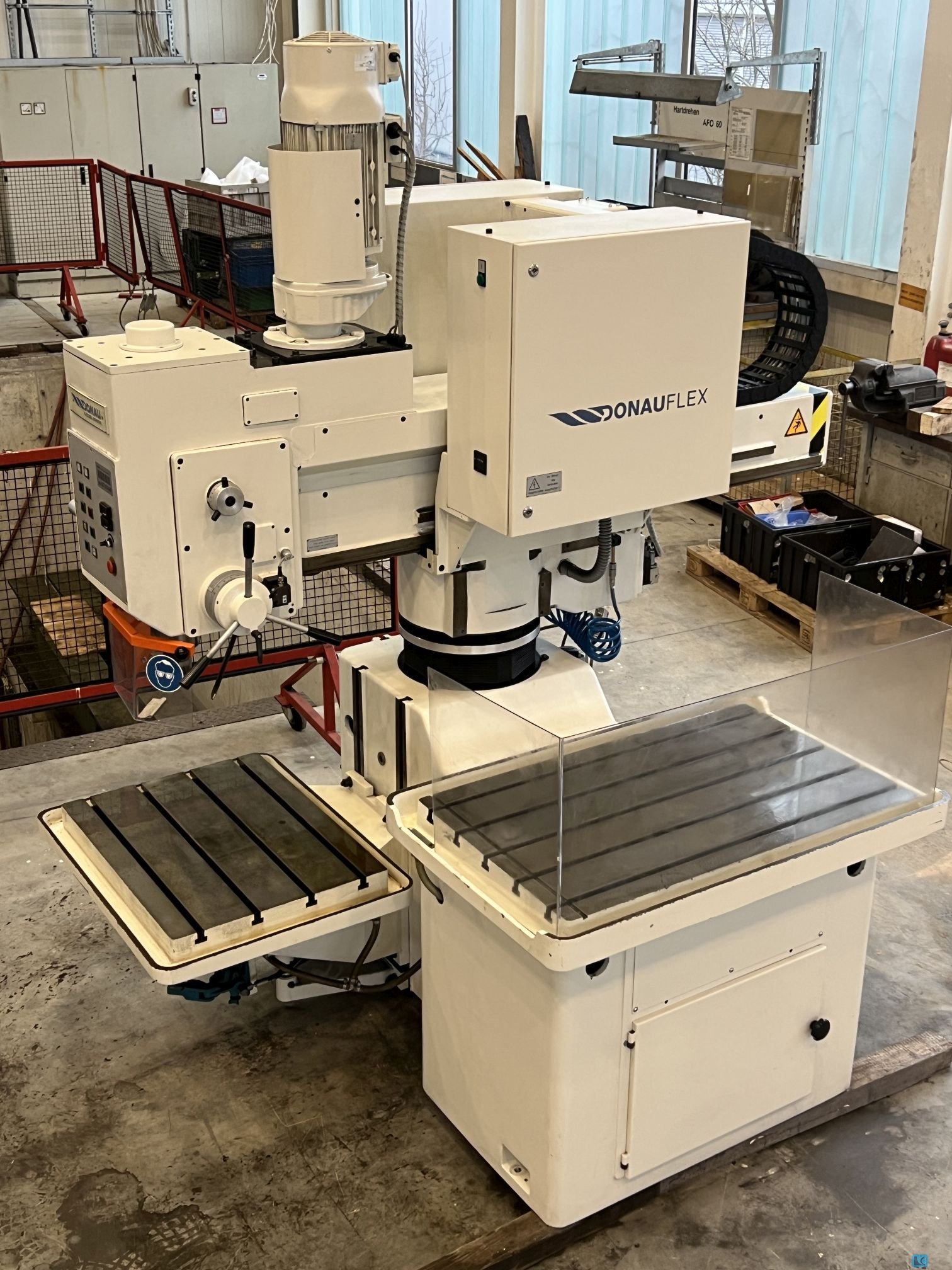

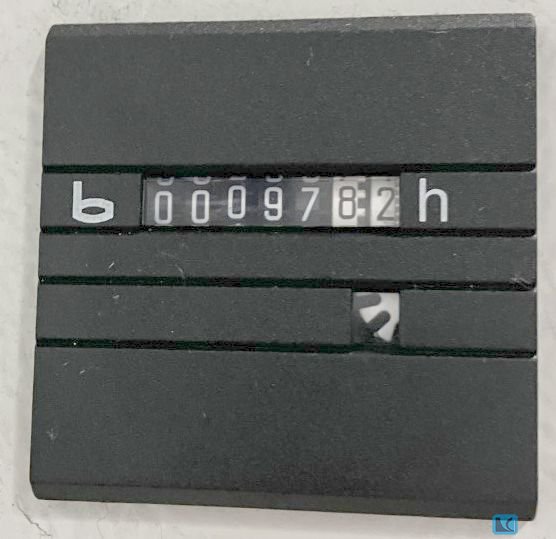

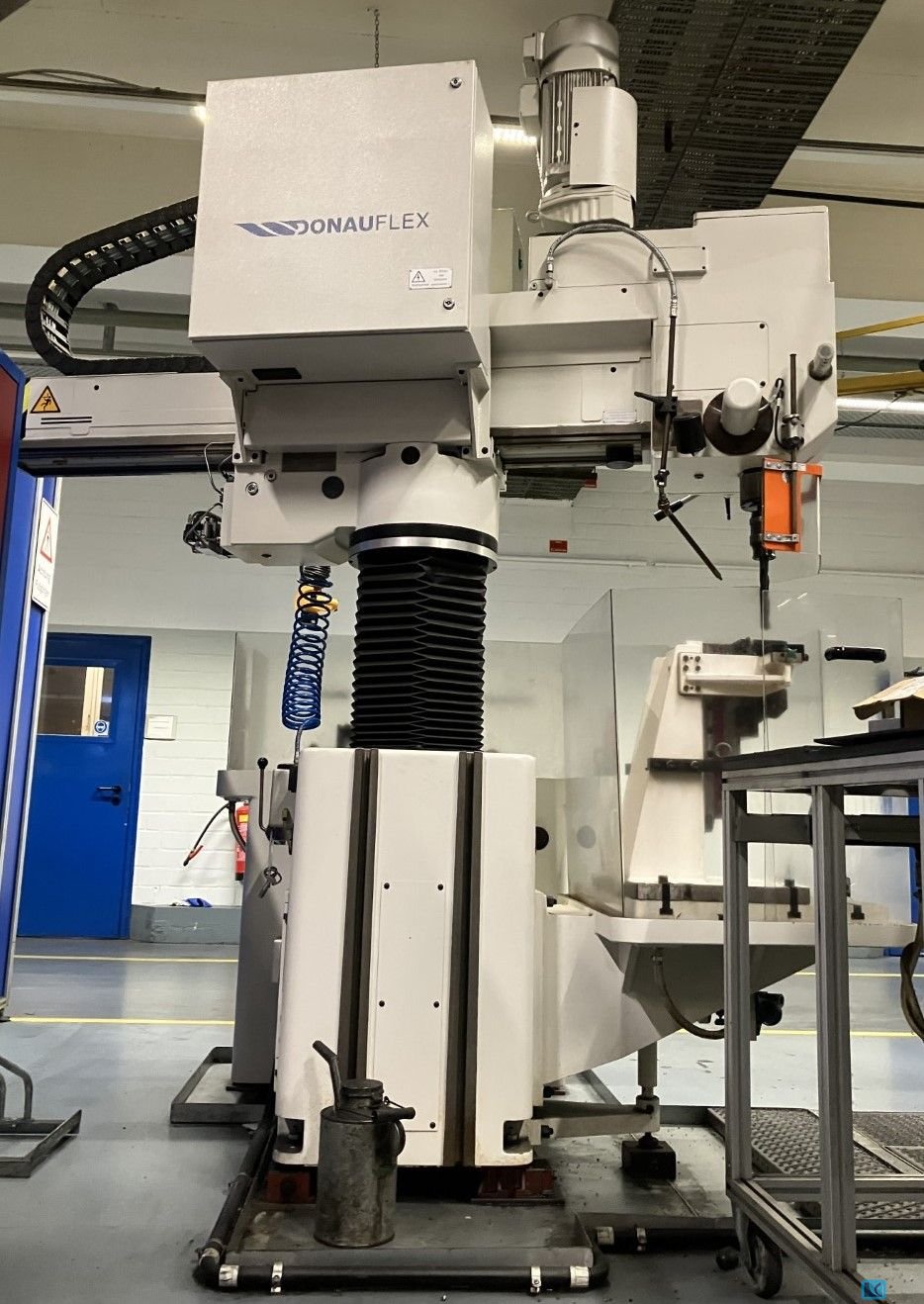

Used Radial Drilling Machine DONAU Donauflex 145 Year of Make: 2006 Only a few hours of operation. • Drilling capacity in steel 45 mm • Boom travel 1,050 mm • Drilling radius min. 540 mm / max. 1,590 mm • Spindle speed 15 - 2,800 rpm • Tapping device • Tool holder MK 4 • Hydraulic clamping for boom and lifting column • Electromagnetic feed clutch • Machine light

hobbing length: 1750 mm milling width: 260 mm max. module: 10 table size incl. water gutter: 460 x 2100 mm table clamping surface:: 250 x 1850 mm cutter width - max.: 100 mm feed of the milling slide, stepless: 0 - 500 mm/min. rapid traverse feeds: 3000 mm/min milling head -swivable +/-: 30 ° Rotation speed range of milling head, in 9 steps: 29 - 178 rpm Milling head swivable 2 sides helical gearcutting: 30 ° total power requirement: 4 kW weight of the machine ca.: 4 t dimensions of the machine ca.: 4 x 1,85 x 1,85 m Milling length 1750 mm Milling width 260 mm Module - max. 10 Table dimensions incl. water channel 460 x 2100 mm Table clamping surface: 250 x 1850 mm Milling cutter width - max. 100 mm Feed of the milling carriage, infinitely variable 0 - 500 mm/min. Rapid traverse 3000 mm/min Milling head - tiltable + / - 30 ° Speed range of the milling spindle, in 9 steps 29 - 178 rpm M ...

Danube DR 23 - High Radial Drilling Machine -Drilling capacity / steel approx. 28mm -Projection approx. 700mm -Morse taper MK 3 -Speed range 70-1550 rpm - Gearbox -Feed range 0.075-0.3mm -Drilling depth 130mm -Tapping device -Hydraulic clamping -Documentation Dimensions: Hjbkn Asvw D Smeu S Tol LxWxH 2x1.7x1.9 meters / Weight 1900Kg

bore capacity in steel (diameter):45 mm WORKING RANGE -BORING-:. - drilling capacity full bore (steel):45 mm - drilling capacity full bore (cast iron):55 mm - horizontal travel:1050 mm - vertical travel:450 mm - sleeve stroke:200 mm WORKING SPINDLE / HEAD:. - spindle revolutions (min):15 /min - spindle revolutions (max):2800 /min - number of gears:2 - taper fixture : MK 4 :. - spindle power (continuous):5.5 kW - torque (max.):250 Nm - max. distance spindle ... clamping surface:710 mm - thread cutting attachment : yes :. TABLE:. - clamping surface (left-right):1200 mm - clamping surface (front-back):750 mm ELECTRICAL SPECIFICATIONS:. - total power consumption:7 kW - mains power supply:9.3 kVA - mains voltage:400 V - mains frequency:50 Hz DIMENSIONS / WEIGHTS:. - space requirements length:3000 mm - space requirements width:3000 mm - total height:3000 mm - total weigh ...

bore capacity in steel (diameter): 32 mm arm length: 1230 mm table surface area: 1200 x 500 mm bore stroke: 180 mm feed - independent: 0,10 - 0,15 - 0,20 - 0,30 mm turning speeds: 60 - 1800 U/min taper MK: 4 total power requirement: 2,7 kW weight of the machine ca.: 1,8 t dimensions of the machine ca.: 2,2 x 1,8 x 2,3 m Quick radial with: - Feed - Thread cutting device The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Boring power:10 mm weight:590 kg connected load:2 kW dimensions::1500 x 1300 x 2300 mm

Shell end mills, shell mill cutters, milling cutters, disc milling cutters, slot milling cutters -Disc milling cutter: 105 x 19 mm, cross-cut -Socket: Ø 27 mm -Weight: 0.8 kg

Retrofitted in 2005 electrical / CNC control Siemens 840 d Retrofitted in 2012 and 2019 mechanical what made. Technical datas: Rotary spindle speed: 1.25-600 tr/min Spindle maximum power: 55 kW 215 tr/min Horizontal run of the upright on the bench - X 15,000/30,000 mm . X travel 30,000 mm is for both machine Vertical stroke of carriage on upright - Y (mm) 5,600 mm Spindle stroke - 1,100 mm Z: Flowing stroke - w: 1,100 mm Advance - X: 3-5000 mm / min Feed - Y: 3-5000 mm / min Feedrate - Z: 1.5 2,500 mm / min Total weight: 100,000 kg Foundation pit OSTEO. for both machine Length x width x height: 40,000 x 5,000 x 1,800 mm all accessories are available and can be sold at extra costs. For both machines are the following attachments available: â?¢ Chip conveyor For both machines including lubrication and coolend unit for the cutting operation &aci ...

Code 71145 Description Horizontal table borer Make UNION Model BFT 80 / 3-1 Serial number 18301 / 34 Year 1986 Spindle 80 mm Spindle taper ISO 40 Spindle out (W) 710 mm Table 1120 x 1000 mm Cross (X) 1000 mm Longitudinal (Z) 1600 mm Vertical (Y) 1000 mm Distance table-spindle 0 – 1000 mm 24 Spindlespeeds 8 - 1600 rpm Feeds 1 - 2500 mm/min Rapids 3 m/min. Motor 11 kW 380 Volts Size L x W x H 5500 x 3200 x 2800 mm Weigth 9 ton Accessoiries Facing head Ø 460 mm with 180 mm stroke 3 x DRO Heidenhain ( X-Y-Z ) Tool clamping Guideway protection Pendel control Cooling equipment Option ( extra price ) Universal millinghead Condition Machine is in good condition

Code 61080 Description Horizontal table borer Make UNION Model BFT 90/3 at Serial number 25 742 Year 1979 ( 1980 in use ) Control Heidenhain TNC 121 Spindle 102 mm Spindle taper ISO 50 Spindle out (W) 710 mm Table 1400 x 1250 mm Cross (X) 1000 mm Longitudinal (Z) 1600 mm Vertical (Y) 1000 mm Distance table-spindle 0 – 1000 mm Weight on table 3000 kg 24 Spindlespeeds 8 - 1600 rpm Feeds 1 - 3000 mm/min Rapids 3 m/min. Motor 11 kW 380 Volts Accessoiries 3 x DRO Heidenhain ( X-Y-Z ) Tool clamping Guideway protection Pendel control Cooling equipment Option ( extra price ) Universal millinghead with 600 mm gap

SCHARMANN HEAVYCUT 2 WFT 150 CNC Floor type Boring Mill Year 1978 Spindle Diameter: 5.9" (150mm) Milling Spindle Diameter: 11.02 (280mm) Spindle Taper: CAT 50 Ram Cross Section: 11.81" x 11.81" (300x300mm) Vertical Head Travel, Y-Axis: 137.79" (3500mm) Column Travel, X-Axis: 712.59" (18000mm) Quill Travel, Z-Axis: 23.43 (595mm) Ram Travel, W-Axis: 27.6" (700mm) Z & W Axis, Combined: 51.03" (1296mm) Spindle Speeds: 5.5-1000 RPM Spindle Feed Range: 0.003-240 IPM Rapid Traverse: 396 IPM Spindle Motor: 70 HP/ 105 HP EQUIPPED WITH: Heidenhain TNC 407 CNC Controls Ram and Spindle Travel Sliding Way Covers On X-Axis Bed Right Angle Head With 1 Degree Manual Indexing Hardened Ways Re-pained recently

Key data: 100 mm, 1600 mm, 1250 mm

DRO , TABLE 1250 X 1250

Control system Heidenhain TNC 415 Spindle diameter 130 mm Tapered hollow spindle ISO 50 Spindle speed range 10 to 1500 rpm Table transverse (X): 3500 mm Rolling headstock stand for (Y): 2000 mm Longitudinal displacement rack (W): 1250 mm Eject working spindle (Z): 800 mm Table load 12 000 kg Machine weight: 36 000 kg

TOS WHN 130 MC used machine Specifications System Heidenhain TNC 426 Working range Spindle diameter 140 [mm] Taper in the spindle ISO 50 Table transverse adjustment (X) 3000 [mm] Vertical headstock adjustment (Y) 2000 [mm] Vertical travel (Z) 1250 [mm] Spindle stroke (W) 560 [mm] 2X Clamping surface 1800 x 1600 [mm] Speed range 10 - 2500 [rpm] Main motor output 37,0 [kW] Max. workpiece weightƒ 8000 [kg] Accessories Tool changer for 60pcs Tool cooling Chip conveyor

Technical data Spindle dia 125mm ISA 50 taper stroke of the spindle 800 mm cross travel of table X 1200 mm vert. travel of headstock Y 1400 mm longit. ztravel of the table Z 1620 mm spindle speed infinitely variable 3,5-700 rpm table size 1200 x 1400 mm table load 6000 kg main motor DC 19 kw total input 22,79 kW spindle feed inf. variable 0 - 1,25 mm/rot working feeds inf. variable 0,3 - 1700 mm/min rapid traverse 2250 mm/min fine feed 3mm/min dimension LxWxH 7,4 x 4,8 x 3,6 m weight of the machine 21000 kg DRO Heidenhain

Skoda W 160 H/NR CNC Travel x= 14.500mm (bed is for the travel 18,500mm) Travel Y= 3.150mm Travel Z= 1.600mm Travel W= 1.250mm Spindle diameter 160mm Machine with ball screw Many accessories available: CNC control Siemens SINUMERIC 850 Rotary table ISO 16 2.200 x 2.200mm, capacity 16 ton included Chip conweyor : 19.000 mm + 12.000 mm Floor plates

W 200G with Siemens AC main motor. modernized the main drive by instalation of Siemens AC motor with SIMODRIVE 611. Original built ISO 60 taper and 630 rpm Main data: X=8000 mm Y=4150 mm Z =1600 mm W=2000 mm Spindle dia 200mm ISO 60 spindle speed max 800 rpm Accessories: DRO Philips available as original rotary table E 20 extra cost milling head IFH 1 and IV25, IFW 1, IFW2 IFW 3 NO floor plates

W100A Parameters 100mm, 1600mm Diameter of working spindle 100 mm Taper in spindle morse 6. Longitudinal adjustment of table (z) 1450 mm Cross adjustment of table (x) 1600 mm Motion of work head on frame (y) 1120 mm Slip out of working spindle (w) 900 mm Clamping area of table 1250 x 1250 mm Dimensions l x w x h 6710 x 3450 x 3000 mm Machine weight 14 000 kg Accessories: face plate, tail stock

Manufacturer JUARISTI Model TS 3-MG 12 Year 2009 CNC HEIDENHAIN i TNC-530 Rotary table Type Juaristi MG-12 Table Surface 2,000 x 2,500 mm. T Slots 11 T Slot distance 170 mm. Max weight allowed on table 8,000 kg Table Rotation (B Axis) Continuous – 0.001º Travels Longitudinal travel (Z Axis) 2,475 mm. Axial travel (W Axis) 800 mm. Vertical travel (Y Axis) 2,500 mm. Cross travel (X Axis) 3,000 mm. 5 controlled axes X, Y, Z, W, B, U Main Spindle Quill Diameter 130 mm. Speed 3,000 rpm Main Axis Orientation INCLUDED Taper ISO 50 DIN 69871/1-B Milling head Type INCLUDED Head Power 30 kW Speed Ranges 2 Turning Speeds 0-2,500 rpm Boring head Andrea Chuck model D'ANDREA UT5-800-S Head Ø Ø 800 mm Cross Axis Travel 250 mm. Automatic tool changer ATC Type Horizontal / Vertical ATC Positions 30 Other equipment TS-3 head, TS-5 column and longitudinal bed  ...

Machine Type: CNC Plate Boring Machine Make WOTAN Type Rapid 5C Year of manufacture 2004 Control type HEIDENHAIN iTNC 530 Spindle diameter 160 mm X-off (mm) 10,000 Y-off (mm) 3,800 Z-off (mm) 700 W-way 700 mm Tool holder Iso 50 Speeds from (rpm) 1.25 - 1250 Feed rate (mm/rev) 1 - 5000 mm/min Rapid traverse 5 mtr/min. Total power(KW) 120 /spindle 83 Length (mm) 14.500 Width (mm) 3,850 Height (mm) 7,360 Weight 62,300 kg Information - 2004 completely overhauled and converted to CNC by Dorries Scharmann Control HEIDENHAIN iTNC 530 - 5 different angle milling heads - Hydrostatic spindle bearing - Aerostatic guideways - Coolant device -Conveyor -Oil cooler

HBM STANKO 2A622 CNC

Horizontal borer Wotan B105Y Spindle: 120 mm Travels: -X: 3000 mm -Y: 1450 mm -Z: 1280 mm Table: -1400 x 3000 mm -Rotating part: 1130 x 1500 mm (manually rotated to any degrees) -Max load: 7 tn Machine weight: about 25 ton

Skoda W200H - CNC Plate Boring Machine – Bearing Sleeve (RAM) Year of construction : 1992 Electrical & Electronics Overhaul : 2021 Spindle : 200 mm ( Ø ) ISO 60 X : 7,800 mm Y : 5,400 mm W : 900 mm ( spindle ) Z : 900 mm ( Carrying sleeve / RAM 520 x 520 mm ) Z1 : 2,000 mm (table) CNC rotary table : 2500 x 2000 mm – 40 T Spindle speed : 0.8 - 800 rpm Rapid traverse speed : 6000mm/min Spindle motor : 75 kw Total power : 140 kW Machine weight : 84 T (approx.) Control : FAGOR 8055 Processing heads 3 pieces 1.Angular translation head 2. Vertical milling head 3.Horizontal milling head Base plate : 4,480 mm x 1,145mm Conveyor

oven 550 industrial 2x2x6m temperature range 100 - 550C Wärmebehandlungsöfen Wärmeofen Wärmeprozessöfen Warmhalteofen Warmluftofen Herdwagenofen Rollenherdofen Kammerofen Drehtellerofen Wagenherdofen & Tunnelofen Poreba Gurutzpe Tacchi Geminis Tos Amutio cazeneuve Skoda Morando Niles Colchester Heyligenstaedt Kramatorsk Mondiale Safop Cazeneuve Alzmetall mas stankoimport csepel carlton kolb soraluce bergonzi flott Erfurt Weingarten smeral schuler ebu mueller zts kosice wlochy minster Stanko stankoimport glaser huta zygmunt aft donaldson eumuko Elblag Engel Demag Arburg Krauss Maffei Battenfeld Manesty Mazak Voronezh Trumpf Amada Cincinnati Netstal Rose Forgrove Illig Foremost Nissei Sandretto Fette Mazak Mori seiki Haas Okuma Gildemeister Doosan Daewoo traub hwacheon index Wema zeulenroda mueller Erfurt tox presso technik dunkes galdabini hare ponar zeulenrdoda eitel  ...

Union boring mill CBFK 150/2 from 1990 for sale. Is currently still in use,. Technical details / accessories / addition: x-travel 3000 mm y-travel 2000 mm z-travel 1600 mm Spindle diameter 150 mm Spindle holder ISO 50 Spindle stroke 700 mm Spindle speeds - infinitely variable 5 - 2500 rpm Rapid traverses 10000 mm/min Table clamping area 1600 x 2000 mm Workpiece weight approx. 20 t Spindle drive motor 50 kW Feeds x/y/z - infinitely variable 1 - 9999 mm/min Table positioning 360,000 ° Total power requirement approx. 70 kW Machine weight approx. 40 t Dimensions approx. 6.0 x 8.0 x 4.5 m In 2005: new 5-axis CNC control Dr. Heidenhain TNC 430 - electron. Handwheel HR 410 for all axles with V24 interface, punched tape reader, new electrics, new hydraulics, new servo motors, 60-speed chain tool change magazine model WM III k02 B-axis (round table adjustment) 360,000  ...

DEFUM WFM-100 boring machine was built in 1984 in Poland by the Dąbrowska Fabryka Obrabiarek DEFUM. The machine is designed for precision machining of workpieces with complex geometry and high weight. All machining processes, i.e. drilling, milling, boring and thread cutting, are performed on a stable work table by means of a powerful spindle with a diameter of 100 mm. The WFM 100 horizontal boring machine weighs 11000 kg. Technical specifications of the DEFUM WFM-100 drilling and milling machine - feed in the X/Y/Z axis: 1200/1000/600 mm - work table dimensions (L x W): 1100 x 1100 mm - maximum workpiece weight: 3000 kg - maximum spindle rotational speed: 1600 rpm - spindle diameter: 100 mm - spindle drive power: 18.5 kW - dimensions (L x W x H): 4610 x 3620 x 3110 mm - weight of the DEFUM machine: 11000 kg

UNUSED: Facinghead of a Wotan BF 160 Horizontal borer.

Code 71144 Description Horizontal table borer Make PFEIFER Model F 80 / 100 Serial number 2342 Year 1982 Spindle 100 mm Spindle taper 50 ISO Spindle out (W) 500 mm Table 1000 x 850 mm Cross (X) 1200 mm Longitudinal (Z) 800 mm Vertical (Y) 800 mm Distance table-spindle 0 x 800 mm Speeds 18 steps Spindle speeds 14 – 1500 rpm 16 Feeds 0,03 – 6,0 mm/rev Rapids 2500 mm/rev Rapids all directions ( X-Y-Z-W-B) Motor 7,5 kW 380 Volts Accessoiries X-Y-Z axis are BALLSCREWS Tool clamping Pendant control Condition Machine is in very good condition

Machine : Tools for boring mill / radial drilling machine Type: MK5 5 drill rods φ 40 , 30, .. L- 280 – 400mm 3 extensions MK5 – MK4 , L-400-520mm 1 boring tool Oerlikon MK5, φ 70, 6-260 5 top-mounted milling mandrels MK5 - φ 16, 22, 27,32,40mm 2 Clarkson clamp chucks 1 MK5 boring tool, adjustable, φ 60mm 2 Shots 2 milling cutters: End mill roughing/plain φ 56x100mm, / groove milling cutter 4 milling cutters: 2 roughing/plain φ 40x12o, 2 roughing cutters 1 Reduction from MK5 to SK40 Weight: approx. 70kg kg PRICE : € 600,- ex works ! A - T-slot size: approx. 21.5mm, B-35, thread M20 16 T-slot nuts 20 pcs threaded rods M20, L-120 – 400mm 3 x 2 pcs clamping claws 4 nuts long, 6 nuts, washers 2 blocks for adjustment with adjustment screw 4 blocks 80 x 60 x40mm ( underlay )

Specifications: X-axis 2,750 mm Y-axis 2,500 mm Z-axis 2,320 mm W-axis 700 mm Spindle power 50 kW Spindle diameter 130 mm Spindle speed 1.6 – 1,600 rpm. Tool holder SK 50 Control: CNC HEIDENHAIN TNC426 Table dimensions 2,000 x 1,800 mm max. table load 8 tons B-axis 360 A° Weight approx. 37,000 kg

Technical data of used Schiess Froriep Boring Machine: CNC: Siemens 840 D Maximum transversal travel X axis: 13.770 mm Maximum vertical travel Y axis: 5.000 mm Z axis: 1.780 mm W axis: 950 mm V axis rotating support plane: 2.000 mm Rotating table dimensions: 5.000 x 3.500 mm Fixed table dimensions: 7.500 x 4.300 mm Maximum permissible load on the table: 120 ton Spindle power: 100 kW Spindle revolutions per minute: 710 rpm

Key data: 130 mm, 4000 mm, 2500 mm

TOSHIBA BP-130R22 Year 2007 SPINDLE DIAMETER 5.12" (130mm) TAPER IN SPINDLE #50 VERTICAL TRAVEL, Y-AXIS 100" (2500mm) CROSS TRAVEL, X-AXIS 160" (4000mm) SPINDLE TRAVEL, Z-AXIS 28" COLUMN TRAVEL, W-AXIS 60" TABLE SIZE (BUILT IN B-AXIS) 86.6" X 70.8" TABLE LOAD CAPACITY 44,000 LBS TABLE INDEXING B-AXIS 0.001 DEGREE SPINDLE SPEEDS (3-RANGES) 5-2500 RPM EQUIPPED WITH: TOSNUC 888 CNC CONTROL 60-STATION AUTOMATIC TOOL CHANGER THROUGH SPINDLE COOLANT CHIP & SPLASH ENCLOSURE CHIP CONVEYOR 40/30 HP SPINDLE MOTOR NOTES: INSPECT IN PLANT UNDER POWER

Key data: 130 , 3500 , 2000

CNC SIEMENS 840D X-axis (longitudinal) 3500 mm Y-axis (transverse) 2000 mm Z-axis (vertical) 1250 mm Table length 1800 mm Table width 1800 mm Maximum workpiece weight 12000 kg Spindle diameter 130 mm Maximum spindle speed 800 rpm Magazzino utensili 52 posti Spindle motor 37 kW Year of revision 2005 ------------------- Length x width x height 7200 × 7800 × 4900mm Weight 32000 kg

SKODA W200GNR 1978 /CNC MEFI 836 y.m. 2005 ball screws y 4150mm x 8000mm millng heads floor plates 5600x1885x400 rotary table E20 load 20tons

W160HC with ISO 50 y.m. 1987 xtravel 4000mm y travel 3150mm rotary table S35C load 35tons, 3150 x 2800mm milling heads, tools

Table capacity 80 TONS Clamping plate width mm 3550 length mm 4000 Carriage travel V mm 2000 Heidenhain scale Rotary axe B ROD 700 Table height mm 1460 Table weight kg 52000

Key data: 80 mm, 1700 mm, 1800 mm

Spindle Diameter: 80 mm Spindle Adapter: SK50 Spindle speeds: 11 - 1000 rpm. X-axis: 1700 mm Y-axis: 1800 mm Z-axis: 1800 mm Spindle off (W-axis): 710 mm Table dimensions: 1100 x 900 mm Elbo Digital Readout: On Y-axis and Z-axis Equipped with: -Turntable - Some tool containers Spindle motor: 7.5 KW Machine LxWxH: 5100 x 2650 x 3300 mm Machine Weight: 10 Ton

Horizontal Boring Machine CORNAC C100 Travel X: 1000 mm Travel Y: 1000 mm Travel Z: 1260 mm ixed table Cone SA 50 Spindle: Ø 100 mm Spindle exit: 550 mm Rotation: from 10 to 1250 RPM Table size: 1550 x 980 mm Surfacing plate: Ø 520 mm Spindle motor: 9,5 kW Scale 3 axes HEIDENHAIN Automatic Feeds: X - Y - Z Supplied with a set of cones Voltage: 380 V Dimensions (L x W x H): 4500 x 2100 x 2450 mm Weight: approx 8 T

Inv. Num. : 7631 Type: F80 Produzent: Pfeifer Erzeugt: 1976 Parametern: Maximale Drehzahl der Spindel: 1000 1/min Verfahrwege X-Achse: 1700 mm Verfahrwege Y-Achse: 1800 mm Verfahrwege Z-Achse: 1800 mm Verfahrwege W-Achse: 710 mm Spindeldurchmesser: 80 mm

Monti MCS 100 NEW boring machine :::TECHNICAL SPECIFICATIONS::: CNC Model: Siemens CNC Version: 840D Tool Mount: ISO 50 Spindle power: 24Kw Number of spindle speeds: 4000 Number of tools: 60 X-axis travel: 2500mm Y-axis travel: 1500mm Z Axis Travel: 1700mm Fast feeds linear axes X Y Z: 20m/min Spindle spindle stroke : 600mm Rotary table: yes Table size: 1300 x 1500mm Allowable load on the table: 4000Kg Other technical data: The machine is being built this year Machine equipment: Anthropomorphic robot for tool change management Heidenhain Optical Scales :::D DIMENSIONS AND WEIGHT::: Weight: 23000Kg

STANKO 2N636GF1 Horizontal boring mill MITSUBISHI controler, new 2013 Spindle 125 mm Table 1600 x 1800 mm Max. horizontal (axial) movement of the spindle (Z') - 1000 mm Max. vertical movement of the headstock (Y)- 1400 mm Max. longitudinal movement of table (Z, W) - 1600 mm Max. lateral movement of table (X) - 1400 mm The largest mass of the processed product - 8 tons Spindle speed - 8 ... 1250 rpm Spindle Drive Electric Motor - 20 kW The weight of the machine is full - 34.6 tons

Key data: 102 mm, 1530 mm, 900 mm

Spindle diameter Ø 102 mm Taper ISO 50 Horizontal spindle travel 710 mm Cross travel (X) 1,530 mm Vertical Travel headstock (Y) 900 mm Longitudinal travel (Z) 1,500 mm Table 1,250 x 1,400 mm R.P.M. 8 – 1,600 (18x) kW 11 Volts 380 Cycles 50 Including: Digital readout

Key data: 102 mm, 1600 mm, 900 mm

Spindle diameter Ø 102 mm Taper ISO 50 Horizontal spindle travel 710 mm Cross travel (X) 1,600 mm Vertical Travel headstock (Y) 900 mm Longitudinal travel (Z) 1,520 mm Table 1,250 x 1,400 mm R.P.M. 8 – 1,600 (18x) kW 11 Volts 380 Cycles 50 Including: 3-axis Digital readout with point to point control Heidenhain 310

Key data: 102 mm, 1600 mm, 1250 mm

Spindle diameter Ø 102 mm Taper ISO 50 Horizontal spindle travel 710 mm Cross travel (X) 1,600 mm Vertical Travel headstock (Y) 1,250 mm Longitudinal travel (Z) 1,500 mm Table 1,250 x 1,400 mm Table load 5 ton R.P.M. 4 – 1,250 (18x) kW 23 Volts 380 Cycles 50

Heidenhain TNC 426 Table 1600 x 2000 mm Max. load 12.500 kg Spindle diameter 130 mm Taper ISO 50 Cross travel (X) 3,500 mm Vertical travel headstock (Y) 1,600 mm Longitudinal travel (Z) 1,250 mm Horizontal spindle travel (W) 850 mm RPM 4 – 1,120 kW 45 Volts 380 Cycles 50 Including: Facing head Ø 720 mm Facing head slide travel 240 mm Machine weight 31,1 ton

Control Heidenhain TNC 426 Mach.no. 11648 Table 1,600 x 1,250 mm Spindle diameter 130 mm Taper ISO 50 Cross travel (X) 2,000 mm Vertical travel headstock (Y) 1,600 mm Longitudinal travel (Z) 1,050 mm Horizontal spindle travel (W) 850 mm RPM 4 – 1,120 kW 45 Volts 380 Cycles 50 Including: Machine weight 26,3 ton

Control Heidenhain TNC 355 Spindle diameter Ø 130 mm Horizontal Spindle Travel (W) 800 mm Taper ISO 50 P.D.B. Table 1,600 x 1,800 mm Max. load 12 Ton Cross travel (X) 3,500 mm Vertical travel headstock (Y) 2,000 mm Longitudinal travel (Z) 1,250 mm RPM 5 – 1,100 kW 32 Volts 400 Cycles 50

: Viele MK Aufnahmen taper MK: 40 taper MK: 50 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

WE OFFER AN STUNNING EXCELLENT CONDITION WOTAN CNC RAPID 1 WITH HUGE AMOUNT OF OVER 400 TOOLINGS, FOR A SPECIAL WORK. WORKING HOURS: POWER ON: 13692 PROGRAM RUN: 4650 SPINDLE RUN: 4690 AXIS TIME: 4568 HYDRAULIC TIME: 12702 MACHINE HAVE HEIDENHAIN 530 CONTROLS TECHNICAL DETAILS: SPINDLE SPEED : 6,3-1600 U/Min SPINDLE MOVE : Y AXIS : 1250 mm DRILLING SPINDLE MOVE: Z AXIS: 600 mm W : 1000 mm X : 2000 mm B: 360.000 DEGREE SPINDLE DIAMETER: 105mm TOOL HOLDER: ISO 50 WITHOUT TOOL CHANGER CLAMPING: HIDRAULIC MAX TABLE LOAD: 6000 KG TABLE: 1120 X 1400 NUT -BILD 7 ; 22H7 INDEXING 4 X 90 DEGREE TOTAL WEIGHT: 16000 KG DIMENSION OF MACHINE: LENGHT 4800 X BREIT 4665 X HEIGHT 4200

1x CNC Table Boring Machine Manufacturer: TOS Type: WHQ Year of Make:1997 Control: Heidenhain TNC 426 in 5-axis X-axis 2000mm Y-axis 1400mm Z-axis 1250mm W-axis. 710 mm B-axis 360 degrees Spindle diameter : 112mm Spindle mount: ISO 50 Spindle speed max: 2000 rpm Table clamping surface: 1400x 1600mm Tool changer: 60 places Chip Conveyor: Yes

Working area: 6000 x 1000 x 3000 mm (max stroke) Rotary table: 2000 x 2000 - load capacity: 15000 kg Max working feed: 5000 mm/min Max rapid feed: 8000 mm/min Fixings: ▪ Nose: 3000 rpm ▪ Universal Head: 3000 rpm Control: Selca 3045 PD

RACING Longitudinal travel of the X-axis mast 16,000mm Vertical travel of the Y-axis head 3,000mm Z-axis head transverse travel 1,250mm Cross stroke boring spindle W axis 700mm HEAD DIMENSIONS 410 X 505mm MANDREL Boring spindle diameter 140mm ISO 50 spindle attachment Spindle rotation speed: 5 – 3,000rpm ADVANCES Continuous working axes X, Y, W, Z 0.5 – 6,000mm/min Fast X, Y, Z axes 18,000 mm/min Rapid W axis 10,000mm/min Working thrust 2,000kg ENGINE POWER: Spindle motor in continuous service (S1%) (AC) 42 Kw Axis feed motors (AC) 50 Nm Auxiliary engines 4.5 Kw Machine in excellent condition.

Working Area: 6000 x 1200 x 3000 (Max Stroke) Max working feed: 8000 mm/min Max rapid feed: 15000 mm/min Fixings: ▪ Indexed head : max rpm: 4000 ▪ Nose: max rpm: 4000 Control: Selca 3045

HBM WHN 13.8 B, new 1986, CNC control system Heidenhain

SKODA WD160B floor type boring mill X Axis 3150 mm Y Axis 2500 mm Z Axis 1600 mm Table 2000x2000 mm Piece weight 20000 kg Spindle diameter 160 mm Max. spindle speed 800 rpm Spindle motor power 75 kW Length x width x height 10000.0 × 5250.0 × 6365.0 Weight 50000 kg New control.

HBM Wotan WMO B105, CNC control system Siemens 820M

1 x CNC bench boring machine in cross-bed design Manufacturer: TOS Type WH13 CNC Year of manufacture 1997 Control: TNC 426 Heidenhain 5-axis X-3500 mm Y-2000 mm Z-1250 mm B-800 mm B-360 Degree Table clamping surface: 1600 x 1800 mm Table load: 12 t Spindle diameter: 130 mm Spindle mount: ISO 50 Spindle speed: max. 1500 rpm Condition: Very good. The machine was only used for repair purposes; no contract manufacturing. Spindle hours: 22,054 Program runtime: 15.661

Year of manufacture: 1992 / G: 2025 Spindle diameter ... 100mm Axis X ... 1500mm Axis Y ... 1250mm Spindle speed ... 7-1120 rpm Axis W Axis Z ... 1800mm ISO 50 Turntable diameter ... 1200x1200mm The machine is in good condition, possible to test under power.

Mitsubishi MAF 210/150A Year: 1977 Table Size: 3000 × 3000 mm | Load Capacity: 60,000 kg Axis Travel: X: 14,000 mm | Y: 4500 mm | Z: 900 mm Spindle: Ø164 mm | 4–3460 rpm | 37/45 kW DC motor Control: ISO/EIA compatible | 5-axis interpolation | M-NUX115 DRO Accuracy: ±0.015 mm/m (X/Y), Repeatability ±0.01 mm Included Accessories: • Tool locking (5 pull studs) • Digital readout system • NC controller with startup components • Setup/leveling blocks • Maintenance toolkit • Protective covers Optional Add-ons (upon request): • Chip conveyor and coolant system • Rotary/angled fixturing • Pendant control • Bellows or floor plate systems • Special tooling packages Utilities & Installation: • Power: AC 220V (standard) • Air: 2–7 kg/cm² at 100 L/min • Installation space & foundation info on request

CNC Table Type Horizontal Boring Mill Doosan DBC 130II. S/No. MB0003-000435 New in 2013 Control Fanuc 31i-MA Spindle Dia. : 130mm Travel : XYZ – 3000/2000/1600 mm W – 700 mm Rotary Table (1/1000 ͦ) Size : 1600 x 1600 mm 2 Pallets Spindle Speed : 2500 rpm Tool type : BT50 ATC : 80 tools

JUARISTI MDR 205 - CNC Plate Boring Mill Year of construction : 1992 Electrical & Electronics Overhaul : 2024 Spindle : 205 mm ( Ø ) ISO 50 X : 8,000 mm Y : 3,000 mm W : 1,250 mm ( spindle ) Z : 500 mm (tower) Z1 : 2,000 mm (table) CNC turntable : 3,000 x 2000 mm – 30 T Spindle speed : 900 rpm Spindle motor : 34 kW Total power : 74 kW Machine weight : 100 T (approx.) Control : FAGOR 8055 Angular Translation Head Base plate : 2,060 mm x 3,210mm (3 pieces) Conveyor

UNION BFK-2- CNC Bench Boring Machine Year of construction : 1994 Electrical and electronic overhaul : 2005 Spindle : 130 mm ( Ø ) ISO 50 X : 3,000 mm Y : 1,600 mm Z : 1,200 mm (tower) W : 800 mm ( spindle ) B : 360/1° (turntable) CNC rotary table : 2000 x 1600 mm – 12.5 T Spindle speed : 2,500 rpm Spindle motor : 30 kW Total power : 45 kW Machine weight : 36 T (approx.) Control system Heidenhain : Heidenhain TNC530

TOS HULIN WD 130A – Universal Plate Boring Mill Year of construction : 1998 Spindle : 130 mm ( Ø ) ISO 50 X : 6,000 mm Y : 2,500 mm Z : 1,000 mm (spindle box) W : 800 mm ( spindle ) B : 360° (turntable) Z1: 1,500 mm (table) Universal Rotary Table : 2,200 x 2,200 mm – 25 T Spindle speed : 900 rpm Spindle motor : 37 kW Total power : 60 kW Machine weight : 36 T (approx.) Digital Display : Yes Angle plate : 2,000 x 500 mm (2 pieces) Vertical milling head : 90° Face Slider

Key data: 150 mm, 13500 mm, 3500 mm

Floor Type Horizontal Milling and Boring Machine Model : BF-150B with Fanuc series 311 — Model A CNC Controller in perfect working condition to be inspected in power YOM 2012 CNC Fanuc 31i Inspection Under power X - cross 13,500 mm Y - vertical . 3,500 mm W - boring ... 1,000 mm Z - quill ... 450 mm Spindle Taper ... No 50 Spindle Motor ... 26/ 22 kW 2 Angle Heads ATC 60 2 Rotary Tables 2m x 3m
