deckel accessories for machine tools used for sale

Manufacturer: Lid Type: DE10C Year of construction: 1997 Following the technical data: Table dimensions L x b 390 x 280 mm traverse path: X - axis: 250 mm, Y - axis: 180 mm, Z - axis: 250 mm Table - Quill distance min./max.: 240 / 490 mm Table load: Max: 250 kg

DECKEL GK21 Engraving frause machine More: DECKEL G1L Engraving fraese

x-travel: 600 mm y-travel: 525 mm z-travel: 500 mm weight of the machine ca.: 6,5 t CNC Steuerung Heidenhain TNC 426 Kühlmitteleinrichtung Spänewanne CNC control Heidenhain TNC 426 coolant device chip tank Technische Daten / technical details: X-Weg / X-travel 600 mm Y-Weg / Y-travel 525 mm Z-Weg / Z-travel 500 mm Spindeldrehzahlen / spindle speed 6300 UpM /rpm Werkzeugaufnahme / spindle taper SK40 Vorschubbereich X/Y/Z / feed range 10000 mm/min. Universaltisch / clamping area of universal table 750x530 mm Gewicht der Maschine ca. / weight 6500 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 150 mm y-travel: 300 mm z-travel: 350 mm table surface area: 350 x 200 mm spindle turning speed range: 475 - 20000 U/min total power requirement: 0,4 kW weight of the machine ca.: 0,46 t dimensions of the machine ca.: 1,2 x 1 x 1,4 m • without templates The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. grinding diameter: 238 - 620 mm grinding length: 190 mm workpiece length: 380 - 940 mm spindle turning speed - stepless: 2 - 10000 U/min current capacity: 380 kVA power capacity - grinding motor: 1,1 kW total power requirement: 2,2 kW weight of the machine ca.: 0,6 t Mechanic: very good: Optical condition: very good: The machine can be viewed under current.: Please notice: We would be happy to make you a free offer. However, please understand that we only process inquiries with complete address details. 1218 400 V, 50 Hz, with CEE plug and cable Colour: light grey RAL 7035 Stand traffic grey RAL 7042 (new paint) axial grinding spindle adjustment Accessories: Machine stand and carrier plate ground Complete electrical conversion included: > new three-phase drive > new brake motor > new frequency controller > new built-in electrics touch-proof > Fi circuit breaker >  ...

Ref. -No.: 10164 Manufacturer: DECKEL MAHO Year of construction: 1986 Type of control: CNC Control: CNC 432 Storage location: Halberstadt Country of origin: Deutschland Total connected load: 40 kVA X-Travel: 800 mm Y-Travel: 450 mm Z-Travel: 500 mm Feed force (X, Y, Z): X 800, Y 24000, Z 8000 N Quill Stroke: 100 mm Speed work spindle: 20-4000 RPM Feeds X/Y/Z: 1-3000 m / min Rapid Traverse X/Y/Z: 8 m / min Tool Taper: ISO 40 Space requirements: 3680 x 3780 x 2720 LxWxH (mm) Further information: Additional information: - with controlled rotary table Ø800 (B axis) - simultaneously controlled axes: 3 - axes controlled one after the other: 4

x-travel:1000 mm y-travel:320 mm z-travel:400 mm Table dimensions:1000 x 400 mm

x-travel:560 mm y-travel:500 mm z-travel:450 mm

x-travel:560 mm y-travel:500 mm z-travel:450 mm

spindle taper ISO: 40 x-travel: 710 mm y-travel: 600 mm z-travel: 445 mm Control: Heidenhain type: TNC355 mm table surface area: 1000x550 mm turning speeds: 6300 U/min quill stroke: 80 mm Feed: 1-3600 mm/min rapid traverse: 6 m/min total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

2002 Deckel Maho DMU 50T still in use, can be viewed Find more here - / Contact us at -

The 2005 Deckel Maho DMC 104 V linear is a CNC (Computer Numerical Control) vertical machining center manufactured by Deckel Maho, a part of DMG MORI. This machine is known for its precision and efficiency in machining tasks, including milling, drilling, and tapping. Here are some key features and specifications of the 2005 Deckel Maho DMC 104 V linear: - Travel and Table Size: - X-axis travel: Approximately 1040 mm - Y-axis travel: Approximately 600 mm - Z-axis travel: Approximately 500 mm - Table size: Large enough to accommodate substantial workpieces - Spindle: - Spindle speed: High rotational speeds for efficient cutting - Spindle power: Sufficient for heavy-duty machining tasks - Linear Drives: - Equipped with linear drives for the X, Y, and Z axes, providing higher precision and faster movements compared to traditional ball screw drives. - Control System: - Typically equip ...

DMG DMC70H year 2007 Hours in picture he 2007 Deckel Maho DMC 70 H is a horizontal machining center produced by DMG (Deckel Maho Gildemeister), a renowned German manufacturer known for high-quality CNC machining centers. Here are the key details about this model: Key Specifications: - Type: Horizontal Machining Center - Year: 2007 - Table Size: Usually features a pallet size of 630mm x 630mm, though this can vary based on the setup. - X-Axis Travel: Around 700 mm. - Y-Axis Travel: Around 800 mm. - Z-Axis Travel: Around 800 mm. - Spindle Speed: Can reach up to 18,000 rpm, depending on the specific configuration. - Spindle Motor: Offers robust power, typically around 35 kW (may vary based on options). - Automatic Pallet Changer: Often comes with an automatic pallet changer, improving productivity by minimizing downtime during setup. - High-Rigidity Design: Known for its rigid construct ...

DMG DMC 70 H year 2007 The 2009 Deckel Maho DMC 70 H is a horizontal machining center manufactured by DMG (Deckel Maho Gildemeister), which is a well-known German company that produces high-precision CNC (computer numerical control) machine tools. Hours in picture Find more here - / Contact us at -

For Sale: 2008 Deckel Maho DMC 70 H duoBLOCK Horizontal Machining Center - Year: 2008 - Make/Model: Deckel Maho DMC 70 H duoBLOCK - Type: Horizontal CNC Machining Center - Control: Siemens 840D - Features: - duoBLOCK design for high rigidity and precision - 5-axis capability - Automatic tool changer - High-speed spindle - Coolant system - Condition: Good, fully functional, under power Find more here - / Contact us at -

A CNC milling machine, which has been converted to a horizontal design, is available. Travel X/Y/Z: 800mm/700mm/600mm, repeat accuracy: +/-0.001mm. Table diameter: 630mm, max. table load: 600kg, tool positions: 60, tool holder: 60, tool diameter: 100mm/160mm, tool length: 350mm, max. tool weight: 10kg, feed rate: 50m/min, rapid traverse: 50m/min. Machine dimensions X/Y/Z: approx. 6600mm/5400mm/2750mm, weight: approx. 10200kg, control: iTNC 530. Documentation available. On-site inspection is possible.

Tool length: 250mm, max. tool weight: 6kg, control: Heidenhain CNC 234, connected load: 40kVA, machine dimensions (LxWxH): 4700mm/4100mm/2300mm, weight: approx. 2.8t, operating hours: 43,408h. The guide rail of the front door is broken. Documentation available. An on-site inspection is possible.

x-travel: 600 mm y-travel: 500 mm z-travel: 500 mm total power requirement: 7,5 kW weight of the machine ca.: 5,5 t Working range: Longitudinal stroke X axis 600 mm Vertical stroke Y axis 500 mm Cross stroke Z axis 500 mm Clamping size of angle table 530 x 900 mm Max. weight of workpiece on table 450 kg Distance from table to vertical spindle, min./max. 120 / 620 mm Distance from table to horizontal spindle, min./max. 156 / 656 mm Tool taper SK 40 Spindle speeds 0 - 6,300 rpm Feeds X, Y and Z Axes, max. 2 - 10,000 mm/min Quick feed X, Y and Z Axes 10,000 mm/min Spindle drive 8 kW Total electrical load, approx. 15 kW - 400 V - 50 Hz Weight, approx. 5,500 kg Accessories / Special Features DIALOG 11 CNC Control in 4 axes with all the usual options, cycles, and subprograms. Graphic display and electronic hand wheel. Vertical milling head can be pushed up manually so that the  ...

x-travel: 300 mm y-travel: 150 mm z-travel: 340 mm total power requirement: 2 kW weight of the machine ca.: 660 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 300 mm y-travel: 450 mm z-travel: 150 mm total power requirement: 1,5 kW weight of the machine ca.: 500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1170 mm y-travel: 500 mm z-travel: 370 mm table load: 2 t spindle turning speed range: 25 - 2500 U/min feeds: 4 - 2000 mm/min rapid traverse:: 4000 mm/min taper ISO: 40 total power requirement: 12,5 KVA weight of the machine ca.: 4 t dimensions of the machine ca.: 2,3 x 1,9 x 1,75 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created wit ...

A CNC 6-axis laser precision machine for non-contact laser processing and measurement of complex geometries, particularly in the tool and mould making industry, is available. Travel X/Y/Z: 300mm/400mm/500mm, table dimensions X/Y: 300mm/400mm, axes mechanical/optical: 3/3, measurement system: non-contact SI sensor, measurement accuracy: +/-0.01mm, surface finish: Ra under 1µm, operating hours: 21045h, processing hours: 6549h. The laser (Prisma) is defective. Documentation available. An on-site inspection is possible.

Spindle speed range: 9000rpm, travel X/Y/Z: 500mm/400mm/400mm, feed rate: 10000mm/min, rapid traverse: 12m/min. Table dimensions X/Y: 700mm/500mm, max. table load: 200kg, number of T-slots: 7, distance between T-slots: 63mm. Control: Heidenhain, tool changer: 16-fold, dimensions X/Y/Z: 4000mm/2200mm/2450mm, weight: approx. 3500kg.

Travel X/Y/Z: 560mm/500mm/450mm, tool holder: SK40, speed: 4000rpm, feed rate: 3.6m/min, rapid traverse: 4m/min, table dimensions X/Y: 530mm/900mm, max. table load: 450kg. Machine dimensions X/Y/Z: 2350mm/2200mm/2000mm, weight: approx. 2200kg, control: Deckel Contour 2. An on-site inspection is possible.

Offered is a Deckel FP4NC vertical milling machine with Heidenhain TNC 355 control. Year 1987, including tool cabinet as well as various tools. Travel distances: X/Y/Z: 560mm/500mm/410mm, dimensions X/Y/Z: approx. 1800mm/1600mm/2000mm, weight: approx. 2400kg. Viewing is possible by appointment.

Axes: 5, travel X/Y/Z: 500mm/400mm/400mm, speed: 9000rpm, spindle power: 9kW/13kW, tool stations: 16, max. tool length: 290mm, max. tool weight: 6kg, max. table load: 200kg, feed rate: 10m/min, rapid traverse: 12m/min. Machine dimensions X/Y/Z: approx. 4500mm/4000mm/2500mm, weight: approx. 3400kg, control: Heidenhain MillPlus, operating hours: 34724h, spindle hours: 6490h. One operating button of the machine is defective, and the tool is sporadically not ejected. Documentation available. An on-site inspection is possible. This machine was used for training purposes.

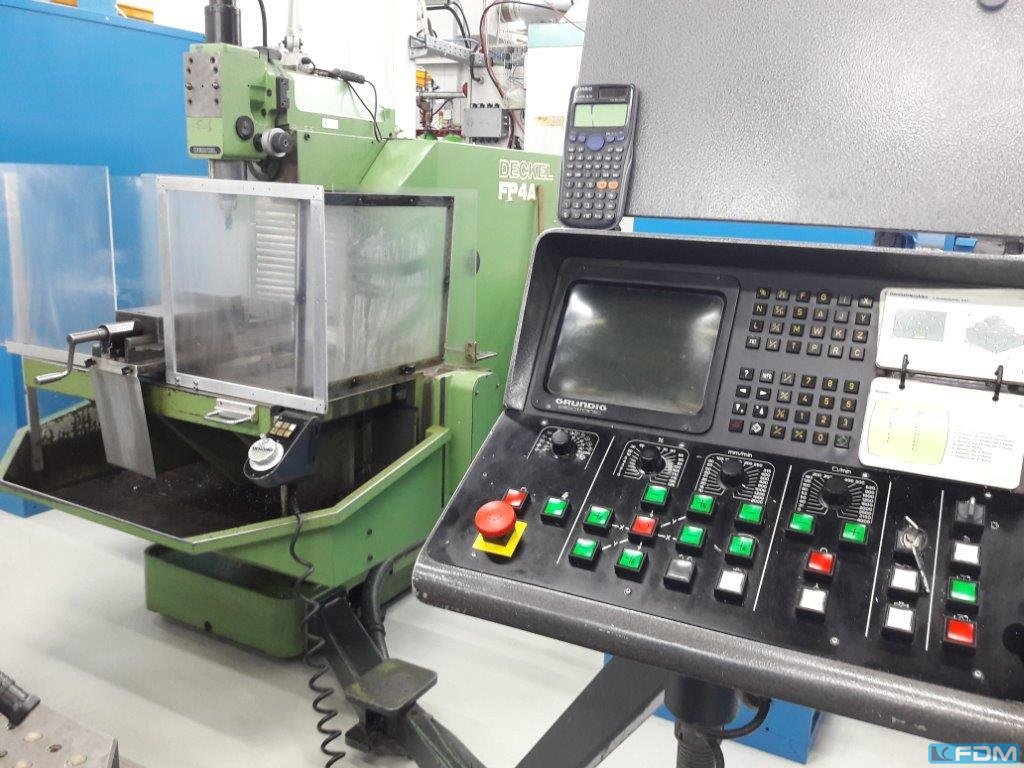

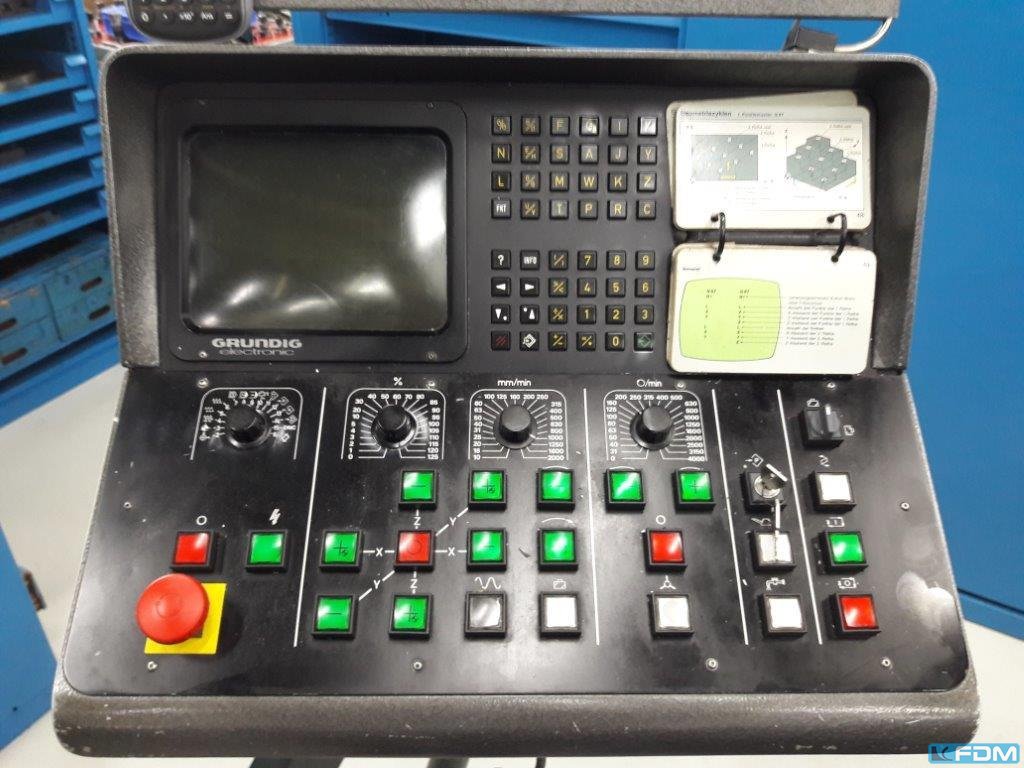

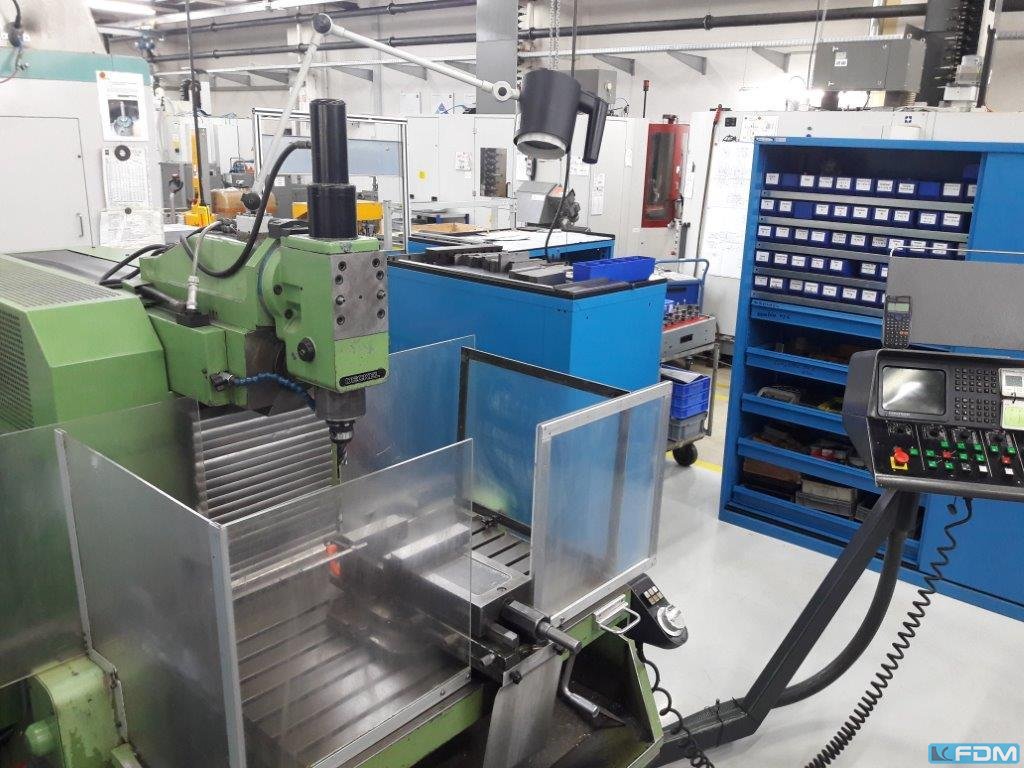

Offered is a Deckel FP 4 AT CNC milling machine year 1990. Control: Dialog 11. Coolant system: 70l, tool holder: SK40, tool changer: 20-fold, travels X/Y/Z: 560mm/500mm/390mm, table size X/Y: 900mm/530mm, spindle speed: up to 4000rpm, rapid traverse: 4000mm/min. Machine weight: approx. 2890kg. Tool changer defective. Viewing is possible by arrangement.

Travel X/Y/Z: 290mm/150mm/330mm, vertical head stroke: 100mm, tool holder: SK40, speed: 2000rpm, feed rate: 500mm/min, rapid traverse: 1200mm/min, table dimensions X/Y: 600mm/195mm, max. table load: 150kg. Machine dimensions X/Y/Z: approx. 1250mm/1200mm/1400mm, weight: approx. 1800kg. On-site inspection is possible.

Spindle-to-table distance min./max.: 81mm/481mm, counter support spindle center distance: 195mm, spindle head swivel: 360°, milling spindle diameter: 70mm, spindle adjustment: 100mm, headstock adjustment: 300mm, table dimensions X/Y: 480mm/820mm, travel X/Y/Z: 500mm/200mm/400mm, max. workpiece length: 400mm, spindle speed: 1600rpm, feed X/Y: 500mm/min, feed Z: 250mm/min, spindle head swivel: +/-30°, machine dimensions X/Y/Z: approx. 1600mm/2550mm/1700mm, weight: approx. 2300kg. The machine was electrically tested at the end of 2025 and a defect of the emergency stop switch was discovered. Documentation available. On-site inspection is possible.

A Deckel FP2 universal tool milling machine completely overhauled in 2019 is available. Travel X/Y/Z: 400mm/200mm/400mm, table dimensions X/Y: 700mm/330mm, speed: 2000rpm, tool holder: SK40, machine dimensions X/Y/Z: approx. 1600mm/1400mm/1600mm, weight: approx. 1250kg. On-site inspection is possible.

A CNC universal milling machine Deckel is available. Travel X/Y/Z: 400mm/400mm/400mm, table dimensions X/Y: 700mm/460mm, max. table load: 350kg, tool holder: SK40, quill stroke: 80mm, speed: 4000rpm, feed rate: 3600mm/min, rapid traverse: 4m/min. Machine dimensions X/Y/Z: approx. 1800mm/1800mm/2200mm, weight: approx. 2500kg, control: Contour 3. The tool change magazine is no longer in operation. Documentation available. An on-site inspection is possible.

A CNC 3-axis universal milling machine Deckel (DMG Mori) is available. Travel X/Y/Z: 1200mm/600mm/500mm, tool holder: SK40, speed: 5000rpm, feed rate: 10m/min, rapid traverse: 10m/min, table dimensions X/Y: approx. 1600mm/675mm, max. table load: 2000kg. Machine dimensions X/Y/Z: approx. 3300mm/2400mm/2400mm, weight: approx. 7000kg, control: Grundig Dialog 11. An on-site inspection is possible.

A CNC universal milling and boring machine Decke Maho is available. Travel X/Y/Z: 500mm/400mm/400mm, power: 7kW/5kW, torque: 88Nm/63Nm, speed: 4500rpm, tool interface: SK40, feed rate: 5m/min, rapid traverse: 5m/min, rotary table diameter: 700mm, max. workpiece height: 500mm, max. table load: 200kg, machine dimensions X/Y/Z: approx. 3200mm/1650mm/2550mm, weight: approx. 2600kg, control: Heidenhain TNC 124. Documentation available. On-site inspection is possible.

A universal tool milling machine Deckel from the 1980s is available. Travel X/Y/Z: 300mm/160mm/340mm, table dimensions X/Y: 600mm/250mm, max. table load: 150kg, tool interface: SK40, speed: 2000rpm, feed rate: 1200mm/min, machine dimensions X/Y/Z: approx. 1200mm/1100mm/1500mm, weight: approx. 700kg. On-site inspection is possible.

Manufacturer: Deckel Maho Model: DMC 100 U duoBLOCK Year of Manufacture: 2011 Find more here - / Contact us at -

x-travel: 710 mm y-travel: 600 mm z-travel: 500 mm NC-rotary table: 630 mm spindle taper: SK 40 spindle turning speed range: 18 - 6300 U/min control: DIALOG 4 feed: 2 - 3600 mm/min rapid traverse: 6 m/min table load: max. 485 kg quill stroke: 80 mm spindle drive: 9,5 kW total power requirement: 20 kVA weight of the machine ca.: 4,6 t dimensions: 3,8 x 2,24 x 2,35 m Accessories: vertical head with hydr. tool clamping and quill retraction, electron. handwheel, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 485 mm y-travel: 385 mm z-travel: 380 mm table surface area: 800 x 460 mm spindle taper: SK 40 control: CONTOUR 1 spindle turning speed range: 50 - 2500 U/min feeds: 10 - 1000 mm/min rapid traverse: 2 m/min table load capacity: 600 kg quill stroke: 80 mm total power requirement: 7,5 kW weight of the machine ca.: 2,0 t dimensions: 2,4 x 1,7 x 1,98 m Acc.: vertical head with hydr. tool clamping and quill retraction, solid table, coolant - movement of X/Y/Z also possible via handwheels - The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Travel X/Y/Z: approx. 600mm/525mm/500mm, table dimensions X/Y: 1000mm/550mm, max. table load: 350kg, tool holder: SK40, speed: 12000rpm, tool positions: 25, rapid traverse: 24m/min. Machine dimensions X/Y/Z: approx. 2900mm/2000mm/2300mm, weight: approx. 4500kg, control: Heidenhain, operating hours: approx. 87955h, spindle hours: approx. 21800h. Documentation available. On site inspection is possible.

Graver grinder, grinder, angle grinder, rotary steel grinder, thread drill grinder, milling cutter grinder, surface grinder, drill grinder, bench grinder, double bench grinder, tool grinder -Manufacturer: precision mechanics Weilheim, lid tool grinding machine type SO/64-6550 -Motor power: 0.37 kW 2800 rpm -Speed: 2800 rpm -Grinding discs: Ø 100 mm -Dimensions: 510/450/H1280 mm -Weight: 67kg

A CNC vertical milling machine Deckel Maho (DMG Mori) is available. Travel path X/Y/Z: 350mm/250mm/340mm, B-axis: 90°, C-axis: 360°, speed: 5000rpm, table dimensions X/Y: approx. 400mm/280mm, max. workpiece weight: 100kg, tool holder: SK40, feed rate: 5m/min. Machine dimensions X/Y/Z: approx. 2000mm/2000mm/2000mm, weight: approx. 1600kg, control: Siemens. Documentation available. An on-site inspection is possible.

Manufacturer: Deckel Maho Model: DMU 50 eVo Linear Year of Manufacture: 2007 Machine Type : Milling Machine Installed power: 44 kVA Supply voltage: 400V / 50Hz Machine hours (power on): 24,610 h Spindle hours: 9,820 h Find more here - / Contact us at -

Travel X/Y/Z: 600mm/400mm/500mm, Speed: 8000rpm, Tool holder: SK40, Feed rate: 10m/min, Rapid traverse: 20m/min, Table dimensions X/Y: 1000mm/600mm, max. table load: 500kg. Machine dimensions X/Y/Z: approx. 3560mm/2700mm/2250mm, Weight: approx. 6500kg, Operating hours: approx. 66000h, Spindle hours: approx. 18000h. Including approx. 30 SK40 holders and 2x Allmatic hydraulic vices. Documentation available. An inspection on site is possible. Without IKZ and tool changer.

This 5-axis Michael Deckel S22 was manufactured in 2005. It features a maximum grinding wheel diameter of 150 mm and a spindle speed range of 300 to 8000 rpm. The machine has a robust weight of 3800 kg and includes a cooling/filtration system from Transor Filter GmbH. If you are looking to get high-quality internal grinding capabilities, consider the Michael Deckel S22 internal grinding machine we have for sale. Contact us for further details.

x-travel:600 mm y-travel:450 mm z-travel:400 mm Table area:700 x 480 mm spindle turning speed range:10 - 3150 U/min spindle taper ISO:40 quill stroke:80 mm dimensions of the machine ca.:1,8 x 2,1 x 1,9 m total power requirement:8 kW weight of the machine ca.:3,5 t Machine with universal turn, sviwel and tilting table - CNC control DIALOG II - splash guards - misc. parts

x-travel:1000 mm y-travel:600 mm z-travel:550 mm fixed clamping table:1200 x 600 mm spindle drive motor:9 kW spindle taper ISO:40 spindle turning speed range:10 - 5000 U/min feed range:2 - 6000 mm/min total power requirement:15 kW weight of the machine ca.:6 t

x-travel:630 mm y-travel:560 mm z-travel:560 mm total power requirement:10 /15 kW weight of the machine ca.:6500 kg dimensions of the machine ca.: 4,4 x 5,4 x 2,9 m Table dimensions:1000 x 610 mm Loading:400 kg rapid traverse::X 26, Y 26, Z 20 m/min speeds::20 - 12.000 min -1 tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St. control:CNC MillPlus/TNC430 Documents:vorhanden

x-travel:560 mm y-travel:500 mm z-travel:450 mm total power requirement:16,5 kVA weight of the machine ca.:2700 kg dimensions of the machine ca.:2,30 x 3,0 x 1,90 m control:Grundig quill stroke:80 mm tool taper:SK 40 spindle speeds::40..4000 1/min feed:2 .3600 mm/min rapid traverse:4000 mm/min Documents:vorhanden

; very good

Table size: 460 x 800 mm stroke x: 485 mm traverse path y: 385 mm traverse path z: 380 mm Quill stroke: by hand approximately 70 mm spindle speeds: 50-3150 rpm stufenl feeds. adjustable: 2-1000 mm / min rapid traverse rate: 2 m / min. Port: 3.7/4,4 kW space: 2100 x 1650 x 1730 mm weight: 1850 kg

Various sub-equipment from a training workshop, to hand over individually, e.g. lid sub-device with upper beam and counter holder, Universal part apparatus with initial division Walter UTA150E with counter holder and rotary chuck 3 partial discs with parts see above, Part apparatus Walter can be swivelled without initial division. Furthermore Luenetten standing and running, on request please Specify the tip height and distance mid prism to mid plan area. Rest according to photo. Other sub-equipment susengar, Direct division Indirect division, various large sum. Please ask Sub-discs for UTA 150 E 22 24 29 36 37 49 57 63 16 30 33 36 39 51 57 63 16 27 30 33 41 47 53 61 Special price

Pallet Pool PS8

Three T-slot plates of a copy-fraes machine from Lid are offered. The T-slot plates can be mounted as a cross table. Scope of delivery only according to photos, without spindles. If you are interested, please request more photos. Further spare parts of lide e.g. towing table of a KF3 pre-wheels. Please ask. Special price Lid cabinet tool cabinet

2 pallets, 108 wkzg., BJ 1988, interior cooling, with PS8, various clamping means - see pictures

CNC toolmill cover FP 3 NC Dialog 11 Used machine (very good) Control type Cnc Built 1990 Hours K.a. Dimensions 1800x1700x2000 Weight 2000 kg Location Haiger Description Universal tool milling machine of the brand lid suitable for tooling, fixture construction, training as well as mold making • Travel distances: 400x400x400mm • Control: Dialog 11 Technical data • Control CNC Dialog 11 • Table 600x400mm • Longitudinal path (X,Y,Z axis) 400x400x400mm • Tool changer no • Tool holder: ISO 40 • Vertical spindle speeds: 31.5-3150rpm • Feeds 2-3600mm/min • Connection 50 Hz 3x 380V • Spindle motor 3.4KW

Lid FP 4 MA Used machine (Very good) Control type CNC Built in 1990 Operating hours n/a Price 8,000 net plus VAT Dimensions 2500x2000x2500 Weight 1800 kg Location Haiger Description Universal tool ingescent machine of the brand lid suitable for tooling, fixture construction, training as well as mold making Travel: 465x385x380mm Control: Contour 2 Technical data Technical data: Lid FP4 MA (527) Built in 1992 Control CNC Hand / Contour 2 Table 800x465mm Laengsweg (X,Y,Z axis) 465x385x380mm Tool changer no Tool holder: ISO 40 Vertical spindle speeds: 31.5-3150rpm Vorschuebe 2-4000mm/min Connection 50 Hz 3x 380V Spindle motor 4KW Machine weight approx. 1900kg Dimensions 2800x2000x2500mm

Description x-path: 300 mm y-way: 150 mm z-way: 340 mm Clamping area: 600 x 210 mm T-slots: 5 T - slot width: 12 mm Speed range - vertical: 250 - 2000 rpm Speed range - horizontal: 40 - 315 rpm Speed levels working spindle: 8 Feed range: 10 - 500 mm/min Feed levels: 8 Pinolene stroke: 60 mm Spindle holder: SK 40 Total power requirement: 1.7 kW Machine weight approx.: 0.8 t Space requirement approx.: 0.90 x 1.10 x 1.55 m Universal tool milling machine in very good condition, vertical head rotatable +/- 90° incl. drill pin with stroke 60 mm, horizontal spindle, automatic feed in X and Z direction, universal swivel table, turning and tilting range+/- 30°, swivel range+/- 90°, separate control cabinet + main switch incl. digital display (new)

Lid FP 1 in very nice condition x-path: 300 mm y-way: 150 mm z-way: 340 mm Clamping area: 600 x 210 mm T-slots: 5 T - slot width: 12 mm Speed range - vertical: 250 - 2000 rpm Speed range - horizontal: 40 - 315 rpm Speed levels working spindle: 8 Feed range: 10 - 500 mm/min Feed levels: 8 Pinolene stroke: 60 mm Spindle holder: SK 40 Digital display Z-502 Total power requirement: 1.7 kW Machine weight approx.: 0.8 t Space requirement approx.: 0.90 x 1.10 x 1.55 m Universal tool milling machine in good condition, vertical head rotatable +/- 90° incl. drill pin with stroke 60 mm, horizontal spindle, automatic feed in X and Z direction, universal swivel table, turning and tilting range+/- 30°, swivel range+/- 90°, separate control cabinet + main switch

Universal tool milling machine DECKEL FP 1 with 3 axis active digital display Heidenhain TNC 113 Year of construction: 1987 Travel: X 300 Y 160 Z 340 Speed range: 40 – 2000 rpm With the following accessories: Universal table 600 mm x 250 mm clamping surface Movable vertical milling head Extendable drill quill Infinitely variable feed via potentiometer 1 machine vice 1 counter holder with counter bearing 1 pc. milling mandrel long 0 22 mm Various tool holders S 22 x 2 Bellows Z Axis Machine light Automatic central lubrication pump Chip collection plate Coolant system Operating instructions THE MACHINE IS IN VERY GOOD CONDITION

-X-Way-700mm -Y-way-700mm -Z-way-700mm -Control-ITNC 530 -Spindle holder HSK A63 -Spindle speed-12000rpm -Plate changer with 7 pallets -Tool magasin with 120 -Internal cooling feeder-40bar -Spindle motor-20kW -Pallet size 500x500mm -Machine weight approx.16t -Top condition,to be visited under electricity

Key data: 500 , 520 , 380

Bearing number 1105-02750 Machine Type Machining Center - Universal Make DMG DECKEL-MAHO Type DMU 50 eV / 5 axes Built in 2001 Control type CNC Storage location FRANCE Country of origin Germany Delivery time immediately Freight base EX WORK Technical details x-way 500 mm y-way 420 mm z-way 380 mm Control HEIDENHAIN TNC 430 Spindle cone SK 40 Speeds 18,000 rpm Spindle motor 15 kW Rapid speed 50 m/min Table clamping area 500 per m. x 380 mm Feed range up to 20 000 mm/min Tool change device 32 fold Total power requirement 38 kVA Machine weight approx. 5.9 t Information - CNC - CONTROL of the display of HEIDENHAIN TNC 430 - 5-axis machine with B + C axis - Spindle on: 22 800 h - Current on: 38 000 h - Machine documents spaenefoerderer

1 x Universall tool-feeding machine Lid FP 4 Built: c.1970 Very robust and rare conventional machine in good condition. Technical data: Travel: X: 700 Y: 400 Z: 450 mm Spindle speeds: 31.5 - 1,600 rpm (18 levels) Tool holder: ISO 40 Pinole stroke: 115 mm Feed in X/Y/Z Feed range: X/Y/Z 5 - 500 mm/min (infinitely adjustable) Rapid response: X/Y: 10 - 500 mm/min Z: 5 -250 mm/min (18 levels) swivel handling table Clamping area: 860 x 500 mm Accessories: 1 x horizontal counter bearing 5 x horizontal frond spine Bftj7cazem 10 x vertical fraes aufnahme 36 x tension tension ingesheis from 0.5 - 18 mm 0.5 mm rising 5 x Direct clamping pliers D: 12/14/16/18/20 mm 1 x machine vice Manual various distance rings and accessories for milling machines complete documentation The machine can be inspected at our warehouse under electricity. A 3-axis digital ...

Control type: CNC Sinumerik 840D-SL x-way 1135 mm y-way 1050 mm z-way 750 mm table size 1400 x 1050 mm Table load 2500 kg max. workpiece size LxWxH 1400 x 1240 x 750 mm Speed 10000 rpm feed speeds X/Y/Z Axis 40000 mm/min Expressspeeds x/y/z 40000 mm/min Tool holder HSK-A100 HSK Number of places in the tool magazine 30 places max. tool weight 20 kg max. tool length 395 mm max. tool diameter 110 mm Machine height 3294 mm Drive power - spindle motor 44 kW machine weight approx. 17.9 t Space requirements approx. 15 m2 Information: Universal milling machine in mono BLOCK design (3-axis) - available September 2019 - only 3800 spindle hours, 13400 power-on hours Equipment / Accessories: - Coolant system - High-pressure pump - Chip conveyor - Hand-held panel - BALLUFF option - Documentation

Milling machine from a training workshop in very good condition Manufacturer lid Type FP1 Active

Machine details Location 1105-02917 Machine type Machining Center - Vertical Make DECKEL-MAHO DMG Type DMC 63 V Built 2001 Control type Cnc Location France Origin Germany Delivery JULY 2020 Freight base from stock, freely loaded Price On request Technical details x-Way 630 mm y-way 500 mm z-way 500 mm Table size 800 x 500 mm Spindle mount ISO 40 Range 0 - 8000 rpm Feeds - longitudinal/transverse/vertical 1 - 30000 mm/min Rapids - longitudinal/transverse/vertical 30 m/min Number of tool magazine slots 24 Tool diameter at full assembly 80 mm Tool diameter at 2 free spaces 140 mm Tool length max. 300 mm Tool weight max. 7 kg Table load 500 kg Spindle motor 9 / 13 kW Control Siemens 810 D Total performance requirements 30 kVA Machine weight approx. 4.2 t Information Tested machine ready for demonstration under current YEAR OF ...

- travel range: X= 485, Y= 385, Z= 380 mm - table size: 800 x 460 mm - tool holder: SK 40 - dimensions LxWxH: 2440 x 1800 x 2100 mm - weight: ca. 2.000 kg

Machine details 1105-02953 Machine type Machining Center - Vertical Make DECKEL-MAHO (DMG) Type DMC 64V Built 2002 Control type Cnc Location Haguenau Origin Germany Delivery Right away Freight base from stock Price On request Technical details x-Way 640 mm y-way 600 mm z-way 500 mm Control HEIDENHAIN TNC 530 Machine weight approx. 8 t Information 1 gebr. CNC vertical BAZ Fabr. DECKEL-MAHO Type DMC 64V linear, Y.O.M. 2002 1 used CNC Vertical Milling Center DECKEL-MAHO type DMC 64V linear, built 2002 WITH 2 AXIS PART APPARAT INCLU CNC Control HEIDENHAIN TNC 530 30-fah tool changer Conveyor 30-fold ATC chip conveyor Technical data / technical details: X-Way / X-travel 640 mm Y-way / Y-travel 600 mm Z-way / Z-travel 500 mm Spindle holder / spindle taper SK40 Speed range / spindle speed 0-12000 rpm Feed range X , Y , Z / feed range X , ...

Deckel Maho DMG DMU 70eVolution 5Axis simultaneous Machining center CNC Hersteller [manufacturer]: DMG Deckel Maho Type [ type]: 70eVolution Control unit: Heidenhain iTNC 530 Incl. handwheel Baujahr[construction year]: 12/2006 - Renewed/renewed spindle - IKZ integrated cooling system for water 40bar and air (both possible) Travel X/Y/Z 750/600/520 mm B-axis 0 to 180° degrees C-axis n x +-360° degrees Table load up to 350kg Spindle speed range 20 to 18,000 1/min. Tool holder SK 40 DIN 69871 Weight [weight]: 10.000kg Full documentation is available. Inspection under power can be done at short notice. We will be happy to answer any further questions you may have. Tel. 017621834834Price, from stock here plus VAT Condition: good - ready for demonstration Delivery: from stock - as seen Payment: purely net - upon receipt of invoice Prior sale, errors excepted.  ...

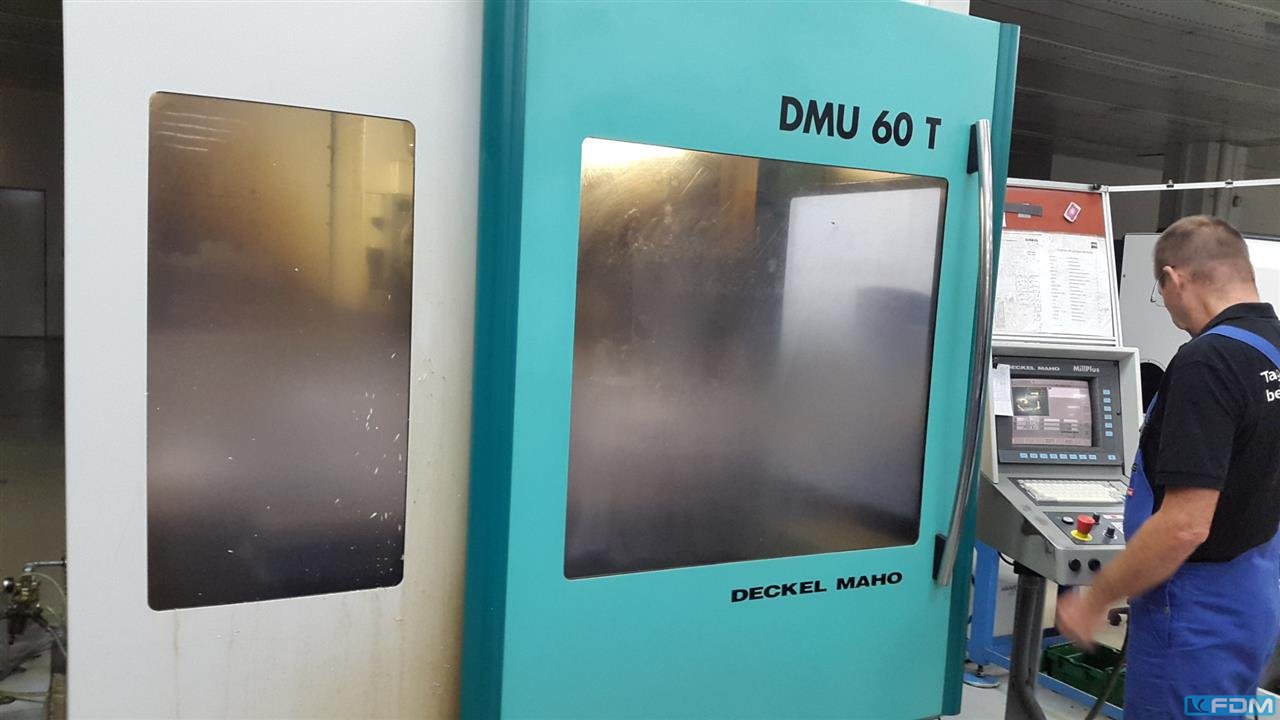

Fully functional used CNC milling machine Deckel Maho DMU 60 with rotary table Built in 1999 Heidenhain Control We would like to point out that this machine is in excellent technical and well-maintained condition for its age (due to the IATF certification). Regular maintenance is already required on the basis of the certification and the machine therefore works 100% perfectly. The machine is still energized and can be viewed and tested at any time. All maintenance logs are in place. The machine will have to leave the hall in the first quarter of 2025. This means that the machine could remain energized until mid-March 2025 to demonstrate it under power. Of course, the machine would also be available immediately. We will be happy to answer any questions you may have at any time. We are looking forward to a good cooperation and thank you for your answer and interest in adv ...

Lid FP 4 A Used machine (very good) Control mode Conventional Built in 1992 Operating hours approx. 500h Price 12,000 € net plus VAT Dimensions 2500x2500x1900 Weight 2000 kg Location Haiger Description Universal tool milling machine of the brand lid suitable for tooling, fixture construction, training as well as mold making Travel: 560/500/450mm Control : Dialog 11 Technical data Control CNC Dialog 11 Table 900x530mm Longitudinal path (X,Y,Z axis) 560/500/450mm Tool changer no Tool holder: ISO 40 Vertical spindle speeds: 31.5-5000rpm

Description Universal tooling machine from Lid suitable for tooling, fixture construction, training as well as mold making Technical data Year of construction / YOM 1991 Speeds / Spindle 63 - 6300 rpm Steuerung Control CNC Grundig Dialog 11 Vorschübe / Feeds 2 - 3000mm/min Tisch / Table 910 x 530mm Recording / Taper ISO 40 Way / Travel (X,Y,Z) 600x500x500mm Weight /Weight ca 1830kg Changer / Tool changer No Dimensions / Dimension 2500x2000x2000mm Travel: 600x500x500mm Speed: 31.5 - 6300 rpm The machine comes from a tool making and has been regularly serviced.

Lid Maho DMC 80 U hi-dyn Workspace: X-axis: 800mm Y-axis: 700mm Z-axis: 600mm Workpiece weight: 800 kg Number of axes: 5

CNC Control: Heidenhain ITCN 530 ERGOline Axes X-axis travel mm: 500 Y-axis travel mm: 450 Z-axis travel mm: 400 C-axis degrees: 360° (0.001º) B-axis degrees: –5° to +110° (0.001°) Fast Feed m/min: 24 Work table Table dimensions mm: 630 x 500 Maximum Piece Size (D x H) mm: 500 x 400 Maximum weight of the piece kg: 200 Spindle Spindle speed rpm: 18,000 Spindle power kW: 13 / 9 KW (40 / 100% ED) Tooling System Tool holder: SK 40 Tool Magazine Positions: 30 Max. tool length mm: 300 Maximum tool weight kg: 6 Equipment Chip extractor Light Work Area Paper Web Filter Rotating viewing window with laminated glass Refrigeration Cooling through the spindle bar: 40 Tank capacity litres: 600 L Machine Run Times Under voltage: 18.648 Rated power kVA: 34 Operating Time: 6,226 Basic Machine Dimensions/Weight Length mm: 2,800 Wid ...

5 Axis Lid Maho DMU 200 P Built in 2000 The machine is in very good condition. Videos under power available ! Technical data: Travel: X 1800 mm Y 2000 mm Z 1100 mm NC Round Table: Table area: 1700 x 1400mm Permissible load: 5000 kg Number of grooves: 11 Axis (swivel range) : 360 x 0.001 degrees Motor spindle: 8,000 rpm (SK50) Tool holder: SK 50 Tool changer: 60 seats Max tool weight: 20 Kg Max tool length: 450mm Max tool diameter: 110mm

Machine details Bearing number 1105-03199 Machine type Milling machine - Universal Make DECKEL MAHO DMG Type DMU 70eVolution Built in 2001 Control type CNC Warehouse FRANCE Country of origin Germany Delivery time by arrangement Freight base from location Price Technical details x-path 750 mm y-path 600 mm z-way 520 mm Control HEIDENHAIN iTNC 530 Information Milling machine - Universal DECKEL MAHO DMG DMU 70eVolution NC Swivel Round Table (700X500) Spindle -------------------- Spindle speed: 18,000rpm Tool holder: SK40 Tool changer -------------------- Magazine places: 32 Pick up Facilities -------------------- Measuring probe Conveyor 2. Processor card electronic handwheel HR410 Blowing air M25 Rinsing gun

Machine details Bearing number 1105-02750 Machine type Machining center - Universal Made DMG DECKEL-MAHO Type DMU 50 eV / 5 axes Built in 1998 Control type CNC Warehouse FRANCE Country of origin Germany Delivery time immediately Freight base EX WORK Technical details x-path 500 mm y-path 420 mm z-way 380 mm Control HEIDENHAIN TNC 430 Spindle cone HSK 63 Speeds 18,000 rpm Spindle motor 15 kW Rapid response 50 m/min Table clamping area 500 throughs. x 380 mm Feed range up to 20 000 mm/min Tool change device 32 fold Total power requirement 38 kVA Machine weight approx. 5.9 t Information - CNC - Screen web control HEIDENHAIN TNC 430 5-axis machine with B +C axis SIMULTAN - Machine documents spaenefoerderer

DECKEL MAHO DMU 100 T YEAR OF CONSTRUCTION: 2001 - Number of axes: 5 ( simultaneous) milling spindle - Tool holder: SK40 - Spindle drive power: 15 [kW] - Spindle speed: 20 - 12,000 [up] LINEAR ACHSEN - Travel X/Y/Z axes: 1,060 x 710 x 710 [mm] - Rapid speed (X/Y/Z) : 30,000 [mm/min] - Feed speed (X/Y/Z) : 20 - 15,000 [mm/min] SCHWENKACHSE A : SCHWENKKOPF - Travel: 90 [degrees](+/-) - Minimum resolution: 0.001 [degree] SCHWENKACHSE B : NC ROUND TABLE x 800 [mm] - Travel: 360 [degrees](+/-) - Minimum resolution: 0.001 [degree] WERKZEUGWECHSLER - Number of tools in the magazine: 32 ( 2x 16 places) table - Table size: 1500 x 795 [mm] - Loading table max. : 500 [kg]

Milling machine lid FP 4 NC Built c. 1992 with controlled C-axis 2 pieces of screw sticks Various tool holders Machine is in top condition and was last serviced on 20.08.2020 for approx. 3.000,- € (net). documents available. The machine is sold only because of space requirements. Location of the machine: 76661 Philippsburg

DECKEL S11 Sharpener TECHNICAL FEATURES: Wheel diameter: 125 [mm] Workpiece Spindle Nose: ISO 40 Paper Filtration: No Supply voltage: 400 [V] Installed power: 2 [kVA] Dimensions: 1100 x 800 x 1760 Weight: 520 [Kg] EQUIPMENT INCLUDED: x1 Universal Divider with Quick Indexing – Part Number: 255X0X x10 divider rings for fast indexing x1 tailstock with transverse adjustment – Ref.: 2621000 x1 tailstockwith vertical adjustment – Item No.: 2624000 x1 complete swivel bracket – Article No.: 2626000 x1 Grinding Unit (Concave or Convex) – Item No.: 2628000 x1 1 Universal Depth Gauge – Part Number: 2570000 x1 1 helical sharpening device – Article No.: 2580000 x1 draft grinding slide – Item no.: 2673000 x1 universal vise – Ref.: 2635000 x1 optoelectronic measuring unit with microscope – Part Number: 2650012 x2 RSF-Elektronik digital axis visualizatio ...

Angular table for lid milling machine Clamping flat 900x530mm 8 St T-hooks Never used

CNC Universal – Milling & Drilling Machine DECKEL MAHO DMU 80 P duoBlock With path control MILL PLUS iT Year of Make: 2006 Travel: X 800 Y 800 Z800 Speed range: 0 – 8,000 rpm infinitely variable ( SK 50 ) With the following accessories: NC rotary table 900 mm x 700 mm clamping surface (table load max. 1.4 t) Universal milling head with controlled B axis Universal tool changer with 40 magazine positions as a double gripper ( SK 50 ) Full protection cabin with sliding doors and interior lighting IKZ – 40 bar Conveyor Rotoclear Tool Measurement BLUM Laser 3 D Probe Heidenhain TS 641 Operating mode 3 + 4 Electronic handwheel 3-Piece Height Adjustable Machine Shoes Transport device Operating instructions
