agie charmilles boring mills and machining centers used for sale

Inv. Num. : 9105 Type: MIKRON VCE 800 PRO Producer: Agie Charmilles Created: 2011 Parameters: Control system: HEIDENHAIN iTNC 530 Work table length: 910 mm Work table width: 500 mm Maximum table load (uniform): 1100 kg Maximum vertical spindle speed: 10000 1/min X-axis travel: 800 mm Y-axis travel: 500 mm Z-axis travel: 540 mm Machine weight: 5000 kg

Ref. -No.: 10356 Manufacturer: AGIE CHARMILLES Year of construction: 2007 Type of control: CNC Control: iTNC530 Country of origin: Schweiz X-Travel: 800 mm Y-Travel: 500 mm Z-Travel: 540 mm Main spindle speed range: 16000 RPM Table Dimensions (Lengthxwidth): 910x500 mm Table Load: Vmax = 500kg, 5m/min = 1100kg kg Number of T-slots: 5 Tool change time (chip-to-chip): 8 s Max. Tool Weight: 6 kg Max. Tool Length: 305 mm Max. Tool Diameter: 77 mm Tool change time: 6 s T - slot spacing: 100 mm Numbers Of Tools In Magazin: 24 Tool changer: Doppelarm, seitlich montiert Rapid Traverse X-Axis: 24 m / min Rapid Travel Y-Axis: 24 m / min Rapid Traverse Z-Axis: 20 m / min Further information: Addition: probe

Ref. -No.: 10339 Manufacturer: AGIE CHARMILLES Year of construction: 2008 Type of control: CNC Control: Heidenhain iTNC 530 (2P) Storage location: Halberstadt Country of origin: Schweiz serial number: 107.20.00.040 X-Travel: 650 mm Y-Travel: 600 mm Z-Travel: 500 mm Main spindle drive power: 30/39 kW Main spindle speed range: 20.000 RPM Table Dimensions (Lengthxwidth): 800 x 600 mm Table Load: 500 kg Max. Workpiece Weight: 6,5 kg Tool change time (chip-to-chip): 7 s Max. Tool Length: 300 mm Max. Tool Diameter: 130 mm Tool change time: 1,5 s Workpiece Diameter At Full Load: 80 mm Workpiece Diameter With 2 Vacant Positions: 130 mm T - groove width: 14 mm T - slot spacing: 63 mm Tool Taper: HSK-A63 Numbers Of Tools In Magazin: 60 Tool changer: CT-60 Feed Speeds X/Y/Z Axis: 40/40/30 mm / min Feed Capacities X/Y/Z: 4/4/6 N Further information: Laser tool measuring system Type = BLUM laser syst ...

The machine is in good technical condition, testing possible by prior arrangement. 20,000rpm, 24,000 hours, iTNC 530.

Machine is in good technical condition, a visit and a test run are possible by prior arrangement.

AGIE CHARMILLES FORM 400 vP die-sinking EDM was built in 2012 in Switzerland by Agie Charmilles SA. The machine is used in the production of, among others, precision dies, punches and tools. Workpieces with a maximum weight of 3000 kg are machined by means of electrical erosion, which enables complex shapes to be made in even the hardest materials. Workpieces machined in this way also do not require other secondary processes to be undertaken, such as polishing. Extensive equipment is included in the offer price, consisting of, among others, an intelligent control system, a measuring probe and a special iQ module that minimises electrode wear. The AGIE CHARMILLES FORM sinker EDM weighs 7014 kg. Technical specifications of the AGIE CHARMILLES FORM 400 vP die-sinking EDM - number of axes: 4 (X,Y,Z,C) - feed in the X/Y/Z axis: 900/700/500 mm - work table dimensions (L x W): 1100 x 900  ...

table length: 600 mm table width: 400 mm x-axis: 400 mm y-axis: 300 mm z-axis: 350 mm workpiece sizes: 900 x 630 x 350 mm volume: 490 L total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Used machine in good condition. Available for immediate delivery. - Travel (X x Y x Z): 350 x 250 x 256 mm - Control: AGIEVISION - Dimensions (long x wide x high): 2.215 x 2.215 x 2.220 mm - Weight: 3.600 kg - Maximum power consumption: 9 kVa - Display: 15 LCD - Type of EDM : WIRE - Max. workpiece weight: 200 kg

An Agie start hole drilling machine for the EDM industry is available. Travel X/Y/Z: 300mm/200mm/300mm, electrode diameter: 0.3mm-3mm, max. drilling depth: 200mm, table dimensions X/Y: 400mm/300mm, max. workpiece weight: 300kg. Machine dimensions X/Y/Z: approx. 1400mm/900mm/2000mm, weight: approx. 950kg. Documentation available. On-site inspection is possible.

x-axis: 550 mm y-axis: 350 mm z-axis: 400 mm U-axis: 550 mm V-axis: 350 mm volume: 1200 L inclination: +/-30°/400 mm dimensions: 1200x700x400 mm weight: 1500 kg wire dia.: 0,10-0,33 mm Bobbin Weight max.: 25 kg total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The machine is in good technical condition, testing possible after prior agreement. Table dimensions: 700 x 450 mm Z-axis travel: 255 mm Y-axis travel: 250 mm X-axis travel: 350 mm MACHINE DIMENSIONS: L: 2100 mm x W: 2000 mm x H: 2200 mm

EDM machine Agie Charmilles Cut e 600 BJ 2018

Max workpiece size 1030x800x350 mm Table size 950x630 mm Can be inspected under power

CONTROLS   CNC controls WORKING RANGE -WIRE CUTTING-   X-axis travel: 500 mm   Y-axis travel: 350 mm   z-axis travel (vertical): 426 mm   conical operation for max.: 30 °   U-axis travel: 140 mm   V-axis travel: 140 mm WIRE SYSTEM   wire diameter (min): 0.15 mm   wire diameter (max): 0.33 mm ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 1940 mm   space requirements -front/back-: 2300 mm   total height: 2600 mm   total weight approx.: 4200 kg

x-travel: 860 mm y-travel: 560 mm z-travel: 600 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC control Heidenhain iTNC530 24-fold automatic tool changer electronical handwheel chip conveyor coolant through spindle device Technische Daten / technical details: X-Weg / X-travel 860 mm Y-Weg / Y-travel 560 mm Z-Weg / Z-travel 600 mm Spindelaufnahme / spindle taper SK 40 Drehzahlbereich / spindle speed 0-10000 UpM /rpm Eilgang X,Y,Z / rapid feed X,Y,Z 24,24,20 m/min Tischaufspannfläche / table clamping area 1000x560 mm Werkzeugwechselmagazinplätze / number of tool places in changer 24 Antriebleistung Spindel 40%ED / drive capacity spindle 40%ED 18,5 kW Gewicht ca. / weight 6.500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are ...

Excellent condition - Fully operational - Loading / Transport possible! Positioning resolution : 0.5 a Tool changer Number of electrodes places: 4 Max. electrode dimension : 75 mm Max. electrode length Electrode length : 280 mm Max. electrode weight : 5 kg Max. total weight : 20 kg The tool changer runs sluggishly and would have to be checked. Machining table Usable area : 800 x 600 mm Load capacity : 1000 kg Number of T-slots for mounting : 5 pcs. Dimension of the grooves : 12 mm Working container Max. internal dimensions : 1200 x 800 x 500 mm Capacity : 475 L Fuse box Cabinet dimensions : 900 x 750 x 1950 mm Cabinet weight : 300 kg Protection class of the cabinet : IP 32 Processing head with high rigidity Max. electrode weight : 100 kg Insulated interface : 250/650 mm

x-axis: 350 mm y-axis: 250 mm z-axis: 256 mm U-axis: +/-70 mm V-axis: +/-70 mm dimension of workpiece: 750 x 550 x 256 mm Working hours: 29.559 h total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m -edm hours 29559h The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

AGIE AGIECUT CLASSIC 2S wire EDM machine built in 2004 in Switzerland is used for the production of, among others, precision dies, tools and punches. Workpieces with a maximum weight of 450 kg are machined using electrical erosion, which can achieve complex shapes in even the hardest materials. This process is performed in a dielectric-filled work tank using a wire with a maximum diameter of 0.33 mm, which is threaded through a special AGIEJET system. The workpieces machined in this way do not require any other secondary processes such as polishing to be undertaken. The AGIECUT CLASSIC V2 wire EDM machine also features an intuitive CNC control with many useful functions. It is possible to purchase the dedicated cooler shown in the photos at an additional cost – price negotiable. The AGIE EDM machine weighs 2580 kg. Technical specifications of the AGIE AGIECUT CLASSIC 2S EDM machi ...

EDM machine Type: Agietron Impact 3 Manufacturer: AGIE Year: 2002 X: 500 mm Y: 350 mm Z: 500 mm Worktable: 800 × 600 mm Max load capacity: 800 kg Electrode weight: max 50 kg Machine weight: 3800 kg Dimensions: 2850 × 2150 × 2850 mm Machine in good condition, fully functional, under power Find more here - / Contact us at -

Inv. Num. : 8066 Type: AGIECUT CLASSIC 2S Producer: AGIE Created: 2003 Parameters: Max. travel length of the X-axis: 350 mm Max. travel length of the Y-axis: 250 mm Max. travel length of the Z-axis: 256 mm Maximum workpiece length: 750 mm Maximum workpiece height: 250 mm Maximum workpiece height: 550 mm Maximum table load: 450 kg Machine height: 2305 mm Machine length: 1670 mm Machine width: 2040 mm Machine weight: 2580 kg

movement of X-axis: 500 mm movement of Y-axis: 350 mm vert. movement Z-axis: 256 mm workpiece weight max.: 800 kg weight of the machine ca.: 4.5 t : +/- 70 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

frequency: 50 Hz weight: 3000 kg voltage: 3 x 400 V output: 8,3 kw ampere: 12 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Travel X/Y/Z: 500mm/350mm/500mm, table dimensions X/Y: 800mm/600mm, max. table load: 800kg, work bowl dimensions X/Y/Z: 860mm/620mm/350mm, max. electrode weight: 200kg, tool positions: 28, machine dimensions X/Y/Z: approx. 3000mm/3750mm/3000mm, weight: approx. 3340kg. Documentation available. On-site inspection is possible.

table length: 500 mm table width: 350 mm ampere: 65 A Control: AGIEVISION 5 CNC total power requirement: 20 kW weight of the machine ca.: 4000 kg dimensions of the machine ca.: m A G I E (Switzerland) CNC - Controlled Wire Cutting EDM Machine Model AGIECUT PROGRESS V 3, Year 2007 Working range, X Y Z (=height) 500 x 350 x 426 mm Wire head, U-V axis (helical/taper cuts) + / - 30 °/ +/- 70 mm Resolution of axes 0.0001 mm Speed for positioning the axes up to 3 m/Min. Tolerances (If machine is new) 4 µ Workpiece dimensions, L x W x H max. 1.050 x 650 x 420 mm Max.weight of workpiece with/w.o. Dieelektricum 400/800 kg Clamping System Universal Beams with fixing holes Cutting wire Ø 0.2 – 0.33 mm Size of wire roll up to 25 kg Cutting speed of wire  ...

Working range: 1.050 x 650 x 250 mm max. workpiece weight: 400 (800) kg control: Agievision AGIE max. conicity: 30° / 100mm travel -x axis: 500 mm travel -y axis: 350 mm travel -z axis: 426 mm travel U x V-axis: +/-70 / +/-70 mm rapid traverse X-axis: 3 m/min rapid traverse Y-axis: 3 m/min rapid traverse U-axis: 0,6 m/min rapid traverse V-axis: 0,6 m/min rapid traverse Z-axis: 0,6 m/min wire dia.: 0,2...0,33 mm total power requirement: 12,1 kVA weight of the machine ca.: 3,9 t dimensions of the machine ca.: 2,8 x 2,4 x 2,3 m Documents: Wire Eroding Machine AGIE - Agiecut Progress 3 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

X-axis: 400mm, Y-axis: 250mm, Z-axis: 256mm, max. workpiece weight: 400kg, max. workpiece dimensions: 580/860/250mm, support surface: 680/500mm, min. start hole diameter: 2mm, cutting rate: 185mm²/min, generator: Agiplus-MMD, control: Agimatic CF20. With dielectric processing unit DA-15/C. The display power supply is defective. The machine has already been dismantled, an on-site inspection is possible.

Manufacturer: AGIE Model: FUTURA V 1PM Electrical Specifications: - Voltage: 400 V - Frequency: 50/60 Hz - Phase: 3 PH - Circuit Breaker Power: 17 kVA - Power Factor (Cos φ): — - Full Load Current: 15 A - Full Load Power: 3.9 kVA - Amp Rating of Largest Motor/Load: 3.4 A - Overcurrent Protection: 20 A @ 480 V ~, 18000 AIC Weight: 265 kg Condition and Maintenance: Last service performed at the end of 2021 (running hours: 9107). The machine has been used only a few hundred hours since. Overall in good condition. Find more here - / Contact us at -

Travel X/Y/Z: 450mm/350mm/400mm, travel U/V: approx. +/-70mm, rapid traverse: 900mm/min, max. workpiece dimensions X/Y/Z: 1050mm/650mm/250mm, max. workpiece weight without/with tank: 800kg/400kg, wire diameter range: 0.2mm-0.33mm, tank volume: approx. 750l. Machine dimensions X/Y/Z: approx. 2000mm/2300mm/2500mm, weight: approx. 4000kg, control: Agievision. Documentation available. An on site inspection is possible.

1 x EDM machine Agie Cut Classic 2S BJ 2004 1 x EDM machine Agie cut Evolution BC2 BJ 1997

CONTROLS   CNC controls WORKING RANGE -CUBIC-   X-axis travel: 250 mm   Y-axis travel: 160 mm   Z-axis travel: 250 mm TECHNICAL SPECIFICATION   Table-size         : 480 mm   Table-size         : 330 mm   Adjustment of  x-axis: 250 mm   Adjustment of  y-axis: 160 mm ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 1200 mm   space requirements -front/back-: 1200 mm   total height: 2500 mm   total weight approx.: 1000 kg Equipment: -Agietron Compact 1 30A/C-axis / DAI 1-P -AGIE Fuzzytron -14 color screen -Fire extinguishing system -3-compartment electrode magazine -Micro-machining variant -lots of accessories

This AGIE CHARMILLES CUT 20 Erosion machine was manufactured in the year 2008. It is equipped with a Charmilles CNC control unit.

CONTROLS   CNC controls TECHNICAL SPECIFICATION   Case size: 860 mm   .. x: 620 mm   Adjustment of  x-axis: 350 mm   Adjustment of  y-axis: 250 mm   Erosion stroke: 350 mm   Max. dist. table-electr.clamp.surf.: 520 mm ELECTRICAL SPECIFICATIONS   mains power supply: 8.3 kVA   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 2700 mm   space requirements -front/back-: 1900 mm   total height: 2600 mm   total weight approx.: 3000 kg Description - Work container can be lowered - C axis for rotation, indexing and erosion - AGIEVISION control incl. TECTRON, AGIESETUP 2D - USER SEQUENCE, SPACETRACK, AGIEPATH with GEOEDITOR - Electrode changer 28 times - Incl. EROWA pneumatic chuck

Manufacturer:Agie Model: Agiecut Challenge 2 Year of Manufacture: 2001 Machine Type : Wire EDM Machine Find more here - / Contact us at -

This 3-axis AGIE AGIECUT CLASSIC S erosion machine was manufactured in 2000. It has impressive axis movements with x=350mm, y=250mm, and z=256mm, providing ample flexibility for handling erosion tasks. The machine accommodates a maximum piece size of 750mm in length, 550mm in width, and 250mm in height, and it can manage weights up to 200kg. The dimensions and capabilities make it suitable for a wide range of erosion processes, ensuring detailed and precise outcomes. The AGIE AGIECUT CLASSIC S machine we have for sale is designed for robust performance and precision. Contact us for more information about this erosion machine.

This 3-axis AGIE AGIETRON Innovation 2 die-sinking EDM machine was manufactured in 2002. It features a robust AGIEVISION control system, a 28-position electrode changer, and a C-axis for rotation, indexing, and erosion. The machine can handle workpieces up to 650 x 580 x 250 mm and 400 kg. It boasts a high-performance AGIE IPG generator with a removal rate of 450 mm³/min for copper/steel. Consider the opportunity to buy this AGIE AGIETRON Innovation 2. Contact us for more information.

This 5-axis AGIE CUT 400 Sp wire EDM machine was manufactured in 2013. It features a high-speed CC generator, automatic threading, and rethreading for wires from 0.30 to 0.20 mm. The machine includes a PC-based control system with a touchscreen and offers advanced NC functions like 3D graphic simulation and integrated documentation. If you are looking to get high-quality EDM capabilities, consider the AGIE CUT 400 Sp machine we have for sale. Contact us for more information.

This 5-axis AGIE CUT 300 wire EDM machine was manufactured in 2013. It features a maximum taper angle of 30/100° mm, can handle workpieces up to 1050 x 650 x 250 mm, and supports a maximum weight of 400 kg. If you are looking to get high-quality EDM capabilities, consider the AGIE CUT 300 machine we have for sale. Contact us for more information about this machine.

This 3-axis AGIE Challenge 2 eCut wire EDM machine was manufactured in 2006. It offers precision electrical discharge machining capabilities, ideal for detailed and intricate metal work. Consider the opportunity to buy this AGIE Challenge 2 eCut wire EDM machine. Contact us for more information about this machine.

Agie Wire Cutting EDM Machine High-Precision Wire EDM System This 2018 Agie AC Progress VP3 represents top-tier wire electrical discharge machining (EDM), offering flawless contour accuracy and superior surface finishes for critical components. Technical Details ‍ 1. Machine identification data Name: Wire Cutting EDM Machine (Electric Discharge Machining) Manufacturer: Agie Model: AC Progress VP3 Machine number: 591.3.020.530 Year of manufacture: 2018 2. Operational parameters Travel (X / Y / Z): 500 x 350 x 426 mm Travel (U / V): ± 70 mm Max. taper angle: 30° at 100 mm height Max. workpiece dimensions (X / Y / Z): 1050 x 650 x 420 mm Max. workpiece weight (without water): 400 kg Max. workpiece weight (with water): 800 kg Wire diameters: 0.15 – 0.33 mm Generator: IPG-VPC Max. cutting rate: > 500 mm²/min Best surface roughness: Ra 0.2  ...

Agie Wire Cutting EDM Machine Precision Wire Cutting EDM Machine A staple in advanced toolmaking, this 2006 Agiecut Progress V3 delivers highly reliable and accurate wire EDM capabilities for intricate metal cutting applications. Technical Details ‍ 1. Machine identification data Name: Wire Cutting EDM Machine (Electric Discharge Machining) Manufacturer: Agie Model: Agiecut Progress V3 Machine number: 333.010.008 Year of manufacture: 2006 Control: AGIEVision 5 2. Operational parameters Working area (X / Y / Z): 500 x 350 x 426 mm U-V Axis: +/- 30° / +/- 70 mm Max. workpiece dimensions (L x W x H): 1,050 x 650 x 420 mm Max. workpiece weight (with/without Dielectric): 800 kg / 400 kg Resolution of axes: 0.0001 mm Positioning speed: Up to 3 m/min Clamping system: Universal beams with fixing holes Cutting wire diameter: 0.2 – 0.33 mm  ...

This AGIE Agiecut VERTEX 3 Erosion machine was manufactured in the year 2006 in Switzerland and has 37021 erosion hours. It is equipped with an Agievision 5 Software version 07.08.01 control unit.

This 3-axis AGIE AGIETRON INTEGRAL 2 was manufactured in 2006. It features a travel of 350 mm in the X-axis, 250 mm in the Y-axis, and 350 mm in the Z-axis. The machine can accommodate workpieces up to 840 x 670 x 250 mm and has a maximum electrode weight of 100 kg. If you are looking to get high-quality die-sinking capabilities, consider the AGIE AGIETRON INTEGRAL 2 machine we have for sale. Contact us for further details.

Refurbished 2022 Travel distances: X= 350 mm, Y= 250 mm, Z= 256 mm Travel of U/V axis: +/- 70 mm Maximum conicity: 30° at 100 mm height Maximum workpiece dimensions: 750 x 550 x 250 (150 in the bath) mm Maximum workpiece weight: 200 (in bath) / 450 (without bath) kg Achievable surface quality: Ra: 0.30 μm Medium contour tolerance: +/- 6 μm Maximum cutting rate: 300 mm²/min Available wire diameters: 0.20 – 0.33 mm Water bath machine with autom. Wire threading and rethreading after wire breakage

Manufacturer: AGIE Model: Challenge 2 eCut Year of Manufacture: 2005 Type of Machine : Wire EDM machine Condition: Used, fully operational All annual maintenance documented Operating Hours - Re: 94,635 hours - Eros. Std.: 29,232 hours Electrical Data - Weight: 4,400 kg - Voltage: 3 x 400 V - Frequency: 50 Hz - Power: 9 kVA - Rated current: 15.2 A - Short-circuit current: 10 kA Travel Distances - X axis: 350 mm - Y axis: 250 mm - Z axis: 256 mm - U axis: +/- 70 mm - V axis: +/- 70 mm Technical Features - Wire diameter: variable from 0.1 to 0.3 mm (open guides) - SF module generator for fine finishing: Ra 0.12 - 0.2 um - 3D measuring probe for automatic part alignment on the machine - Variocut - Easyrun - Purecut - Dynamic Corner Control - R module - CAM link - Pieceinser Find more here - / Contact us at -

Manufacturer: AGIE Model: Challenge 3 eCut Year of Manufacture: 2004 Type of Machine : Wire EDM Machine Condition: Used, fully operational All annual maintenance documented Operating Hours - Re: 109,008 hours - Eros. Std.: 27,172 hours Electrical Data - Weight: 4,400 kg - Voltage: 3 x 400 V - Frequency: 50 Hz - Power: 9 kVA - Rated current: 15.2 A - Short-circuit current: 10 kA Travel Distances - X axis: 500 mm - Y axis: 350 mm - Z axis: 256 mm - U axis: +/- 70 mm - V axis: +/- 70 mm Technical Features - Wire diameter: variable from 0.1 to 0.3 mm (open guides) - Konik-Plus for very precise conical cutting - Surface finish down to Ra 0.3 um - 3D measuring probe for automatic part alignment on the machine - 1 additional filter for very long runtimes - Variocut - Easyrun - Purecut - Dynamic Corner Control - R module - CAM link - Pieceinsert Find more here - / Contact us at -

Generator: Agiepuls 60 HSF, travel X/Y/Z: 350mm/250mm/350mm, table dimensions X/Y: 600mm/450mm, max. workpiece weight: 400kg, max. workpiece dimensions X/Y/Z: 840mm/600mm/250mm, max. electrode weight: 100kg, machine dimensions X/Y/Z: approx. 2450mm/1750mm/3000mm, weight: approx. 4000kg. The machine has PCB damage. Documentation available. An on-site inspection is possible.

This 3-axis AGIE Hyperspark 2 Exact with Erowa was manufactured in 2005. It features an X-axis travel of 350 mm, Y-axis travel of 250 mm, and Z-axis travel of 250 mm. The machine is equipped with AGIE VISION 4 Software and includes an EROWA ROBOT MULTI with 60 ITS 148 places and 240 ITS 50 magazine places. If you are looking to get high-quality die-sinking EDM capabilities, consider the AGIE Hyperspark 2 Exact machine we have for sale. Contact us for further details.

Wire EDM Type: Agiecut Classic 3S Manufacturer: AGIE Year: 2005 X: 500 mm Y: 350 mm Z: 256 mm Max workpiece dimensions: 1050 x 650 x 250 mm. Max workpiece weight: 800 kg (without bath) or 400 kg (in bath) Wire diameter: 0.15 mm to 0.33 mm Maximum taper: ± 30° at a height of 100 mm. Machine weight: 3,900 kg Machine in good condition, fully functional, under power Find more here - / Contact us at -

EDM machine Type: Agietron Hyperspark 3 Manufacturer: AGIE Year: 2005 X: 500 mm Y: 350 mm Z: 500 mm Max workpiece weight: 800 kg Max workpiece dimensions: 880 x 680 x 350 mm C-axis: Integrated as standard for complex machining operations Machine in good condition, fully functional, under power Find more here - / Contact us at -

The machine is in good technical condition, after prior agreement it is possible to test it. Travels 220 x 160 x 100 mm, can be cut with wire from 0.02 to 0.2

Travel X/Y/Z: 350mm/250mm/256mm, travel U/V: +/-70mm, max. taper angle: 30°, max. height: 100mm, rapid traverse: 900mm/min, max. workpiece dimensions X/Y/Z: 750mm/550mm/150mm, max. workpiece weight: 200kg, max. threading height: 250mm, wire tension: 25N. Machine dimensions X/Y/Z: approx. 1650mm/2050mm/2250mm, weight: approx. 2600kg, control: Agievision. Documentation available. An on-site inspection is possible.

Key data: 1200 mm, 600 mm, 670 mm

Machine Details Stock-No. 1105-03992 Type of machine Machining Center - Vertical Make MIKRON Type VCE 1200 Year of manufacture 2005 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Switzerland Delivery time immediately Freight base ex stock HAGUENAU FRANCE Technical details x-travel 1200 mm y-travel 600 mm Z-Travel 670 mm CNC-control Heidenhain iTNC 530 max. distance between table and spindle-nose 650 mm table-size 1220 X 620 mm max. table load 1500 kg spindle taper ISO 40 spindle turning speed range 10000 rpm feed stepless 24 / 24 / 20 mm/min Rapid Traverse 24 / 24 / 20 m/min drive capacity - spindle motor 18 kW tool change unit 24 Pos. voltage 400 V total power requirement 35 kVA Weight of the machine approx. 8 t dimensions of the machine approx. 3.250 X 3.240 X2.8 m Additional information - electrical hand wheel - Chip conveyor  ...

Key data: 600 mm, 450 mm, 450 mm

achine details Stock-No. 1105-04026 Type of machine Machining Center - Universal Make MIKRON AGIE CHARMILLES Type UCP 600 Vario Year of manufacture 2006 Type of control CNC Storage location LAGER Country of origin Switzerland Delivery time to be agreed Freight basis ex site Price Technical details X-Travel 600 mm Y-Travel 450 mm Z-Travel 450 mm control iTNC 530 Heidenhain Turning Speed Range - Main Spindle max. 24,000 min/-1 Power capacity - main spindle 30 kW max. torque 91 Nm tool taper HSK-A63 surface area Ø 156 mm swivellable B: -101 / +45 ° rotatable C: 360° Table Speed 200 min/-1 max. workpiece sizes Ø 350 x 450 mm max. workpiece weight 80.0 kg numbers of pallets 10 number of toolpositions 30 pos. Max. mould width 80 / (125) mm max. tool length 200 mm Change time < 3.0 sec max. tool weight 6 kg max. total weight 80 kg Rapid Traverse 22 m/min ...

Charmilles EDM SINKER Circuit board 852 8550

Key data: 750 mm, 500 mm, 64 A

Inv. Num. : 5897 Type: Roboform 54P Producer: Charmilles Created: 2000 Parameters: Table dimensions: 750x500 mm Maximum operating current: 64 A Max. travel length of the X-axis: 600 mm Max. travel length of the Y-axis: 400 mm Max. travel length of the Z-axis: 450 mm Container dimensions: 1200x775x385 mm Machine weight: 3000 kg New Source

Key data: 500 mm, 400 mm

Type: Die-sinking EDM machine Ident Number: 22409 Category: Die-sinking EDM machines / EDM Manufacturer: Charmilles Model: ROBOFORM 350 GammaTec Year of construction: 2006 Travel: 350 x 250 x 300 mm [ X x Y x Z ] Table size X: 500 mm Table size Y: 400 mm max. workpiece weight: 500 kg Electrode changer: 16-fold C-axis

Key data: 500 mm, 400 mm

Type: Die-sinking EDM machine Ident Number: 22607 Category: Die-sinking EDM machines / EDM Manufacturer: Charmilles Model: ROBOFORM 35P Year of construction: 2002 Travel: 350 x 250 x 300 mm [ X x Y x Z ] Table size X: 500 mm Table size Y: 400 mm max. workpiece size X: 780 mm max. workpiece size Y: 400 mm max. workpiece size Z: 300 mm max. workpiece weight: 500 kg max. electrode weight: 50 kg Tool changer: 16-speed C-axis Generator: 64 amps lowerable container Erowa ITS50 Clamping Head

Key data: 600 , 450 , 450

Machine-Details Stock-No. 1105-04008 Type of machine Machining Center - Universal Make MIKRON AGIE CHARMILLES Type HPM 450 U - 5 Axis Year of manufacture 2012 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Switzerland Delivery time to be agreed Freight basis ex site Technical details X-Travel 600 mm Y-Travel 450 mm Z-Travel 450 mm control iTNC 530 Heidenhain Turning Speed Range - Main Spindle 20000 min/-1 power capacity - main spindel 30 kW max. Torque 91 Nm tool taper HSK A63 numbers of pallets 7 Size of pallet 350 x 350 mm max. pallet load 150 kg Swivellable B: -120 / +45° Rotatable C: 360° number of toolpositions 30 pos. Max. mould width 80 / (125) mm max. tool length 200 mm Change time ca. 3.0 sec max. tool weight 6 kg max. total weight 80 kg Rapid traverse 15 m/min Feed speeds max. 22,000 mm/min rapid traverse B: 50 min/-1 ...

Used machine in good condition. Available for immediate delivery. - Weight: 2.200 kg - Dimensions (long x wide x high): 1.800 x 1.600 x 2.130 mm - Travel (X x Y x Z): 400 x 250 x 200 mm - Type of EDM : WIRE - Max. workpiece weight: 500 kg

Used machine in good condition. Available for immediate delivery. - Travel (X x Y x Z): 400 x 250 x 200 mm - Dimensions (long x wide x high): 1.800 x 1.600 x 2.230 mm - Weight: 2.200 kg - Operating hours: 21.483 - Max. workpiece weight: 1.000 kg - Max. workpiece weight: 500 kg - Control: CHARMILLES

Specifications: Manufacturer: Charmilles Type: HD 30CNC Year of Make: 2004 Travel: X 300 mm Y 200 mm Z 300 mm Bore diameter range: 0.3 – 3 mm Depth: max. 200 mm Tool table Table dimensions: 500 x 300 mm Workpiece weight: max. 300 kg Mains connection Power Supply: 3/PE-380 V Fluctuation range: +10%/-15% Input power: 4 kVA Dimensions and weight: Dimensions: 1,340 mm x 900 mm x 1,940 mm Weight: approx. 1,200 kg Condition Condition: Used Functional: Tested and fully functional

Travel X/Y/Z/U/V: 400mm/250mm/400mm/400mm/250mm, max. workpiece dimensions X/Y/Z: 850mm/500mm/400mm, wire diameter: 0.1mm-0.3mm, max. table load: 1000kg, power requirement: 10kVA. Machine dimensions X/Y/Z: approx. 1800mm/1600mm/2230mm, weight: approx. 2800kg. On-site inspection is possible.

Key data: 450 mm, 320 mm, 162 mm

For sale Charmilles wire EDM machine type Robofil 4020.1. The machine is in very good condition. Still to be seen under power. Lots of accessories!

Charmilles Form 20 Tabledimensions / T slots : 398,8 × 299,7 mm Tank dimensions: 208,2 L Longitidinal displacement X-axes: 300 mm Transversal displacement Y -axes: 200 mm Vertical displacement Z-axes: 250 mm Max weight on table: 350 kg

Wire EDM Machine Charmilles Robofil 4030 SI BJ 2001

Submerged Wire erosion machine CHARMILLES ROBOFIL 440 CC, Information about technical data are not binding., Machine available subject to prior sale., X-Y-Z axes travel: 550x350x400 mm, U-v axes travel: 550x350 mm, Taper angle: ± 30°, Automatic wire threading and rethreading: yes, Maximum workpiece dimension: 1200x700x400 mm, Cnc: CHARMILLES, Total volume of dielectric: 1200, Filter type: Cartridge, Weight: 3.500 Kg, Accessories: Chiller unit

Inv. Num. : 8903 Type: Robofil 510 Producer: Charmilles Created: 1999 Parameters: Max. travel length of the X-axis: 250 mm Max. travel length of the Y-axis: 160 mm Max. travel length of the Z-axis: 150 mm Max. workpiece dimensions: 700 x 300 x 150 mm Max. workpiece weight: 200 kg Machine height: 2085 mm Machine length: 1660 mm Machine width: 1580 mm Machine weight: 2480 kg

This CHARMILLES ROBOFORM 51 Erosion machine was made in 1998. The machine has a table size of 750x500 mm.

The Charmilles Robofil 2020 is a high-precision Wire Electrical Discharge Machine (Wire EDM). Manufactured in Switzerland, this machine is designed for detailed "erosion" work, making it a staple in toolmaking and the production of complex medical or industrial components. Here is a clean, structured text block for the Charmilles Robofil 2020 (1994) that you can copy and paste directly into an online listing or equipment database. --------------------------------------------------------------- Machine Specifications: Charmilles Robofil 2020 General Information - Manufacturer: Charmilles Technologies (Switzerland) - Model: Robofil 2020 - Year of Manufacture: 1994 - Machine Type: CNC Wire-Cut Electrical Discharge Machine (Wire EDM) Technical Travel & Capacity - X-Axis Travel: 320 mm (12.5") - Y-Axis Travel: 220 mm (8.6") - Z-Axis Travel: 116 mm (4.5") - U/V Axis Travel: ± 48 mm (fo ...

EDM machine Charmilles Robofil 100

2 x EDM machines Charmilles Robofil 2020 BJ 1994 and Charmilles Robofil 4020 BJ 1996

This 3-axis CHARMILLES ROBOFORM CT 400 was manufactured in 1996. It features X-axis travel of 450 mm, Y-axis travel of 320 mm, and Z-axis travel of 410 mm. The tank dimensions are 1195x800x400 mm, supporting a maximum workpiece weight of 800 kg. If you are looking to get high-quality die-sinking capabilities, consider the CHARMILLES ROBOFORM CT 400 machine we have for sale. Contact us for more information.

This 3-axis CHARMILLES HD10 start hole drilling machine was manufactured in 2002. It features a work table size of 600x300mm, XY-travel of 350x250mm, and can handle a maximum workpiece weight of 450kg. Ideal for precise erosion tasks, the CHARMILLES HD10 machine we have for sale represents a robust addition to any machining setup. Contact us for further details regarding this machine.

Key data: 500 mm, 400 mm

Roboform 350 + Erowa Robot Compackt 44-Fold Electrode Changer This die-sinking EDM machine offers precise machining with a wide range of features. Details: Year 2006 Travels: X/Y/Z 350 x 250 x 300 mm Minimum power consumption: 5 kVA Maximum electrode weight: 25 kg Accessories: incl. Erowa zero-point clamping system on table WITHOUT electrode holder

This 3-axis CHARMILLES Roboform 350 die-sinking EDM machine was manufactured in 2006. It features travel paths of 350 x 250 x 300 mm and can accommodate a maximum electrode weight of 25 kg. The machine has a power consumption of 7.5 kVA and weighs 2350 kg. If you are looking to get high-quality die-sinking capabilities, consider the CHARMILLES Roboform 350 machine we have for sale. Contact us for further details.

A CNC die-sinking EDM machine Charmilles without counter is available. Travel path X/Y/Z: 350mm/250mm/300mm, C-axis: 360°, tool positions: 4, quill stroke: 300mm, table dimensions X/Y: 500mm/400mm, max. workpiece weight: 500kg, max. workpiece dimensions X/Y/Z: 780mm/550mm/370mm, surface quality: approx. Ra 0.1µm, max. electrode weight: 50kg, tank usable volume: 160l, total tank volume: 410l. Machine dimensions X/Y/Z: approx. 1900mm/1700mm/2550mm, weight: approx. 250kg. Documentation available. An on-site inspection is possible.

Die Sinking Machine AGIE AGIETRON IMPACT 3 - C axis, automatic electrode change, Erowa, Information about technical data are not binding., Machine available subject to prior sale., Longitudinal travel x axis: 500 mm, Cross travel y axis: 350 mm, Vertical travel z axis: 500 mm, C axis travel: 360 °, Working table size: 800x600 mm, Work tank dimension: 1100x730x400 mm, Automatic electrode change nr.: 28, Power supply: AGIEVISION 2, Max working current: 72 A, Filter type: Cartridge paper, Weight: 3.600 Kg, Accessories: EROWA Sistem

This 4-axis CHARMILLES ROBOFIL 4030 Si was manufactured in 1999. It features a maximum workpiece dimension of 1200 x 700 x 400 mm and can handle a weight of up to 1500 kg. The machine is equipped with a wire diameter range of 0.05 – 0.30 mm and a maximum cutting speed of 500 mm²/min. If you are looking to get high-quality wire EDM capabilities, consider the CHARMILLES ROBOFIL 4030 Si machine we have for sale. Contact us for further details.

This 3-axis CHARMILLES ROBOFORM 35P die-sinking EDM machine was manufactured in 2002. It features a travel range of 350 mm in the X-axis, 250 mm in the Y-axis, and 300 mm in the Z-axis, with a maximum workpiece weight of 500 kg. The machine is equipped with a 32-position rotary tool changer and a high-speed Z-axis for enhanced performance. If you are looking to get high-quality die-sinking capabilities, consider the CHARMILLES ROBOFORM 35P machine we have for sale. Contact us for further details.

This 5-axis CHARMILLES TECHNOLOGIES Robofil 290P was manufactured in 1999. It features a travel range of 400 mm x 250 mm x 200 mm and can accommodate a maximum workpiece weight of 500 kg with dimensions of approximately 850 x 500 x 200 mm. If you are looking to get high-quality wire EDM capabilities, consider the CHARMILLES TECHNOLOGIES Robofil 290P machine we have for sale. Contact us for further details.

table length: 700 mm table width: 480 mm weight of the machine ca.: 2,64 t ampere: A total power requirement: kW dimensions of the machine ca.: m CNC Control without coolant device Technische Daten – technical details: Verfahrweg X / travel X 350 mm Verfahrweg Y / travel Y 250 mm Verfahrweg Z / travel Z 250 mm Verfahrweg U / travel U +-45 ° Verfahrweg V / travel V +-45 ° max. konischer Schnitt / max. cone cutting +-10 ° Max. Dimensionen des Werkstücks / max. dimensions of the workpiece 820x680x250 mm Tischabmessungen / table size 700x480 mm max. Werkstückgewicht / max. workpiece weight 4100 kg Gewicht ca. / weight ca. 2640 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding. The data for this ad was created with ModulMWS - the software solution of LogoTech ...

Model 2000 year of construction 1999 machine in excellent condition travels : X: 320 mm | Y: 220 mm | Z: 116 mm |U: ± 50 mm | V: ± 50 mm Max Workpiece Dimension: 900x 520 mm max load: 150 Kg Max workpiece height : 150 mm immersion max workpiece height between guides: 260 mm

A CNC wire EDM machine Charmilles is available. Travel X/Y/Z: 340mm/220mm/220mm, travel U/V: 350mm/220mm, max. taper angle: +/-30°, max. taper height: 220mm, max. workpiece dimensions X/Y/Z: 1100mm/550mm/220mm, max. workpiece weight: 750kg, table dimensions X/Y: 680mm/450mm. Machine dimensions X/Y/Z: 2050mm/2050mm/2000mm, weight: approx. 3250kg, working hours: 97916h. Documentation available. An on-site inspection is possible.

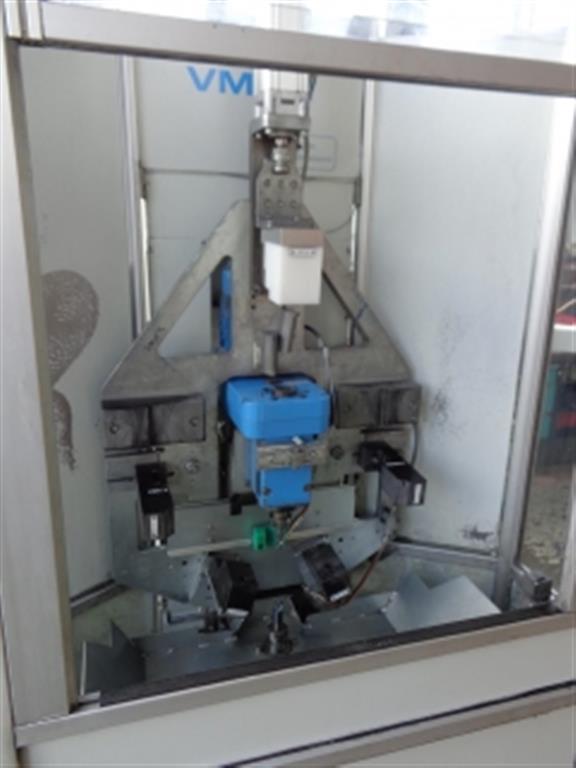

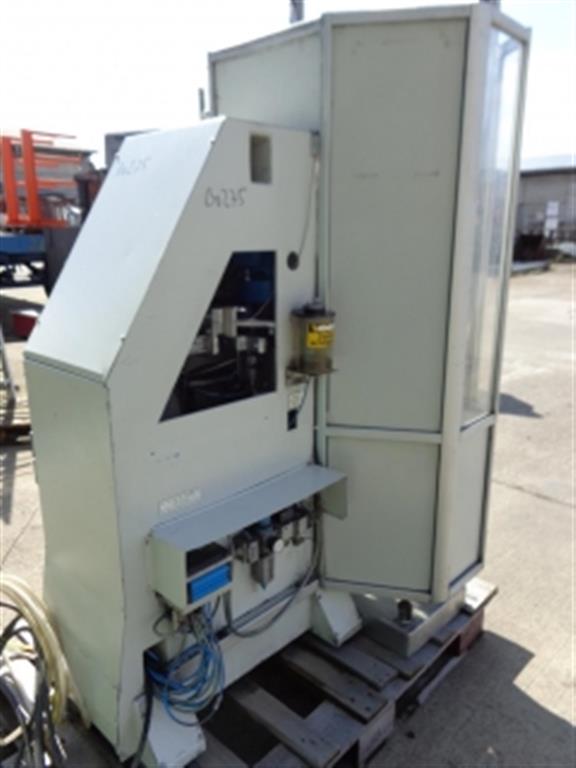

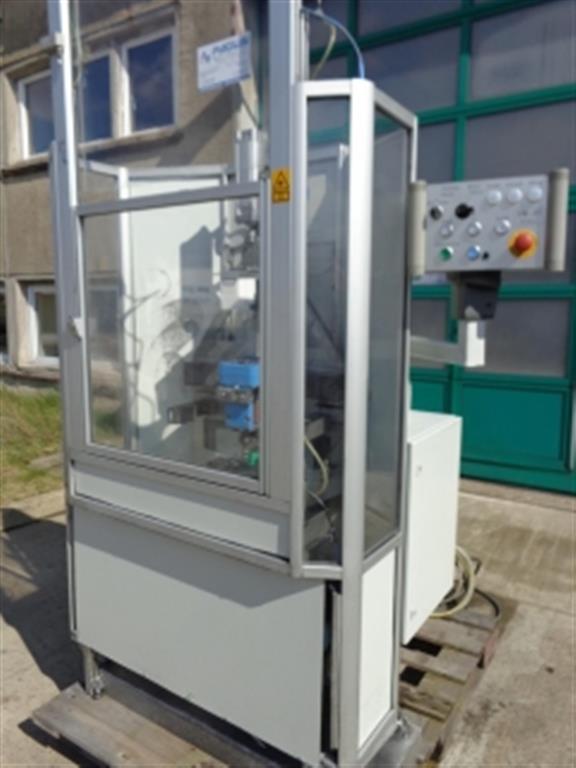

Boring power:10 mm weight:590 kg connected load:2 kW dimensions::1500 x 1300 x 2300 mm
