TAKISAWA TW-46 - CNC LATHE Year of construction : 2008 Specifications: - Center spacing/turning length: 900 mm - Turning diameter : 450 mm -X:250 mm -Z:900 mm - Spindle passage diameter: 60 mm - Engine power: 20 kW - Total weight: 6500 kg
Inv. Num. : 8552 Type: TMM-250 M1 Producer: Takisawa Created: 2005 Parameters: Control system: FANUC 180i Max. turning diameter: 350 mm Maximum spindle speed: 4000 1/min Bar diameter: 50.8/76.2 mm Length: 4745 mm Width: 2932 mm Height: 2250 mm Weight: 8500 kg Equipment: 2 spindles and 2 heads with driven tools
used
:::TECHNICAL SPECIFICATIONS::: CNC model: Fanuc - CNC version: 21 TB - Spindle nose: ASA 6 - Spindle power: 11Kw - Turning diameter: 240mm Self-centering diameter: 160mm - Turning length: 130mm - Main spindle speed: 4000 - Sub spindle speed: 4000 Number of tool positions for the first turret: 10 Number of second turret tool positions: 10 Fast feeds for linear axes X Y Z: 24m/min Gantry loader: yes Chip conveyor: belt
GENERAL Project No.: 905471 Quantity: 1 pcs. Manufacturer: TAKISAWA Type: TT 500 GD Control: Fanuc 0i TF Year of construction: 2018 Condition: Used machine Approx. (hrs) control: 22,918 Program run approx. (hours): 7.112 DESCRIPTION TURN turning diameter 50 mm turning length 50 mm 2 pcs. main spindle(s) – front loading speed main spindle 8000 1/min power main spindle at ED 10-40/100% 7.5/3.7 kW Spindle passage main spindle 37 mm Spindle diameter in front bearing Main spindle 80 mm Spindle flange size main spindle 80 F Travel in X/Z 250/300 mm rapid traverse speed in X/Z 20/24 m/min Full clamping cylinder on the main spindle Coolant supplied through the main spindle Pneumatic workpiece system control left and right Fixed block tool holder Number of stations/powered 5/0 ADDITIONAL EQUIPMENT Tool breakage monitoring Splash guard cladding with ful ...
Offered is a precision lead and feed screw lathe: Center distance: approx. 1000mm, center height: 180mm, swing diameter over bed: 360mm, spindle bore: 35mm, spindle mount: D1-3 Camlock, spindle taper: MK5 (MT5), speed steps: 12 speeds, speed range: approx. 40-1800rpm, longitudinal feeds: 0.05-0.7mm/rev, cross feeds: 0.02-0.4mm/rev, metric threads: 0.4-7.0mm, inch threads (Whitworth): 4-56threads/inch. Inspection possible by appointment.
Horizontal CNC lathe with tailstock manufactured in 2004. This Takisawa TS-35 features a maximum turning diameter of approximately 400 mm and a turning length of 1000 mm. It is equipped with a powerful 26.1 kW main spindle motor and a chuck size of 304 mm. If you are looking to get high-quality turning capabilities, consider the Takisawa TS-35 machine we have for sale. Contact us for further details.
This Takisawa EX-508 was manufactured in 2006. A horizontal turning machine featuring a turning diameter of 300 mm, length of 380 mm, and a robust 12-position turret. It includes a Fanuc 18 i TB control, ensuring precision and ease of operation. Ideal for detailed turning tasks, it also boasts a spindle motor power of 11/18.5 kW for demanding operations. For more information about this machine, please reach out to us.
This Takisawa LA-300 CNC was manufactured in 2018. A robust horizontal turning machine featuring a spindle speed of 3,500 rpm, maximum turning diameter of 450 mm, and a 12-position tool turret. It includes a FANUC Series 0i-TC control for precise operations. If you are looking to get high-quality turning capabilities, consider the Takisawa LA-300 machine we have for sale. Contact us for further details regarding this machine.
This 4-axis Takisawa EX 2000 MS was manufactured in 2020, featuring a Fanuc 0i-T Plus control system. It offers a max turning diameter of à 390 mm and a length of 510.5 mm, with a bar capacity of à 65 mm. The machine includes a 12-position driven turret and rapid traverse rates of 30 m/min on the X-axis and 36 m/min on the Z-axis. If you are looking to get high quality turning capabilities consider the Takisawa EX 2000 MS machine we have for sale. Contact us for more information.
This Takisawa TC 200 was manufactured in 2005. It features a standard turning diameter of 225 mm and a maximum of 340 mm. With X-axis movement of 185 mm and Z-axis movement of 370 mm, it also includes a 12-position turret. Consider the opportunity to buy this Takisawa TC 200 horizontal turning machine. Contact us for more information.
This 3-axis Takisawa TS-4000YS was manufactured in 2021. It features a robust 6200 kg frame with a 30° inclined bed for stability and precision. Key specs include a 22 kW main spindle, 618 Nm torque, and rapid traverses up to 30 m/min. Its equipped with a dual spindle, Y-axis, and a 15-position turret for versatile machining. If you are looking to get high-quality turning capabilities, consider the Takisawa TS-4000YS machine we have for sale. Contact us for more information.

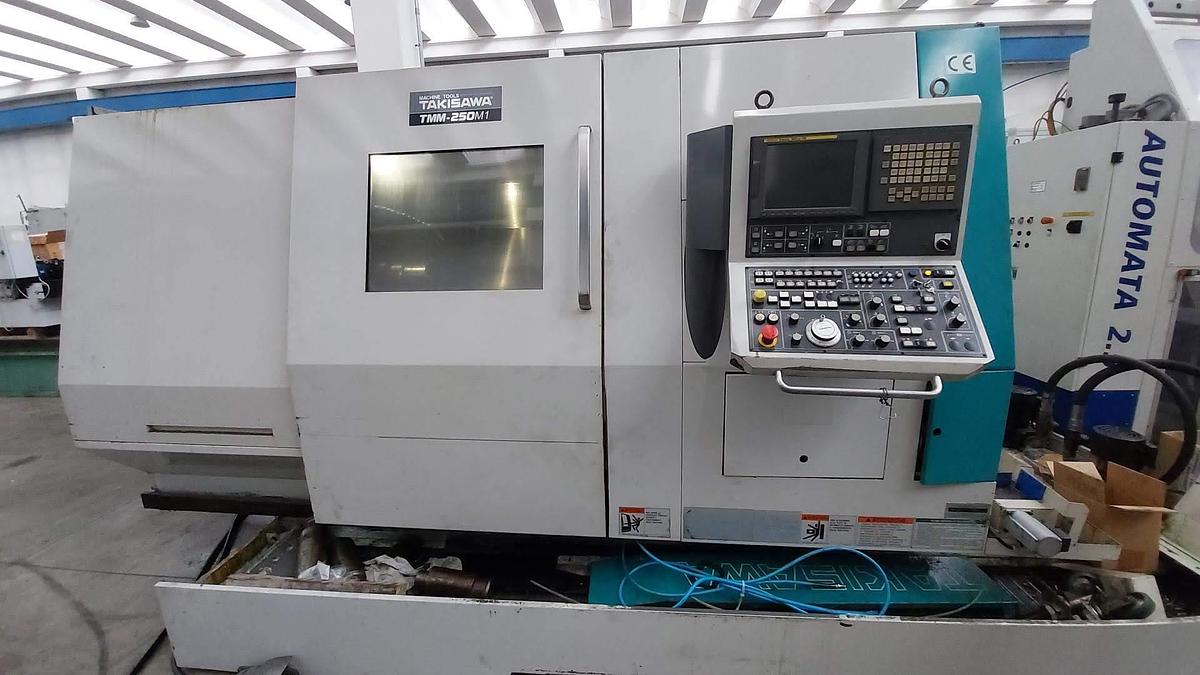

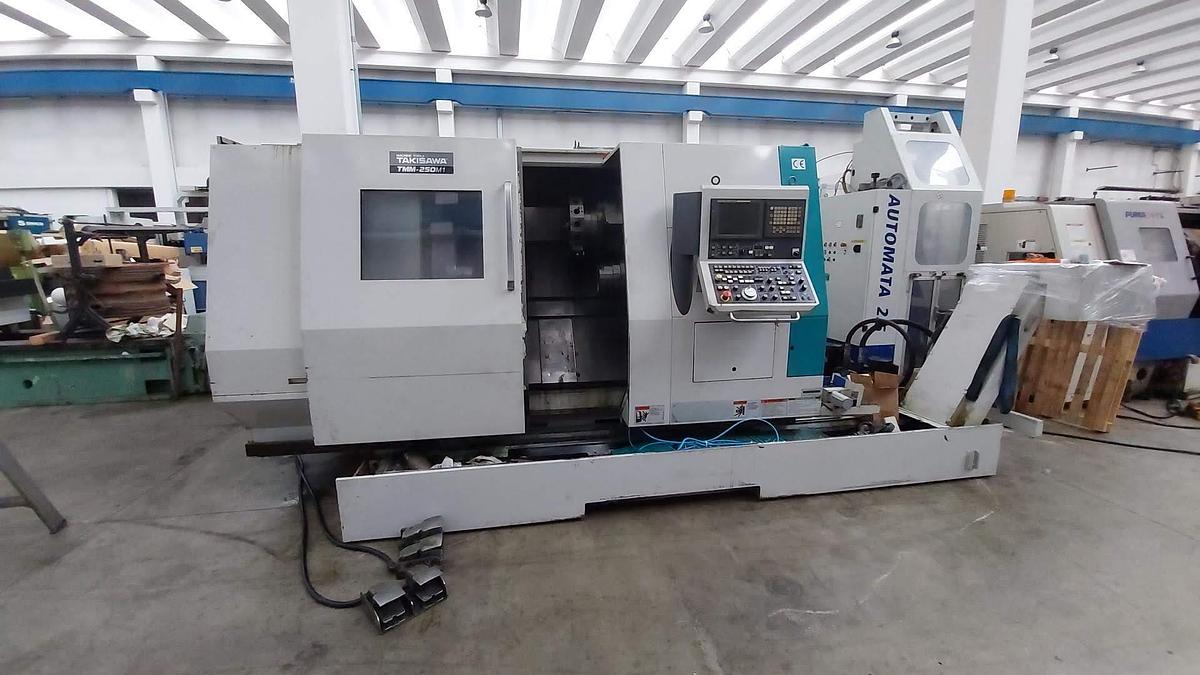

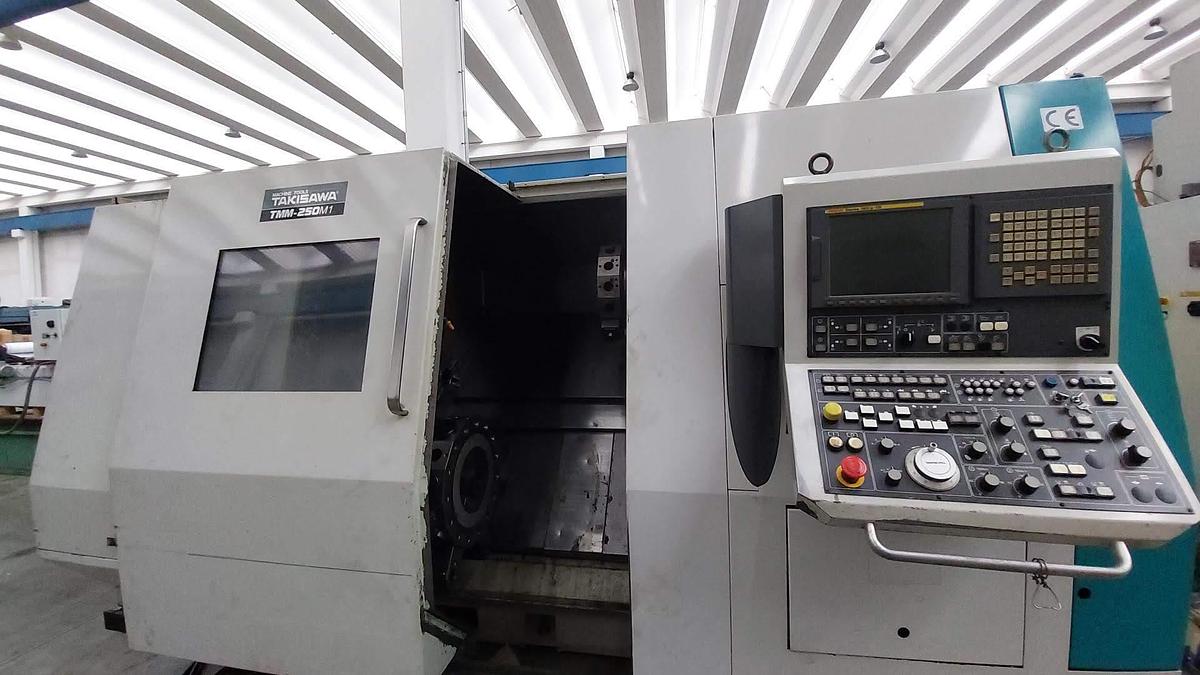

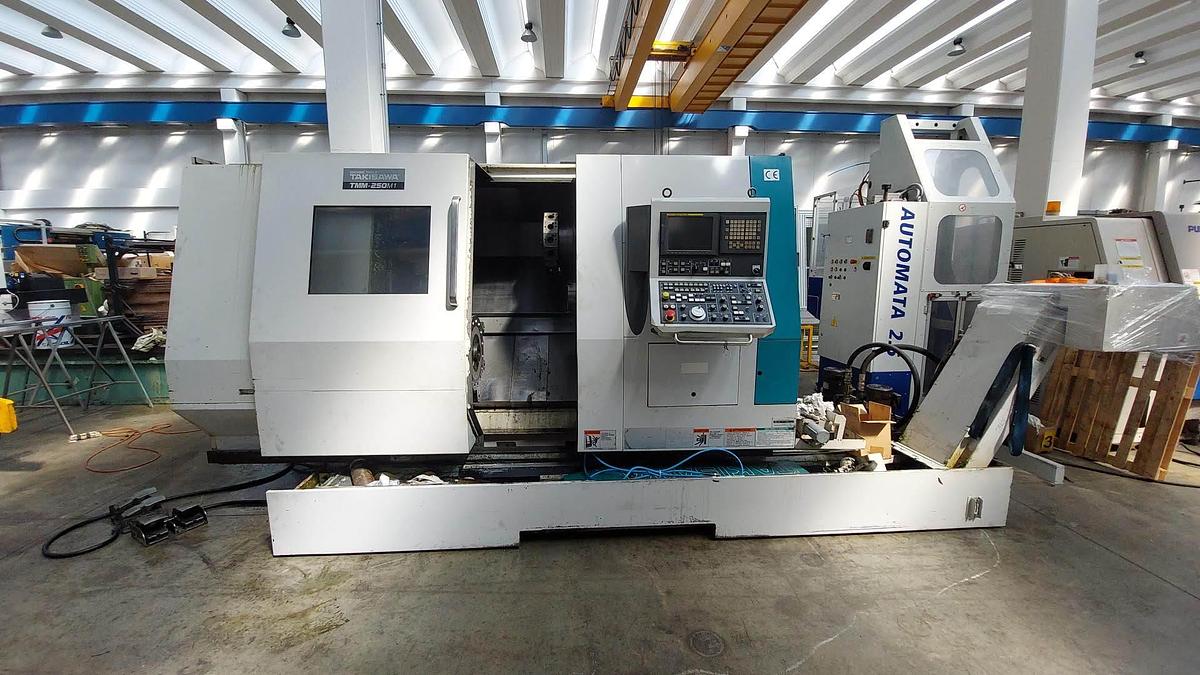

CNC Lathe TAKISAWA TMM 250 M1 CNC Model nFanuc 2011 CNC Version 31i - Model B Main spindle nose ASA 8 Main spindle power 22 Kw Main spindle bar passage 75 mm Swinnable diameter 350 mm Swinnable length 800 mm Main spindle rpm 4000 Number of Tool Turrets 2 Tool positions first turret 15 Motored positions first turret 15 X axis travel first turret 265 mm Y axis travel first turret + - 50 mm Z axis travel first turret 760 mm Tool positions second turret 15 Motored positions second turret 15 X axis travel second turret 228 mm Z axis travel second turret 760 mm Rapid traverses X Y Z 30 m/min High pressure coolant yes Counterspindle yes Nose spindle ASA 6 Counterspindle rpm 4000 Counter spindle power 18.5 Kw Counter spindle Z travel 800 mm The machine is visible operating in our warehouse in Gussago BS. Mimu machine tools
Turning diameter: 450mm, orbital diameter over bed/face slide: 600mm/500mm, turning length: 1020mm, traverse path X/Z: 250mm/1100mm, rapid traverse X/Z: 12m/16m/min. Speed: 2500rpm, power: 22kW, spindle diameter: 100mm, spindle bore: 91mm, tool positions: 10, quill diameter: 110mm, quill stroke: 180mm. Machine dimensions X/Y/Z: approx. 8000mm/3000mm/2000mm, weight: approx. 6500kg, control: Fanuc Series 15-T. The control system has a fault. An on-site inspection is possible.
A high-precision Takisawa CNC lathe with double spindles is available. Spindle power: 2x 7.5kW, speed: 5000rpm, spindle nose: F-80, tool holder: 2x 5 places, max. turning diameter: 50mm, max. turning length: 50mm, max. workpiece weight: 2x 0.5kg. Machine dimensions X/Y/Z: approx. 2600mm/2550mm/2150mm, weight: approx. 4300kg, control: 2x Fanuc Oi-TF, operating hours: 11179h. Including hinged belt conveyor to the rear, automatic central lubrication, machine cladding with coolant pump, portal loader type D, Raku Raku loader, turning station, automatic loading and unloading door per spindle and storage chute for test part. Documentation available. On-site inspection is possible.
turning diameter: 290 mm turning length: 204 mm control: Fanuc 31i - Model B Number of working hours: 5149 + 4185 h number of spindles: 2 Stück spindle turning speed range: max. 3200 U/min x-travel: 230 mm z-travel: 250 mm distance between the spindle noses: 450 mm spindle nose: A 2 - 6 spindle bore: 73 mm tool turret with 10 work positions: 2 x workpiece feeding device: workpiece magazin: 14 Stück max. workpiece diameter: 200 mm workpiece weight max.: 2 x 8 kg workpiece length - max.: 120 mm rapid traverse: 24 m/min feed - longitudinal/cross: 0 - 1260 mm/min spindle motor: 11/15 kW Driven tools: 3,7/5,5 kW turning speed of the driven tools: 4000 U/min. total power requirement: 61 kVA weight of the machine ca.: 6,3 t dimensions of the machine ca.: 3,1 x 2,9 x 3,6 mm CE signed: Condition: Not more under power: Electric 400 Volt: Power clamp.chuck: Howa Chip conveyor: Cooling equipm ...
turning diameter: 290 mm turning length: 204 mm control: Fanuc 31i - Model B Number of working hours: 5149 + 4185 h number of spindles: 2 Stück spindle turning speed range: max. 3200 U/min x-travel: 230 mm z-travel: 250 mm distance between the spindle noses: 450 mm spindle nose: A 2 - 6 spindle bore: 73 mm tool turret with 10 work positions: 2 x workpiece feeding device: workpiece magazin: 14 Stück max. workpiece diameter: 200 mm workpiece weight max.: 2 x 8 kg workpiece length - max.: 120 mm rapid traverse: 24 m/min feed - longitudinal/cross: 0 - 1260 mm/min spindle motor: 15/18 kW Driven tools: 3,7/5,5 kW turning speed of the driven tools: 4000 U/min. total power requirement: 61 kVA weight of the machine ca.: 6,3 t dimensions of the machine ca.: 3,1 x 2,9 x 3,6 mm CE signed: Video(s) available on our website.: Condition: ready for operation: Electric 400 Volt: Power clamp.chuck: ...
