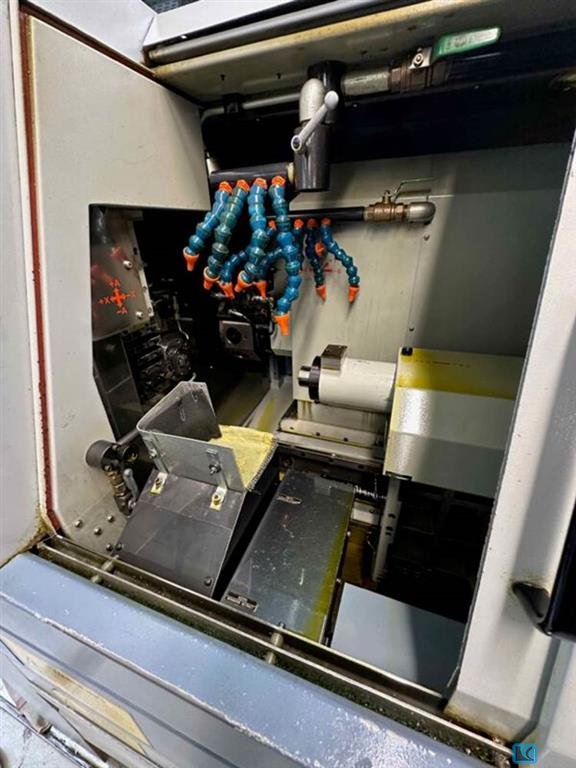

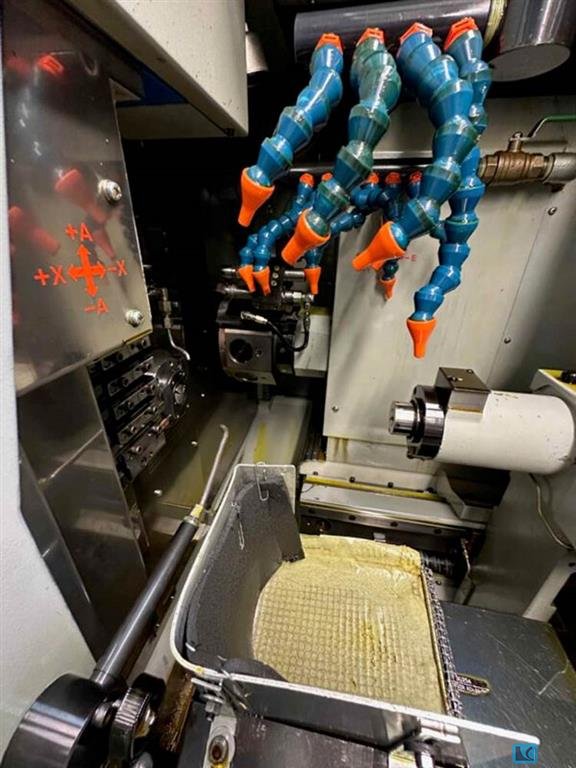

gebr. CNC Swiss lathe STAR SR20R, built in 2001 Control, Fabr. Fanuc, 18i-T Series, 7 axes (X/Z/Y/C1/X1/Z1(C2), Rod Ø max. 20 mm, Turning length max. 205 mm, Main spindle, speed max. 10,000 rpm, C-axis 0.001 degrees, Sub-spindle with collet, speed max. 8,000 rpm, C-axis, Tool holder for a total of 19 tools (linear tool holder, front apparatus, reverse side machining), Parts Conveyor Belt, Standard Guide Bushing Unit Charging magazine FMB turbo 3-26/3200 / A /, year 2001 Coolant use of the machine: oil. Kraft & Bauer extinguishing system The machine can be viewed under power by appointment. Changes and errors in the technical data and specifications as well as Subject to prior sale! used CNC sliding headstock lathe STAR SR20R, year 2001 control, make Fanuc, series 18i-T, 7 axes (X/Z/Y/C1/X1/Z1(C2), bar-Ø max. 20 mm, turning length max. 205 mm, main sp ...

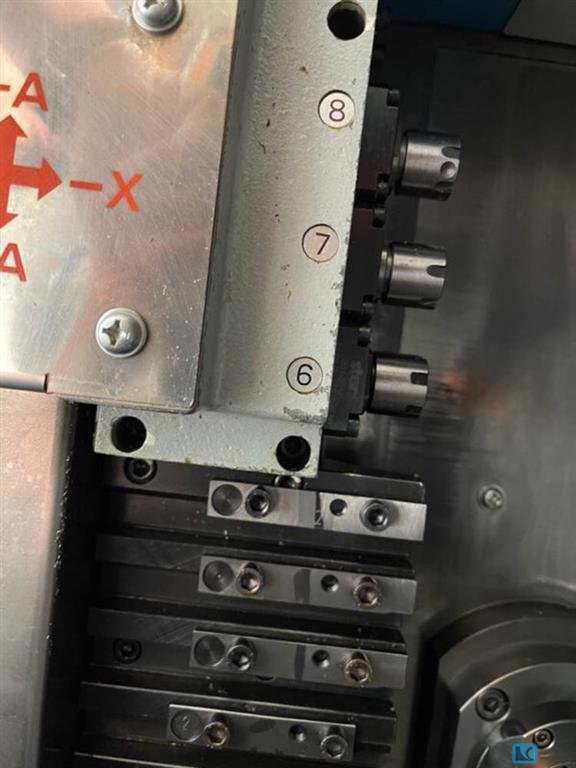

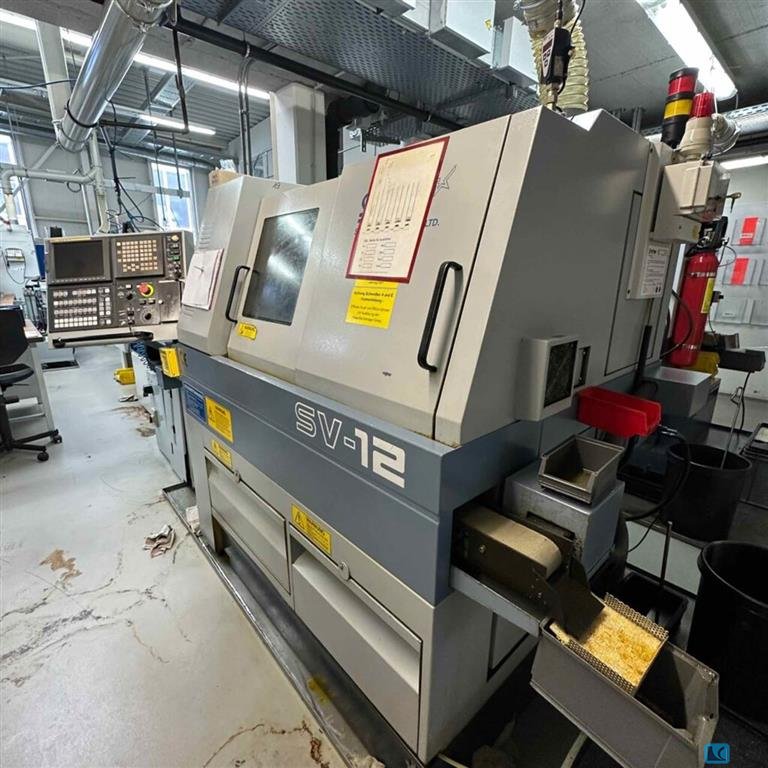

Year of Build 2003 (0450) FANUC 16i-T control with 9 axes, 9 axes (X/C1/Y/E/B/A/X/c2), Rod Ø max. 13 mm Turning length max. 205 mm, Main spindle, speed max. 12,000 rpm, C-axis, Sub-spindle with collet, speed max. 12,000 rpm, C-axis, 4-fold tool holder 3 cross drilling rigs 8-station turret various additional tool holders, quills, Fire extinguishing system Kraft und Bauer Parts Conveyor Belt Manuals Operation/Programming/Electrics/Spare Parts Operating Tool Machine Up to 29 turning tools and up to 19 operated tools Tools possible 9.0KVA Fuel tank capacity 170L Charging magazine FMB Turbo 2-16 /3200/A / from Ø2- Ø20 mm / Coolant Insert of Machine: Oil Machine dimensions: approx. 2700 x 1400 x 1700 [mm] Machine weight: approx. 1700 [kg] Dimensions loading magazine: approx. 4300 x 600 x 1800 [mm] Weight loading magazine: approx. 700 [kg] Dimensions of the perip ...

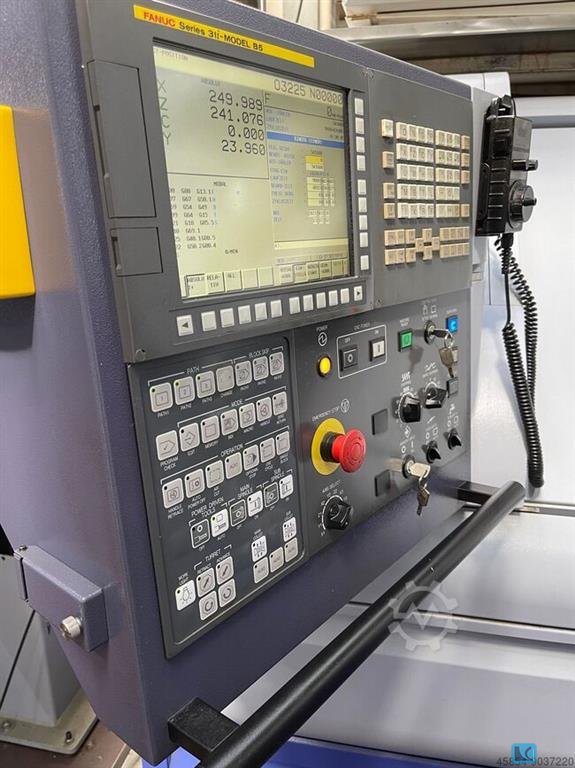

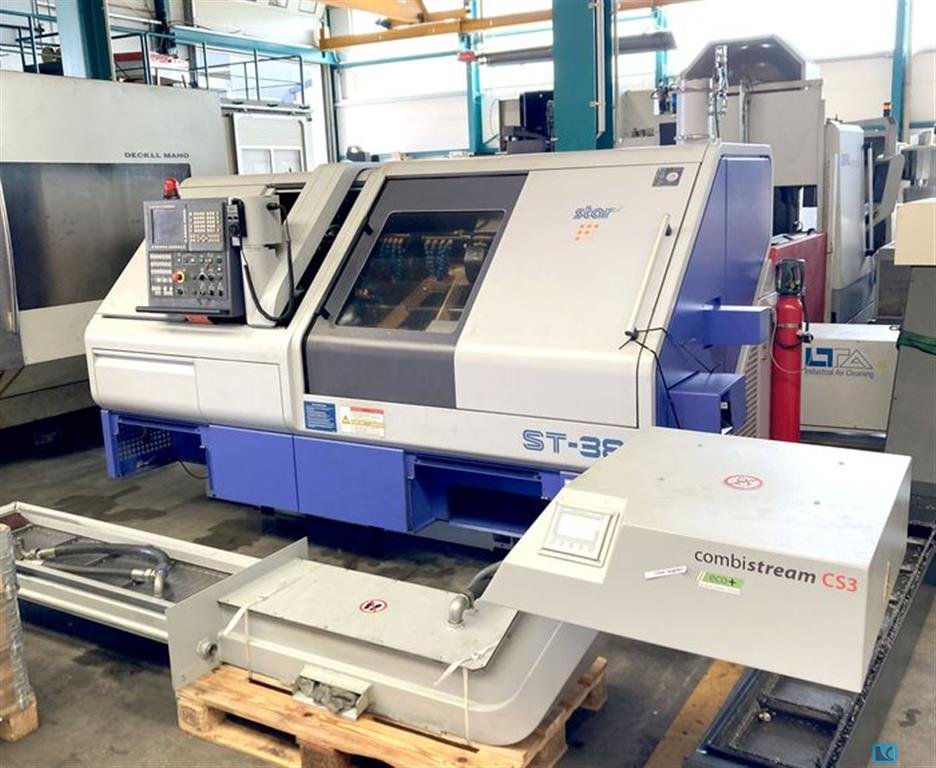

Specifications: first-class condition, only approx. 9000 operating hours Fanuc, High Performance CNC Control Series 31i-B5, 3-channel control, 3 turrets, 12 CNC axes, (X1/Z1/Y1/C1/X2/Z2/Y2/YA2/C2/X3/Z3/Y3), Rapid traverse speed 30 mm/min, Rod diameter max. 38 mm, Turning length max. 350 mm, Main spindle, speed max. 7,000 rpm, C-axis 0.001 degrees, Main spindle drive power 11 kW Sub-spindle speed max. 7,000 rpm, C-axis 0.001 degrees, Sub-spindle drive power 7.5 kW Turret speed max. 5,700 rpm, (with appropriate tool holder also higher) Turret drive power 4 kW Tool holder stations for a total of 30 (10 per turret) (prepared for internally cooled tools) Tool holder set, (non-driven) Guide bush unit (pull system, JBS) Oil cooler unit High-pressure conveyor (with integrated high-pressure unit) type Müller combistream CS 3 Coolant use: Oil Weight: 6.25 tons Dimensions: ( ...

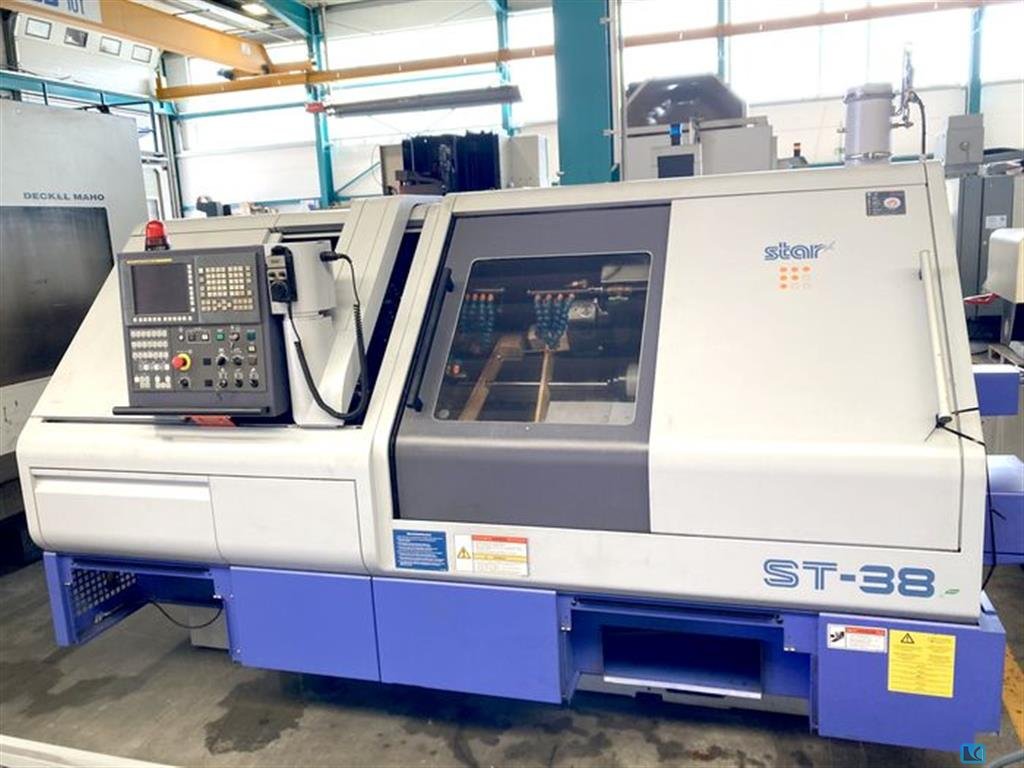

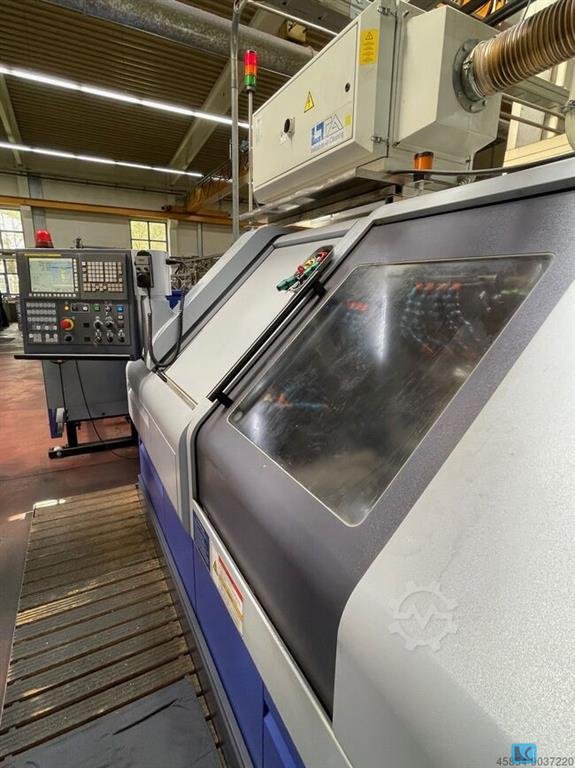

bar material dia.:38 mm turning length:350 mm turning speeds:7.000 / 7.000 U/min number of tools:30 (3 x 10) driven tools:ja / yes control:FANUC 31i-B5 rapid traverse:30 m/min total power requirement:10,5 kVA weight of the machine ca.:6,5 t dimensions of the machine ca.:2,50 x 1,45 x 1,75 plus Lademagazin m work piece power:4 kW toolpiece turning speed range:5.700 1/min main spindle power:11 kW sub spindle power:7,5 kW CNC sliding headstock machine STAR ST 38, 3 turrets, 12 CNC Axis (X1/Z1/Y1/C1/X2/Z2/Y2/YA2/C2/X3/Z3/Y3, Fireextinguisher KRAFT und BAUER FB 703, partscatcher and conveyor belt (for long parts), LTA oilmist suction, chiller for oil, machining with oil as coolant, reading hours: approx. 14.500 hours "machine on", approx. 4.100 hours "machining"
bar material dia.:13 mm turning length:205 mm turning speeds:12.000 / 12.000 U/min number of tools:29 driven tools:ja / yes 19 control:FANUC 16 iT total power requirement:9 kVA weight of the machine ca.:1,7 t dimensions of the machine ca.:2,7 x 1,4 x 1,7 m CNC sliding headstock machine, subspindle,Year 2003 (0450) FANUC 16i-T control with 9 axes, 9 axes (X / C1 / Y / E / B / A / X / c2), Main spindle, speed max. 12,000 rpm, C-axis, Counter spindle with collet, speed max. 12,000 rpm, C-axis, 4-fold tool holder 3 transverse drilling apparatuses Revolver with 8 stations various additional tool holders, quills, Extinguishing system Kraft and Bauer High pressure system SF-Systeme Büchele /SHD 150/ 150bar / 2 x 40 um /3 valves, Parts conveyor belt Manuals Operation/Programming/Electrical/Spare Parts Operating tool machine Up to 29 turning tools and up to 19 attachments possible 9.0KVA Tank ca ...
