WSM SZ-250K Feeder
The WSM SZ-250K is a feeding device from WSM-Automation, which has
been specially developed for applications with high cleanliness
requirements. The "k" in the type designation stands for "short" and
refers to the shortened length of the sorting coil, which reduces the
formation of abrasion due to level and vibrations.
Function: It is a feeding device that combines the advantages of
spiral conveyors with the need for clean processes.

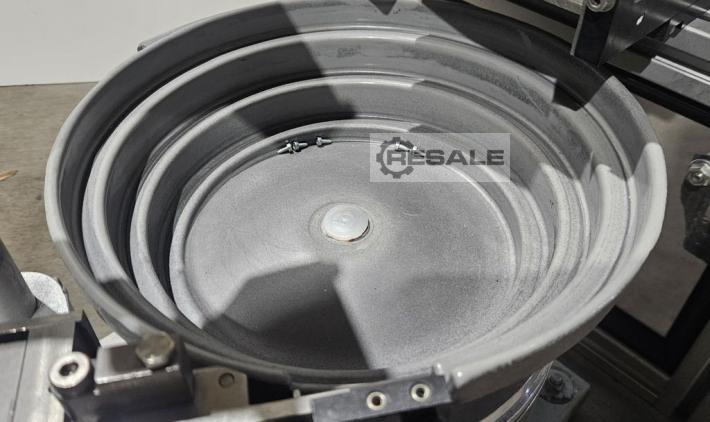

Special feature: The shortened sorting helix (effective length) is the
core innovation to minimise contamination caused by abrasion.
Scope of application: It is used where high cleanliness is needed
during feeding to ensure a clean screw connection.

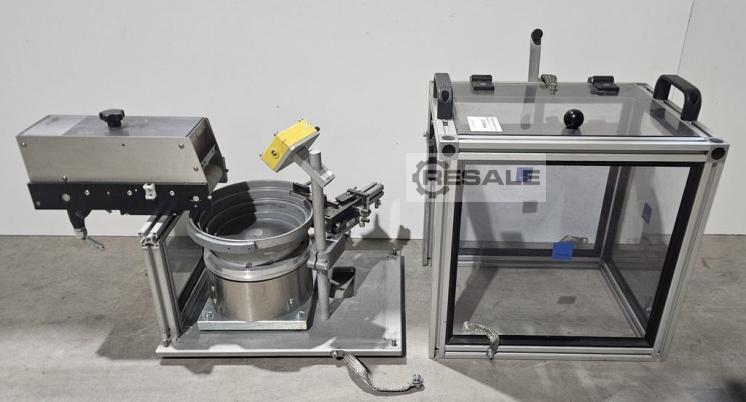

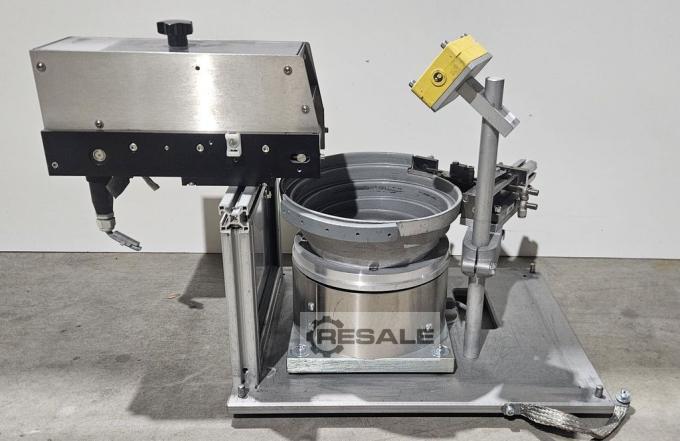

Feeding unit SZ-250K consisting of:

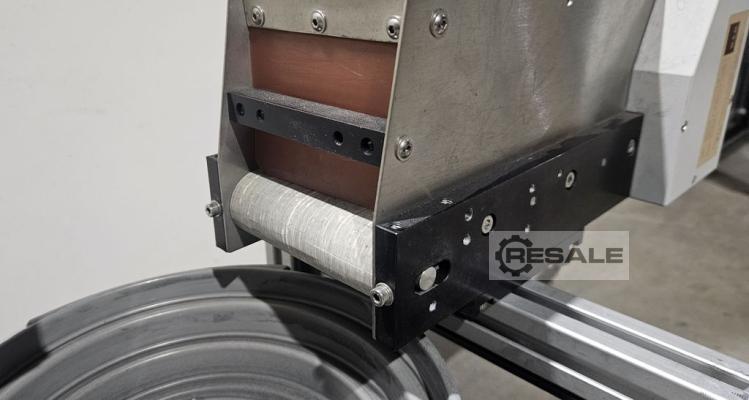

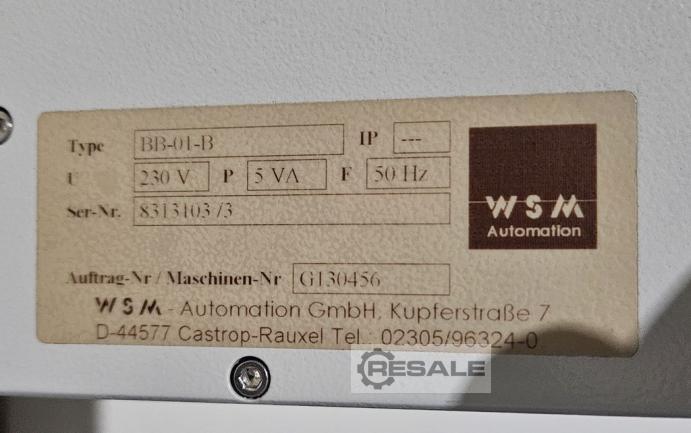

Belt K51227004 hopper BB-01-B (0.5 l) with fill level control and
dirt brake

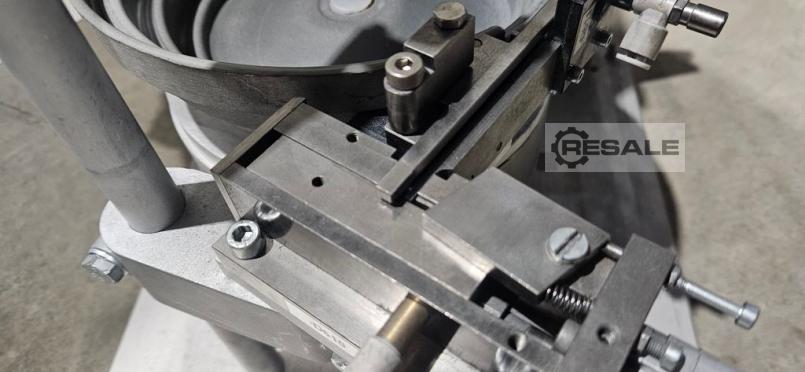

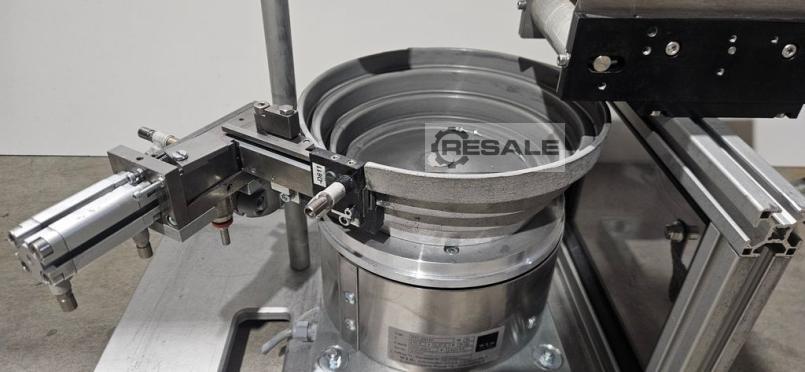

Spiral conveyor WFL 200 IU (200 mm) with separator

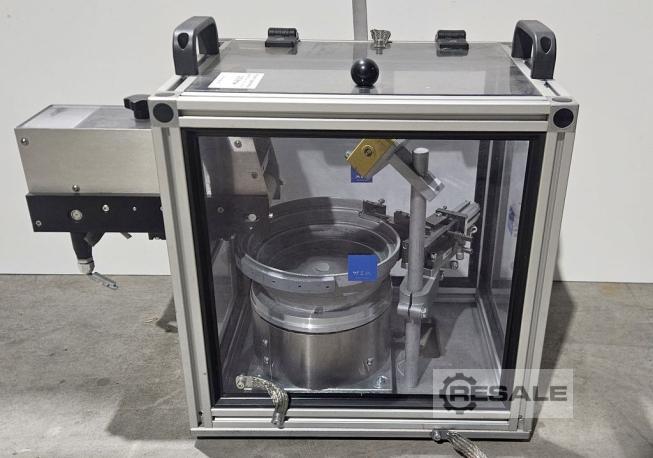

Plexiglass enclosure
Overall dimension:
H: 740 mm
B: 700 mm
T: 380 mm
Screws: M 2.5 x 6 mm
Voltage: 230 volts
More items - new and used - can be found in our shop!
International shipping costs on request!
Germany
46325 Borken
