Feeding device spiral conveyor with belt hopper WSM AUTOMATION SZ-250K

machines for mechanical handling, storage equipment / other machines for mechanical handling

Manufacturer: WSM AUTOMATION

Model:SZ-250K

Type of machine: Feeding device spiral conveyor with belt hopper

item-No.: 168387788

Quantity: 1

Date: 09.12.2025

Year of manufacture:

Location: Land-de Germany 46325 Borken

Price: basis for negotiations (BN) 1,250 EUR

Machine in stock:Yes

Seller-item-No.:55846

WSM SZ-250K Feeder

The WSM SZ-250K is a feeding device from WSM-Automation, which has been specially developed for applications with high cleanliness requirements. The "k" in the type designation stands for "short" and refers to the shortened length of the sorting coil, which reduces the formation of abrasion due to level and vibrations.

Function: It is a feeding device that combines the advantages of spiral conveyors with the need for clean processes.

Special feature: The shortened sorting helix (effective length) is the core innovation to minimise contamination caused by abrasion.

Scope of application: It is used where high cleanliness is needed during feeding to ensure a clean screw connection.

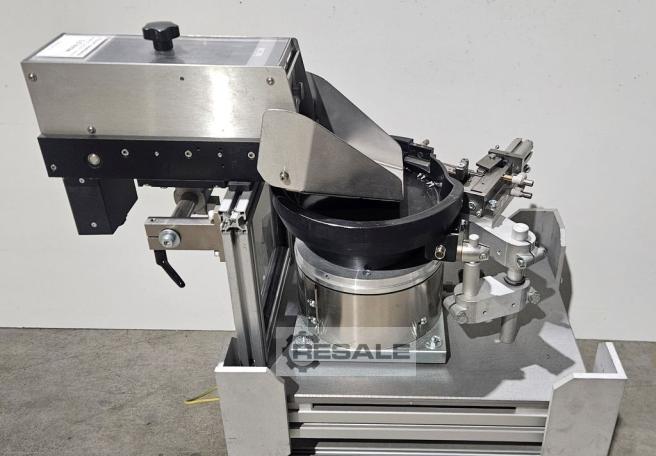

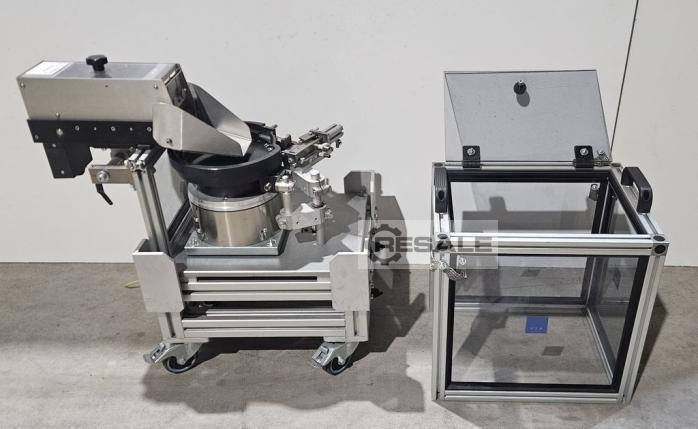

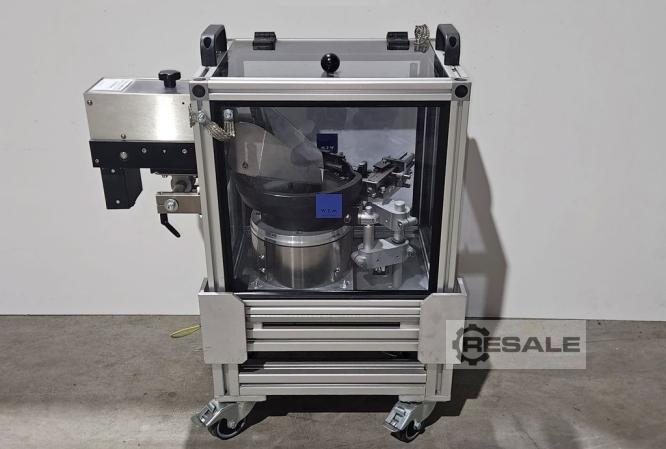

Feeding unit SZ-250K consisting of:

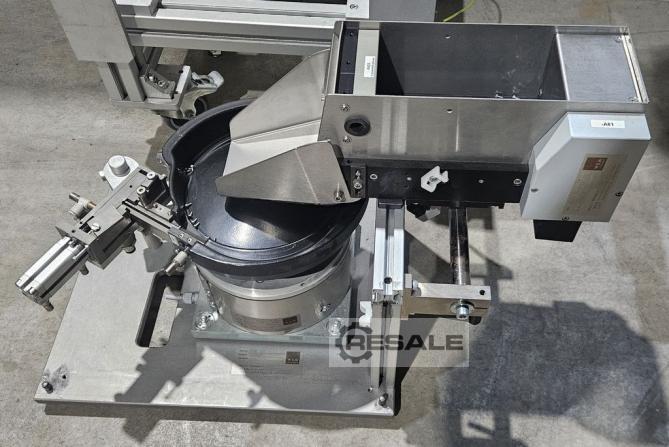

Belt hopper BB-01-B K51227004 (0.5 l) with fill level control and dirt brake

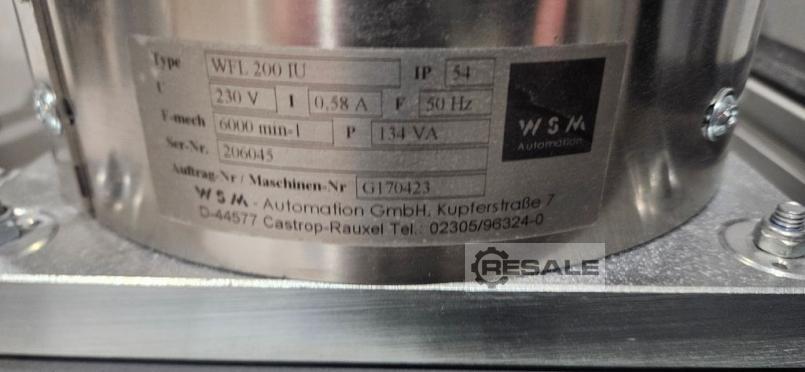

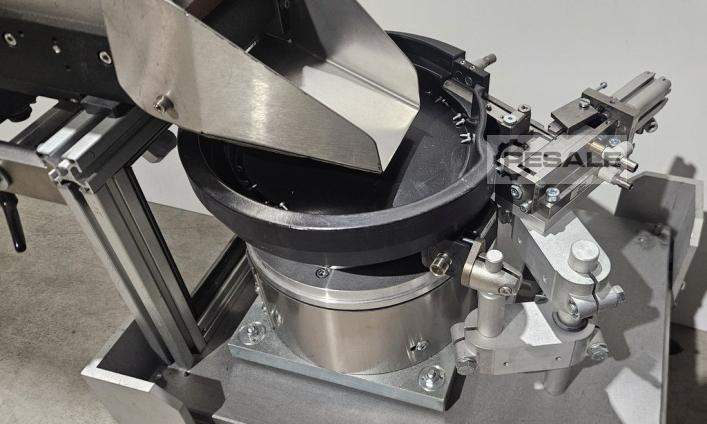

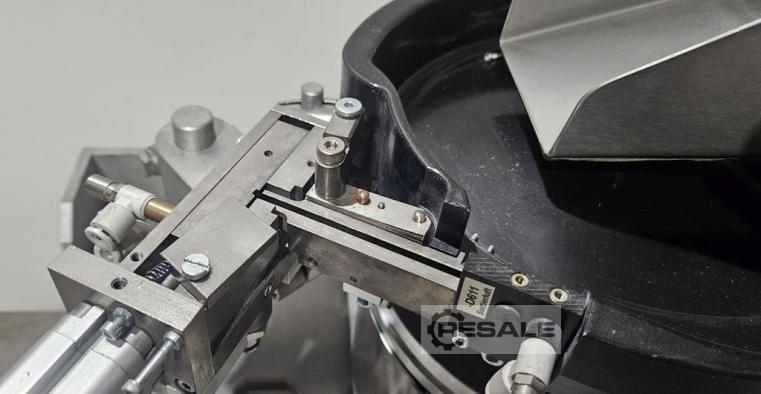

Spiral conveyor WFL 200 IU (200 mm) with separator

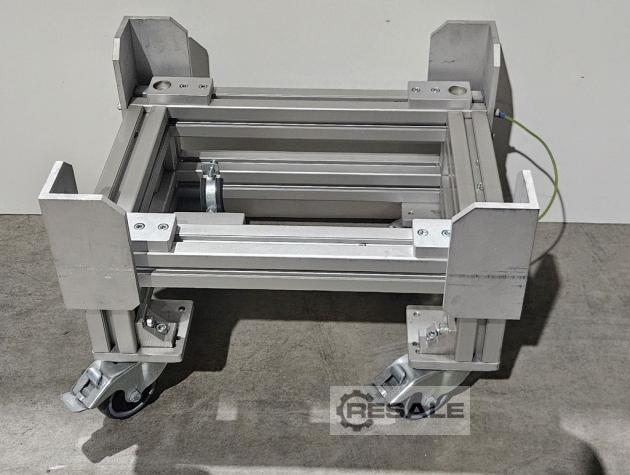

Aluminum chassis with plexiglass housing

Overall dimension:
H: 740 mm
B: 700 mm
T: 380 mm

Screws: M 2.5 x 6 mm
Voltage: 230 volts

More items - new and used - can be found in our shop!
International shipping costs on request!
