wire edm used for sale

Manufacturer Mitsubishi Model MV1200S Year 2014 Imported to Germany in October 2022 Fully maintained

Sodick AQ535L WEDM machine. Well looked after and still in production. Linear motors, so still accurate. With wire chopper.

Control: Makino Generator: MGW-R Max.travel range: X 600 mm Y 400 mm Z 250 mm U x V axis travel +/- 75 mm Work tank dimensions: 920 x 600 mm Dialectric tank capacity: 900l Made in Japan

Control: Sodick Max.travel range: X 600 mm Y 400 mm Z 350 mm U x V axis travel 150 x 150 mm Work tank dimensions: 1050 x 710 mm Dialectric tank capacity: 800l Made in Japan

Wire erosion machine make AGIE type Agiecut AC 100Machine -No: 117 built in 1988Working area X: 300 mmWorking area Y: 200 mmWorking area Z: 250 mmTable length: 510 mmTable width: 580 mmWorkpiece dimensions: 810 x 580 x 250 mmWorkpiece weight max.: 200 kgWire diameter: 0.03 - 0.3 mmTotal power requirement: 10 kWWeight approx: 3.0 tonsWith- Agiepuls MM- Operating hours 33976 hrs.used, in very good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

max. workpiece dimensions length x width x height 750 x 550 x 250 mm X / Y / Z axes 350 / 250 / 256 mm

Manufacturer: Fanuc Year of manufacture/SO/GO: 2000/-/- The machine is in good technical condition.

Connected load: 9kVA, weight: 4.06t, operational hours: ca. 90,000h.

Weight: 3t, with Power Supply Unit SW-A1CGC.

Max. load: 800kg, weight: 2.55t, the machine needs overhauling, the generator is defective, an inspection is possible.

There are three AGIE CUT CNC 100 available, year of construction 1/2/3: 1980/1979/1979, with accessories, machine 1 and 2 are functional, machine 3 serves as a source for spare parts.

X-travel: 800mm, y-travel: 600mm, z-travel: 400mm, U-travel: 60mm, V-travel: 60mm, workpiece dimensions: 1300x910x400mm, max. workpiece weight: 2.3t, dielectric capacity: 210l, connected load: 10kVA, length: 2550mm, width: 2350mm, height: 2200mm, weight: 4.84t, with generator, wire guide, protective cabin, documentation and other accessories, on-site inspection is possible.

Max. workpiece weight: 800kg, weight: 3.34t, with generator, the PC of the machine is defective, an on-site inspection is possible.

Machining paths X/Y/Z: 350mm/220mm/220mm, table dimensions X/Y: 680mm/450mm. max. workpiece weight: 750kg, max. workpiece dimensions X/Y/Z: 1000mm/550mm/250mm. Wire diameter range: 0.1mm-0.3mm, wire spool size: 8kg, skewing capacity: 0°-30°. Dimensions X/Y/Z: 2020mm/2050mm/2000mm, weight: approx. 2500kg, operating hours: approx. 60000.

Due to the increase in production capacity and the incorporation of new equipment, we offer the following WEDM (wire electroerosion) machine for sale: Sodick AQ400L. Machine in operation: it can be seen and tested. Extras: it has a wire cutter and accessories for cutting with a Taperflex table (high inclinations).

Charmilles Robofil 310 CNC type Year: 1994 X axis Axis shift of 400 mm Axis Y axis shift 250 mm Z-axis travel 400 mm The stroke of the U axis is 400 mm The stroke of the V-axis 250 mm We attach 8 cartons of brass wire 0.25 and all the instructions including one in Polish

Charmilles Robofil 4020 Year 1996 Travel: X-450, Y-320, Z-270, U-100, V-100 Max cutting angle: 30 degrees Max workpiece weight: 500 kg Programmable axes: X, Y, Z, U, V Max dimensions of the detal - 990 x 505 x 270

The machine has been standing still for a couple of years now, so it needs a complete overhaul, it is not possible to see it in operation. - tank dimensions: 1105 x 765 x 435 [mm] - maxi dimensions of the pieces: 1100 x 760 x 360 [mm] - maxi piece weight: 800 [kg] - strokes: X x Y x Z: 450 x 320 x 162 [mm] - U strokes: +/- 50 [mm] - V strokes: +/- 50 [mm] - solution: 1 [µm] - wire unwinding speed: 2 - 15 [m / min] - rake angle: +/- 30 ° - tank dimensions: 1150 x 900 x 2280 [mm] - tank capacity: 1000 [l] - dimensions: 3700 x 2700 x 2300 - weight: 4930 [kg]

Installed in August 2014 Regularly maintained Usually very small pieces are cut https://www.mitsubishi-edm.de/en/mvs-series-specifications.html

X 550 Y 400 With 350 U 360 Full feedback - optical scales 0.0001 mm Table dimensions: 750x550 The internal dimensions of the bathtub: 1100x950x500 Max workpiece weight: 1000 kg Max weight of the electrode: 50 kg Machine weight: 6,440 kg IQ option

Control: Makino Generator: MGW-R Max.travel range: X 600 mm Y 400 mm Z 250 mm U x V axis travel +/- 75 mm Work tank dimensions: 920 x 600 mm Dialectric tank capacity: 900l Made in Japan

Mitsubishi FX10 EDM, year 1997, the following technical characteristics: X-Y-Z axis strokes mm 350-250-220, U-V axis strokes mm 32-32, maximum workpiece weight kg 500, maximum piece size mm 800-575-215, automatic threading, immersion machine, CNC: Mitsubishi X axis travel: 350 mm Y axis travel: 250 mm Z axis travel: 220 mm Max length of the piece: 800 mm Max workpiece width: 575 mm Max height of the piece: 215 mm Max workpiece weight: 500 kg Automatic threading: Yes

X axis (longitudinal) 400 mm Y axis (transverse) 250 mm Z axis (vertical) 256 mm Max length of the piece 860 mm Max workpiece width 580 mm Maximum workpiece weight 850 kg Type of the CN Agiematic Length of the tank 810 mm Width of the tank 580 mm Height of the tank 250 mm Max height of the piece 250 mm Automatic threading Yes Weight approx. in kg. 2350

Fanuc CNC model Automatic threading yes Immersion EDM type Maximum wire inclination +/- 30° 400mm X Axis Travel 400 mm Y Axis travel 300 mm Z Axis travel 400 mm U Axis travel 500 mm V Axis travel 400 mm Maximum piece dimensions 900 x 600 x 400 mm Max piece weight 1000 kg

X axis: 900 mm Y axis: 400 mm U axis: 80 mm V axis: 80 mm Z-axis: 400 mm Max workpiece size: 1300x800x400 mm Max workpiece weight: 1000 Kgs Max table speed: 900 mm/min Max conical cutting angle: ±30º/45 mm Wire Ø: 0.1-0.3 mm Type of wire spool: DIN 125 - DIN 160 (6 kg max) Min hole Ø: 2 mm Year: 2000 Equipped with: Control: ONA

X axis: 550 mm Y axis: 300 mm Z axis: 400 mm U-axis: 140 mm V-axis: 140 mm Max workpiece size: 1050x800x400 mm Max workpiece weight: 3000 Kgs Max table speed: 2000 mm/min Max conical cutting angle: ±30º/95 mm Wire diameter: 0.1-0.35 mm Type of wire spool: DIN 100-125-160-200-DIN 355 (45 kg max) Min hole Ø: 1.5 mm Max. power: 14 KVA Year: 2005 Equipped with: Control: ONA

X axis: 550 mm Y axis: 370 mm U axis: 120 mm V axis: 120 mm Z axis: 310 mm Fast forward (X, Y, Z / U, V): 900 mm / min / 450 mm / min Max work piece weight: 1000 kgs Power: 13 KVA Year 2002 Equipped with: Control: FANUC 180 iS-W Refrigerator: Yes

X-Axis travel 350 mm Y-Axis travel 250 mm Z-Axis travel 300 mm X-Y-Z axes speed 6 - 6 - 15 m/min Table length 500 mm Table width 400 mm Work tank size 790 x 530 x 350 mm Workpiece weight 500 kg Linear tool changer 4 (Std. tooling) / 5 (Combi tooling) Rotary tool changer 16-80 pos. (Std. tooling) / 32-160 pos. (Combi tooling) Dimensions L 1900 x W 1690 x H 2398 mm Weight 2800 kg

Type: MATRA TAPE CUT W2 Parameters: 500 mm, 350 mm Manufacturer: Fanuc Year of production / SO / GO: 1991 / - / - Description: The machine is in good technical condition. X-axis travel: 500 mm Y-axis travel: 350 mm Z-axis travel: 300 mm Voltage: 200V AC + -10%; three-phase; 50 / 60Hz Cooling water temperature: 10-25 ° C Water flow: 15-35 liters / minute Sold including: 1st filter SW37 D340xd46xH450mm - 3pcs 2.Savah RVH600 - anti-rusting workpiece - 5 liters 3.Eleion plus - resin to reduce the conductivity of working water - 50 liter barrel - full up to 3/4 volume 4. Various small spare parts - see. photo- Dimensions L x W x H: 3500 x 2400 x 2400 mm Weight: 2300kg Upon agreement, the possibility of a tour in progress.

Technical details x-way 350 mm y-way 250 mm z-way 256 mm Max. Workpiece dimensions 750 x 550 x 250 mm U-axis +/- 70 mm V-axis +/- 70 mm Rapid traverse X / Y / Z axis 1.5 / 1.5 / 0.6 m / min Rapid traverse U / V-axis 0.6 m / min Max. Taper 30 ° / 100 mm control AGIEVISION Wire diameter 0.1 - 0.33 mm Wire speed 60-300 mm / sec Wire feeder semi-automatic Total power requirement 9.1 kVA Machine weight approx. 3.6 t Dimensions L x W x H 2.21 x 2.21 x 2.22 m

Description: Serial number ,31 Device number 010 Attention: not functional weight approx.: 3,000 kg, Approx. Onsite Dimension. (l x w x h): 2,500 x 2,400 x 2,250 mm

Description: Complete wth documents z-motion: 300 mm, x-motion: 550 mm, y-motion: 350 mm, control: Sodick LN1W, table surface area l x w : 790 x 500 mm, weight approx.: 4,200 kg, Approx. Onsite Dimension. (l x w x h): 2,700 x 2,800 x 2,400 mm

Description: Working capacity 500 x 320 x 320 mm Technical documentation and instruction manual included.  , weight approx.: 2,150 kg, Approx. Onsite Dimension. (l x w x h): 4,300 x 1,600 x 2,000 mm

Description: maximum workpiece weight 500 kg auxiliary table travel 120x120 mm wire feed speed 420 mm/s  , Includes Machine body 2250x2400x2120 mm Unit CKDHYW 1947C-7SD1G , collecting unit 700 x 700 x 1000 mm , JUMBO FEEDER reel holder unit 400x400x2100 mm Chiller unit 700x500x600 mm The winning bidder-buyer must reimburse Surplex for supervision costs of €300.00 per day. z-motion: 250 mm, x-motion: 370 mm, y-motion: 270 mm, control: SODICK LQ33W, weight approx.: 3,500 kg, Approx. Onsite Dimension. (l x w x h): 2,250 x 2,400 x 2,120 mm

Description: maximum workpiece weight 1000 kg auxiliary table travel 120x120 mm wire feed speed 420 mm/s  , Includes Machine body ,2600x2800x2310 mm JUMBO FEEDER coil holder unit 400x400x2100 mm External chiller unit TFE 700x400x1200 The winning bidder-buyer must reimburse Surplex for supervision costs of €300.00 per day. z-motion: 350 mm, x-motion: 570 mm, y-motion: 370 mm, control: SODICK LP33W, weight approx.: 5,000 kg, Approx. Onsite Dimension. (l x w x h): 2,600 x 2,800 x 2,310 mm

Description: technical data (without warranty): - travel X, Y, Z: 600 x 400 x 350 mm - travel U, V: 120 x 120 mm - work table size: 836 x 593 mm - inner work tank size: 1066 x 729 mm - maximum work piece height: 340 mm - maximum work piece weight: 1000 kg - distance floor to table top: 995 mm - wire tension: 3-23 N - wire feed speed: 420 mm/s - wire diameter: 0.10-0.33 mm - wire bobbin volume: 8 kg - machine tool dimension: 2460 x 2640 x 2390 mm - machine installation space: 3550 x 3700 mm  , z-motion: 350 mm, x-motion: 600 mm, y-motion: 400 mm, table surface area l x w : 836 x 593 mm, weight approx.: 4,950 kg, Approx. Onsite Dimension. (l x w x h): 3,500 x 3,700 x 2,390 mm

Description: Stroke X: 350 mm Stroke Y: 250 mm Stroke Z : 200 mm' Collection on: 29/04/2024 or 06/05/2024  ,  ,Collection times by arrangement  , IMPORTANT: Collection times may vary if separate collection times are explicitly stated in  ,in the item description weight approx.: 2,000 kg, Approx. Onsite Dimension. (l x w x h): 2,200 x 1,800 x 2,100 mm

Description: Serial Number:55DR1663 Max. Workpiece dimensions: 800x600x215 mm Max. Workpiece weight: 500 kg Table dimensions: 640 x 540 mm Travels: X-axis: 400 mm Y-axis: 300 mm Z-axis: 220 mm Table rapid traverse rate: 1300 mm/min Wire diameter: 0,1 to 0,3 mm Max. Wire feed speed: 23 m/min Wire tension: 0,5 to 25 n Taper: OPTOLinear T/C device Taper angle: 15º (with 200mm plate thickness) Working Hours 24073 Dielectric Fluid Reservoir: Working tank volume: 550 litres Filtration flow rate: 50 l/min Water purifier: 10 litres Other features: Superfinishing Rugosity less than Ra 0.2 weight approx.: 2,980 kg, Approx. Onsite Dimension. (l x w x h): 1,910 x 2,702 x 2,015 mm

CONTROLS   CNC controls AGIE WORKING RANGE -WIRE CUTTING-   worpiece length max.: 750 mm   worpiece width (max): 550 mm   X-axis travel: 350 mm   Y-axis travel: 250 mm   U-axis travel: 70 mm   V-axis travel: 70 mm TABLE   workpiece load (max): 450 kg WIRE SYSTEM   wire diameter (min): 0.2 mm   wire diameter (max): 0.33 mm ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 2000 mm   space requirements -front/back-: 1700 mm   total height: 2200 mm   total weight approx.: 2500 kg

Layer-reeled solid wire for welding under inert gas in all positions. Shielding gas types: Ar, CO2 / Ar, CO2, O2 / CO2. Welding wire roll MAG wire electrode, unused, original shrink-wrapped in foil, ovp in cardboard! 15kg 1.2mm Manufacturer Union Type A600IG Probably for deposition welding Multiple available. For complete acceptance special price! Special price!

Wire EDM AGIE CHARMILLES CUT 30P Used machine in excellent condition Year 2010 dimension table 950 x 630 mm working tank 1260 x 945 x 675 mm max size piece 1050 x 850 x 350 mm max size weight 1000 Kg. Axis X 600 mm Y 400 mm Z 350 mm U 100 mm V 100 mm Operating System Windows XP Overall dimension 3100 x 2800 x 2325 mm

AGIE AGIECUT EXCELLENCE 2 wire EDM machine built in 1999 in Switzerland, is used in the production of e.g. precision dies, tools and punches. For the machining of workpieces, the machine uses advanced electrical erosion technology which makes it possible to achieve difficult shapes in even the hardest materials. The use of this method further minimises or completely eliminates the need for other secondary processes, such as polishing. The AGIE EDM machine is equipped with a state-of-the-art AGIEVISION CNC controller and brushless axis servo motors to guarantee the highest machining accuracy and precision in the shortest possible time, with low energy consumption at the same time. The machine also comes with among others an integrated generator, a semi-automatic wire threading system and the AGIESETUP 3D measuring probe for automatic detection of the plane and position of the workpiece ...

ACCUTEX GA 43AL wire EDM machine was built in 2018 in Taiwan. This highly efficient and reliable machine can achieve complex and difficult shapes, making it ideal for the production of precision tools, dies and punches. The traditional drive has been replaced by a direct, closed-loop linear drive system to eliminate backlash and increase cutting capacity by up to 10%, with much lower energy consumption and constant operating temperature. The GA 43AL EDM machine features a state-of-the-art AccuteX CNC control based on a Windows system with touchscreen and compatibility with CAD/CAM software. The controller optimises the machining parameters according to different wire diameters, corner angles, arc radius and workpiece thickness for the best cutting efficiency and accuracy. The wire EDM machine weighs 2800 kg. Technical data of the ACCUTEX GA 43AL wire EDM machine - CNC control: Acc ...

AGIE AGIECUT 150 HSS CE Wire EDM machine YOM 1997 Control AGIEMATIC CF 50 SE AGIEPULS HSS Electric Control cabinet DA-19 Table dimensions: 560x445 mm Maximum travel length X-axis: 300 mm Maximum travel length Y-axis: 200 mm Maximum travel length Z-axis: 251 mm Travel length U-axis ( -): 30 mm Travel length V-axis ( -): 30 mm Maximum workpieces length: 810 mm Maximum workpieces height: 250 mm Maximum workpieces width: 580 mm Largest workpiece weight: 450 kg Minimum starting hole: 2,0 diameter Max. Threadable workpiece height: 220 mm Wire diameter: 0,1 - 0,33 mm Max. Wire spool weight: 16 kg Dimensions 2325x1620x2130 mm Machine weight: 2900 kg In production at the moment.

AGIE AGIECUT 150 Wire EDM machine YOM-not written, about 1995 Control AGIEMATIC CF 50 AGIEPULS MMD Electric Control cabinet DA-15/PF AGIE RC 123 Table dimensions: 560x445 mm Maximum travel length X-axis: 300 mm Maximum travel length Y-axis: 200 mm Maximum travel length Z-axis: 251 mm Travel length U-axis ( -): 30 mm Travel length V-axis ( -): 30 mm Maximum workpieces length: 810 mm Maximum workpieces height: 250 mm Maximum workpieces width: 580 mm Largest workpiece weight: 450 kg Minimum starting hole: 2,0 diameter Max. Threadable workpiece height: 220 mm Wire diameter: 0,1 - 0,33 mm Max. Wire spool weight: 16 kg Dimensions 2325x1620x2130 mm Machine weight: 2900 kg In production at the moment.

AGIE AGIECUT 100 D Wire EDM machine YOM-not written, about 1990 Serial No. 144 Control AGIEMATIC CD AGIEPULS MM Electric Control cabinet DA-15/AF AGIE RC 123 Table dimensions: 560x445 mm Working travel: X: 300 mm Y: 200 mm Z: 256 mm Wire diameter: 0.1 - 0.3 mm Axis U, V: ±30° Working detail dimensions: length:810 mm width:580 mm height:250 mm Working detail weight: 200 kg Machine weight: 2 910 kg Dimensions 1700x1550x2130 mm In production at the moment.

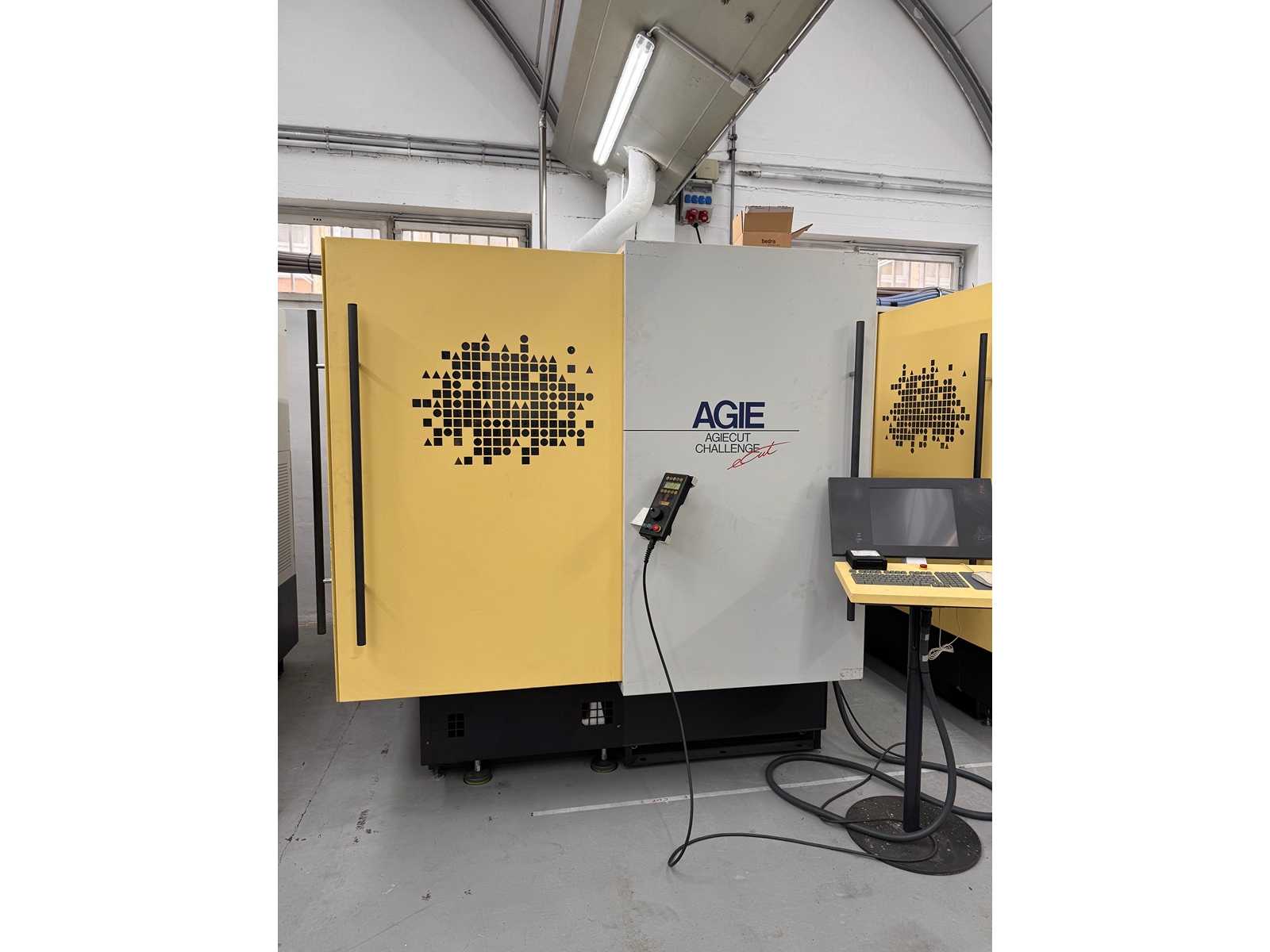

Agiecut Challenge 2 Wire EDM year 2001 - CE marked used machine in excellent working condition

Wire EDM ONA ARION K500 (2001) In production X axis (longitudinal) 700 mm Y axis (transverse) 500 mm Z axis (vertical) 400 mm Max piece length 1500 mm Max piece width 1500 mm Max piece weight 5000 kg Max piece height 400 mm Length x width x height: 4150 × 3320 × 3150 mm. Weight: 8200kg Generator weight: 400 kg.

Wire EDM CHARMILLES TECHNOLOGIES ROBOFIL 300 (1995) In production. X axis (longitudinal): 400 mm Y axis (transverse): 250 mm Z axis (vertical): 400mm Max piece length: 850 mm Max piece width: 500 mm Max piece weight: 500 kg Working tank length: 900mm Working tank width: 800mm Working tank height: 400mm Max piece height: 400 mm Length x width x height: 1800 × 1600 × 2230 mm. Weight: 2500kg
