Manufacturer: Winfos
Model: YC 180
Year of Manufacture: 2010

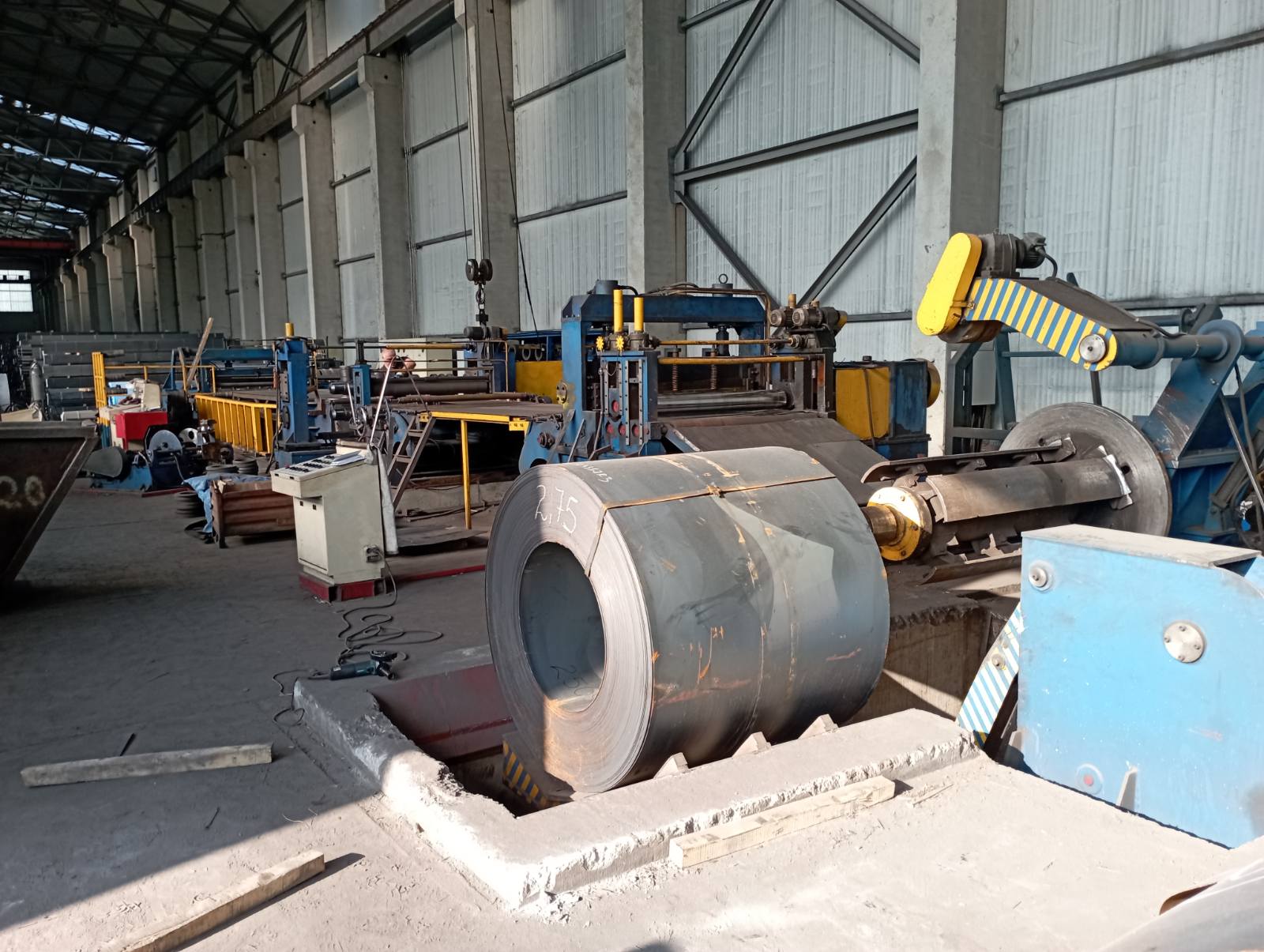

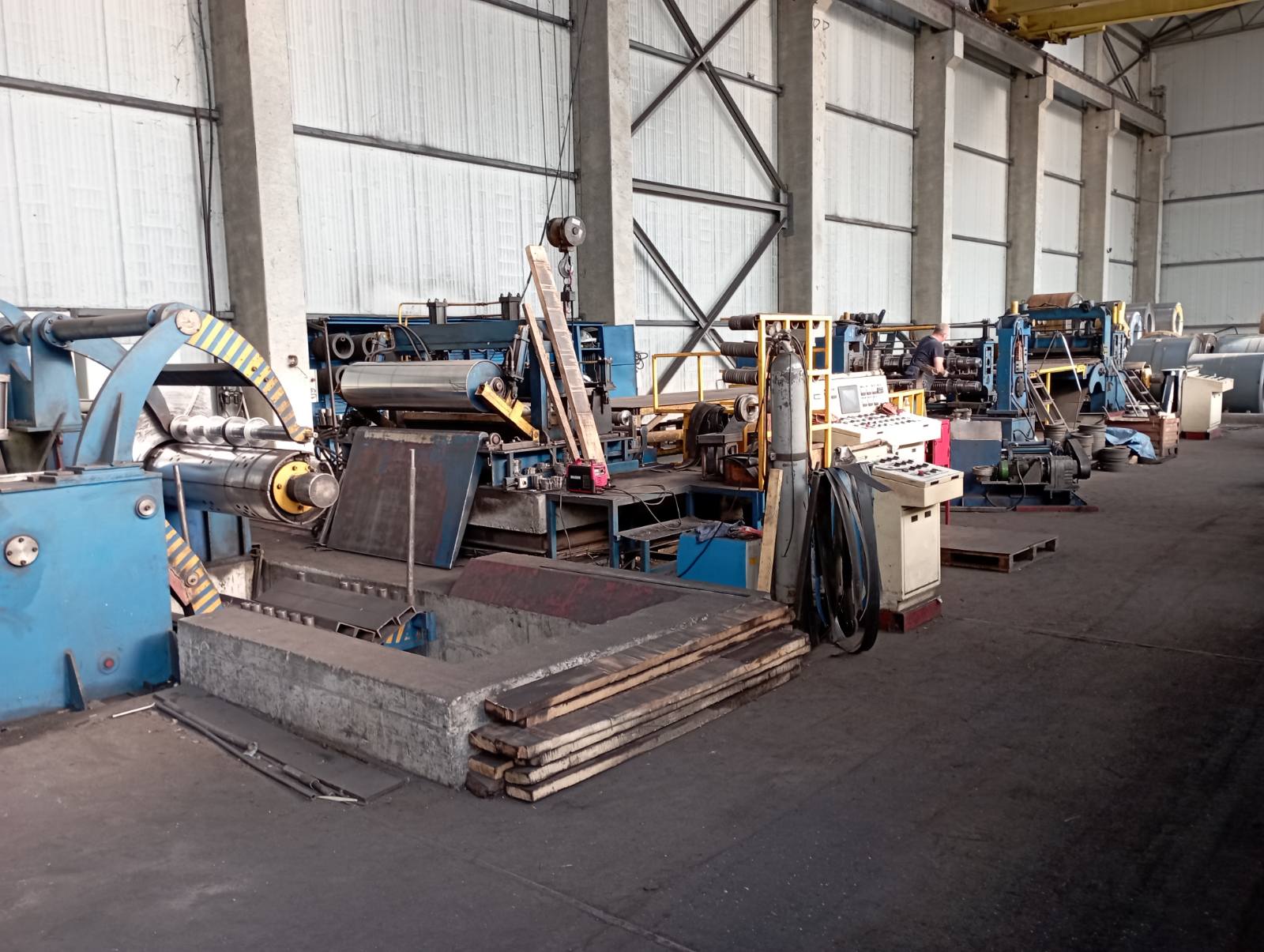

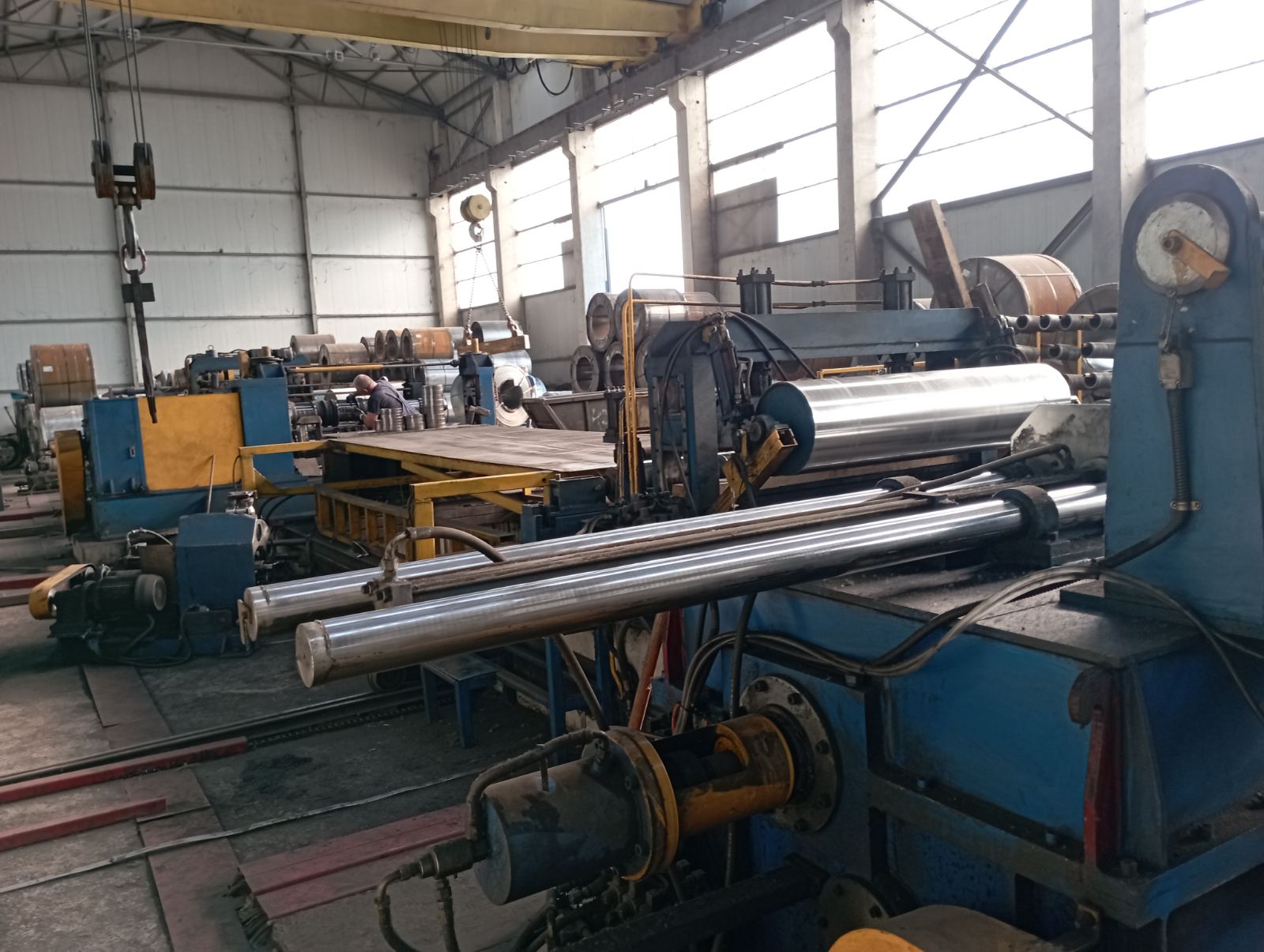

Type of Machine : Longitudinal Slitting Line
In operation since: 2017
Condition: Operational
Technical Specifications:
- Line length: 24.5 m
- Line width: 7.8 m
- Material thickness: 1.5 ~ 5.0 mm
- Maximum coil diameter: 1.8 m
- Coil inner diameter: 640 – 800 mm
- Maximum coil width: 1500 mm
- Maximum coil weight: 16 MT
- Installed power: 253 kW
Line Speed:
- At 1.5 mm thickness: 110 m/min
- At 4.0 mm thickness: 95 m/min
Tooling & Accessories:
- Knives – 186 pcs total:
- Set 1 – 10 mm, Ø307: 26 pcs
- Set 2 – 14 mm, Ø315: 66 pcs
- Set 3 – 14 mm, Ø315: 50 pcs
- New Ø320: 44 pcs
- Rubber rings – 93 pcs total:
- Set 1 – 25 mm: 31 pcs
- 15 mm: 12 pcs
- Set 2 – 25 mm: 31 pcs
- 15 mm: 18 pcs
- Set 3 – 25 mm: 31 pcs
- 15 mm: 18 pcs
- Slitter knife spacers: 480 pcs
- Separator spacers:
- Metal: 252 pcs
- Non-metal: 369 pcs
- Spare slitter shafts: 1 complete set
