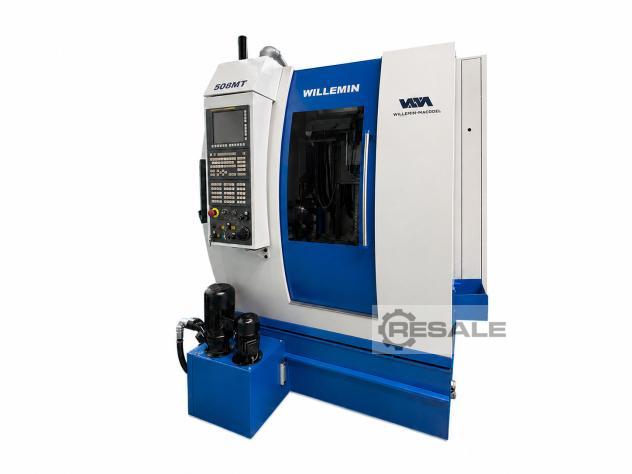

CNC machining center WILLEMIN 508MT
TECHNICAL FEATURES:
Year: 2016
NC Type: FANUC series 31i-B5
Number of continuous axes: 5
X-axis travel: 450 [mm]
Y-axis travel: 200 [mm]
Z-axis travel: 425 [mm]
Fast travel speed X, Y and Z: 40000 [mm/min]
Acceleration of axis displacement: 10 [m/s²]
Maximum diameter in bar turning spindle: 42 [mm]
Maximum speed Turning spindle: 6000 [rpm]
Maximum power turning spindle: 7.5 [kW]
A-axis angular travel: 360 [°]
A-axis resolution: 0.001 [°]
A-axis drive: Torque-motor
A-axis spindle nose: A4
B-axis angular travel: -15 [°] / +100 [°]
B-axis resolution: 0.001 [°]
B-axis drive: Torque-motor
Pin Attachment: HSK-E40
Maximum speed Spindle: 42000 [rpm]
Number of tool magazine stations: 72
Maximum length Tool Size: 150 [mm]
Maximum diameter Tool Size: 80 [mm]
Tool Change Time: 1 [sec]
Time between cuts: 3 [sec]
Irrigation tray capacity: 150 [l]
Flow rate garden pump: 60 [l/min]
Rated Current: 50 [A]
Installed power: 35 [kVA]
Supply voltage: 400 [V]
Working time: 9701 [h]
Machine weight: 3300 [Kg]
More information on request.
France
73240 Saint-Genix-les-Villages
