wh 10 cnc used for sale

Key data: 22 mm, 900 , 850

Electric Press Brake C9s CoastOne - Made in Finland Pressing force: 22T Bending length: 900mm Spindles: 1x22T Control: TC15-2D Graphics Back gauge: 2 axis controlled X-R axes Bending tool holder: Type A / R1 / ES Style / AMADA Promecam 1x set of bending tools incl. 36 months warranty after installation Delivery excl.; at call Viewing under power possible at any time by appointment!

Doosan 3-Axis CNC Vertical Machining Center Heavy-Duty 3-Axis Vertical Machining Center Built for aggressive cutting capacity, this 2018 Doosan Mynx 7500/50 is a robust 3-axis CNC vertical center ideal for heavy part machining and high-productivity workflows. Technical Details ‍ 1. Machine identification data Name: CNC Vertical Machining Center Manufacturer: Doosan Model: Mynx 7500/50 Year of manufacture: 2018 2. Operational parameters Travel (X / Y / Z): 1525 mm / 762 mm / 625 mm Table size: 1600 x 750 mm Max. workpiece weight: 1500 kg Spindle speed: 60 – 6000 rpm Spindle motor power: 18.5 / 22 kW Max. torque: 452 Nm Spindle taper: DIN 69871 B SK 50 Distance spindle nose to table: 200 – 825 mm Distance spindle center to column: 785 mm Rapid traverse (X, Y / Z): 30 m/min / 24 m/min Feed rate (X, Y, Z): 1 – 12,000 mm/min  ...

Hartford 3-Axis CNC Vertical Machining Center Late-Model 3-Axis CNC Vertical Center This 2021 Hartford HCMC-1682 offers exceptional structural rigidity and modern CNC capabilities, providing a highly efficient and reliable solution for versatile 3-axis milling. Technical Details ‍ 1. Machine identification data Name: CNC Vertical Machining Center Manufacturer: Hartford Model: HCMC-1682 Machine number: 100000755 Year of manufacture: 2021 Controller: Fanuc OiMF PLUS 2. Operational parameters Travel (X / Y / Z): 1,600 / 820 / 660 mm Table Size: 1,750 x 820 mm Max. Table Load: 2,200 kg Spindle Taper: ISO50 Spindle Speed Geared: 4,000 / 6,000 / 8,000 RPM DDS: 10,000 / 12,000 RPM Spindle Power: 11.0 / 15.0 kW (options up to 26 kW) Rapid Traverse (X / Y / Z): 20 / 20 / 18 m/min Number of ATC Stations: 32 Spindle Nose to Table: 150 – 810 mm Electri ...

Key data: 205 mm, 20 mm, 205 mm

Swiss lathe Star SR 20 Control Fanuc 16 T Spindle passage 20 mm Headstock travel 205 mm Spindle power 2.2KW/ 3.7KW Number of Powered Tools 3 Sub-spindle Conveyor belt Weight approx. 1,700 KG Bar magazine FMB Mini-Turbo

Number of axes : 6 - Number of spindles : 2 MAIN COPDLE - Max. rod diameter : 25 [mm] - Travel : 160 [mm] - Spindle speed : 8000 [rpm] - Minimum C-axis resolution : 0.0001 [degrees] SUB-SPINDLE - Max. rod diameter : 25 [mm] - Number of turrets : 1 UPPER TURRET HEAD - Number of positions : 7 - Number of motorized positions : 7 - Travel X : 100 [mm] - Travel Z : 270 [mm] - Driven tools speed : 6000 [rpm] BUSHING HOLDER 1 - Number of positions : 8 - Number of motorized positions : 3 - Driven tools speed : 6000 [rpm] - Travel X/Y : 220/30 [mm] COUNTER MACHINING - Number of positions : 3 ELECTRICAL SUPPLY - Supply voltage : 400 [V] Accessories - Control : Fanuc 18 iT - Interface : RS232 / PCMCIA - Driven guide bush - Parts removal - Coolant tank - Hydraulic Bar Loading Magazine Brand/Type : - FMB Turbo 3-26

AVIA AVIATURN 35 CNC turning center was built in 2022 in Poland. The machine, designed for precision machining of workpieces with a maximum diameter of 350 mm, has been equipped with many state-of-the-art solutions and high-quality components that ensure excellent turning results. The workspace includes, among others, a 12-position turret and a reliable spindle driven by a belt drive with encoder. The AVIAturn 35 CNC lathe is also distinguished by its richly ribbed, single-piece cast iron bed. The bed, which is inclined at 35°, effectively dampens all vibrations and oscillations, resulting in, among others, improved workpiece surface quality and increased cutting tool life. The machine’s extensive equipment includes, among others, a hydraulically movable tailstock, a tool probe and a SIEMENS CNC control in its most powerful version with a wide range of built-in fixed cycles and 16  ...

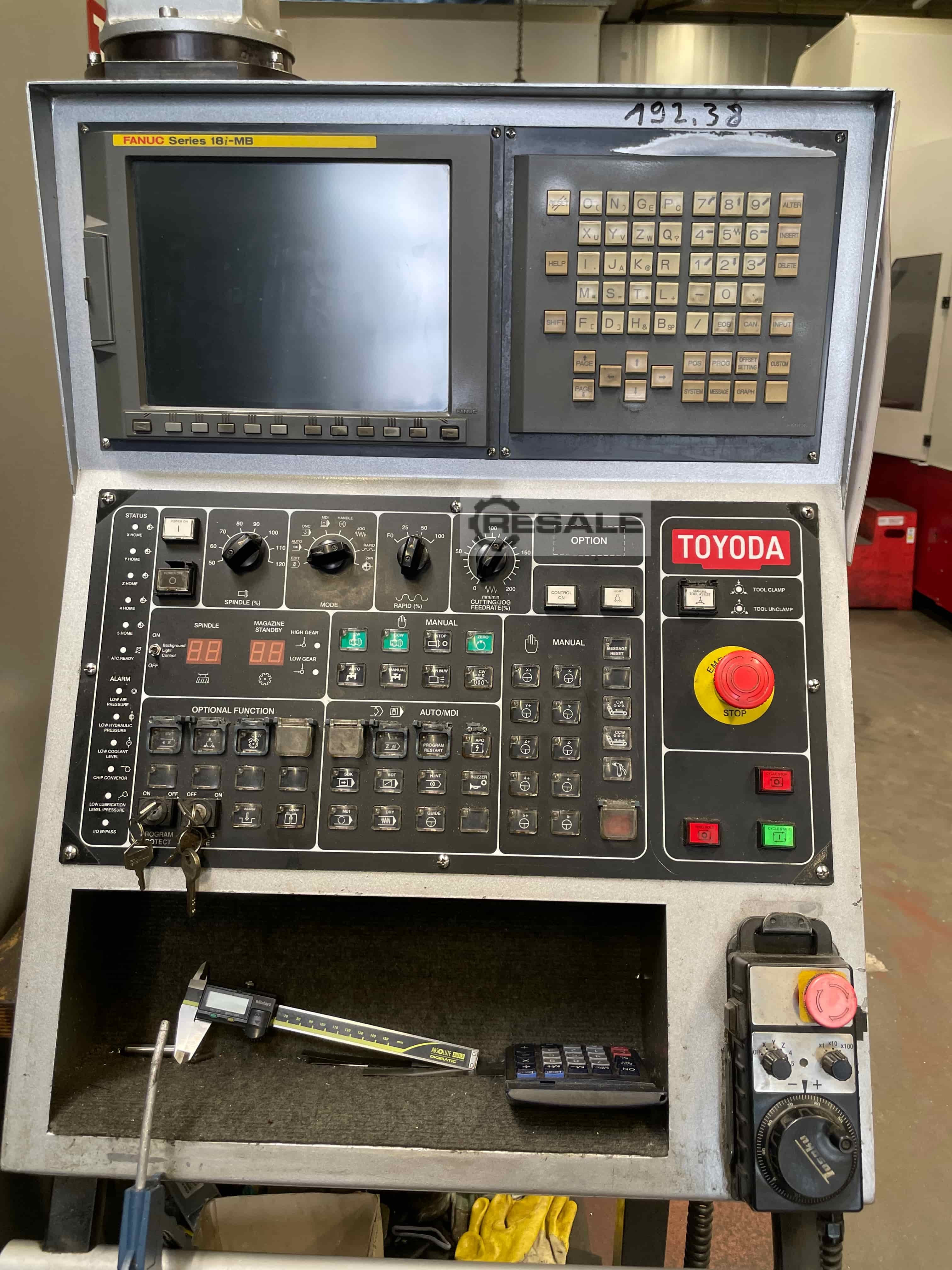

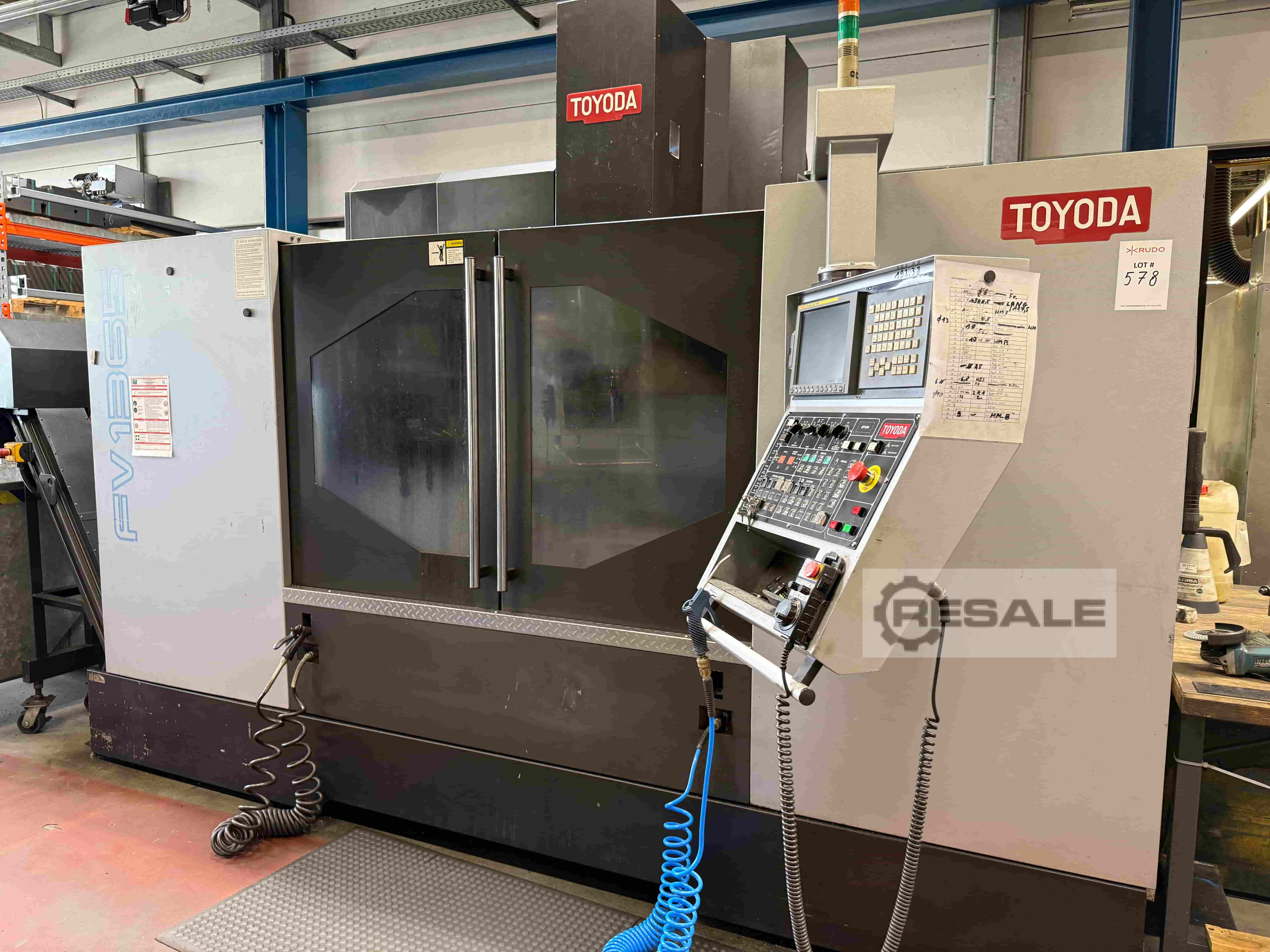

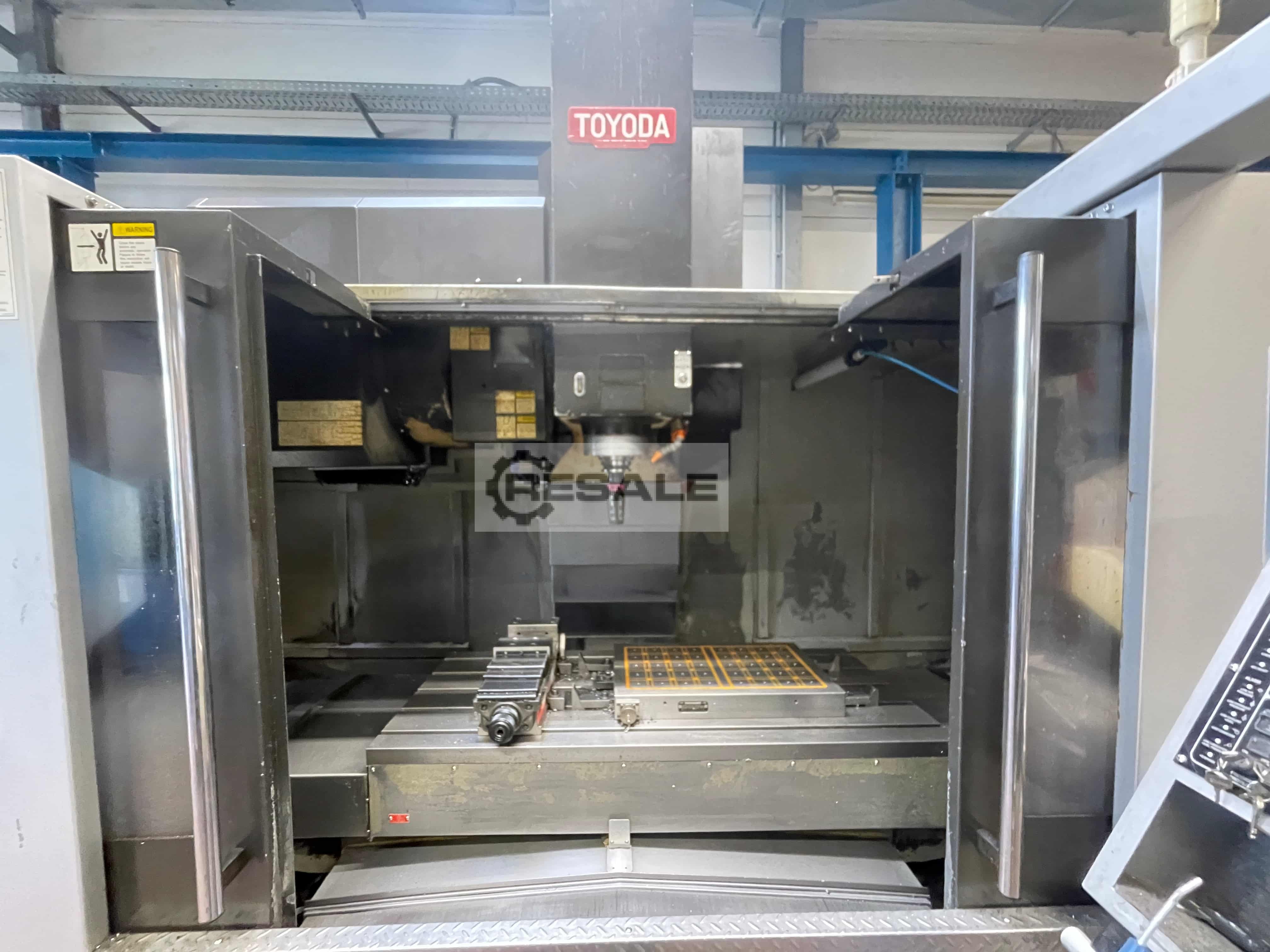

Toyoda 3-Axis CNC Vertical Machining Center Robust 3-Axis Vertical Machining Center Designed for stability and endurance, this 2008 Toyoda FV 1365 provides high-accuracy 3-axis CNC milling to support a wide variety of industrial metalworking applications. Technical Details ‍ 1. Machine identification data Name: CNC Vertical Machining Center Manufacturer: Toyoda Model: FV 1365 Machine number: 0831 Year of manufacture: 2010 2. Operational parameters Travel (X / Y / Z): 1300 mm / 650 mm / 600 mm Table size: 1100 x 650 mm Max. load on table: 900 kg Spindle: 18.5 kW; 6000 rpm Tool holder: BT50 Tool magazine: 30 positions Control: Fanuc 3. Weights Machine weight: 7000 kg 4. Dimensions Overall dimensions (Width x Length x Height): 3506 x 3624 x 2940 mm ‍ ‍ Disclaimer: The technical specifications provided are for gene ...

Manufacturer GEMINI Model GHT-4 720 x 3000 Year 1999 CNC FAGOR 8055 TC/B Capabilities Max turning. On bench/carriage 720 / 470 mm. Stitch height from guide 366 mm. Distance between points 3,000 mm. Progress Axis Fast Forward (X/Z) 8,000 mm/min Axle work advance (X/Z) 8,000 mm/min Head Main shaft hole diameter 92 mm. Nose Head DIN-55027-11 Axle diameter in the front bearing 150 mm. Head revolutions 0-1600 No. of automatic head ranges 2 Main engine power 17 / 20.5 kW Maximum torque main engine 1590 / 1920 Nm Counterpoint Tailstock shank diameter 100 mm Tailstock rod travel 200 mm Morse rod housing 6 Bench Width 430 mm. Height to the flat guide 775 mm. Turret Turret type Duplomatic VDI 40 No. Motorized positions turret 8 Additional equipment 3 Claws Self-centering Ø 315 mm. INCLUDED Plate protection INCLUDED Fixed Steady Rest Cap. 20/200 INCLUDED Ful ...

Control Fanuc ... 32i - B Turning diameter ... 20mm Turning length... 250mm Axis Y Tool turrets/driven tools ... 39/15 Bar Feeder Spindle speed ... 0-12000 rpm Machine weight ... 3300kg L x W x H ... 2100.0 × 1200.0 × 1900.0mm The machine is in good condition, possible to test under power.

Key data: 1400 mm, 1750 mm, 1500 mm

CNC Carousel Lathe with Tool Changer Dörries Scharmann VCE 1600/140 SM Contumat 2 Year of construction 1991/Retrofit Siemens 828D (retrofit) Face plate diameter: 1,400 mm Face plate loading: max. 9,000 kg Swing diameter: max. 1,750 (1,890 with open door) mm Turning diameter: max. 1,600 (1,750 currently turned) mm Turning height: max. 1,500 mm Plunger inlet hole: min. 340 mm Number of plungers: 1 Plunger transverse travel : X 1,900 (+/- 950) mm Plunger perpendicular travel: Z 1,000 mm Cutting feeds: 0.1 - 6,000 mm/min. 0.01 - 500 mm/rev. Rapid traverses: X,Z 8,000 mm/min Transverse beam perpendicular travel: 900 (9 x 100) mm Crossbeam speed: 425 mm/min. Table drive power: 69 kW Table speeds: 0 - 315 rpm Gear level: I 2.8 - 78.75 rpm. Gear stage: II 11.2 - 315 rpm. Torque on face plate: max. 40,000 Nm Automatic ...

Key data: 13000 mm, 4500 mm, 1000 mm

CNC gantry milling machine (for aluminum skin drilling/milling operations) MTorres MGP-51350-TT Year of construction 2003 Siemens Sinumerik 840D CNC Control Travel: X 13,000 mm - Portal longitudinal path Y 4,500 mm - Crossbeam path of the milling support Z 1,000 mm – Milling ram vertical travel Positioning speed / rapid traverse speed 15,000 mm/min. 2-axis rotary/swivel milling head A & C A-bushes simultaneously Positioning speeds / rapid traverse speeds 10 rpm. Spindle drive power 20 kW Spindle speeds up to max. 30,000 rpm (electrospindle) 20-fold tool changer Tool diameter max. 80 mm Tool length max. 125 mm Tool weight max. 10 kg 16 units TorresTool pogo stick clamping system - NC controlled 5-axis gantry milling and drilling machine. Designed for high-speed milling and drilling of aircraft structural compone ...

Key data: 250 mm, 604 mm

CNC Double Spindle Turning Center 8-Axis Goodway GTZ-2600Y Year of construction 2015 First commissioning at the end customer in 2018 Siemens 828D CNC Control 8-axis Turning diameter 250 mm Turning length 600 mm Main spindle: Bar passage 65 mm. Spindle drive power 11 kW. Spindle speeds 4,000 rpm. C-axis 0.001°. Sub-spindle: Bar passage 65 mm. Spindle drive power 11 kW. Spindle speeds 4,000 rpm. C-axis 0.001°. Counter spindle longitudinal travel B: 690 mm. Tool turret I 16-speed Driven positions (possible) 16 Tool drive power 3.7/5.5 kW Tool speeds up to 6,000 rpm. Flat travel X1 : 195 mm Longitudinal travel Z1: 620 mm. Perpendicular travel Y: +/- 50 mm (for off-center machining) Tool Turret II 16-speed Driven positions (possible) 16 Tool drive power 3.7/5.5 kW Tool speeds up to 6,000 rpm. Flat travel X2 : 210 mm Longitudinal travel Z2: 620 mm.  ...

CNC lathe BIGLIA B750 YS TECHNICAL FEATURES: Year: 2015 NC Type: FANUC series 32i-B Maximum diameter Rotation: 680 [mm] X-axis travel: 305 [mm] Y-axis travel: 140 [mm] Z-axis travel: 860 [mm] X-axis fast feed speed: 18000 [mm/min] Z-axis fast feed speed: 24000 [mm/min] Y-axis fast feed speed: 7500 [mm/min] Spindle Nose: ASA 8" Maximum diameter in bar: 80 [mm] Spindle Bore: 91 [mm] Maximum speed Spindle: 3500 [rpm] C-axis indexing accuracy: 0.001 [°] Spindle power: 22 [kW] Spindle torque: 700 [Nm] Counter Spindle Nose: ASA 5" Sub-spindle bore diameter: 55 [mm] Counter-spindle stroke: 895 [mm] Maximum speed Spindle: 5000 [RPM] C-axis sub-spindle indexing accuracy: 0.001 [°] Sub-spindle power: 25 [kW] Spindle torque: 159 [Nm] Max. section Tool holders: 25 x 25 [mm] Number of turret stations: 16 Turret Index Time: 0.3 [s/pos] Number of powered turret statio ...

STIGAL VXstandard plasma cutting machine, manufactured in 2010 in Poland, is used for precision cutting of workpieces with a maximum thickness of 57 mm. The open design with a very robust portal enables free sheet metal loading and guarantees exceptional stability during even the most demanding challenges. The entire workspace is covered by an extraction table with the ECTS system, which effectively levels the contamination generated during machining and ensures comfortable working conditions. All of this is complemented by an intuitive CNC control installed in the operator’s touchscreen control panel, allowing for machine control and control of all cutting process parameters. The STIGAL plasma cutting machine has also been retrofitted with an OB-R 400 rotator, which extends the machining range to tubes with diameters from 40 to 400 mm. Technical specifications of STIGAL VXstandard  ...

Key data: 500 mm, 600 mm

Stock-No. 1105-04027 Type of machine CNC Lathe - Inclined Bed Type Make GILDEMEISTER Type CTX 420 LINEAR Year of manufacture 2003 Type of control CNC Storage location FRANCE Country of origin Germany Delivery time available at short notice Freight basis ex Showroom Technical details turning diameter 320 mm turning length 600 mm turning diameter 320 mm control Siemens 840D Travel -X Axis 260 mm Travel -Z AXIS 635 mm swing diameter 680 mm swing diameter over slide rest 365 mm Spindle Bore Diameter 87 mm Turret (X-Stations) 12 Mainspindle Speed 5000 1/min Rapid Traverse X + Z AXIS 24/30 m/min drive capacity - spindle motor 21 kW connected load 40 kVA dimensions 4.32 x 1.72 x 1.77 m Additional information CONTROL SIEMENS 840D 4 AXIS MACHINE WITH Y AND C AXIS AND SOME LIVE TOOLS INCLUD WITH SHOP TOWER NICE MACHINE WITH LINEARTECHNIK

MAZAK SUPER QUICK TURN 30MS CNC SUB SPINDLE, 'C' AXIS, DRIVEN TOOLING LATHE WITH MAZATROL T PLUS CONTROL MACHINE IS COMING FROM AEROSPACE COMPANY AND IT IS IN A VERY GOOD WORKING CONDITION Kitagawa B-212 3 Jaw Power Chuck. Maximum Swing Ø560mm. Maximum Swing Over Cross Slide Ø500mm. Maximum Turning Ø413mm. Distance Between Spindles 1,035mm. Main Spindle Bore Ø88mm, Sub Ø61mm. Axis Travel 'X'=244mm, 'Z'=1,035mm, 'B'=1,067mm. Maximum Main & Sub Spindle Speeds 3,000rpm. Maximum Milling Spindle Speed 1,500rpm. 12 Station Turret. (1997)

Control: OSP-P200L max. turning diameter 550 mm max. turning length 600 mm Hollow spindle passage: 90 mm Spindle speed 3,200 rpm Main spindle: 30 kW A-turret: 12 seats (all driven) B-turret: 10 seats Tool holder: VDI 50 Accessories Schunk Chuck NC Rota 500 Chip conveyor Interlit Tailstock towable incl. external coolant system Door automation Touch Setter

Key data: 8000 mm, 2500 mm, 6000 W

8000 x 2500mm 6kw

BLM ADIGE fiber laser Year 2010 3000x1500 3000W loading/unloading Lantek License Hours about 20 thousand sheet thickness 20 mm. Iron and 8/12 Stainless Steel

TRUMPF Trumabend 125/3.1-DA24 hydraulic Press brake YOM 1994 Pressure 125 t chamfer lenght 3050 mm distance between columns 2550 mm total power requirement 15 kW column arm 350 mm ajustment speed 130 mm/sec work speed 1-10 m/min return speed 100 mm/sec back stop - adjustable 1000 mm Stroke 200 mm dayligth 400 mm Pressure power 280 bar dimensions of the machine ca. 3,6 x 2,3 x 2,8 m weight of the machine ca. 9,5 t Control unit CNC Maker of control unit DA24 4-Axis Control (y1,y2,x,r)

STANKO 2N636GF1 Horizontal boring mill MITSUBISHI controler, new 2013 Spindle 125 mm Table 1600 x 1800 mm Max. horizontal (axial) movement of the spindle (Z') - 1000 mm Max. vertical movement of the headstock (Y)- 1400 mm Max. longitudinal movement of table (Z, W) - 1600 mm Max. lateral movement of table (X) - 1400 mm The largest mass of the processed product - 8 tons Spindle speed - 8 ... 1250 rpm Spindle Drive Electric Motor - 20 kW The weight of the machine is full - 34.6 tons

2000mm 66 ton Y1 Y2 R1 Z1 Z2 X1 X2 Excellent condition With tooling
