werner used for sale

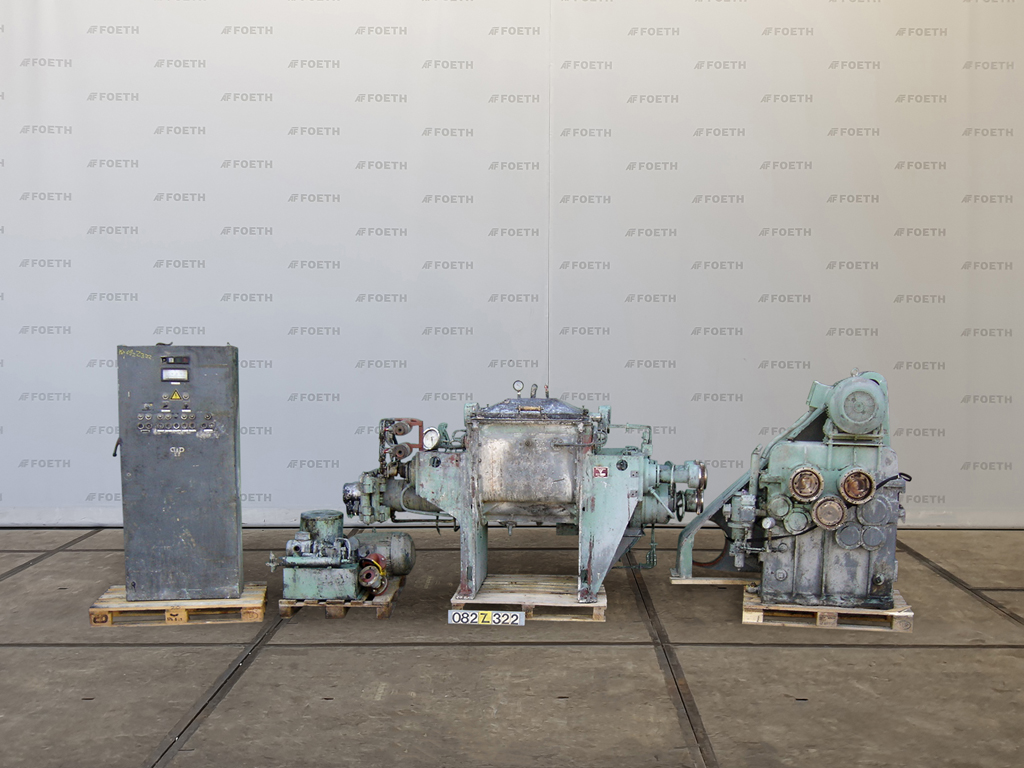

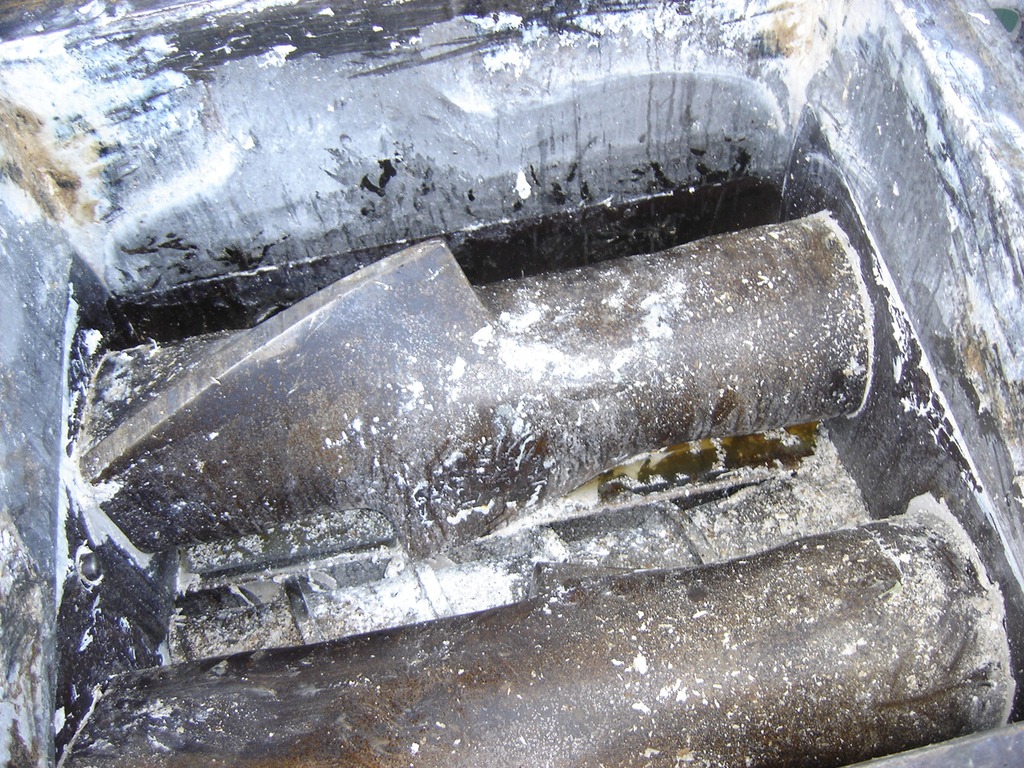

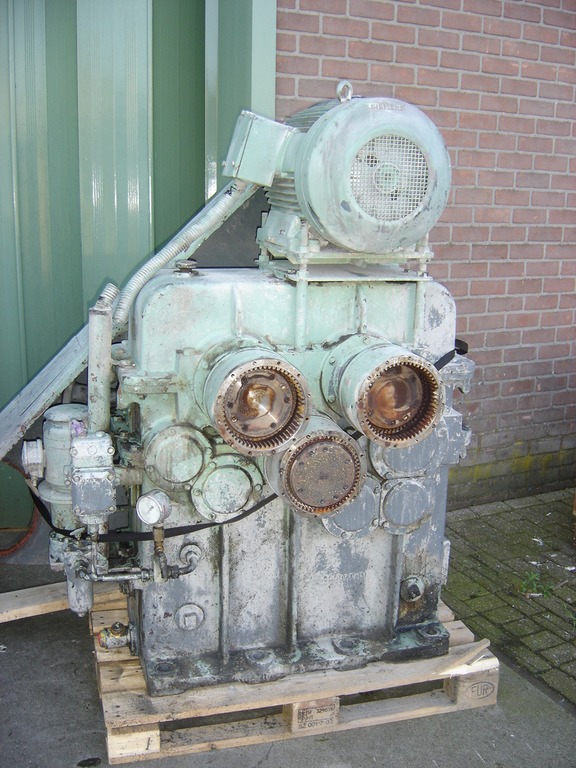

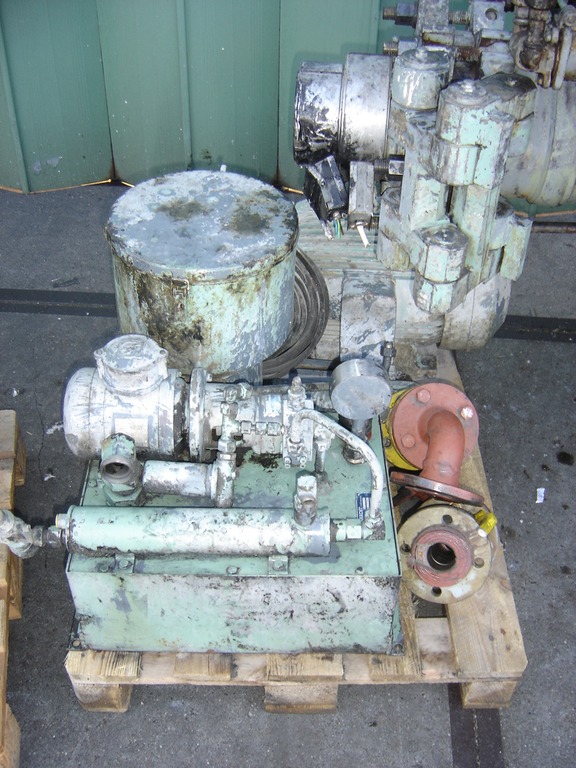

General SKU088X452 MakeWerner &: Pfleiderer TypeUK-14-X (fixed trough) No.89802 Year of constructionunknown LocationBarneveld Main Features MaterialMild steel/Stainless steel Volume200 Ltr. Motor5.5 KW Specified Features - Z-blade mixer Z-blade mixercheck Capacity200 l netto Trough sizes745x690x570 mm With covercheck With jacketcheck Single gearedcheck With adjustable packing glandscheck Motor5,5 kW, 380 V (Ex) Bottom outletdia. 75mm (2x) MaterialMild steel, Stainless steel With jacketcheck General Floorspacewithout motor 2,2x1,0 m Total height1,6 m Weight1800 kg ATEX designedcheckPowdered foodsStarchOther chemicalRubberPlastic & polymersCatalysts & fillersFeed additivesPaper & otherDiscountZ-blade mixersDetergent & surf.Other pharmaceuticsCosmeticsSugarLubricants & oleoAnimal feedOther feedSolid pharmaceuticsDyes & pigmentsMinerals & inorganicPaints & coating ...

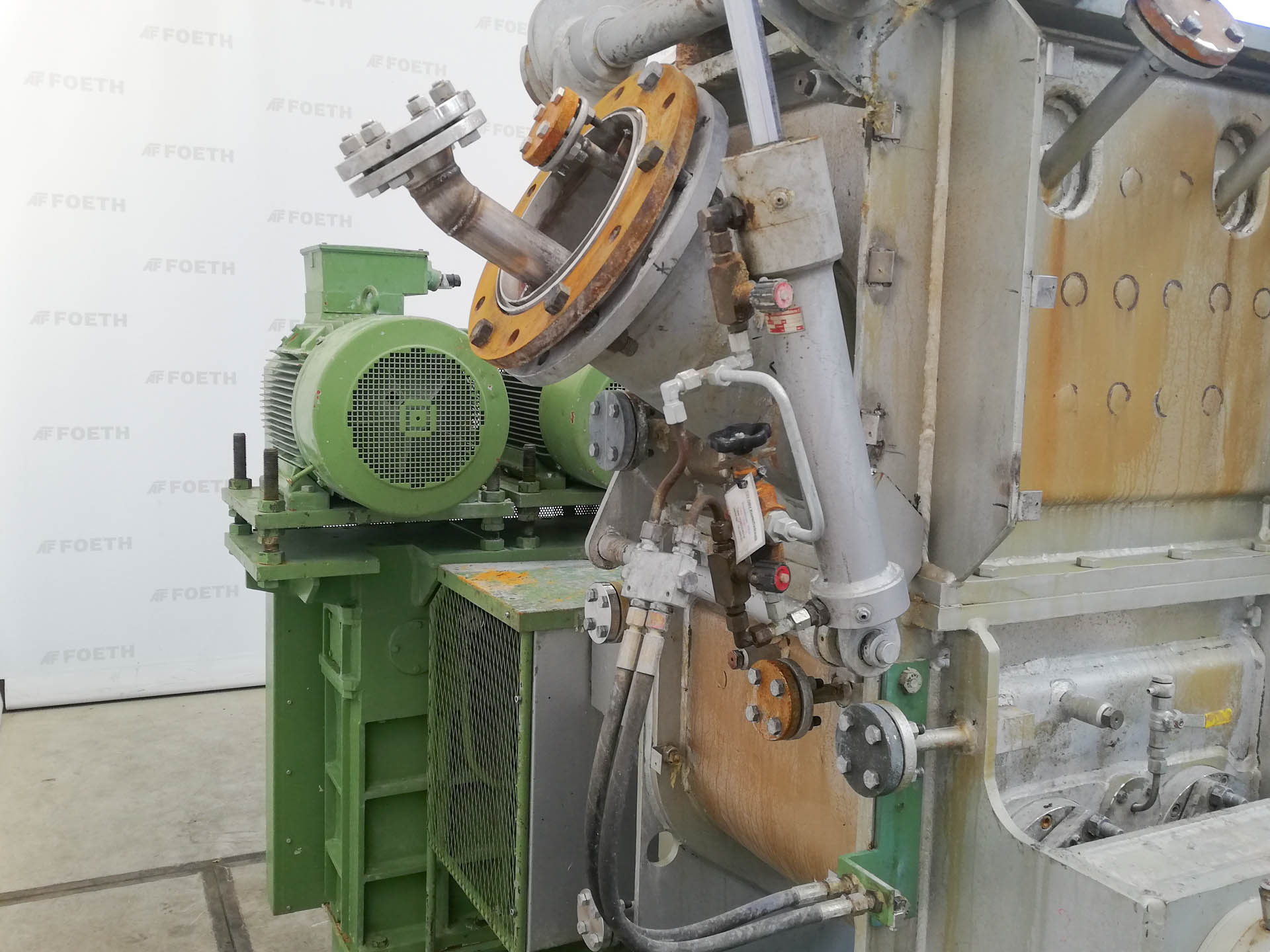

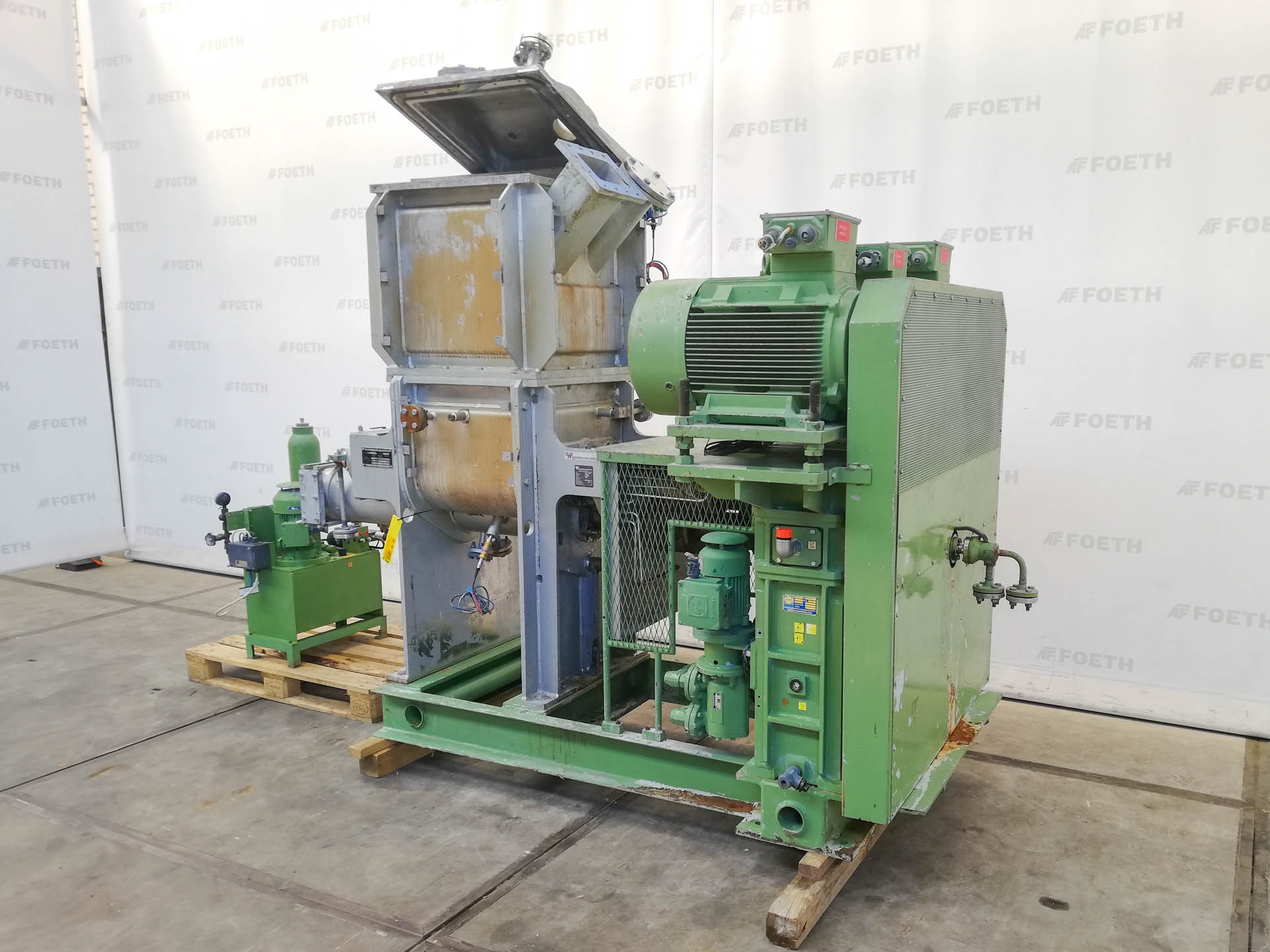

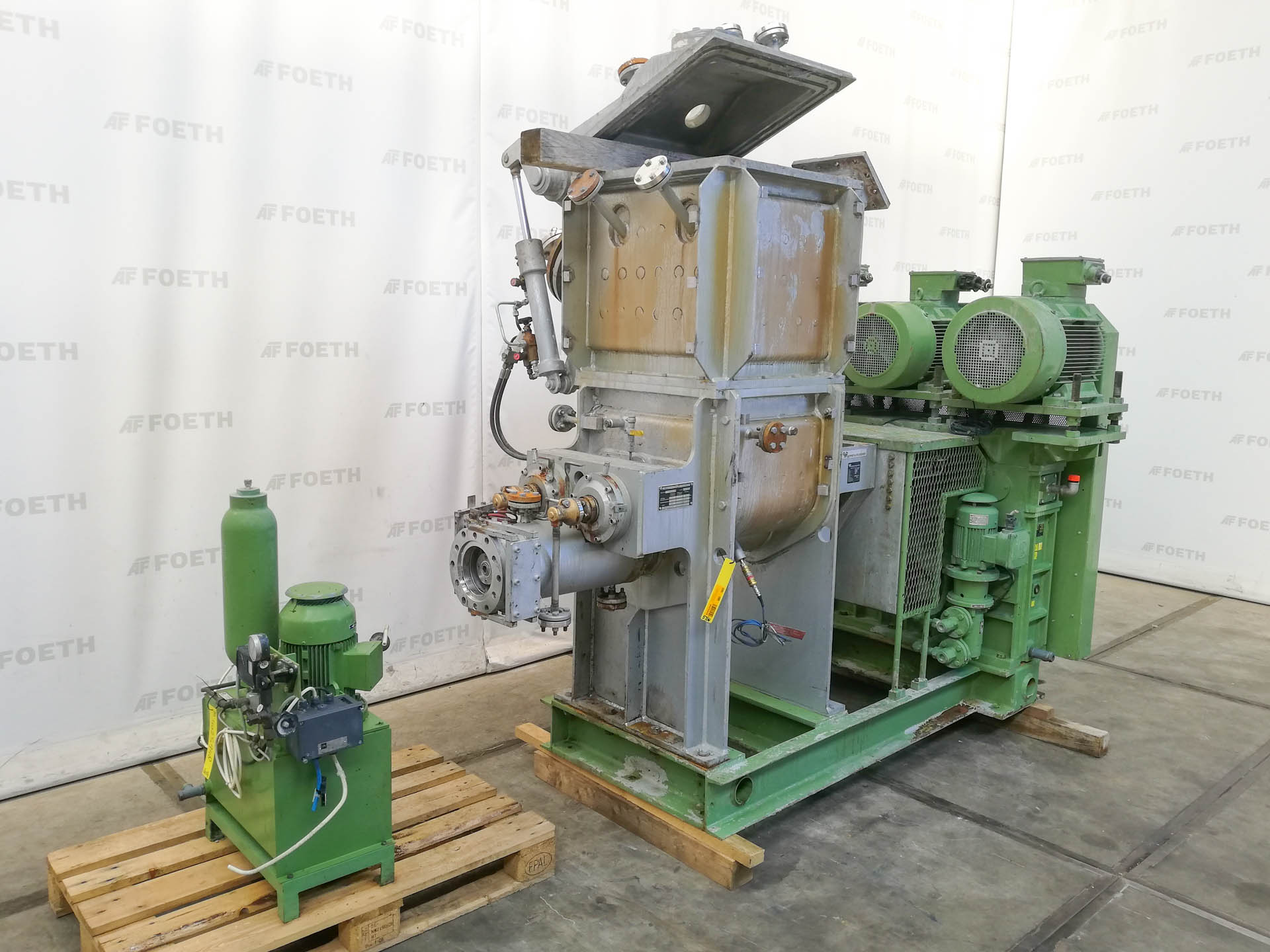

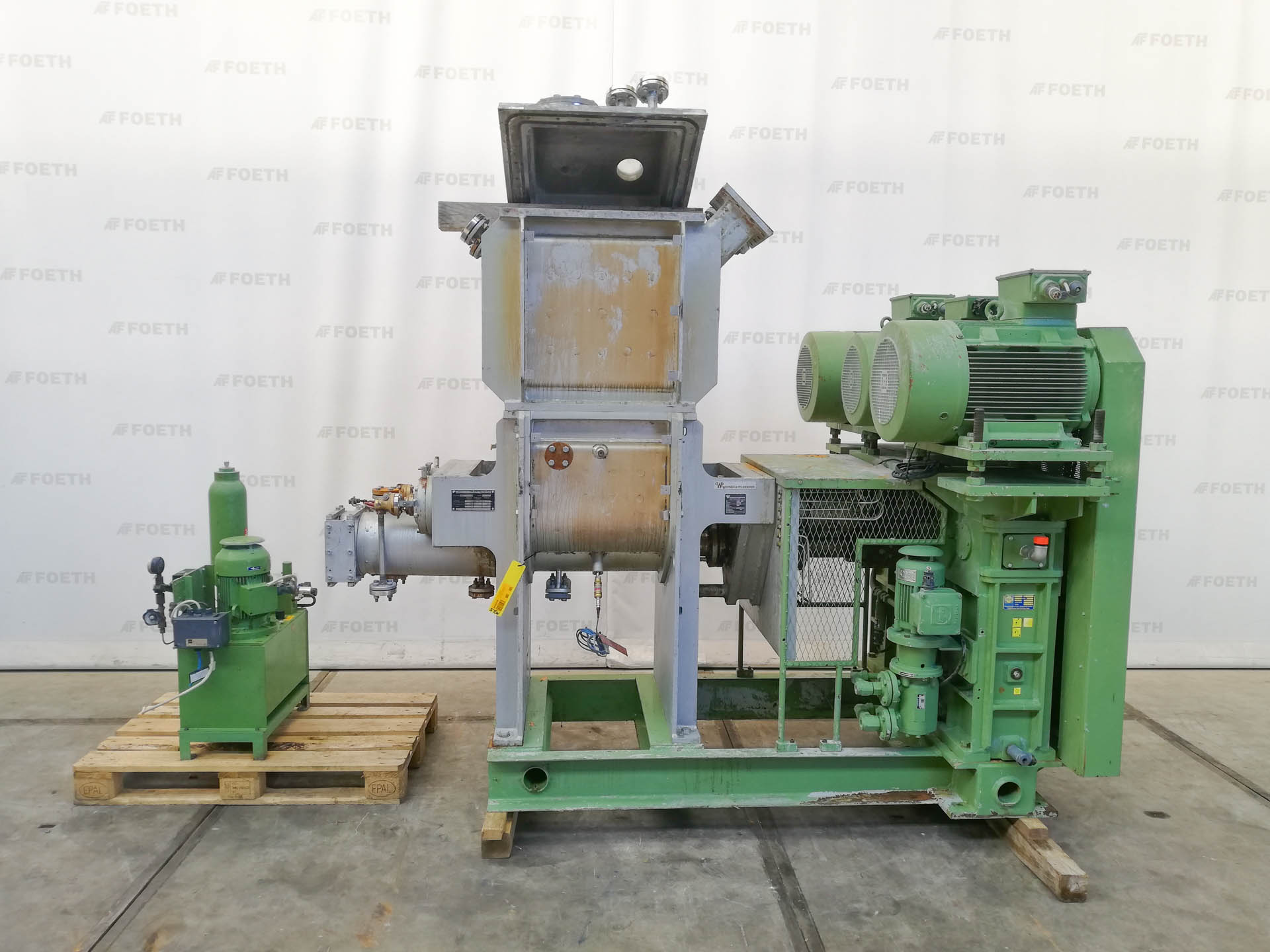

General SKU054F306 MakeWerner &: Pfleiderer Stuttgart TypeUK-80 K4UH No.163 258 / 483 188 Year of construction1979 LocationBarneveld Pressure Working pressure2 Bar Vacuum possiblecheck Working pressure jacket10 Bar Main Features MaterialStainless steel Volume80 Ltr. Specified Features - Z-blade mixer Z-blade mixer(1x) Capacity170 Ltr, Useful capacity 80 Ltr Trough sizes515x525x600mm With covercheck With jacketcheck Max. temperature350 Degr. C. Double geared(hydraulic driven, power pack is missing) With adjustable packing glandscheck Hydraulic tiltingcheck With hydraulic unitcheck Motor2,0 KW, 220/380 Volt MaterialStainless steel 1.4571 (316Ti) With jacketcheck General Mounted on foundationcheck Floorspace2,8x1,2 M Total height1,9 M Weight2450 KG Extra Specifications- With additional set :masticator: armsPowdered foodsStarchOther chemicalRubberPlastic & p ...

General SKU186K643 MakeWerner und Pfleiderer TypeLDUK 6 - IInS No.111045 Year of construction1962 Mounted on framecheck Pressure Working pressure10 Bar Main Features MaterialMild steel Volume18 Ltr. Motor7.5 KW Specified Features - Z-blade mixer Double screw cont. kneadercheck Jacketcheck With variable speed drivecheck Inlet30 x 195 mm Arm speed21,6-97,2/28,2-127 Rpm Arms can be cooled/heatedcheck Capacity18 l (usefull 8 l) Double shaft kneader:dispersion kneader: Masticator-armscheck Single gearedcheck With adjustable packing glandscheck With covercheck With hydraulic tiltingcheck Motor7,5 kW (400 V) With jacketcheck Z-blade mixers MaterialMild steel General LocationBarneveld With switchcheck Floorspace1,8 x 1,4 m Total height2 m Weight2500 kg Extra SpecificationsPneumatic tilting.With top ram (pneumatic)Fine chemicalsOther chemicalRubberPlastic & p ...

Universal Tool Milling Machine Fritz Werner Type 5130 Extremely robust and precise universal tool milling machine from the traditional German quality manufacturer Fritz Werner (model 5130) This conventional bracket milling machine impresses with its solid grey cast iron design and maximum reliability. It is ideal for workshops, toolmaking, repair shops, demanding do-it-yourselfers or training institutions. The machine has a swivelling vertical milling head with manual quill feed (perfect for additional drilling work) as well as a mechanical feed gear. An absolute highlight is the retrofitted premium safety spindle protection from Tecno Più Technical data at a glance: Manufacturer: Fritz Werner Werkzeugmaschinen GmbH (Berlin) Type / Model: 5130 (Series 5.130) Type: Conventional universal tool milling machine Tool holder: SK 40 (steep taper with tightening rod) Table d ...

A double-sided trolley cooling system Werner & Pfleiderer for bread production is available. Refrigerant: R404A, refrigerant type: HFC, minimum temperature: -25°C, design temperature low pressure/high pressure: -45°C/50°C, design pressure low pressure/high pressure: 16bar/28bar, internal dimensions X/Y/Z: 1800mm/1200mm/1900mm. Machine dimensions X/Y/Z: approx. 2750mm/2200mm/3150mm. Baguette target temperature/cooling time: -20°C/28min, bread roll target temperature/cooling time: -20°C/14min, pretzel target temperature: -14°C. Documentation available. An on-site inspection is possible.

Used double conical kneader WP, type: DK 150 -In bakery condition- - for max. 150 kg flour or 240 kg dough - Incl. 3 tank cars Visits and test runs are possible.

A complete central plastic granulate drying and conveying system Werner Koch, which was extensively expanded and modernized in 2021, is available. 1) Koch CKT 300 dry air dryer, year of manufacture: 2003, power: 41kW, air capacity: 300m³/h. 2) Koch CKT 500 dry air dryer, year of manufacture: 2021, power: 51kW, air capacity: 500m³/h, control system: Siemens S7. 3) 26x drying hoppers, volume: 11x40l, volume: 13x100l, volume: 2x150l. 4) 38x machine hoppers. 5) 2x Busch vacuum pumps. 6) Automatic Koch Navigator material distribution system, inputs: 26, outputs: 38. Including control cabinets and a central visualization and monitoring system Supervisione 9-7000. Documentation available. An on-site inspection is possible.

x-travel: ca. 900 mm y-travel: ca. 280 mm z-travel: ca. 400 mm total power requirement: 5 kW weight of the machine ca.: 3 t dimensions of the machine ca.: 2,52,52,5 m No. 5100: 1 used vertical milling machine FRITZ WERNER, type FV 2 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 38 liter, 25 liter

Werner & Pfleiderer Mixer Model GK12 Rotor type Tangential Total chamber volume 38 L Unable volume. 25 L Complete with motor Electrical control panel Chamber dims: 40x40x40cm = 0,064m3 Rubber used: EPDM, Natural EPDM, NR BR.

Key data: 170 mm

Twin-screw extruder Make : COPERION ( Werner & Pfleiderer ) Gearbox make : P.I.V Type : ZSK 170 W 1920/1750 Year of construction : 2021 / 2002 / 1986 Screw diameter : 172 mm Screw speed : 4,9 - 49 min-1 Max. torque : 17,500 Nm Main engine : 216 kW Since 2021 a total of over €420,000 has been invested in new components and factory overhauls (some of which were previously unused) The extruder was in use until Aug / 2023 and has already been dismantled ready for transport. The components are partly redundant and date from the years 1986 - 2021. The scope of delivery consists of : Twin screw degassing Coperion DSE 180 - Year of manufacture 2021 ( 180 t€ ) Main gearbox P.I.V - 1 x year of manufacture 2002, factory overhauled ( 233 t€ ) in 2021, unused - 1 x year of manufacture 1986, factory overhauled in 2016, used 2021 - 2023 Main engines Siemens, ...

Dough weigher WP HATON, type: PARTA U 2012 -completely renewed- The universal dough divider Parta U2012 is suitable for all types of dough, such as wheat, mischweiz, rye, firm doughs (e.g. pizza dough) and soft doughs (e.g. baguette dough). - Two pistons for variable weights - Machine is overhauled, all parts renewed - Condition: Very good and as good as new - Ready for immediate use - 6 months warranty on all parts Visits and test runs are possible by arrangement.

Used rack oven W&P, type: Green REC 1280 -In very good bakery condition- - for tin trolleys 60 x 100 cm - with gas or oil burner - Rack trolley with 21 supports (12.6m²) - El. Connection: 400 V, 50 Hz, 9 A - Dimensions: W 1,740 x H 2,400 D 1,900 mm - Max. weight turntable: 350 kg - Very good condition, technically everything checked Visits and test runs are possible by arrangement.

WERNER & PFLEIDERER ROTOTHERM REC 1020 – Ofen – 2002 – FÜR ERSATZTEILE / ZUR RENOVIERUNG Hersteller: Werner & Pfleiderer Lebensmitteltechnik Modell/Type: Rototherm REC 1020 Baujahr: 2002 Seriennumber: 3003698/0060 Heizart: Öl / Gas Heizleistung: 87 kW Ölverbrauch: 7.5 kg/h Stromversorgung: 400 V / 50 Hz Backform: 600 × 800 mm Type: Dreh-/Wagenofen Beschreibung Zum Verkauf steht ein gebrauchter Ofen vom Typ Werner & Pfleiderer Rototherm REC 1020 aus dem Jahr 2002. Der Ofen wird als Gerät in Einzelteilen zur Reparatur angeboten. Übersetzt mit DeepL (kostenlose Version)

A complete extrusion line is available, equipment: 5x control cabinets, 1x frequency inverter for the main drive, 1x frequency inverter for ZSB/heating, 1x PLC control system, 1x feeder, 1x vibrating screen with Congrav, 2x pre-feeders from Brabender, 2x gravimetric feeders from Brabender, 1x volumetric feeder from Brabender, 1x Coperion ZSK 58 Mc twin-screw extruder, 1x ZS-B 58, 1x frequency inverter cabinet, 1x SL cabinet with Siemens S7-300 control system, 1x local control cabinet at the machine with integrated EPC NT operator terminal with LM3 from Brabender, 1x cooling unit, 1x complete strand pelletizing system, 1x classifying screen with extraction system, 1x pair of spare screw shafts with screw elements, material 15, unused, total weight of the system: 5.843t, with documentation. An on-site inspection is possible.

Key data: 40 mm, 28

Werner & Pfleiderer ZSK 40 twin-screw extruder – very good condition For sale is a Werner & Pfleiderer (WP) ZSK 40 co-rotating twin screw extruder. Technical data: - Screw diameter: 40 mm - Screw length: 7 housing x 4 D, approx. 28 L/D - Main drive: 34.5 kW - Engine speed: 1,800 rpm - Screw speed: 40-400 1/min - Max. torque per worm shaft: 325 Nm - Electric heating: approx. 17 kW - Cooling: Water cooling unit - Temperature control zones: 6 - Housing temperature measuring points: 6 - Material temperature measuring point: 1 - Material pressure measuring point: 1 Housing configuration: - Inlet housing with liquid addition opening - Open housing with insert and two liquid addition ports - Several closed housings with holes for liquid addition or measuring points - Degassing housing Co-rotating, densely interlocking and self-cleaning screws. High mixing and di ...

CNC SCREEN PRINTING MACHINE Balsfulland CNC 1500 H Manufacturer: Werner Kamann Model: CNC 1500 H Year of manufacture: 2008 Design: Fully enclosed safety cabinet with protective glazing Machine type: Multi-color CNC screen printing system CE certified: Yes Details: CNC-controlled axes Multi-color printing stations Automatic product transport system Fully enclosed safety housing Integrated drying / curing unit Designed for industrial serial production Heavy-duty steel / aluminum frame construction Application: Cosmetic containers Brochure stand Glass bottles Plastic packaging Cylindrical or slightly tapered products Industrial packaging components
