w 350 used for sale

Key data: 90 mm, 30

Mono extruder type W & H 90 30 D, Film thickness 20 -200my, Nozzle diameter = 350 mm, Working width max. = 1500 mm, Winder tandem winder max diameter = 1000 mm, Max. winding width 1650mm Other: IBC  Thickness Control Film Dosing System = Gravimetric

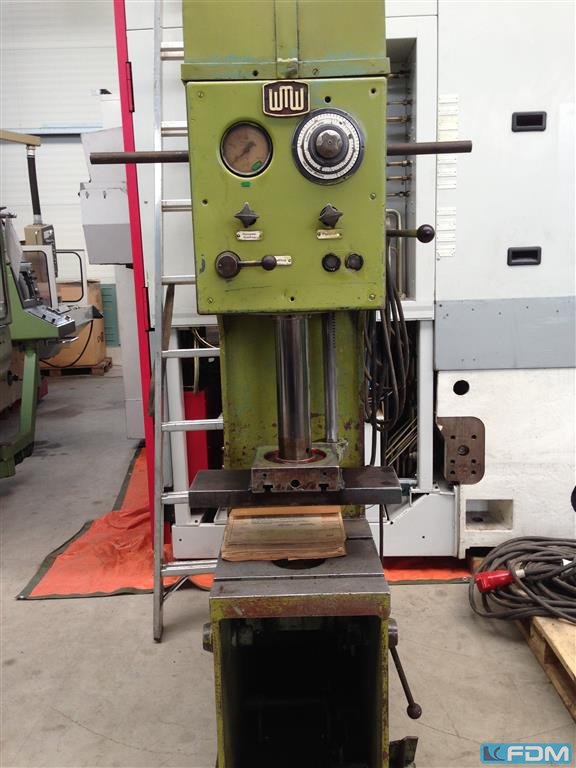

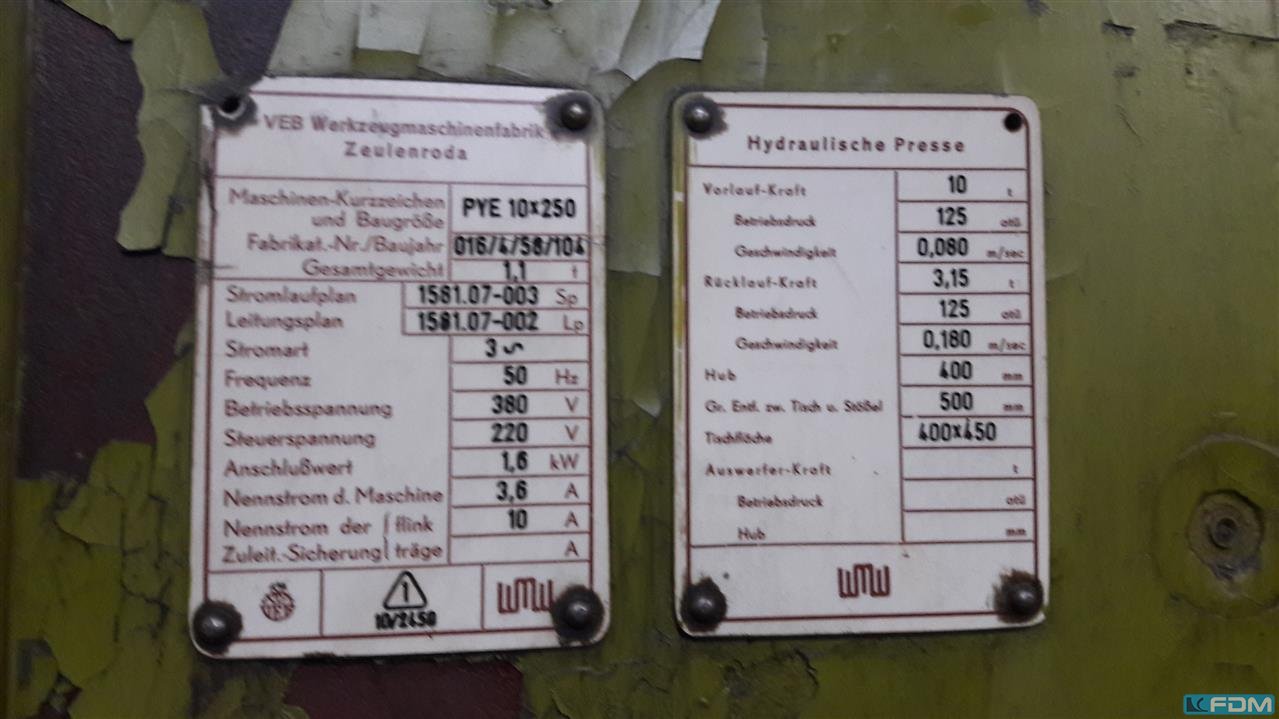

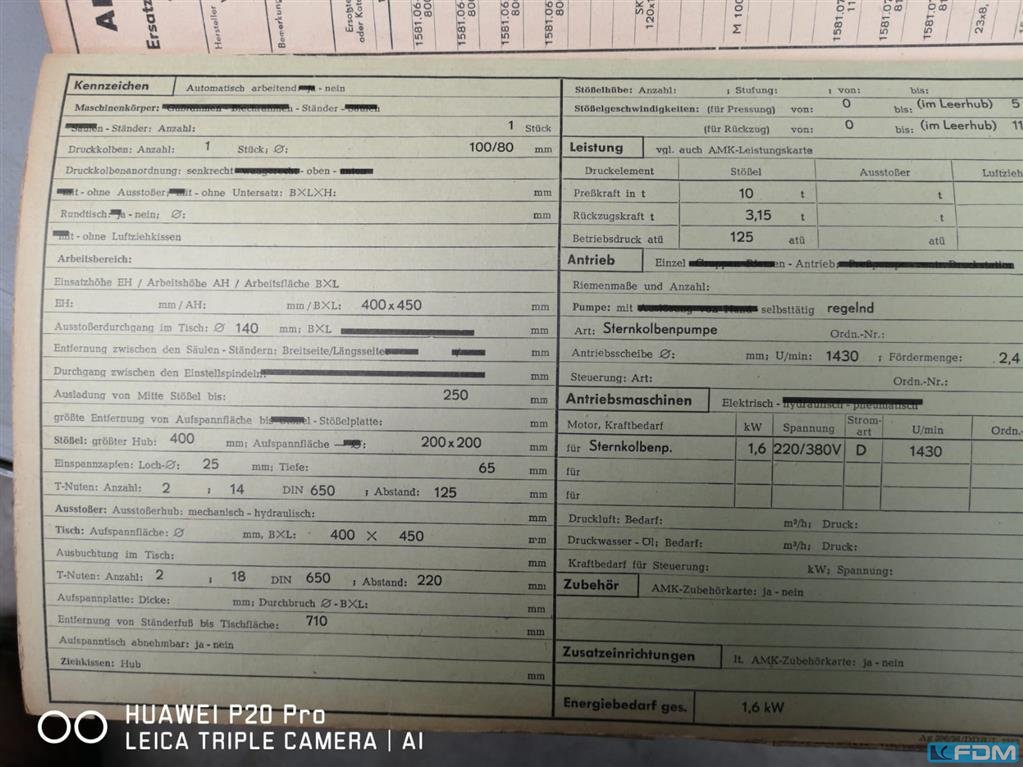

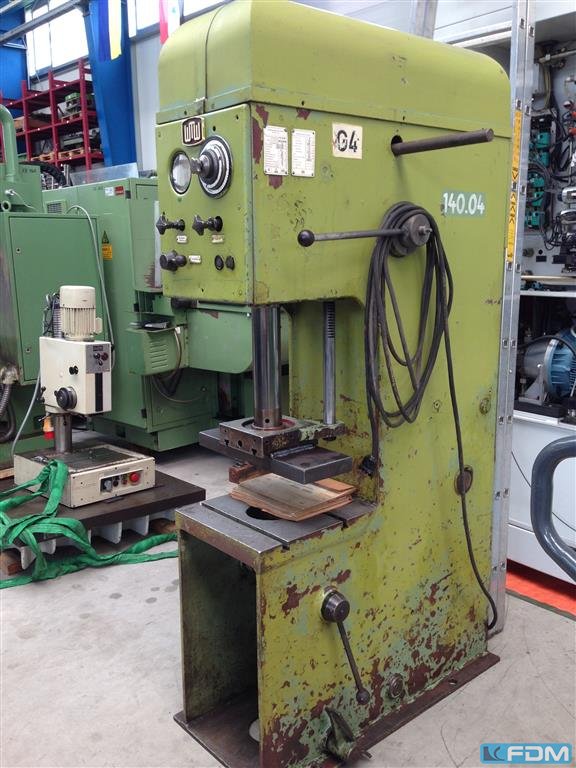

pressure:10 t stroke:400 mm total power requirement:1,6 kW weight of the machine ca.:1,1 t dimensions of the machine ca.:1100 x650 x 2050 mm dayligth:500 mm table-size:400 x 450 mm Documents:vorhanden

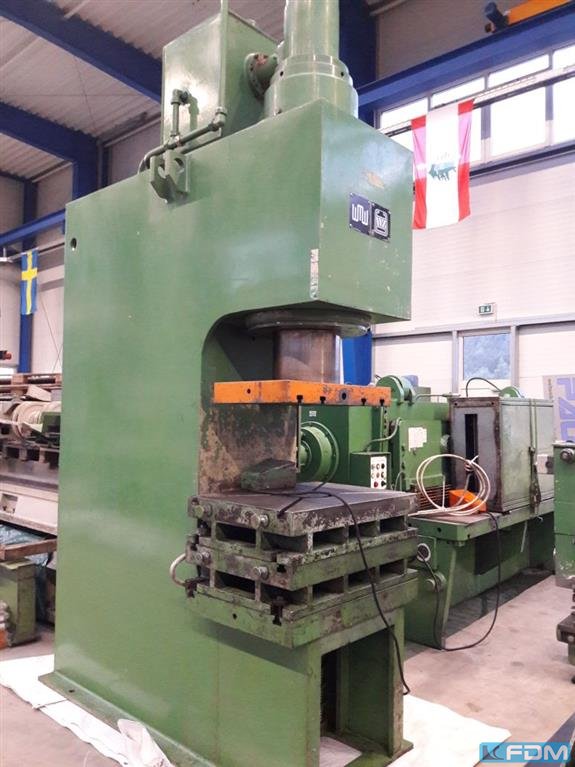

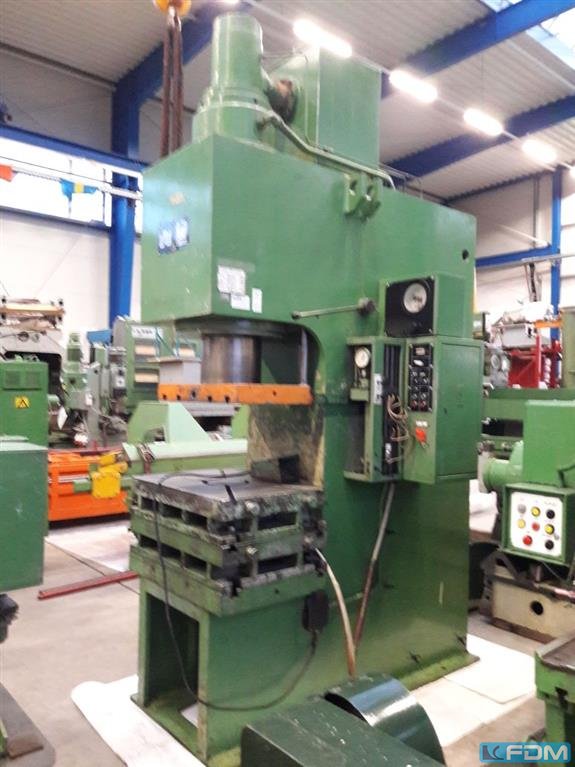

pressure:160 t throat:360 mm stroke:500 mm total power requirement:17 kW weight of the machine ca.:7,2 t dimensions of the machine ca.:2,0 x 0,95 x 3,70 m table-size:900 x 630 mm Documents:vorhanden

Four-sided planer Weinig with glazing bead saw Type: P 23 Year of Make: 1995 Planing width 230 mm Planing height 130 mm 6 planing shafts + glazing bead saw Shaft arrangement 1 Bottom 4 kW 2 right-hand lifting spindle clocked with 3 Left 7.5 kW 4 Top-clocked shaft 5.5 kW 5 Bottom 5.5 kW Glass bead saw Spindle diameter 40 mm Right and left shafts are driven by 1 motor with manual Waxilit pump with distributor for extraction pipes fully equipped with planer heads as well as 4 additional milling heads good, ready-to-use condition

pressure:160 t throat:360 mm stroke:500 mm Documents:vorhanden

Manufacturer: Weiss Spindle Type: 175047 A P=19KW N=1100rpm NMAX=15000RPM Condition: presumably repaired Functional test could not be carried out. From warehouse liquidation. Location: Stuttgart

Manufacturer: Weiss Spindle Type: 175389A Condition: presumably repaired Functional test could not be carried out. From warehouse liquidation. Location: Stuttgart

max. grinding diameter:50 mm grinding length:250 mm workpiece length:300 mm total power requirement:0,7 kW weight of the machine ca.:330 kg dimensions of the machine ca.:1000 x 1000 x 1400 mm

HSE 22-1100 ZE Cleaver Maximum clamping force 23.4t Cylinder stroke 880 mm Gap length maximum 1100mm Split material diameter: 350mm Flow speed 4.3 - 10.5 cm/s Return speed 7.5 cm/s PTO and electric motor PTO speed 540 rpm Drive power 400V 50Hz 5.1kW LxWxH 1050 x 1700 x 2500mm Weight 333kg G&STÜ-5981024

total power requirement:12 kW weight of the machine ca.:4,6 t

grinding length:600 mm grinding width:200 mm total power requirement:5 kW weight of the machine ca.:1,4 t dimensions of the machine ca.:3 x 3 m

Max. drilling capacity steel and thread: 60mm, drilling speed: 56-1250/min, motor power: 5.5kW, height: 2400mm. The machine has been regularly serviced, without technical documentation, an on-site inspection is possible.

Single-column eccentric press AMBOLD type PEEV 25.2Masch. No. 11734 / 02 Year of construction 2002Compressive force 25 ton. Projection 200 mmTable area 520 x 400 mmPlunger area 155 x 155 mmHole in table 185 x 155 mmStroke adjustment 4-80 mmPlunger adjustment 40 mmInstallation height max. 270 (largest stroke in UT, table below)Clamping pin hole 32 mmTable height adjustment approx. 150 mmPlunger strokes 160 strokes/min. Motor power 2.2 kWNet connection 400 volts, 50 Hz pneumatic clutch-brake combination

material width:300 mm coil weight:0,5 t material thickness:0,4 - 3,0 mm coil internal diameter:420 - 520 mm coil external diameter:1200 mm no. of straightening rolls:9 straightening roll diameter:50 mm number of draw-in rolls:2 diameter of draw-in rolls:50 mm power requirement:1,5 kW weight:1,55 t dimensions (WxDxH):2,5 x 1,2 x 1,8 m

material width:500 mm material thickness:0,2 - 3,8 mm feed length:0 - 9999,9 mm number of rolls:2 material cross-cut:128 mm² speed:60 m/min power requirement:2,0 kW dimensions (WxDxH):1,2 x 1,3 x 1,5 m roll feed:Servo control:Siemens S 7, modification 2002

Double Column - Hydraulic Press RASTER ZEULENRODA (WALTER) Type WUP S 60Masch. No. 136 / 7 (156-165) Year of manufacture 1999Basic machine from 1987, in 1999 Overhauled with new controlPressure capacity 60 ton. Stand width 1090 mmStand passage laterally 265 mm (one-sided) Plunger area 650 x 300 mmAdditional plate on ram 990 x 550 x 60 mmTable area 990 x 550 mmPlunger stroke max. 320 mmInstallation height 330 or 390 mmTable height above floor 980 mmHydraulics Operating pressure 320 barRapid traverse downward 75

material width:300 mm coil weight:0,5 t coil internal diameter:420 - 520 mm coil external diameter:1400 mm weight:0,6 t dimensions (WxDxH):0,8 x 1,2 x 1,7 m expansion:pneumatic

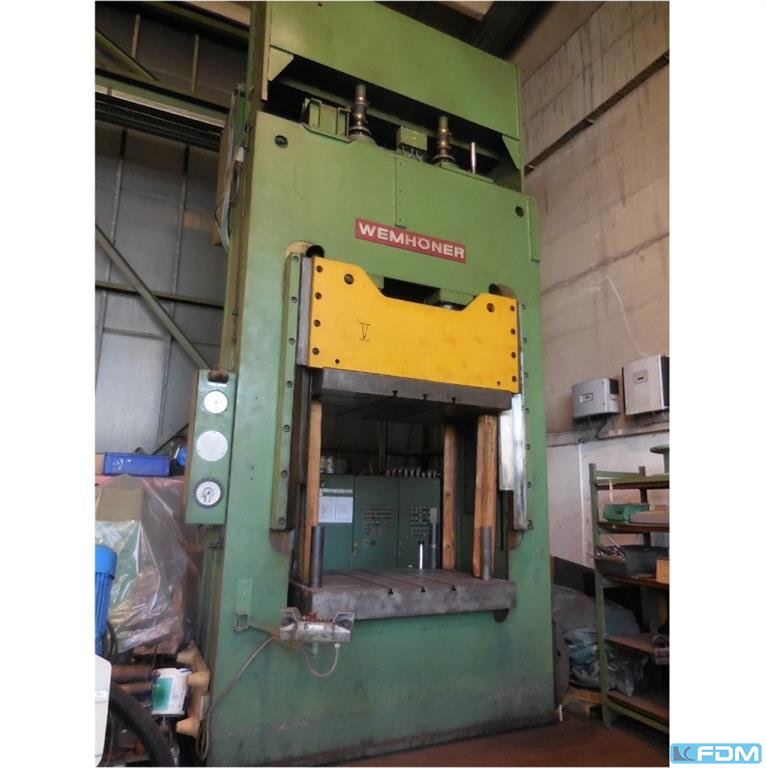

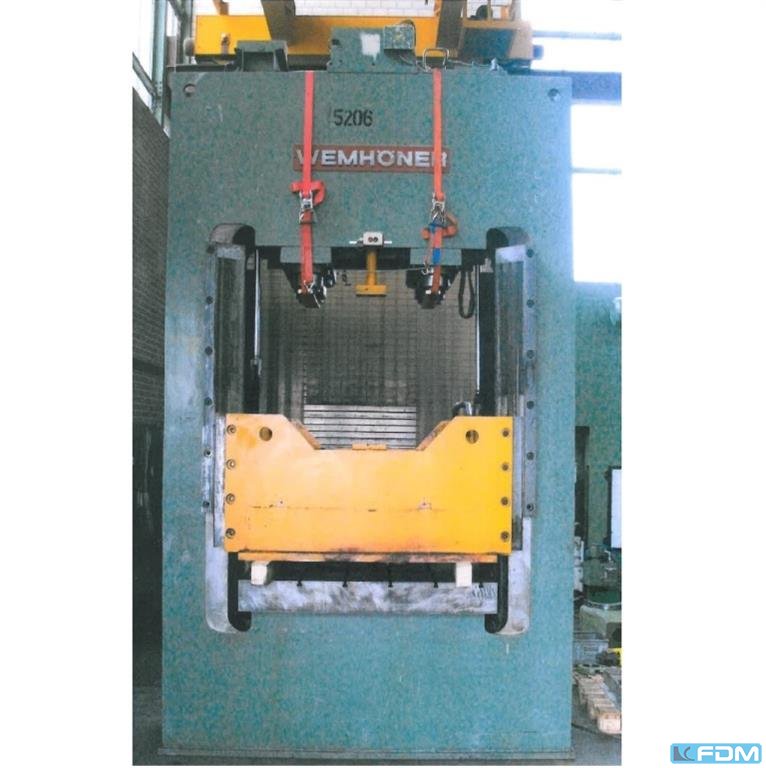

pressure:300 t distance between columns:1800 mm stroke:1000 mm Distance table/ram, max. stroke up, adjustment up:1300 mm Table surface area:1600 x 1200 mm Table height above floor:1080 mm Ram surface:1600 x 1200 mm Weight:24,0 t Dimensions (WxDxH):2,8 x 2,1 x 6,0 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2

E-chain hoist, electric chain hoist, crane KITO type WLL 240 ManuliftManufacturer: KITO Yamanashi JapanCode No. ED 24ST Series No. 00005266 Year of construction 2008Load capacity 240 kgHook travel 2.7 metersDistance suspension to load hook 950 mmLifting speed Lifting speed: 3 to 12.9 m/min. Mains connection 230 volts, 50 Hz- cylinder handle control with potentiometer for speed adjustment- safety, stroke limit switch- emergency stopWeight 18.5 kgvery good condition; used

E-chain hoist, electric chain hoist, crane KITO type WLL 240 ManuliftManufacturer: KITO Yamanashi JapanCode No. EDC 24SD Series No. 032190 Year of construction 2017Load capacity 240 kgHook travel 2 metersDistance to suspension to load hook 850 mmLifting speed 3 to 12.9 m/min. mains connection 230 volts, 50 Hz- cylinder handle control with potentiometer for speed adjustment- safety- stroke limit switch- emergency stopweight 18 kgvery good condition; used

Assembly line with 4 assembly stationsRoller conveyor made of aluminium system profile and INTERROLL metal rollersVery universally applicable due to modular elements and assembly pallets 400x700 mmRoller conveyor elements made of aluminium system profile MiniTec - like BOSCH REXROTHExperium height: 815 mmComplete length: 13250 mm4 pieces Longitudinal roller conveyor: usable width 405 mm, length 2500 mm, overall width: 510 mm, 16 rollers each3 pieces transverse roller conveyor: usable width 705 mm, length 1000 mm, width: 810 mm, 10 rollers each1 piece transverse roller conveyor: Usable width 705 mm, length 2500 mm, overall width: 810 mm, 30

Vibratory Spiral Conveyor / Sorting Device / Spiral Conveyor / Vibratory Conveyor WEBERVibratory Bowl, Sorting Device / Screw Feeder with Vibratory Conveyor for Screwdriving TechnologyFeeding System, Feeding DeviceType: ZEM 360Masch.- No.: 1113557 Year of Construction: 2004Pot Diameter Top: 360 mmPot Diameter Bottom: 250 mmPot Inner Height: approx. 110 mmSorting Lane Width: approx. 20 mmFilling Weight: approx. 12 kgFilling Quantity: approx. 3 LitresControl Voltage: 24 Volts DC (external power supply is required)Mains connection: 230 Volts, 50 Hz. Operating pressure: 6 bar control unit

Verfahrweg X/Y/Z: 3200mm/1100mm/900mm, max. Werkstückgewicht: 5000kg, Tischdimensionen X/Y/Z: 3250mm/1220mm/1030mm. Spindelleistung: 45kW, Drehzahl: 6000U/min, Werkzeugaufnahme: SK50, Werkzeugdurchmesser: 125mm, Werkzeuglänge: 300mm, max. Werkzeuggewicht: 15kg, NC-Rundtischdimensionen X/Y: 800mm/800mm. Maschinendimensionen X/Y: ca. 7800mm/4700mm, Gewicht: ca. 25000kg, Steuerung: Siemens Sinumerik 810D Shopmill, Betriebsstunden: ca. 32000h, Spindelstunden: ca. 18000h. Inklusive Späneförderer und IKZ. Dokumentation vorhanden. Eine Besichtigung vor Ort ist möglich.

Travel X/Y/Z: 700mm/400mm/300mm, table dimensions X/Y: 650mm/400mm, max. table load: 350kg, spindle mount: BT30, speed: 12000rpm, power: 5.5kW, torque: 82.7Nm. Rapid traverse: 50m/min, feed: 50m/min, tool positions: 21, tool diameter: 75mm, tool length: 210mm, tool weight: 3kg. Machine dimensions X/Y/Z: approx. 2550mm/1450mm/2900mm, control: Fanuc 0iMF. Documentation available. On-site inspection is possible.

Drilling capacity in steel/cast iron: 40mm/60mm, throat depth range: 300mm-1250mm, max. workpiece height: 745mm, spindle mount: MK5, spindle stroke: 355mm, speed: 1200rpm, feed: 756mm/min, column diameter: 300mm, spindle-plate distance: 280mm-1380mm, table dimensions X/Y: 1400mm/750mm. Machine dimensions X/Y/Z: approx. 2200mm/1000mm/2800mm, weight: approx. 3000kg. On-site inspection is possible.

A WMW lead and feed spindle lathe that was overhauled in 1993 and has not been used since then is available. Center width: 1600mm, turning length: 1600mm, turning diameter: 250mm, turning diameter over bed/cross slide: 450mm/250mm, steel holder surface X/Y: 140mm/140mm, steel cross-section: 25mm/25mm. Speed: 2240rpm, spindle bore: 45mm, faceplate diameter: 450mm, quill stroke: 160mm, max. workpiece weight: 800kg/1250kg, max. journal diameter: 60mm. Including taper turning device, coolant device and quadruple steel holder. Documentation available. On-site inspection is possible. The machine was not used after its overhaul in 1993.

Drilling capacity in steel: 50mm, spindle mount: MK5, speed: 1000rpm, throat depth: 355mm, drilling stroke: 280mm, spindle-table distance: 710mm, spindle-column distance: 355mm, table dimensions X/Y: 630mm/500mm, column diameter: 160mm. Machine dimensions X/Y/Z: 1200mm/800mm/2700mm, weight: approx. 1650kg. On-site inspection is possible.

Turning diameter over bed/face slide: 630mm/340mm, turning length: 2000mm, center height: 290mm, clearance: 70mm, speed: 1180rpm, chuck: 400mm wedge bar chuck, tailstock: MK5, total power requirement: 15kW, machine dimensions X/Y/Z: approx. 5000mm/1350mm/1500mm, weight: approx. 4500kg. Including 2x 340mm steady rests, 2x medium steady rests, face plate with a diameter of 630mm, 2x face plates with cross slots, various tool holders, steady rest box, tool cabinet with additional tools, Heidenhain position indicator and 400mm key bar chuck. Documentation available. On-site inspection is possible.

Swing diameter over bed/bed slide: 480mm/340mm, turning length: 800mm, center distance: 1000mm, swing diameter in the recess: 540mm, spindle bore: 52mm, speed: 1400rpm. Quill taper: MK4, manual quill adjustment: 160mm, upper part displacement: 10mm. Machine dimensions X/Y/Z: approx. 2600mm/1100mm/1350mm, weight: approx. 2300kg. On-site inspection is possible.

A high-precision horizontal lathe WMZ in need of overhaul is available. Processes: Drilling, turning, milling, skiving, tool holder: VDI40, tool positions: 12, workpiece length range: 180mm-600mm, workpiece diameter range: 50mm-95mm, max. workpiece weight: 5kg, cycle time: 48min, control: Siemens 840D SL, operating hours: 15726h. Including cooling lubricant system Knoll KF 150-75, chip conveyor Knoll, air cleaner Mahle and hydraulic unit Hydac. The machine requires a complete overhaul. The machine components have been dismantled but are still present. Documentation available. On-site inspection is possible.

An old and dismantled Wohlenberg lathe is available. Center width: 4000mm, face plate diameter: 900mm, length: 6000mm, width: 1000mm. On-site inspection is possible.

Travel X/Y/Z: 850mm/280mm/355mm, table dimensions X/Y: 1250mm/315mm, feed X/Y: 800mm/min, feed Z: 250mm/min, spindle mount: ISO 50, spindle speed: 1400rpm. Machine dimensions X/Y/Z: approx. 2000mm/2000mm/2400mm, weight: approx. 3300kg. On-site inspection is possible.

A total of four WMW/Werkö saw grinding machines are available. Saw blade diameter min./max.: 250mm/1450mm, grinding wheel diameter: 250mm, speed: 2500rpm, tooth pitch: 42mm, grinding spindle swivel range: +/-45°, machine dimensions X/Y/Z: approx. 850mm/1000mm/1800mm, weight: approx. 1100kg. Documentation available. On-site inspection is possible.

Grinding wheel diameter: 220mm, grinding wheel width: 5mm, base body width: 20mm, bore diameter: 52mm. Test piece: diameter: 100mm, width: 300mm, profile height: 35mm. Small workpiece: Outer diameter: 400mm, bore diameter: 205mm, wheel width: 100mm, torque: 20Nm, weight including mandrel: 200kg. Large workpieces: Outer diameter: 700mm, bore diameter: 350mm, disk width: 300mm, torque: 800Nm, weight: 250kg. Accuracy: Repeat accuracy: less than 2µm, axial and radial run-out accuracy (large spindle): less than 2µm at 400mm diameter, axial and radial run-out accuracy (small spindle): less than 2µm at 200mm diameter, parallelism over 300mm between test piece and workpiece axis: less than 2µm. Tool spindle speed: 10000rpm, small workpiece spindle: 23000rpm, large workpiece spindle: 6000rpm, test piece spindle: 1000rpm.

Sanding width: 200mm, sanding length: 600mm, adjustment path X/Y: 690mm/230mm, clamping table spindle center distance: 500mm, sanding wheel diameter: 200mm, sanding wheel width: 20mm, bore: 51mm, table dimensions X/Y: 200mm/600mm, max. table load: 110kp, machine dimensions X/Y/Z: approx. 3000mm/1600mm/2100mm, weight: approx. 1300kg. Documentation available. On-site inspection is possible.

Pressing force: 63t, operating pressure: 160bar, pressing speed downwards/upwards: 200mm/400mm/s, ram stroke: 500mm, throat depth: 360mm, max. ram table distance: 800mm, weight: approx. 4200kg. On-site inspection is possible.

Working width: 3050mm, material thickness: 6mm, throat depth: 200mm, back gauge adjustment: 1000mm, drive power: 15kW, cutting angle range: 1°-2°, table height: 900mm. Machine dimensions X/Y/Z: approx. 4100mm/2300mm/2100mm, weight: approx. 8500kg. On-site inspection is possible.

Various metalworking machines are available as remaining stock. 1/2/3) Three wobble riveting presses Thielicke GmbH & Co. KG WN6, year of manufacture: 1998. 4) Schlenker & Cie Atlas W4 high-speed planer, year of manufacture: 1961, weight: approx. 1700kg. 5) Spot welding machine J.u.W. Müller GmbH Opladen OMP67F, year of construction: 1960. 6) Ring welding machine Ing. G. Wenninger/BAPO KH III, year of construction: 1940s, conversion: 1964. 7) Cross-cut saw Berg & Schmid Mini Compact, year of construction: 2018. 8/9/10) Three presses. Including vices and lathe accessories. On-site inspection is possible. Individual sale possible.

A complete 5-layer coextrusion blown film line with 5 extruders and all peripheral equipment is available. Total line dimensions X/Y/Z: 14m/22m/11m, blow head: Kiefel Worms FSBK 500 with IBC, die diameter: 500mm, film width range: 700mm-2000mm, haul-off width: 2000mm, winding width: 2000mm, line speed: 120m/min, melting capacity: 500kg/h, total power requirement: approx. 300kW. 1) Double winder Wintech, winding width: 2000mm, film thickness range: 35µm-150µm, max. roll diameter: 1000mm, max. roll weight: 1900kg, core inner diameter: 152mm/6inch. 2) Extruder Kiefel Worms 70.29D, power: 89kW, screw: 5-zone barrier screw, speed: 125rpm, renewed: 2010. 3) Adhesive extruder Kiefel Worms 50.25D, power: 34kW, screw: 3-zone barrier screw, speed: 200rpm. 4) Center extruder Kiefel Worms 50.25D, power: 34kW, screw: 3-zone core progressive screw, speed: 175rpm. 5) Adhesion promoting extruder Kiefe ...

Multiweigh 10 heads Multihead weigher., Stunning multihead weighers from Multiweigh. They are in a very good condition ready for production., - Large stainless steel buckets, - Ridigized, - 10 heads with in-feed ring, - Collection gate

Eillert washer for sinking products

Multi-person workstation, see photos for more details.

A complete WMV coating system for the surface treatment of bulk materials is available. Charging capacity: approx. 1000kg-2000kg, charging weight per partial batch: 170kg, tray dimensions X/Y/Z: 1200mm/800mm/140mm, control: Siemens S7. Components: Loading and unloading, loading system, charging system, desoldering system, crate washing system, rinsing system, drying system and washing system. One cooling system and one immersion bath are defective. The drying system was extended in 2008 for bulk solids. Documentation available. On-site inspection is possible.

Newtec 9 heads weigher with PCS system, also available with funnel

A complete painting system is available. Components: (1) overhead conveyor, (2) spraying area/brush wall, length: 4000mm, width: 1500mm, height: 4800mm, with Maxon burner, suction pipe, drawers for dry paint disposal, six filter mats, various filters, (3) evaporation area, (4) drying booth, length: 6500mm, width: 5200mm, height: 3150mm, with Weishaupt WG10N/1-D ZM-LN gas burner. Overall system dimensions: 24,000mm/10,000mm, max. output: 45kW. Documentation is available.

A Weinig four-sided planer including automation, double cross-cut saw, infeed and extraction system is available. 1) Four-sided planer Weinig Hydromat 22 BL with automatic lubrication, year of manufacture: 1987, working width: 220mm, working height: 140mm, number of heads: 7, head arrangement: bottom/right/left/right/top/bottom/bottom, spindle diameter: 50mm. 2) Kellfass automation unit consisting of double cross-cut saw, length: 5000mm, buffer cross conveyor and pneumatic roller infeed. On-site inspection is possible.

Working width: 230mm, working height: 160mm, number of spindles: 5, spindle diameter: 50mm, spindle power: 4x 5.5kW/2x 11kW, feed rate: 24m/min, input table length: 3000mm, vertical spindle axial stroke: 80mm, horizontal spindle axial stroke: 45mm. Connected load: 126kW, air requirement: 8400-9600m³/h, machine dimensions X/Y/Z: approx. 3500mm/2000mm/1800mm, weight: approx. 3500kg. Including Weinig EM-11 slide-in unit and suitable distributor for the extraction system. Documentation available. On-site inspection is possible.

Connected load: 4.55kW, cooling capacity: 9kW, circulation medium temperature: 30°C, refrigerant: R 134a, filling weight: 2.13kg, max. operating overpressure: 21bar, compressor volume flow: 11.46m³/h, compressor speed: 2900rpm, compressor discharge pressure: 22.6bar. Documentation available. On-site inspection is possible. The appliance was only used for a few hours for test purposes.

length: 5000 mm payload: 18 : . The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 1600 mm centre height: 185 mm diamter spiral cutter: 55mm mm indexing: 4-32 Modul length: 5900 mm width: 2300 mm height: 2000 mm weight: 7 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
