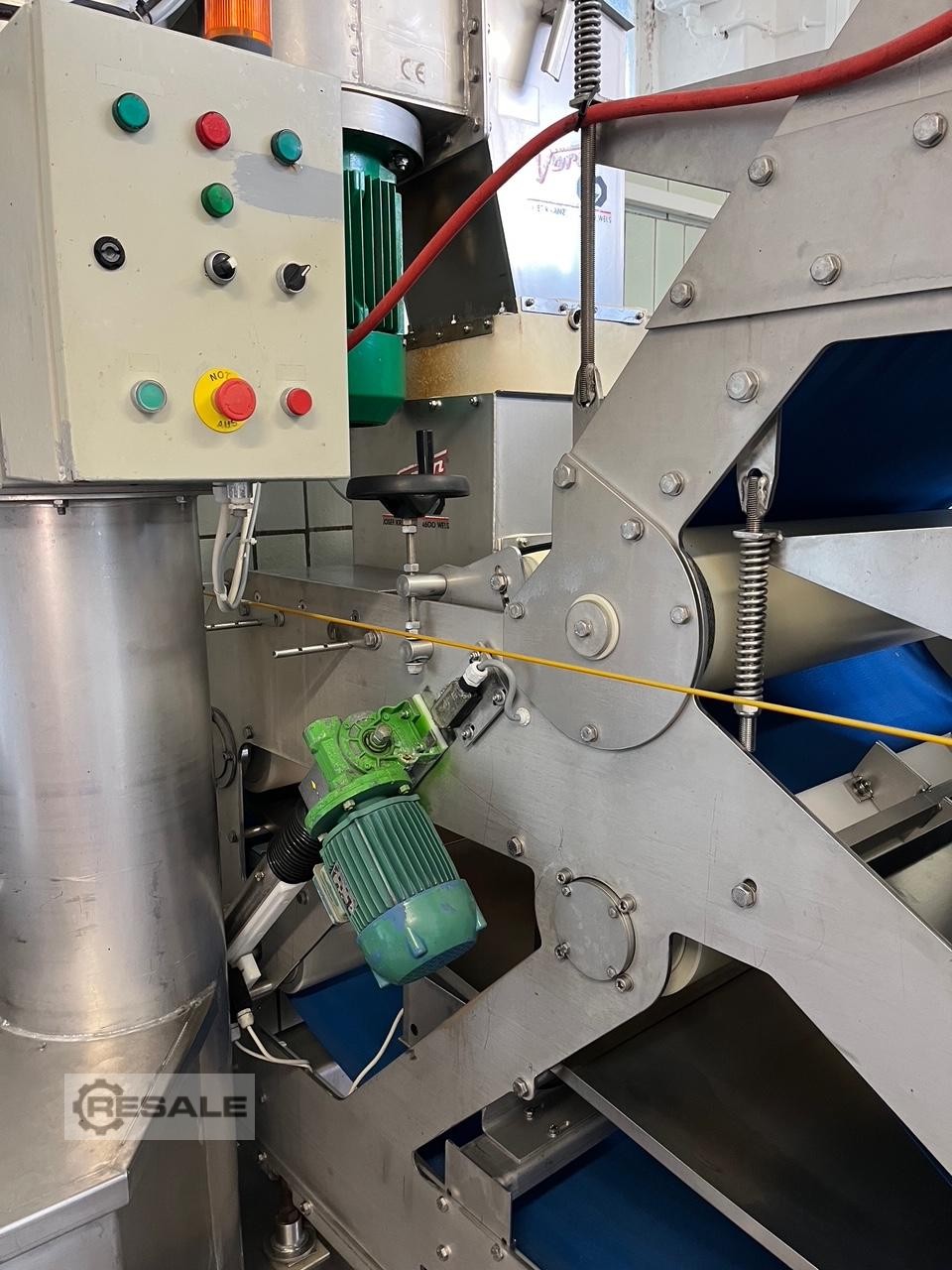

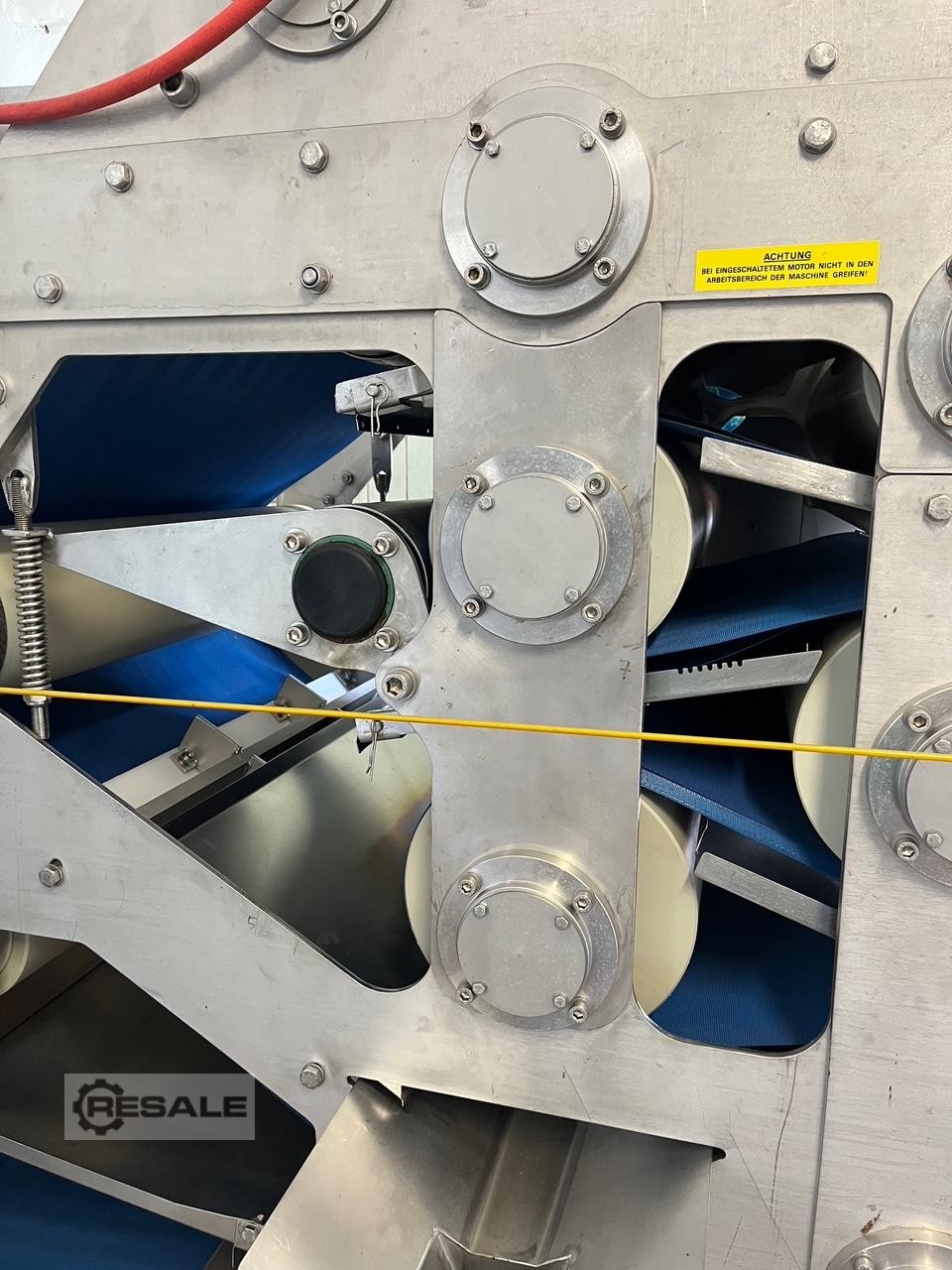

Apple belt press SBP 820 from the manufacturer VORAN
Strip width: 820 mm
Working width: 600 mm
Machine dimensions (LxWxH): 3230 x 1605 x 2020 mm
Machine weight: 1800 kg
Working Speed: 0.8 - 3.3m/minute
Contact time: 5.5 - 1.4 minutes
Drive: infinitely variable 1.5 kW
Material: Stainless Steel
Nominal capacity: up to 6 t/hour
Year of brush cleaning: 2003
- Yield approx. 72%
- Overall length 3230 mm, total width 1605 mm, height 2020 mm
- 4 clamping / control motors of 0.37 kW each
- 2 car wash motors of 0.12 kW each
- Total energy consumption approx. 1.0 kW / hour, water consumption
approx. 10 l / minute
Integrated brush cleaning of the sieve belts, additional connection of
an external HD cleaner available

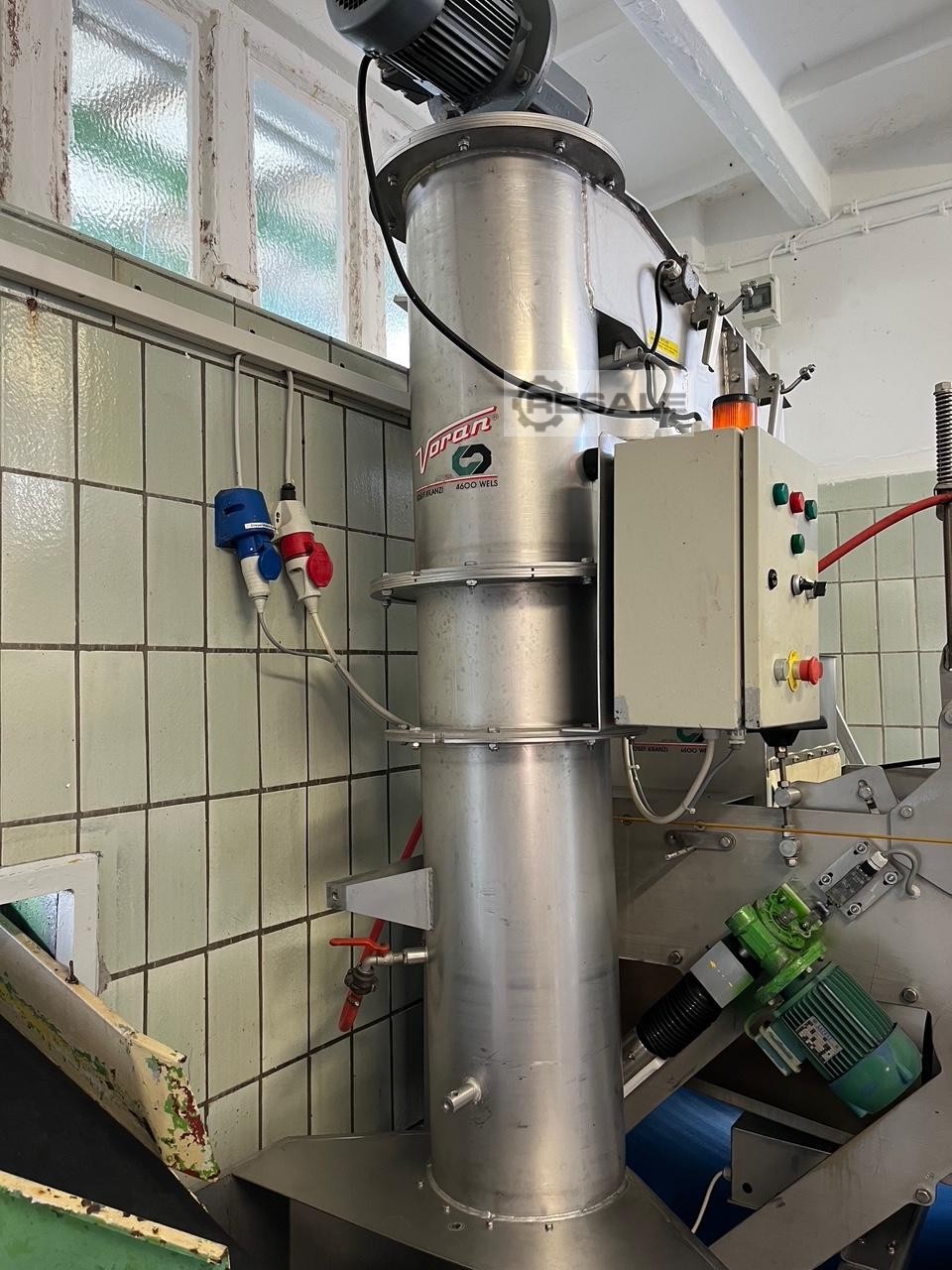

Car wash WAR 65:
- Maximum grinding capacity: 6 t / hour
- Screw diameter: 320 mm
- Worm motor power: 2.2 kw
- Mill motor power: 5.5 kw
- Weight: 423 kg
- Material: Stainless steel
2 interchangeable cutting sieves for predetermination of the desired
mash consistency
Germany
