vibration conveyor mill used for sale

Technical data X-travel: 300 mm Y-travel: 300 mm Z-travel: 400 mm Spindle holder: ISO 40 Spindle speeds: 40 - 4,000 rpm Table size: 620 x 390 mm Infinitely variable feeds: 4 - 4,000 mm/min Table load: 0.45 t Total power requirement: kW Machine weight: approx. 1.6 t Operating voltage: 380 V Auction-ID: A1-46872-30

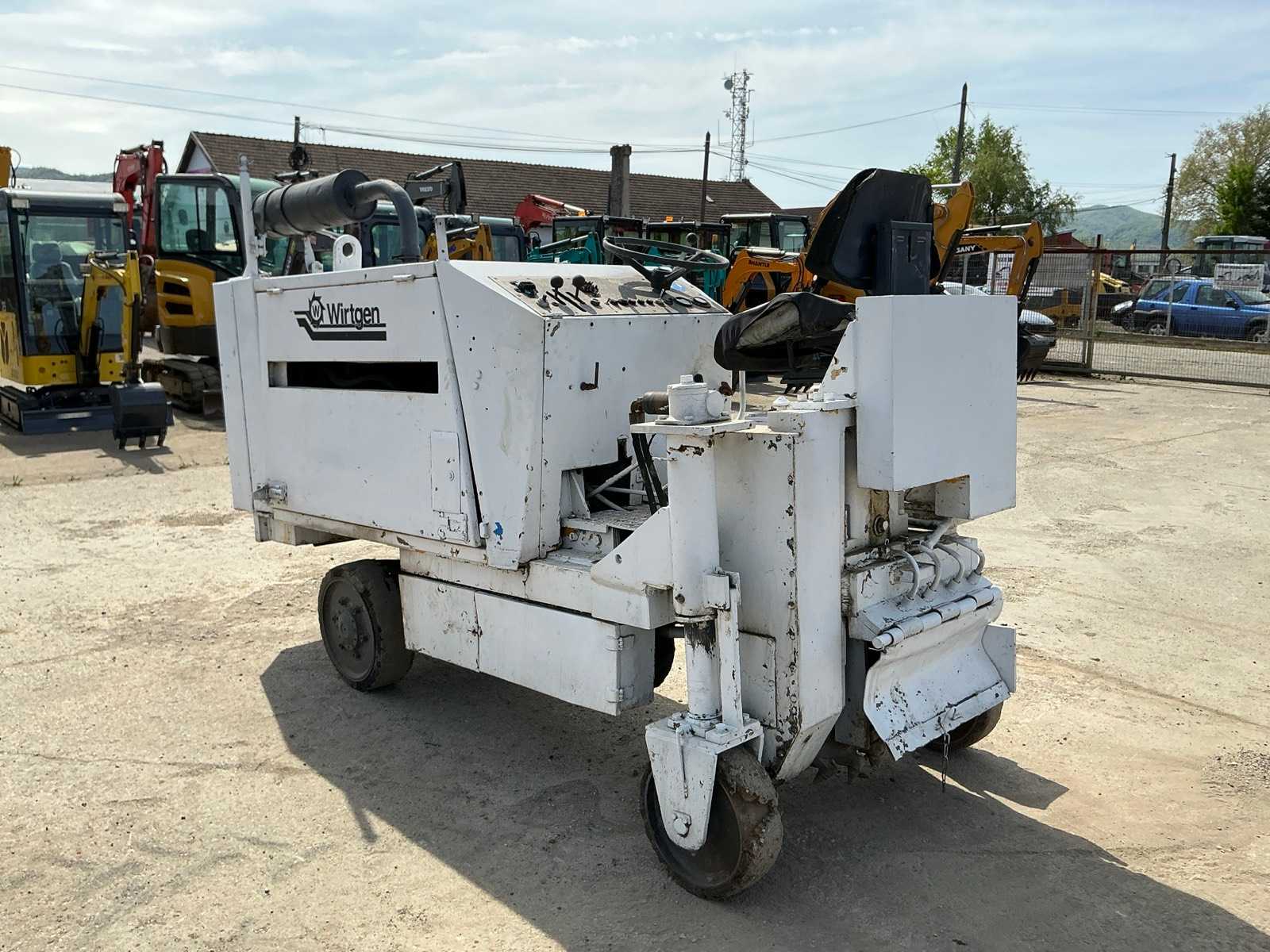

Machine type: Road milling machine / asphalt planer Manufacturer: Wirtgen Model: W500C Engine: KHD Deutz diesel engine Technical data: - Cold milling machine for asphalt and concrete surfaces - Compact design with 4-wheel chassis - Operator platform with steering wheel and controls - Discharge conveyor system (partially visible) Condition: - Used condition - Signs of wear, corrosion and paint damage Remarks: - CE marked - Suitable for road works and surface removal applications Auction-ID: A7-45990-22

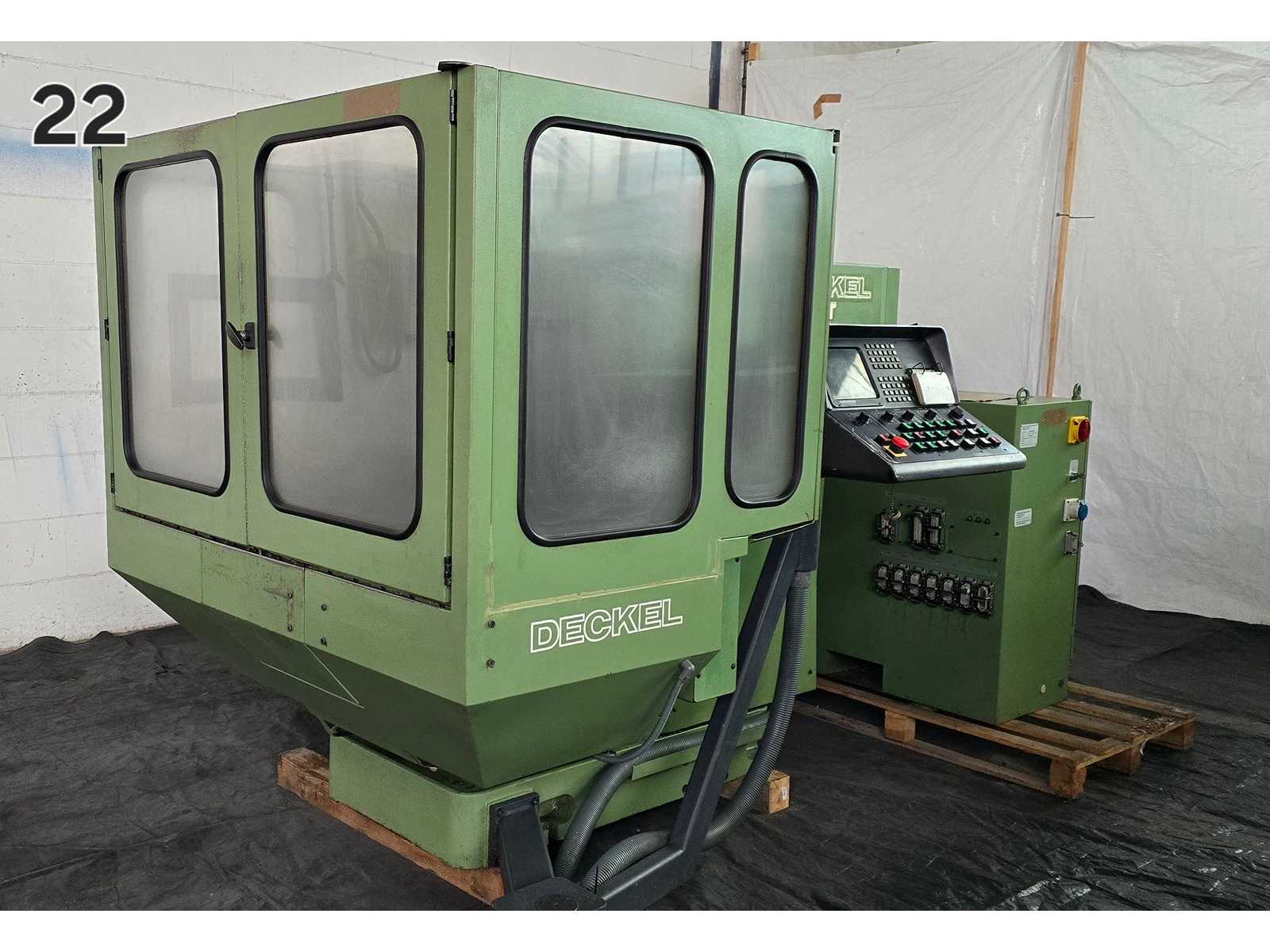

Milling machine DECKEL FP 4 AT Technical data Travel X / Y / Z: 560 / 500 / 390 mm Table size X / Y: 900 / 530 mm Spindle speed: up to 4,000 rpm Control: Contur-3 Recording: SK-40 Weight: approx. 3.4 t Auction-ID: A1-46872-29

Milling machine DECKEL FP 4 AT Technical data Travel X / Y / Z: 560 / 500 / 390 mm Table size X / Y: 900 / 530 mm Spindle speed: up to 4,000 rpm Control: Contur-3 Recording: SK-40 Weight: approx. 3.4 t Auction-ID: A1-46872-27

2 industrial welders with wire feeder Auction-ID: A7-45993-191

DOOSAN VCF 850 LSR II is a multi-purpose, vertical machining centers suitable for a wide range of applications. 1993 working hours (like new)

Drilling and milling machine (demonstration machine) with - Cross support - Feed via hand crank - Chip protection - 16mm drill chuck - Mechanical MK tool clamping Drilling capacity in steel 16 mm Projection 180 mm Drilling stroke 85 mm Spindle Holder MK 2 Spindle diameter 47 mm Spindle speeds 320 - 3300 rpm Table adjustment transverse 230 mm Table adjustment longitudinal 100 mm Table clamping area 420 x 155 mm Connection voltage 230 V Total power requirement 0.75 kW Condition: never used / new (5)

Serial number: 498-56 Important note: A new spindle has recently been installed Travel paths: X: 800 mm Y: 500+50 mm Z: 550 mm Spindle speed: 12000 rpm Tool holder: SK 40 Number of tool positions: 40 Control: SIEMENS SINUMERIK 840 D incl. chip conveyor from KNOLL, paper belt filter system from KNOLL, zero-point clamping system from SCHUNK Type: SDE 138 Table dimensions: 850 x 350 mm incl. the tool holders and tools on the tool changer incl. touch probe as shown in the pictures A truck with a width of 3000 mm is required for transport Reference: Wittner - Lot 11

Serial number: 07510001241 operating hours read: 72,899 Spindle hours read: 39,361 Control: SIEMENS SINUMERIK 840 D Rotation diameter: 640 mm Turning diameter: max. 640 mm Turning diameter Sub-spindle: 400 mm Spindle distance: 1500 mm Turning length: 1185 mm Max. workpiece weight: 150 kg Slide path X1: 550 mm Slide path Y1: 180 mm Slide path Z1: 1185 mm Slide path B1: 240 ° Slide path X2: 180 mm Slide path Z2: 1050 mm Slide path Z3: 1150 mm Spindle speed range: 3200/4000 rpm Rapid traverse speed of slide 1 (X/Y/Z): 40/24/70 m/min Rapid traverse speed of slide 2 (X/Z): 24/36 m/min Rapid traverse speed of slide 3 (Z): 36 m/min Tool holder: HSK 63 Spindle speed: 12,000 rpm incl. the tool holders on the turret incl. bar feeder, manufacturer: COCCHE GIOVANNI, type: CNC-DB 110, Year of manufacture: 2008, Serial number: CNCDB-08.306, Weight: 1500 kg Number of tool positions in the chain magazi ...

Drilling and milling machine with - Variable spindle speed - Digital depth display - Left/right switch - Cross support - Swivelling spindle head - Feeds via hand crank - Tool case with contents Drilling capacity in steel 13 mm Projection 170 mm Drilling stroke 50 mm Capacity finger milling machine 13 mm Spindle Holder MK 2 Spindle speeds: 50 - 3000 rpm Table adjustment transverse 220 mm Table adjustment longitudinal 160 mm Table clamping area 500 x 140 mm Connection voltage 230 V Total power requirement 0.5 kW Machine weight approx. 0.06 t Space requirement approx. 0.6 x 0.45 x 0.76 m Attention: Machine is without digital display! Condition: never used / new (5)

Drilling/milling machine with: • Tapping device • Cross table with adjustable guides • Drill quill feed • Manual transmission • SK 40 mount Drilling capacity in steel 40 mm Projection 275 mm Drilling stroke 120 mm Spindle Holder MK 4 Speed range 75 - 3200 rpm Table adjustment transverse 190 mm Table adjustment longitudinal 490 mm Table clamping area 700 x 210 mm Connection voltage 400 V Milling cutter diameter max. 80 mm Total power requirement 1.1/1.5 kW Condition: never used / new (5)

Equipment: Drill chuck with ISO-30 mount Digital depth display Left/right switch. Emergency stop Swivelling drill head Spindle protection. Feed via handwheel. Small tool case Machine base optional. Drilling capacity in steel 45mm Projection 230 mm Drilling stroke 125 mm Spindle holder ISO 30 Spindle speeds 75 - 1600 rpm max. cutter diameter 80 mm Table adjustment transverse 560 mm Table adjustment longitudinal 230 mm Table clamping area 800 x 240 mm max. distance between work table and spindle nose 460 mm Connection voltage 230 V Total power requirement 1.1 kW Machine weight approx. 320 kg Space requirements approx. 1.0 x 0.8 x 1.45 m

Drilling/milling machine with: • Digital display • Digital depth gauge for quills • Adjustable guides through wedge strips • Large 12-step speed range from 75 - 3200 rpm • Extremely smooth running due to hardened and ground gears running in oil bath • Right-counterclockwise rotation • Prism guides in all axes • Gear head can be swivelled 90° • Chip protection with safety circuit Machine base optional. Not included. Drilling capacity in steel 40 mm Projection 290 mm Drilling stroke 130 mm Spindle holder SK 40 Spindle speeds 75 - 3200 rpm Table adjustment transverse 500 mm Table adjustment longitudinal 230 mm Table clamping area 720 x 210 mm Connection voltage 400 V Milling cutter diameter max. 80 mm Total power requirement 1.1 kW Machine weight approx. 0.35 t Dimensions approx. 1.1 x 0.9 x 1.2 m Condition: never used / new (5)

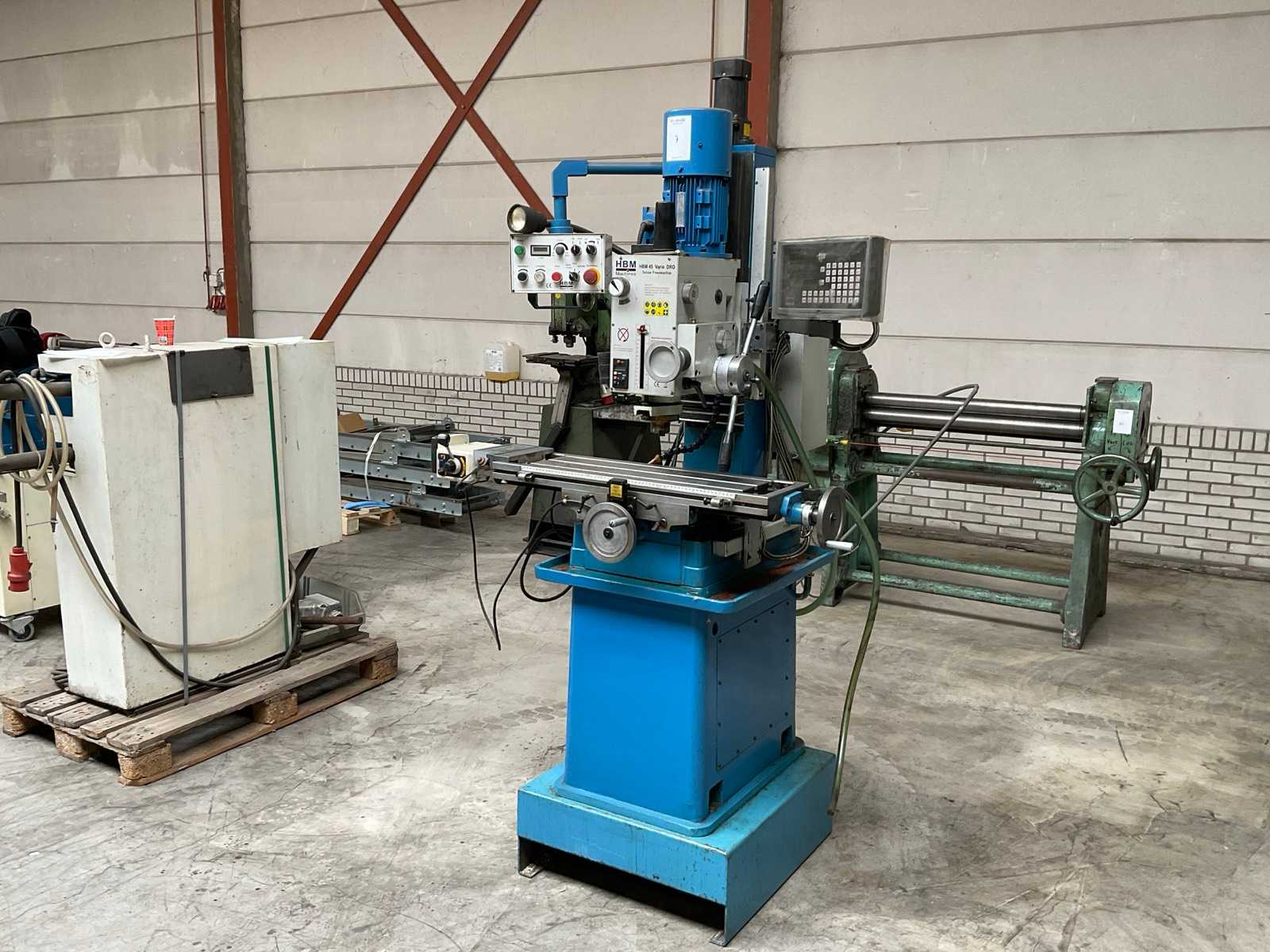

Equipment: 3-axis digital display Digital depth display Motorized feed for X and Y Left/Right Run Emergency stop Swivelling drill head Spindle protection. Machine Light Tool case with contents Drilling capacity in steel 35 mm Projection 230 mm Drilling stroke 125 mm Spindle holder ISO 40 Spindle speeds 115 - 1750 rpm Table adjustment transverse 375 mm Table adjustment longitudinal 175 mm Table clamping area 1000 x 240 mm Max. distance between work table and spindle nose 120 - 375 mm Connection voltage 400 V Total power requirement 0.85 / 1.5 kW Machine weight approx. 0.95 t Space requirement approx. 1.3 x 1.2 x 2.1 m Condition: never used / new (5)

Facilities Two-stage gearbox via flat belt (no longer plastic gears) Infinitely variable speed range Quill fine feed via switchable handwheel Digital quill depth display Right-left rotation Robust dovetail guides with adjustable wedge strips Bellows covers for the guideways Adjustable control panel Chip protection with safety circuit Machine base optional. Drilling capacity in steel 25 mm Projection 185 mm Drilling stroke 50 mm Spindle mount MK 3 Spindle speeds: 50 - 2500 rpm Table adjustment transverse 178 mm Table adjustment longitudinal 480 mm Table clamping area 700 x 180 mm Connection voltage 230 V Total power requirement 0.75 kW Machine weight approx. 160 kg Space requirement approx. 0.75 x 0.8 x 0.9 m Condition: never used / new (5)

This 5-axis Mazak INTEGREX i-200 S was manufactured in 2017. It features full 5-axis simultaneous machining, a maximum machining diameter of Ø658 mm, and a maximum machining length of 1519 mm. The machine includes a robust tool magazine capacity of 72 positions and is equipped with both main and second spindles for enhanced capabilities. If you are looking to get high-quality turning and milling capabilities, consider the Mazak INTEGREX i-200 S turn-mill centre. Contact us for further details.

Manual mill with Heidenhain DRO Table size: 1450 × 320 mm T-slots: 5 × 16 H-7 Distance between T-slots: 62 mm Table swivel: ±45° Longitudinal travel: 1130 mm Cross travel: 300 mm Vertical travel: 500 mm Distance spindle center to table: 500 mm Spindle taper: ISO-40 / ISO-50 Number of spindle speeds: 12 Spindle speed range: 35–1500 rpm Spindle axis to ram distance: 135 mm Universal head taper: ISO-50 Universal head speeds: 38–1440 rpm Manual ram travel: 650 mm Number of feeds: 12 Longitudinal and cross feed range: 10–510 mm/min Vertical feed range: 4–200 mm/min Rapid longitudinal/cross feed: 2500 mm/min Rapid vertical feed: 1000 mm/min Main motor power: 5.5 kW Feed motor power: 1.5 kW Coolant pump motor power: 0.09 kW Net weight: 2450 kg Gross shipping weight: 2650 kg Packing dimensions: 1820 × 1750 × 2100 mm Auction-ID: A7-46053-20

max. Drill cap. 45 mm; max. Milling cap. 32 mm; Discharge approx. 275 mm; transverse travel 230 mm; longitudinal travel 560 mm Auction-ID: A1-46386-7

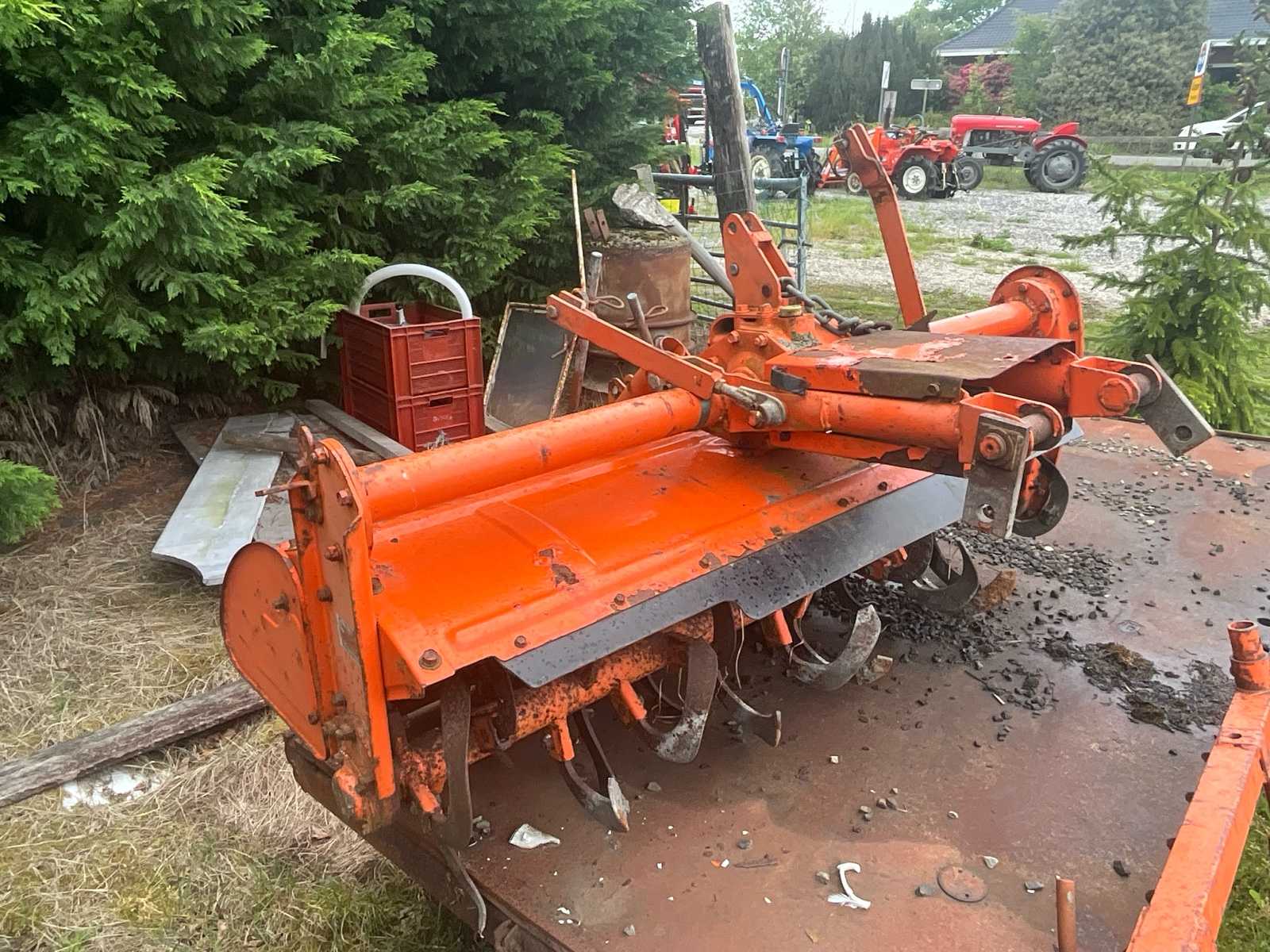

PTO-driven rotary harrow / tiller, type RS1300C in used condition. Machine equipped with 3-point suspension and milling rotor with blades. Suitable for tillage, horticulture, agriculture and greenhouse work. Compact model suitable behind compact agricultural tractors and mini tractors. Auction-ID: A3-43534-11966

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

turning diameter:356 mm turning length:705 mm control: CELOS M730 UM MAPPS swing dia.:742 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 ( ±50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min Rapid travel B-axis (parts transfer subspindle):734 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:15/18,5/18,5 kW Spindle 1 Torque:409/505 /599 Nm Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:4500 1/min Spindle 2 power:7,5/11 kW turret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min :3.7/5,5/5,5 kW torque rotary tools:14 / 24 Nm total power requirement:38 kVA weight of the machine ca.:6,3 t dimensions of the machine ca.:4 (9) x 2,1 x 2,2 m Parts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Millin ...

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...

turning diameter:65 mm turning length:120 mm control:Index C200-4D SL z-axis main spindle travel:390 mm z-axis subspindle travel:390 mm x-axis subspindle travel:600 mm Travel Y1:± 80 mm Travel y2:± 80 mm x-axis rapids:45 m/min y-axis rapids:15 m/min z-axis rapid travel:45 m/min Spindle 1 RPM:5000 1/min Spindle 1 Power:35,5/27,5 kW Spindle 1 Torque:170 /125 Nm Spindle 2 RPM:5000 1/min Spindle 2 power:35,5/27,5 kW Spindle 2 torque:170/125 Nm c-axis:0,00014 ° bar material dia.:65 mm spindle nose:AD 140 spindle bore:85 mm Milling spindle 1 RPM:18000 1/min Milling spindle 1 power:11 kW Milling Spindle1 torque:19 Nm Milling spindle 2 RPM:18000 1/min Milling Spindle 2 power:11 kW Milling spindle 2 torque:19 Nm B-axes swivel angle:230 ° B-axes torque:440 Nm B-axes angle resolution:0,001 ° Milling spindle 1 & 2 tool magazine:80 HSK A40 Milling spindle 2 tool magazine static tools :6 x VDI 25 ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:670 mm turning length:1540 mm control:F31iB5 Celos Fanuc 35iB5 swing diameter max. over bed cover:700 mm Travel turret No.1 (milling spindle) x/y/z:495 / ± 150 / 1562(+164) mm Rotation B-axis:-30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z:40/40/40 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:20,2/18,8 kW Torque of milling spindle:120 / 44 Nm tool taper milling spindle:Coromant Capto C6 Tool magazine for milling spindle (turret 1):76 Tool change time tool/tool, milling spindle:1,25 s Spindle 1 RPM:3000 1/min Spindle 1 Power:36 / 30 / 25 kW C-axis spindle 1:0,001 ° Bar capacity spindle 1:102 mm Spindle 2 RPM:4000 1/min Spindle 2 power:26 / 22 / 15 kW C-axis spindle 2:0,001 ° Bar capacity spindle 2:80 mm dimensions of the machine ca.:7,8 x 3,6 x 2,9 m Linear scales on axis:X, Y programmable steady:KLU-A530 & SLU-X3.2 Spindle 1 ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

turning diameter:356 mm turning length:705 mm control:MSX 850 MAPPS II swing dia.:755 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 (+-50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min rapid traverse Y-axis:10 m/min Rapid travel B-axis (parts transfer subspindle):30 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:6000 1/min Spindle 2 power:11 / 7,5 kW turret stations / rotary tool stations:16 / 16 VDI 30 :5.5/5,5/3,7 kW speed of driven tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) High precision Turning and Milling Centre with Y-axis and sub spindle. Easy programming by MAPPS II Control.

x-travel:14000 mm y-travel:3100 mm z-travel:1.200 mm (220 - 1.420) mm distance between columns:4.417 mm table-size:14.000 x 2.500 mm workpiece weight:15.000 kg/m drive capacity - spindle motor:25 kW spindle cone:63 HSK spindle turning speed range:18000 rpm milling feeds:30000 mm/min dimensions of the machine ca.:15.000 x 8.418 x 6.033 mm weight of the machine ca.:135 t CNC controller: SIEMENS 840 D universal milling head:5 Achsen mit ?C5C? Elektrospindel automatic tool changer:24 fach

x-travel:2000 mm y-travel:800 mm z-travel:800 mm table-size:2.000 x 700 mm workpiece weight:3500 kg drive capacity - spindle motor:17 kW spindle cone:50 ISO spindle turning speed range:3000 U/min dimensions of the machine ca.:5265 x 3250 x 2730 m weight of the machine ca.:9 t CNC controller:HEIDENHAIN TNC-426 :manuell used universal bed type milling machine with chip conveyor, automatic 2 position (vertical/horizontal) head 3000Rpm The retrofitting jobs done in this machine, are the same than those done to all of our machines. - Completely repair of the head, replacing bearings, shafts and engaging gears. - Completely replacement of all the bearings of the machine. - Replacing the joining screws of the bodies. - Completely repair of spindles. - Adjustment and repair of axis. - Grinding and adjusting all guides, because of deterioration. - Grinding and adjusting of the guide ways of the ...

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

x-travel:6000 mm y-travel:2100 mm z-travel:1500 mm Controls:HEIDENHAIN iTNC 530 BASIC DESIGN:. - basic design : travelling column :. WORKING RANGE -MILLING-:. - x-axis travel:6000 mm - y-axis travel:2100 mm - z-axis travel:1500 mm FLOOR PLATE:. - clamping surface (left-right):7000 mm - clamping surface (front-back):2000 mm WORKING SPINDLE / HEAD:. - spindle type : orthogonal head :. - tilting range:360 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - tilting range (2nd axis):270 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - spindle revolutions (min):20 /min - spindle revolutions (max):4000 /min - spindle diameter:90 mm - taper fixture : ISO SK 50 :. - spindle power (continuous):32 kW - torque (max.):910 Nm AXIS DRIVES:. - feed velocity (min):2 mm/min - feed velocity (max):20000 mm/min - rapid traverse:25000 mm/min ELE ...

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

x-travel:200 mm y-travel:100 mm z-travel:100 mm total power requirement:1,5 kW weight of the machine ca.:1,1 t dimensions of the machine ca.:0,6 x 0,6 x 1,8 m table-size:350 x 150 mm New class condition milling machine with vize and dividing head - Original year of manufacture unknown

x-travel:3600 mm y-travel:1250 mm z-travel:1600 mm table load capacity:8000 kp table clamping surface::4100 x 1050 feed range:10 - 5000 mm/min rapid traverse feeds:10000 mm/min spindle motor:29 kW spindle taper::ISO 50 spindle turning speed range:5 - 4000 U/min total power requirement:70 kW weight of the machine ca.:28 t dimensions of the machine ca.:8,5 x 5,4 x 3,2 m Machine with Heidenhain TNC 430 Steuerung - tool changer 30-fold - milling head indexable 2,5° - 4. axis turn table

x-travel:600 mm y-travel:450 mm z-travel:400 mm Table area:700 x 480 mm spindle turning speed range:10 - 3150 U/min spindle taper ISO:40 quill stroke:80 mm dimensions of the machine ca.:1,8 x 2,1 x 1,9 m total power requirement:8 kW weight of the machine ca.:3,5 t Machine with universal turn, sviwel and tilting table - CNC control DIALOG II - splash guards - misc. parts

spindle diameter:130 mm spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-travel:1000 mm w-axis:1075 mm table surface area:2000 x 1800 mm workpiece weight max.:8000 kg spindle turning speed range:4,5 x 900 U/min spindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/min faceplate diameter:785 mm rapid traverse::5000 mm/min total power requirement:40 kW weight of the machine ca.:35 t dimensions of the machine ca.:5,5 x 6,9 x 5,2 m Machine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds - table indexing 4 x 90° - facing head 785 mm - exhauster - various arbors and tooling

x-travel:1000 mm y-travel:600 mm z-travel:550 mm fixed clamping table:1200 x 600 mm spindle drive motor:9 kW spindle taper ISO:40 spindle turning speed range:10 - 5000 U/min feed range:2 - 6000 mm/min total power requirement:15 kW weight of the machine ca.:6 t

x-travel:6.300 mm y-travel:2.000 mm z-travel:2.700 mm tool taper:ISO 50 surface area:7.000 x 3.000 mm turning speed range:60 - 4.000 U/min power capacity:22/30 kW feeds:0 - 10.000 mm/min rapid traverse:20.000 mm/min Tool changer:80 max. workpiece weight:8.000 kg Plate clamping area 7,000 x 3,000 mm CNC rotary table 1,500 mm Orthogonal milling head Deep drilling unit IKZ Paper belt filter Measuring probe

x-travel:1660 mm y-travel:760 mm z-travel:660 mm weight of the machine ca.:8700 t dimensions of the machine ca.:4.320 x 3.380 mm distance spindlenose - table min./max.:808 mm distance work spindle /surface of the table:155 - 815 mm Machine height:2850 mm floor space required (w/o switchgear cabinet):4.320 x 3.380 mm spindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW tool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min surface area:2.000 x 760 mm max. table load:1.000 kg feeds X-axis:1 - 5.000 mm/min rapid traverse X-axis:24.000 m/min rapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/min feeds Z-axis:1 - 5.000 mm/min rapid traverse Z-axis:20.000 m/min

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm Speed of boring spindles:1,25 - 1250 U/min. ram stroke:700 mm dimension of the ram:340 x 340 mm mm spindle taper ISO:50 rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m CNC control Siemens 840 Dsl completely modernized 2010 FIBRO CNC drilling work table 2500 x 2500 mm 50 to. workpiece weight Longitudinal travel 2500 mm Angular milling head 4 x 90° Universal angular milling head Panel area approx. 10000 x 5000 mm Chip conveyor and coolant device Aerostatic guides

x-travel:6500/13150 mm y-travel:4000 mm z-travel:1250 mm w-axis:2250 mm table surface area:5500/12150 x 3000 mm max. workpiece weight:70.000/105.000 kg ram head dimension:480 x 510 mm milling spindle motor:63 kW max. torque on the spindle:3300 Nm tool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/min feed speeds:1 - 24000 mm/min w-axis:1 - 6000 mm/min distance between columns:3500 mm passage:3000 mm total power requirement:120 kW weight of the machine ca.:245 t dimensions of the machine ca.:29,0 x 7,7 x 8,1 m Machine is in nearly new condition and was completely modernized in 2020! With CNC SIEMENS 840 D Automatic tool magazine for 153 tool positions Automatic milling head magazine for 6 milling heads Machining module ? straight ? straight long ? Machining module ? angle standard ? 4000 rpm, 144 x 2.5°, ISO 50 Machining module ? narrow angle extended ? 40 kW, 4000 rpm, 1800  ...

bore capacity in steel (diameter):- mm throat:- mm bore stroke:- mm x-axis:1.800 mm y-axis:1.600 mm z-axis:1.250 mm w-axis:630 mm max. table load:5.000 kg table length:1.400 mm table width:1.600 mm spindle diameter:105 mm spindle turning speed range:3.300 U/min numbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary table Chip Conveyor Oil cooling unit (chiller) Touch probe Renishaw RMP60 Upgrades in 2024 and 2025 Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZ New linear scales Heidenhain in X and Z axis including cabling retrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axis new TOS Varnsdorf parts for tool clamping and automatic tool changer arm Overhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor) New Siemens hand wheel
