vibrating table used for sale

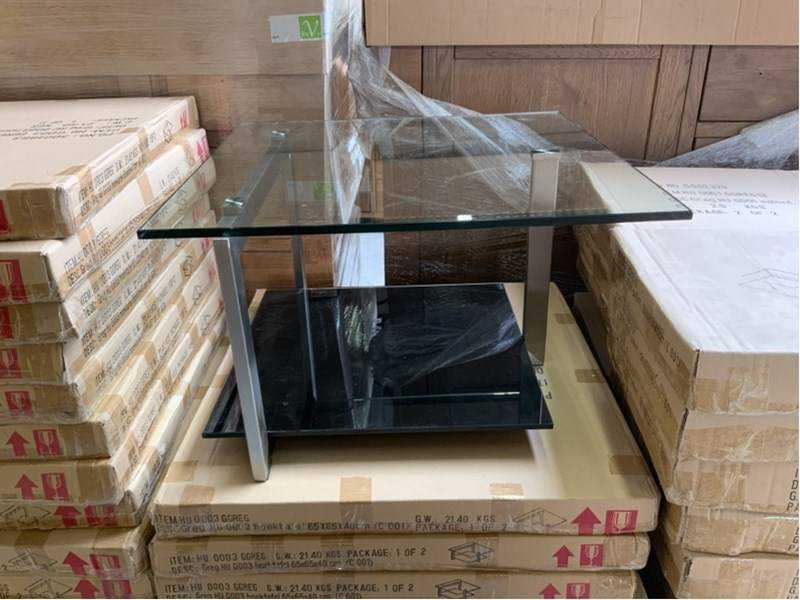

Glass coffee table with safety glass and stainless steel 65x65 cm Auction-ID: A1-49894-179

RRP: €8,150.00 Auction-ID: A1-49894-1

Glass coffee table with safety glass and stainless steel 65x65 cm Auction-ID: A1-49894-183

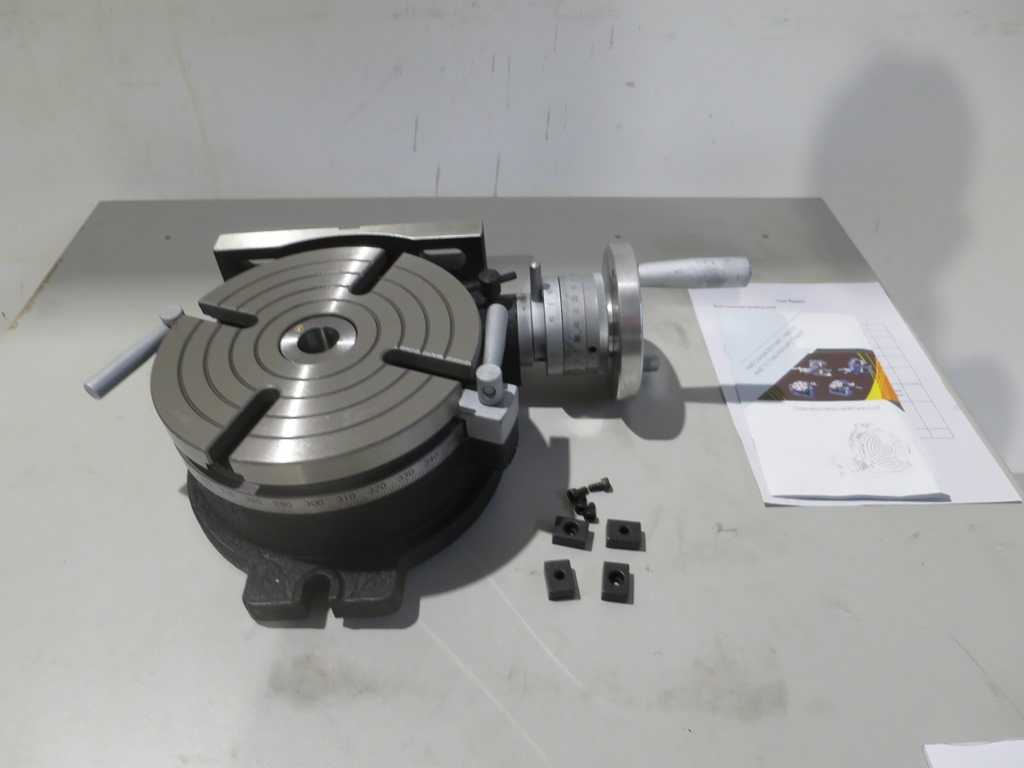

Dividing Table: Diameter 200 mm Height 105 mm Machine weight approx. 25 kg Space requirement approx. 400 x 280x 150 mm Condition: never used / new (5) Auction-ID: A7-49782-579

spindle diameter:130 mm spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-travel:1000 mm w-axis:1075 mm table surface area:2000 x 1800 mm workpiece weight max.:8000 kg spindle turning speed range:4,5 x 900 U/min spindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/min faceplate diameter:785 mm rapid traverse::5000 mm/min total power requirement:40 kW weight of the machine ca.:35 t dimensions of the machine ca.:5,5 x 6,9 x 5,2 m Machine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds - table indexing 4 x 90° - facing head 785 mm - exhauster - various arbors and tooling

bore capacity in steel (diameter):- mm throat:- mm bore stroke:- mm x-axis:1.800 mm y-axis:1.600 mm z-axis:1.250 mm w-axis:630 mm max. table load:5.000 kg table length:1.400 mm table width:1.600 mm spindle diameter:105 mm spindle turning speed range:3.300 U/min numbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary table Chip Conveyor Oil cooling unit (chiller) Touch probe Renishaw RMP60 Upgrades in 2024 and 2025 Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZ New linear scales Heidenhain in X and Z axis including cabling retrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axis new TOS Varnsdorf parts for tool clamping and automatic tool changer arm Overhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor) New Siemens hand wheel

spindle diameter:100 mm x-travel:1250 mm y-travel:1100 mm z-travel:950 mm spindle turning speed range:2500 U/min Rotary-table:1100 x 1000 mm table surface area:1000 x 1100 mm tool clamping:69871 DIN spindle stroke:630 mm spindle taper:SK50 total power requirement:22/34 kW max. workpiece weight:3000 kg weight of the machine ca.:13000 kg

x-travel:3500 mm y-travel:2500 mm z-travel:1250 mm w-axis:800 mm bore spindle speeds:2500 U/min table load:12 t dia. of rotary table:1800 x 2200 mm numbers of positions in the tool changer:60 ? Overhauled in 2025 and 2026 ? The spindle was relubricated and new spindle bearings fitted in 2025 by technicians from TOS Varnsdorf ? 12-month warranty and guarantee on geometric accuracy Scope of repairs to the X, Z and B axes 1. Complete dismantling and cleaning of the machine bed for the X and Z axes as well as the B axis 2. Regrinding of X and Z axis guide ways at Czech manufacturer of CNC horizontal boring machines 3. Removal of the old lining from the X- and Z-axis slides and the B-axis 4. Anchoring of re-grinded X and Z axis machine bed 5. New, hand-scraped lining made from Biplast-V on the X- and Z-axis slides, and from new Biplast-V on the B-axis 6. Installation of ball screws, lin ...

spindle diameter:150 mm x-travel:3.000 mm y-travel:2.000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 mm column travel:1.500 mm high speed spindle taper ISO:50 bore spindle turning speed range:3,2 - 1.600 U/min table surface area:2.000 x 2.500 mm max. table load:25.000 kg rapid traverse speed:5/10 m/min feed speeds:1 - 1.500 mm/min faceplate speeds from - to:3,2 - 140 U/min dimensions of the machine ca.:8,4 x 6,8 x 5,9 m weight of the machine ca.:57 t total power requirement:100 kW Full B-axis Aerostatic guides Coolant system with IKZ

table length:2200 mm table width:2500 mm table load:16 t total power requirement:6,5 kW feed speeds:1,25 - 160 mm/min rapid traverse speed:2000 mm/min longitudinal adjustment:1500 mm weight of the machine ca.:12 t dimensions of the machine ca.:4,1 x 2,65 x 0,95 m Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

spindle diameter:150 mm x-travel:3000 mm y-travel:2000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 column travel:1500 mm spindle taper ISO:50 bore spindle turning speed range:3,2 - 1600 U/min table surface area:2000 x 2500 mm max. table load:25000 kg rapid speed:5 / 10 m/min feed speeds:1 - 5000 mm/min total power requirement:100 kW weight of the machine ca.:57 t dimensions of the machine ca.:8,4 x 6,8 x 5,9 m with CNC SIEMENS 840 D full B-axis aerostatic guideways facing head ( 3,2 - 140 rpm ) angular milling head 1000 Nm coolant attahcmnet with internal cooling supply

spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-axis:1520 mm w-axis:1000 mm table surface area:2000 x 1800 mm workpiece weight:8 t spindle motor:18 kW spindle taper ISO:50 spindle turning speed range:4,5 - 900 U/min faceplate diameter:785 mm rapid traverse:5 m/min total power requirement:40 kW dimensions of the machine ca.:5,5 x 6,9 x 5,2 m weight of the machine ca.:35 t Machine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control - inf. variable spindle spped - 4 x 90° table positioning - diverse toolholders - dDust exhauster

spindle diameter:120 mm x-travel:1250 mm y-travel:1250 mm z-travel:800 mm W-axis (spindle longitudinal):600 mm Speed of boring spindles:1- 2000 U/min. spindle taper ISO:50 table surface area:1000 x 1000 mm total power requirement:55 kW weight of the machine ca.:18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment

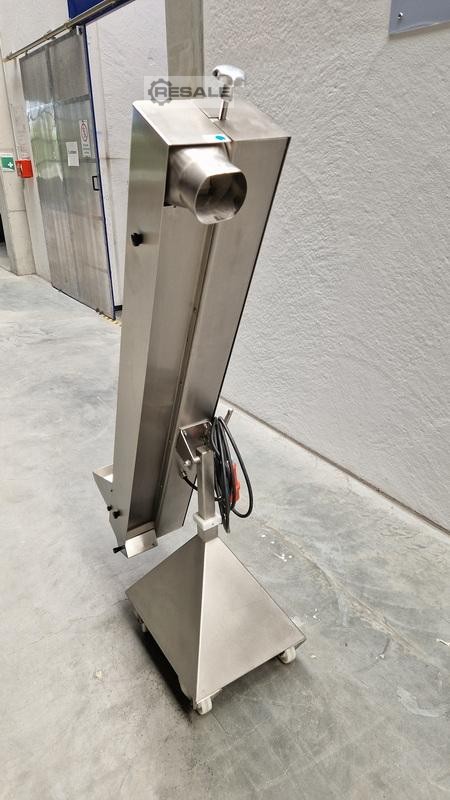

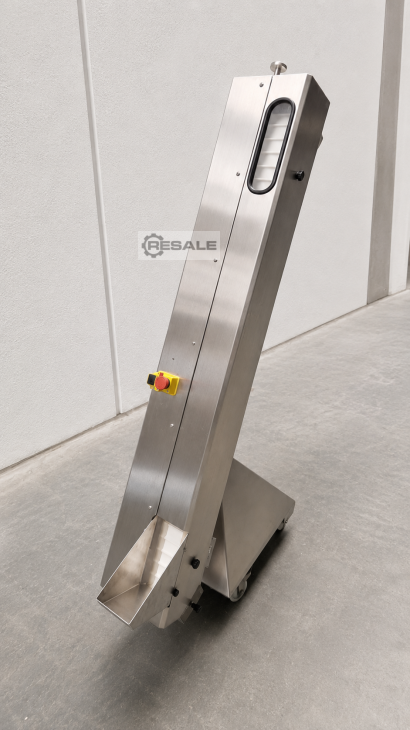

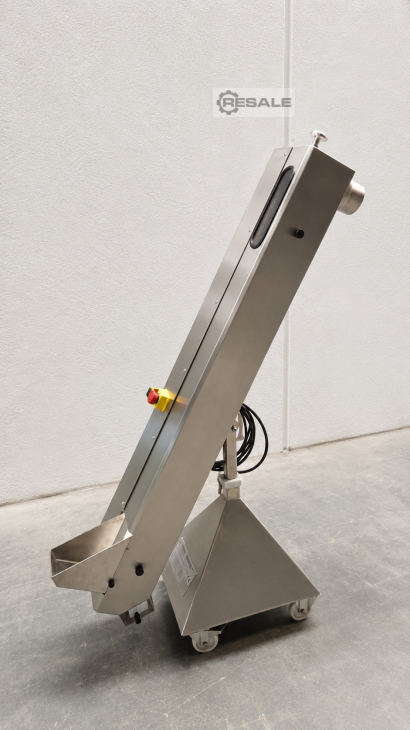

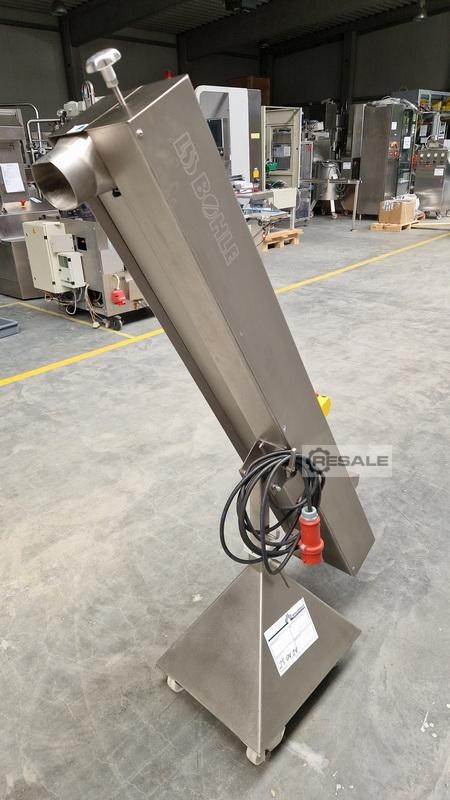

Conveyor belt length 1,350 mm Conveyor belt width 100 mm Bridge spacing 30 mm, bridge height 5 mm Conveyor belt made of plastic white, as good as new Tilt adjustable 1 Speed Dust compartment Mobile Drive 400V/50Hz
