vertical mill used for sale

A CNC crankshaft milling machine Heller without chuck is available. Milling speed: 300m/min, workpiece length: 800mm, max. workpiece diameter: 700mm, pin diameter range: 35mm-80mm, clamping diameter: 180mm, travel path W/U/X/Z: 625mm/180mm/180mm/660mm, rotation range X: 360°, control system: Siemens Sinumerik 840D. Documentation available. An on-site inspection is possible.

Milling machine Mikron WF 21C Year of Make: 1996 Technical data X-axis: 400 mm Y-axis: 400 mm Z-axis: 400 mm Clamping table Vertical clamping surface: 300 x 450 mm Number of threaded holes: 2 x 6 Auction-ID: A1-46872-37

Table dimensions ( x-y/mm) 3000 x 6000 Stroke ( X/mm) 7000 Stroke ( Y/mm) 3200 Stroke ( Z/mm) 1500 Type of controll heidenhain tnc 640 Number of spindle per minute 18000 Chuck connection hsk a 63 Type of head universal automatic bi-rotary Advances 50.000 mm/min Tools connection iso 50 Height ( x/mm) 5380

Type: Tool cabinet with assorted milling cutters and tool holders Manufacturer: Various manufacturers Remarks: Metal storage cabinet with multiple drawers, assorted milling cutters, end mills, boring tools, collets, adapters and tool holders included, contents as shown in pictures, used condition with signs of wear Scope of delivery: Complete cabinet with visible tooling and accessories Auction-ID: A7-45993-118

Hermle UWF 900 Year of manufacture according to the wiring diagram: 1992 Control: Heidenhain 407 Facilities Handwheel Network connection Speed: 4,000 rpm Technical data X-travel: 600 mm Y-travel: 400 mm Z-travel: 420 mm Tool holder: SK 40 Distance spindle / table: 127 - 567 mm Spindle diameter in front bearing: 55 mm Auction-ID: A1-46872-40

Milling machine Mikron WF 32 CH Technical data X-axis: 560 mm Y-axis: 500 mm Z-axis: 400 mm Clamping table Vertical clamping surface: 300 x 450 mm Number of threaded holes: 2 x 6 Speed range: 25 - 6,300 rpm Swivel range vertical milling head: +45° Auction-ID: A1-46872-38

strong>Feed in longitudinal direction table (X-axis): 560 mm Feed in transverse direction head (Y-axis): 500 mm Head adjustment in height (Z-axis): 450 mm Table dimensions: 530 x 900 mm Max. weight on the table: 300 kg Spindle holder (ISO): SK 40 (M16) Power at the spindle: 2 - 4 kW Tool Changer: 20 Tools Speed range: 21 / 40 - 4,000 rpm Main motor power: 19 kVA Length: 4,400 mm Width: 4,300 mm Height: 2,150 mm Weight: 2,970 kg Auction-ID: A1-46872-31

Milling machine DECKEL FP 4 AT Technical data Travel X / Y / Z: 560 / 500 / 390 mm Table size X / Y: 900 / 530 mm Spindle speed: up to 4,000 rpm Control: Contur-3 Recording: SK-40 Weight: approx. 3.4 t Auction-ID: A1-46872-29

Milling machine MAHO MH 600 W Technical data Max. feed in longitudinal direction (X-axis): 600 mm Max. feed in transverse direction (Y-axis): 400 mm Max. feed in height (Z-axis): 400 mm Dimensions of the table clamping surface: 900 x 480 mm Power at the spindle: 5.5 kW Milling Head Spindle Holder (ISO): ISO 40 Speed range: 40 - 4,000 rpm Digital reading: Millplus CNC Weight: 2,900 kg Auction-ID: A1-46872-43

Milling machine DECKEL FP 4 AT Technical data Travel X / Y / Z: 560 / 500 / 390 mm Table size X / Y: 900 / 530 mm Spindle speed: up to 4,000 rpm Control: Contur-3 Recording: SK-40 Weight: approx. 3.4 t Auction-ID: A1-46872-27

SAEILO CONTUR TV 1000 Manufacturer: SAEILO (Germany) Model: CONTUR TV 1000 Year of Make: 1997 Control: HEIDENHAIN Technical data X/Y/Z axis movement: 1016/610/508mm Table size: 1080 x 580 mm Max. table load: 600 kg Tool change: 40-fold Spindle taper: SK 40 Cutting feed speed X / Y / Z: 0.25 to 5,080 mm/min Rapid traverse X / Y / Z: 20,000 mm/min Rapid traverse Z: 1,500 mm/min Spindle speed: 5 - 8,000 rpm Spindle power: 11 / 16.5 kW Machine weight: 6,000 kg Auction-ID: A1-46872-46

Technical data X-travel: 300 mm Y-travel: 300 mm Z-travel: 400 mm Spindle holder: ISO 40 Spindle speeds: 40 - 4,000 rpm Table size: 620 x 390 mm Infinitely variable feeds: 4 - 4,000 mm/min Table load: 0.45 t Total power requirement: kW Machine weight: approx. 1.6 t Operating voltage: 380 V Auction-ID: A1-46872-30

Machine type: Road milling machine / asphalt planer Manufacturer: Wirtgen Model: W500C Engine: KHD Deutz diesel engine Technical data: - Cold milling machine for asphalt and concrete surfaces - Compact design with 4-wheel chassis - Operator platform with steering wheel and controls - Discharge conveyor system (partially visible) Condition: - Used condition - Signs of wear, corrosion and paint damage Remarks: - CE marked - Suitable for road works and surface removal applications Auction-ID: A7-45990-22

2 industrial welders with wire feeder Auction-ID: A7-45993-191

DOOSAN VCF 850 LSR II is a multi-purpose, vertical machining centers suitable for a wide range of applications. 1993 working hours (like new)

CNC Num 720 automatic lubrication Auction-ID: A1-46647-403

Manual mill with Heidenhain DRO Table size: 1450 × 320 mm T-slots: 5 × 16 H-7 Distance between T-slots: 62 mm Table swivel: ±45° Longitudinal travel: 1130 mm Cross travel: 300 mm Vertical travel: 500 mm Distance spindle center to table: 500 mm Spindle taper: ISO-40 / ISO-50 Number of spindle speeds: 12 Spindle speed range: 35–1500 rpm Spindle axis to ram distance: 135 mm Universal head taper: ISO-50 Universal head speeds: 38–1440 rpm Manual ram travel: 650 mm Number of feeds: 12 Longitudinal and cross feed range: 10–510 mm/min Vertical feed range: 4–200 mm/min Rapid longitudinal/cross feed: 2500 mm/min Rapid vertical feed: 1000 mm/min Main motor power: 5.5 kW Feed motor power: 1.5 kW Coolant pump motor power: 0.09 kW Net weight: 2450 kg Gross shipping weight: 2650 kg Packing dimensions: 1820 × 1750 × 2100 mm Auction-ID: A7-46053-20

max. Drill cap. 45 mm; max. Milling cap. 32 mm; Discharge approx. 275 mm; transverse travel 230 mm; longitudinal travel 560 mm Auction-ID: A1-46386-7

PTO-driven rotary harrow / tiller, type RS1300C in used condition. Machine equipped with 3-point suspension and milling rotor with blades. Suitable for tillage, horticulture, agriculture and greenhouse work. Compact model suitable behind compact agricultural tractors and mini tractors. Auction-ID: A3-43534-11966

Auction-ID: A1-46386-16

This 5-axis Mazak INTEGREX i-200 S was manufactured in 2017. It features full 5-axis simultaneous machining, a maximum machining diameter of Ø658 mm, and a maximum machining length of 1519 mm. The machine includes a robust tool magazine capacity of 72 positions and is equipped with both main and second spindles for enhanced capabilities. If you are looking to get high-quality turning and milling capabilities, consider the Mazak INTEGREX i-200 S turn-mill centre. Contact us for further details.

This 5-axis WALDRICH COBURG 17-10 FP NC/5 was manufactured in 1985 and lastly retrofitted in 2011. It features a maximum workpiece weight of 60 tons and a substantial table size of 2,500 mm by 5,000 mm. The machine is equipped with a Sinumerik 840 control system, ensuring precision in operations. If you are looking to get high-quality milling capabilities, consider the WALDRICH COBURG 17-10 FP NC/5 gantry milling machine we have for sale. Contact us for further details.

Ball Mill GMP Manufacturer: Pharmag consisting of Pharmag Universal Actuator Type UAM and the BM-5 Stainless Steel Ball Mill Year of construction 2021 very good condition Documents available, incl. qualification.

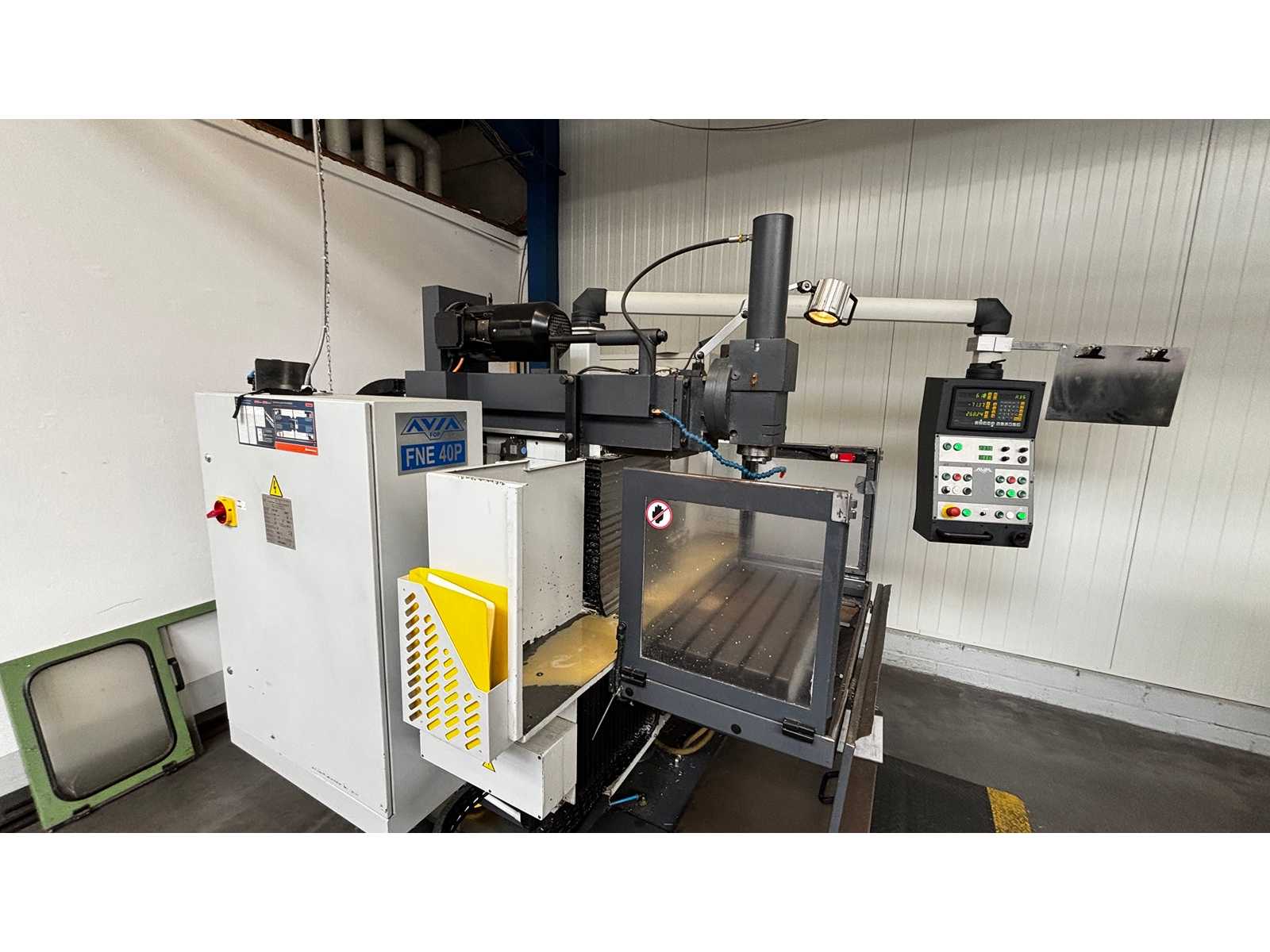

AVIA FNE 40P – Universal milling machine built in 2014 Highlights • Year of construction 2014 • Model AVIA FNE 40P • 3-axis digital display ARBAH-M • Tool holder SK 40 • Rotatable milling head • Without vertical milling unit • Closed work area • Coolant system • Machine weight approx. 2000 kg Technical data • Travel distances: 3 axes (X, Y, Z) • Table dimensions: approx. 800 x 400 mm • Max. tool diameter: 125 mm • Max. tool weight: 6 kg • Machine dimensions: approx. 2300 x 2100 x 2100 mm • Machine weight: approx. 2000 kg Equipment • Protective cover with viewing window • Control panel • Machine lighting • Emergency stop switch Auction-ID: A7-46968-1

Dear Ladies and Gentlemen, at the Bruchsal location we offer a used machine for sale without obligation: Worm Gear Milling Machine Gear Shaping Machine Manufacturer: Gleason Pfauter Type: GP200 Year of Make: 2002 Weight: approx. 9.7 t If you are interested, please leave us an offer until 15.06.2026, taking into account the following points: If you have any questions or would like to arrange a viewing appointment (from 01.06.2026), please do not hesitate to contact us.

Inv. Num. : 9154 Type: 17-10 FP NC/5 Producer: Waldrich Coburg Created: 1985, GO 2011 Parameters: Operating system: Sinumerik 840 Table length: 5000 mm Table width: 2500 mm Max. workpiece weight: 60000 kg Weight: 125000 kg Coolant leaks out in the spindle area of the machine. GOs were carried out on the machine in 1997/2008/2011.

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

turning diameter:356 mm turning length:705 mm control: CELOS M730 UM MAPPS swing dia.:742 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 ( ±50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min Rapid travel B-axis (parts transfer subspindle):734 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:15/18,5/18,5 kW Spindle 1 Torque:409/505 /599 Nm Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:4500 1/min Spindle 2 power:7,5/11 kW turret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min :3.7/5,5/5,5 kW torque rotary tools:14 / 24 Nm total power requirement:38 kVA weight of the machine ca.:6,3 t dimensions of the machine ca.:4 (9) x 2,1 x 2,2 m Parts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Millin ...

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...

turning diameter:65 mm turning length:120 mm control:Index C200-4D SL z-axis main spindle travel:390 mm z-axis subspindle travel:390 mm x-axis subspindle travel:600 mm Travel Y1:± 80 mm Travel y2:± 80 mm x-axis rapids:45 m/min y-axis rapids:15 m/min z-axis rapid travel:45 m/min Spindle 1 RPM:5000 1/min Spindle 1 Power:35,5/27,5 kW Spindle 1 Torque:170 /125 Nm Spindle 2 RPM:5000 1/min Spindle 2 power:35,5/27,5 kW Spindle 2 torque:170/125 Nm c-axis:0,00014 ° bar material dia.:65 mm spindle nose:AD 140 spindle bore:85 mm Milling spindle 1 RPM:18000 1/min Milling spindle 1 power:11 kW Milling Spindle1 torque:19 Nm Milling spindle 2 RPM:18000 1/min Milling Spindle 2 power:11 kW Milling spindle 2 torque:19 Nm B-axes swivel angle:230 ° B-axes torque:440 Nm B-axes angle resolution:0,001 ° Milling spindle 1 & 2 tool magazine:80 HSK A40 Milling spindle 2 tool magazine static tools :6 x VDI 25 ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:670 mm turning length:1540 mm control:F31iB5 Celos Fanuc 35iB5 swing diameter max. over bed cover:700 mm Travel turret No.1 (milling spindle) x/y/z:495 / ± 150 / 1562(+164) mm Rotation B-axis:-30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z:40/40/40 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:20,2/18,8 kW Torque of milling spindle:120 / 44 Nm tool taper milling spindle:Coromant Capto C6 Tool magazine for milling spindle (turret 1):76 Tool change time tool/tool, milling spindle:1,25 s Spindle 1 RPM:3000 1/min Spindle 1 Power:36 / 30 / 25 kW C-axis spindle 1:0,001 ° Bar capacity spindle 1:102 mm Spindle 2 RPM:4000 1/min Spindle 2 power:26 / 22 / 15 kW C-axis spindle 2:0,001 ° Bar capacity spindle 2:80 mm dimensions of the machine ca.:7,8 x 3,6 x 2,9 m Linear scales on axis:X, Y programmable steady:KLU-A530 & SLU-X3.2 Spindle 1 ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

turning diameter:356 mm turning length:705 mm control:MSX 850 MAPPS II swing dia.:755 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 (+-50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min rapid traverse Y-axis:10 m/min Rapid travel B-axis (parts transfer subspindle):30 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:6000 1/min Spindle 2 power:11 / 7,5 kW turret stations / rotary tool stations:16 / 16 VDI 30 :5.5/5,5/3,7 kW speed of driven tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) High precision Turning and Milling Centre with Y-axis and sub spindle. Easy programming by MAPPS II Control.

x-travel:14000 mm y-travel:3100 mm z-travel:1.200 mm (220 - 1.420) mm distance between columns:4.417 mm table-size:14.000 x 2.500 mm workpiece weight:15.000 kg/m drive capacity - spindle motor:25 kW spindle cone:63 HSK spindle turning speed range:18000 rpm milling feeds:30000 mm/min dimensions of the machine ca.:15.000 x 8.418 x 6.033 mm weight of the machine ca.:135 t CNC controller: SIEMENS 840 D universal milling head:5 Achsen mit ?C5C? Elektrospindel automatic tool changer:24 fach

x-travel:2000 mm y-travel:800 mm z-travel:800 mm table-size:2.000 x 700 mm workpiece weight:3500 kg drive capacity - spindle motor:17 kW spindle cone:50 ISO spindle turning speed range:3000 U/min dimensions of the machine ca.:5265 x 3250 x 2730 m weight of the machine ca.:9 t CNC controller:HEIDENHAIN TNC-426 :manuell used universal bed type milling machine with chip conveyor, automatic 2 position (vertical/horizontal) head 3000Rpm The retrofitting jobs done in this machine, are the same than those done to all of our machines. - Completely repair of the head, replacing bearings, shafts and engaging gears. - Completely replacement of all the bearings of the machine. - Replacing the joining screws of the bodies. - Completely repair of spindles. - Adjustment and repair of axis. - Grinding and adjusting all guides, because of deterioration. - Grinding and adjusting of the guide ways of the ...

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

x-travel:6000 mm y-travel:2100 mm z-travel:1500 mm Controls:HEIDENHAIN iTNC 530 BASIC DESIGN:. - basic design : travelling column :. WORKING RANGE -MILLING-:. - x-axis travel:6000 mm - y-axis travel:2100 mm - z-axis travel:1500 mm FLOOR PLATE:. - clamping surface (left-right):7000 mm - clamping surface (front-back):2000 mm WORKING SPINDLE / HEAD:. - spindle type : orthogonal head :. - tilting range:360 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - tilting range (2nd axis):270 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - spindle revolutions (min):20 /min - spindle revolutions (max):4000 /min - spindle diameter:90 mm - taper fixture : ISO SK 50 :. - spindle power (continuous):32 kW - torque (max.):910 Nm AXIS DRIVES:. - feed velocity (min):2 mm/min - feed velocity (max):20000 mm/min - rapid traverse:25000 mm/min ELE ...

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

x-travel:3600 mm y-travel:1250 mm z-travel:1600 mm table load capacity:8000 kp table clamping surface::4100 x 1050 feed range:10 - 5000 mm/min rapid traverse feeds:10000 mm/min spindle motor:29 kW spindle taper::ISO 50 spindle turning speed range:5 - 4000 U/min total power requirement:70 kW weight of the machine ca.:28 t dimensions of the machine ca.:8,5 x 5,4 x 3,2 m Machine with Heidenhain TNC 430 Steuerung - tool changer 30-fold - milling head indexable 2,5° - 4. axis turn table

x-travel:600 mm y-travel:450 mm z-travel:400 mm Table area:700 x 480 mm spindle turning speed range:10 - 3150 U/min spindle taper ISO:40 quill stroke:80 mm dimensions of the machine ca.:1,8 x 2,1 x 1,9 m total power requirement:8 kW weight of the machine ca.:3,5 t Machine with universal turn, sviwel and tilting table - CNC control DIALOG II - splash guards - misc. parts

spindle diameter:130 mm spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-travel:1000 mm w-axis:1075 mm table surface area:2000 x 1800 mm workpiece weight max.:8000 kg spindle turning speed range:4,5 x 900 U/min spindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/min faceplate diameter:785 mm rapid traverse::5000 mm/min total power requirement:40 kW weight of the machine ca.:35 t dimensions of the machine ca.:5,5 x 6,9 x 5,2 m Machine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds - table indexing 4 x 90° - facing head 785 mm - exhauster - various arbors and tooling
