vertical machining center used for sale

max. wheel diameter:200 mm gear width:60 mm max. module:7 weight of the machine ca.:15 t table diameter:180 mm table turning speeds:100 U/min hob turning speeds:750 U/min Machine in good condition, without feed, without automation Available 24.08.2024

turning diameter:1000 mm swing diameter:1000 mm Machine type: Vertical lathe Manufacturer: Hessapp Type: DV 62 Serial no.: 14.2308 Working range of the spindle Largest diameter 1000 mm Largest swing diameter 1000 mm Cross slide travel Stroke of the vertical slide 900 mm Stroke of the horizontal slide 1810 mm Total travel 2315 mm Turning spindle Spindle head with centering cone according to DIN 55021 A15 Spindle diameter in the front bearing 203 mm Main drive Via a controlled asynchronous motor and gear transmission with range switching. Spindle speeds Speed range I: 5 - 350 rpm. Speed range II: 30 - 1000 rpm. Travel speed X/Z axis: 10 m/min. W1 axis: 8 rpm No C-Axis Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urh ...

faceplate diameter:800 mm power requirement:110 kW weight of the machine ca.:37.000 / total 52.000 t transport measurements machine:5,07 x 2,98 x 3,90 m clamping diameter:800 mm :Ø 800 x 720 mm Tool bore:Capto C6 tools in tool magazin:2 x 80 With C-Axis

max. wheel diameter:900 mm max. module:10 weight of the machine ca.:8200 kos. hob dia. - max.:190 mm cutter length max.:320 mm milling spindle speeds (infinitely variable):13-80 U/min workpiece length - max.:750 mm max. workpiece diameter:150 mm Counter holder milling mandrel is missing

faceplate diameter:1600 mm power requirement:80 kW weight of the machine ca.:25 t dimensions of the machine ca.:4,4 x 4,62 m max. workpiece diameter:2000 mm max. diameter of face turning:1800 mm tool taper:ISO50 The machine has been regularly serviced and is in good technical condition. With C-Axis

Vertical turning machine manufactured in 2003. This DAEWOO PUMA V550 features an X-axis travel of approximately 390 mm and a Z-axis travel of approximately 780 mm. With a robust machine weight of 9000 kg, it is designed for durability and performance. If you are looking to get high-quality turning capabilities, consider the DAEWOO PUMA V550 machine we have for sale. Contact us for further details regarding this machine.

This 3-axis Goodway GV 780 M vertical turning machine was manufactured in 2015. It features a maximum machining diameter of 820 mm and an X-axis travel of 500 mm. The machine includes a 450 mm main chuck and a turret with 12 positions, including 4 driven tool stations. If you are looking to get high-quality turning capabilities, consider the Goodway GV 780 M machine we have for sale. Contact us for further details.

This 4-axis Famar Pronto 6 was manufactured in 2004 and fully overhauled in 2024. It features a maximum turning diameter of 250 mm and a turning length of 240 mm. The machine is equipped with a 12-position Sauter turret for driven tools and has a maximum spindle speed of 5,000 rpm. If you are looking to get high-quality turning capabilities, consider the Famar Pronto 6 vertical turning machine we have for sale. Contact us for further details.

max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:300 cutter length max.:230 mm Liebherr LC300 with loading automation Machine including counter holder The machine used to work with emulsion

roll diameter:420 mm throat:400 mm workpiece height:325 mm table surface area:615 x 615 mm table swivelabel +/-:10/45 ° table - inclinable:+/- 20 ° cutting speed:20 - 2500 m/min total power requirement:2 kW weight of the machine ca.:0,5 t dimensions of the machine ca.:0,95 x 0,65 x 1,83 m

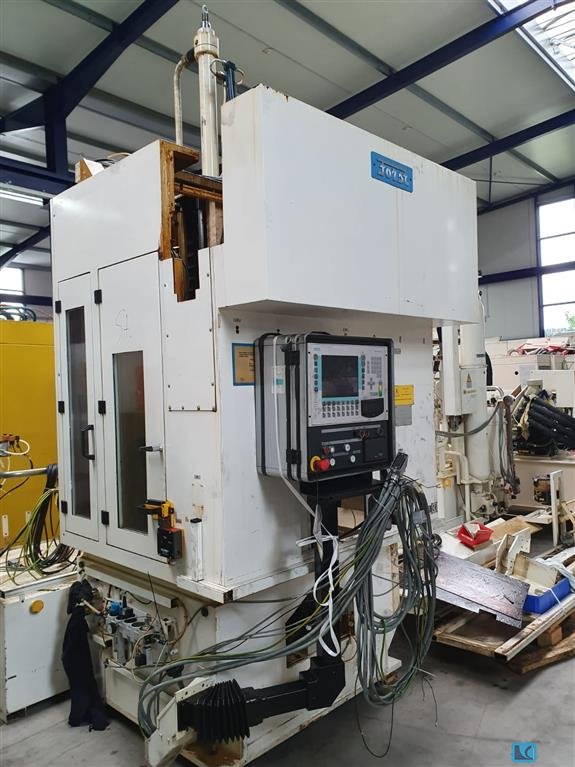

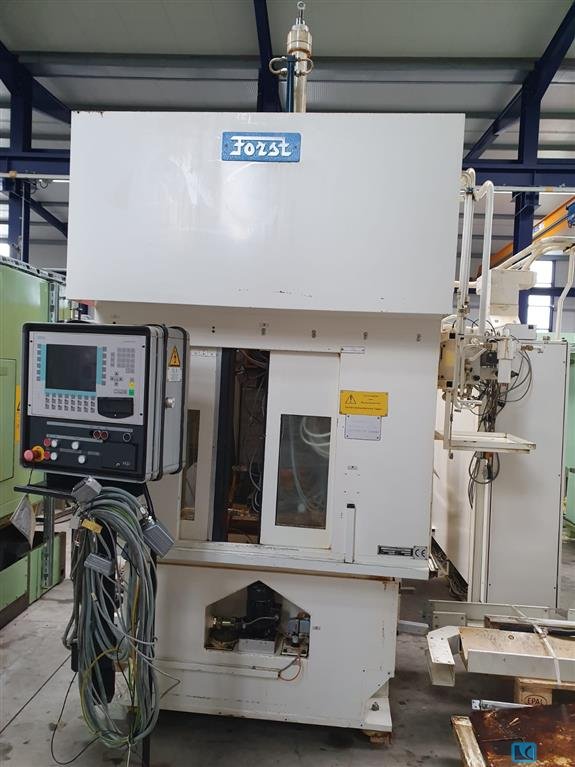

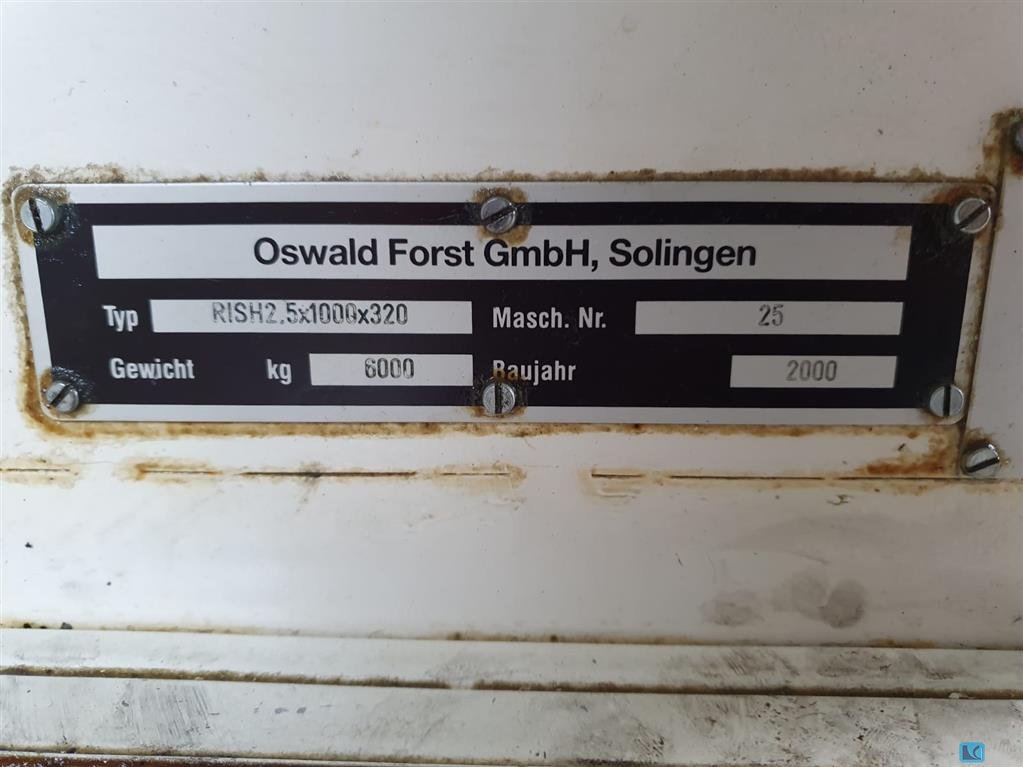

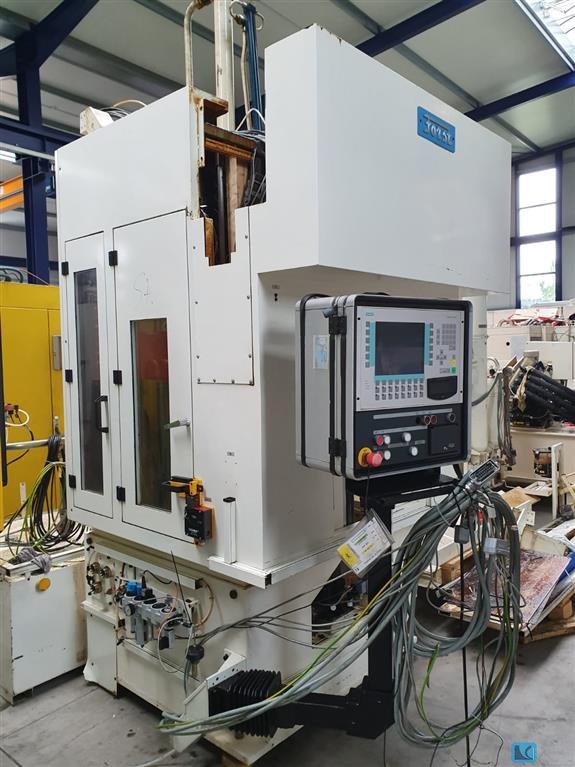

pulling force - max.:2,5 t max. ram stroke:1000 mm max. workpiece diameter:40 mm Broaching speed:60 m/min. return speed:20 m/min. total power requirement:24 kW weight of the machine ca.:6 t dimensions of the machine ca.:1,7 x 2,4 x 4,77 m clamping plate:320 mm It is a hydraulic machine.

x-travel:200 mm y-travel:100 mm z-travel:100 mm total power requirement:1,5 kW weight of the machine ca.:1,1 t dimensions of the machine ca.:0,6 x 0,6 x 1,8 m table-size:350 x 150 mm New class condition milling machine with vize and dividing head - Original year of manufacture unknown

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1500 mm main drive:80 kW faceplate speeds from - to:1 - 365 U/min milling motor:37 kW ram head dimension:240 x 240 mm max. ram stroke:1250 mm total power requirement:133 kVA weight of the machine ca.:50 t dimensions of the machine ca.:11 x 5 x 6,4 m Machine was overhauled in 2008 by OEM New control CNC SIEMENS 840 D automatic tool changer 72-pcs C-axis with driven tools Angle-, straight tool holders with CAPTO holder Coolant device Chipconveyour

groove width:40 mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:200 mm tool taper:SK40 spindle speed::350 ? 4000 upm table clamping surface::1300 x 300 mm weight of the machine ca.:3,5 t Coolant system Dimensions: 1600 mm x 1500 mm x 1800 mm (L x W x H) Hydraulic system Partially overhauled

groove width:- mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:150 mm spindle speed::50/6000 upr tool taper:SK 40 numbers of positions in the tool changer:8-fach weight:2.500 kg Operating hours: 2,100 h Clamping hydraulics Pendulum operation possible 8-position tool changer

x-travel:630 mm y-travel:560 mm z-travel:560 mm total power requirement:10 /15 kW weight of the machine ca.:6500 kg dimensions of the machine ca.: 4,4 x 5,4 x 2,9 m Table dimensions:1000 x 610 mm Loading:400 kg rapid traverse::X 26, Y 26, Z 20 m/min speeds::20 - 12.000 min -1 tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St. control:CNC MillPlus/TNC430 Documents:vorhanden

x-travel:800 mm y-travel:250 mm z-travel:350 mm table-size:1130 x 250 mm no. of flutes:4 groove width:14/25 mm taper MK:4 spindle turning speed range:56 - 2800 U/min total power requirement:9,5 kW weight of the machine ca.:2009 kg dimensions of the machine ca.:1400 x 1700 x 2800 mm Documents:vorhanden

max. ram stroke:220 mm total power requirement:1,5 kW weight of the machine ca.:880 kg dimensions of the machine ca.:1.500 x 1.000 x 2.200 mm slot-milling length:220 mm toolhead swivelling: +/- 10° ° Grad table::650 x 250 mm table adjustment: vertical:360 °mm table adjustment: quer/längs: 170/400 °mm strokes per minute:45 / 78 / 125 Hub/min feed:: 0,1 / 0,2 / 0,3 in 3 step

max. ram stroke:220 mm total power requirement:1,5 kW weight of the machine ca.:880 kg dimensions of the machine ca.:1.500 x 1.000 x 2.200 mm slot-milling length:220 mm toolhead swivelling: +/- 10° ° Grad table::650 x 250 mm table adjustment: vertical:360 °mm table adjustment: quer/längs: 170/400 °mm strokes per minute:45 / 78 / 125 Hub/min feed:: 0,1 / 0,2 / 0,3 in 3 step

swing diameter:320 mm control:840 D SIEMENS turning speeds:5000 1/min spindle drive:20 / 27 kW chucking diameter:250 mm travel -x axis:650 mm travel -z axis:300 mm turret head:12 Pos. tool holder:VDI 40 toolpiece turning speed range:4000 1/min work piece power:max. 11,7 kW weight of the machine ca.:8 t CNC vertical lathe, live tools, C-axis, high pressure pump 20 bar, 500l, filter, flush gun, 3-jaw chuc, EWAB loading station right, chipconveyor, approx. 23.500h "machine on", approx. 8.000h "spindle on" (in total) MACHINE WILL GET NEW (OVERHAULED) SPINDLE (0 hours)

swing diameter:260 mm control:840 D SIEMENS turning speeds:3.500 1/min spindle drive:36 / 28 kW chucking diameter:260 mm travel -x axis:900 mm travel -z axis:400 mm turret head:12 Pos. tool holder:VDI 40 rapid power traverse in X-and Z direction:100 / 30 m/min dimensions of the machine ca.:5,3 x 2,4 x 3,31 m CNC vertical lathe with 2 spindles, 2x RÖHM power chucks dia. 315mm,

faceplate diameter:2000 mm swing diameter:2130 mm turning height:1400 mm ram stroke range:1000 mm workpiece weight:10 t faceplate turning speed range:1 -200 U/min main drive:60 kW total power requirement:95 kW weight of the machine ca.:24 t dimensions of the machine ca.:6,0 x 4,0 x 5,6 m with CNC SIEMENS 840 D C-axis driven tooling 15/22 kW automatic toolchnager 16-pockets through spindle coolant splash guarding and chip conveyor

faceplate diameter:1800 mm swing diameter:2000 mm turning height:1170 mm z-axis:1000 mm cross rail adjustment - vertical:800 mm faceplate speeds::2,5 - 280 workpiece weight:12 t feeds:1 - 6000 mm/min max. torque on the faceplate:50000 Nm total power requirement:85 kW weight of the machine ca.:41 t dimensions of the machine ca.:5,6 x 4,8 x 4,6 m Machine retrofit and overhould in 2005 with SIEMENS 840 D powerline control - 6 jaw hydraulic power chuck - tool changer for 12 tools - chip conveyor, coolant attachment, splash housing - various tool holders

faceplate diameter:1000 mm swing diameter:1600 mm turning height:1200 mm main drive:75 kW faceplate speeds from - to:7 - 800 U/min milling motor:25 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 mm ram head dimension:240 x 240 mm weight of the machine ca.:40 to dimensions of the machine ca.:9 x 7,8 x 6,0 m Machine general overhould in 2004 and equiped with Siemens 840 D control - tool changer rack magazine - C-axis, live tooling, - Transmit function electronical Y-axis - angular milling head - complete splash housing - coolant device, chip conveyor

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1270 mm main drive:80 kW faceplate speeds from - to:1 - 355 U/min max. workpiece weight:6.000 kg milling motor:37 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 (8 x 100 mm) mm ram head dimension:240 x 240 mm max. ram stroke:1250 mm weight of the machine ca.:50 to total power requirement:133 kVA dimensions of the machine ca.:11 x 5 x 6,4 m Machine general overhould in 2008 and equiped with CNC SIEMENS 840 D control - tool changer for 72 tools - C-axis, live tooling - angular- and straight tool holder head with CAPTO taper - Transmit function - complete splash housing - coolant device, chip conveyor - diverse accessories

turning diameter:300 mm swing diameter:350 mm turning height:275 mm x-axis:925 mm z-axis:250 mm clamping chuck diameter:200 mm Feed speed:30 m/min. total power requirement:45 kW weight of the machine ca.:7 t Machine was used just from time to time in the last years - very good condition! with CNC SIEMENS 840 D 12-station turret head with driven toolings workpiece in and out conveyor belt coolantattachment and chip conveyor diverse accessories

faceplate diameter:4000 mm swing diameter:4300 mm turning height:330 mm faceplate turning speed range:1 - 92 U/min workpiece weight:18 t feeds:1 - 4000 mm/min main drive motor:55 kW total power requirement:85 kVA weight of the machine ca.:64 t dimensions of the machine ca.:90, x 7,2 x 5,5 m with CNC SIEMENS 840 D for 4 axis 2 Vertical Supports tool Basic holder chip conveyor

faceplate diameter:4770 mm swing diameter:7000 mm turning height:1000 mm slide stroke:1000 mm workpiece weight max.:100000 kg faceplate turning speed range:2 - 20 U/min feed speeds:1 - 10000 mm/min rapid traverse:10 m/min ram head dimension:250 x 250 mm main drive:100 kW total power requirement:200 kW with CNC SIEMENS 840 D 2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpm Chip conveyor and coolant attachment

faceplate diameter:2500 mm swing diameter:2500 mm swing diameter:2500 mm turning height:2500 mm turning speed range - faceplate:1,8 - 140 U/min workpiece weight max.:15.000 kg feeds: 0,03 - 6,3 mm/U rapid speed:2 m/min cross rail adjustment:2150 mm max. ram stroke:1500 mm power capacity:55 kW weight of the machine ca.:32 t dimensions of the machine ca.:4,1 x 7,6 x 6,0 m 1 turret head 1 RAM head

faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders

faceplate diameter:5000 mm swing diameter:6100 mm turning height:2400 mm ram stroke each side:1490 mm ram head dimension:340 x 340 mm max. workpiece weight:100.000 kg total power requirement:100 kW weight of the machine ca.:155 t faceplate turning speed range:0,4 - 50 U/min with 2 x 2 axes CNC SIEMENS 840 D

Article: Vertical turning and grinding centre Manufacturer: EMAG Type: VSC 250 DS Yob: 2008 Control: SIEMENS 840D Grinding spindle speed: 30,000 rpm Rotation spindle speed: 3,000 rpm Tool places turret: 12 Cooler for spindle and machine bed cooling Cooling lubricant - lifting station (no independent cooling lubricant supply) Chip conveyor Parts handling Air through the spindle Two clamping circuits through the spindle (air and oil) Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Description DÖRRIES SDE 200 Vertical Lathe Details Type SDE 200 Machine number K240/50662 Year of manufacture 1977 Face Plate 2,000 mm Circulation 2,200 mm Turning height 2,150 mm Max. table load at reduced speed 20 to incl. documentation

This EMAG VSC 250 vertical turning machine was manufactured in 2011. It features a Siemens SINUMERIK 840Dsl control system, a robust hydraulic 6-jaw chuck, and a flange turret with 12 tool positions. With a spindle speed up to 4500 rpm and a main spindle drive power of 28kW at 40% duty cycle, its ideal for precise, efficient operations. For more information about this vertical turning machine, please reach out to us.

Vertical turning machine manufactured in 2000. This EMAG VSC 400 features an X-axis travel of 850 mm and a Z-axis travel of 315 mm. It is equipped with live tools for enhanced functionality and track motion loading for efficient operation. If you are looking to get high-quality turning capabilities, consider the EMAG VSC 400 machine we have for sale. Contact us for further details.

EMAG VTC 250 DUO DDYear of manuf. : 2020 Control : Siemens 840 Dsl Turning diam. : 140 mmTurning length : 700 mm____________Description:In General:Max. workpiece diameter:140 mmChuck diameter:250 mmMax. turning length:700 mmTrack I:Tool carrier I:Tool turret (X/Z)Tool drive:9,600 rpm, 44 NmTool holder:BMTNumber of stations:11 + 1 Part gripperX-axis:310 mmZ-axis:1,115 mmPosition sensors (X/Z):Direct scalesTrack II:Main spindle (OP10):Travelling direct drive spindleSpeed:5,000 rpmPower:33.9 kWTorque:231 NmChuck:Collet chuckClamping cylinder:Hydraulic clamping cylinderSupport control:PneumaticW-axis:772 mmC-axis:0.01°Position sensor (W):Direct scale:Sub-spindle (OP20):Direct drive spindleSpeed:5,000 rpmPower:33.9 kWTorque:231 NmChuck:2+2-jaw power chuckClamping cylinder:Hydraulic clamping cylinderC-axis:0.01°Track III:Tool Carrier II:Tool turret (X/Y/Z)Tool drive:9,600 rpm, 44 N ...

ID3770 Klemm KR806-3F year/Baujahr 2015 approx. 4.870 hours/hours 17.8 t Double-head drilling rig; the drive for the internal linkage/hydraulic hammer is a KD 1011 Double-head drilling rig, drive for the inner rod / hydraulic hammer is a KD 1011

This 3-axis EMAG VSC 315 vertical turning machine was manufactured in 1999. It features an X-axis travel of 680 mm and a Y-axis travel of 250 mm, along with live tooling capabilities. If you are looking to get high-quality turning capabilities, consider the EMAG VSC 315 machine we have for sale. Contact us for further details.

Key data: 1875 mm, 1550 mm, 1345 mm

CNC Vertical Multitasking Machine CNC Control Mazatrol Matrix 2 Turning diameter 2000 mm Turning speed 10-300 R/min Milling head speed 25-5000 R/Min Movement X-Y-X-axis 1875-1550-1345 mm B-axis travel -30/120° C-axis indexing 360/0,0001° Tool taper Capto C8 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

New Anthracite Double-Leaf Vertical Slat Gate A modern and durable double-leaf gate manufactured from high-quality steel profiles, finished in an elegant anthracite color. The vertical slat (comb-style) design ensures both aesthetic appeal and structural strength, making it suitable for residential and commercial applications. Specification: Gate type: double-leaf, vertical slat (comb-style) Leaf construction: steel profiles 60 mm ×40 mm Posts: 100×100 mm, height 2 200 mm Finish: anthracite (powder-coated) Included: 2 × gate leaves 2 × steel posts 4 × adjustable hinges 1 × gate stop Packaging: The gate is securely packed on a wooden pallet and prepared for safe transport. Auction-ID: A1-45756-30

New Anthracite Double-Leaf Vertical Slat Gate A modern and durable double-leaf gate manufactured from high-quality steel profiles, finished in an elegant anthracite color. The vertical slat (comb-style) design ensures both aesthetic appeal and structural strength, making it suitable for residential and commercial applications. Specification: Gate type: double-leaf, vertical slat (comb-style) Leaf construction: steel profiles 60 mm ×40 mm Posts: 100×100 mm, height 2 200 mm Finish: anthracite (powder-coated) Included: 2 × gate leaves 2 × steel posts 4 × adjustable hinges 1 × gate stop Packaging: The gate is securely packed on a wooden pallet and prepared for safe transport. Auction-ID: A1-45756-10

Mössner band saw machine type SSF 630 Year of construction 2019 Serial number 31387 400V/50Hz, 24V DC control voltage Rated power 20.2 kVA, rated current 29.2 A, fuse 32 A (max. 63 A) 2-speed manual transmission and SEW Eurodrive frequency converter Cutting speeds 27–142 m/min and 410–2200 m/min Possible saw blade dimensions for manual transmission: 6 x 0.65 mm to 20 x 0.9 mm Impeller diameter 630 mm Max. cutting width 605 mm, max. cutting height 460 mm With feed table / table enclosure For the feed table with 4 T-slots, Mössner mentions a table inclination of approx. 8° to the right and 14° to the left Documentation / operating instructions available CE marking available Auction-ID: 04M-45T-1

Vertical panel-sizing saw Brand: Putsch Type: SVP 145 M New machine Description: The SVP 145 M is a vertical panel saw for cutting panels in vertical and horizontal direction. The frame of the saw is completely welded and has a support grid for the workpieces to be processed, consisting of aluminium strips and plastic inserts. The automatic grid displacement ensures that the saw blade does not hit the support bars during horizontal cuts. The lower workpiece supports consist of aluminium soles and plastic inserts. For the easy movement of the workpieces, the machine is equipped with retractable transport rollers. The saw beam and the saw carriage can be moved and adjusted by hand, the saw beam can be fixed in 5 vertical sawing positions for this purpose. The comfortable insertion and removal of the saw head is ensured by an ergonomically shaped handle. Standard equipment: - El ...

Panel sizing saw, vertical Brand: Putsch Type: SVP 420 M New machine Description: The SVP 420 M is a vertical panel saw practical for cutting panels vertically and horizontally. The saw frame is completely welded and has an attachment grate for the workpieces, consisting of aluminum strips and plastic inserts. The automatic grate movement ensures that the saw blade does not hit the contact strips in the case of horizontal cuts. The lower workpiece supports consist of aluminum soles and plastic supports. For simple movement of the workpieces, the machine is equipped with retractable transport rollers. The saw beam and saw carriage can be moved and adjusted by hand, the saw beam can be fixed at 5 vertical sawing positions. The comfortable entry and exit of the saw head is ensured by an ergonomically shaped handle. Standard features: - electrically driven, automatic shift gate ...

Vertical panel saw Brand: Putsch Type: SVP 950 M New machine Description: The SVP 950 M is a vertical saw for cutting panels in vertical and horizontal direction. The frame of the saw is completely welded and it has a working table for the workpieces which consists of aluminium fences with plastic inserts. To prevent a contact with the saw blade while doing horizontal cuts, the frame is equipped with an automatic moving support. The lower workpiece supports consist of aluminium and have lowerable transport rolls. The saw beam and the saw unit can be adjusted and moved manually. Therefore the saw beam can be fixed at 6 vertical sawing positions. The simple shift of the saw head is possible because of an ergocnomical formed handle. Standard equipment: - Electric driven, automatic moving support - Swivable central support for small workpieces (length approx. 4680 mm) - 4 gr ...

The machine is technical and geometrically in a very good state. it was till 2years in use an application and any time inbetrieb are taken. Grter draggable Durchme?er 60 mm the smallest tench-cash Durchme?er 0.5 mm Schleifscheiben-Durchme?er 356 mm Schleifdcheiben width 150 mms control disc-Durchme?er 254 mms control discs width 150 mms Drehzahl-Schleifscheibe 1,780 revo impulse achievement main engine 7 kW speed-control disc 20-250 revos weight 2,900 kg Platzbetarf 8 m²

Swing: 530mm. Swing over carriage: 320mm. Distance between centers: 2000mm. Spindle: 60mm. Equipped with chuck. Equipped with DRO Fagor. Motor power: 10cv.

New lathe. Distance between centers: 1500mm. Swing: 510mm. Swing over carriage: 320mm. Swing over gap: 760mm. Spindle hole: 80mm. CE protections and certificate. Equipped with chuck and steady rest.

Rebuilt lathe. Distance between centers: 750mm. Swing over bed: 500mm. Swing over carriage: 220mm. Spindle nose: 40,5mm. Motor power: 10cv. Equipped with universal chuck of 250mm. CE Protections in chuck and carriage and CE european certificate for second hand machines. Optional: Steady rest. Optional: CE back guard. Optional: DRO Fagor or Heidenhain.

5 axis machininng center (milling/turning from bar) multitasking Under power in our warehouse MAKE CHIRON MODEL MILL 800 5 axis CNC Fanuc 18iMBS (5 simoultaneous axis 1) X, Y, Z (mm) 800 ? 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters min ...
