vertical machine center used for sale

Equipped with: has a table of 1350 × 320 mm, a longitudinal travel of 700 mm, a transverse travel of 240/260 mm, a vertical travel of 370 mm, 18 spindle speeds of 31.5–1600 rpm, a main motor of 7.5 kW, a number 3 spindle cone, a spindle bore of 29 mm, a swivel range of ±45°, a maximum workpiece weight of 250 kg Auction-ID: A1-47363-79

Technical data Manufacturer: Haas Automation, Inc. Model No.: VF-3YT Serial Number: 1126820 Date of manufacture: 03/2015 Travels: X 1,016 mm / Y 660 mm / Z 635 mm Table: approx. 1,372 × 610 mm, 7 T-slots, 80 mm spacing Spindle holder: 40-taper Power supply: 3-phase, 50/60 Hz, 354-488 V AC Full load current: 40 A Maximum load current: 70 A Control: Haas CNC Control Version: Vertical CNC machining center, YT version with extended Y-travel Configuration Equipment: Tool changer with tool holders, T-slot table, work area with cooling/lubrication device. Remarks - 2026 Buffer battery replaced - Without clamped or surface-mounted tools! Offer refers to the machine only! Note Only operating instructions, but no technical documents available. Information researched to the best of our knowledge and belief. No guarantee is assumed for completeness and corre ...

60 tool positions, tool clamping force 25 kN, control voltage 24 V, main fuse 160 A, connected load 60 KVA, rapid traverse/feed X/Y/Z axis each 20000 mm/min with 15000 N Auction-ID: A1-50260-7

Mössner band saw machine type SSF 630 Year of construction 2019 Serial number 31387 400V/50Hz, 24V DC control voltage Rated power 20.2 kVA, rated current 29.2 A, fuse 32 A (max. 63 A) 2-speed manual transmission and SEW Eurodrive frequency converter Cutting speeds 27–142 m/min and 410–2200 m/min Possible saw blade dimensions for manual transmission: 6 x 0.65 mm to 20 x 0.9 mm Impeller diameter 630 mm Max. cutting width 605 mm, max. cutting height 460 mm With feed table / table enclosure For the feed table with 4 T-slots, Mössner mentions a table inclination of approx. 8° to the right and 14° to the left Documentation / operating instructions available CE marking available Auction-ID: A1-49587-89999

including accessories Auction-ID: A1-44050-19

Auction-ID: A7-50403-36

Mori Seiki DuraVertikal 5080 3Axis Machining Center (11/2006) Manufacturer: Mori Seiki Type: auto_awesome Source language: English 587 Table length 1350 mm Table width 600 mm Number of T-profiles 6 T-profile width 18 mm Max. table load 1000 kg Longitudinal travel (x-axis) 1050 mm Transverse travel (y-axis) 530 mm Travel (z-axis) 510 mm Max. tool diameter 125 mm tool weight 8 kg Spindle nose bt 40 Distance spindle nose table 150 - 660 mm By 0 rpm Until 10,000 rpm Voltage 50 Hz 3x 400 volts Spindle performance 22 kW Total power requirement 58 kVA Machine weight approx. 8,030 kg Length 2,500 mm Width 2,350 mm Height 2,700 mm Give feedback Translation results available Year of manufacture: 11/2006 Condition: used, good, in production Incl. tools in the turret Auction-ID: A7-50270-26

X-axis: 525mm, Y-axis: 400mm, Z-axis: 450mm, Y-axis at electrode change and loading position: 675mm, internal dimensions of working tank: 750x650x420mm, max. dielectric level: 375mm, max. head load: 100kg, distance from tool carrier plate to worktable: 135-585mm, integrated C-axis speed, adjustable: 1-20rpm, measuring resolution: 0.001°, load capacity with manual electrode change: 50kg, load capacity with automatic electrode change: 15kg, support surface: 730x630mm, worktable load capacity: 1,000kg, connected load: 7kVA, fuse protection: 25A, length: 2900mm, width: 2200mm, height: 2653mm, machine weight: 4.4t, generator weight: 200kg, with documentation, C-axis, EW20 electrode changer, TAE M10 cooling unit, CO2 fire extinguishing system, 4µm filter system, locators, MultiProg software, an on-site inspection is possible.

:KVL-450 | KVL-600 | KVL-800| KVL-1100 turning diameter:450|600|800|1100 mm swing diameter:550|650|1000|1250 mm turning height:450|500|750/950|1000 mm spindle nose:A2-8|A2-8|A2-11|A2-15 table rotation speed:50-2500|50-2250|20-1500|20-600 U/min Travel of Ram (vertical):450|500|800 / 1000 (Opt.)|1000 mm Travel of ram (horiz.):300|340|500|700 mm rapid power traverse in X-and Z direction:20/24|20/24|20/20|10/10 m/min Tool changer:8/10/12 mit vertikaler oder horizontaler Scheibe tool taper:VDI40/VDI50 oder Schaftaufnahme drive capacity - spindle motor:11/15|15/18.5|18.5/22|37/45 kW Machine height:2600|2910|4020|4605 mm weight of the machine ca.:4500|6000|13000|18000 kg hydraulic motor:2,2 kW servo motor X-axis:1,6|1,6|4|7 kw servo motor Z-axis:3|3|7|7 kw coolant pump drive:0,75+1,1|0,75+1,1|0,75+0,75+1,1|0,75+0,75+1,1 kW :35|40|50|70 kva CNC controller:Siemens/Fanuc/Fagor CNC controls from:Si ...

turning diameter:200 mm swing diameter:260 mm turning height:200 mm Tool table:1054 x 400 mm Dimensions (L/W/H):2200 x 2300 x 2300 mm weight:3300 kg slide travel radial ( X-axis ):520 mm slide travel axial ( Z-axis ):200 mm no pallet circulating belt, no C-axis, no driven tools

max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation

weight of the machine ca.:8 t dimensions of the machine ca.:2,95 x 1,6 x 2,36 m chucking diameter:250 mm swing diameter:265 mm x-travel:170 mm z-travel:200 mm spindle turning speed range:1.500 U/min spindle bearing diameter:100 mm Pick-up machine

max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:6,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation

turning diameter:250 mm swing diameter:250 mm turning height:200 mm total power requirement:37,7 kW chuck diameter:315 mm spindle speed max.:5500 1/min travel -x axis:625 mm travel -y axis:+100/-80 mm travel -z axis:250 mm worktool system:VDI 30+40 weight of the machine ca.:8 t The synchronous spindle is powered with 37.7 kW of power, a torque of 300 Nm and a maximum speed of 5,500 rpm. Typical components are ball cages, ball hubs, gear wheels, sliding sleeves, pump wheels, flanges, synchronizer rings, bearing rings and pivot pins. The machine bed is made of Hydropol, a mixture of special concrete and steel, which ensures the greatest smoothness and precision even with larger components and powerful machining.

max. wheel diameter:280 mm max. module:7 weight of the machine ca.:13 t table turning speeds:100 U/min table diameter:250 mm min. number of teeth:4 hob turning speeds:1500 U/min max. hob diameter:160 cutter length max.:230 mm Machine in good condition. Available 01.08.2024

max. wheel diameter:200 mm gear width:60 mm max. module:7 weight of the machine ca.:15 t table diameter:180 mm table turning speeds:100 U/min hob turning speeds:750 U/min Machine in good condition, without feed, without automation Available 24.08.2024

turning diameter:1000 mm swing diameter:1000 mm Machine type: Vertical lathe Manufacturer: Hessapp Type: DV 62 Serial no.: 14.2308 Working range of the spindle Largest diameter 1000 mm Largest swing diameter 1000 mm Cross slide travel Stroke of the vertical slide 900 mm Stroke of the horizontal slide 1810 mm Total travel 2315 mm Turning spindle Spindle head with centering cone according to DIN 55021 A15 Spindle diameter in the front bearing 203 mm Main drive Via a controlled asynchronous motor and gear transmission with range switching. Spindle speeds Speed range I: 5 - 350 rpm. Speed range II: 30 - 1000 rpm. Travel speed X/Z axis: 10 m/min. W1 axis: 8 rpm No C-Axis

max. wheel diameter:900 mm max. module:10 weight of the machine ca.:8200 kos. hob dia. - max.:190 mm cutter length max.:320 mm milling spindle speeds (infinitely variable):13-80 U/min workpiece length - max.:750 mm max. workpiece diameter:150 mm Counter holder milling mandrel is missing

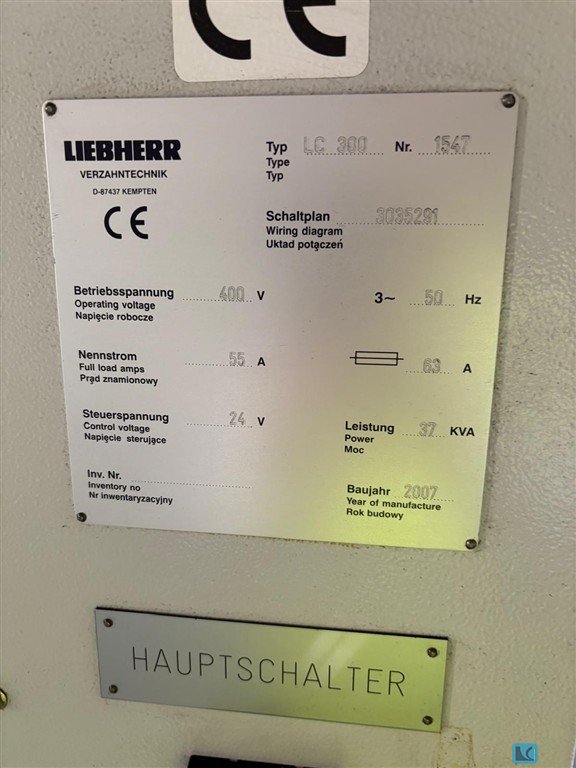

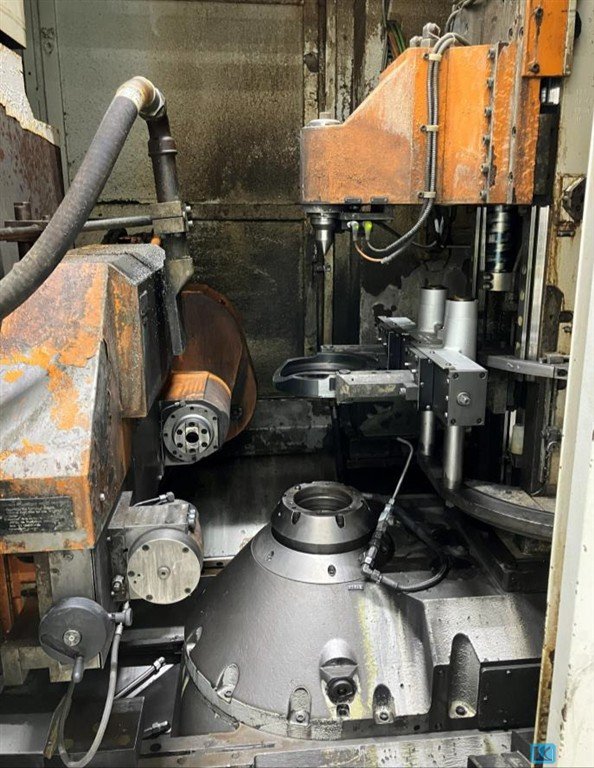

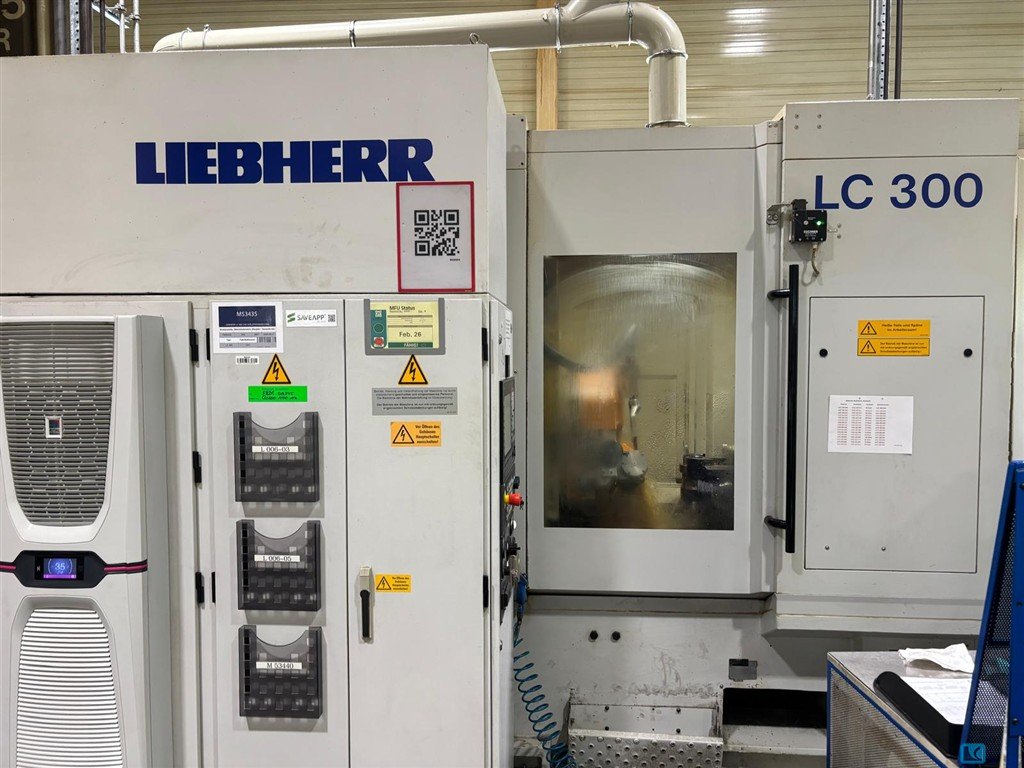

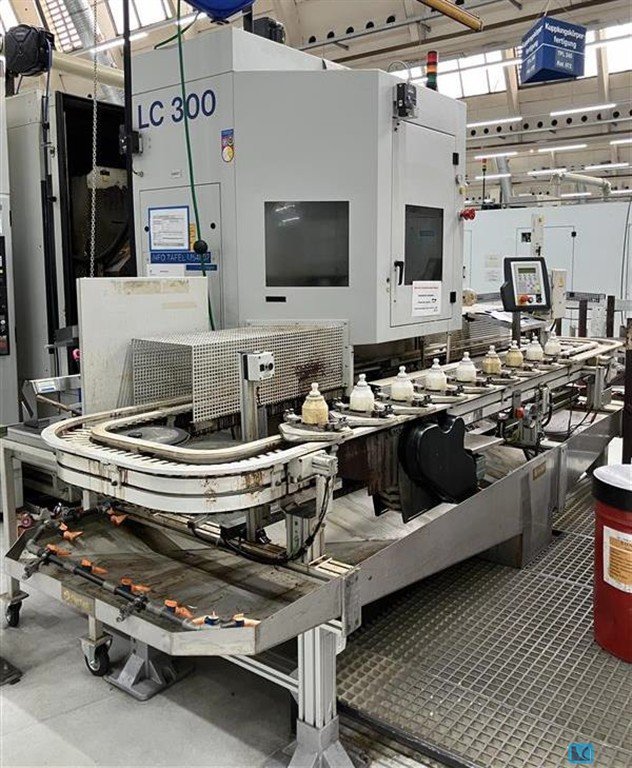

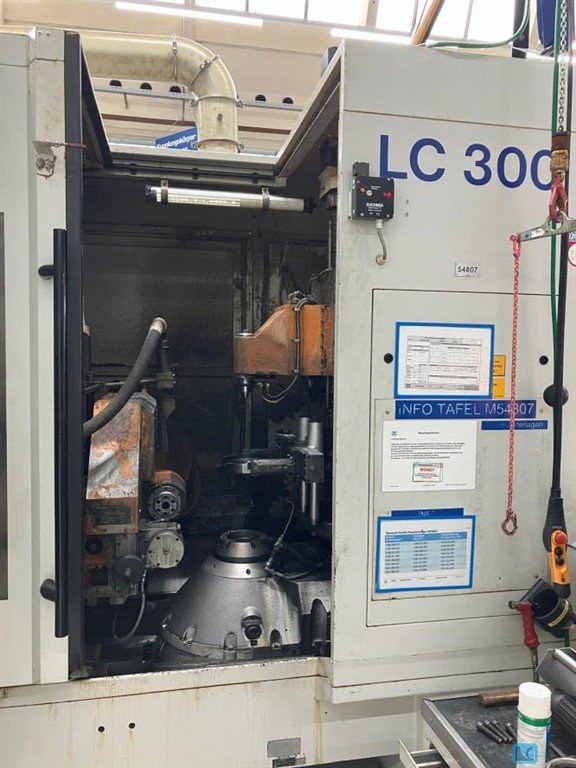

max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:160 mm cutter length max.:230 mm Liebherr LC300 with loading automation Machine including counter holder The machine used to work with emulsion

max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:160 mm cutter length max.:230 mm Liebherr LC300 with loading automation Machine without counter holder Used to work with oil

swing diameter:400 mm turning height:950-1500 mm Turning length:210 mm x-travel:310 mm z-travel:350 mm spindle drive:48 kW spindle turning speed range:20-3500 U/min weight of the machine ca.:11 t dimensions of the machine ca.:4,5 x 3,5 x 2,7 m

swing diameter:400 mm turning height:950-1500 mm Turning length:210 mm x-travel:310 mm z-travel:350 mm spindle drive:48 kW spindle turning speed range:20-3500 U/min weight of the machine ca.:11 t dimensions of the machine ca.:4,5 x 3,5 x 2,7 m

max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...

pulling force - max.:2,5 t max. ram stroke:1000 mm max. workpiece diameter:40 mm Broaching speed:60 m/min. return speed:20 m/min. total power requirement:24 kW weight of the machine ca.:6 t dimensions of the machine ca.:1,7 x 2,4 x 4,77 m clamping plate:320 mm It is a hydraulic machine.

x-travel:200 mm y-travel:100 mm z-travel:100 mm total power requirement:1,5 kW weight of the machine ca.:1,1 t dimensions of the machine ca.:0,6 x 0,6 x 1,8 m table-size:350 x 150 mm New class condition milling machine with vize and dividing head - Original year of manufacture unknown

groove width:40 mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:200 mm tool taper:SK40 spindle speed::350 ? 4000 upm table clamping surface::1300 x 300 mm weight of the machine ca.:3,5 t Coolant system Dimensions: 1600 mm x 1500 mm x 1800 mm (L x W x H) Hydraulic system Partially overhauled

groove width:- mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:150 mm spindle speed::50/6000 upr tool taper:SK 40 numbers of positions in the tool changer:8-fach weight:2.500 kg Operating hours: 2,100 h Clamping hydraulics Pendulum operation possible 8-position tool changer

x-travel:1400 mm y-travel:400 mm z-travel:500 mm total power requirement:ca. 7,5 kW weight of the machine ca.:ca. 2,7 t dimensions of the machine ca.:ca. 2,60 × 2,30 × 2,20 m The KNUTH KB 1400 is a conventional bed-type milling machine designed for precise milling, drilling and threading operations on medium to large workpieces. The robust bed construction ensures high rigidity and machining accuracy, even for demanding machining tasks. Thanks to its robust construction, the machine is ideally suited for use in mechanical engineering, toolmaking, maintenance, and in single-part and small-batch production. Technical data ·X-axis travel: 1,400 mm ·Y-axis travel: 400 mm ·Z-axis travel: 500 mm ·Table size: 1,700 × 400 mm ·Table load capacity: approx. 800 kg ·Spindle chuck: SK 40 (DIN 69871) ·Spindle speed: 40?2,000 min?¹ ·Main drive: 7.5 kW ·Machine weight: approx. 2,700 kg  ...

x-travel:630 mm y-travel:560 mm z-travel:560 mm total power requirement:10 /15 kW weight of the machine ca.:6500 kg dimensions of the machine ca.: 4,4 x 5,4 x 2,9 m Table dimensions:1000 x 610 mm Loading:400 kg rapid traverse::X 26, Y 26, Z 20 m/min speeds::20 - 12.000 min -1 tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St. control:CNC MillPlus/TNC430 Documents:vorhanden

x-travel:800 mm y-travel:250 mm z-travel:350 mm table-size:1130 x 250 mm no. of flutes:4 groove width:14/25 mm taper MK:4 spindle turning speed range:56 - 2800 U/min total power requirement:9,5 kW weight of the machine ca.:2009 kg dimensions of the machine ca.:1400 x 1700 x 2800 mm Documents:vorhanden

max. ram stroke:220 mm total power requirement:1,5 kW weight of the machine ca.:880 kg dimensions of the machine ca.:1.500 x 1.000 x 2.200 mm slot-milling length:220 mm toolhead swivelling: +/- 10° ° Grad table::650 x 250 mm table adjustment: vertical:360 °mm table adjustment: quer/längs: 170/400 °mm strokes per minute:45 / 78 / 125 Hub/min feed:: 0,1 / 0,2 / 0,3 in 3 step

max. ram stroke:220 mm total power requirement:1,5 kW weight of the machine ca.:880 kg dimensions of the machine ca.:1.500 x 1.000 x 2.200 mm slot-milling length:220 mm toolhead swivelling: +/- 10° ° Grad table::650 x 250 mm table adjustment: vertical:360 °mm table adjustment: quer/längs: 170/400 °mm strokes per minute:45 / 78 / 125 Hub/min feed:: 0,1 / 0,2 / 0,3 in 3 step

turning diameter:300 mm swing diameter:350 mm turning height:275 mm x-axis:925 mm z-axis:250 mm clamping chuck diameter:200 mm Feed speed:30 m/min. total power requirement:45 kW weight of the machine ca.:7 t Machine was used just from time to time in the last years - very good condition! with CNC SIEMENS 840 D 12-station turret head with driven toolings workpiece in and out conveyor belt coolantattachment and chip conveyor diverse accessories

Article: Vertical turning and grinding centre Manufacturer: EMAG Type: VSC 250 DS Yob: 2008 Control: SIEMENS 840D Grinding spindle speed: 30,000 rpm Rotation spindle speed: 3,000 rpm Tool places turret: 12 Cooler for spindle and machine bed cooling Cooling lubricant - lifting station (no independent cooling lubricant supply) Chip conveyor Parts handling Air through the spindle Two clamping circuits through the spindle (air and oil) Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Ilapak vertical bag form-, fill-, and seal machine, model: Vegatronic 2000 OF, serial number: 0741812003, year of construction: 2012, 400 V, 3 Ph, 50 Hz, 17 A, filling pipe: Ø 125 mm, vertical seal length: 650 mm, horizontal seal length: 320 mm, film width: 470 mm, total dimensions: 2700 mm x 2300 mm x 2350 mm. Including extra filling pipe, dimensions: 650 mm x 650 mm x 1700 mm.

STAMA Mod. MC 2 1997-325S pallet (Pendeltisch Peiseler ATK 520) Aufspannflaeche Pallet: 2 x 550 mm x 330 mm Max Werkstueckgewicht: 2x180kgs X = Y = Z 500 300 = 350 mm Min/Max Distance Spindelnase-Tisch: 200-550 mm rapid traverse X, Y, Z = 40/40/45 36 40 36 Werkzeuge ISO-9000 RPM Spindle IKZ CNC SIEMENS 840 c # 2 LEHMANN doppel 4. Achsen IKZ Unter Strom in unserem Lager It machined \\input shafts\\ (car power steering component) Special price for quick removal

travel: 1600 mm length: 1600 mm width: 1200 mm spindle head according to: spindle turning speed range: 100-12000 U/min switching steps: feeding velocity x-Axis min./max.: mm y-Axis min./max.: mm Control: Fanuc Brand: OKK Type: VP1200 CNC brand: Fanuc CNC model: 160is-MB Year of make: 2004 Table length: 1.600 mm Table width: 1.300 mm X: 1.600 mm Y: 1.300 mm Z: 550 mm Throat depth: 560 mm Tool changer: 40 Minimum speed: 100 RPM Maximum speed: 12.000 RPM Max. workpiece diameter: 82 mm ø Maximum table load: 2.000 kg For additional information, please refer to the pdf file Machine dimensions: 5.800 x 3.200 x 2.800 mm Machine weight: 16.000 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter max.:400 mm max. width of grinding wheel:180 mm grinding range:2-100 mm total power requirement:24 kW weight of the machine ca.:3,2 t Out of valve production

total power requirement:380V, 50Hz, 7,9A kW weight of the machine ca.:1 t dimensions of the machine ca.:4 x 3 m

Milling machining center CNC Hedelius Tiltenta T7-4200

Unused stock machine from the demonstration room BJ 2021 - V 700 CNC machining center Siemens 828D Unused stock machine from the demonstration room BJ 2021 - MCV CNC Machining Center Siemens 828D Please see the photos for the details

2002 Deckel Maho DMU 50T still in use, can be viewed Find more here - .ucymachines/ Contact us at - sales@ucymachines

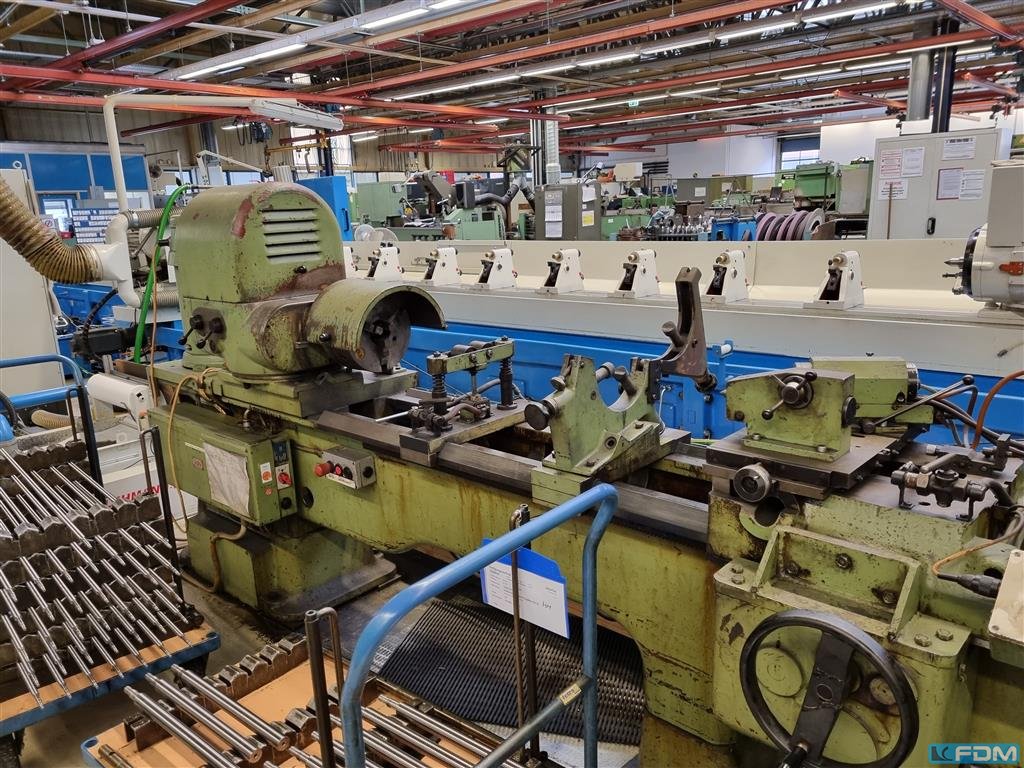

FZWD 160x1600/1 Sabo Basis 160 Facing & Centering Machine WMW HECKERT Workpiece dia 20-160 mm Length 130-1600 mm Max. Diameter of Milling Cutter 200 mm Facing Spindle's Speeds 112-280 rpm Spindle's Speeds 560-1400 rpm Adjustable feed rate range 15 – 800 mm / min. Spindle ISO 50 Rapid traverse 6000 mm Max. stroke 230 mm Max. Depth of 6 mm Tool holder 4 - 20 mm Max. Feed path 60 mm Total connected load 20 kW Weight 4.5 t

grinding diameter max.: 30 mm regulating wheel width: 12 mm max. width of grinding wheel: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Ø min/max to be rectified: 3 - 300 mm, Dimensions of the work wheel: Ø610xØ304.8x508 mm, Dimensions of the drive wheel: Ø355xØ152.4x508 mm, Weight: 17000 kg, Power: 100 kW
