vertical lathe machine used for sale

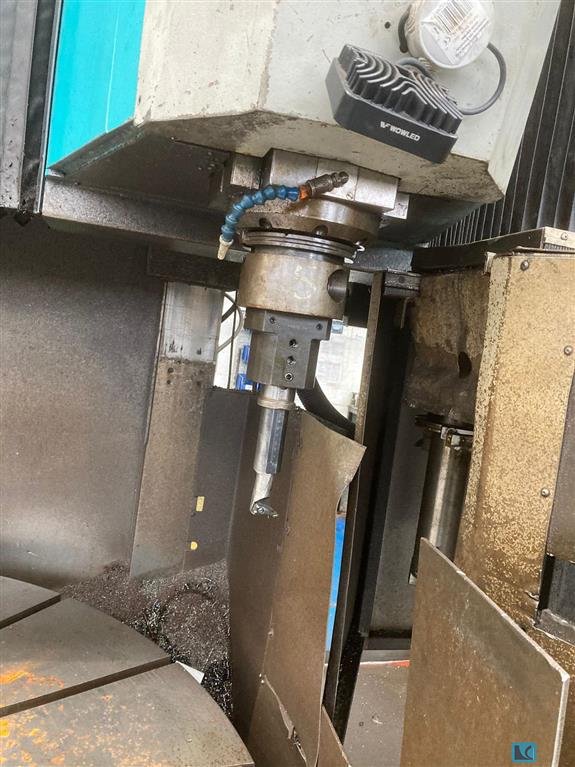

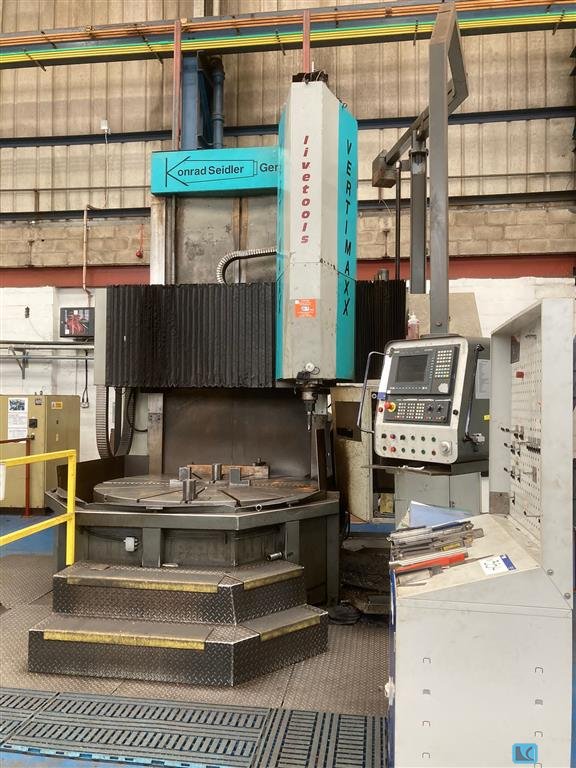

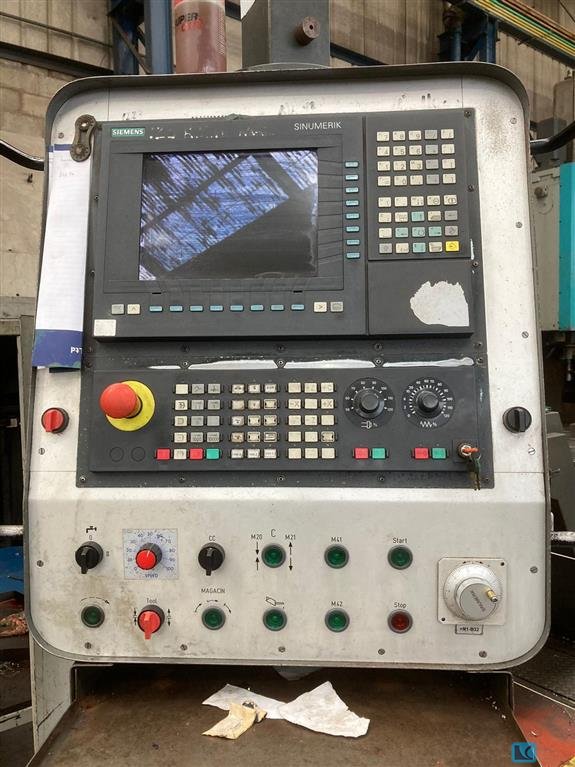

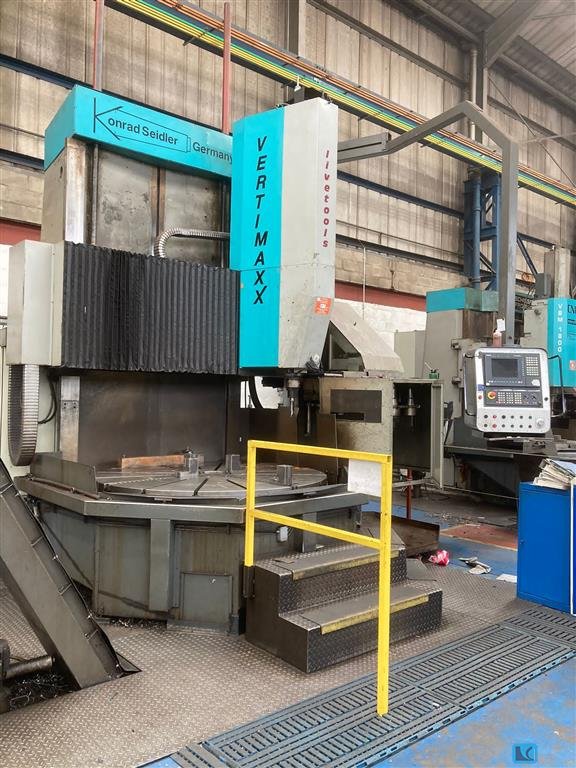

Table diameter: 2,000 mm Max diameter of workpiece: 3,000 mm Main drive: 60 KW Speed rotation of the table: 2.8 - 162 rpm Max workpiece height under the cross member: 2,500 mm Travel RAM: 1,750 mm Tool magazine: 12 workstations Machine Weight: 35 t Accessories: Grinding spindle and various tool holders 3000 rpm Wheel diameter 250 mm

Machine weight: 20,000 kg Faceplate diameter 1250 mm Number of supports: 1 pcs Dimensions: height 4250 mm width 5630 mm depth of 3550 mm Extras: copying apparatus, turret head on the vertical support Technical condition at the time of sale: Replacement rotary amplifier on thyristor converter. Not operated since 1994 p. Small repair and adjustment of electrical and mechanical parts. The maximum dimensions of a workpiece Height 1150 mm The diameter of 1400 mm Weight 8000 kg

chuck diameter, mm 7100 (8000) Max. work piece diameter, mm 8000 Max. work piece height, mm 3200 Max. work piece weight, kg 125000 Chuck speed, rpm 0,22...20,1 Max. ram movement of vertical support, mm 2000 Max. movement of vertical, mm 4275 Support feed range, mm/min 0,0352...285 Support rapid feed, mm/min 2500 Supports possible work angle, deg. -15...+40 Jaws, units 4 Machine overall dimensions, mm 8615 x 17600 x 9800 Machine weight, kg app. 247300

turning diameter: mm swing diameter: mm turning height: mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Used machine in good condition. Available for immediate delivery. - Control: SIEMENS 840 D - Axes: 2 - Cutting feed rate (X x Z): 0.1 - 3.000 mm / min - Power of driven tool: 37 kW - Weight: 25 t

Used machine in good condition. Available for immediate delivery. - Power source : 30 kVA - Control: CNC HEIDENHAIN TMC 530 - Tool magazine capacity: 20 # - Maximum tool diameter ?: 65 mm - Weight: 7.5 t

Used machine in good condition. Available for immediate delivery. - Control: SINUMERIK 880 T 3 - Max. length: 400 mm - Tool-holder cone: CONO ISO 50 - Tool magazine capacity: 16 #

turning diameter: mm swing diameter: mm turning height: mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

An Emag vertical CNC lathe is available. Clamping chuck diameter: 250mm, max. circulation diameter: 270mm, max. machining diameter: 250mm, max. machining length: 175mm, speed: 4500rpm, tool positions: 12, tool holder: VDI 40, travel X/Z: 660mm/300mm, rapid traverse X/Z: 60m/30m/min. Machine dimensions X/Y/Z: approx. 4300mm/1600mm/3300mm, weight: approx. 7500kg, control: Fanuc Series 32i-Model A, operating hours: 64137h. Including automatic loading and unloading with pick-up spindle and integrated part diverter and workpiece storage. Documentation available. On-site inspection is possible.

CNC vertical lathe Type: SKJ 12 NC Manufacturer: TOS Control: Mefi Max workpiece diameter: 1400 mm Clamping plate diameter: 1250 mm Maximum workpiece height: 1150 mm Maximum workpiece weight: 6000 kg Clamping plate speed: 2.5 - 225 rpm Main motor power: 37 kW Machine weight: 13000 kg In good condition, under power Find more here - / Contact us at -

Offered is a CNC vertical turning machine - pick-up system. Chuck diameter: approx. 160mm - 200mm, swing diameter: approx. 270mm, travels X/Z: approx. 500 - 600mm/approx. 160 - 200mm, max. spindle speed: 6000rpm, tool carrier: 12-station turret, drive system: Siemens SIMODRIVE 611, hydraulic unit: available, coolant system: including pumps and filter (One Eye Ind. magnetic filter installed), hinged belt chip conveyor. Inspection is possible by appointment.

CONTROLS   CNC controls FANUC BASIC FUNCTIONS   number of spindles: 1   number of turrets: 1 MAIN SPINDLE   spindle revolutions (max): 6000 /min ELECTRICAL SPECIFICATIONS   total power consumption: 36 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 4200 mm   space requirements -front/back-: 2300 mm   total height: 3200 mm   total weight approx.: 7500 kg

EMAG VTC 250 DUO DDYear of manuf. : 2020 Control : Siemens 840 Dsl Turning diam. : 140 mmTurning length : 700 mm____________Description:In General:Max. workpiece diameter:140 mmChuck diameter:250 mmMax. turning length:700 mmTrack I:Tool carrier I:Tool turret (X/Z)Tool drive:9,600 rpm, 44 NmTool holder:BMTNumber of stations:11 + 1 Part gripperX-axis:310 mmZ-axis:1,115 mmPosition sensors (X/Z):Direct scalesTrack II:Main spindle (OP10):Travelling direct drive spindleSpeed:5,000 rpmPower:33.9 kWTorque:231 NmChuck:Collet chuckClamping cylinder:Hydraulic clamping cylinderSupport control:PneumaticW-axis:772 mmC-axis:0.01°Position sensor (W):Direct scale:Sub-spindle (OP20):Direct drive spindleSpeed:5,000 rpmPower:33.9 kWTorque:231 NmChuck:2+2-jaw power chuckClamping cylinder:Hydraulic clamping cylinderC-axis:0.01°Track III:Tool Carrier II:Tool turret (X/Y/Z)Tool drive:9,600 rpm, 44 NmToo ...

Maximum rotation diameter: 760 mm Maximum turning diameter: 550 mm Maximum turning height: 600 mm Chuck: 15 inches X-axis: 325 mm Z-axis: 625 mm Axis C: Indexation 0.001° Spindle speed: 2,000 RPM Spindle power: 22 kW Spindle nose: A2-11 Type of training: By belt Turret: 12 stations (BMT75) Motorized tool speed: 3,000 rpm Power of motorized tools: 7.5 / 5.5 kW Tool dimensions: 32 x 32 mm Bore bar diameter: Ø 50 mm Fast Forwards: 20 / 18 m/min CNC Control: Fanuc 32i Model B Weight: 8,500 kg Floor dimensions: 2,010 x 3,212 mm Auction-ID: A1-46647-17

Dörries Contumat VCE 2000-160Year of manuf. : 1991 Control : Siemens 840 Dsl Turning diam. : 1600 mmTurning length : 1800 mm____________Description:In General:Year of manufacture:1991 / 2010Control system retrofit:2010Control system:Siemens 840 DslCircumferential diameter:2,000 mmTurning diameter:1,600 mmTurning height:1,800 mmTable / Faceplate:Technology:Gear-driven tableSpeed:315 rpmPower:105 kWMax. torque:50,000 NmFaceplate:1,600 mmMax. table load:12,000 kgTool carrier:Crossbeam travel (vertical):1,200 mmChisel slide travel:1,500 mmSupport travel (horizontal):2,300 (+/-1,150) mmPenetration diameter:340 mmChisel slide cross-section:240 x 240 mmEquipment:Tool magazine:20 stationsChip removal:Chip conveyorCoolant supply:Coolant system with filterTool measurement:ProbeSet-up:Electronic handwheelTool holders:Various tool holdersControl system overhaul:Year of overhauling:2010Technol ...

Vertical lathe Gildemeister CTV 250 Technical details Chuck diameter: 250 mm X-axis: 800 mm Z-axis: 300 mm Spindle Spindle head: 170 h5 Spindle diameter in front bearing: 120 mm Spindle bore: 79 mm C-axis Number of workstations: 12 Auction-ID: A1-46872-36

EMAG VL5i Vertical Lathe (2013) Max. chuck diameter: 250 mm Max. circumferential diameter: 270 mm Max. workpiece diameter: 220 mm Max. workpiece height: 175 mm X-axis travel: 660 mm Travel Z-axis: 300 mm Rapid traverse X: 60 m/min Rapid traverse Z: 30 m/min 12-cavity turret with VDI-40 tool holder Driven tools up to 6,000 rpm Power driven tools: 8.5 kW Main spindle power: 18 / 27 kW Torque main spindle: 200 / 300 Nm Chip conveyor available Emulsion mist extraction available Control Siemens 840D SL Operating hours: 44,500 h Auction-ID: A7-47048-78

faceplate diameter:4000 mm swing diameter:4300 mm turning height:2500 mm max. workpiece weight:63 t total power requirement:125 kW weight of the machine ca.:134 t dimensions:6100x10400x8400 mm Used Vertical Turret Lathe with 2 plungers and CNC Siemens 840 table is hydrostatically. Machine equipped with a grinding head. CNC was overhauled in 2000.

faceplate diameter:800 mm power requirement:110 kW weight of the machine ca.:37.000 / total 52.000 t transport measurements machine:5,07 x 2,98 x 3,90 m clamping diameter:800 mm :Ø 800 x 720 mm Tool bore:Capto C6 tools in tool magazin:2 x 80 With C-Axis

faceplate diameter:1600 mm power requirement:80 kW weight of the machine ca.:25 t dimensions of the machine ca.:4,4 x 4,62 m max. workpiece diameter:2000 mm max. diameter of face turning:1800 mm tool taper:ISO50 The machine has been regularly serviced and is in good technical condition. With C-Axis Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1500 mm main drive:80 kW faceplate speeds from - to:1 - 365 U/min milling motor:37 kW ram head dimension:240 x 240 mm max. ram stroke:1250 mm total power requirement:133 kVA weight of the machine ca.:50 t dimensions of the machine ca.:11 x 5 x 6,4 m Machine was overhauled in 2008 by OEM New control CNC SIEMENS 840 D automatic tool changer 72-pcs C-axis with driven tools Angle-, straight tool holders with CAPTO holder Coolant device Chipconveyour

faceplate diameter:2000 mm swing diameter:2130 mm turning height:1400 mm ram stroke range:1000 mm workpiece weight:10 t faceplate turning speed range:1 -200 U/min main drive:60 kW total power requirement:95 kW weight of the machine ca.:24 t dimensions of the machine ca.:6,0 x 4,0 x 5,6 m with CNC SIEMENS 840 D C-axis driven tooling 15/22 kW automatic toolchnager 16-pockets through spindle coolant splash guarding and chip conveyor

faceplate diameter:1800 mm swing diameter:2000 mm turning height:1170 mm z-axis:1000 mm cross rail adjustment - vertical:800 mm faceplate speeds::2,5 - 280 workpiece weight:12 t feeds:1 - 6000 mm/min max. torque on the faceplate:50000 Nm total power requirement:85 kW weight of the machine ca.:41 t dimensions of the machine ca.:5,6 x 4,8 x 4,6 m Machine retrofit and overhould in 2005 with SIEMENS 840 D powerline control - 6 jaw hydraulic power chuck - tool changer for 12 tools - chip conveyor, coolant attachment, splash housing - various tool holders

faceplate diameter:1000 mm swing diameter:1600 mm turning height:1200 mm main drive:75 kW faceplate speeds from - to:7 - 800 U/min milling motor:25 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 mm ram head dimension:240 x 240 mm weight of the machine ca.:40 to dimensions of the machine ca.:9 x 7,8 x 6,0 m Machine general overhould in 2004 and equiped with Siemens 840 D control - tool changer rack magazine - C-axis, live tooling, - Transmit function electronical Y-axis - angular milling head - complete splash housing - coolant device, chip conveyor

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1270 mm main drive:80 kW faceplate speeds from - to:1 - 355 U/min max. workpiece weight:6.000 kg milling motor:37 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 (8 x 100 mm) mm ram head dimension:240 x 240 mm max. ram stroke:1250 mm weight of the machine ca.:50 to total power requirement:133 kVA dimensions of the machine ca.:11 x 5 x 6,4 m Machine general overhould in 2008 and equiped with CNC SIEMENS 840 D control - tool changer for 72 tools - C-axis, live tooling - angular- and straight tool holder head with CAPTO taper - Transmit function - complete splash housing - coolant device, chip conveyor - diverse accessories

faceplate diameter:4000 mm swing diameter:4300 mm turning height:330 mm faceplate turning speed range:1 - 92 U/min workpiece weight:18 t feeds:1 - 4000 mm/min main drive motor:55 kW total power requirement:85 kVA weight of the machine ca.:64 t dimensions of the machine ca.:90, x 7,2 x 5,5 m with CNC SIEMENS 840 D for 4 axis 2 Vertical Supports tool Basic holder chip conveyor

faceplate diameter:4770 mm swing diameter:7000 mm turning height:1000 mm slide stroke:1000 mm workpiece weight max.:100000 kg faceplate turning speed range:2 - 20 U/min feed speeds:1 - 10000 mm/min rapid traverse:10 m/min ram head dimension:250 x 250 mm main drive:100 kW total power requirement:200 kW with CNC SIEMENS 840 D 2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpm Chip conveyor and coolant attachment

faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders

faceplate diameter:5000 mm swing diameter:6100 mm turning height:2400 mm ram stroke each side:1490 mm ram head dimension:340 x 340 mm max. workpiece weight:100.000 kg total power requirement:100 kW weight of the machine ca.:155 t faceplate turning speed range:0,4 - 50 U/min with 2 axes CNC SIEMENS 840 D

Maximum rotation diameter: 760 mm Maximum turning diameter: 550 mm Maximum turning height: 600 mm Chuck: 15 inches X-axis: 325 mm Z-axis: 625 mm Axis C: Indexation 0.001° Spindle speed: 2,000 RPM Spindle power: 22 kW Spindle nose: A2-11 Type of training: By belt Turret: 12 stations (BMT75) Motorized tool speed: 3,000 rpm Power of motorized tools: 7.5 / 5.5 kW Tool dimensions: 32 x 32 mm Bore bar diameter: Ø 50 mm Fast Forwards: 20 / 18 m/min CNC Control: Fanuc 32i Model B Weight: 8,500 kg Floor dimensions: 2,010 x 3,212 mm

Technical data: Completely overhauled in 2001 Circulation diameter over bed: 1000 mm Diameter in recess: 1120 mm Circulation diameter over bed slide: 690 mm max. height above floor: 1110 mm max. height above bed: 460 mm Bed width: 800 mm Width of recess in front of the plan disc: 550 mm

Tip height: 330 mm centre distance: 1500 mm circular diameter: bed 690 mm spindle bore: 82 mm spindle retainer: short taper size 8 taper tailstock: 6 MK spindle speed: 7.1-1400 rpm feeds: longitudinal/plan 0.05 112/0.025 56 mm / U thread pitches: 0.25-560 mm electrical connection: 380 V, 15 kW space: 3350 x 1800 x 1400 mm weight: 4800 kg

Tip height: about quilt 300 mm centre distance: 1500 mm circular diameter: upper bed 640 mm spindle bore: 67 mm spindle retainer: Gr. 8 taper tailstock: 5 MK spindle speed: 18 - 900 rpm feeds: longitudinal/plan 0.063 0.032 2.1 mm / U thread pitches: 0.5-14 mm electrical connection: 380 V, approx. 7.5 kW space: 1550 x 3100 x 1250 mm weight: approx. 3500 kg hardly used and therefore well-preserved bed lathe

Made in Italy machine according to DIN 8606 Tip height: 260 mm Turning diameter over bed: 520 mm Swing over carriage: 300 mm Centre distance: 1500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (24) 9-1600 rpm (option 11-2000 U/min) Engine output: 5.5 kW (option: 7.5 kW) feed Z-axis: (93) 0.028 6.43 mm / Rev Feed x axis: (93) 0.012 2.73 mm / Rev Thread, metric: (54) 0.5-224 mm Thread, Witworth: (55) 72 - 1/8 TPI Thread, module: (54) 0.5-112 mm Thread, Diametral Pitch: (54) 64 - 1/4 D.P.. Cross slide Lxw: 650 x 230 mm Transversal carriage stroke: 340 mm Upper carriage Lxw: 350 x 150 mm Upper carriage stroke: 150 mm Tailstock Quill diameter: 85 mm Tailstock Quill stroke: 200 mm Tailstock taper: MK 5 Weight: 3,100 kg Facilities: -Movement of the tailstock pneumatically supported -Acceptance Protocol according to DIN 8605, ...

Made in Italy machine according to DIN 8605: lathe with increased accuracy. Tip height: 215 mm Turning diameter over bed: 430 mm Swing over carriage: 240 mm Top width: 1,000 mm Bed width: 290 mm Spindle bore: 52 mm Spindle nose: Camlock 6 " Spindle speeds variable: 6 Spindle speeds: 60-2,000 rpm S6/S1 engine power: 4 kW (option: 5.5 kW) feed Z-axis: (38) 0.05 - 1.88 mm / Rev Feed x axis: (38) 0.02 1,084 mm / Rev Thread cutting, metric: (30) 0.45-20 mm Thread cutting, Witworth: (35) 80-1 3/4 TPI Thread cutting, module: (25) 0.25-10 mm Thread cutting, Diametral Pitch: (30) 160-3 1/2 D.P.. Cross slide Lxw: 370 x 190 mm Transversal carriage stroke: 240 mm Upper carriage Lxw: 275 x 115 mm Upper carriage stroke: 120 mm Tailstock Quill diameter: 60 mm Tailstock Quill stroke: 135 mm Tailstock taper: MK 4 Weight: approx. 2,000 kg Facilities: -Infinitely variable  ...

Precision lathe with cycle automatic Make: Hamlet Model: E 70 x 2000 Year of construction: 1997 For food and feed shaft machining Technical data: Workspace Turning length: 2000 mm Swing over bed: 720 mm Swing over cross slide plan: 430 mm Displacement of the plan slide: 410 mm Bed width: 480 mm 3prpek3uq Spindle nose ACC. to DIN 55027: size 11 Spindle diameter in front bearing: 150 mm Spindle bore: 106 mm Inside taper of the main spindle: 112 metric Control: Siemens 805 Spindle gearbox newly stored according to the manufacturer ca. 2.500 EUR

Made in Italy Peak: 300 mm Rotary diameter over bed: 600 mm Rotary diameter via sled: 380 mm Peak: 1,500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (12) 16-1200 U/min Engine power: 9.2 kW (special equipment/standard: 7.5 kW) Reprimor Z-axis: (93) 0.028-6.43 mm/U Feed X-axis: (93) 0.012-2.73 mm/U Thread, metric: (54) 0.5-224 mm Threads, Witworth: (55) 72-1/4 x8 TPI Thread, module: (54) 0.5-112 mm Threads, Diametral Pitch: (54) 64 -1/4 D.P. Crossleigh hub: 340 mm Oberslitten hub: 150 mm Riding stock pinol diameter: 85 mm Riding stove pinol stroke: 200 mm Ridstock cone: MK 5 Weight: About 3,200 kg Facilities: -3-axis digital display -Step-by-step speed adjustment -Automatic lubrication of the management railways -LED lighting -Micrometer bed strike -9.2 kW engine instead of 7.5 kW -Quick change holder system mul ...

Tip width: 700 mm Tip height: 150 mm Circulation diameter over bed: 300 mm Bed width: 180 mm Spindle bore: 38 mm Mounting in the spindle bore: MK 5 Speed range, infinitely variable: 30 - 450 / 150 - 3000 rpm Range of longitudinal feeds: (14) 0.07 - 0.65 mm/U Area of plan feeds: (11) 0.03 - 0.12 mm/U Metric threads: (18) 0.2 - 3.5 mm Inch Thread: (21) 8 - 56 Gg/1" Pinole path: 85 mm Pinole holder: MK 3 Engine power S1 100%: 1.5 kW / 400 V Motor recording power S6 40%: 2.2 kW / 400 V Machine dimensions (W x D x H): 1380 x 640 x 500 mm Weight approx.: 235 kg without base Delivery: - Digital display - 3-jaw chuck PO3-160 mm steel version - Feed flange 160 mm - Solid grain tips - Interchangeable wheels - Quick-release steel holder size 20-2 with 2 straight inserts - Slip clutch - Micrometer longitudinal stop - Plan sled with top support - Frequency inverter ...

1 x L+Z lathe Colchester Mascot 1600/600 Built: c.1975 Very stable lathe. Ideal machine for locksmiths or agricultural machine mechanics. Technical data: Turning diameter over crimson: 710 mm Turning diameter over bed:432 mm Turning diameter via support:267 mm Turning length: 1,000 mm Spindle speeds:20 - 1600 rpm Spindle bore:76 mm Drive motor:5.6 kW Feeds: 0.6 - 10 mm/u Metric threads: 40 (0.4 - 14 mm incline) Machine weight approx.:2000 kg Room requirements approx.:l:2.65 x w:1.1 x h:1.6 m Accessories: 3 - Jaw lining UVA 310 mm 4 Set of change jaws Bfraed8ae0 Tripan quick-change system 4 x Interchangeable holder running counter tip in tailstock (MK 5) Countertip in spindle Alternating wheels Manual Mudguard complete documentation The machine can be inspected at our warehouse in Reichenbach under electricity.

Stepless guide and pull spindle lathe TC 250 V Peak height: 250 mm Circulation diameter via slide: 350 mm Orbital diameter in the croation: 695 mm Tip width: 1500 mm Spindle nose: DIN 55029, Camlock, size 6 Bed width: 305 mm Cross slide path: 272 mm Upper slide path: 155 mm Spindle bore: 80 mm Speed range, infinitely variable: (3) 30 - 2200 rpm Whitworth Thread: (45) 2 - 72 TPI Metric Thread: (39) 0.2 - 14 mm Diametral Thread: (21) 8 - 44 D.P.I Module Thread: (18) 0.3 - 3.5 module Longitudinal feeds: 0.04 - 1.00 mm/U Flat feeds: 0.02 - 0.50 mm/U Engine power: 5.5 kW Dimensions LxWxH, approx.: 2900 x 1175 x 2040 mm Weight, approx.: 2,200 kg characteristics: - Toolmaker accuracy - Stepless speed control (3 pre-level steps) - Finely-balanced main spindle - Stable machine bed with hardened and ground guides - One-piece cast base - Adjustable precision cone roll ...

Machine details Stock number 1105-03330 Machine type guide and pull spindle lathe Make ERNAULT-SOMUA Type Cholet 550 Year of construction 1990 Control type conventional Storage location FRANCE Country of origin France Delivery time immediately Freight base EX WORK price Technical details Turning diameter over bed 550 mm Turning diameter via support 500 mm Turning length 1100 mm Tip height 250 mm Spindle bore 52 mm Inner cone 136 Spindle speeds 32-1800 rpm Feeds - bed slide / lengthwise 0.05-07 mm/w Feeds flat slide 0.033-0.45 mm/min Total power requirement 13 kW Weight of the machine ca. 2,3 t Space requirement approx. 2870 x 940 x 1400 m Information accessories: PARAT steel holder 4 STUCK 3 bake lining dia 250mm 2 AXIS DIGITAL

Maximum diameter to turn on the bench 2,110 mm Maximum diameter to turn on trolley 1,600 mm Maximum distance between platforms 12,830 mm Spindle hole diameter 155 mm Cone on spindle no. 120 metric Cone on spindle (with reduction) no. 6 clamps Cone on the counterpoint (6-bit reduction) no. 120 metrics Maximum stroke of the counterpoint 400 mm DSeed from the tool support plane to the axis of the 80 mm centers Main engine power 100 HP Spindle speed from 0.9 to 90 rpm with continuous variation Longitudinal feed no. 36: 0.2 to 12.8 Transverse advances No. 36: 0.1 to 6.6 Metric fillets #26: 1 to 42 Whitwoth fillets #17: 0.5 to 11 Quick forwards Maximum permissible load on the tips 50-60 ton Refrigerant liquid system

Peak height 2,600 mm Point distance 10,000 mm Closed bench 2,000x6,000 mm To be completed with CNC

Height tips 220 mm Useful length 1,000 mm 42 mm bar pass

Max length 8,000 mm Maximum turning diameter above wagon 1,250 mm Max vault over guides 1,650 mm Maximum turning diameter under spindle 2,000x700 mm Displayed – two axes

Equipped with no. 03 guides Overhauled with: guide grinding, CN conversion, new electrical and hydraulic system, hydraulic self-centering installation, shaving conveyor; CN Fagor 8055 Numerical Control – BT Maximum turnerable diameter 1800 mm 3-grife hydraulic self-centering with a diameter of 1450 mm with tightening force 30 Ton with 30 bar clamp L max turnerable 3000 mm Spindle engine power 110 Kw Maximum rotation speed 180 rpm Fast value axles 4000 mm/min M3/M4 Spindle Rotation Inversion Possibility 4 speed ranges Hydraulic counterpoint Maximum capacity of workpiece on counterpoint 12500 Kg It is currently possible to work details of up to 3000 mm length but the extension pallet is available to be able to work details up to 8 m in length. (un revised); Machine installed and working

IN THE RETROFITTING PHASE Height tips 900 mm Point distance 7,000 mm Turnerable diameter on the bench 1,850 mm Turnerable diameter on trolley 1,350 mm Turnerable diameter on recess 2,150 mm Bench width 1,000 mm Bar passage diameter 206 mm ASA A1 15" spindle attachment Top speed 300 RPM Diameter of the tank counterpoint 220 mm Row stroke counterpoint 450 mm Withworth threads - metrics - diametrics - module Weight allowed between tips without lunettes 15 ton Weight allowed between tips with a 20-ton bezel

Maximum turnerable diameter: 1040 mm Turning diameter above the wagon: 620 mm Maximum workable length: 5200 mm Spindle power: 40 kW CNC ECS Optical line measurement system Maximum flow between tips: 10 tons Machine complete with chip evacuator, 4-position hydraulic turret, safety shelters in compliance and spindle 3-jaw hydraulic self-centering AUTOBLOCK; Various accessories available (tool case, stretchers, lunettes...) EC 2018 remarking possibility

Platò diameter: 1300 mm Used lathe in good condition, available unless sold.

peak heights: 250 mm point distance: 1500 mm bar pass: 105 mm
