vertical lathe dia used for sale

number of spindles:6 spindle passage:36 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2003 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=36mm! Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images; various collets are included in delivery up to D36mm Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Manufacturer: HYUNDAI Year: 1999 Type: CNC lathe CNC numerically controlled: Siemens Sinumerik 840C Max. turning circle: Ø 254 mm Diameter above bed: Ø 440 mm Max. turning length: 500 mm Bar capacity: Ø 51 mm Spindle: 36–4,000 rpm – nose A2-6 – 11 kW (continuous) / 15 kW (30 min) Chuck: Ø 210 mm, Hydraulic clamping Turret: 8 stations – 25 × 25 mm tools / Ø 40 mm bars Tailstock: programmable hydraulic – CM4 taper Chip conveyor: hinged, side outlet Dimensions (mm): 2600 × 1700 × 1750 Weight (kg): approx. 4200 Remarks: Machine used, sold with tailstock and conveyor. Auction-ID: A1-46647-214

CNC control: MSX-850 III Number of axes: 2 Strokes: X = 260 mm, Z = 590 mm Spindle speed: 50 – 5000 rpm Power: 15 kW Bar capacity: Ø 65 mm Spindle bore: 73 mm Turret : 12 stations (BMT) Max turning diameter: 356 mm Max turning length: 510 mm Chip conveyor: yes 235L high-pressure pump: yes Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-204

number of spindles:6 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2003 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=32mm Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2000 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=32mm pick-up unit, Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

\"The Schaublin 102 VM mechanical lathe is a high-precision machine tool designed for machining operations, especially the turning of metal parts. Manufactured by the Swiss brand Schaublin, known for the quality and reliability of its equipment, this model is particularly popular in precision mechanics workshops, laboratories and demanding production environments. Offered as is, it is an excellent opportunity for professionals wishing to acquire a robust machine to be put back into service or optimized. With dimensions of 200 cm in length, 77 cm in width and 155 cm in height, this lathe offers a comfortable workspace while remaining suitable for a standard workshop. Its weight of 400 kg guarantees high stability, which is essential to ensure optimal machining quality and limit vibrations. The Schaublin 102 VM is therefore a reliable and high-performance solution for turning jobs that req ...

Manufacturer: GILDEMEISTER Year: 1996 Type: CNC lathe Numerical control: Heidenhain ELECTRO PILOT turn plus Axes: 2 axes (X, Z) Turning diameter above the bench: Ø 500 mm Turning diameter above the carriage: Ø 290 mm Max. turning length: 640 mm Spindle: 20–5,000 rpm – 22 kW – max. torque 150 Nm – bore 72 mm – passage 65 mm Strokes: Z 650 mm / X 212 mm Fast feeds X/Z: 10 m/min Tailstock: sleeve Ø 80 mm – CM4 – stroke 100 mm Equipment: 3-jaw chuck Ø 250 mm, SAUTER turret 12 positions VDI 30, tailstock, full documentation Dimensions: approx. 3300 × 1800 × 1900 mm Weight: approx. 5000 kg Remarks: Robust German-made CNC lathe. Auction-ID: A1-46647-225

Package of 3 Schütte S32PC Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: S32PC Yob: 1998 One machine is operational; the other two can be used for spare parts Includes IEMCA PRA40/33/P loading magazine, built in 1997 (rack type loader) Includes IEMCA PRA40/42/F loading magazine, built in 1999 (bundle loader) Includes IEMCA SIR325 loading magazine (integral loader with bundle magazine) tooling included in delivery may differ from the pictures Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Demonstration machine Speed in 6 steps 125 - 2000rpm. 3-jaw chuck 125 mm. 4-jaw chuck 125 mm. (Independent) Fixed bezel. Rotating bezel. 4-fold steel holder. Scout tub. Back wall. Spindle protection. Hardened bed rails. Longitudinal feed with left/right shift. Set of interchangeable wheels. Related tools. Turning diameter over bed 250 mm Turning diameter over support 140 mm Turning length 550 mm Speed 125 - 2000 rpm Tip height 125 mm Spindle bore 26 mm Tailstock quill holder MK 2 MK Tailstock quill stroke 65 mm Connection voltage 230 V Total power requirement 0.8 kW Machine weight approx. 0.135 t Space requirement approx. 1.25 x 0.6 x 0.6 m Condition: never used / new (5)

"The Schaublin 102 VM mechanical lathe is a high-precision machine tool designed for machining operations, especially the turning of metal parts. Manufactured by the Swiss brand Schaublin, known for the quality and reliability of its equipment, this model is particularly popular in precision mechanics workshops, laboratories and demanding production environments. Offered as is, it is an excellent opportunity for professionals wishing to acquire a robust machine to be put back into service or optimized. With dimensions of 200 cm in length, 77 cm in width and 155 cm in height, this lathe offers a comfortable workspace while remaining suitable for a standard workshop. Its weight of 400 kg guarantees high stability, which is essential to ensure optimal machining quality and limit vibrations. The Schaublin 102 VM is therefore a reliable and high-performance solution for turning jobs that requ ...

CNC Control: SIEMENS 810 D Number of axes: 3 Max. turning diameter: 325 mm Max. turning length: 400 mm Max. passage over the bed: 500 mm X/ Z axis strokes: 215 / 420 mm Spindle speed: 30 – 4,500 rpm Spindle bore: 52 mm Spindle power: 15 kW Turret: 12 VDI 40 positions with motorized tools Chuck: 3-jaw hydraulic Ø 204 mm Tailstock: present, CM4 taper Tailstock sleeve stroke: 130 mm, Ø 80 mm Included equipment: coolant, bar feeder Weight (kg): approx. 4500 Year & Manufacturer: 2000 – HYUNDAI Auction-ID: A1-46647-253

Seiger SLZ 1200 x 3000 heavy lathe with Siemens cycle control Seiger, type SLZ 1200 x 3000.The machine is equipped with a Siemens Sinumerik cycle control (teach-in). Version with AC main drive, face plate, 2x chip conveyor, hydraulic power unit and separate control cabinet. Documentation and tool holders available. Machine without tailstock. Viewing and test run under voltage possible by appointment. Working range Center width: 3000 mm Circulation diameter over bed: 1200 mm Rotation diameter over face slide: 850 mm Travel distance face slide: 620 mm Bed width: 750 mm Spindle head: DIN 55027 Size 11 Spindle diameter front bearing: 190 mm Spindle bore: 104 mm Speed range: 5 – 900 min⁻¹ Max. torque: 6000 Nm Main drive Drive power: 37 / 52 kW (100 % / 60 % ED) Feed X-feed force: 24,000 N Z-feed force: 16,000 N Rapid traverse X: 7 m/min Rapid traverse Z: 4 m/min Tool holder Turning  ...

3-axis digital display 3-jaw chuck 200 mm. 4-jaw chuck 200 mm. Face Plate 320mm Fixed bezel Steady bezel 4-fold steel holder. Halogen Machine Light Machine Light Foot brake Removable chip tray, chip protection wall Hardened and ground bed sheets Complete coolant system Feed protection Machine Tools Turning diameter over bed 400 mm Turning diameter over support 264 mm Turning length 1000 mm Turning diameter in the offset 550 mm Speed 44 - 2000 rpm Center height 200 mm Spindle bore 52 mm Tailstock quill holder MK 4 MK Connection voltage 400 V Total power requirement 1.5 / 2.4 kW Machine weight approx. 0.9 t Dimensions approx. 1.9 x 0.8 x 1.56 m Condition: never used / new (5)

CNC lathe for turning and machining metal parts. CNC control: Fanuc 16 T AA Max. turning diameter: 165 mm Turning length: 100 – 340 mm Diameter above bed: 220 mm Main spindle speed: 50 – 5,000 rpm Main spindle power: 5.5 / 7.5 kW Main spindle bar passing: 65 mm Sub-spindle speed: 50 – 5,000 rpm Sub-spindle power: 3.7 / 5.5 kW Sub-spindle bar passage: 42 mm C-axis: 0.001° Turrets: 2 Tool positions: 2 × 16 Motorized tools: 2 × 16 positions Strokes: X 175 mm / Z 240 – 680 mm Total power: 41 kVA Dimensions (mm): 3,500 × 2,800 × 2,000 Weight (kg): 5,500 Auction-ID: A1-46647-237

Capabilities: Maximum turning diameter: 420 mm (standard 290 mm) Maximum turning length (Z-axis): 635 mm Bar passage: 65 mm Spindle Bore: 79 mm Spindle: Rotational speed: 25 to 5,000 rpm Power: 21 kW (100%) / 28 kW (40%) 3-jaw hydraulic chuck (Ø approx. 200–250 mm) Turret & tooling: Sauter Turret VDI 30 (DIN 69880) Capacity: 12 stations Motorized substations C-axis (pin indexing) CNC Control: Heidenhain Turn Plus Electrical data: Power supply: 400 V / 3~ / 50 Hz Installed effective power: 44 kVA Current rating: 64 A Protection: 80 A Auxiliary voltage: 230 V Control voltage: 24 V DC Auction-ID: A1-46647-262

Manufacturer: YAMAZAKI MAZAK Model: Quick Turn 20 Year: 1997 CNC Machine: Mazatrol T Plus Axes: 2 Axes (X, Z) Capacities: Max. diameter above bed: Ø 300 mm Distance between points: 446 mm X-axis stroke: 180 mm Spindle: Bore: 61 mm Max. speed: 4500 rpm Motor power: 15 kW Turret: 8 positions Dimensions per machine: 2660 x 1520 x 1879 mm Unit weight: approx. 4170 kg (total batch weight approx. 8340 kg) Condition: used Auction-ID: A1-46647-261

Manufacturer: HARDINGE Year: 2005 Type: CNC Motorized Tool Lathe with C-Axis Numerical Control: FANUC 21i-TB Bar Capacity: Ø 51 mm Max. Turning Circle: Ø 310 mm Max. Turning Length: 470 mm Chuck: Ø 200 mm (8") Bed Inclination: 45° Spindle: 50–5,000 rpm – 18.5 kW (max) / 11 kW (continuous) Turret: 12 stations, all motorable positions Motorized implements: 4,000–5,000 rpm – 3.7 kW Fast feeds: X/Z 19 / 24 m/min Accuracy: ±0.005 mm Included equipment: Programmable C-axis (0.001°), IEMCA Boss 545 bar feeder Weight (kg): approx. 4200

Table lathe with base cabinet 2-axis LCD digital display system. Longitudinal feed. 3-jaw chuck 125 mm. 4-jaw chuck 125 mm. Clamping plate. 4-way steel holder. Drip tray Hardened bed sheets. Emergency stop. Feed protection Set of wheels. Suitable tools. Turning diameter over bed 250 mm Turning diameter over support 140 mm Turning length 550 mm Speed 50 - 2000 rpm Tip height 125 mm Spindle bore 26 mm Tailstock quill holder MK 2 MK Tailstock quill stroke 65 mm Connection voltage 230 V Total power requirement 1.1 kW Machine weight approx. 0.15 t Space requirement approx. 1.3 x 0.6 x 1.3 m Condition: never used / new (5)

Specifications: Control: Fanuc 0i-TD Hours: 12009 Capacity: - Swing over bed: 970mm - Swing over cross slide: 600mm - Centre height: 490mm - Width of carriage: 885mm - Width of cross slide: 350mm - Distance between centers: 4300mm - Width of bed: 560mm Headstock: - Chuck size: 605mm - Spindle bore: 153mm - Spindle nose: A2-11 - Spindle speed: 6.5 ~ 600rpm - Spindle power: 22/26kW Turret: - Tool size: 32mm - 4 positions Tailstock: - Quill diameter: 165mm - Quill traverse: 200mm - Tailstock center: MT#6 - Body movement: motorized Machine is equipped with: - 2 chip conveyors - Motorized tailstock body - Steady rest - Tooling as showed in pictures - Auction-ID: A1-45752-7

Manufacturer: GILDEMEISTER Year: 1996 Type: CNC lathe Numerical control: Heidenhain ELECTRO PILOT turn plus Axes: 2 axes (X, Z) Turning diameter above the bench: Ø 500 mm Turning diameter above the carriage: Ø 290 mm Max. turning length: 640 mm Spindle: 20–5,000 rpm – 22 kW – max. torque 150 Nm – bore 72 mm – passage 65 mm Strokes: Z 650 mm / X 212 mm Fast feeds X/Z: 10 m/min Tailstock: sleeve Ø 80 mm – CM4 – stroke 100 mm Equipment: 3-jaw chuck Ø 250 mm, SAUTER turret 12 positions VDI 30, tailstock, full documentation Dimensions: approx. 3300 × 1800 × 1900 mm Weight: approx. 5000 kg Remarks: Robust German-made CNC lathe.

2-axis CNC lathe with HAAS CNC Manufacturer: HAAS Model: HL-2 Year: 1997 Serial Number: 61212 Max turning diameter: 508 mm Max turning length: 610 mm Spindle Bore: 76.2 mm Max spindle speed: 3750 rpm Turret: 10 positions CNC Control: HAAS CNC Power supply: 360 / 480 V – 3 phases – 50/60 Hz Dimensions approx. (L x W x H): 3200 x 1778 x 1778 mm Weight approx.: 4082 kg Auction-ID: A1-46647-263

" Lot of approx. 300 kg of turning steels – mixed lot for lathes An extensive lot of turning steels for machine tools is for sale. Inventory according to visual inspection: • External turning steels • Internal turning steels / boring rods • Parting steels • Shaped steels • Partly equipped with carbide • Partly with indexable insert holders Different dimensions and designs. Sale exclusively as a total item. Total weight: approx. 300 kg Material: tool steel / partly carbide tipped Design: various shaft sizes and lengths "

Bench lathe 2-axis LCD digital display system. Longitudinal feed. 3-jaw chuck 125 mm. 4-jaw chuck 125 mm. Clamping plate. 4-way steel holder. Drip tray Hardened bed sheets. Emergency stop. Feed protection Set of wheels. Base cabinet is not included Suitable tools. Turning diameter over bed 250 mm Turning diameter over support 140 mm Turning length 550 mm Speed 50 - 2000 rpm Tip height 125 mm Spindle bore 26 mm Tailstock quill holder MK 2 MK Tailstock quill stroke 65 mm Connection voltage 230 V Total power requirement 1.1 kW Machine weight approx. 0.15 t Space requirements approx. 1.3 x 0.6 x 0.65 m Condition: never used / new (5)

Manufacturer: INDEX Year: 2005 Type: Moving spindle CNC lathe with motorized tools and C-axis Numerical control: Siemens Sinumerik 840D Powerline Chuck: Ø 160 mm Max. rotation diameter: Ø 180 mm Strokes: X-axis 520 mm / Z-axis 200 mm Fast feeds: X/Z 40 / 30 m/min Moving spindle: 5,000 rpm – 13 kW (100%) / 20 kW (40% ED) – max. torque 105 Nm C-axis: 0.001° resolution Turret: 12 positions – all motorable stations – VDI 30 Motorized tools: up to 6,000 rpm – 8.5 kW Power supply: 400 V / 50 Hz / 3 phases – installed power approx. 25 kW Weight (kg): approx. 4500 Auction-ID: A1-46647-273

CNC lathe for turning and machining metal parts. CNC control: Fanuc 16 T AA Max. turning diameter: 165 mm Turning length: 100 – 340 mm Diameter above bed: 220 mm Main spindle speed: 50 – 5,000 rpm Main spindle power: 5.5 / 7.5 kW Main spindle bar passing: 65 mm Sub-spindle speed: 50 – 5,000 rpm Counter-spindle power: 3.7 / 5.5 kW Counter-spindle bar passage: 42 mm C-axis: 0.001° Turrets: 2 Tool positions: 2 × 16 Motorized tools: 2 × 16 positions Strokes: X 175 mm / Z 240 – 680 mm Total power: 41 kVA Dimensions (mm): 3,500 × 2,800 × 2,000 Weight (kg): 5,500 Serial No.: 1105-02957 Auction-ID: A1-46647-238

Capabilities: Maximum turning diameter: 420 mm (standard 290 mm) Maximum turning length (Z-axis): 635 mm Bar passage: 65 mm Spindle Bore: 79 mm Spindle: Rotational speed: 25 to 5,000 rpm Power: 21 kW (100%) / 28 kW (40%) 3-jaw hydraulic chuck (Ø approx. 200–250 mm) Turret & tooling: Sauter Turret VDI 30 (DIN 69880) Capacity: 12 stations Motorized substations C-axis (pin indexing) CNC Control: Heidenhain Turn Plus Electrical data: Power supply: 400 V / 3~ / 50 Hz Installed effective power: 44 kVA Current rating: 64 A Protection: 80 A Auxiliary voltage: 230 V Control voltage: 24 V DC

CNC Control: Fanuc 0T-F (with C Axis) Diameter Above Bed: 500 mm Max Turning Diameter: ~280 mm Max Turning Length: ~500 mm Bar Capacity (Main Spindle): 65 mm Bench Design: 30° or 45° Inclined Spindle Nose: ASA 6" Main Spindle Speed: Up to 4,000 RPM Sub-Spindle Speed: Up to 4,000 RPM C-Axis: 0.001°Turret : 12 stations Tooling type: VDI 40 Speed motorized tools: ~3,000 - 4,000 rpm Lots sold as is, unchecked, with tool and tool holder.

Manufacturer: HYUNDAI Year: 1999 Type: CNC lathe CNC numerically controlled: Siemens Sinumerik 840C Max. turning circle: Ø 254 mm Diameter above bed: Ø 440 mm Max. turning length: 500 mm Bar capacity: Ø 51 mm Spindle: 36–4,000 rpm – nose A2-6 – 11 kW (continuous) / 15 kW (30 min) Chuck: Ø 210 mm, Hydraulic clamping Turret: 8 stations – 25 × 25 mm tools / Ø 40 mm bars Tailstock: programmable hydraulic – CM4 taper Chip conveyor: hinged, side outlet Dimensions (mm): 2600 × 1700 × 1750 Weight (kg): approx. 4200 Remarks: Machine used, sold with tailstock and conveyor.

Professional lathe Digital display 3-jaw chuck 4-jaw chuck Face Plate Fixed bezel Steady bezel Quick-change steel holder with 4 cassettes Halogen Machine Light Chip tray, chip protection wall Hardened and ground bed sheets Complete coolant system Feed protection Machine Tools Rotating center punch Turning diameter over bed 320 mm Turning diameter over support 200 mm Turning length 900 mm Speed 75 - 2000 rpm Tip height 160 mm Spindle bore 50 mm Tailstock quill holder MK 3 MK Connection voltage 230 V Total power requirement 1.5 kW Machine weight approx. 0.29 t Space requirement approx. 2.0 x 0.8 x 1.56 m Condition: never used / new (5)

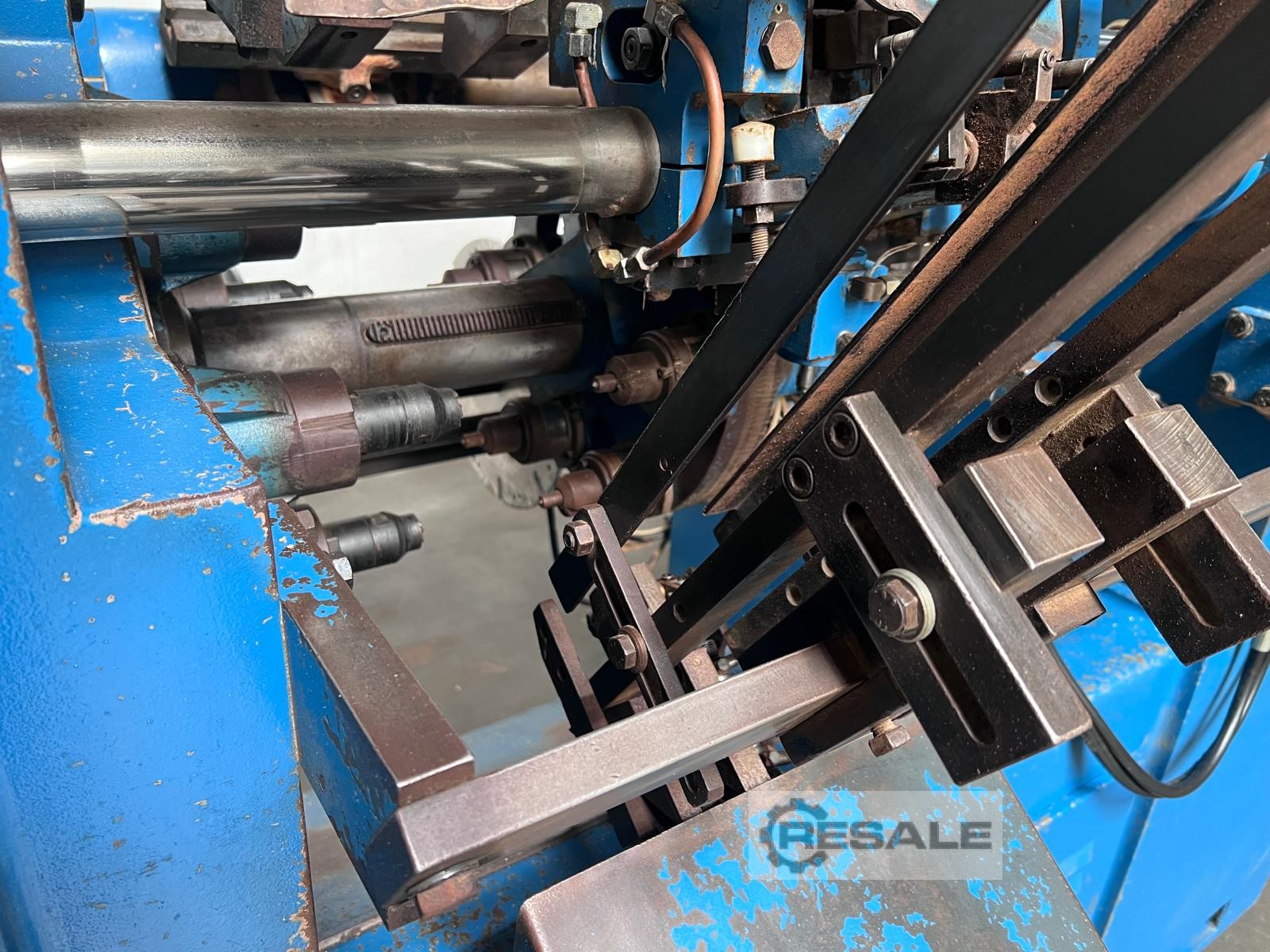

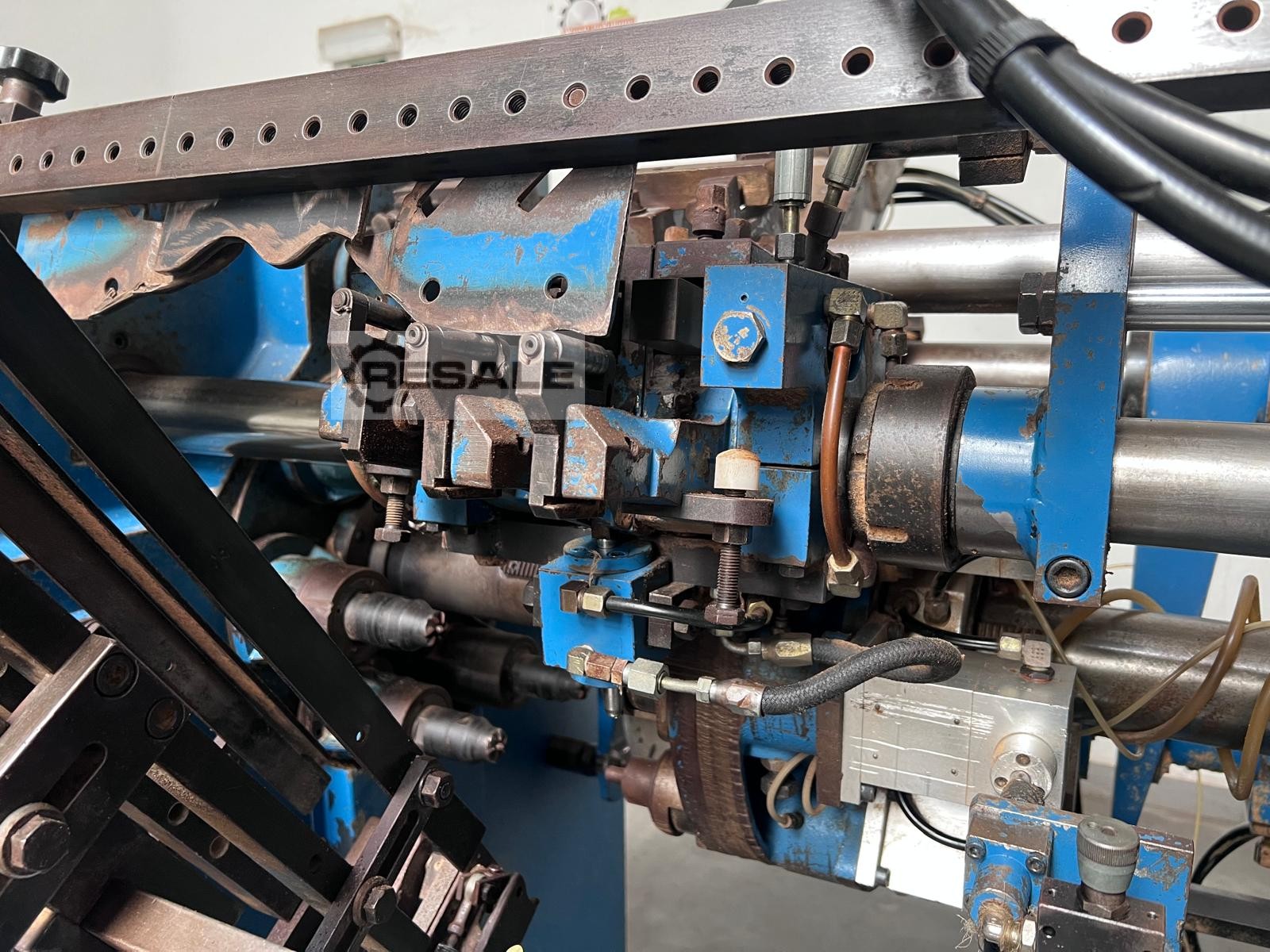

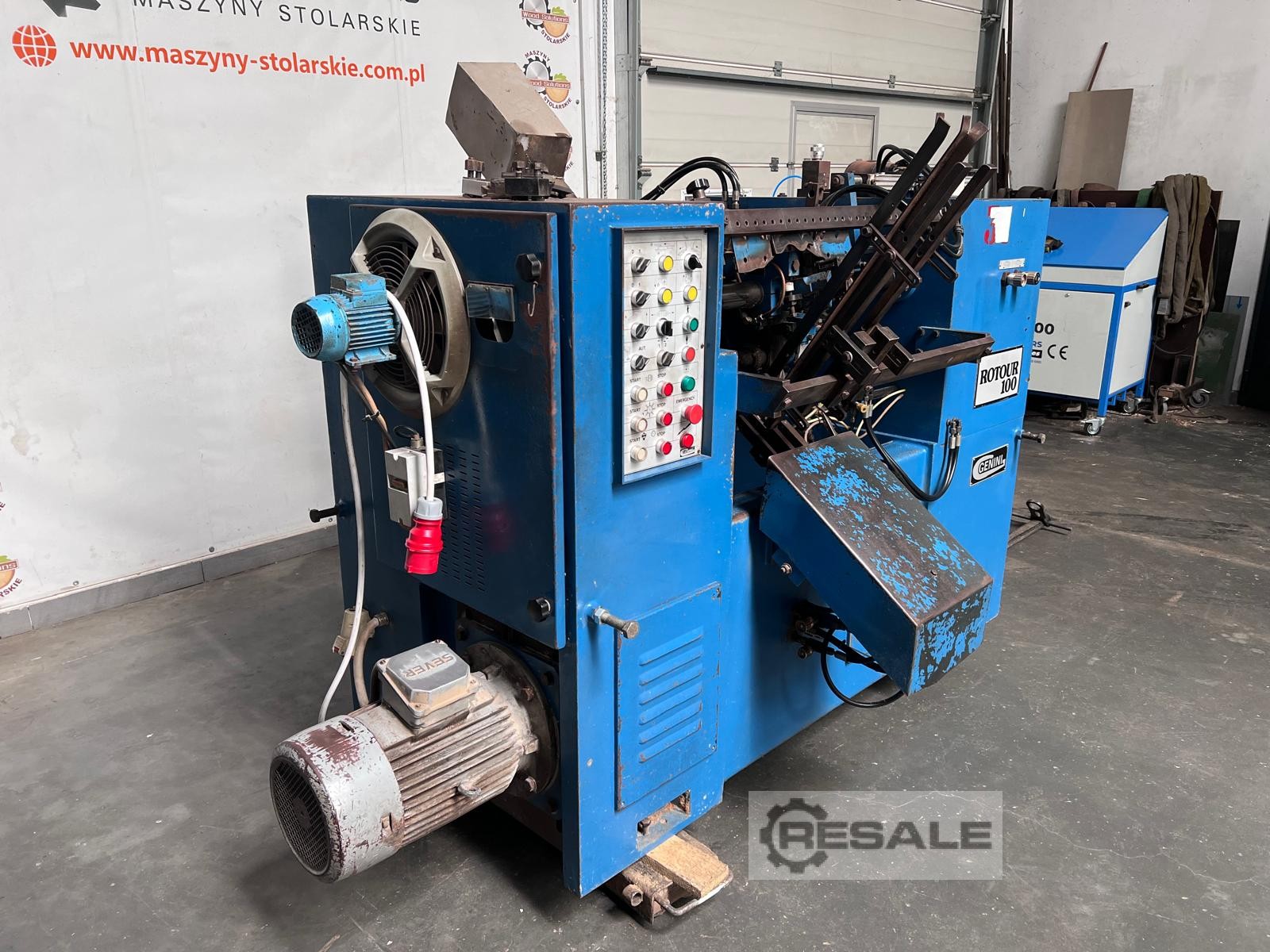

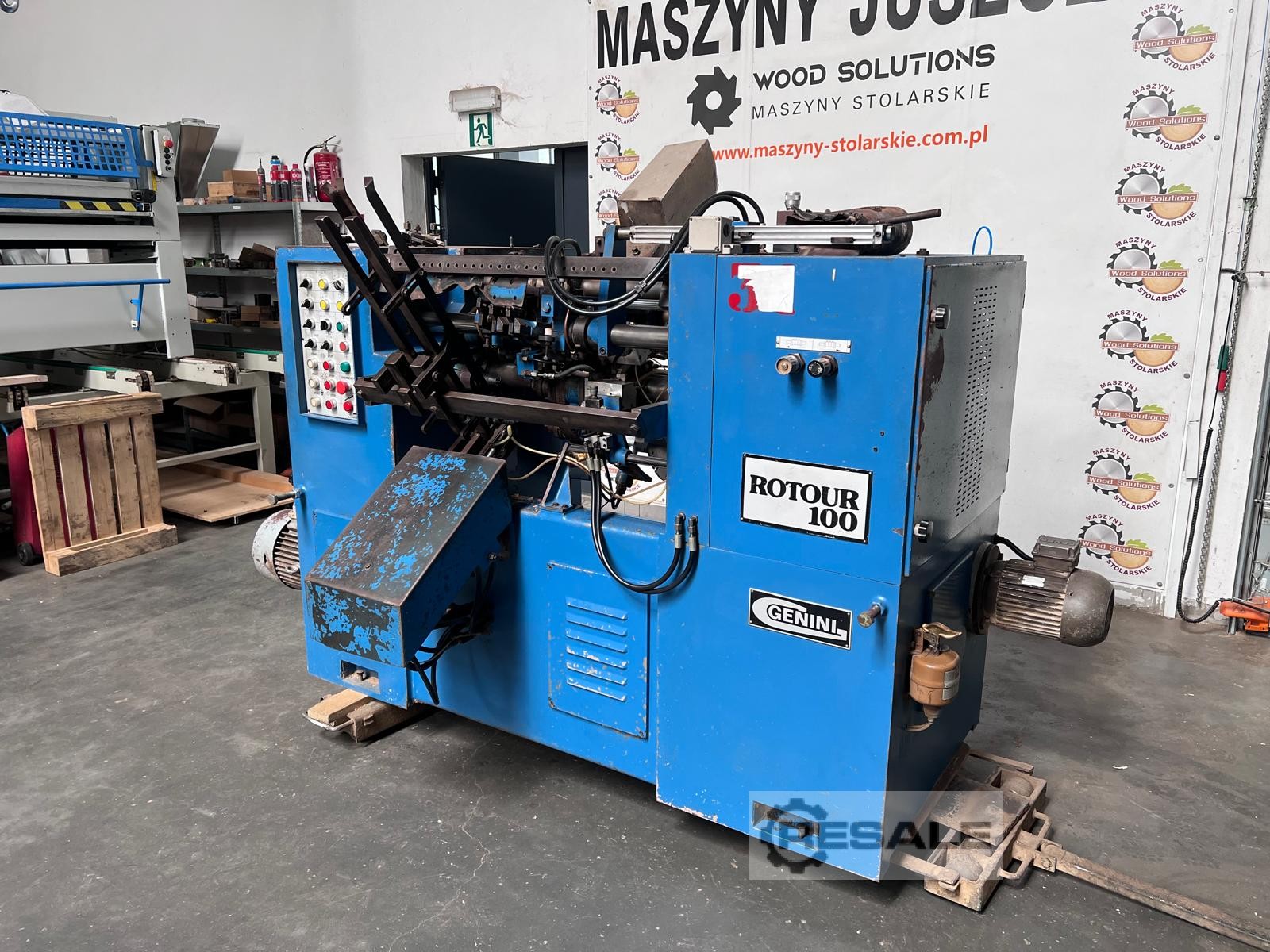

Automatic lathe Genini ROTOUR 100 Max working length 300 mm Max turning diameter round Ø 140 mm, square 100×100 mm 15hp spindle motor Shank Speed 2050-2800-4100-5600rpm 3HP Pump Motor 0.5hp grinder motor Net price
