vertical lathe dia used for sale

turning diameter:80 mm turning length:235 mm max. bar capacity:42 mm power capacity - driven tools:1 kW speeds spindle 1:6000 1/min speeds spindle 2:5000 1/min numbers of turret head positions:8 pos drive capacity - spindle motor:SP1 11 / SP2 5,5 kW Tools speed:60-6000 1/min weight of the machine ca.:ca. 3 t dimensions of the machine ca.:2,4 x 1,5 x 1,6 m High Performance CNC Turning- and Milling Center - chipconveyor - subspindle - live tools - C-axis - brake - partscatcher and partsconveyor - tool eye - barloader LNS HYDROBAR MINI-SPRINT approx. 5000 working hours

turning diameter:420 turning length:1230 mm swing over bed:700 mm swing diameter over slide rest:550 mm centre distance:1390 mm y-axis:+/- 60 mm turning speeds:3500 1/min turret (x-stations):12 power capacity:22 / 18,5 kW :1 / 12 x BMT rapid traverse x + z axis:20 / 24 m/min :76 mm total power requirement:50 kVA weight:7,8 t dimensions of the machine ca.:4,10 x 2,05 x 2,21 m CNC lathe with Y-Axis and driven tools, C-axis, tool eye, hydraulic 3-chaw-juck D= 250 mm, reinforced pump 15 bar, pressure-compensated clamping cylinder , 2 step clamping pressure, prepared for steady (without steady), progr. tailstock (dragging device), live tool device (3,7 kW, 3.000 rpm), chipconveyor, 1 pcs. live tool included approx. 15.500 working hours

bar material dia.:13 mm turning length:205 mm turning speeds:12.000 / 12.000 U/min number of tools:29 driven tools:ja / yes 19 control:FANUC 16 iT total power requirement:9 kVA weight of the machine ca.:1,7 t dimensions of the machine ca.:2,7 x 1,4 x 1,7 m CNC sliding headstock machine, subspindle,Year 2003 (0450) FANUC 16i-T control with 9 axes, 9 axes (X / C1 / Y / E / B / A / X / c2), Main spindle, speed max. 12,000 rpm, C-axis, Counter spindle with collet, speed max. 12,000 rpm, C-axis, 4-fold tool holder 3 transverse drilling apparatuses Revolver with 8 stations various additional tool holders, quills, Extinguishing system Kraft and Bauer High pressure system SF-Systeme Büchele /SHD 150/ 150bar / 2 x 40 um /3 valves, Parts conveyor belt Manuals Operation/Programming/Electrical/Spare Parts Operating tool machine Up to 29 turning tools and up to 19 attachments possible 9.0KVA Tank ca ...

turning diameter over bed:20 mm spindle passage:3-20 mm turning length:250 mm control:FANUC 31 i-A main-spindle speed:10.000 1/min subspindle speed:10.000 1/min Main spindle capacity:3,7 kW subspindle power:2,2 kW number of tools:35 weight of the machine ca.:3,3 t dimensions of the machine ca.:2,11 x 1,2 x 1,89 m CNC sliding headstock turning/milling centre with B-axis Control system: Fanuc 31i-A Machining length: max. 250 mm Number of controlled axes: 7 axes and max. 5 axes simultaneously B-axis: 0°-130° freely programmable Rod passage: Ø 3 mm to max. Ø 20 mm Drive power main spindle: 3.7 kW Drive power counter spindle: 2.2 kW Main spindle speed: 10,000 rpm Counter spindle speed: 10,000 rpm C-axis: Main and counter spindle Number of linear supports: 2 pieces Total number of tools: 35 pieces Dimensions (LxWxH) in mm: 2,110×1,200×1,885 Weight: 3,300 kg Conversion from long to short  ...

Technical details Manufacturer: HASCO (Germany) Model: A190 Machine number: 3338 Year: 1986 Type: Tool grinding / pin grinding machine Configuration: Lathe-type toolroom unit with dual spindle arrangement Spindle speeds: 2160 / 4450 rpm and 5400 / 11120 rpm Drive motor: - Voltage: 380 V - Power: Approx. 0.44 / 0.65 kW - Speed: 1400 / 2800 rpm Feed system: Manual carriage feed Clamping: Integrated clamping fixtures for pins and small parts Construction: Compact machine with integrated cabinet base Application: Grinding, polishing, and reconditioning of ejector pins and precision tooling components Condition: Used, typical workshop wear; functionality untested Dimensions and weight (approx.) Length: 900 mm Width: 600 mm Height: 1200 mm Weight: 150 kg Auction-ID: A7-46498-200

turning diameter over bed:1000 mm turning diameter over slide rest:745 mm turning length:3000 mm turning speed range:4,5 - 900 U/min spindle bore:110 mm max. workpiece weight between centres:12500 kg total power requirement:30 kW weight of the machine ca.:9 t dimensions of the machine ca.:5,2 x 2,3 x 2 m 3-axes digital readout rapid feed, feed at upper support 350 mm 1 fixed steady face plate diameter 1000 mm coolant attachment

CNC Control: FANUC Series 18-T Number of axes: 3 (including C-axis) Maximum machining diameter: 200 mm Distance between tips: 300 mm Max. spindle speed: 3,000 rpm Spindle power: approx. 17.5 kW Turret: 12 fixed positions + 6 rotating positions Chuck: Ø 200 mm Spindle: direct collet mounting possible Weight (kg): approx. 4200 Year & Manufacturer: 1993 – HARDINGE Auction-ID: A1-46647-255

turning diameter:830 mm turning length:4000 mm turning diameter over bed slide:540 mm spindle bore:130 mm turning speed range:2 - 1600 U/min rapid speed:4 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:55 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:7 x 2,2 x 2 m with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment

turning diameter:500 mm turning length:1500 mm turning diameter over bed slide:290 spindle bore:71 mm turning speed range:3 - 2800 U/min rapid speed:10 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:22 kW weight of the machine ca.:3,2 t dimensions of the machine ca.:3,0 x 1,6 x 2 m with Teach In controll R&D MTC-K PARAT toolpost 1 fixed steday dia. 100 mm 4 jaw face plate dia. 500 mm coolant attachment

turning diameter:800 mm turning length:2965 mm max. turning dia. over saddle:520 mm spindle bore:92 mm turning speed range:3 - 1800 U/min spindle head:Größe 11 total power requirement:37 kW weight of the machine ca.:6,5 t dimensions of the machine ca.:5,2 x 2,2 x 1,9 m Teach In Control MTC-K 3-jaw chuck ROTAS Dia. 400 mm face plate RÖHM Dia. 630 mm 4-station toolholder system PARAT 1 fixed steady coolant attachment and chip conveyor

turning diameter over bed:570 mm turning diameter over slide rest:365 mm turning length:2000 mm feed per revolution:0,06 - 58 / 0,03 - 28 mm spindle turning speed range:11,2 - 2240 U/min spindle bore:62 mm spindle head:8 nach DIN 55022 total power requirement:15 kW weight of the machine ca.:4,8 t dimensions of the machine ca.:4,5 x 1,5 x 1,4 m with digital readout HEIDENHAIN rapid feed, MULTIFIX toolholder system fixed steady dia. 160 mm 3 jaw chuck RÖHM TR 250 coolant attachment diverse toolholders, diverse jaws

turning diameter:1250 mm turning length:6000 mm spindle bore:130 mm Turning rate:5 - 710 U/min. turning diameter over bed slide:850 total power requirement:37/52 kW weight of the machine ca.:16 t dimensions of the machine ca.:12 x 4 x 2 m Teach In Controll HEIDENHAIN 1 fixed steady

Manufacturer: SOTOS VOJUS (VOJUS a.s.) Year: 2001 Type: CNC lathe with automatic cycle Numerical control: Siemens Sinumerik 840D ShopTurn Max. turning diameter: Ø 630 mm Diameter above dragger: Ø 420 mm Max. turning length: 3,000 mm Spindle: up to 2,500 rpm – passage Ø 110 mm Fast feeds: longitudinal 10 m/min – transverse 5 m/min Installed power: approx. 26 kW Equipment: Multifix tool holder, 1 bezel, coolant Dimensions (mm): 3000 × 1800 × 1790 Weight (kg): approx. 4500 Remarks: High-capacity CNC lathe for long workpieces. Serial number included in the description. Auction-ID: A1-46647-220

Manufacturer: GILDEMEISTER Model: CTX 400 Series 2 Year: 1998 German-made 2-axis CNC lathe, robust and precise, suitable for turning single parts and small to medium series. CNC : HEIDENHAIN TURN PLUS Axes: 2 axes (X, Z) Turning capacities: Diameter above bed: Ø 570 mm Diameter above carriage: Ø 420 mm X-axis stroke: 220 mm Z-axis stroke: 635 mm Spindle: Bore: 79 mm Chuck diameter: Ø 250 mm Spindle speed: 25 – 5000 rpm Motor power: 21 kW Fast feeds: X-axis: 20 m/min Z-axis: 24 m/min Turret: 12 positions VDI 30 Equipment: automatic tailstock (Ø 80 mm), chip conveyor, parts collector Country of origin: Germany Condition: used Auction-ID: A1-46647-232

CNC Control: GE FANUC Series 16i-T Number of axes: 2 (with sub-spindle) Main spindle: ASA 5 nose, max. bar passage 42 mm, power 11 kW, max. speed 6,000 rpm Max. rotation diameter: 519.2 mm Max. turning diameter: 308 mm X/Z axis strokes: 189.2 / 406 mm Turret: VDI 30 bidirectional, 16 positions (16 motorized) Sub-spindle: ASA 5 nose, max. bar passage 42 mm, power 7.5 kW, max. speed 6,000 rpm Included equipment: parts catcher, motorized tools and stationary tools (depending on seller) Weight (kg): 5071 Year & Manufacturer: 2001 – HARDINGE Auction-ID: A1-46647-257

turning diameter:325 mm turning length:600 mm total power requirement:35 kW spindle drive:25 kW spindle turning speed range:5000 U/min speeds of tool:4500 U/min rapid traverse X-axis:60 m/min diverse toolholders:VDI 40 rapid traverse Z-axis:45 m/min weight of the machine ca.:6,5 t dimensions of the machine ca.:3,5 x 2,5 x 2,1 m Machine with SIEMENS 840 D control power line with shopturn - C and Y-axis, driven tools - bar loader IRCO ILS-RBK - coolant device with coolant throough revolving head - Revolver - counter spindle - chip conveyor - collet clamping - part catcher

Maximum passage diameter: 310 mm Maximum turning diameter: 190 mm Standard turning diameter: 170 mm Maximum turning length: 235 mm Bar passage: 65 mm Spindle speed: 50 to 5,000 rpm Spindle power: 22 kW / 18.5 kW Spindle nose: JIS A2-6 Spindle Bore: 73 mm Axis C: Indexation 0.001° Turrets: 2 independent turrets Tool capacity: 32 positions (16 per turret) Motorized tools: 16 positions per turret Motorized Tool Speed: 6,000 RPM Power with motorized tools: 5.5 / 2.2 kW Indexing time: 0.2 s X-axis: 140 mm Y-axis: ± 50 mm Z-axis: 700 / 690 mm B-axis: 775 mm Fast Advances: 18 m/min CNC Control: MSX 501 MAPPS II (Fanuc 30i) Weight: 6,600 kg Dimensions: 3,700 x 2,100 x 2,000 mm Equipment: Bar feeder included Auction-ID: A1-46647-15

Manufacturer: HARDINGE Year: 2005 Type: CNC Motorized Tool Lathe with C-Axis Numerical Control: FANUC 21i-TB Bar Capacity: Ø 51 mm Max. Turning Circle: Ø 310 mm Max. Turning Length: 470 mm Chuck: Ø 200 mm (8\") Bed Inclination: 45° Spindle: 50–5,000 rpm – 18.5 kW (max) / 11 kW (continuous) Turret: 12 stations, all motorable positions Motorized implements: 4,000–5,000 rpm – 3.7 kW Fast feeds: X/Z 19 / 24 m/min Accuracy: ±0.005 mm Included equipment: Programmable C-axis (0.001°), IEMCA Boss 545 bar feeder Weight (kg): approx. 4200 Auction-ID: A1-46647-272

turning diameter:626 mm turning length:3000 mm Turning diameter:600 mm spindle bore:100 mm spindle turning speed range:2800 U/min weight of the machine ca.:18 t Machine overhold and retrofit in 2003 with SIEMENS 840 D control - NC steady rest - 12-fold revolving head - splash doors - tailstock - coolant device

Manufacturer: DMG GILDEMEISTER Year: 2008 Type: CNC lathe with motorized tools with C and Y axes Numerical control: Heidenhain iT Plus Max. turning diameter: 400 mm Max. turning length: 600 mm Distance between tips: 615 mm Main spindle: 20–6,000 rpm – 16 kW – max. torque 155 Nm Bar capacity: Ø 52 mm – spindle bore 61 mm C-axis: 0.001° resolution Turret: 12 positions – 12 motorized tools (5,000 rpm, 3.7 kW) Strokes: X 160 mm / Z 450 mm / Y ±32 mm Fast feeds: X 60 m/min – Z 45 m/min Attachments: Chip conveyor, 12 bar HP coolant, workpiece catcher, fixed tool holders (5), motorized tool holders (3), hydraulic system Dimensions (mm): 8000 × 3000 × 2700 Weight (kg): approx. 4500 Remarks: Machine in good condition, powered on. Serial number included in the description. Auction-ID: A1-46647-212

CNC Control: FANUC 21i-TB Number of axes: 3 (including C-axis) Max. rotation diameter: 120 to 150 mm (depending on tooling) Max. turning length: 120 mm X/Z axis strokes: 340 / 240 mm Max. spindle speed: up to 8,000 rpm Spindle nose: designed for precision grippers or chuck C-axis: 0.001° resolution (positioning and milling) Turret: high-precision, 12 positions (VDI 16 or VDI 20) Motorized tools: radial and axial drilling/milling, speed 4,000 to 6,000 rpm Documentation: complete Weight (kg): 2200 Year & Manufacturer: 2007 – SPINNER Auction-ID: A1-46647-258

CNC lathe for turning and machining metal parts. CNC control: Fanuc 16 T AA Max. turning diameter: 165 mm Turning length: 100 – 340 mm Diameter above bed: 220 mm Main spindle speed: 50 – 5,000 rpm Main spindle power: 5.5 / 7.5 kW Main spindle bar passing: 65 mm Sub-spindle speed: 50 – 5,000 rpm Sub-spindle power: 3.7 / 5.5 kW Sub-spindle bar passage: 42 mm C-axis: 0.001° Turrets: 2 Tool positions: 2 × 16 Motorized tools: 2 × 16 positions Strokes: X 175 mm / Z 240 – 680 mm Total power: 41 kVA Dimensions (mm): 3,500 × 2,800 × 2,000 Weight (kg): 5,500 Auction-ID: A1-46647-236

CNC Control: SIEMENS 840 D Number of axes: 2 Max. turning diameter: 420 mm Max. turning length: 1000 mm X/Z axis strokes: 200 / 1000 mm Spindle bore: 82 mm Spindle speed: 0 – 3,000 rpm Spindle motor power: 14.5 kW Turret: VDI 40, 12 stations Chuck: Autoblok Ø 250 mm Tailstock: Chip Conveyor: Present Remarks: Machine in good working order. Weight (kg): approx. 5500 Year & Manufacturer: 2001 – MENTI Auction-ID: A1-46647-254

turning diameter over bed:1450 mm turning diameter over slide rest:1000 mm turning length:8000 mm spindle bore:160 mm turning speed range:2,8 - 560 U/min bed width:850 mm faceplate diameter max.:1400 mm turning diameter in the gap:1800 mm length of gap:600 mm dimensions of the machine ca.:12 x 2 x 2,5 m with Digital Readout 2 fixed steadies dia 1070 mm chip conveyor

Manufacturer: YAMAZAKI MAZAK Year: 1994 Type: CNC lathe Numerical control: Mazatrol T32-2 Axes: 2 axes (X, Z) Max. diameter above the bed: Ø 560 mm Max. turning diameter: Ø 410 mm Max. turning length: 1500 mm Spindle: 35–3500 rpm – main motor 22 kW – spindle nose A2-8 – bore 76 mm Turret: 12 positions Equipment: Programmable tailstock, complete enclosure Weight: approx. 6900 kg Origin: Japan Condition: used Auction-ID: A1-46647-230

turning diameter over bed:400 mm turning diameter over slide rest:250 mm turning length:1000 mm max swing over gap:520 mm Height of centres:200 mm crossed path:230 mm bed width:218 mm main spindle bore:52 mm spindle size:MK 6 speeds::55-2000 U/min turning angle of tool post:90 grad tail stock:50 mm taper in tailstock:MK 4 threading metric:0,4-7 mm threading WHITWORTH:4-60 TPI total power requirement:2,2 kW dimensions of the machine ca.:1940 x 820 x 1545 mm weight of the machine ca.:750 kg tailstock quill:110 mm tapping modul:0,4-3 mm tapping diametral:8-84 Gang/Zoll

number of spindles:8 spindle passage:67 mm Cam controlled multi spindle automatic lathe, used 8 main spindles pick up in pos. 8 threading attachment CNC compound slide in pos. 5, also 2. speed in pos. 2 Hydraulic spindle brake in pos. 4 Incl. length measurement, incl. Brankamp cutting force monitoring tooling: could be different like pictures Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

Diameter above the bench : 700 mm Maximum turning diameter: 420 mm Maximum turning length: 737 mm Chuck: 305 mm (12 inches) Spindle speed: 2,500 RPM Engine power: 22 kW (peak) / 18.5 kW (continuous) Maximum torque: 1,050 Nm Spindle Bore: 105 mm Turret: 12 positions Power Tools: 5,000 RPM (5.5 / 7.5 kW) X-axis: 280 mm Z-axis: 790 mm Y-axis: 120 mm (± 60 mm, optional) Fast Forwards: 20 / 24 m/min Tailstock Stroke: 750mm (Standard) CNC Control: FANUC Weight: 5,200 kg Dimensions: 4,354 x 2,076 x 1,917 mm Auction-ID: A1-46647-16

CNC Control: Fanuc 0T-F (with C Axis) Diameter Above Bed: 500 mm Max Turning Diameter: ~280 mm Max Turning Length: ~500 mm Bar Capacity (Main Spindle): 65 mm Bench Design: 30° or 45° Inclined Spindle Nose: ASA 6\" Main Spindle Speed: Up to 4,000 RPM Sub-Spindle Speed: Up to 4,000 RPM C-Axis: 0.001°Turret : 12 stations Tooling type: VDI 40 Speed motorized tools: ~3,000 - 4,000 rpm Lots sold as is, unchecked, with tool and tool holder. Auction-ID: A1-46647-201

number of spindles:8 spindle passage:51 mm Article: multi spindle automatic lathe Manufacturer: Schütte Type: AF51 Yob: 1987 eight main spindles max. bar diameter D=51mm control SIEMENS SIMATIC S5 pick up in pos. 7, for rear machining thread cutting drive independent feed in positions 2/3 electronical trip dog control ?Balluff? clear text display Wöhrle coolant pump magnetic cartridge filter oil running incl. bar loader IEMCA PRA 40/37/F, yob 1987, (bundle type) Painting in light blue and light grey The configuration of tooling will be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Tornos Type: MultiSwiss 8x26 Yob: 2016 full cross slide configuration, counter spindle, part-pre-drawing device, 2 x driven tools, 3 x Y-axis, 1 rigid backworking, 1 x driven backworking, 2x 80 bar high pressure pumps optional: setting robot, manufacturer HandlingTech. The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Tornos Type: MultiSwiss 8x26 Yob: 2019 full cross slide configuration, counter spindle, part-pre-drawing device, 2 x driven tools, 1 rigid backworking, 1 x driven backworking, 2x 80 bar high pressure pumps optional: setting robot make HandlingTech. The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

NEW UNUSED MACHINE WITH DRIVEN TOOLING AND Y-AXIS! Specifications: Spindle: - Spindle hole diameter: 65mm - Bar capacity: 51mm - Chuck: 10” - Max spindle speed: 2600rpm Capacity: - Max. Swing diameter over bed: 600mm - Max. Turning diameter: 420mm - Max. Turning length: 550mm - X-axis: 280mm - Z-axis: 650mm - Y-axis: +/- 50mm - C-axis: yes Feedrate: - Rapid traverse X: 20m/min - Rapid traverse Z: 25m/min Turret: - Positions on turret: 12 - Driven tooling: yes - Tool shank: BMT-55 Tailstock: - Tailstock quill taper: MT-5 - Travel: 600mm Accuracy: - Positioning accuracy: 0.008mm - Repeated positioning accuracy: 0.008mm Machine is equipped with: - Chip conveyor - Tool setter - All tooling in turret included - Tailstock - Tooling as showed in pictures Auction-ID: A1-45752-4

number of spindles:6 spindle passage:51 mm Schutte SF51 DNT, yob. 1987, our ID #61868 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SF51 DNT Yob: 1987 Six-spindle automatic lathe with 6 main spindles max. nominal diameter D=51mm electronic cam control Balluff gripper in position 6 for backworking, sorting chute independent longitudinal feed layer 5 screw chip conveyor Tapping couplings Interface for: Bar feeder IEMCA PRA Bar feeder IEMCA PRA40/33/F Scope of delivery without the blue chip conveyor The tooling will differ from the scope of delivery! Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

CNC lathe for turning and machining metal parts. CNC control: Traub TX 8 Max. turning circle: 275 mm Max. turning length: 450 mm Bar pass: 65 mm Chuck diameter: 210 / 250 mm Bench inclination: 40° Spindle speed: 0 – 4,000 rpm Spindle nose: A2-6 Spindle motor power: 11 / 18.5 kW C-axis: 0.001° with hydraulic brake Turret: 12 positions VDI 30 Motorized tools: 4,000 rpm – 4.4 kW Fast feeds: X 15 m/min / Z 20 m/min Auction-ID: A1-46647-241

number of spindles:8 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 S DNT Yob: 1994 Eight-spindle automatic lathe with 8 main spindles max. nominal diameter D=32mm control: Siemens SIMATIC S7 electronic cam control Balluff gripper in position 8 for backworking CNC cross slide position 6 CNC cross slide position 7 Workpiece belt Coolant cooling Schimpke Chip conveyor with magnetic separator Tapping couplings The tooling shown may differ from the scope of delivery! Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 Dnt Yob: 1993 eight-spindle automatic lathe eight main spindles for bars up to D=32mm Modernized control: Siemens Sinumerik Motors: renewed modern motors suitable for modernized control system Electronic trip dog control: Balluff CNC cross slide position 5 cross CNC cross slide position 6 cross Preparation for gripper in position 8 (gripper optional) Independent feeds Thread cutting couplings integrated bar loader: Pietro CUCCHI; type: rack type magazine The scope of delivery regarding the tooling equipment could be different like pictures.

X-axis travel 420 mm Z-axis travel 1100 mm VDI 50 tool holder 2x ASA 8 spindles LH Head Working Hours: 16624 Working hours head RH: 16272 With loading table diameter: 1700 mm Equipment: 2x automatic arms for loading and unloading workpieces Unloading roller conveyor dimensions: 3000x530 mm Tools and spare parts included Assorted quantities and types, as shown in the photo. The total availability of individual visible elements is not guaranteed. Auction-ID: A7-46538-40

turning diameter:38 mm Article: CNC lathe Manufacturer: Hanwha Type: STL38H Year of construction: 2013 Control: Siemens 840SL for 8 axes Main spindle: max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48 Counter spindle: max. pick-up diameter: 38mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42 Tool turret: n max. 6,000 rpm Power max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120 Bar feeder FMB Turbo 5-55 High-pressure station SFB-301 eco 150bar Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

spindle passage:25 mm Article: CNC sliding headstock automatic lathe Manufacturer: Tornos Type: Deco 2000/20 Year of construction: 2001 Control: Fanuc spindle diameter: D25 mm max. speed: 7000 rpm comb: 2 (X,Z,Y-axis) Front attachment: 1 (X,Z,S-axis) Loading magazine: Tornos Robobar SSF Chip conveyor: Hinged belt conveyor other: various accessories such as polygonal impact device, HF spindle Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:9 spindle passage:46 mm Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SC9-46 Yob: 2016 Six-spindle automatic lathe with 6 main spindles with max. nominal throughput D=46mm and 3 counter spindles Main spindles: 6 motor spindles D46mm, 5. 000 rpm, 35 Nm to 80 Nm Cross slide units, transverse: 6 units, in positions I to VI, Slide units, longitudinal: 5 units, in positions I to V, Slide units, longitudinal: 5 units, in positions I to V, Counter spindles: 3 units, one each in positions VI, VIII and IX, 7. 500 rpm Cross slide units, transverse: 2 units, in positions VIII and IX, Control: Siemens SINUMERIK 840SL with double NCU Software: Schütte SICS, Sinomerik Operate 4.5, Safety Integreted, Spindle coupling package ?CP-Expert?, for up to 8 spindle couplings (maximum expansion) Synchronous action package ?Level? 2, incl. cross-mode actio ...

turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2015 Machine was only used for reworking, so only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Chip processing container with coolant pump: 30l/min at 5bar Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading conveyor Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. Transmit function Adjusting microscope 16x magnification Coolant supply through the clamping cylinder of the spindle, sealing air, Speed increase of the motor spindle to 8,0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Kno ...

Manufacturer: YAMAZAKI MAZAK Model: Quick Turn 20 Year: 1998 Numerical Control: Mazatrol T Plus Axes: 2 Axes (X, Z) Capacities: Max. diameter above bed: Ø 300 mm Distance between points: 446 mm X-axis stroke: 180 mm Spindle: Bore: 61 mm Max. speed: 4500 rpm Engine power: 15 kW Turret: 8 positions Dimensions per machine: 2660 x 1520 x 1879 mm Unit weight: approx. 4170 kg (total batch weight approx. 8340 kg) Condition: used Lot sold as a single set (2 machines) Auction-ID: A1-46647-231

turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2016 Machine was only used for reworking, i.e. only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading belt Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. transmit function Adjusting microscope 16x magnification Coolant supply through the spindle clamping cylinder, Sealing air, Speed increase of the motor spindle to 8. 0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Knoll Compact coolant device Knoll MBE interface Small fire extinguishin ...

number of spindles:8 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AG20 Yob: 2002 eight-spindle automatic lathe 8 main spindles for bars up to D=20mm control: Siemens 840D 1x polygonal turning/thread milling device (new 2011) 1x polygonal turning/thread milling device for long turning (new 2011) 1x thread cutting/quick drilling spindle (new 2011) 1x pick-up device incl. various pick-up collets 4 cnc-cross slides Double cross slide in position 7 Loading magazine PRA 52/P type 33 (bar length 3m), year 2004 High-pressure system Knoll SF 2000/Turbo-3 up to 100 bar, year 2004 Tool monitoring Brankamp Air conditioning unit Rittal in the front switch cabinet incl. spare parts package with various collets, cams and various tool holders for longitudinal and cross slides The machine has been run with oil and has processed brass Please, con ...

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SFH130 Yob: 1995 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC Dnt drive loading and disloading in position 6 additional cooling pump with magnetic spark plug filter Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SG18 Yob: 1999 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC loading and disloading in position 6 spindle brake Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Manufacturer: HYUNDAI Year: 1999 Type: CNC lathe CNC numerically controlled: Siemens Sinumerik 840C Max. turning circle: Ø 254 mm Diameter above bed: Ø 440 mm Max. turning length: 500 mm Bar capacity: Ø 51 mm Spindle: 36–4,000 rpm – nose A2-6 – 11 kW (continuous) / 15 kW (30 min) Chuck: Ø 210 mm, Hydraulic clamping Turret: 8 stations – 25 × 25 mm tools / Ø 40 mm bars Tailstock: programmable hydraulic – CM4 taper Chip conveyor: hinged, side outlet Dimensions (mm): 2600 × 1700 × 1750 Weight (kg): approx. 4200 Remarks: Machine used, sold with tailstock and conveyor. Auction-ID: A1-46647-214

CNC control: MSX-850 III Number of axes: 2 Strokes: X = 260 mm, Z = 590 mm Spindle speed: 50 – 5000 rpm Power: 15 kW Bar capacity: Ø 65 mm Spindle bore: 73 mm Turret : 12 stations (BMT) Max turning diameter: 356 mm Max turning length: 510 mm Chip conveyor: yes 235L high-pressure pump: yes Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-204

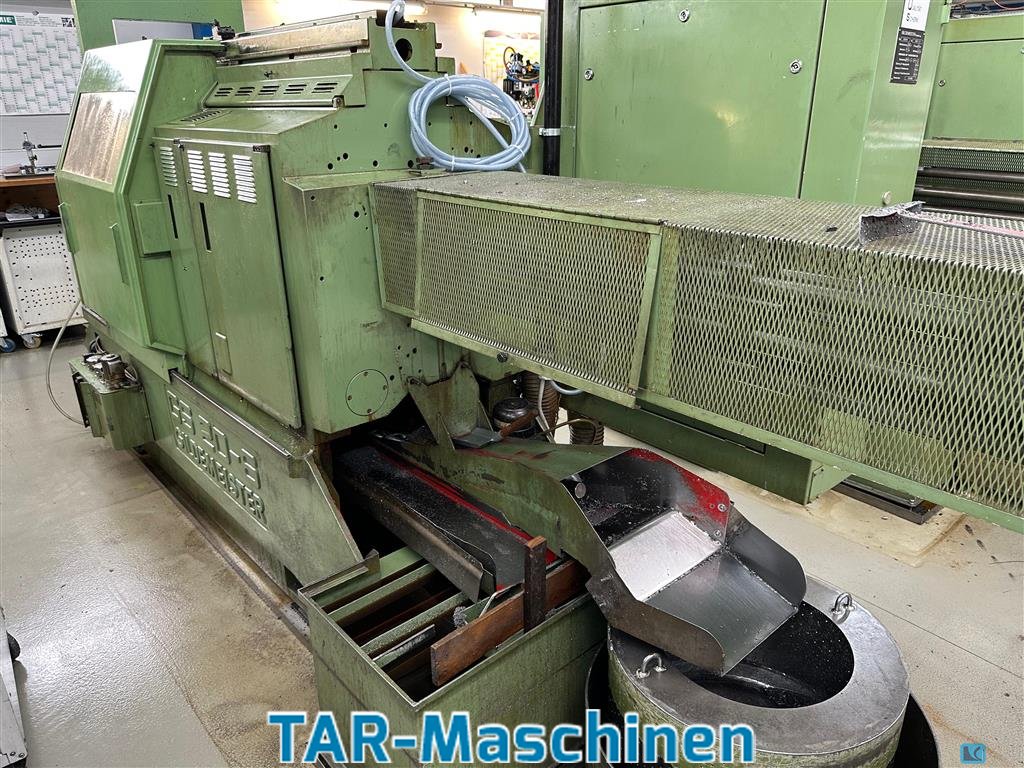

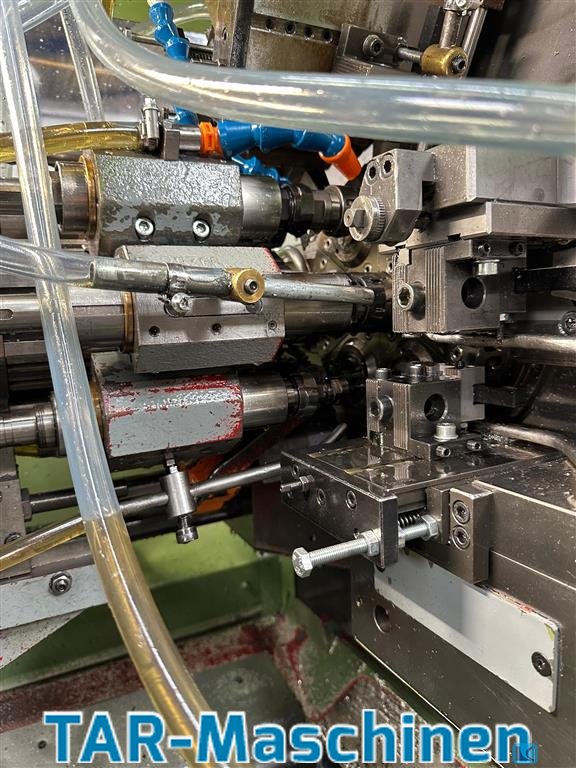

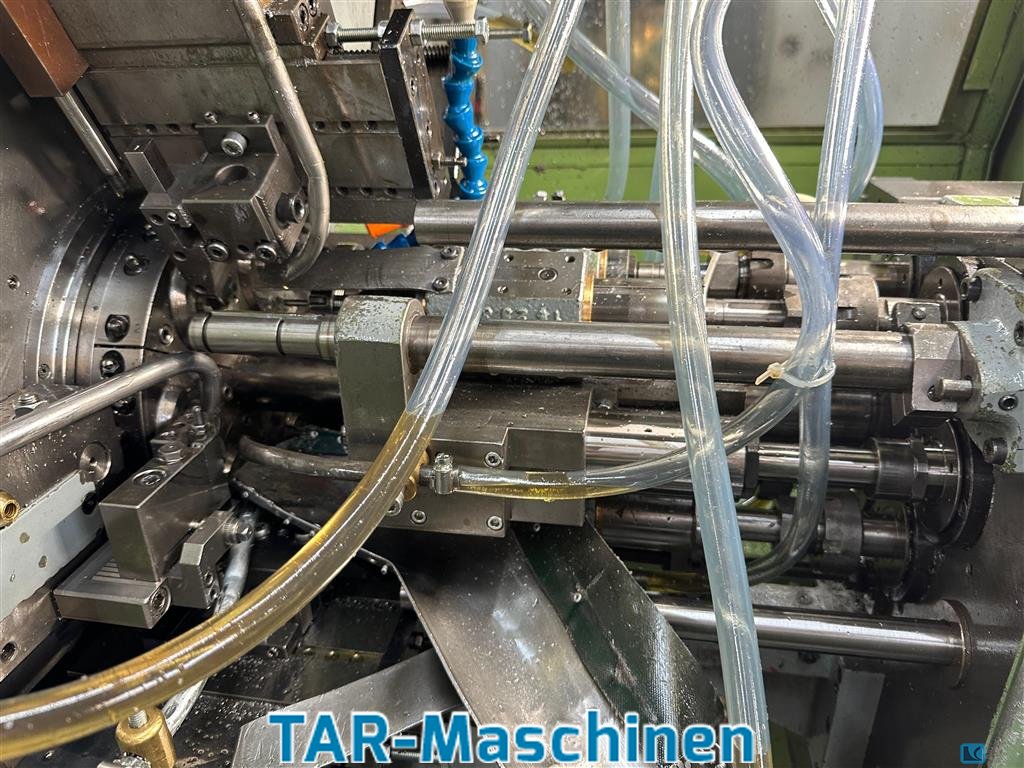

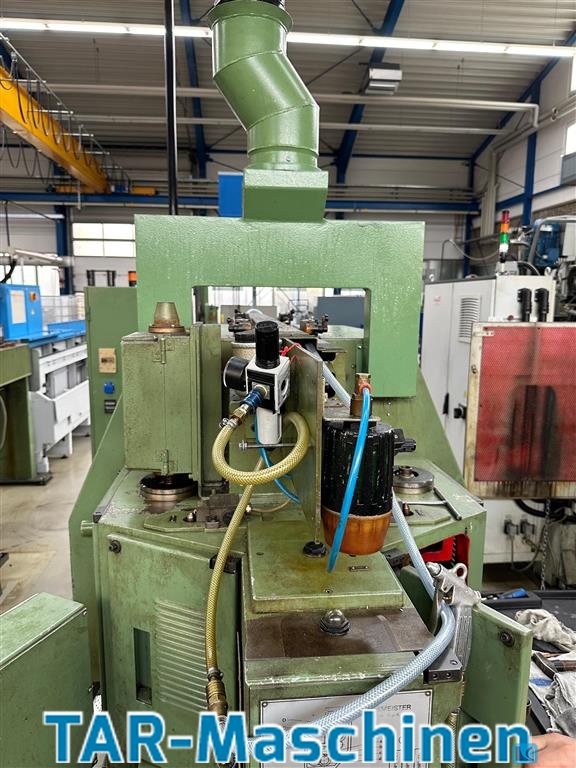

number of spindles:6 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Gildemeister Type: GS20-6 Yob: 1989 six-spindle automatic lathe 8 main spindles for bars up to D=20mm All cross units are equipped with a tool holder (from Gildemeister or IMG Attachments) All longitudinal units are equipped, either fixed or rotating (without collets) An independent feed is installed at position 1 A gear set for one speed is installed A gear set for one cycle time is installed The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
