vertical lathe cnc used for sale

grinding diameter max.: mm regulating wheel width: mm max. width of grinding wheel: mm Control: SIEMENS 840D total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

9 assen: Y1 / Y2 / X / R / Z / V / X1 / X2 / X3 3 CNC-gestuurde frontplaatsteunen Capacity: 2000 ton x 14 meter Backgauge: CNC Control: 2D Touch Passage between uprights: 12470 mm Max stroke: 900 mm Max distance between table -- ram: 1600 mm Depth of throat: 1255 mm Table width: 800 mm Locking speed: 77 mm/sec Working speed: 9 mm/sec Returning speed: 85 mm/sec Electric motor (power): 2x 90 kW Length: 16835 mm Depth: 5695 mm Height: 6750 mm (above floorlevel) Weight: 370 ton Capacity: 2000 ton Bending length: 14 000 mm

Technical data: Manufacturer: ogp Type: Smartscope CNC 250 Year of Make: 2004 Travel distances X/Y/Z: X 250 mm, Y 150 mm, Z 200 mm Scale resolution: 0.5 μm Condition Condition: Used Functional: Tested and fully functional

A hydraulic sheet punching machine Indumasch without sheet manipulation axes, but with CNC backgauges for manual sheet positioning, is available. Punching force: 40t, max. sheet thickness: 10mm, stroke rate: 150/min, max. punching diameter: 105mm, working dimensions X/Y: 1000mm/750mm, positioning accuracy: 0.1mm, weight: approx. 3500kg. Without tools. The controls were overhauled in 2014. Documentation available. An on-site inspection is possible.

3 assen: Y1 / Y2 / X Handmatige bombeertafel De achterkant van de machine is gesloten. Capacity: 175 ton x 3600 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 3150 mm Max stroke: 200 mm Max distance between table -- ram: 450 mm Depth of throat: 300 mm Locking speed: 80 mm/sec Working speed: 9 mm/sec Returning speed: 95 mm/sec Electric motor (power): 15 kW Length: 3880 mm Depth: 1750 mm Height: 2750 mm Weight: 13,4 ton

grinding diameter: 200 mm grinding length: 340 mm centre height: 100 mm Control: CNC : 25 kVA voltage: 110 / 220 / 3x165 / 3x380 VAC control voltage: 24 VDC total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

2 Column Heavy Duty Band Saw Machine BERG & SCHMID SBS 300 VA-1/CNC Year of Make: 2019 Cutting diameter round: 300 mm Square cutting diameter: 300 mm Cutting diameter flat: 300 mm x 260 mm Belt speed: 20 – 100 m/min Modern SNC 20 control system Frequency-controlled saw drive Control buttons with pictograms Powered chip brush Belt Tension Hydraulic Clamping Pressure Regulation Work light Chip conveyor Taxiway 2 m

x-travel: 600 mm y-travel: 400 mm z-travel: 400 mm Spindle Speed: 4.000 U/min. table surface area: 800 x 425 mm tool taper: SK 40 feed: 2.000 mm/min total power requirement: 5 kW machine weight ab.: 2.000 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Met RoboHelix-machines kunnen spiraalvormige schoepen worden gevormd uit standaard ronde of van een patroon voorziene werkstukken. RoboHelix-machines vereisen uiterst nauwkeurige synchrone bewegingsbesturing. Door de gebruiker gegenereerde gegevens worden vanuit cloudgebaseerde software, HelixNinja, naar het apparaat gedownload. Deze informatie wordt vervolgens verder verwerkt om coördinaten in het 3D-vlak te genereren, waarmee het proces van het creëren van een vliegtuig vanuit een blanco basis wordt nagebootst. De motoren volgen synchroon deze coördinaten om het vliegtuig te produceren. Met de elektronische nokkenplaatfunctie in TwinCAT NC Camming (TF5050) is relatieve synchrone beweging overal en altijd mogelijk. Afmetingen en toleranties zijn geen probleem meer zodra de motoren en aandrijvingen zijn gekalibreerd. De tweede generatie RX250 uit de machinelijn van RoboHelix heeft een ...

Tenoning spindle: 2 St. Number of milling agregates: 7 St. Spindle diameter: 50 mm # 6726 Weinig Unicontrol 12 CNC -------------------------------------------------------- Sale on behalf of a customer. Machine connected and ready for demonstration. crosscut saw -------------------------------------------------------- Crosscut saw electronically, horizontally infinitely adjustable Number of tools: 1 pc. Spindle speed: 3000-6000 rpm Spindle diameter: 40mm Tool diameter max.: 400 mm Motor power: 3 kW Laser guide light to identify the saw section rounding aggregate -------------------------------------------------------- Position: horizontally below Motor power: 1 kW Spindle diameter: 20mm Spindle speed: 9000 rpm Tool flight circle max.: 130 mm electronic length stop, length: 3500 mm -------------------------------------------------------- 1. tenoning Spindle ---------------------- ...

CNC Deep Hole Drilling Machine Shinil (Korea) Year: 2009 Control: Fanuc Oi-TD Key Technical Specifications • Drilling diameter (solid): Ø 50 – 200 mm • Counter boring max: 500 mm • Trepanning max: 500 mm • Max drilling depth: 6000 mm (6 meters) Workpiece & Motion • Z-axis stroke (tool free): 6000 mm • Work spindle stroke (max): 4000 mm • Z-axis rapid feed: 5000 mm/min • Z-axis cutting feed: 0 – 1000 mm/min • Control axis: Z-axis CNC controlled Spindle & Speed Range • Headstock rotation: 5 – 30 rpm • Tool holder spindle speeds: • 50 – 500 rpm • 25 – 250 rpm • 16.6 – 166 rpm • 8.3 – 83.3 rpm Cooling & Drives • Coolant pump control: Inverter-driven • Motor control: NC controlled spindle & tool rotation Power & Installation • Total power: approx. 335 kW • Power supply: AC 440V / 60Hz  ...

CONTROLS   CNC controls SIEMENS 810 T WORKING RANGE (DOUBLE DISC GRINDER)   Grinding wheel diameter: 750 mm   grinding width max. - throughfeed grinding: 180 mm   material thickness max. - throughfeed grindin: 30 mm   grinding width max. - plunge cut grinding: 180 mm   material thickness - plunge cut grinding: 30 mm COMPONENT-FEEDER   Feeder Design: rotary Feeder ELECTRICAL SPECIFICATIONS   total power consumption: 95 kW Scope of delivery: - Machine - div. flanges and used grinding wheels - Measuring control IONIC 17A Optional: - 270 pcs. grinding segments 22A 100 S 6 B20 - 289 pieces grinding segments 14C 80 L 10 B30 Machine is dismantled and stored

groove width: 3-100 mm drawing length: 750 mm working speed: 0-20 m/min boring diameter: 10-500 mm cutting speed: 0-20 m/min return speed: 0-50 m/min carrying capacity: 35.000 kg Power connection: 12,27 kW cutting capacity: 40.000 N machine table: 500 x 770 mm total power requirement: kW weight of the machine ca.: 2,1 t dimensions of the machine ca.: m Equipment / accessories: Original year of manufacture reconditioned in 2019 and equipped with new controler - dividing head - many accessories (grooving knives, tools, various) - Documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer: Optimum Model: OPTImill F 105 CNC Sinumerik 808D ADVANCE Type of Machine : Milling Machine Condition : New Included Accessories: - CNC Tool Starter Set BT 40 - SPW 12 Clamping Tool Assortment, 58-piece - Hydraulic Milling Vise HCV 105 - 20 Liters Cutting and Drilling Emulsion AQUACUT C1 - 4th Axis Preparation Find more here - / Contact us at -

spindle diameter: 150 mm x-travel: 6000 mm y-travel: 2600 mm z-travel: 2300 mm w-axis: 900 mm spindle taper ISO: 50 rotary table dia.: 2000 x 3000 mm table load capacity: 30 t spindle turning speed - stepless: 3250 U/min spindle motor: 53 / 65 kW spindle taper ISO: 50 Feeds (X,z,u,w-axis): 12 / 15 / 15 / 7,5 m/min total power requirement: 55 kW weight of the machine ca.: t dimensions of the machine ca.: m - CNC Control HEIDENHAIN iTNC 530 - Rotary Table, Size 2000×3000 mm, 30 t - ATC 120-fold (ISO 50) - DANDREA UT5/500S Automatic Universal Indexing Head 1°×1° - Head pickup - Chip conveyor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

faceplate diameter: 2500 mm max. swing diameter over bed: 2700 mm turning height: 2500 mm Control: Siemens 840D CNC workpiece weight max.: 30 t workpiece dia.: 2500 mm Crossbar travel distance every 100 mm: 1200 mm Piston rod: 1500 mm ram diameter: 250 x 250 mm traversing speed: 8 m/min Max. vertical feed rate: 6000 mm/min Max. cross feed: 8000 mm/min Speed of the machine table: 180 U/min tool changing time: 1 min cutting speed: 140 m/min Cutting depth: 14 mm Power Capacity of main drive: 100 kW weight of the machine ca.: 47 t dimensions of the machine ca.: 12,5 x 8,0 x 6,7 m Features/Accessories: - Crossbars every 100 mm, including locking mechanism - 2 ram units with a cross-section of 250 x 250 mm, travel distance 1500 mm - Both ram units can be moved through the center (100 mm each, i.e., both ball screws are offset from each other with collision protection - ZF gearbox for main driv ...

CNC Machining Center Kunzmann WF 600 CNC Control: Heidenhain iTNC 530 Year of Make: 2014 Operating hours approx. 55 h Internal machine no. 52 Machine from training workshop / as good as new condition Travels: X-axis 600 mm Y-axis 400 mm Z-axis 400 mm Mount: SK 40 DIN69871 Speed: 1 - 5,000 rpm Accessories - Probes - Vise - Tools

Maximale afmetingen van het werkstuk: 800 x 1000 mm tabelindexering elke 0,001° afstand van palletcentrum tot spindelneus: 70 gt; 810 mm afstand van palletoppervlak tot spindelcentrum: 100 gt; 830 mm Hogedrukkoeling via de spindel (70 bar) Uitgerust met Palletech High Rise System = uitbreidbare palletopslag met 2 niveaus voor 12 pallets. spanentransporteur X-axes: 730 mm Y-axes: 730 mm Z-axes: 740 mm Table dimensions: 500 x 500 mm (2x) Max weight on the table: 700 kg Admission in spindle (ISO): BT40 Power on the spindle: 30 kW Toolstore: yes Tools: 160 positions Frequency : 18000 rpm Number of pallets : 12 pallets Length: 9000 mm Depth: 8000 mm Height: 2850 mm Weight: 12,4 ton

total power requirement:413 kW Induction hardening machine Rotary table Eldec: Z (servo drive 750 mm Y (electromechanical) 300 mm X (electromechanical) 200 mm Maximum part diameter 600 mm Maximum workpiece weight 500 kg High frequency generator type HFG 200 Medium frequency generator type MFG 30

max. wheel diameter:210 mm total power requirement:60 kW weight of the machine ca.:8 t dimensions of the machine ca.:2,85 x 2,60 x 1,80 m grinding slide feed:700 mm grinding slide feeds:1-15.000 m/min max. workpiece weight:150 kg centre height:260 mm grinding wheel diameter:240 mm

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

spindle diameter:221,44 mm x-travel:2.000 mm y-travel:2000 mm z-travel:1.250 mm b-axis:360 ° table-size:1600 x 1800 mm max. workpiece weight:12.000 kg Work spindle:130 mm tool adaptor:SK 50 Tool changer:60 - Fach Ø Flange Hollow Spindle:221,44 mm Max. Ø centering cone:180 mm spindle stroke:800 mm turning speeds:400 ? 1600 U/min feed::bis 8000 U/min Table rotation axis B:1,5 U/min weight of the machine ca.:32 t Control pedestal, electrically height-adjustable approx. 1200 mm, Sawdust Conveyor,

grinding length:600 mm grinding width:250 mm workpiece height:380 mm :Sinumerik max. dia. of grinding wheel:300 mm weight:4000 kg total power requirement:12,5 kW grinding wheels:Ø 400 mm max. width of grinding wheel:100 mm grinding wheel hole diameter:127 mm turning speeds:470 - 12030 1/min x-axis:600 mm y-axis:300 mm z-axis:250 mm grinding range:450 x 200 mm distance spindle nose and table:500 mm table load:250 kg dimensions of the machine ca.:2600 x 2100 x 2400 mm switchgear cabinet:1300 x 800 x 2000 mm hydraulical unit::450 x 350 x 500 mm Documents:vorhanden

spindle diameter:200 mm x-travel:10000 mm y-travel:4000 mm z-axis:1500 mm W-axis (spindle longitudinal):1000 mm bore spindle turning speed range:1 - 2000 U/min dimension of the ram:600 x 530 mm high speed spindle taper ISO:60/50 rapid motion - x-axis:8000 mm/min rapid motion - y-axis:8000 mm/min rapid traverse Z-axis:5 m/min total power requirement:120 kW weight of the machine ca.:135 t dimensions of the machine ca.:16,0 x 5,0 x 10,0 m with CNC Steuerung HEIDENHAIN iTNC 530 hydrostatic guideways x and Y- axis autom. toolchanger 40-pockets autom. Pickup Station for angular milling head, universal milling head and facing head rotary table 3000 x 3000 mm , max load 60 to. v-axis 2500 mm chip conveyor and coolant attachment

grinding length:1250 mm grinding width:600 mm workpiece height:730 mm table surface area:1720 x 500 mm headstock: dist. table - spindle center:900 mm max. longitudinal movement:X-1450 feed range:10 - 20.000 mm/min vertical movement:Y-730 mm feed range:0,2 - 3.000 mm/min cross travel:Z-550 mm feed range:5 - 5.000 mm/min power capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/min cutting speed:max. 80 m/sec. weight of the machine ca.:11 t with CNC SIEMENS 840 C auto. dynamic balncing system integrated in the grinding conus profile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpm two magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.

EMAG WEISS W 11-CNC SL650Year of manuf. : 2020 Control : Sonstige WEISS CNC Centre width : 650 mm____________Description:In Generel:ear of construction:2020Control system:WEISS CNCCentre width:650 mmCentre height:200 mmGrinding wheel dimensions:400x60 mm + 500x60 mmWorkpiece headstock:Speed:10 -650 rpmWorkpiece weight max.:250 (100) kgSanding diameter max.:390 mmMounting:MK4Grinding headstock:Peripheral speed:20 - 50 m/sGrinding disc dimensions right:500 x 60 mmGrinding disc dimensions left:400 x 60 mmX-axis:380 mmZ-axis:700 mmB-axis:torque motor, infinitely variableTailstock:Pinole diameter:50 mmPionole stroke:45 mmMounting:MK 4Cylinder fine adjustment:+/- 0.04 mmEquipment:Positioning sensors:Direct scalesGrinding spindles:2x grinding spindle (left/right)GAP / Crash Controll:Structure-borne sound (Sensotronik)Balancing:MPM balancing deviceWorkpiece measurement:Marposs PF MEAutomat ...

L + Z lathe HOLZMANN type ED 914GNMasch. No. 20265 Year of construction 2006Center width 800 mmTurning diameter over bed 300 mmCenter height over bed 150 mmTurning diameter over support 190 mmCenter height over support 95 mmSpindle bore 38 mmSpindle speed 70 - 1400 rpm. 9 stepsFeed longitudinal and flatChuck flange Short taper DIN 55029 D1-4 Camlock 63 mmTailstock inner taper MK 3Drive power 1.5 kWNet connection 400 volts, 50 Hz- Spindle speed over 9 gear stages - 4-jaws

CNC Vertical Lathe VTL with Tool Changer.You Ji GTH-35/45 ATC-I.Year of manufacture 2012.Fanuc 0i-TD CNC Control.Face plate diameter 3500 mm.Hydrostatic table - Load max. 50 t.Swing diameter max. 4500 mm.Turning diameter max. 4000 mm.Turning height max. 2200 mm.Ram cross travel X -1750/+2160 mm.Ram vertical travel Z 1500 mm.Table drive 60/75 KW.Table turning speeds 2 ~ 75 mm.Torque at the table 67330 Nm.Tool magazine with 16 positions.Tool taper 7/24 BT 60.Floor space required 12375 x 8210 mm.Machine height 7920 mm.Full guarding.3-colour signal lamp (tower).AS NEW - 200 run hours !Available immediately.; As new

Table diameter: 2,000 mm Max diameter of workpiece: 3,000 mm Main drive: 60 KW Speed rotation of the table: 2.8 - 162 rpm Max workpiece height under the cross member: 2,500 mm Travel RAM: 1,750 mm Tool magazine: 12 workstations Machine Weight: 35 t Accessories: Grinding spindle and various tool holders 3000 rpm Wheel diameter 250 mm

An Emag vertical CNC lathe is available. Clamping chuck diameter: 250mm, max. circulation diameter: 270mm, max. machining diameter: 250mm, max. machining length: 175mm, speed: 4500rpm, tool positions: 12, tool holder: VDI 40, travel X/Z: 660mm/300mm, rapid traverse X/Z: 60m/30m/min. Machine dimensions X/Y/Z: approx. 4300mm/1600mm/3300mm, weight: approx. 7500kg, control: Fanuc Series 32i-Model A, operating hours: 64137h. Including automatic loading and unloading with pick-up spindle and integrated part diverter and workpiece storage. Documentation available. On-site inspection is possible.

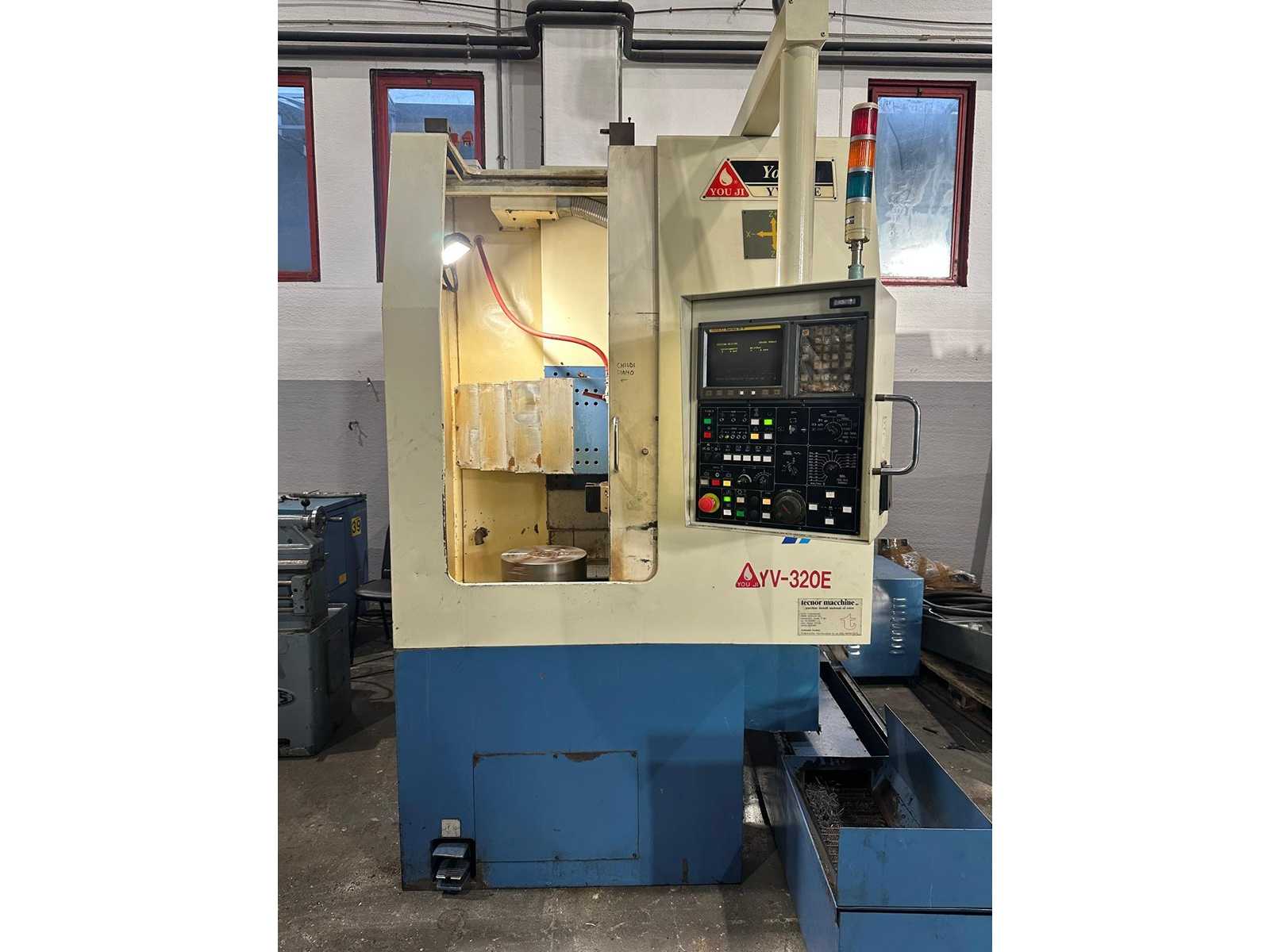

YOU-JI Vertical Lathe Model YV-320 E Fanuc Control Maximum Turning Diameter: 450 mm Self-centering diameter: 200 - 250 mm (8\" - 10\") X-axis travel (horizontal): Approx. 200 - 250 mm Z-axis travel (vertical): approx. 400 - 450 mm Spindle speed: Up to 3,000 - 4,000 rpm Total Machine Weight: approx. 4,500 - 5,000 kg Ground Clearance (W x D): Approx. 1,600 x 2,400 mm Total Height: Approx. 2,600 mm Auction-ID: A7-44885-22

Make: Schiess AG Model: 14 DK 1250 Year of construction: 1982 Overhaul: Complete general overhaul in 2021 Control: Siemens SINUMERIK 840D (new in 2021) Condition: Used, fully refurbished Availability: Immediate delivery Machine type: CNC single-column vertical lathe Weight: Approx. 12,000 kg Technical specifications: - Turntable diameter: 1,250 mm - Table height: 1,000 mm - Max. workpiece height: 1,150 mm - Max. swing diameter: 1,400 mm - Support travel (right): 750 mm - Support travel (left): 180 mm - Max. traverse movement: 1,150 mm - Max. workpiece weight: 5,000 kg - Table speed: 3.15–315 rpm (2 gear steps) - Main motor: 40 kW, 100–2,800 rpm - Max. torque on table: 14,000 Nm - Max. cutting force: 50 kN Auction-ID: A7-45257-4

Offered is a CNC vertical turning machine - pick-up system. Chuck diameter: approx. 160mm - 200mm, swing diameter: approx. 270mm, travels X/Z: approx. 500 - 600mm/approx. 160 - 200mm, max. spindle speed: 6000rpm, tool carrier: 12-station turret, drive system: Siemens SIMODRIVE 611, hydraulic unit: available, coolant system: including pumps and filter (One Eye Ind. magnetic filter installed), hinged belt chip conveyor. Inspection is possible by appointment.

Working Capacity: Maximum Rotating Diameter: Approx. 650 - 700 mm Maximum turning diameter: Approx. 550 mm Maximum turning height: Approx. 400 mm Autocratic Capacity: Usually mounted with 12\" (305 mm) or 15\" chuck Spindle speed: Typically up to 2,000 - 2,500 rpm Spindle attachment: A2-11 Engine: High torque for heavy duty machining (typically around 18.5 - 22 kW) FANUC Series 18-T Control Tool stations: 10 or 12 position automatic turret \"R\" configuration: version with live tools (BMT) and C-axis, allowing off-axis drilling and milling operations Guides: Integral prismatic guides for maximum rigidity and vibration damping during interrupted cuts Auction-ID: A7-44885-3

TRAUB automatic multi-spindle CNC lathe line equipped with ACTRA-25T control. Includes BECHET (France) bar feeder, serial number 148. Equipped with chip conveyor and automatic parts evacuation system. Fully automated loading and unloading system. Machine with closed protection cabin. Configuration oriented to high-cadence mass production. Suitable for machining small and medium-sized parts. Control panel with manual controls and CNC control. Source of the feeder: Cluses, Haute-Savoie (France). It is sold as a complete line consisting of lathe, bar feeder and evacuation system. Auction-ID: A7-44864-3

CNC Control: FANUC 21i-TB Number of axes: 3 (including C-axis) Max. rotation diameter: 120 to 150 mm (depending on tooling) Max. turning length: 120 mm X/Z axis strokes: 340 / 240 mm Max. spindle speed: up to 8,000 rpm Spindle nose: designed for precision grippers or chuck C-axis: 0.001° resolution (positioning and milling) Turret: high-precision, 12 positions (VDI 16 or VDI 20) Motorized tools: radial and axial drilling/milling, speed 4,000 to 6,000 rpm Documentation: complete Weight (kg): 2200 Year & Manufacturer: 2007 – SPINNER Auction-ID: A1-44765-258

CNC Control: FANUC 21i-TB Number of axes: 3 (including C-axis) Max. rotation diameter: 120 to 150 mm (depending on tooling) Max. turning length: 120 mm X/Z axis strokes: 340 / 240 mm Max. spindle speed: up to 8,000 rpm Spindle nose: designed for precision grippers or chuck C-axis: 0.001° resolution (positioning and milling) Turret: high-precision, 12 positions (VDI 16 or VDI 20) Motorized tools: radial and axial drilling/milling, speed 4,000 to 6,000 rpm Documentation: complete Weight (kg): 2200 Year & Manufacturer: 2007 – SPINNER

Vertical band saw HESKA type ESA 4Fabr. No. 681174 year of construction approx. 1985Roller diameter 420 mmThroat depth 400 mmTable size 500 x 500 mmCutting height 285 mmSaw blade length min. 3200 - max. 3400 mmSaw blade speed Gear stage (1) 15-140 m/min. Saw blade speed gear stage (2) 150-1400 m/min. Motor power 1.5 kWNet connection 380 volts, 50 Hz - stepless saw blade speed via PIV gearbox with handwheel adjustment and 2 gear steps - saw table swivel in 2 axes -

Vertical band saw MÖSSNER REKORD type SM 420Masch. No. 17010 Year of construction 1968Roller diameter 420 mmRadius in width 415 mmRadius in height 265 mmTable size 605 x 600 mmBelt speed 18 - 562 m/min. 8 stepsSaw blade length min/max. 3150 / 3260 mmDrive power 1.1 / 1.7 kWNet connection 380 V 50 Hz- Saw blade speed over 4 gear stages and 2 motor speeds- Saw blade butt welder IDEAL BS 0-16 with scissors and grindstone- swivelling work table in 2

Vertical band saw JAESPA type MSU 4Fabr. No. 724749 year of construction approx. 1980Roller diameter 420 mmProjection 400 mmTable size 610 x 610 mmCutting height 260 mmSaw blade length min. 3200 - max. 3400 mmSaw blade speed 10-1500 m/min. infinitely variableMains connection 400 volts, 50 Hz- infinitely variable saw blade speed via 2 gear stages and infinitely variable via belt drive- Saw table swivel- Saw blade butt welding machine IDEAL BS0-16- Saw blade shear- Sharpening stone for grinding the weld seamSpace requirement L x W

Modula Lift ML50D Vertical Storage Lift Modula are automatic vertical carrier storage systems based on the concept of vertical storage and saving floor space. You can store any type of material safely, cleanly and efficiently, saving up to 90% of floor space. The Modula are the result of more than 30 years of experience of an Italian company with high-tech products • Minimal energy consumption • Automatic weight monitoring during beam retraction • Dynamic storage location assignment of the carriers in the device according to the heights of the stored goods • Equipment frame made of galvanized steel profiles • Vertical drive with steel-core reinforced Eagle timing belt • Extractor guide system with 6 HDPE rollers per side • Management of the carriers with differentiated payload Manufacturer: Modula Year of Make: 2021 Model: Modula Lift ML 50D Height: ...

Modula Lift ML50D Vertical Storage Lift Modula are automatic vertical carrier storage systems based on the concept of vertical storage and saving floor space. You can store any type of material safely, cleanly and efficiently, saving up to 90% of floor space. The Modula are the result of more than 30 years of experience of an Italian company with high-tech products • Minimal energy consumption • Automatic weight monitoring during beam retraction • Dynamic storage location assignment of the carriers in the device according to the heights of the stored goods • Equipment frame made of galvanized steel profiles • Vertical drive with steel-core reinforced Eagle timing belt • Extractor guide system with 6 HDPE rollers per side • Management of the carriers with differentiated payload Manufacturer: Modula Year of Make: 2013 Model: Modula Lift ML 50D Height: ...

Machine weight: 20,000 kg Faceplate diameter 1250 mm Number of supports: 1 pcs Dimensions: height 4250 mm width 5630 mm depth of 3550 mm Extras: copying apparatus, turret head on the vertical support Technical condition at the time of sale: Replacement rotary amplifier on thyristor converter. Not operated since 1994 p. Small repair and adjustment of electrical and mechanical parts. The maximum dimensions of a workpiece Height 1150 mm The diameter of 1400 mm Weight 8000 kg

chuck diameter, mm 7100 (8000) Max. work piece diameter, mm 8000 Max. work piece height, mm 3200 Max. work piece weight, kg 125000 Chuck speed, rpm 0,22...20,1 Max. ram movement of vertical support, mm 2000 Max. movement of vertical, mm 4275 Support feed range, mm/min 0,0352...285 Support rapid feed, mm/min 2500 Supports possible work angle, deg. -15...+40 Jaws, units 4 Machine overall dimensions, mm 8615 x 17600 x 9800 Machine weight, kg app. 247300

turning diameter: mm swing diameter: mm turning height: mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Used machine in good condition. Available for immediate delivery. - Control: SIEMENS 840 D - Axes: 2 - Cutting feed rate (X x Z): 0.1 - 3.000 mm / min - Power of driven tool: 37 kW - Weight: 25 t

Used machine in good condition. Available for immediate delivery. - Power source : 30 kVA - Control: CNC HEIDENHAIN TMC 530 - Tool magazine capacity: 20 # - Maximum tool diameter ?: 65 mm - Weight: 7.5 t

Used machine in good condition. Available for immediate delivery. - Control: SINUMERIK 880 T 3 - Max. length: 400 mm - Tool-holder cone: CONO ISO 50 - Tool magazine capacity: 16 #
