turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours
x-travel:3600 mm y-travel:1250 mm z-travel:1600 mm table load capacity:8000 kp table clamping surface::4100 x 1050 feed range:10 - 5000 mm/min rapid traverse feeds:10000 mm/min spindle motor:29 kW spindle taper::ISO 50 spindle turning speed range:5 - 4000 U/min total power requirement:70 kW weight of the machine ca.:28 t dimensions of the machine ca.:8,5 x 5,4 x 3,2 m Machine with Heidenhain TNC 430 Steuerung - tool changer 30-fold - milling head indexable 2,5° - 4. axis turn table
x-travel:1000 mm y-travel:600 mm z-travel:550 mm fixed clamping table:1200 x 600 mm spindle drive motor:9 kW spindle taper ISO:40 spindle turning speed range:10 - 5000 U/min feed range:2 - 6000 mm/min total power requirement:15 kW weight of the machine ca.:6 t
x-travel:6500/13150 mm y-travel:4000 mm z-travel:1250 mm w-axis:2250 mm table surface area:5500/12150 x 3000 mm max. workpiece weight:70.000/105.000 kg ram head dimension:480 x 510 mm milling spindle motor:63 kW max. torque on the spindle:3300 Nm tool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/min feed speeds:1 - 24000 mm/min w-axis:1 - 6000 mm/min distance between columns:3500 mm passage:3000 mm total power requirement:120 kW weight of the machine ca.:245 t dimensions of the machine ca.:29,0 x 7,7 x 8,1 m Machine is in nearly new condition and was completely modernized in 2020! With CNC SIEMENS 840 D Automatic tool magazine for 153 tool positions Automatic milling head magazine for 6 milling heads Machining module ? straight ? straight long ? Machining module ? angle standard ? 4000 rpm, 144 x 2.5°, ISO 50 Machining module ? narrow angle extended ? 40 kW, 4000 rpm, 1800 ...
turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package

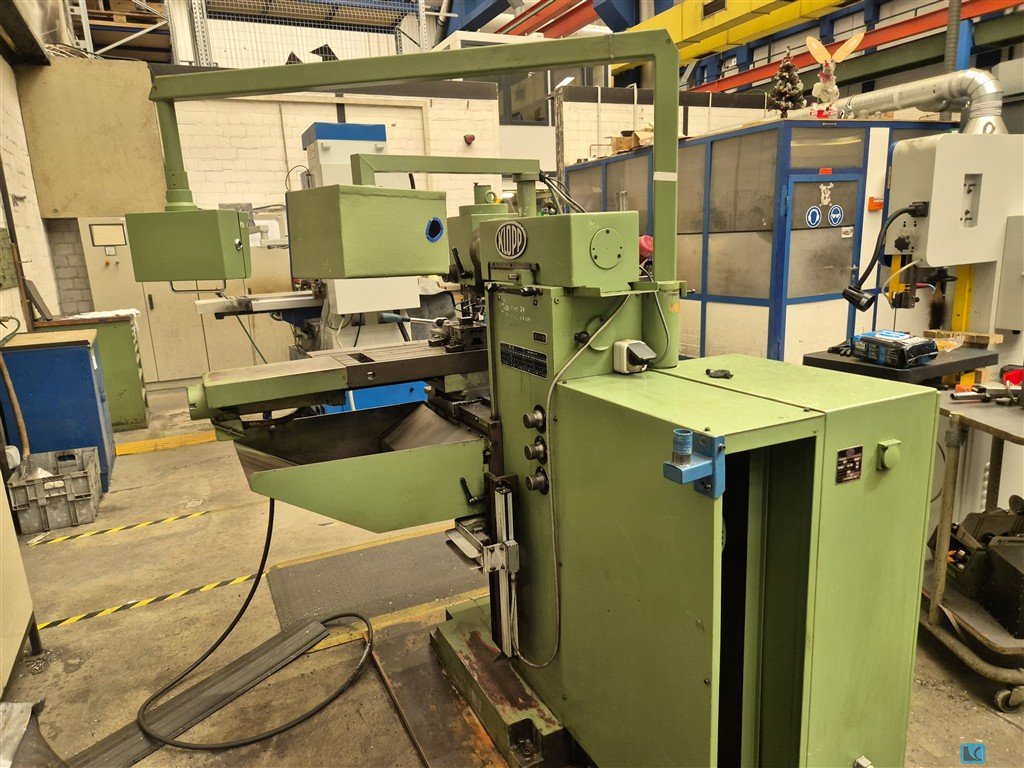

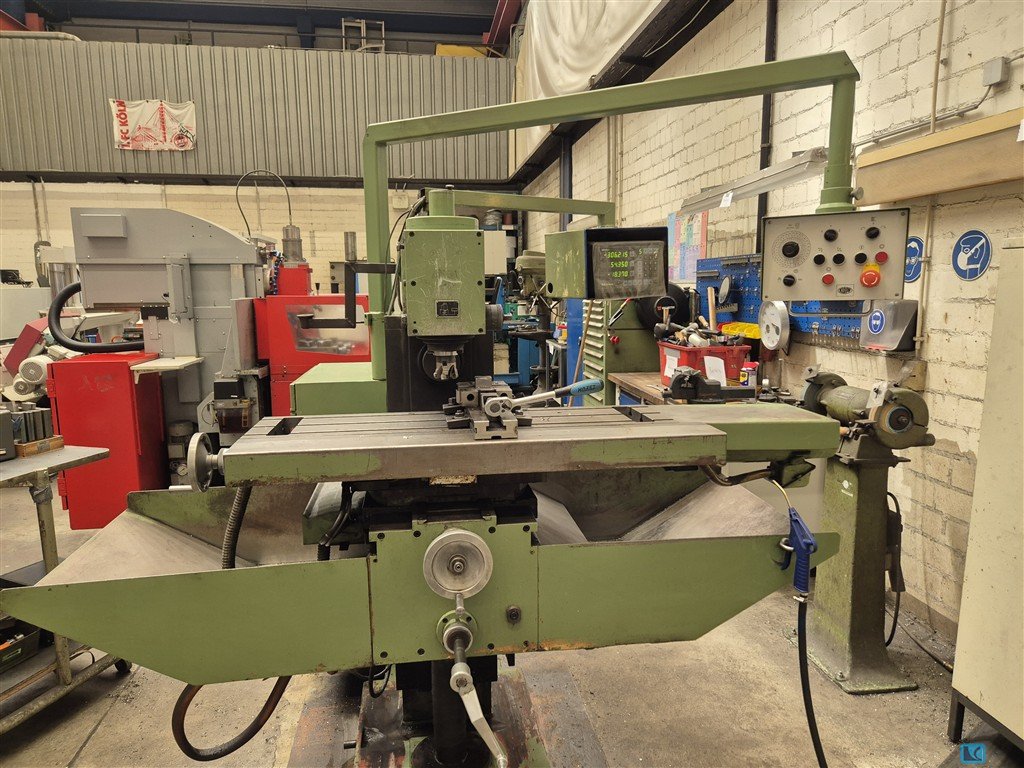

x-travel:800 mm y-travel:300 mm z-travel:400 mm total power requirement:ca. 4,0 kW weight of the machine ca.:ca. 1,7 t dimensions of the machine ca.:ca. 2,10 × 1,90 × 2,00 m The Klopp FWUE 8 is a conventional universal tool milling machine designed for precise milling, drilling and threading operations in toolmaking, mechanical engineering, maintenance, and single-part and small-batch production. Thanks to its horizontal and vertical milling capabilities, the machine offers versatile machining options for a wide variety of workpieces. The robust cast iron construction ensures high rigidity and machining accuracy, even during demanding milling operations. The machine is fitted with a 3-axis digital readout (DRO) and features automatic feeds along the X, Y and Z axes, selectable feed rates and a rapid traverse function. This enables convenient operation and precise positioning of the axe ...

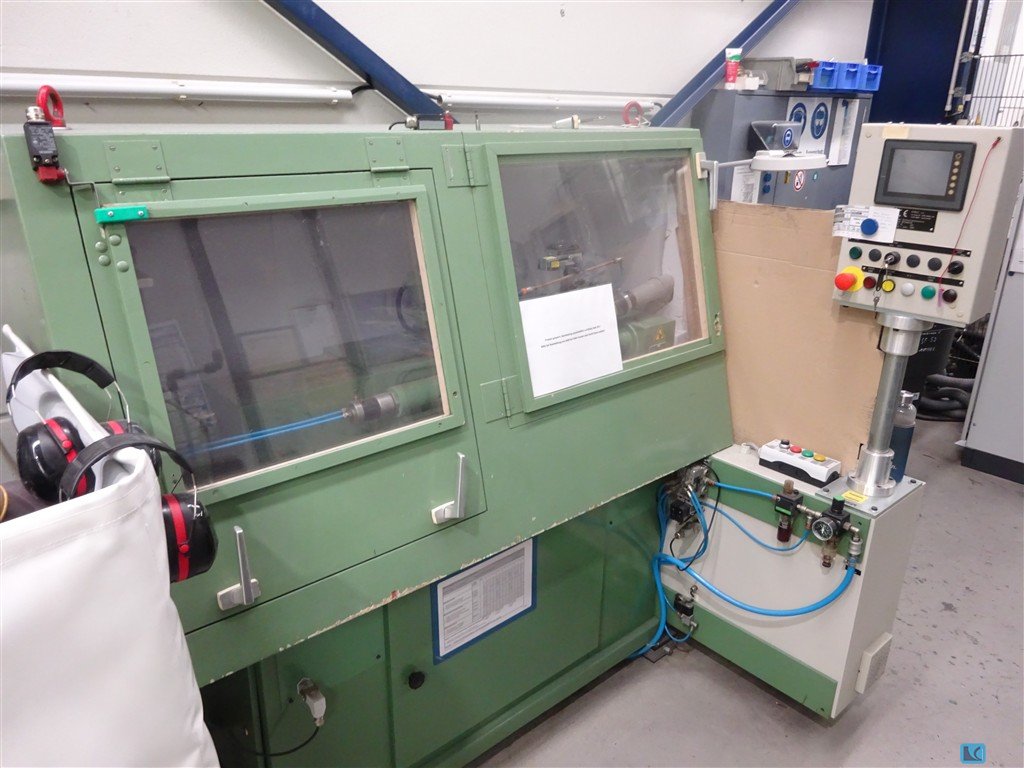

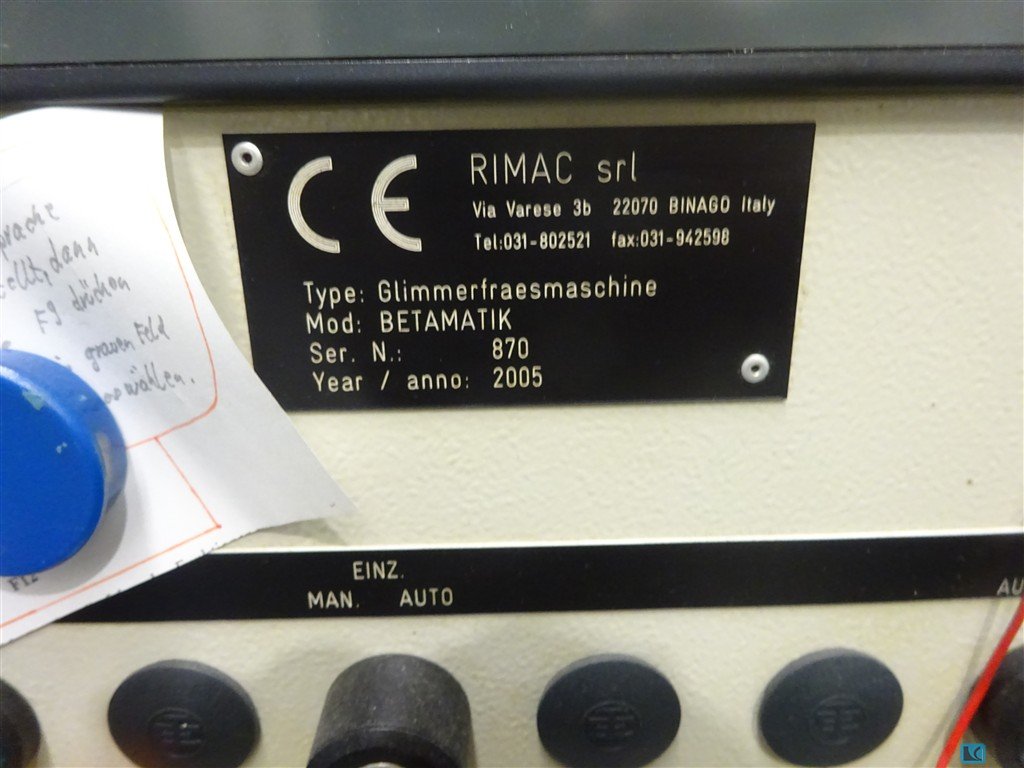

x-travel:60 mm The RIMAC BETAMATIK is a specialised collector mica milling machine for the manufacture and repair of electric armatures and commutators. It is used for the precise milling or undercutting of the mica insulation between the individual copper lamellae of a collector. The mica joints are detected by a laser optical system. A stepper motor then automatically positions the armature from lamella to lamella. The milling cutter is automatically raised during the return stroke. According to the data sheet, the machining time is approximately 0.8 to 1.3 seconds per lamella. The machine can process armatures up to a diameter of 100 mm, collectors up to 70 mm in diameter and shafts up to 500 mm in length. The maximum milling length is 60 mm. The milling spindle reaches 8,000 rpm. The machine, originally purchased around 1983/1984, was extensively modernised and mechanically overhaule ...
automatic:Werkzeugspannung Spannk.15000 N total power requirement:63 KVA weight of the machine ca.:56000 kg table-size:22000 x 800 mm Tool bore:ISO 50, DIN 69871 AD x-travel:20500 mm y-travel:1600 mm z-travel:1000 mm dimensions of the machine ca.:24 x 6 x 4 m tool piece magazine with:30 Plätze
bore capacity in steel (diameter):5 - 30 mm x-travel:450 mm y-travel:380 mm total power requirement:1,4 / 2,2 kW weight of the machine ca.:1.100 kg dimensions of the machine ca.:1.000 x 1.400 x 2.900 mm gear box:85 - 2.000 U/min spindle diameter:72 mm bore depth:700 mm throat:300 mm spindle taper MT:3 T-slots:3 x 16/25 mm table-size:700 x 300 mm spindle turning speed range:85/170/250/355/475/710/1000/2000 U/min motor speeds::705/1425 Year:ca. 1975
x-travel:500 mm y-travel:400 mm z-travel:330 mm table-size:710 x 410 mm spindle taper ISO:40 quill stroke:100 mm control:HEIDENHAIN TNC 335 B table load:180 kg no. of flutes:8 groove width:14/25 mm tool taper:SK 40 speeds::20 - 3000 U/min feeds:infinitely variable1-1250 mm/min rapid traverse:5000 mm/min total power requirement:13 kW weight of the machine ca.:2500 kg dimensions of the machine ca.:2000 x 2800 x 2300 mm Year:ca. 1984 Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel

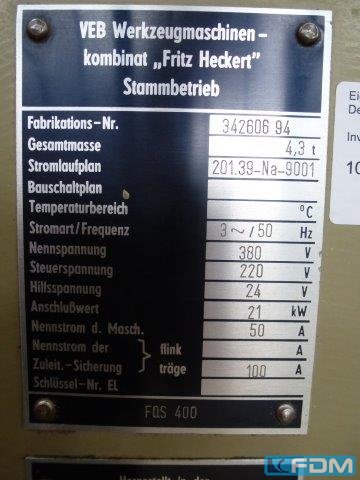

x-travel:1190 mm total power requirement:25 kW feeds::3 - 2000 mm/min weight of the machine ca.:4,3 t table-size:1600 x 400, 5 Spannbacken mm dimensions of the machine ca.:4000 x 3600 x 2200 mm speeds:45 - 1800 U/min y-travel:530 mm z-travel:540 mm tool taper:ISO 50 control cabinet:940 kg
x-travel:700 mm y-travel:450 mm z-travel:500 mm total power requirement:23,4 kW weight of the machine ca.:3100 kg dimensions of the machine ca.:3200 x 4000 x 2500 mm tool taper:ISO 40 feeds:0,2 - 0,6 - 0,12 mm/U spindle speeds::20 - 3150 , direkt programmierbar /min feed range:1 - 3000, in B=0,01 - 3 U/min rapid traverse in x-y-z axis:6m/ min, B = 7,6 U/min work table::NC Rundtisch(B-Achse) D=630 mm, 9T-nuten control:CNC432
x-travel:500 mm y-travel:400 mm z-travel:330 mm table-size:400 x 710 mm spindle taper ISO:40 quill stroke:100 mm control:HEIDENHAIN TNC 335 table load:180 kg no. of flutes:8 groove width:14/45 mm tool taper:ISA 40 speeds::20 - 3000 /28- 4000 U/min feeds:infinitely variable1-1250 mm/min rapid traverse:5000 mm/min total power requirement:13 kW weight of the machine ca.:2500 kg dimensions of the machine ca.:2000 x 2800 x 2300 mm Documents:inkl. Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel
x-travel:850 mm y-travel:280 mm z-travel:355 mm total power requirement:8 kW weight of the machine ca.:4 t dimensions of the machine ca.:2 x 2 x2.40 m revolutions per minute: 28-1.400 U/min table-size:1.200 x 370 mm surface area:1.060 x 260 mm spindle taper:SK 50
x-travel:560 mm y-travel:500 mm z-travel:450 mm total power requirement:16,5 kVA weight of the machine ca.:2700 kg dimensions of the machine ca.:2,30 x 3,0 x 1,90 m control:Grundig quill stroke:80 mm tool taper:SK 40 spindle speeds::40..4000 1/min feed:2 .3600 mm/min rapid traverse:4000 mm/min Documents:vorhanden
total power requirement:2,4 kW weight of the machine ca.:1150 kg dimensions of the machine ca.:1550 x 1615 x 1630 mm table clamping surface LxW:315 x 710 mm max. tool weight:200 kg T - slots distance:63 mm T - slots - width:12 mm taper bore:Spindel SK 40 spindle turning speed range:56 - 1800 U/min feed speeds:11,2 -355 mm/min Documents:vorhanden
x-travel:600 mm y-travel:400 mm z-travel:380 mm total power requirement:6 kW weight of the machine ca.:1700 t dimensions of the machine ca.:1800 x 2130 x 1980 mm Table dimensions:400 x 800 mm T-slots:7 St.,14 x50 table load:300 kg spindle:SK40 turning speed range:63-250 U/min speed steps work spindle:18 spindle speeds::50- 2500 n/min feeds:10-500 mn/min Documents:vorhanden
x-travel:500 mm y-travel:400 mm z-travel:340 mm work table::800 x 400 mm control:Numerik CNC - H 646 spindle turning speed - stepless:20 - 3000 U/min total power requirement:14 kW weight of the machine ca.:2400 kg dimensions of the machine ca.:2100 x 1800 x 2400 mm
x-travel:600 mm y-travel:500 mm z-travel:400 mm spindle diameter:90 mm spindle turning speed range:45 - 2000 U/min table length:1250 mm table width:200 mm groove width:14 mm table rotating:45 ° total power requirement:4,2 kW weight of the machine ca.:2000 kg dimensions of the machine ca.:2000 x 1800 x 1550 mm Year:ca.1957 Documents:vorhanden
turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and ...
x-travel:2500 mm y-travel:935 mm z-travel:1000 mm table surface area:I 1615 x 800 mm table surface area:II 800 x 800 mm spindle taper ISO:50 milling head speed:60 - 3000 U/min feed speeds:1 - 3000 mm/min rapid speed:10 m/min total power requirement:45 kW weight of the machine ca.:18,5 t dimensions of the machine ca.:5 x 5 x 4 m with CNC HEIDENHAIN TNC 426 Universa Milling Head -C-axis automatic Horiz-Vertical - Intermediate angles manual table II 800 x 800 mm as B-axis ( rotary table ) coolant attachment diverse accessories
x-travel:30000 mm y-travel:3600 mm z-travel:1900 mm milling head speed:1 - 4000 U/min spindle taper ISO:50 feed speeds:1 - 10000 mm/min rapid traverse:25 m/min milling spindle motor:46 kW total power requirement:85 kW dimensions of the machine ca.:45 x 8,7 x 5,5 ü.F. m with CNC HEIDENHAIN iTNC 530 autom. milling head indexing 2,5° floor plate field 31000 x 2500 mm ( 4 floor plates 6000 x 2500 mm + 1 floor plate 7000 x 2500 mm ) 2 chip conveyors, coolant attachment
x-travel:2000 mm y-travel:1500 mm z-travel:1460 mm milling spindle motor:35/30 kW spindle taper ISO:50 spindle turning speed range:24 - 3000 U/min table surface area:1350 x 1550 mm table load:6 t feed speeds:10 - 3000 mm/min rapid speed:10 m/min total power requirement:48 kW weight of the machine ca.:24 t CNC HEIDENHAIN TNC 426 B-axis table round Horiz. and Vertikal automatic positioning Milling Head diverses accessories
x-travel:16300 mm y-travel:2600 mm z-travel:1600 mm spindle taper ISO:50 spindle turning speed range:22 - 4000 U/min rapid traverse:24 / 36 m/min main drive:37 kW total power requirement:50 kW with CNC HEIDENHAIN TNC 430 automatic Universal Milling Head automatic toolchanger 90-pockets coolant attchament and chip conveyor
A Takamatsu CNC twin-spindle turning and milling center is available. 1) Turning diameter: 190mm, turning length: 150mm, max. one-sided machining length: 440mm, max. bar diameter main spindle/counter spindle: 51mm/42mm, spindle nose 1/2: A2-6/A2-5, spindle bearing 1/2: 100mm/85mm, main spindle bore 1/2: 52mm/43mm, spindle speed: 5000rpm, tool stations: 2×12, travel X1/X2: 162.5mm/170mm, travel Z1/Z2: 500mm/500mm, travel Y: +/-35mm, travel A: 550mm, machine dimensions X/Y/Z: approx. 3000mm/2250mm/2100mm, weight: approx. 7400kg, control: Fanuc 32i-B. 2) TOP Automazioni FU350SX bar feeder, max. bar capacity: 52mm, max. bar length: 3200mm, max. remnant length: 300mm, max. feed rate: 30m/min, max. bundle weight: 2000kg, machine dimensions X/Y/Z: approx. 4300mm/1400mm/1200mm, weight: approx. 1200kg. 3) LTA E 120-X-2-H filtration system, year of manufacture: 2022, filter stages: 2, extraction ...

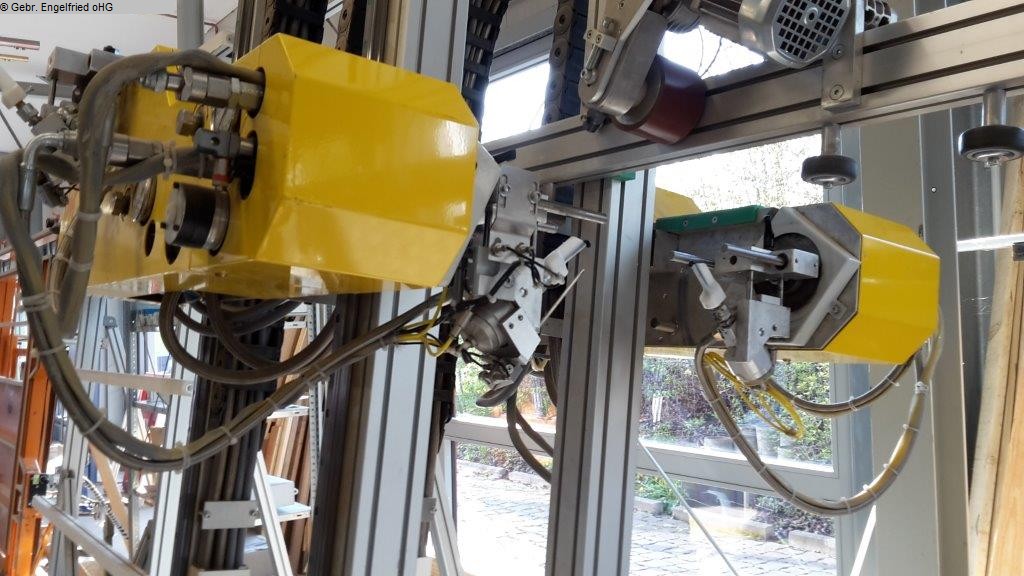

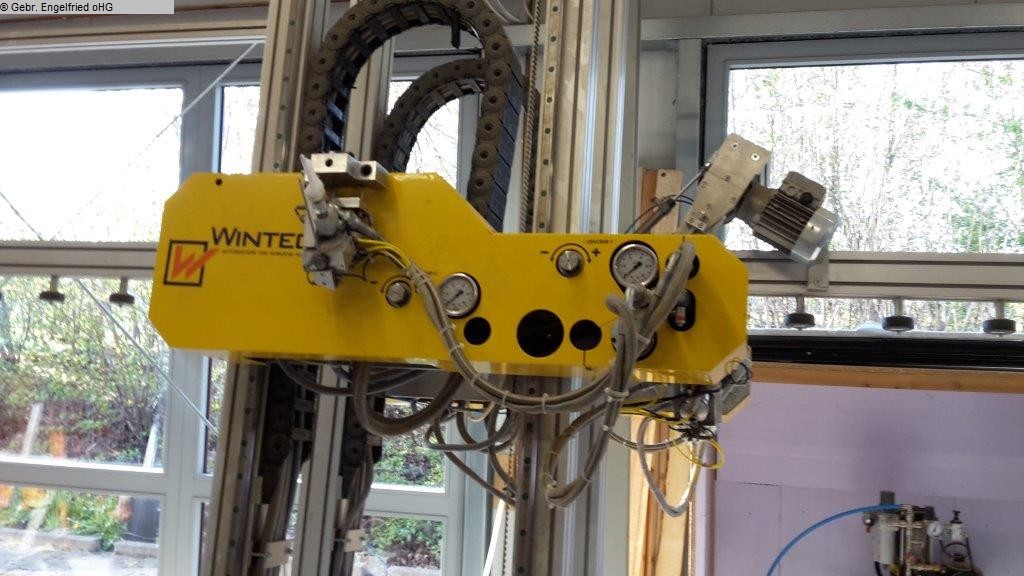

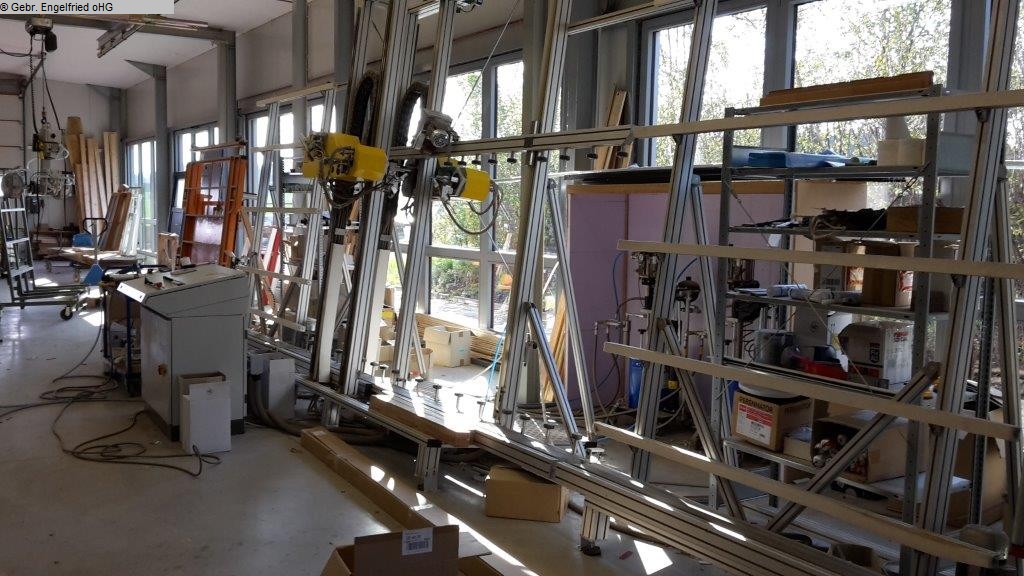

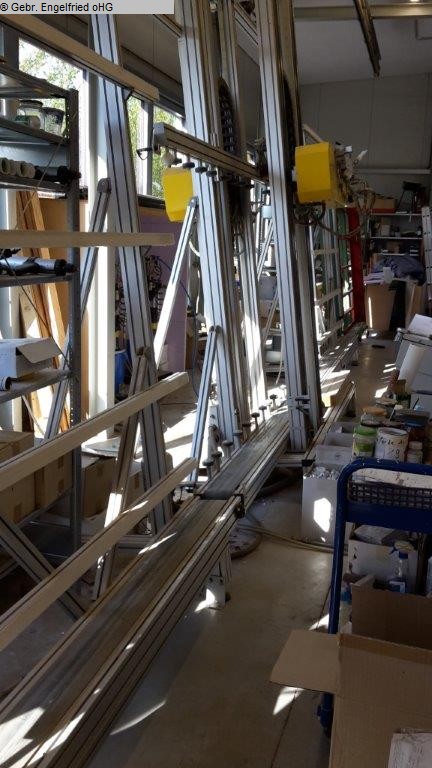

number of aggregates: 2 St. working width: 2000-3500 mm work height max.: 2450-3200 mm Wintech M9Cb Sealing Machine Automatic sealing system for wooden windows and doors with 2 processing units. For a detailed description, see the PDF document. ----------------------------------- Manufacturer’s technical description: M9Cb robotic sealing system The machine comprises a robust structure made from aluminium profiles, fitted with motorised conveyor belts on which the window units are transported. The silicone is distributed evenly into the joint by means of two automatically controlled nozzles. The electronic control system, which is in constant communication with the sensor, determines the movement of the guns and the operating parameters. Technical data: Standard Optional Max. window width 2000 mm 3500 mm Max. window height 2450 mm 3200 mm ...
x-travel: 5000 mm y-travel: 1000 mm z-travel: 1400 mm tool taper: ISO 50 spindle turning speed - stepless: 18 - 4000 U/min spindle motor: 22 kW table surface area: 5000 x 1000 mm table load: 10,5 t Control: Heidenhain TNC 530 A-Axis: +177,5 / - 180 ° rapid traverse: 1 - 5000 mm/min distance spindle /table: 125 - 1525 mm total power requirement: 50 kVA weight of the machine ca.: 29 t dimensions of the machine ca.: 13,1 x 5,4 x 3,86 mm medium overhaul in 2023/24, the spindle head and the mechanical components of the machine were refurbished. 5-axis machine - CNC control Heidenhain TNC 530 - MILLING HEAD O - FSQ 4000/750 -- 4000 rpm -- single spindle head with automatically adjustable spindle In a vertical or horizontal position the head can swivel around the cross axis from +177,5° to –180° by 2,5°. Swiveling around cross axis and H/V positioning comes from a regulatory servodrive o ...

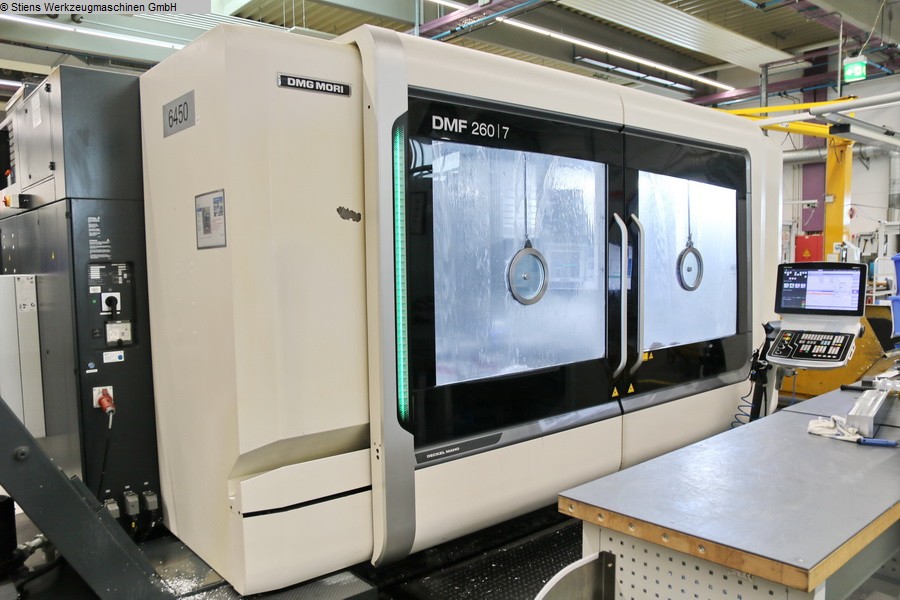

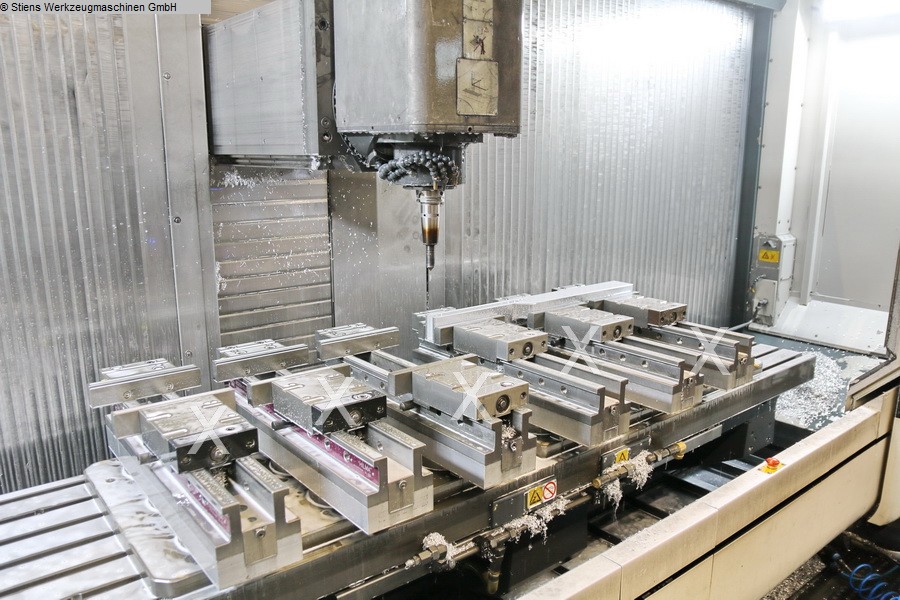

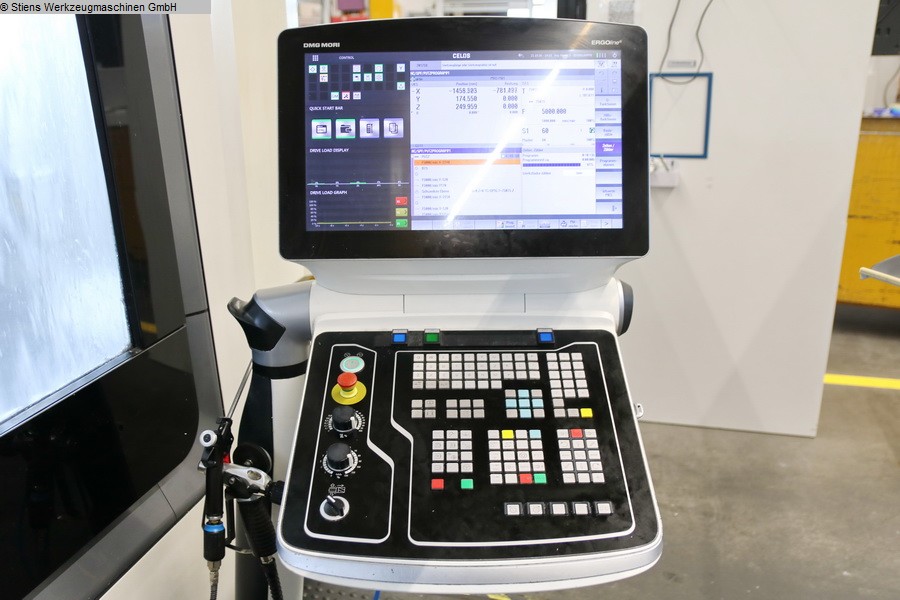

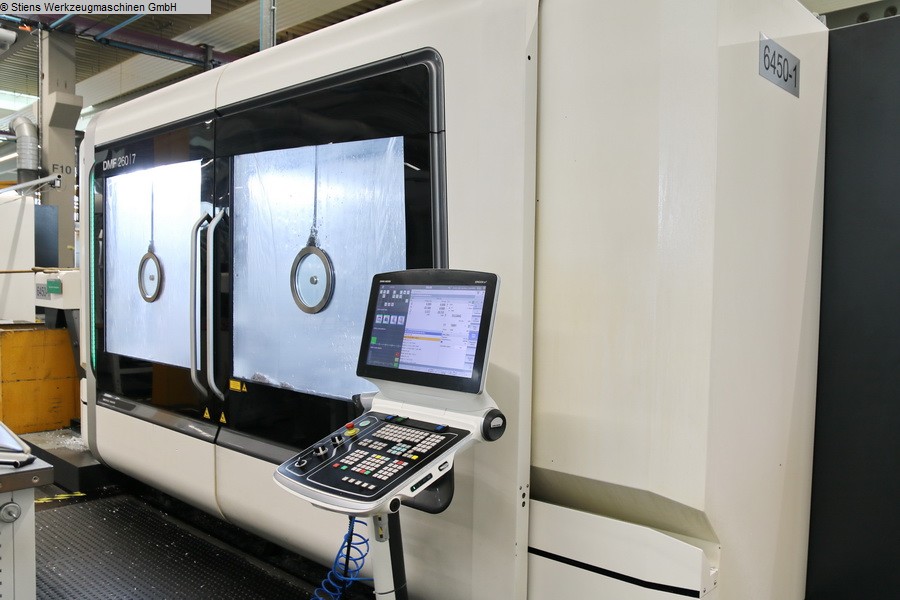

x-travel: 2.600 mm y-travel: 700 mm z-travel: 700 mm control: Celos 840 D SL Operate Siemens Main spindle:: turning speed range - main spindle: 20 - 20.000 min/-1 power capacity - main spindel: 35 / 25 kW Torque: 130 / 86 Nm tool taper: HSK-A63 b - axis: +-100 ° work table:: table surface area: 2.900 x 700 mm max. table load: 2.150 kg tool magazin:: number of toolpositions: 120 pos. tool taper: HSK-A63 max. tool diameter: 80 mm max. tool-dia with free toolbox: 130 mm max. tool length: 300 mm max. tool weight: 6,0 kg feeds:: rapid traverse ( X / Y / Z ): 40 m/min feed speeds: max. 40.000 mm/min feed power: max. 8 kN total power requirement: 67 kVA weight of the machine ca.: 16,24 t dimensions of the machine ca.: 8,0 x 5,6 x 2,9 m Chip conveyor: Coolantsystem: 980 L high pressure coolant: 80 bar through spindle coolant: Rotary screen: 2x Signal-Light: paper band filter: test probe ...
Vertical band saw HESKA type ESA 4Fabr. No. 681174 year of construction approx. 1985Roller diameter 420 mmThroat depth 400 mmTable size 500 x 500 mmCutting height 285 mmSaw blade length min. 3200 - max. 3400 mmSaw blade speed Gear stage (1) 15-140 m/min. Saw blade speed gear stage (2) 150-1400 m/min. Motor power 1.5 kWNet connection 380 volts, 50 Hz - stepless saw blade speed via PIV gearbox with handwheel adjustment and 2 gear steps - saw table swivel in 2 axes -
Vertical band saw MÖSSNER REKORD type SM 420Masch. No. 17010 Year of construction 1968Roller diameter 420 mmRadius in width 415 mmRadius in height 265 mmTable size 605 x 600 mmBelt speed 18 - 562 m/min. 8 stepsSaw blade length min/max. 3150 / 3260 mmDrive power 1.1 / 1.7 kWNet connection 380 V 50 Hz- Saw blade speed over 4 gear stages and 2 motor speeds- Saw blade butt welder IDEAL BS 0-16 with scissors and grindstone- swivelling work table in 2
Vertical band saw JAESPA type MSU 4Fabr. No. 724749 year of construction approx. 1980Roller diameter 420 mmProjection 400 mmTable size 610 x 610 mmCutting height 260 mmSaw blade length min. 3200 - max. 3400 mmSaw blade speed 10-1500 m/min. infinitely variableMains connection 400 volts, 50 Hz- infinitely variable saw blade speed via 2 gear stages and infinitely variable via belt drive- Saw table swivel- Saw blade butt welding machine IDEAL BS0-16- Saw blade shear- Sharpening stone for grinding the weld seamSpace requirement L x W
The Thimonnier M3200 is an automatic double head vertical form / fill / seal machine (Vertical FFS) to pack liquid & viscous products in pillow pouches using rolls of polyethylene. Possible products are: pasteurized milk / water / fruit juices / curdled milk / liquid yoghurt / nectars / cream / greek yoghurt / kefir / smetana / rayeb / sauces / soups or syrups. The pouches are continuously filled from an over tank headed with constant level and controlled by a proportional valve and a level sensor.The machine is very flexible and reach high output and high dosing accuracy. Strong frame made from steel profiles covered with stainless plates for maximum rigidity. A Clean-in-Place (CIP) has been integrated into the M3200’s design. All of the parts that come into contact with the product are built from stainless steel. Rate of production: 5.000 - 8.000 pouches per hour. Bag volume: 70 - 1. ...
Incomplete Thimonnier M3200 which is an automatic double head vertical form / fill / seal machine (Vertical FFS) to pack liquid & viscous products in pillow pouches using rolls of polyethylene. Possible products are: pasteurized milk / water / fruit juices / curdled milk / liquid yoghurt / nectars / cream / greek yoghurt / kefir / smetana / rayeb / sauces / soups or syrups. The pouches are continuously filled from an over tank headed with constant level and controlled by a proportional valve and a level sensor.The machine is very flexible and reach high output and high dosing accuracy. Strong frame made from steel profiles covered with stainless plates for maximum rigidity. A Clean-in-Place (CIP) has been integrated into the M3200’s design. All of the parts that come into contact with the product are built from stainless steel. Rate of production: 5.000 - 8.000 pouches per hour. Bag vo ...
Incomplete Thimonnier M3200 which is an automatic double head vertical form / fill / seal machine (Vertical FFS) to pack liquid & viscous products in pillow pouches using rolls of polyethylene. Possible products are: pasteurized milk / water / fruit juices / curdled milk / liquid yoghurt / nectars / cream / greek yoghurt / kefir / smetana / rayeb / sauces / soups or syrups. The pouches are continuously filled from an over tank headed with constant level and controlled by a proportional valve and a level sensor.The machine is very flexible and reach high output and high dosing accuracy. Strong frame made from steel profiles covered with stainless plates for maximum rigidity. A Clean-in-Place (CIP) has been integrated into the M3200’s design. All of the parts that come into contact with the product are built from stainless steel. Rate of production: 5.000 - 8.000 pouches per hour. Bag vo ...
Pressing force: approx. 8 tons Connection value: 230 V 1.5 kW Filling shaft: 630x460x750 mm Bale size: 630x460x700 mm Bale weight: approx. 30 - 80 kg Machine size 830x970x1870 mm WxDxH Machine weight: 360 kg Warranty: 12 months Condition: technically and optically revised Completely overhauled with new paint!
Technical data: Machine stand, Type 539 Band saw roll diameter 1400 mm Band saw roll width 180 mm Saw blade width max. 200 mm Saw blade length max. 9300 mm Saw blade thickness 1.3 mm Saw blade speed approx. 42 m/sec. Drive power 45 kW, (1500rpm) Cutting feed requires. 22.5 m/min -Incl. electrical equipment, consisting of limit switches for saw blade voltage, path limitation for transverse movement -2 electromechanical width adjustment devices with precision spindle and two-stage special drive - designed for connecting a Fraba digitizer 2800 -2 hydro-pneumatic band saw roller brakes
Vertical CNC centre lathe, uses / outdated machine type: Emag VSC 200 control: Siemens 840 C construction year: From the in 1995 to the in 2007 overtakes TECHNICAL DATA: speed area / speeds: [1 / min].: 6,000 Drehmoment:/torque [Nm]: 480 Max dreh-? over bed swing diam .: 290 mms impulse achievement / power: [kW] 34 feed ? / chuck diam. 200 mms revolver / turret: 12-fold, VDI 40, shoemaker powered work witness / driven tools 7.8 kW Verfahrwege: X axis / x-travel: 550 mms Z-Achse/z-travel: 200 mms express way / rapidly travel: (X/Z) [m / min] 30 / 20 prepush / feeds: (X/Z) [m / min]. 11 KN connected load: [KW] 36 kW machine weight: [kg] 6,500 equipment signs: filings sponsor / chip conveyor, crowd
Technical data: -2.77 l/s, 14.7 m -Rated speed: 1440 1/min -Inlet: DN 50 -Print: DN 40 -Motor: 11 kW -2-pole New price: 16,500
Campagnolo Packaging Systems Vertical form and seal machine Model: C25 Serial:A02-02
Table clamping surface: 2 x 350 x 300 mm traverse path x/y/z: 700/300/250 mm spindle retainer: BT 30 ISA kl. / gr. Table/spindle distance: 450 mm spindle speeds: 6-6000 rpm number of tool stations: 10 pieces feeds: 5-10000 mm / min rapid traverse: x & y/z 25/20 m / min spindle drive: 3,1/4,1 kW Electr. Supply: 400 V kW weight: 2600 kg
Type TP4 Spindle rotation speeds 20 000 U/Min/rpm Table dimensions 900x770 mm Weight 800 kg Transport dimensions 1800 x1000x1000mm
used
I am offering them a complete vertical packaging plant. Multihead weigher by Ishida Vertical flow of Hassia Redatron and Bosch Bosch cartoning machine If you are interested, please contact me.
Vertical internal broaching machine, used Vertical internal - broaching machine. used Type / type: RITS 16 x 1500 x 500 Manufacturer / make: Artur Klink year / new: 1995 Biggest tensile strength / maximum pulling power: 16 t Max stroke length / max broaching length: 1500 mm Table width / table width: 500 mm Räumgeschwind. / broaching speed: 1..6, 4 m / min Rücklaufgeschw. / return speed: 19.5 m / min maximum tool length / max length of tool: 1700 mm Power consumption / connected power: 42 kW Size / weight: 16 t Specification: optional spaces right or left, and at the same time right and left / / 2-jobs broaching right or left / right and left at the same time
Chiron FZ18W rotopallet 1999 CNC Siemens 840D X 630 Y 400 Z 425 tables (2) 850x450mm 20 tools ISO 40 / 7100 RPM / 18kW / 140 Nm 40m/min HAWE hydraulics automatic doors swarf conveyor machine can be inspected under power in our warhouse 6 ton 3,6 x 2,25 x 2,85
Grenzebach HGB new device, 1a State ca 300 BH Uea dimensions: 590h x 170 x 190 d cm Weight ca. 1.8 t 78 cm with toothed belt conveyor Rail length 500 cm from the ground 26 cm
used
Table size: 700 x 1200 mm traverse path x/y/z: 600/300/350 mm spindle retainer: SK 40 ISA kl. / gr. Table/spindle distance: 150/540 mm spindle speeds: 45-6000 rpm number of tool stations: 12 pieces feeds: 5000-20000 mm / min rapid traverse rate: 5000-20000 m / min spindle drive: 5.5 kW Electr. Supply: 380 V, 12 kVA kW space: 2350 x 2100 x 2500 mm weight: 3800 kg
The milling center DUGARD EAGLE 660 was produced in 2005. The vertical machining center has a reconditioned spindle with a tool haul change - a rod, springs and a gripper. Technical parameters of the CNC milling machine: - CNC controller: SIEMENS SINUMERIK 810D ShopMill - workpiece probe - tool probe Worktable : - table dimensions: 810 x 510 mm - maximum table load: 500 kg - T-slot, quantity: 5 mm - T-slot, size: 18 mm - T-slot, spacing: 100 mm Processing field: - X axis travels: 660 mm - Y axis travels: 530 mm - Z axis travel: 510 mm - distance of the spindle tip to the axis of the table: 150 ~ 660 mm - distance of the spindle axis to the column: 585 mm Spindle: - spindle taper: ISO 40 - constant spindle power: 11 kW - spindle power 30 min. : 15 kW - spindle speed range: 80 ~ 8000 rpm. Rapid feeds: - X axis travel: 30 m / min. - Y axis travel: 30 m / mi ...
