vdf lathe used for sale

A CNC cycle-controlled lathe VDF is offered. Max. swing diameter over bed: 420mm, max. swing diameter over slide: 235mm, max. turning length: 1000mm, main spindle bore: 51mm, max. spindle speed: 3000rpm, motor power: 11kW, tool size X/Y: approx. 25mm/25mm, rapid traverse X/Z: 5m/min/10m/min, tailstock quill diameter: 70mm, tailstock quill stroke: 110mm, tailstock taper: MT4, thread pitch range: 0.1mm-2000mm, control: Siemens Sinumerik, weight: approx. 3000kg, machine dimensions X/Y/Z: approx. 3400mm/2000mm/1800-2200mm. Inspection possible by appointment.

BOEHRINGER / VDF DUE 500 ist eine Mechanikerdrehbank, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Arbeitsmaße: Spitzenhöhe 240 mm; Spitzenweite 1500 mm; Drehdurchmesser über Planschlitten 285 mm, über dem Bett 500 mm, in der Kröpfung 540 mm; Spindelbohrung 62 mm; 24 Stufen, von 11.2 t/min bis 2240 t/min. Technische Daten: Spindelmotor 11 kW; Anschluss 50 Hz 3x 400 V; Maschinengewicht ca. 3400 kg; Abmessungen L3200 x B1500 x H1400 mm. Zubehör: 3-Backenfutter; Dreibacken Lünette aufklappbar; Schnellwechselstahlhalter. Erreicht enge Toleranzen; typische Einsatzbereiche Automobilindustrie, Uhrmacherei, Werkzeugmaschinenbau, Luftfahrt, Medizintechnik. Technische Daten ohne Gewähr

Manufacturer: BOEHRINGER Model: VDF 315 CM Machine Type: Horizontal Lathe Application Type: Turning Year: 1997 Control Unit: • Control Brand: SIEMENS • Control Model: 840C Movement: • Number of Axes: 3 • X-Axis Travel: 405 mm • Z-Axis Travel: 2,049 mm Technical Specifications: • Sub Spindle: No • Live Tooling: Yes • Maximum Bar Capacity: 80 mm Additional Information: • Chuck Diameter: 400 mm Find more here - .ucymachines/ Contact us at - sales@ucymachines

Various machines mostly Wafios or Deiters available! Eg. Wafios UF30 / VDF80 / DF3

Several types available please contact us by email.

BOEHRINGER VDF DUS 1000 CNC lathe was built in 1993 in Germany. The machine, designed for machining workpieces with a maximum diameter of 1000 mm, delivers excellent turning results during even the most intensive challenges, thanks to its extremely stable design and reliable components. The spindle is driven by an stepless AC motor, which allows efficient turning in two different, optimally adapted speed ranges. All axes, on the other hand, have powerful servo drives, guaranteeing excellent dynamics and positioning accuracy throughout the machine’s lifetime. This is rounded off by an intuitive SIEMENS CNC control with many functions for easy operation and programming. The BOEHRINGER VDF 1000 DUS lathe weighs approximately 10100 kg. Technical specifications of BOEHRINGER VDF DUS 1000 metal lathe - turning diameter above the bed: 1000 mm - turning diameter over transverse slide: 710 ...

Bezel moving, moving bezel, steady rest, Lynette -max. passage: Ø 170 mm -Support: ball bearing -Tip height: 345 mm -Hole spacing: 550 mm -Hole diameter: Ø 21 mm -Drawings: in the photos -Quantity: 1 piece available -Dimensions: 605/80/H670 mm -Weight: 59 kg

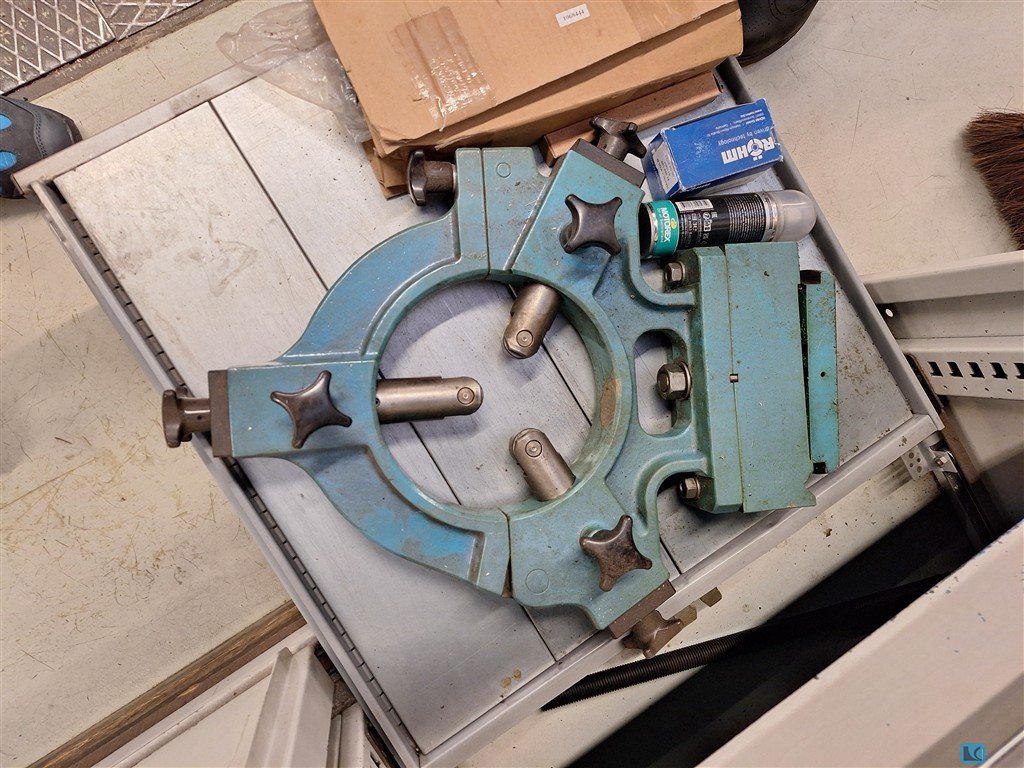

Bezel, steady rest, lynette -Bezel: max. opening Ø 170 mm -Centre height: 325 mm -Support: ball bearing -technical drawing: in the photos -Dimensions: 520/260/H590 mm -Weight: 77 kg

workpiece weight: 279 KG length: ca. von Bett bis Lynette mm : 189 € . max: durchlass 369 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

NDT lathe - Böhringer Type VDF 400 Spindle 600-440 mm maximum length 2000mm Tool magazine with 12 tools

turret of a Boehringer lathe The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: mm turning length: mm control: 0 total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

General SKU318M524 MakeSchenk Filterbau GMBH TypeVDF No.485.524 Year of construction1985 LocationBarneveld Main Features MaterialAluminium/Stainless steel Motor2.2 KW Surface24 m2 Specified Features - Rotating vacuum filter Rotating vacuum filtercheck Filter surface24m2 Drum sizesdia.2400mm x3200mm Motor+/- 2,2 KW Drum speed3 rpm With knife dischargecheck With roll dischargecheck Manual operatedcheck Motor+/- 1,0 KW (belt) With vacuum pumpcheck With vacuum vessel(2x) MaterialAluminium, Stainless steel General With switchgearcheck Floorspace4,9x3,6 M Total height3,0 M Technical specs Extra informationWith pressure rollsPowdered foodsStarchBiotechnologyRotating vacuum filtersAgrochemicalsSpicesPlastic & polymersCatalysts & fillersFeed additivesFood additivesSugarAnimal feedSolid pharmaceuticsBeveragesDyes & pigmentsMinerals & inorganicSchenkIndustries > Food & ...

greates pass round over bed: 520 mm swing diameter over bed slide: 480 mm turning length: 3000 mm control: 840 D SIEMENS number of tools: 12 Driven tools - quantity: 6 spindle bore: 103 mm c-axis: ja 0 weight of the machine ca.: t dimensions of the machine ca.: m Scope of delivery of the basic machine: SINUMERIK 840 D 3 controlled axes Rotation Ø over bed 520 mm Turning Ø over bed slide 480 mm Tool carrier with 12 cylindrical shank holders Ø 50 mm 1-stage AC main drive, 53 kW, 50 % ED Speed range 30 - 3000 min-¹ Main spindle head size 8 Clamping door for clamping devices chip conveyor THREE-DIMENSION 3000 mm 12 cylindrical shank holders DIN 69880-50x78 of which 6 positions can be equipped with driven tools, Power 6 kW at 60 % ED, speed range 20-2500 min-¹ 2 gear stages C-AXLE Speed range 0-20 min-¹ Max. Angle specification 9999.999° Working range according to work area diagram POW ...

greates pass round over bed: 640 mm swing diameter over face slide: 435 mm control: Siemens SINUMERIK 810D pl turning speed range: 3 - 2.500 U/min centre distance: 1.500 mm spindle bore: 70 mm spindle diameter in front bearing: 100 mm Lathe - cycle-controlled | VDF-BOERHRINGER - DUS 630 ti The machine is in good condition and can be inspected under power at any time. Please note that the technical details were added from comparable machines. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: DUS630ti | DUS 630ti | DUS 630 ti The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 570 mm turning length: 2000 mm control: num + CNC Keller centre height: 280 mm turning dia. over face-slide: 365 mm spindle bore: 62 mm spindle turning speed range: 3 - 2500 U/min spindle head: DIN 55 027 Gr. 8 cutting speed: Konstant 1 - 9999 m/min feed in x - axis: 0,01 - 50 mm/U feed range Z-direction: 0,01 - 50 mm/U rapid travel - longitudinal/face: 10 / 5 m/min feed power: x-Achse 7100 N feed power: z-Achse 12.500 N travel of cross-slide: 345 mm upper slide travel: 125 mm bed width: 360 mm tailstock quill diameter: 80 mm tailstock quill stroke: 190 mm tailstock taper MT: 5 max. workpiece weight -without tailstock: 400 kg max. workpiece weight between centres: 1000 kg max.workpiece weight:each extra steadyrest: 300 kg threading metric: 0,1 - 400 mm/Stg. dimensions of machine L x W x H: 3,98 x 1,87 x 1,81 m total power requirement: kW weight of the machine ca.: t A ...

- 3 Axis HeidenHain ND780 dro - 3 chuck 400 mm - 4 chuck 800 mm - Steady rest closed ca 400 mm - Steady rest C-Type ca 400 mm

: 570 : 365 turning length: 1000 mm control: Sinumerik 850 turning speeds: 2500 U/min spindle bore: 62 mm weight of the machine ca.: 5,6 t dimensions of the machine ca.: 6x2,5x2 m The technical data is provided by the manufacturer or operator and is therefore not binding for us. We reserve the right to prior sale, our terms and conditions of business and sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, crane capacity 70 t More than 10,000 items of accessories for your workshop If you want to sell machines, production lines, or your business, then talk to us. You can find further offers on our website. Viewings are possible by arrangement. We look forward to your visit. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

core drilling diameter max.: . mm bore depth: . mm swing diameter: . mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

core drilling diameter max.: . mm bore depth: . mm swing diameter: . mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

core drilling diameter max.: . mm bore depth: . mm swing diameter: . mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m (47) The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

core drilling diameter max.: . mm bore depth: . mm swing diameter: . mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m (52) The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

core drilling diameter max.: . mm bore depth: . mm swing diameter: . mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m (60) The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

core drilling diameter max.: . mm bore depth: . mm swing diameter: . mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m (61) The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Philips B2T control Circumferential diameter 640 mm Machining diameter longitudinal 550 mm Machining diameter on the drum turret 450 mm Turning length 1000 mm Spindle speed 2,240 min-1 Spindle bore 103 mm 12-speed drum turret VDI 60 Chip conveyor

centre height: 280 mm centre distance: 1200 mm turning diameter over bed: 570 mm turning diameter over slide: 365 mm turning length: 1000 mm spindle taper: DIN 55027 Gr. 8 control: Sinumerik 810 D SIEMENS bed width: 360 mm spindle bore: 62 mm turning speed range: 3 - 2500 U/min feed:: 5000 mm / min rapid travel - longitudinal/face: 10 m/min 3-jaw-chuck diameter: 250 mm quick change toolholder: SANDVIK Coromant Capto drive capacity - spindle motor: 25 kW taper in tailstock-quill: MK 5 dia. of quill: 100 mm quill stroke: 190 mm coolant: voltage: 400 V weight of the machine ca.: 5,0 t dimensions of the machine ca.: 3,55 x 2,20 x 1,95 m - Serial No.: 2022-3742-03 - CNC-Control SIEMENS Sinumerik 810 D - Rapid feed - Coolant equipment - Machine lamp The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: max. 480 mm turning length: max. 2.000 mm control: Sinumerik 840 D Siemens swing diameter max. over bed cover: 520 mm Main spindle:: turning speed range - main spindle: 7 - 2.800 min/-1 transmission ratio: 2 power capacity - main spindel: 53 kW max. Torque: 3.456 Nm spindle nose: 11 DIN 55026 chuck diameter: 315 mm spindle bore: 103 mm usable bar diameter: 82 mm axis stroke:: x-travel: 405 mm z-travel: 2.049 mm Tailstock:: diameter of quill: 100 mm quill stroke: 100 mm tension force: 14 kN capture: 30 DIN 2079 feeds:: rapid traverse: 10 m/min Working speed: 0,1 - 10.000 mm/min feed power: 15 kN Tool Mount:: number of toolpositions: 12 pos. driven statition: 6 pos. Shank diameter: 50 mm power capacity: 5,4 kW Max. Speed: 2.500 / 625 min/-1 max. Torque: 25 / 100 Nm total power requirement: ca. 50 kW weight of the machine ca.: 14 t dimensions of the machine ca.: 6,4 x ...

BOEHRINGER / VDF DUS 400 ti ist eine CNC-Zyklendrehmaschine, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Kapazitäten: Dreh-Ø über Planschlitten 230 mm, über Bett 420 mm, Spindelbohrung 51 mm, Drehlänge 1000 mm. Daten: 2 Stufen (10–3000 t/min), Spindelmotor 11/9 kW, Eilgang 5/10 m/min, Anschluss 50 Hz 3x400 V, Gewicht ~3000 kg, Maße L3420×B1925 mm. Zubehör: 3-Backenfutter, Lampe, Reitstock, Kühlmitteleinrichtung, Späneförderer, Stahlhalter. Ermöglicht enge Toleranzen; geeignet für Automotive, Luftfahrt, Medizintechnik und Uhrenbau. Technische Daten ohne Gewähr

BOEHRINGER / VDF DUS 560 ist eine CNC-Drehmaschine, ausgelegt auf Präzision, hohe Genauigkeit und Zuverlässigkeit. Kapazität: Spitzenhöhe 280 mm, Spitzenweite 1500 mm, Ø Bett 570 mm, Dreh Länge 1500 mm, Spindelbohrung 62 mm. Technische Daten: 2 Stufen 3–2500 t/min, 19/15 kW, 1800/1400 Nm, Pinolenhub 190 mm, Vorschübe 0,01–50 mm/t, Eilgang X/Z 5/10 m/min, 3x400V, 35 kVA, Gewicht 5200 kg. Zubehör: Backenfutter Ø300/500/560 mm, MULTIFIX, Späneförderer, Reitstock, Backensätze, Werkzeughalter. Ermöglicht enge Toleranzen; geeignet für Automotive, Luftfahrt, Medizintechnik, Maschinenbau und Uhrenindustrie. Technische Daten ohne Gewähr

BOEHRINGER / VDF NV 250 T is a CNC Vertikaldrehmaschine, ausgelegt für Präzisionsbearbeitung, hohe Genauigkeit und Zuverlässigkeit. Achsen gesamt 4; Spindelbohrung 65 mm; Verfahrwege Z 260 mm, X 760 mm, Y ±50 mm; Eilgang X 120 m/min, Z 40 m/min; Revolver 12 Positionen VDI 40/DIN 69880. Spindelkopf A6; stufenlos bis 4500 t/min; Spindelleistung 31 kW; Anschluss 50 Hz 3x 400 V; Gewicht ca. 8500 kg. Zubehör: 3-Backenfutter Ø250 mm mit automatischem Zentrieren, Lampe, Kühlmitteleinrichtung, Ölnebelabsaugung, automatische Be-/Entladeeinrichtung. Erreicht enge Toleranzen; typisch für Automotive, Luftfahrt, Medizintechnik, Maschinenbau Technische Daten ohne Gewähr

Equipped with: groups cabinet, Auction-ID: A1-47359-94

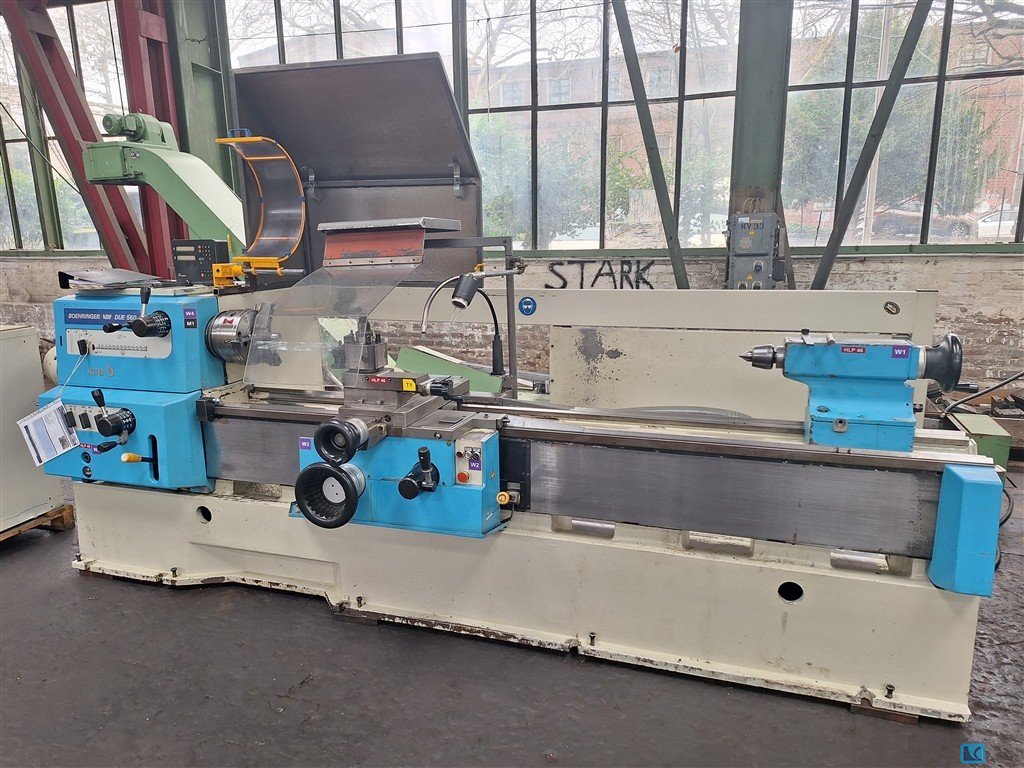

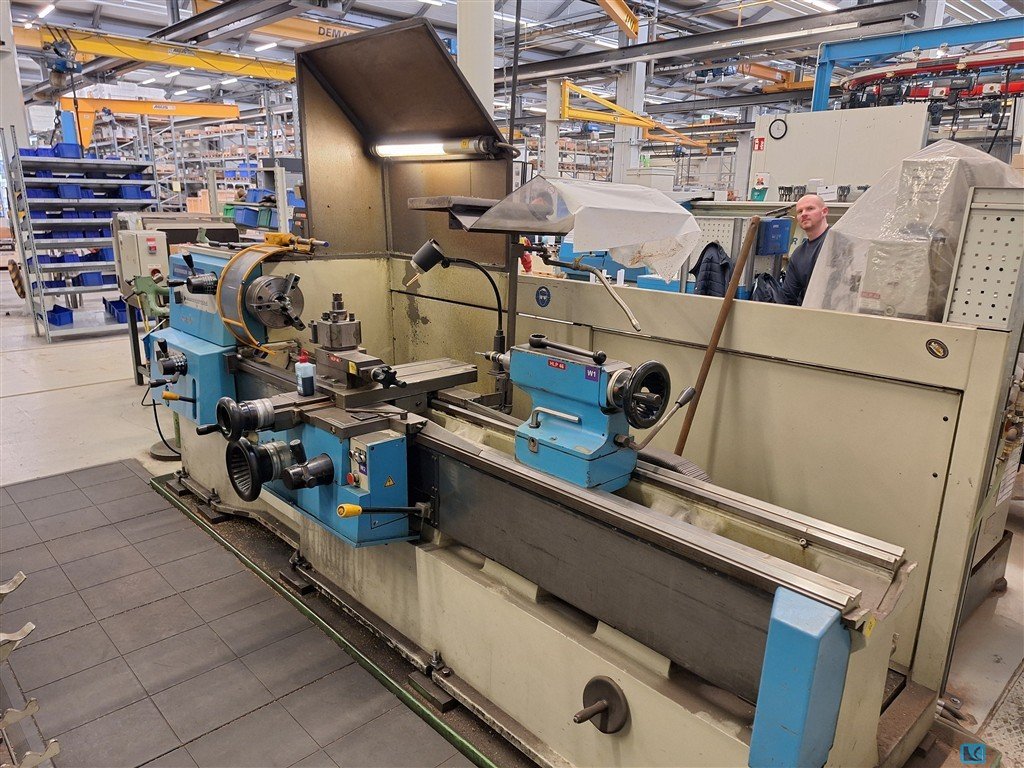

Machine Type: Conventional Engine Lathe Manufacturer: Boehringer Göppingen Brand / Series VDF Made in Germany Auction-ID: A1-49190-5

Lot of machine tool accessories and spare parts stored on shelves, including tool holders, arbors, chucks, grinding wheels, fixtures, cables, small tooling and miscellaneous industrial spare parts. Sold as pictured. Auction-ID: A1-49190-35

L + Z lathe HOLZMANN type ED 914GNMasch. No. 20265 Year of construction 2006Center width 800 mmTurning diameter over bed 300 mmCenter height over bed 150 mmTurning diameter over support 190 mmCenter height over support 95 mmSpindle bore 38 mmSpindle speed 70 - 1400 rpm. 9 stepsFeed longitudinal and flatChuck flange Short taper DIN 55029 D1-4 Camlock 63 mmTailstock inner taper MK 3Drive power 1.5 kWNet connection 400 volts, 50 Hz- Spindle speed over 9 gear stages - 4-jaws

Technical data: Completely overhauled in 2001 Circulation diameter over bed: 1000 mm Diameter in recess: 1120 mm Circulation diameter over bed slide: 690 mm max. height above floor: 1110 mm max. height above bed: 460 mm Bed width: 800 mm Width of recess in front of the plan disc: 550 mm

Tip height: about quilt 300 mm centre distance: 1500 mm circular diameter: upper bed 640 mm spindle bore: 67 mm spindle retainer: Gr. 8 taper tailstock: 5 MK spindle speed: 18 - 900 rpm feeds: longitudinal/plan 0.063 0.032 2.1 mm / U thread pitches: 0.5-14 mm electrical connection: 380 V, approx. 7.5 kW space: 1550 x 3100 x 1250 mm weight: approx. 3500 kg hardly used and therefore well-preserved bed lathe

Made in Italy machine according to DIN 8606 Tip height: 260 mm Turning diameter over bed: 520 mm Swing over carriage: 300 mm Centre distance: 1500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (24) 9-1600 rpm (option 11-2000 U/min) Engine output: 5.5 kW (option: 7.5 kW) feed Z-axis: (93) 0.028 6.43 mm / Rev Feed x axis: (93) 0.012 2.73 mm / Rev Thread, metric: (54) 0.5-224 mm Thread, Witworth: (55) 72 - 1/8 TPI Thread, module: (54) 0.5-112 mm Thread, Diametral Pitch: (54) 64 - 1/4 D.P.. Cross slide Lxw: 650 x 230 mm Transversal carriage stroke: 340 mm Upper carriage Lxw: 350 x 150 mm Upper carriage stroke: 150 mm Tailstock Quill diameter: 85 mm Tailstock Quill stroke: 200 mm Tailstock taper: MK 5 Weight: 3,100 kg Facilities: -Movement of the tailstock pneumatically supported -Acceptance Protocol according to DIN 8605, ...

Made in Italy machine according to DIN 8605: lathe with increased accuracy. Tip height: 215 mm Turning diameter over bed: 430 mm Swing over carriage: 240 mm Top width: 1,000 mm Bed width: 290 mm Spindle bore: 52 mm Spindle nose: Camlock 6 " Spindle speeds variable: 6 Spindle speeds: 60-2,000 rpm S6/S1 engine power: 4 kW (option: 5.5 kW) feed Z-axis: (38) 0.05 - 1.88 mm / Rev Feed x axis: (38) 0.02 1,084 mm / Rev Thread cutting, metric: (30) 0.45-20 mm Thread cutting, Witworth: (35) 80-1 3/4 TPI Thread cutting, module: (25) 0.25-10 mm Thread cutting, Diametral Pitch: (30) 160-3 1/2 D.P.. Cross slide Lxw: 370 x 190 mm Transversal carriage stroke: 240 mm Upper carriage Lxw: 275 x 115 mm Upper carriage stroke: 120 mm Tailstock Quill diameter: 60 mm Tailstock Quill stroke: 135 mm Tailstock taper: MK 4 Weight: approx. 2,000 kg Facilities: -Infinitely variable  ...

Made in Italy Peak: 300 mm Rotary diameter over bed: 600 mm Rotary diameter via sled: 380 mm Peak: 1,500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (12) 16-1200 U/min Engine power: 9.2 kW (special equipment/standard: 7.5 kW) Reprimor Z-axis: (93) 0.028-6.43 mm/U Feed X-axis: (93) 0.012-2.73 mm/U Thread, metric: (54) 0.5-224 mm Threads, Witworth: (55) 72-1/4 x8 TPI Thread, module: (54) 0.5-112 mm Threads, Diametral Pitch: (54) 64 -1/4 D.P. Crossleigh hub: 340 mm Oberslitten hub: 150 mm Riding stock pinol diameter: 85 mm Riding stove pinol stroke: 200 mm Ridstock cone: MK 5 Weight: About 3,200 kg Facilities: -3-axis digital display -Step-by-step speed adjustment -Automatic lubrication of the management railways -LED lighting -Micrometer bed strike -9.2 kW engine instead of 7.5 kW -Quick change holder system mul ...

Tip width: 700 mm Tip height: 150 mm Circulation diameter over bed: 300 mm Bed width: 180 mm Spindle bore: 38 mm Mounting in the spindle bore: MK 5 Speed range, infinitely variable: 30 - 450 / 150 - 3000 rpm Range of longitudinal feeds: (14) 0.07 - 0.65 mm/U Area of plan feeds: (11) 0.03 - 0.12 mm/U Metric threads: (18) 0.2 - 3.5 mm Inch Thread: (21) 8 - 56 Gg/1" Pinole path: 85 mm Pinole holder: MK 3 Engine power S1 100%: 1.5 kW / 400 V Motor recording power S6 40%: 2.2 kW / 400 V Machine dimensions (W x D x H): 1380 x 640 x 500 mm Weight approx.: 235 kg without base Delivery: - Digital display - 3-jaw chuck PO3-160 mm steel version - Feed flange 160 mm - Solid grain tips - Interchangeable wheels - Quick-release steel holder size 20-2 with 2 straight inserts - Slip clutch - Micrometer longitudinal stop - Plan sled with top support - Frequency inverter ...

1 x L+Z lathe Colchester Mascot 1600/600 Built: c.1975 Very stable lathe. Ideal machine for locksmiths or agricultural machine mechanics. Technical data: Turning diameter over crimson: 710 mm Turning diameter over bed:432 mm Turning diameter via support:267 mm Turning length: 1,000 mm Spindle speeds:20 - 1600 rpm Spindle bore:76 mm Drive motor:5.6 kW Feeds: 0.6 - 10 mm/u Metric threads: 40 (0.4 - 14 mm incline) Machine weight approx.:2000 kg Room requirements approx.:l:2.65 x w:1.1 x h:1.6 m Accessories: 3 - Jaw lining UVA 310 mm 4 Set of change jaws Bfraed8ae0 Tripan quick-change system 4 x Interchangeable holder running counter tip in tailstock (MK 5) Countertip in spindle Alternating wheels Manual Mudguard complete documentation The machine can be inspected at our warehouse in Reichenbach under electricity.

Stepless guide and pull spindle lathe TC 250 V Peak height: 250 mm Circulation diameter via slide: 350 mm Orbital diameter in the croation: 695 mm Tip width: 1500 mm Spindle nose: DIN 55029, Camlock, size 6 Bed width: 305 mm Cross slide path: 272 mm Upper slide path: 155 mm Spindle bore: 80 mm Speed range, infinitely variable: (3) 30 - 2200 rpm Whitworth Thread: (45) 2 - 72 TPI Metric Thread: (39) 0.2 - 14 mm Diametral Thread: (21) 8 - 44 D.P.I Module Thread: (18) 0.3 - 3.5 module Longitudinal feeds: 0.04 - 1.00 mm/U Flat feeds: 0.02 - 0.50 mm/U Engine power: 5.5 kW Dimensions LxWxH, approx.: 2900 x 1175 x 2040 mm Weight, approx.: 2,200 kg characteristics: - Toolmaker accuracy - Stepless speed control (3 pre-level steps) - Finely-balanced main spindle - Stable machine bed with hardened and ground guides - One-piece cast base - Adjustable precision cone roll ...

Maximum diameter to turn on the bench 2,110 mm Maximum diameter to turn on trolley 1,600 mm Maximum distance between platforms 12,830 mm Spindle hole diameter 155 mm Cone on spindle no. 120 metric Cone on spindle (with reduction) no. 6 clamps Cone on the counterpoint (6-bit reduction) no. 120 metrics Maximum stroke of the counterpoint 400 mm DSeed from the tool support plane to the axis of the 80 mm centers Main engine power 100 HP Spindle speed from 0.9 to 90 rpm with continuous variation Longitudinal feed no. 36: 0.2 to 12.8 Transverse advances No. 36: 0.1 to 6.6 Metric fillets #26: 1 to 42 Whitwoth fillets #17: 0.5 to 11 Quick forwards Maximum permissible load on the tips 50-60 ton Refrigerant liquid system

Precision lathe with cycle automatic Make: Hamlet Model: E 70 x 2000 Year of construction: 1997 For food and feed shaft machining Technical data: Workspace Turning length: 2000 mm Swing over bed: 720 mm Swing over cross slide plan: 430 mm Displacement of the plan slide: 410 mm Bed width: 480 mm 3prpek3uq Spindle nose ACC. to DIN 55027: size 11 Spindle diameter in front bearing: 150 mm Spindle bore: 106 mm Inside taper of the main spindle: 112 metric Control: Siemens 805 Spindle gearbox newly stored according to the manufacturer ca. 2.500 EUR

Peak height 2,600 mm Point distance 10,000 mm Closed bench 2,000x6,000 mm To be completed with CNC

Height tips 220 mm Useful length 1,000 mm 42 mm bar pass

Equipped with no. 03 guides Overhauled with: guide grinding, CN conversion, new electrical and hydraulic system, hydraulic self-centering installation, shaving conveyor; CN Fagor 8055 Numerical Control – BT Maximum turnerable diameter 1800 mm 3-grife hydraulic self-centering with a diameter of 1450 mm with tightening force 30 Ton with 30 bar clamp L max turnerable 3000 mm Spindle engine power 110 Kw Maximum rotation speed 180 rpm Fast value axles 4000 mm/min M3/M4 Spindle Rotation Inversion Possibility 4 speed ranges Hydraulic counterpoint Maximum capacity of workpiece on counterpoint 12500 Kg It is currently possible to work details of up to 3000 mm length but the extension pallet is available to be able to work details up to 8 m in length. (un revised); Machine installed and working
