universal internal grinding used for sale

grinding length: 450 mm grinding width: 250 mm workpiece height: 275 mm table surface area: 760 x 200 mm distance spindle center to table: max. 400 mm table speeds: 0 - 30 m/min cross feed: 0 - 60 mm/Hub rapid traverse cross: 1,2 m/min grinding wheel size: ø 250 x 30 x ø 51 mm grinding spindle speed: 1400 / 2800 U/min total power requirement: 4 kW weight of the machine ca.: 1 t dimensions of machine L x W x H: 1,55 x 1,23 x 1,80 m Accessories: magnetic plate 450 x 175 mm, grinding wheel with flange, wet grinding attachment The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Working width: 1350 mm Number of sanding units: 3 st. Workpiece thickness max.: - mm VIET Wide-Belt Sanding Machine, Type Valeria 3CCT TM1350 -------------------------------------------- Sold on behalf of a client. The machine can still be viewed in operation for a short time! Machine No.: 30036022 Technical Specifications & Units -------------------------------------------- Working width: 1,350 mm Main drives: 3 separate electric motors located at the machine base to drive the sanding belts. Feed system: Perforated vacuum conveyor belt (vacuum bed) with an upstream rubberized infeed roller and a preceding roller table. Internal Unit Configuration: • 3 sanding belt stations. • Mechanical belt oscillation via upper tracking rollers. • Integrated pneumatic belt-cleaning blow-off systems (blow-off pipes located on the inner side of the units). • 1 unit equipped with a manually adjus ...

Large ELB horizontal surface grinding machine with long magnetic table, wheel head, coolant equipment and control panel. Heavy industrial grinder, suitable for large flat parts. Auction-ID: A1-51153-51

FRIEDRICH DECKEL SOE – Optical Single-Lip Tool & Cutter Grinder Manufacturer: Deckel Model: SOE Machine Type: Optical Single-Lip Tool & Cutter Grinding Machine Country of Origin: Germany Condition: Used Year of Manufacture: Not specified Technical Specifications Specification Details Grinding Spindle Speed 4,500 rpm Grinding Motor Power 0.55 kW / 0.75 HP Motor Speed 2,800 rpm Grinding Wheel Dimensions 100 × 50 × 20 mm Tool Clamping Diameter 0.5 – 18 mm Maximum Tool Diameter with Special Holder 25 mm Lateral Adjustment 10 mm in both directions Longitudinal Adjustment 40 mm Maximum Relief Angle 45° Indexing Head Fine Adjustment 15 mm Indexing Positions 12 Compatible Taper Collets MT1, MT2, GA Compatible Taper Adapters MT1, MT2, MT3 Optical Projector Magnification 8× (optional equipment) Microscope Magnification 20× (optional equipment) Machine Dimensions (L × W × H) 660 × 570 ...

Universal cylindrical/internal grinding machine with motorized spindle, workhead/chuck and manual controls. Used condition, suitable for repair, refurbishment or workshop use. Manufacturer and model not visible; specs to be confirmed. Auction-ID: A1-51153-81

MININI large surface grinding machine with guarding and control panel. Magnetic chuck. Travels 1800 mm x 800 mm Exact model, grinding capacity, coolant system approx. 4500 x 2500 x 2600 Auction-ID: A1-51153-8

Stankoimport 3Y131 Cylindrical Grinding Machine Type: Cylindrical grinding machine Manufacturer: Stankoimport Model: 3Y131 Grinding length: 2000 mm Grinding stone wheel: 500 mm Main Motor Power: from 3 kW to 15 kW Dimensions (L x W x H): approx. 4150 x 2350 x 2150 mm Grinding wheel speed: Adjustable, normally between 1000 and 3000 RPM Weight: Between 3000 kg and 8000 kg Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-11

Cincinnati Cylindrical Grinding Machine Type: Cylindrical grinding machine Manufacturer: Cincinnati Bushing diameter: 120 mm Distance between points: 1000 mm Arbor hole with cooling system: 20 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-9

OS Hostivař BU28/1000 – Conventional Cylindrical Grinding Machine Specification Details Manufacturer TOS Hostivař Model BU28/1000 – provisional identification Machine type Conventional cylindrical grinder Country of manufacture Czechoslovakia Distance between centres Approx. 1,000 mm – subject to verification Grinding capacity 280 mm Workholding 3-jaw chuck Grinding head External cylindrical grinding wheel Digital readout Heidenhain Control Conventional/manual Electrical supply 380 V, 50 Hz (nameplate) Connected load 10 kVA (nameplate) Auction-ID: A1-51153-53

Conventional manual surface grinding machine with vertical column, magnetic table and handwheels. Used workshop grinder for flat grinding operations. Auction-ID: A1-51153-54

HMTW M7150HX6 – Surface Grinding Machine Manufacturer: Hangzhou Machine Toolworks Brand: HMTW Model: M7150HX6 Machine Type: Horizontal Spindle Surface Grinding Machine Condition: Used Model M7150HX6 Grinding Type Surface Grinding Grinding Spindle Horizontal Table Working Length 630 mm Table Working Width 500 mm Grinding Wheel Horizontal Spindle Grinding Wheel Grinding Spindle Motor 7.5 kW Motor Speed 1,410 rpm Main Voltage 380 V Frequency 50 Hz Phases 3-Phase Total Power Consumption 11.2 kVA Main Fuse 40 A Protection Rating IP54 Auction-ID: A1-51153-96

Conventional surface grinding machine with magnetic chuck/table, coolant system and protective side guards. Used industrial machine; brand/model not clearly visible in the photos. Auction-ID: A1-51153-14

Flex Disc Grinding Aids Sanding Materials, Weight 17 kg Auction-ID: A7-51245-32

Key data: 500 mm, 1500 mm

Universal Cylindrical Grinding Machine Manufacturer: Fortuna Type: AFC 1500 A 45 Year of manufacture: unknown Grinding length: 1,500 mm Grinding wheel diameter: 500 mm Largest workpiece pass: 350 mm Largest grinding diameter: 350 mm Largest workpiece weight between tips: approx. 300 kg

Auction-ID: A1-50864-100

A conventional precision surface grinding machine with NC control is available. Resolution: 0.001mm, travel X/Y/Z: 1200mm/550mm/400mm, table dimensions X/Y: 1600mm/450mm, table feed: 30m/min, max. table load: 750kg, spindle-table distance: 800mm, Y feed: 180mm/min, Y precision: 0.001mm, Z feed: 1200mm/min, Z precision: 0.3mm, speed: 2800rpm, grinding wheel dimensions X/Y/Z: 400mm/100mm/127mm. Machine dimensions X/Y/Z: approx. 6500mm/3000mm/2500mm, weight: approx. 6700kg. Documentation available. On-site inspection is possible.

grinding length: 800 mm grinding width: 400 mm workpiece height: 550 mm table dimensions: 1.200 x 400 mm speed spindle max.: 1.000 U/min. feed x-axis: 40.000 mm/min total power requirement: kW weight of the machine ca.: 4,10 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Drive motor mould mill 110 kW; drive motor classifier 15 kW; supply pipe; including all air transport system including supply including magnetic separator; Jaudt dosing valve / cell wheel lock; explosion protection; GEA cairplus SX filter chamber; Equipped with landing floor 340x145; floor height 150 cm; with 3x various boxes parts explosion hatch; 1x complete overhaul kit stator blades; 1x new classifier in transport crate Auction-ID: A1-50864-2

grinding range: 1000 mm Dimensions (L/W/H): 1500x700x1600 mm Weight: 900 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter:600 mm grinding length:3000 mm centre height:300 mm weight of the machine ca.:11,8 t dimensions of the machine ca.:7100x2300 mm spindle turning speed range:14 - 220 U/min grinding wheel diameter:650 mm grinding wheel flange for width 25-40 mm:3 Stk. open tailstocks:3 Stk. chuck:Ø310 mm fixed steady:320 mm Distance between center: 3000 mm. Height of centres: 300 mm. Spindle speed: (n°12) 14 - 220 Rpm Max grinding diameter: 600 mm. Stroke the wheelhead:(rapid) 50 mm. Stroke the wheelhead:(rapid+ micrometrical): 1 5 500 m mmm. . Max grinding wheel diameter: 650 mm. Max tilt table: 3° 30' Total absorbed power: 27,7 Hp Dimension: 7100x2300 mm. Weight approx: 11800 Kg.

workpiece diameter:5-125 mm grinding depth:50-1000 mm clamping length:1000 mm total power requirement:1.9 KVA weight of the machine ca.:630 kg max. workpiece weight:100 kg Center Hole Grinding Machine. Workpiece must be rotated by machine during grinding

grinding length:600 mm grinding width:300 mm total power requirement:7,5 kW number of spindle speeds:0-3000 grinding wheel motor:7,5 kW grinding wheel diameter:300 mm dimensions of grinding wheel:76 x 20 mm ABA magnetic table flat grinding machine

drill diameter:5,,,,40 mm drilling length:600 mm lip angle:90-150 ° total power requirement:4,5 kW weight of the machine ca.:0,8 t dimensions of the machine ca.:2-2-2 m CNC programmable according to ISO Point angle 90-140 degrees, disc stroke x 80mm y 80mm grinding wheel 6mm to 150mm ceramic or CBN speed 2500 to 6000 rpm Grinding options - 3 facets 6 surface grinding (Renault patent) - conical surface grinding with cross-section correction / point thinning / cross point. / Type 2/1 Avyac grind / 4 faces gr. Cross for deep drill

grinding length:600 mm centre height:180 mm swing dia.:360 mm workpiece weight:80 kg max. dia. of grinding wheel:500 mm grinding wheel width:80 mm grinding wheel hole diameter:203,2 mm peripheral speed:45 m/sec There is also a 3200 liter coolant tank including cooling unit + fire extinguishing system.

max. wheel diameter:260 mm gear width:320 mm max. module:5 weight of the machine ca.:21 t dimensions of the machine ca.:8,71 x 5,97 x 3,49 m no. of teeth:1...999 max. helix angle:+45/-45 ° pitch min.:0,1 mm pitch max.:1000 mm X-axis:345 mm y-axis:250 mm Z-axis:320 mm b-axis:360 ° c-axis:360 ° Coolant is not available. It was central and there is only a booster pump without filtering. For loading system there is a 2-axes robot with workpiece conveyor.

max. wheel diameter:210 mm total power requirement:60 kW weight of the machine ca.:8 t dimensions of the machine ca.:2,85 x 2,60 x 1,80 m grinding slide feed:700 mm grinding slide feeds:1-15.000 m/min max. workpiece weight:150 kg centre height:260 mm grinding wheel diameter:240 mm

grinding length:1370 mm grinding width:560 mm workpiece height:800 mm total power requirement:50 kW dimensions of the machine ca.:9 m ABA Z&B 2000, profile grinding machine with swivel dresser Mounting fixtures: magnet, dividing head E-axis dresser B-axis dividing head

max. module:7 weight of the machine ca.:5 t worm grinding diameter:280-350 mm width of grinding worm:84-104 mm min. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mm max. workpiece weight:60 kg without filter

max. module:7 total power requirement:26 kW weight of the machine ca.:5 t worm grinding diameter:280-350 mm width of grinding worm:84-104 mm min. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mm max. workpiece weight:60 kg with Turbo Separator, loading unit, latest-generation balancing and dressing unit and various accessories

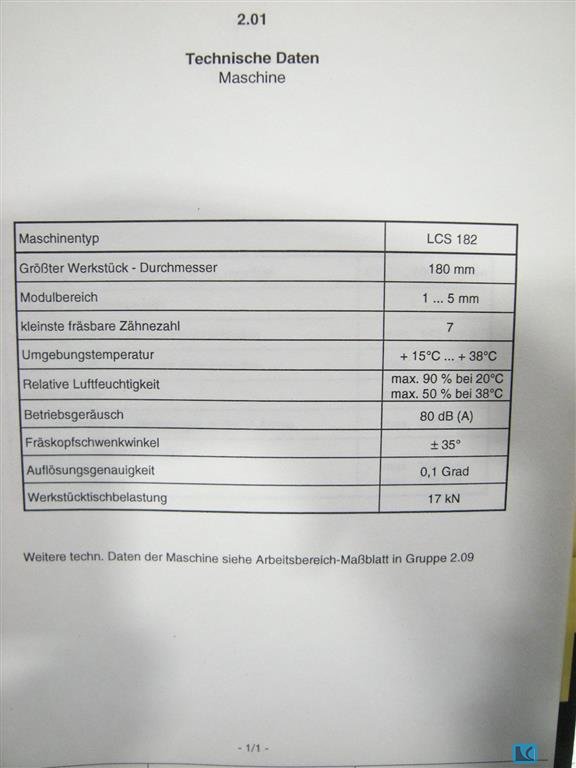

max. wheel diameter:180 mm max. module:5 min. module:1 weight of the machine ca.:14 t dimensions of the machine ca.:4,5 x 2,84 x 2,8 m min. number of teeth:7 toolpiece turning speed range:4000-10000 U/min tool length:210 mm With tail stock No dressing device Only CBN

adjustment drive of the grinding spind.slide:0,0025 - 0,05 mm total power requirement:100 kW adjustment of grinding head slide:150 mm weight of the machine ca.:17 t grinding spindle drive:2 x 37 kW grinding width:30-150 mm peripheral speed:34 m/sec workpiece speeds:60 - 300 mm/Sek. grinding height:70 mm grinding wheel diameter:750 mm grinding tools:750 x 75 x 350 mm grinding wheel turning speeds:870 U/Min. max. workpiece diameter:250 mm

grinding height:-- mm grinding width:220 mm grinding wheel diameter:762 mm total power requirement:90 kW weight of the machine ca.:13 t grinding spindle 1 drive::37 kW grinding spindle 2 drive::37 kW Grinding machine for pre-grinding the connecting rod With 2 replacement spindle motors

grinding length:450 mm grinding width:250 mm workpiece height:280 mm Table area:760 x 250 mm grinding spindle drive:2,5 kW grinding wheel dia. x width:250x 25 mm grinding spindle speed:1430/2900 U/min way of grinding spindle saddle, vertical:400 mm total power requirement:4,5 kW weight of the machine ca.:1,8 t dimensions of the machine ca.:1,8 x 1,4 x 2,0 m Machine equiped with magnetic plate - dresser

grinding length:450 mm grinding width:250 mm workpiece height:280 mm Table area:760 x 250 mm grinding spindle drive:2,5 kW grinding wheel dia. x width:250x 25 mm grinding spindle speed:1430/2900 U/min way of grinding spindle saddle, vertical:400 mm total power requirement:4,5 kW weight of the machine ca.:1,8 t dimensions of the machine ca.:1,8 x 1,4 x 2,0 m Machine equiped with magnetic plate - dresser

workpiece length:350 mm work piece width:150 mm diameter:Tellerradius 200 mm tool taper:M32 x 1,5 spindle diameter:32 mm grinding width:max.450 mm turning speeds:3385 U/min work table::Höhe 1000 mm workpiece height max.:100 mm total power requirement:1,1 kW weight of the machine ca.:300 kg dimensions of the machine ca.:700 x 800 x 1170 mm

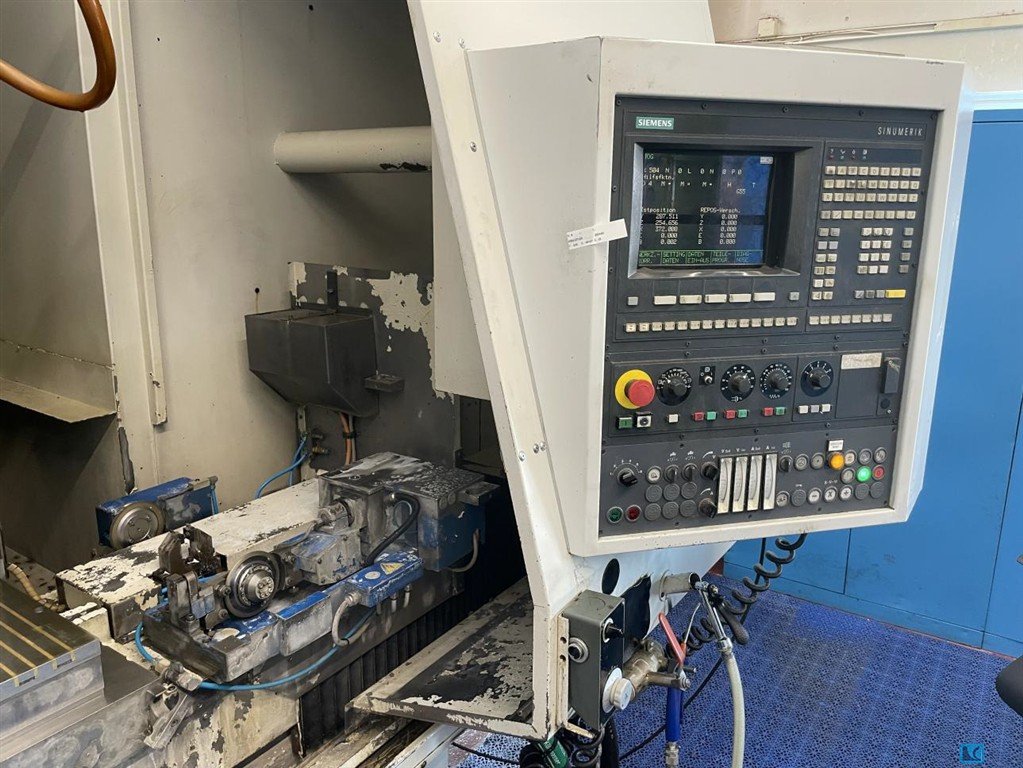

grinding length:600 mm grinding width:250 mm workpiece height:380 mm :Sinumerik max. dia. of grinding wheel:300 mm weight:4000 kg total power requirement:12,5 kW grinding wheels:Ø 400 mm max. width of grinding wheel:100 mm grinding wheel hole diameter:127 mm turning speeds:470 - 12030 1/min x-axis:600 mm y-axis:300 mm z-axis:250 mm grinding range:450 x 200 mm distance spindle nose and table:500 mm table load:250 kg dimensions of the machine ca.:2600 x 2100 x 2400 mm switchgear cabinet:1300 x 800 x 2000 mm hydraulical unit::450 x 350 x 500 mm Documents:vorhanden

grinding length:1250 mm grinding width:400 mm workpiece height:550 mm workpiece weight:750 kg table-size:1720 x 400 mm magnetic clamping plate:1250 x 400 mm dist. center of grinding spindle - table:750 mm turning speed range - grinding wheel:3000 U/min Length movement of the table:1300 mm grinding wheel size:Ø 400 x 50 x 127 mm switchgear cabinet:inkl. hydraulic power unit:inkl. coolant:inkl. voltage:380 V table load:max. 1100 total power requirement:13,8 kW weight of the machine ca.:6000 kg dimensions of the machine ca.:5000 x 3400 x 2400 mm Documents:inkl.

grinding length:1000 mm grinding width:250 mm workpiece height:400 mm total power requirement:12 kW weight of the machine ca.:3,8 t dimensions of the machine ca.:3.300 x 1.800 x 2.300 mm hydraulic power unit:400 x1000 x 1500 mm control cabinet:2 Stück, 1000 x 1400 x 1500 mm

grinding length:150 mm total power requirement:3 x 380 /220 V weight of the machine ca.:2100 kg dimensions of the machine ca.:1200 x 1700 x 2000 mm grinding wheel diameter:280 - 350 mm grinding wheel width max.:20 mm workpiece diameter:65 - 120 mm workpiece turning speeds:1,5 -20 U/min Documents:vorhanden

x-travel:400 mm y-travel:250 mm workpiece height:500 mm grinding diameter:220 mm table surface area:600 x 320 mm throat:310 mm range of angles:12 ° grinding wheel stroke - vertical:110 mm stroke speeds:0 - 6 m/min grinding spindle speed:bis 50000 U/min peripheral speed:max. 35 m/sec capacity:ca. 7 kVA power capacity:6 kW weight of the machine ca.:2 t dimensions of the machine ca.:3 x 3 x 3 m rotary table d = 300 mm frequency changer Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

grinding length:600 mm grinding width:300 mm workpiece height:450 mm total power requirement:8 kW weight of the machine ca.:2,2 t dimensions of the machine ca.:2,8 x 3,0 x 2,0 m grinding spindle speed:1440 / 2905 U/min with magnetic plate 600 x 200 mm autom. vertical feed coolant attachment Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

grinding diameter:300 mm grinding length:600 mm centre height:190 mm z-axis:865 mm x-axis:250 mm clamping length:1000 mm peripheral speed:45 m/sec grinding slide swivable +/-:8 ° grinding wheel width x diameter:80 x 508 mm work piece spindle speed:1 - 800 U/min weight of the machine ca.:5 t Machine with SIemens 840 C control - coolant device - Marposs measuring device

grinding length:1250 mm grinding width:600 mm workpiece height:730 mm table surface area:1720 x 500 mm headstock: dist. table - spindle center:900 mm max. longitudinal movement:X-1450 feed range:10 - 20.000 mm/min vertical movement:Y-730 mm feed range:0,2 - 3.000 mm/min cross travel:Z-550 mm feed range:5 - 5.000 mm/min power capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/min cutting speed:max. 80 m/sec. weight of the machine ca.:11 t with CNC SIEMENS 840 C auto. dynamic balncing system integrated in the grinding conus profile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpm two magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.
