twin column used for sale

Equipped with swivel arm. Total range 5 meters. Floor mounted. Equipped with manual hoist and electric chain hoist Auction-ID: A1-47417-228

bore capacity in steel (diameter): 32 mm throat: 280 mm bore stroke: 145 mm taper MK: 3 MK table-size: 540 x 480 mm feeds: 0,08 bis 0,32 mm/U turning speeds: 180 - 2000 U/min total power requirement: 3,0 KW weight of the machine ca.: 0,9 t dimensions: 1,2 x 0,8 x 2,4 m Column drilling machine with: - Power feed - Thread-cutting attachment - Coolant pump - Machine light - Incl. machine vice - Emergency stop device The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Drilling Ø: 31.75 mm Spindle holder: MK 3 Speeds stepless. adjustable: 180 - 2100 rpm Projection: 280 mm Table size: 350 x 450 mm Large distance between table and quill: 700 mm Drive motor: 380 V, 0.9/1.3 kW Weight: 270 kg

Brand: Ecotap Series: Duo white-white Meter: MID meter EV: Type 2 Retail price: € 3985,-- Description: The Ecotap Charging Column Duo white-white is a double charging station, designed for charging two electric vehicles simultaneously. With a sleek white design, this charging station offers a stylish and functional solution for both residential and commercial locations. The charging station is user-friendly and robust, ensuring a reliable and efficient charging experience for different types of electric vehicles. Auction-ID: A1-46377-26

This column drill from HBM is ideally suited for professional use. It has a tilting work table and a keyless drill chuck (1 to 13 millimeters). A pillar drill like this is intended for professional drilling work in steel. The motor power of 375 watts ensures that it can get quite deep into the material to be drilled. The tilting work table and the high-quality keyless drill chuck ensure a pleasant working experience. Auction-ID: A1-40898-27

2 axles Travel X: 70mm Travel Y: 70mm Auction-ID: A1-40982-79

Ram stroke: 60mm, pressing force: 100t, ram strokes: 60/min, flywheel speed: 620rpm, distance between bolster plate and ram, stroke at bottom/adjustment at top: 265mm, ram adjustment: 30mm, table surface: 640x404mm, ram surface diameter: 300mm, drive power: 5.5kW, operating voltage: 3~/380V, frequency: 50Hz, control voltage: 220V, lighting voltage: 220V, rated current: 17A, supply fuse: 25A, overhaul: 1984, an on-site inspection is possible.

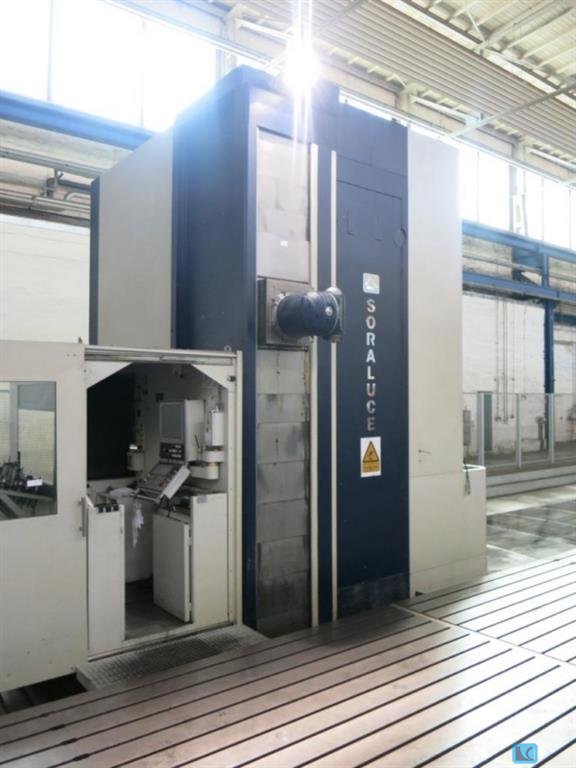

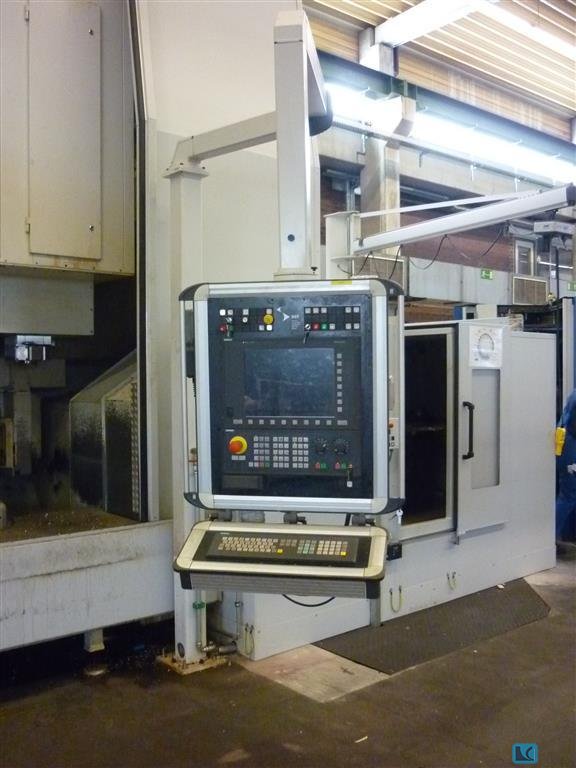

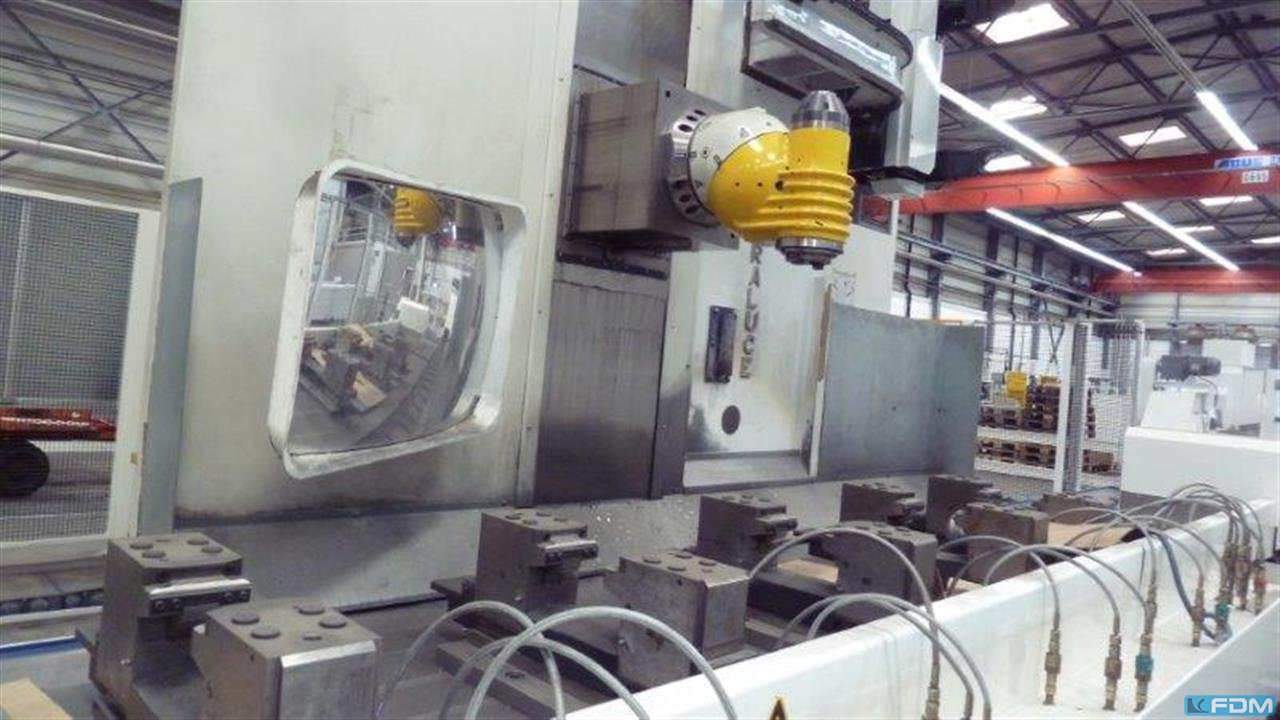

travelling column machining center, year 2000, CNC 840. Used machine. More info & price on IndustrialBuyer.

For sale is a MAXION UNIMAX column drill, Made in Germany, in a heavy and robust industrial design. The machine is ideal for metalworking, locksmithing, mechanical engineering, maintenance as well as workshop and production operations. Technical data / equipment Manufacturer: MAXION Series: UNIMAX Production: Made in Germany Speed range: approx. 80–3,200 rpm Speed levels / ranges according to the machine shield: 80–720 rpm 160–1,460 rpm 180–1,600 rpm 360–3,200 rpm Pulleys: Ø 60 / Ø 140 mm according to the shift diagram Manual quill feed via large 3-arm hand lever Quick-release/drill chuck Solid height-adjustable work table Machine vise included Emergency stop switch Footswitch Solid machine stand with base plate CE marking The machine is in a used, age- and use-typical condition. Signs of wear and dirt are present and documented in the pictures.  ...

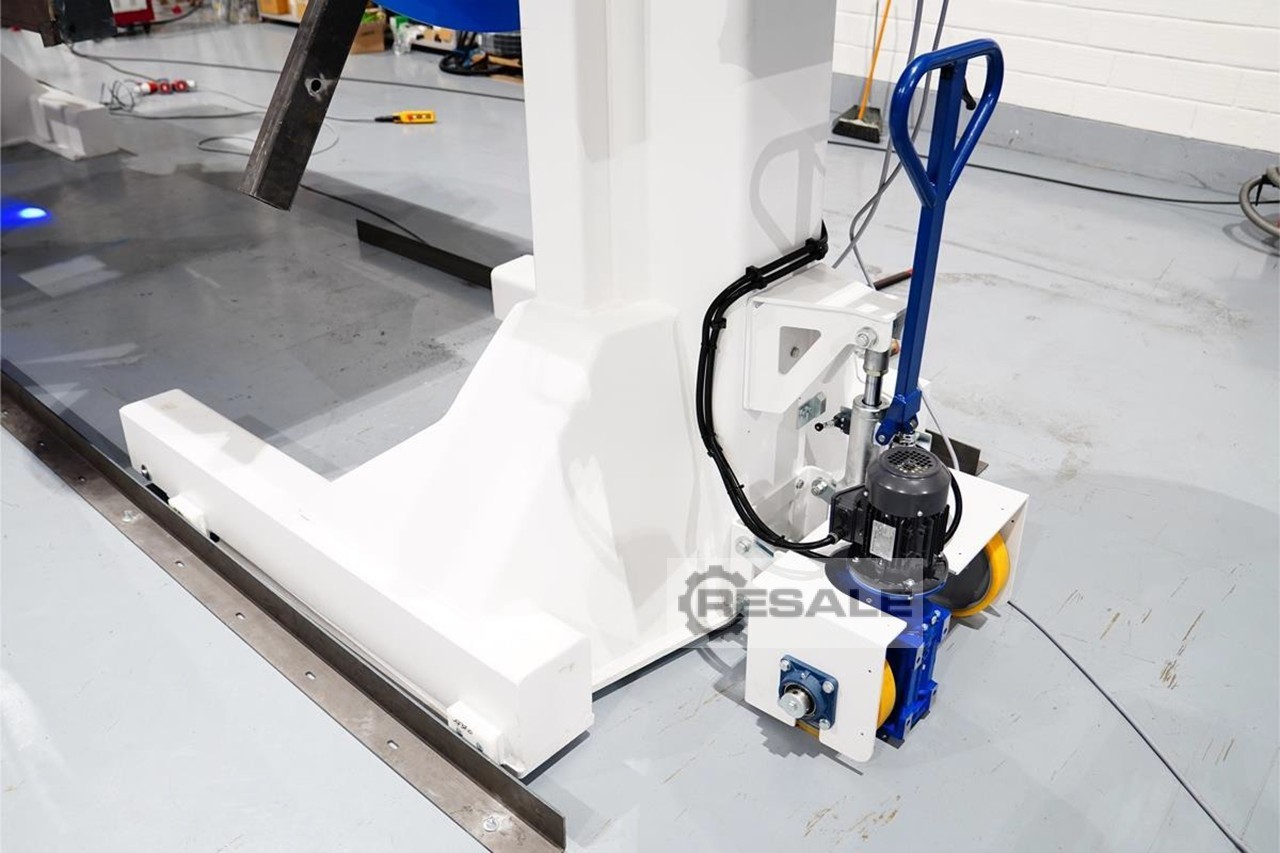

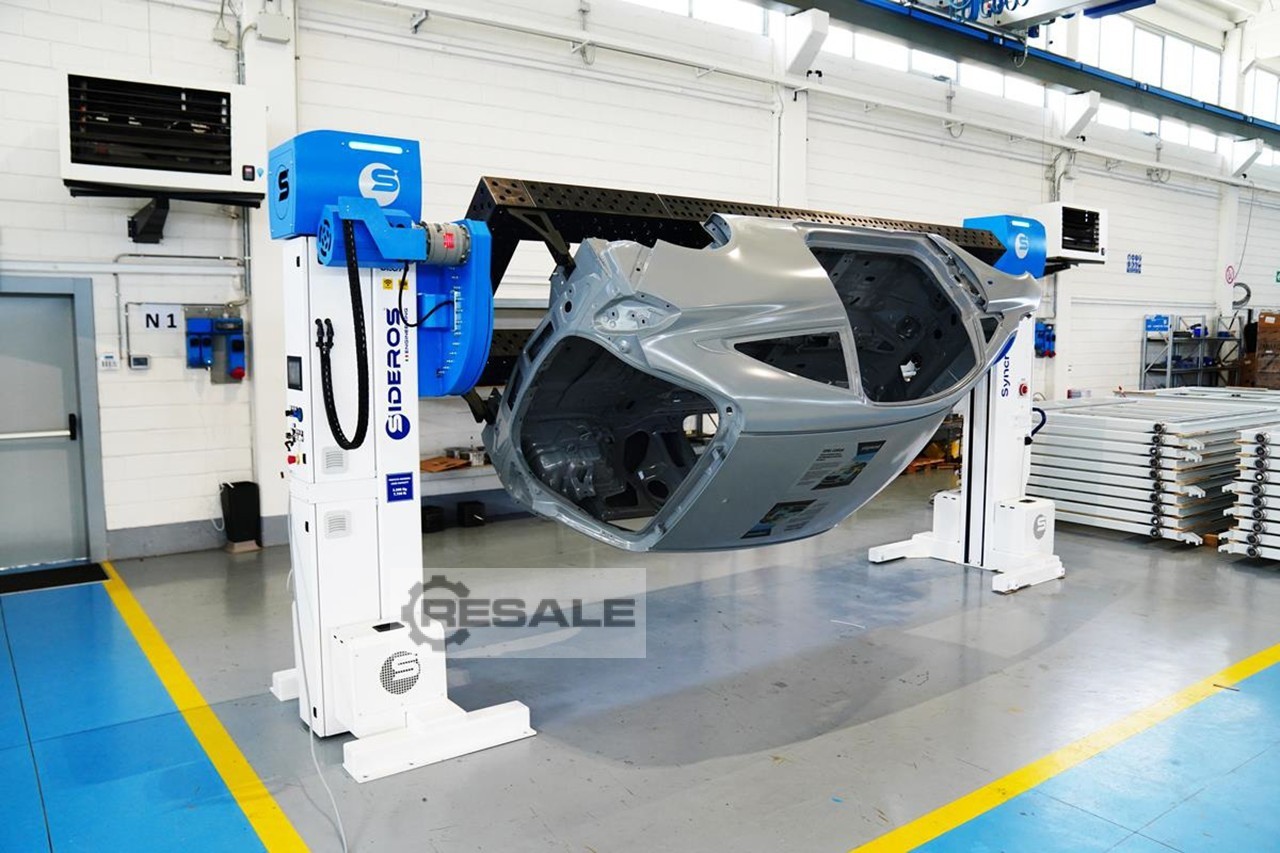

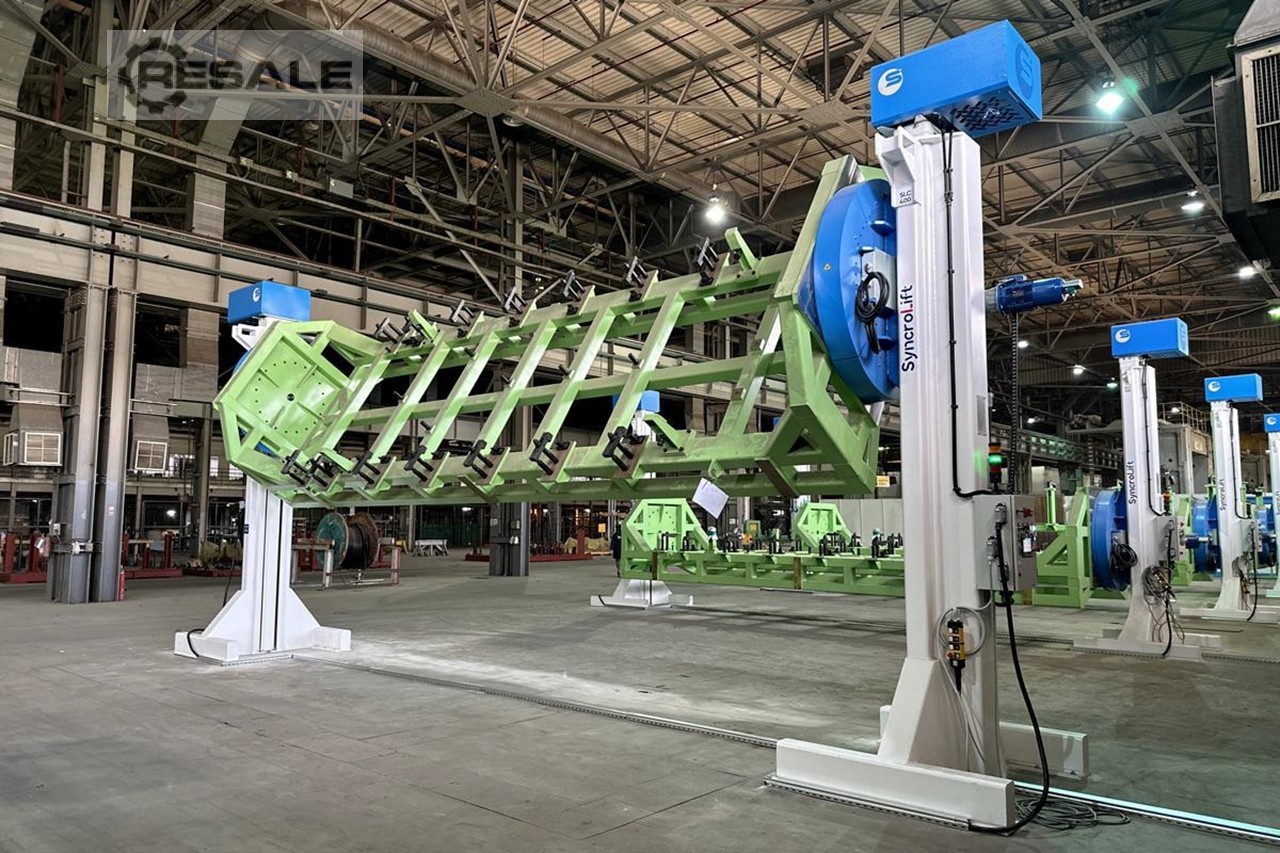

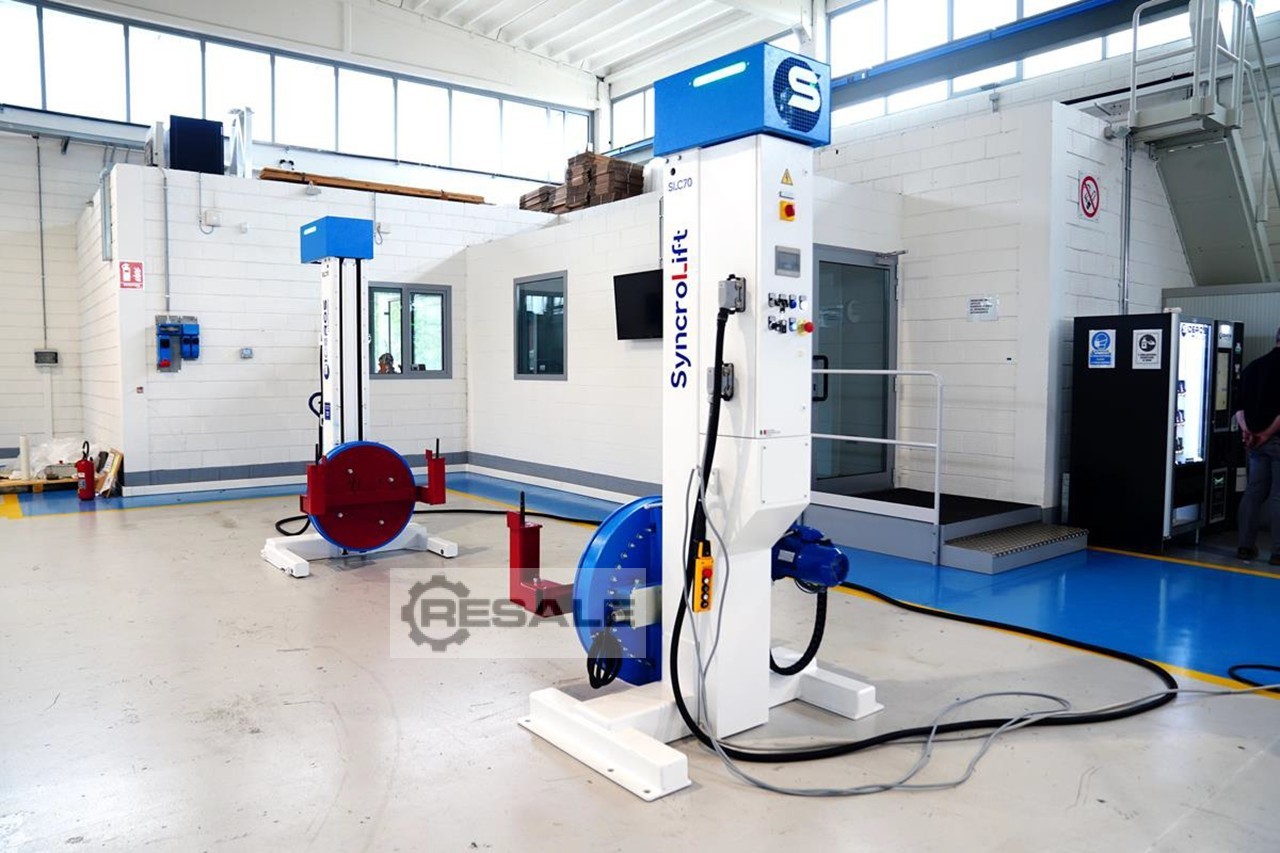

Manufacturer: SIDEROS Model: SYNCROLIFT SLC 25 Year: 2023 Condition: Used Stock Number: 9537 Maximum load capacity: 2500 kg

Ermaco THD-16 pillar drilling machine, built in 1983. Equipped with a maximum drilling capacity of 23 mm and 12 adjustable spindle speeds from approximately 292 to 2333 rpm. Equipped with Jui Long electric motor with a power of 0.37 kW / 0.5 hp, 220 V, 1-phase, 50 Hz. Machine equipped with adjustable work table and height-adjustable drill head/table setup. Suitable for various drilling tasks in the workshop. Used condition with signs of wear and age, see photos. Auction-ID: A3-46126-22086

pressure: - t distance between columns: - mm stroke: - mm total power requirement: - kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

STANDARD FEATURES: Power 50 t Motor power 1.5 kw Working speed 2.25 mm/s Return speed 4.50 mm/s Maximum pressure 500 bar Piston stroke 150 mm Spindle stroke 120 mm Front light 800 mm Side light 160 mm Max. vertical span 1,020 mm Bed light 205 mm Total front 1,090mm Total side 900 mm Total height 2,000 mm Weight 295 Kg. Specially designed for extraction, bushing, straightening, etc. The hydraulic presses of the S series consist of a four-pillar electro-welded structure with open sides. They have a movable base that allows it to be positioned at different heights. The fixing is by means of two pins located at the bottom of the bed. The raising and lowering system is by means of chains driven by the cylinder of the press. SD Models: are fixed head. Double-acting cylinder with chrome-plated plunger and anti-wear guides. It is equipped with a removab ...

MODEL SL-150 Power t 150 Motor power kw 4 Piston stroke mm 250 Working speed mm/s 3.1 Return speed mm/s 4 Head displacement mm 1,000 Front light mm 1,500 Side light mm 340 Max. vertical span mm 955 Bed light mm 405 Total front mm 2,150 Total side mm 1.180 Total height mm 2.805 Weight kg 2.350 STANDARD DESCRIPTION: The S-series hydraulic presses are specially designed for extraction, casing and straightening work. They work with a hydraulic pressure of less than 320 bar, which guarantees greater durability of the entire hydraulic system. STRUCTURE: They consist of an electro-welded structure with four uprights with open sides. They are equipped with a movable bed that allows it to be positioned at different heights. The fixing is done by means of two pins located at the bottom of the bed. The raising and lowering system is carried out by means of cha ...

TJF-GARNET SPECIAL HYDRAULIC PRESS: Hydraulic press with double upright equipped with two side cylinders joined by a plate for the pre-pressing and pressing of rotors and stators, and a central cylinder for the extraction of the mandrel and stalling of the rotor shaft, as well as the extraction of shafts in case of repair. It has a removable table for the stacking and handling of rotors and stators. MAIN CYLINDERS 150 TN.  2 hydraulic cylinders of 75 Tn. of power each, with a stroke of 1200 mm joined by a grooved plate, with a central bore of 250 mm in diameter.  Maximum useful height cylinder plate of 1550 mm.  Minimum useful height cylinder plate of 350 mm. ABSTRACTION CYLINDER  1 central cylinder of 80 Tn of power with 1200 mm stroke.  Prepared to adapt abstraction clamp, end of threaded stem to M 35,150 x 40 in length.  Maximum useful height ...

X-axis travel (mm) 380 Y-axis displacement (mm) 480 Auction-ID: A1-40982-128

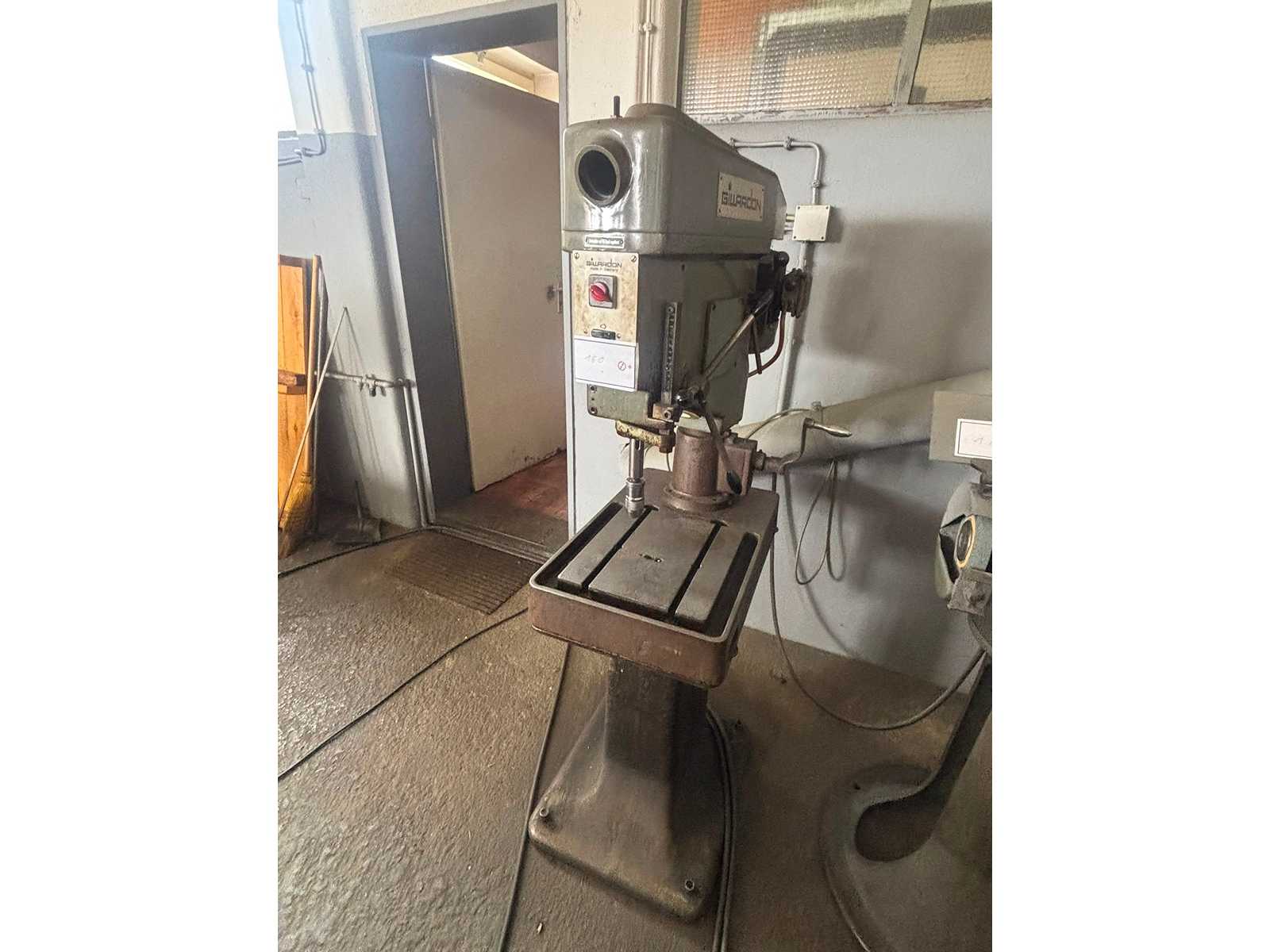

Technical data Manufacturer: GILLARDON Model: GT 16 Configuration Column drill with height-adjustable work table and T-slots. Manual quill delivery. Drilling depth scale available. Speed adjustment available; Machine note: Speeds can only be adjusted while running. Tool holder / drill chuck mounted. Remarks The machine comes from a well-maintained company liquidation and was actively used in ongoing production until the end. Auction-ID: A7-50403-160

Control Conventional Drive Gear drive Power [kW] 3 Table type Fixed table Tool holder MK4 Options Tap function, Drill unit power supply Auction-ID: A1-40982-46

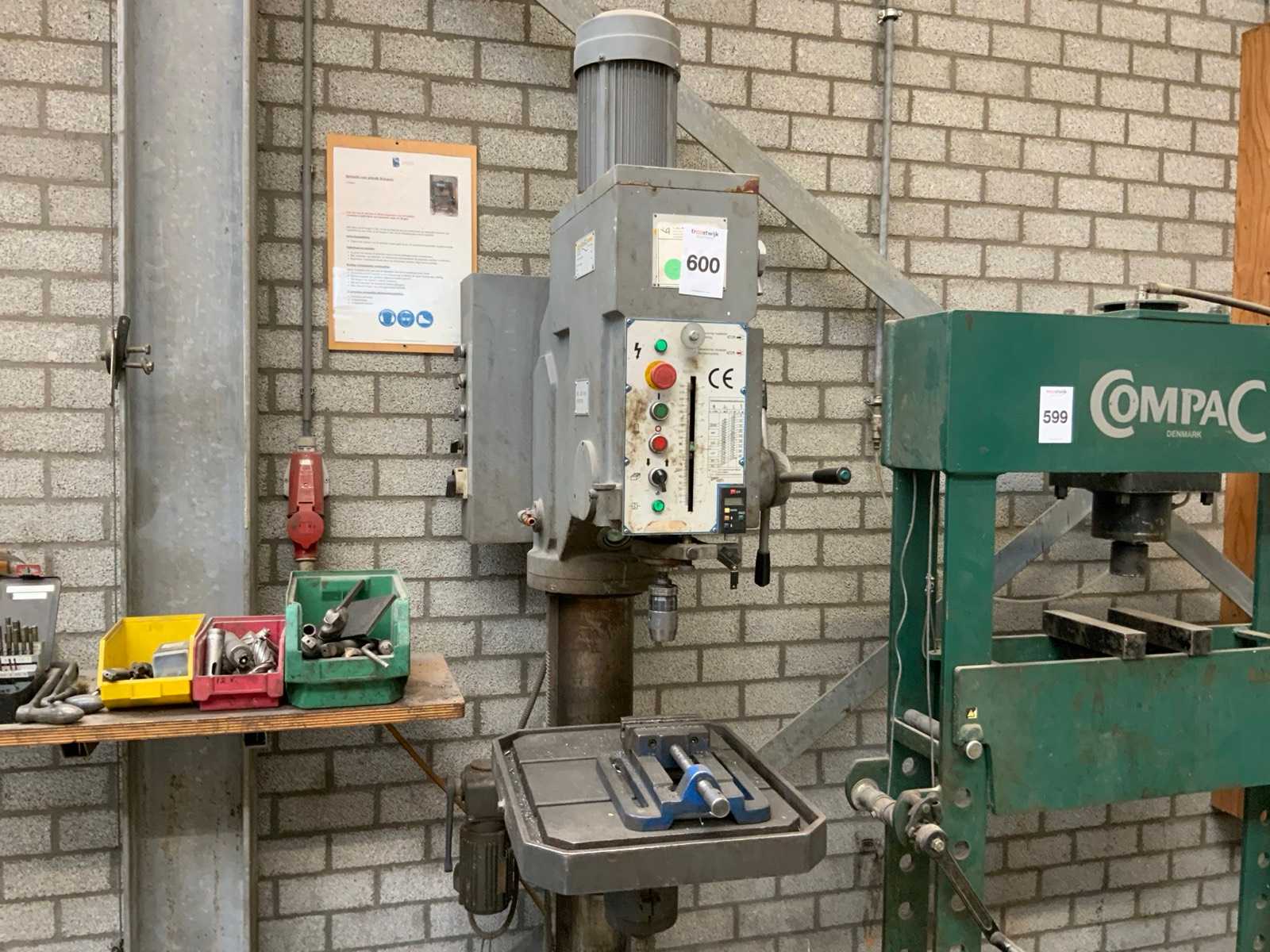

As well as various tools Pick up is possible by appointment. After the auction closes, you will be contacted to make this appointment. Auction-ID: A1-50251-600

Spindle diameter: 100mm 3 axles Travel X: 2500mm Travel Y: 1400mm Travel Z: 1000mm Auction-ID: A1-40982-107

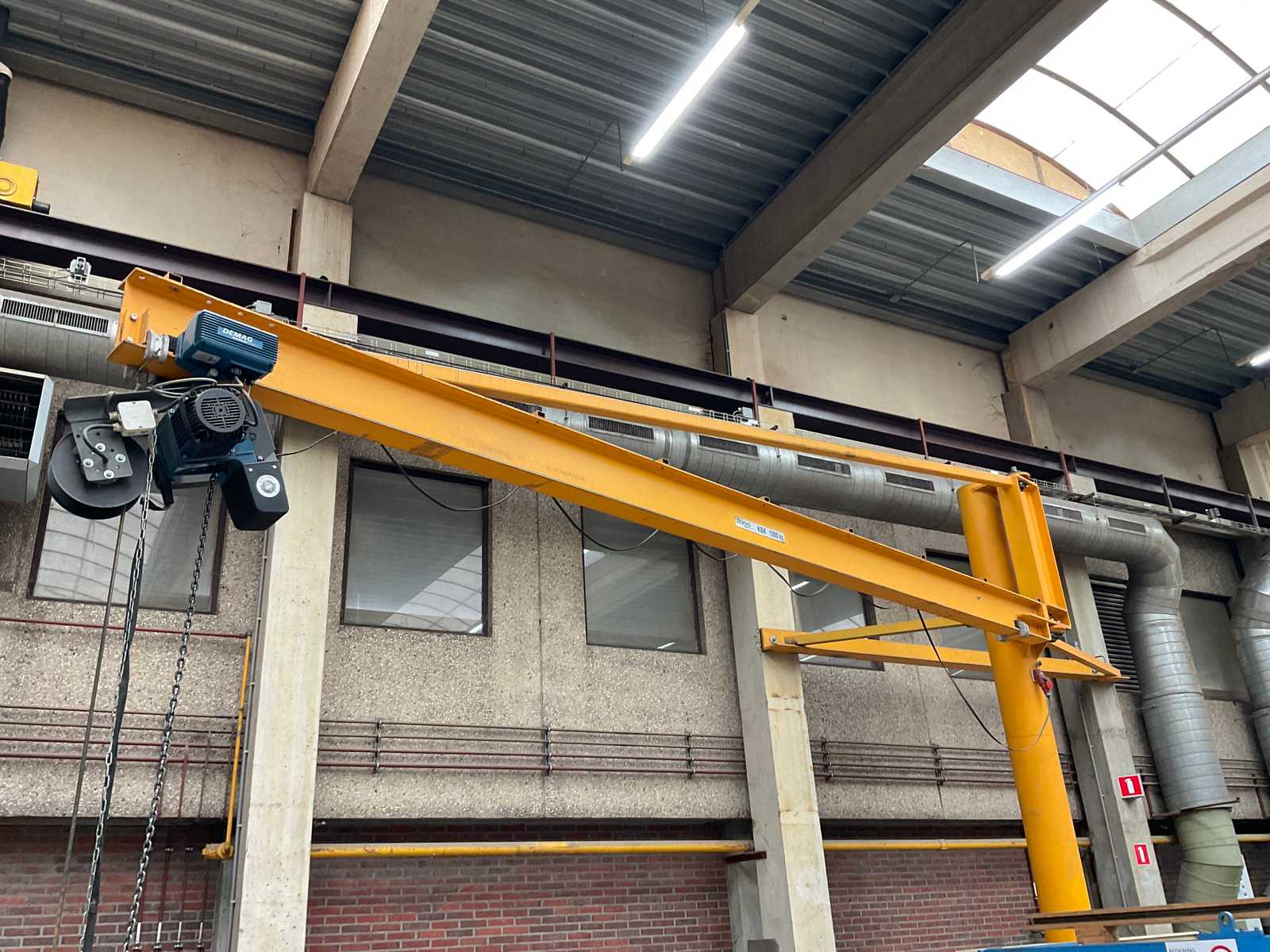

Equipped with electric chain hoist with trolley Wall-mounted As well as wall swivel arm Pick up is possible by appointment. After the auction closes, you will be contacted to make this appointment. Auction-ID: A1-50251-4

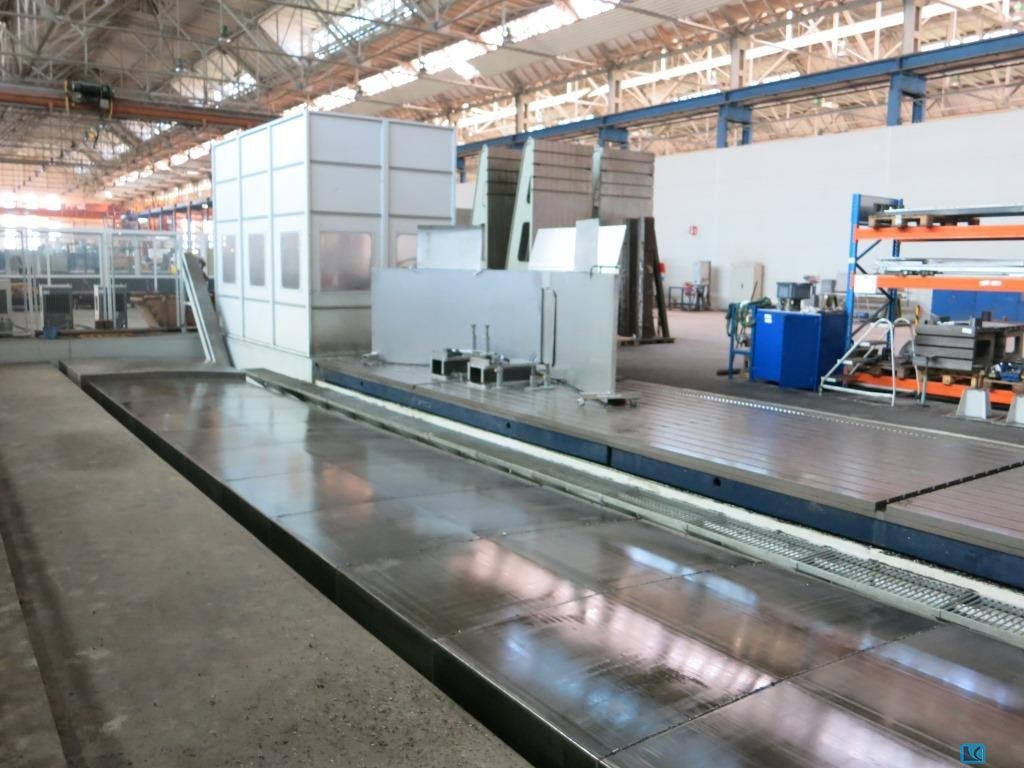

x-travel:14000 mm y-travel:3100 mm z-travel:1.200 mm (220 - 1.420) mm distance between columns:4.417 mm table-size:14.000 x 2.500 mm workpiece weight:15.000 kg/m drive capacity - spindle motor:25 kW spindle cone:63 HSK spindle turning speed range:18000 rpm milling feeds:30000 mm/min dimensions of the machine ca.:15.000 x 8.418 x 6.033 mm weight of the machine ca.:135 t CNC controller: SIEMENS 840 D universal milling head:5 Achsen mit ?C5C? Elektrospindel automatic tool changer:24 fach

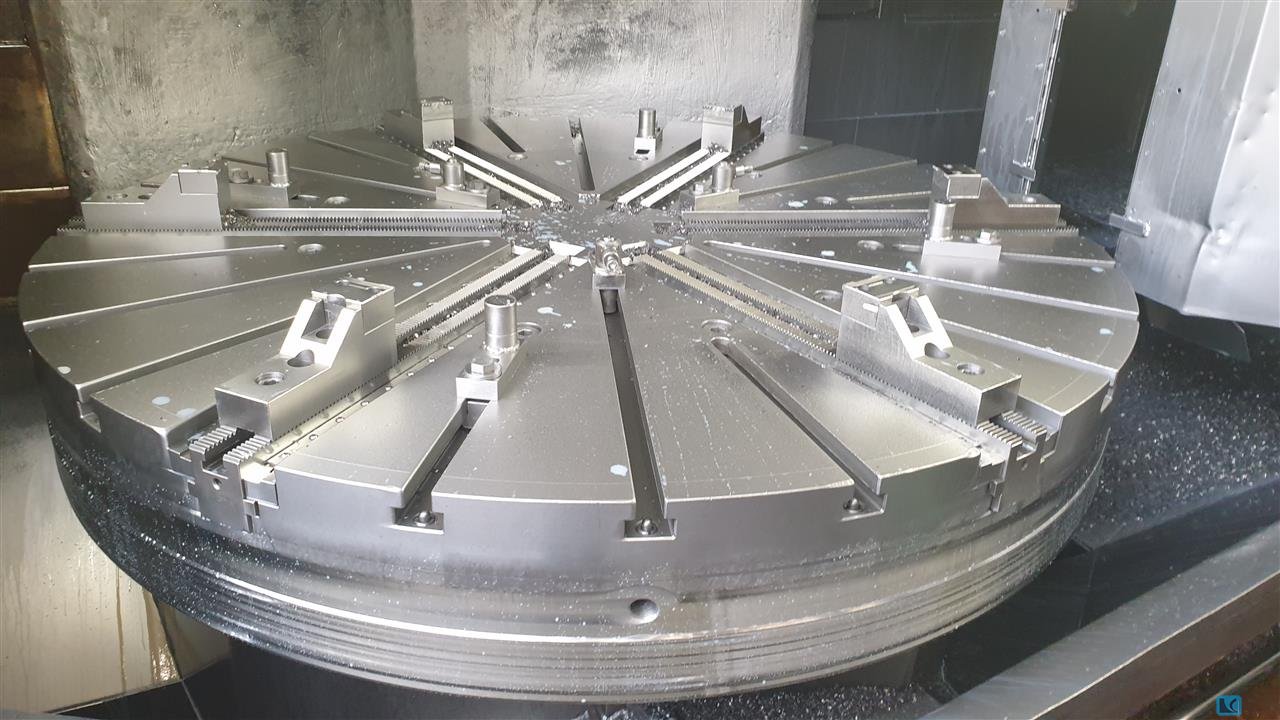

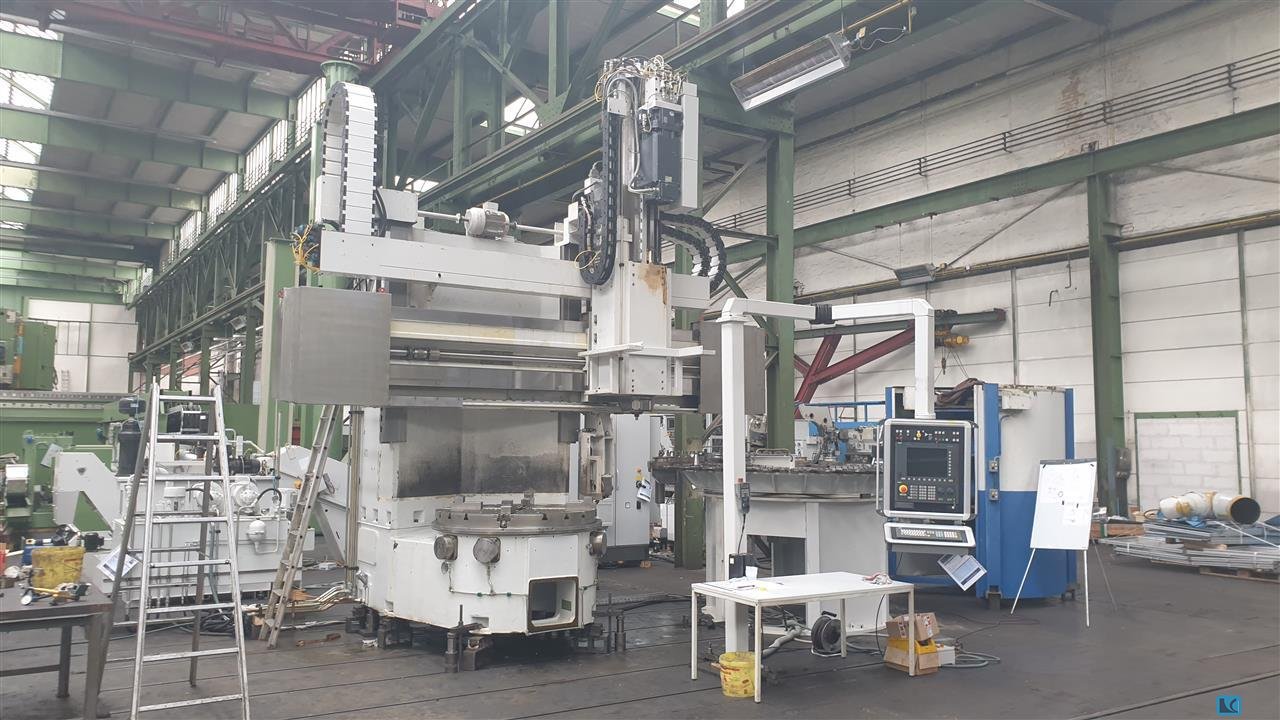

faceplate diameter:4000 mm swing diameter:4300 mm turning height:2500 mm max. workpiece weight:63 t total power requirement:125 kW weight of the machine ca.:134 t dimensions:6100x10400x8400 mm Used Vertical Turret Lathe with 2 plungers and CNC Siemens 840 table is hydrostatically. Machine equipped with a grinding head. CNC was overhauled in 2000.

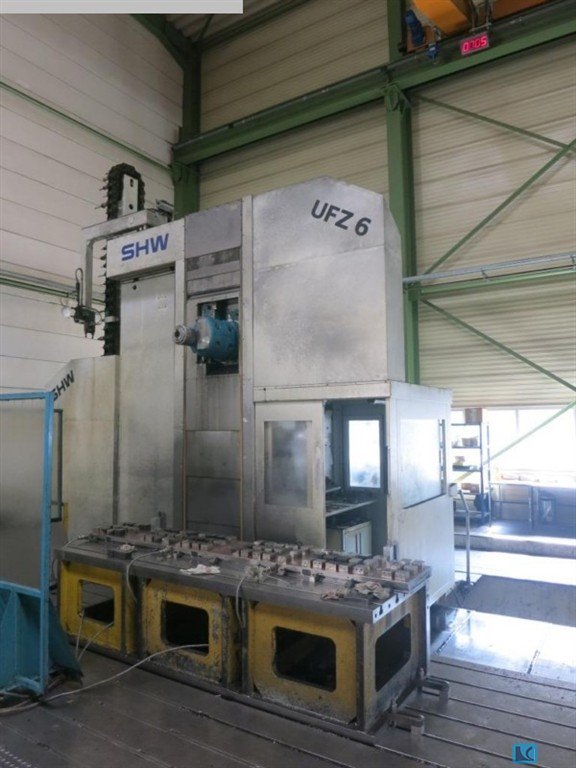

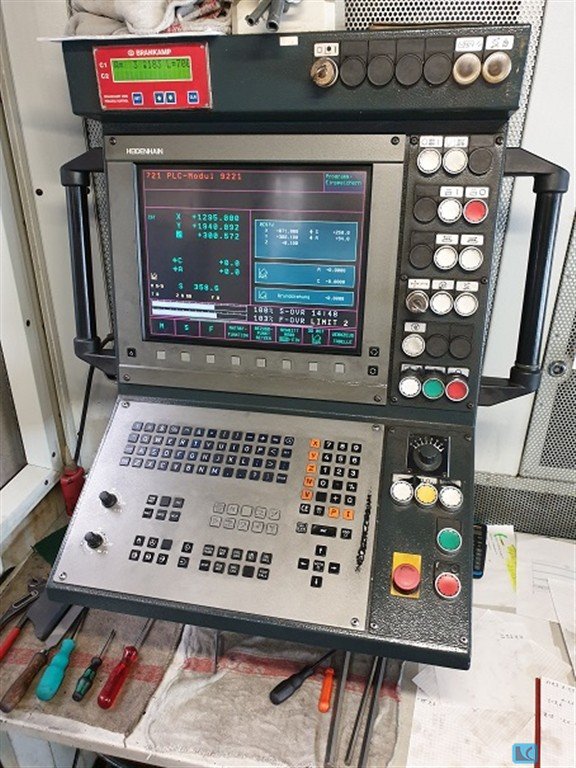

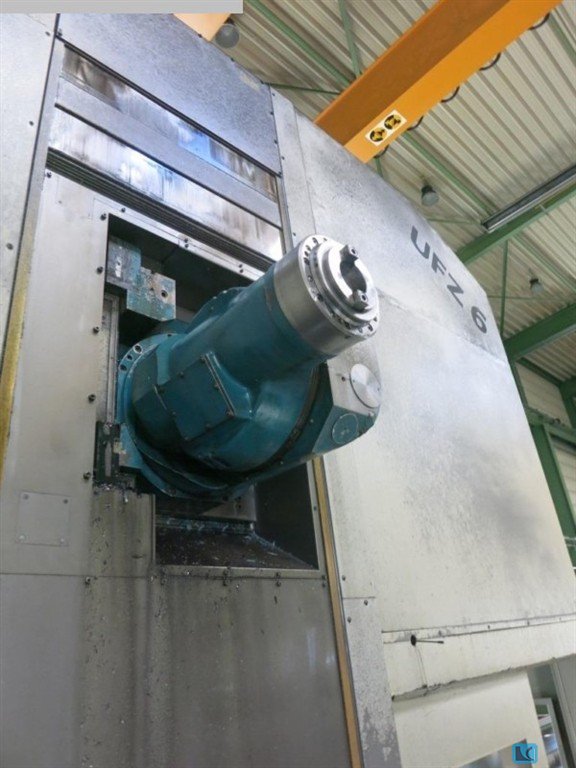

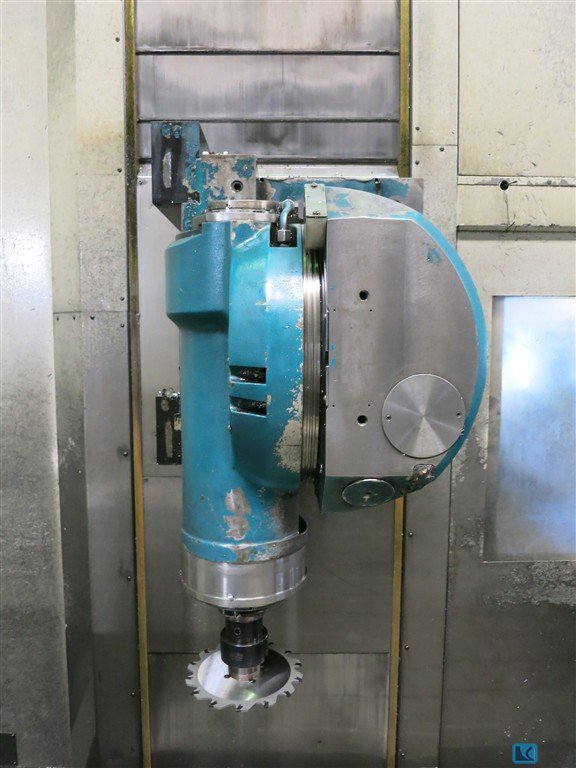

x-travel:6000 mm y-travel:2100 mm z-travel:1500 mm Controls:HEIDENHAIN iTNC 530 BASIC DESIGN:. - basic design : travelling column :. WORKING RANGE -MILLING-:. - x-axis travel:6000 mm - y-axis travel:2100 mm - z-axis travel:1500 mm WORKING SPINDLE / HEAD:. - spindle type : orthogonal head :. - tilting range:360 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - tilting range (2nd axis):270 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - spindle revolutions (min):20 /min - spindle revolutions (max):4000 /min - spindle diameter:90 mm - taper fixture : ISO SK 50 :. - spindle power (continuous):32 kW - torque (max.):910 Nm AXIS DRIVES:. - feed velocity (min):2 mm/min - feed velocity (max):20000 mm/min - rapid traverse:25000 mm/min ELECTRICAL SPECIFICATIONS:. - total power consumption:79 kW - mains voltage:400 V - mains freque ...

pressure:800 t distance between columns:2900 mm stroke:350 mm Controls:SIEMENS PRESS DESIGN:. - frame design : H-frame :. - Drive type : mechnical :. - openings in uprights : yes :. - number of cushions:0 - opening in table : yes :. - moving bolster : yes :. PRESS FORCES:. - total force (nominal):800 to PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - rectangular breakthrough (width):2000 mm - rectangular breakthrough (front-back):1800 mm - height above floor level:850 mm RAM:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):2900 mm - Free passage between side columns (width):2560 mm ...

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1500 mm main drive:80 kW faceplate speeds from - to:1 - 365 U/min milling motor:37 kW ram head dimension:240 x 240 mm max. ram stroke:1250 mm total power requirement:133 kVA weight of the machine ca.:50 t dimensions of the machine ca.:11 x 5 x 6,4 m Machine was overhauled in 2008 by OEM New control CNC SIEMENS 840 D automatic tool changer 72-pcs C-axis with driven tools Angle-, straight tool holders with CAPTO holder Coolant device Chipconveyour

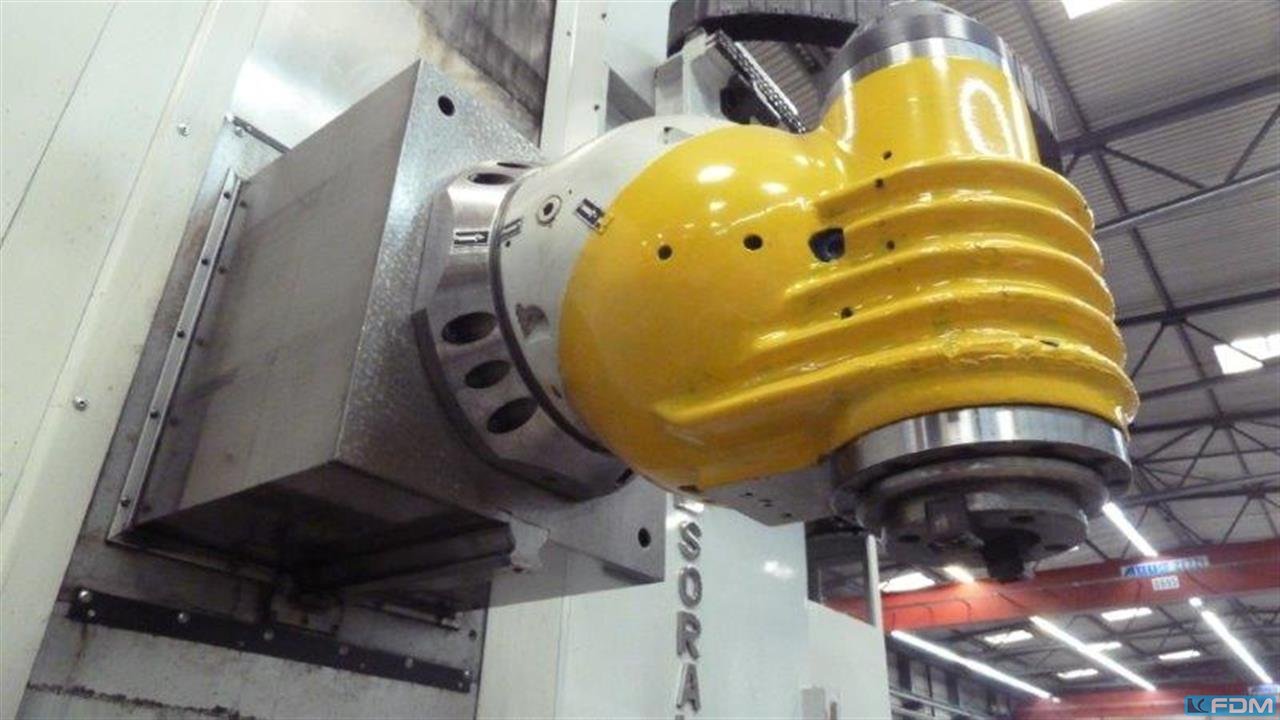

x-travel:6500/13150 mm y-travel:4000 mm z-travel:1250 mm w-axis:2250 mm table surface area:5500/12150 x 3000 mm max. workpiece weight:70.000/105.000 kg ram head dimension:480 x 510 mm milling spindle motor:63 kW max. torque on the spindle:3300 Nm tool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/min feed speeds:1 - 24000 mm/min w-axis:1 - 6000 mm/min distance between columns:3500 mm passage:3000 mm total power requirement:120 kW weight of the machine ca.:245 t dimensions of the machine ca.:29,0 x 7,7 x 8,1 m Machine is in nearly new condition and was completely modernized in 2020! With CNC SIEMENS 840 D Automatic tool magazine for 153 tool positions Automatic milling head magazine for 6 milling heads Machining module ? straight ? straight long ? Machining module ? angle standard ? 4000 rpm, 144 x 2.5°, ISO 50 Machining module ? narrow angle extended ? 40 kW, 4000 rpm, 1800  ...

automatic:Werkzeugspannung Spannk.15000 N total power requirement:63 KVA weight of the machine ca.:56000 kg table-size:22000 x 800 mm Tool bore:ISO 50, DIN 69871 AD x-travel:20500 mm y-travel:1600 mm z-travel:1000 mm dimensions of the machine ca.:24 x 6 x 4 m tool piece magazine with:30 Plätze

x-travel:1190 mm total power requirement:25 kW feeds::3 - 2000 mm/min weight of the machine ca.:4,3 t table-size:1600 x 400, 5 Spannbacken mm dimensions of the machine ca.:4000 x 3600 x 2200 mm speeds:45 - 1800 U/min y-travel:530 mm z-travel:540 mm tool taper:ISO 50 control cabinet:940 kg

x-travel:850 mm y-travel:280 mm z-travel:355 mm total power requirement:8 kW weight of the machine ca.:4 t dimensions of the machine ca.:2 x 2 x2.40 m revolutions per minute: 28-1.400 U/min table-size:1.200 x 370 mm surface area:1.060 x 260 mm spindle taper:SK 50

pressure:40 t throat:220 mm stroke:8 / 88 mm table pass:ø- abgesetzt 225/200 mm ram head dimension:400 x 250 mm distance table/ram:228 mm stroke adjustable from - to:30 - 140 mm ram adjustment:63 mm thickness of bolster:80 mm no. of strokes:70 Hub/min total power requirement:5,5 kW weight of the machine ca.:2600 kg dimensions of the machine ca.:1100 x 1300 x 2300 mm Documents:vorhanden

pressure:250 t passage width:1280 mm stroke:bis 500 mm total power requirement:47 kW weight of the machine ca.:23 t dimensions of the machine ca.:2200 x 1850 x 4600 mm table surface area:1250 x 1000 mm dayligth:800 mm daylight between the side columns:520 x 750 mm table height above floor:1000 mm Documents: vorhanden

faceplate diameter:1800 mm swing diameter:2000 mm turning height:1170 mm z-axis:1000 mm cross rail adjustment - vertical:800 mm faceplate speeds::2,5 - 280 workpiece weight:12 t feeds:1 - 6000 mm/min max. torque on the faceplate:50000 Nm total power requirement:85 kW weight of the machine ca.:41 t dimensions of the machine ca.:5,6 x 4,8 x 4,6 m Machine retrofit and overhould in 2005 with SIEMENS 840 D powerline control - 6 jaw hydraulic power chuck - tool changer for 12 tools - chip conveyor, coolant attachment, splash housing - various tool holders

faceplate diameter:1000 mm swing diameter:1600 mm turning height:1200 mm main drive:75 kW faceplate speeds from - to:7 - 800 U/min milling motor:25 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 mm ram head dimension:240 x 240 mm weight of the machine ca.:40 to dimensions of the machine ca.:9 x 7,8 x 6,0 m Machine general overhould in 2004 and equiped with Siemens 840 D control - tool changer rack magazine - C-axis, live tooling, - Transmit function electronical Y-axis - angular milling head - complete splash housing - coolant device, chip conveyor

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1270 mm main drive:80 kW faceplate speeds from - to:1 - 355 U/min max. workpiece weight:6.000 kg milling motor:37 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 (8 x 100 mm) mm ram head dimension:240 x 240 mm max. ram stroke:1250 mm weight of the machine ca.:50 to total power requirement:133 kVA dimensions of the machine ca.:11 x 5 x 6,4 m Machine general overhould in 2008 and equiped with CNC SIEMENS 840 D control - tool changer for 72 tools - C-axis, live tooling - angular- and straight tool holder head with CAPTO taper - Transmit function - complete splash housing - coolant device, chip conveyor - diverse accessories

faceplate diameter:4000 mm swing diameter:4300 mm turning height:330 mm faceplate turning speed range:1 - 92 U/min workpiece weight:18 t feeds:1 - 4000 mm/min main drive motor:55 kW total power requirement:85 kVA weight of the machine ca.:64 t dimensions of the machine ca.:90, x 7,2 x 5,5 m with CNC SIEMENS 840 D for 4 axis 2 Vertical Supports tool Basic holder chip conveyor

faceplate diameter:4770 mm swing diameter:7000 mm turning height:1000 mm slide stroke:1000 mm workpiece weight max.:100000 kg faceplate turning speed range:2 - 20 U/min feed speeds:1 - 10000 mm/min rapid traverse:10 m/min ram head dimension:250 x 250 mm main drive:100 kW total power requirement:200 kW with CNC SIEMENS 840 D 2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpm Chip conveyor and coolant attachment

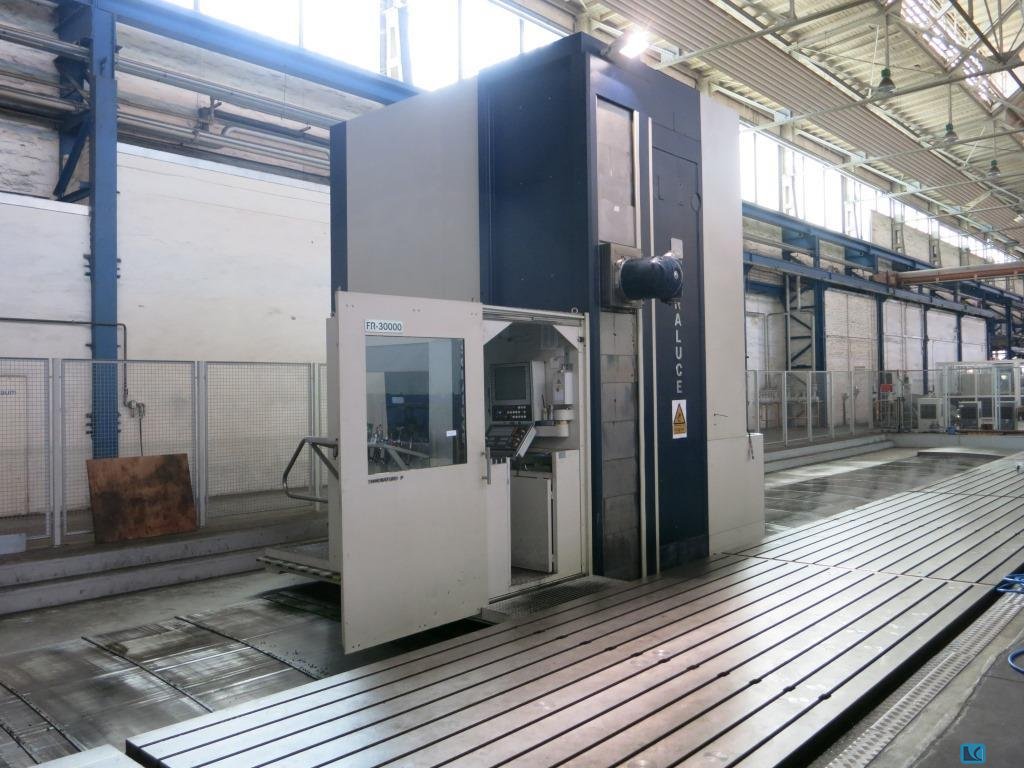

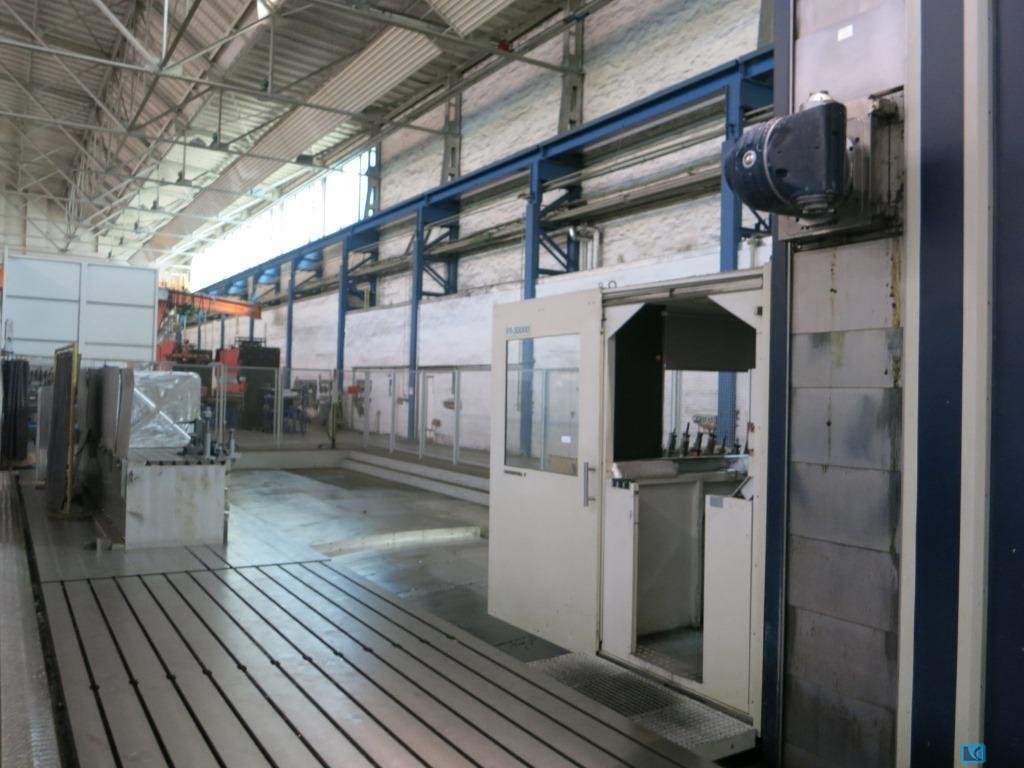

x-travel:30000 mm y-travel:3600 mm z-travel:1900 mm milling head speed:1 - 4000 U/min spindle taper ISO:50 feed speeds:1 - 10000 mm/min rapid traverse:25 m/min milling spindle motor:46 kW total power requirement:85 kW dimensions of the machine ca.:45 x 8,7 x 5,5 ü.F. m with CNC HEIDENHAIN iTNC 530 autom. milling head indexing 2,5° floor plate field 31000 x 2500 mm ( 4 floor plates 6000 x 2500 mm + 1 floor plate 7000 x 2500 mm ) 2 chip conveyors, coolant attachment

faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders

faceplate diameter:5000 mm swing diameter:6100 mm turning height:2400 mm ram stroke each side:1490 mm ram head dimension:340 x 340 mm max. workpiece weight:100.000 kg total power requirement:100 kW weight of the machine ca.:155 t faceplate turning speed range:0,4 - 50 U/min with 2 axes CNC SIEMENS 840 D

x-travel:16300 mm y-travel:2600 mm z-travel:1600 mm spindle taper ISO:50 spindle turning speed range:22 - 4000 U/min rapid traverse:24 / 36 m/min main drive:37 kW total power requirement:50 kW with CNC HEIDENHAIN TNC 430 automatic Universal Milling Head automatic toolchanger 90-pockets coolant attchament and chip conveyor

faceplate diameter:1400 mm swing diameter:1470 mm turning height:1325 mm ram stroke range:750 mm adjustment of cross-rail:850 mm max. workpiece weight:12000 kg faceplate turning speed range:4,5 - 224 U/min feed per revolution:0,06 - 8 mm rapid speed:1,8 m/min total power requirement:50 kW weight of the machine ca.:16 t Machine was modernized in 2008 with new electric 2-axes digital readout 5-station turret head autom. swivelling diverse toolholders

pressure:063 t throat:250 mm stroke:8 - 100 mm no. of strokes:56 / 84 /min distance table/ram, max. stroke up, adjustment up:415 mm table surface area:710 x 500 mm hole in the table:320 mm table height over floor:800 mm passage to the back:320 mm ram surface:450 x 280 mm ram adjustment:63 mm weight:4,1 t dimensions (W x D x H):1,35 x 2,0 x 2,6 m overload protection in ram:mechanical

pressure:200 t distance between columns:2100 mm stroke:550 mm Distance table/ram, stroke up:1800 mm table surface area:2000 x 2800 mm table height over floor:760 mm ram surface:2000 x 2000 mm Side window:2000 mm feed down:400 mm/s power requirement:51,0 kW weight:33,0 t dimensions (WxDxH):3,25 x 3,5 x 5,4 m Height above floor:5,4 m foundation pit:not necessary

pressure:200 t distance between columns:2100 mm stroke:550 mm Distance table/ram, stroke up:1800 mm table surface area:2000 x 2800 mm table height over floor:760 mm ram surface:2000 x 2000 mm Side window:2000 mm feed down:400 mm/s power requirement:52,0 kW weight:33,0 t Dimensions (WxDxH):3,25 x 3,5 x 5,4 m Height above floor:5,4 m foundation pit:not necessary

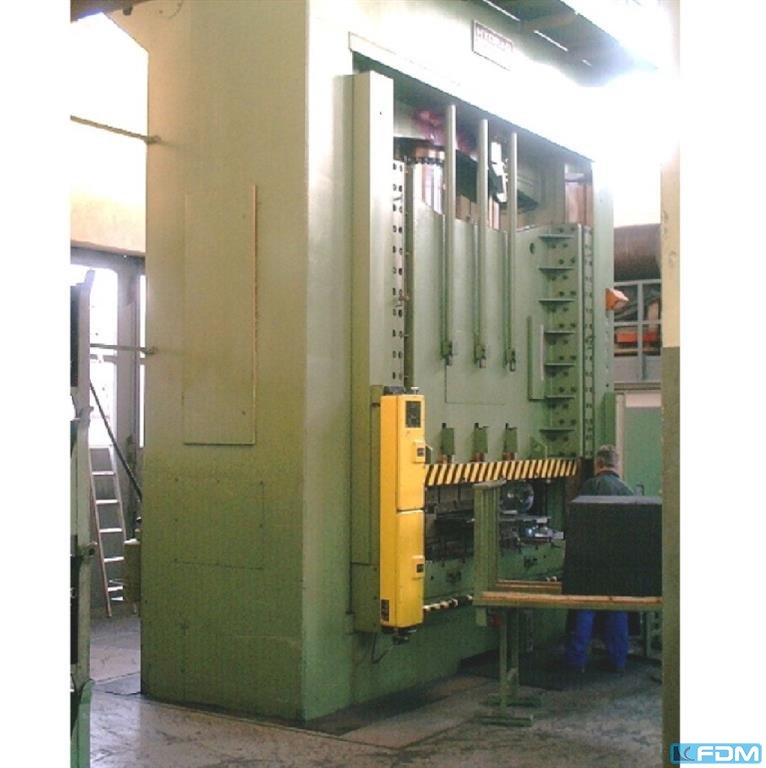

pressure:400 t distance between columns:3250 mm distance table/ram, max. stroke up, adjustment up:1000 mm stroke:800 mm table surface area:3250 x 1400 mm table height over floor:1250 mm die cushion capacity:170 t die cushion stroke:200 mm die cushion area:1800 x 1000 mm distance between cutting impact cushioning:2610 mm side window:800 mm ram surface:3250 x 1400 mm return capacity:51 t speed down:300 mm/s speed up:300 mm/s working speed:16 - 33 mm/s quantity of oil:2900 l power requirement:100,0 kW weight:70,0 t Dimensions (WxDxH):4,9 x 3,1 x 7,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 cutting impact absorption:hydraulic

pressure:400 t distance between columns:1250 mm stroke:250 fix mm no. of strokes:45 /min distance table/ram, max. stroke up, adjustment up:825 mm table surface area:1000 x 900 mm column travel -side:400 x 700 mm ram surface:1000 x 900 mm ram adjustment:100 mm capacity of ejector in table:40 t ejector stroke:160 mm power capacity:270,0 kW weight:44,0 t Dimensions (WxDxH):2,4 x 3,6 x 7,2 m height over floor:6,4 m

pressure:125 t stroke:25 fix mm no. of strokes:70 - 700 /min distance between columns:1150 mm distance table/ram, max. stroke up, adjustment up:400 mm table surface area:1150 x 1000 mm hole in the table:900 x 220 mm side window:650 mm ram surface:990 x 850 mm ram adjustment:60 mm material width:250 mm material thickness:2,5 mm power requirement:46,5 kW weight:29,5 t roll feed:mechanical, Schuler, WK 8-250

Pressure:080 t throat:380 mm stroke:8 - 112 mm no. of strokes:60 /min distance table/ram, max. stroke up, adjustment up:472 mm table surface area:840 x 610 mm table height over floor:800 mm passage to the back:520 mm ram surface:650 x 400 mm ram adjustment:70 mm power capacity:7,5 kW weight:6,9 t Dimensions (WxDxH):1,1 x 2,15 x 3,2 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 overload protection in ram:mechanical ram counterbalance:pneumatic clutch-/ brake combination:pneumatic

pressure:250 t distance between columns:930 mm stroke:200 mm Distance table/ram, stroke up:600 mm table surface area:900 x 860 mm die cushion capacity:100 t die cushion stroke:50 mm die cushion area:350 x 400 mm table height over floor:950 mm side window:380 x 380 mm ram surface:850 x 700 mm feed down:400 mm/s feed up:400 mm/s working feed:30 mm/s oil volume:350 l power capacity:45,0 kW weight:11,5 t Dimensions (WxDxH):2,0 x 1,2 x 3,4 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic depth stop:mechanical foundation pit:not necessary
