turret cnc used for sale

CNC Milling Machine - Heidenhain TNC 310 with handwheel - hydr. Tool Clamps - Central lubrication - Coolant system - Machine light - Machine feet - Enclosure x-travel 600 mm y-travel 400 mm z-travel 400 mm Table size 800 x 400 mm Spindle holder ISO Sk 40 Spindle speeds: 10 - 3150 rpm Quill stroke mm Total power requirement 12.0 kVA Machine weight approx. 2.2 t Dimensions L x W x H 2.0 x 1.85 x 1.95 m Auction-ID: A7-48095-587

Working area X axis 3280 (2300 for edgebanding) mm Y-axis working area 1320 (1240 for edgebanding) mm Bar worktop with suction cups Main electrospindle power 13 KW 5 controlled axes Maximum edge height 65 mm Total drilling spindles 24 Total tool change position 16 Working area X axis 3280 (2300 for edgebanding) mm Y-axis working area 1320 (1240 for edgebanding) mm Maximum workpiece throughput 180 mm Workspaces 2 Worktop: yes Bar worktop with suction cups Suction cup bars 6 Vacuum pump yes Nr. Pumps 1 Single capacity 250 m3/h DRILLING OPERATOR UNIT 1 Group: Top Spindles for vertical drilling: 16 Spindles for horizontal drilling in the X direction: 4 Horizontal drilling spindles in the Y direction: 4 Total vertical + horizontal spindles: 24 MILLING OPERATING UNITS 1 Group: Top Controlled axes: 5 Automatic tool changer: yes Liquid cooling system: Yes Motor power: ...

New machine SPECIAL PRICE incl.: - Starter Kit 2 - Micro spray device Ready to be demonstrated in our exhibition Roller conveyors shown optional Fully automatic hydropneumatic machine · Mitre left/right · Head oblique cuts up to 45° (Schifter) a. b. · Pneumatic vertical clamping device · Vice before and after the saw blade Saw blade diameter 350 mm Cutting range at 90 degrees: around 120 mm Cutting range at 90 degrees: square 110 mm Cutting range at 90 degrees: flat 200x88 mm Cutting range at 45 degrees: around 115 mm Cutting range at 45 degrees: square 110 mm Cutting range at 45 degrees: square 150x80 mm Total power requirement 1.5/1.8 kW Machine weight approx. 0.59 t Dimensions L x W x H 1.1 x 0.95 x 1.7 m Auction-ID: A7-48095-416

Magazine with 30 tool positions Auction-ID: A1-48069-5

CNC tenoning working center Type: Prima 2500 Manufacturer: Pade Year: 2000 2 ELECTRIC MOTORS 7.5 KW, EACH 1000-18000 RPMTILT AND ROTATE FROM -45 TO +45 DEGREESSTUD LENGTH 0-160 MMSTUD THICKNESS 0-160 MMDRAWING SPEED UP TO 20 M/MINSIMPLE PROGRAMMING USING TEACHING OPERATIONSTOTAL INSTALLED POWER 47 KWMACHINE IN COMPLIANCE WITH EC SAFETY RULES (DIR. CE 89/392)WORKING LENGTH 2500 MMVOLTAGE: 380V/50Hz Find more here - / Contact us at -

control: OSP P 300LA spindle turning speed range: 5000 U/min turret (x-stations): 12 turning diameter over bed: 580 mm turning diameter over slide rest: 470 mm turning diameter: 340 mm turning length: 800 mm x-axis: 260 mm z-axis: 1.010 mm y-axis: 120 mm spindle nose: ASA 6 spindle bore: 90 mm w-axis: 895 mm total power requirement: 22 kW weight of the machine ca.: 6,8 t dimensions of the machine ca.: LBH 3,5 x 2,1 x2,5 m • Turret: 12-position radial, motorized, turret motor 6,000 rpm, 7.1 kW • Pedals: Separate for spindle and tailstock • High-pressure coolant pump: 0.8 kW, 6 bar, 20 l/min • Tool presetter: Manual • Programming: IGF conversational programming incl. Chip Conveyor incl. Tools The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : 2025 : 080109 : prompt, Zwischenverkauf v : Türkei : 68282 € : 1135.89 € : 1 : 1 : 60100 € : 120 to : 3050 mm : Y1 / Y2 / X und R Achse : 180 mm : 2550 mm : 250 mm : 375 mm : hydraulisch : 100 mm/s : 9 mm/s : 77 mm/s : 620 (mit optionaler R-Ach mm : 250 mm/s : 878 mm : 104 mm : 150 l : 11 kW : 3750 mm : 1230 mm : 2400 mm : 5900 kg 4 axes (Y1, Y2, X and R axes) CNC control DT-10 - intuitive touch-screen control (simple drawing of the bending outline with your finger) - user friendly programming in dialogue form - automatic calculation of bending sequence - automatic calculation of the blank sheet size - graphic product and tool memory - correction possibility - USB interfaces for backup and programm transportation - PC software, generating programms on the PC and transfer to the machine by USB CNC controlled back gauge with linear guide and ball screw spindles CNC controlle ...

: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 171300 € : 3237.57 € : 400 to : 4050 mm : Y1 / Y2 / X Achse : 365 mm : 3400 mm : 510 mm : 630 mm : hydraulisch : 160 mm/s : 10 mm/s : 140 mm/s : 500 mm/s : 350 mm/s : 250 mm : 1050 mm : 154 mm : 250 l : 37 kW : 5750 mm : 2110 mm : 3640 mm : 27760 kg 3 axes (Y1, Y2,X) CNC control DT-15 - 2D grafic display 15", - intuitive touch-screen control (simple drawing of the bending outline with your finger) - user friendly programming in dialogue form - automatic calculation of the bending sequence - automatic calculation of the blank sheet size - graphic product and tool memory - correction possibility - USB interfaces for backup and programm transportation - PC software, generating programms on the PC and transfer to the machine by USB servo motorized back gauge on linear guides and ball screws back gauge finger blocks on double linear guides ...

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 249800 € : 30 to : 2500x1250 mm : 2500 mm : 1250 mm : 116 m/Min : 80 m/Min : 140 m/Min : 40 mm : 1200 1/Min : 425 1/Min : 3200 1/Min : 6 mm : 3 mm : 3 mm : 1.5 mm : 27 : 0,1 mm : 0,05 mm : 22 U/Min : 150 U/Min : 120 kg : 940 mm : 6 bar : 88.9 mm : 15 kW : 5750 mm : 6800 mm : 5360 mm : 7360 mm : 2310 mm : 12960 kg Control unit, Siemens Sinumerik 840 D SL CAD-CAM software Programming on the control panel Remote diagnostic function Automatic clamp positioning Network Ethernet communication Automatic tool lubrication UPS for control panel Movable scrap box Brush table Oil Cooler USB Driver Command pedal Web cam for service Reposition on X axis Alignment Tools for Index Station D Manual nesting turret (27 stations without tool and holder): 11 x A-Station fix: 0,8-12,7 mm 11 x B-Station fix: 12,8 - 31,7 mm 2 x C-Station fix: 31,8 - 50,8 mm 1 ...

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 209800 € : 3371.76 € : 20 to : 2000x1250 mm : 2000 mm : 1250 mm : 90 m/Min : 70 m/Min : 114 m/Min : 1100 1/Min : 375 1/Min : 1200 1/Min : 6 mm : 3 mm : 3 mm : 1.5 mm : 27 : 0,1 mm : 0,05 mm : 30 U/Min : 150 U/Min : 100 kg : 940 mm : 6 bar : 88.9 mm : 7.5 kW : 5600 mm : 6600 mm : 4200 mm : 6200 mm : 2310 mm : 11000 kg Control unit, Siemens Sinumerik 840 D SL CAD-CAM software Programming on the control panel Remote diagnostic function Automatic clamp positioning Network Ethernet communication Automatic tool lubrication UPS for control panel Movable scrap box Brush table Oil Cooler USB Driver Command pedal Web cam for service Reposition on X axis Alignment Tools for Index Stations C+B Station Manual nesting turret (27 stations without tool and holder): 11 x A-Station fix: 0,8-12,7 mm 10 x B-Station fix: 12,8 - 31,7 mm 2 x B-Station Index ...

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 74800 € : 1413.72 € : 40 to : 2050 mm : Y1 / Y2 / X und R Achse : 200 mm : 1700 mm : 350 mm : 440 mm : servomotorischer Spindela : 180 mm/s : 10 mm/s : 115 mm/s : 650 mm : 250 mm : 1000 mm : 7.2 kW : 2600 mm : 1450 mm : 2650 mm : 4400 kg STANDARD EQUIPTMENT: servomotorized spindle drive 4 axes (Y1, Y2, X and R) Color graphics controlDELEM DA-66S - 17 ", Touchscreen - 3D imaging in simulation and production - Suitable for personal Windows applications - Compatible with DelemModusys - USB and peripheral interface - Skill-specific application treatment - Sensor, bending and correction interface servo motorized back gauge on linear guides and ball screws CNC crowning table upper tool 1010 / A / 75 °, devidedand cranked 4-V die block 60x60 2009 (V = 16,22,35 and 50 mm) laser safety device Fiessler AKASmounted on the upper beam linear guid ...

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 230188 € : 3 kW : Wechseltisch : 16 mm : 8 mm : 8 mm : 5 mm : 8 mm : 27,9 (mit Absaugung) kW : 4100 x 2070 mm : 4100 mm : 2070 mm : 125 mm : 4064 x 2032 mm : 240 (für 3 - 12 kW) / 400 kg/m² : 3900 (für 3 - 12 kW) / 64 kg : 100 m/min : 100 m/min : 141 m/min : 14 m/s² : +/- 0,05 mm : +/- 0,05 mm : 32 s The HD-FN has two tables which are automatically switched alternately to enable simultaneous cutting and loading/unloading. The shuttle table is positioned longitudinally, which results in the best possible accessibility for optional loading and unloading systems. Control, laser source and cooling are integrated into the machine. The cutting head has automatic focus adjustment. The system consists of the following components: Shuttle table (positioned longitudinally for best possible accessibility for optional loading and unloading systems) ...

turning diameter: 250 mm turning length: 750 mm control: Siemens type: 840 c spindle passage: 65 mm Tool changer: 2 Turret 12-fold, 12 stations: Pos. c-axis: live tooling: 2x Revoler total power requirement: kW weight of the machine ca.: 7 t dimensions of the machine ca.: m Main and counter spindle 3-jaw chuck with numerous jaws Hainbuch collets Many tool holders Various driven tools Bar loader Index MBL Chip conveyor with coolant unit Complete set of spindle reducers etc. see photo The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your busine ...

turning diameter: 420 mm turning length: 1350 mm spindle passage: 101 mm control: Siemens SL 828D ShopTurn number of controlled axis: 4 turning speed range: 3000 U/min power requirement: 22/18,5 kW rapid speed: 30 m/min number of tapers in turret head: 12/24 BMT 65 number of driven tools in turret: 12 BMT 65 Spindel speed of driven tools: 5000 U/min Spindelpower on driven tool: 7,5/5,5 kW y-axis: +/- 65 mm tail stock: MT-5 weight: 8,0 t dimensions: 5,7 x 2,3 x 2,32 m Heavy CNC- lathe with driven tools and Y- Axis in very good condition. First instalation: 03/2023 Appr. 5400 h Power on. - 2x 3-jaw chuck Ø 325 + 400 mm - some fixed tool holders - Tool pre- setter - chip conveyor - 4x driven tool holders - 2 + 2 driven toolholders with Capto C4 - oildust collector - band filter system with appr. 1000 ltr. - hydr. steady moveable wit turret SMW Autoblock SLU-X3.1 (Ø 20- 165 mm) - 3 colour  ...

Droop (small), Manufacturer: DROOP + REIN, Model: FOG 2500 HS11/13NW, Year of manufacture: 1995, Serial number 01028, Control, Manufacturer Droop + Rein, Type System IBF/Grundig Electronics, Table dimensions 5,000 x 3,000 mm, Travel X/Y/Z 4,500 x 2,500 x 1,200 mm, Spindle speed 10,000 rpm, Tool holder HSK 63/100, 32-fold tool changer, Tool monitoring, manufactured by Brankamp, WTS roller shutter cabinet, metal, equipped with 40 tool holders, drawer unit W 1,000 mm, 7 drawers, equipped with inserts, milling cutters, etc., mobile WTS frame, equipped with clamping devices and accessories 2 spare spindles, 16,000 rpm Droop (small), Manufacturer: DROOP + REIN, Model: FOG 2500 HS11/13NW, Year of manufacture: 1995, serial number 01028, control system, manufacturer Droop + Rein, type System IBF/Grundig Electronics, table dimensions 5,000 x 3,000 mm, travel range X/Y/Z 4,500 x 2,500 x 1 ...

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 76820 € : 1451.9 € : 160 to : 4050 mm : Y1 / Y2 und X Achse : 200 mm : 3600 mm : 300 mm : 430 mm : hydraulisch : 160 mm/s : 10 mm/s : 140 mm/s : 620 mm : 250 mm/s : 858 mm : 104 mm : 15 kW : 4850 mm : 1900 mm : 2610 mm : 10500 kg 3 axes (Y1, Y2, and X axis) CNC control DT-10 - intuitive touch-screen control (simple drawing of the bending outline with your finger) - user friendly programming in dialogue form - automatic calculation of bending sequence - automatic calculation of the blank sheet size - graphic product and tool memory - correction possibility - USB interfaces for backup and programm transportation - PC software, generating programms on the PC and transfer to the machine by USB CNC controlled back gauge with linear guide and ball screw spindles CNC crowning table intermediate clamps for upper tool upper tool1010/A/75°/0,8, se ...

: neu : ca. 10 Wochen ab Auftrags : Türkei : 52400 € : 990.36 € : 60 to : 1250 mm : 3 (Y1, Y2, X) : 265 mm : 1050 mm : 450 mm : 530 mm : hydraulisch : 200 mm/s : 10 mm/s : 110 mm/s : 650 mm : 500 mm/s : 900 mm : 104 mm : 100 l : 7.5 kW : 2300 mm : 1550 mm : 2850 mm : 4700 kg Standard accessories: 3 axes (Y1, Y2,X ) CNC control DT-15 - 2D grafic display 15", - intuitive touch-screen control (simple drawing of the bending outline with your finger) - user friendly programming in dialogue form - automatic calculation of the bending sequence - automatic calculation of the blank sheet size - graphic product and tool memory - correction possibility - USB interfaces for backup and programm transportation - PC software, generating programms on the PC and transfer to the machine by USB servo motorized back gauge on linear guides and ball screws back gauge finger blocks on double linear gu ...

: neu : ca. 10 Wochen ab Auftrags : Türkei : 57920 € : 1094.69 € : 60 to : 2050 mm : 3 (Y1, Y2, X) : 265 mm : 1700 mm : 450 mm : 530 mm : hydraulisch : 200 mm/s : 10 mm/s : 110 mm/s : 650 mm : 500 mm/s : 350 mm/s : 250 mm : 900 mm : 104 mm : 100 l : 7.5 kW : 3200 mm : 1550 mm : 2850 mm : 5600 kg : 650 mm 3 axes (Y1, Y2,X ) CNC control DT-15 - 2D grafic display 15", - intuitive touch-screen control (simple drawing of the bending outline with your finger) - user friendly programming in dialogue form - automatic calculation of the bending sequence - automatic calculation of the blank sheet size - graphic product and tool memory - correction possibility - USB interfaces for backup and programm transportation - PC software, generating programms on the PC and transfer to the machine by USB servo motorized back gauge on linear guides and ball screws back gauge finger blocks on double l ...

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 98300 € : 1857.87 € : 135 to : 3050 mm : Y1 / Y2 / X und R Achse : 265 mm : 2600 mm : 410 mm : 530 mm : hydraulisch : 200 mm/s : 10 mm/s : 200 mm/s : 650 mm : 500 mm/s : 250 mm : 900 mm : 104 mm : 4200 mm : 1680 mm : 2750 mm : 9500 kg 1 SERVO MOTOR AND PUMP PER CYLINDER 4 axes (Y1, Y2,X andR) CNC control SKY 22 - intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5 in full HD - with 2D and 3D working screen - direct programming of the bending angle - user friendly programming in dialogue form optionally in 2D or 3D mode - 2D and 3D simulation of the bending sequence - automatic tool selection in 3D mode - automatic calculation of the blank sheet size - bending order calculation - graphic product and tool memory - correction possibility - USB and Ethernet interfaces for import, backup and programm tr ...

: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 252800 € : 600 to : 4050 mm : Y1 / Y2 / X und R Achse : 365 mm : 3100 mm : 410 mm : 700 mm : hydraulisch : 160 mm/s : 10 mm/s : 160 mm/s : 650 mm : 500 mm/s : 250 mm : 900 mm : 154 mm : 280 l : 5750 mm : 2500 mm : 4000 mm : 40500 kg 1 SERVO MOTOR AND PUMP PER CYLINDER 4 axes (Y1, Y2,X andR) CNC control SKY 22 - intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5 in full HD - with 2D and 3D working screen - direct programming of the bending angle - user friendly programming in dialogue form optionally in 2D or 3D mode - 2D and 3D simulation of the bending sequence - automatic tool selection in 3D mode - automatic calculation of the blank sheet size - bending order calculation - graphic product and tool memory - correction possibility - USB and Ethernet interfaces for import, backup and programm transp ...

: neu : ca. 12 - 14 Wochen ab Auf : Deutschland : 23200 € : 445.44 € : 1000x2000 mm : HYPERTHERM Powermax 45 XP : 6 mm : 12 mm : 25 mm : 4 mm : 45 A : 45 A 50 % ED, 32 A 100 % A : 24 m/min : unter 1/10 mm : 300 l : 400 kg/m² : 2560 mm : 1460 mm : 1500 mm : 400 kg compressed air powered plasma sourceHYPERTHERM Powermax 45 XP CNC-workbench software (external PC not included) height adjustment by arc voltage set-up laser precision profile rail guide(HiWin) zero backlash HTD drive belt driven by step motors solid frame construction seperate renewable support grate water trough to catch flying sparks swimming burner bearing in combination with exchangeable slide screws, enables constant cutting height hand operation unit for comfortable processing and set up on the workpiece users manual in GERMAN according to CE rules ALTERNATIVE PLASMA SOURCES: HYPERTHERM PMX 65 Sync PMX 85 Sync PMX 1 ...

: neu : ca. 6 Monate ab Auftragse : Taiwan : 87350 € : 1650.92 € : 540 mm : 1500 mm : 85 mm : 310 mm : 350 mm : D1-8 : 1/20 MK : 3 : 27 - 2250 1/min : 5000 mm/min : 8000 mm/min : 280 mm : 75 mm : 5 MK : 190 mm : 9 / 13,5 (S1 / S6 40%) kW : 0.02 mm : 0.016 mm : ISO3655 : 3340 mm : 1905 mm : 2235 mm : 3400 kg THREE OPERATING MODES: CNC / TEACH-IN / MANUAL Siemens 828D CNC control • 12-inch colour screen • Linear interpolation • Circular interpolation • Helical interpolation • Skip function • Workpiece coordinate system • Coordinate system rotation • Rigid tapping • Mirror image, scaling and rotation • Turning cycle • ShopTurn software Large spindle bore, with precision bearings for high accuracy and consistent cutting stability. Precision ball screw Ø 40 mm (Class C5) on the Z-axis and ball screw Ø 25 mm (Class C3) on the X-axis. 2-axis AC servo motors 50-300 mm ...

Machine Year of manufacture Loading magazine Additional information Hours Twin 42 2004 Irco Breuning SIMAG hydraulic line defective on turret 1 or 2 79593 25020 Twin 42 2004 Irco Breuning SIMAG Dina module removed, pressure clamp (reports that collet is not closed) 69573 9625 Twin 42 2004 Irco Breuning SIMAG machine running and is in production 72402 8375 Twin 42 2004 Irco Breuning SIMAG main spindle defective with bearing damage, tensioner HS defective, LT module missing, Dina module missing Twin 42 2008 Irco Breuning SIMAG machine running and in production 5104 83790 Twin 42 2008 Irco Breuning ECO Profi Multichannel Changer Machine Running and Is in Production 99825 76595

GILDEMEISTER NEF 600 CNC Lathe Year of construction 2006 Control SIEMENS 840D Powerline with ShopTurn Equipment: Three-jaw chuck RÖHM 250 mm Four-jaw chuck RÖHM 250 mm Revolver 8-speed hydraulic tailstock Included in delivery: VDI mounts, equipped with turning tools and much more Operating Instructions/Documentation Technical data, transport & plans – see PDF. All technical information, illustrations and content are non-binding and without guarantee. Subject to changes, errors. All other accessories visible in the pictures and video are not included in the scope of delivery, therefore not part of this sale. The scope of delivery only includes the accessories that are expressly listed here, in the order confirmation and invoice. FCA (Free Loading Truck) D-32457 Porta Westfalica Packaging only Delivery time immediately Subject to prior sale / payment immedi ...

Fanuc 18-M, 4 axis, travel in axes: X -1018mm, Y - 560mm, Z - 520mm, spindle speed - 14,000 rpm, full axis 4, magazine - 30 items Other machines, devices and tools unrelated to the subject of sale visible in the photos are not part of the offer. Auction-ID: A7-48036-12

table size: 500 x 1200 mm, feeds: X axis: 1000 mm, Y axis: 550 mm, Z axis: 600 mm, spindle taper: ISO 40, spindle speed range: 60-2700 rpm, spindle drive: 10 kW, electrical connection: 380 V 20 kVA Auction-ID: A7-48036-26

table size: 550 mm, axis travel: X: 800 mm, Y: 800 mm, Z: 700 mm, A: 360 degrees, taper: BT50, maximum spindle speed: 10,000 rpm, tool magazine: 60 cups, maximum workpiece weight: 800 kg Auction-ID: A7-48036-11

TRAUB TNS 60 CNC Lathe - Manufacturer: TRAUB - Type: TNS 60 - Year of construction: 1986 - Serial number: 837 - CNC control: TRAUB System TX8-D - Operating hours according to the display: approx. 22,000 h - Main drive: 39 kW - Operating voltage: 420 V / 50 Hz - 12-cavity tool turret - Chip conveyor KNOLL Filtron available - Coolant system available - Control cabinet cooling unit available - Machine starts, control active (see photos) - Used condition with signs of wear due to age and use - Paint damage, soiling and corrosion traces present - Includes accessory package with clamping devices, tool holders, holders, adapters and other machine accessories - Scope of accessories according to photos - Sale includes the accessories shown in the photos Note: The sale is made exclusively according to the photos provided. All visible accessories are included  ...

Manufacturer: HOMAG Group Type: Z 132.5 Part Number: 2-017-95-5941 Drawing No.: H6314H0346 Ratio: i = 1:1 Input speed: 1,500–12,000 rpm Output speed: up to 15,000 rpm Input torque: 120 Nm Output torque: 180 Nm Original suitcases, documents and data carriers are available. Suitable as a spare part or for expanding HOMAG, WEEKE, IMA and comparable CNC machining centres. Scope of delivery: HOMAG Z 132.5 angle unit Transport case Documentation Disk/CD Accessories according to illustrations Auction-ID: A1-47153-80351

turning length - 445 mm, turning diameter - 200 mm, chuck diameter - 165 mm, spindle and counterspindle bore - 65 mm, control - INDEX C200-4, driven tools, maximum tool speed - 6000 rpm, automatic tool change, X, Y, Z, B axes, bar feeder, machine length - 31000mm, bar feeder dimensions - 5200x1100x1200mm, Auction-ID: A7-48036-4

Manufacturer: TRAUB Type: TNM 42 Year of manufacture: 1993 Serial Number: 212 CNC control: TRAUB system TX 8F Spindle Passage: 42 mm Motor power: 19 kW Operating voltage: 400 V / 50 Hz Operating hours: approx. 32,099 h Including KNOLL bar feeder type 280 S-1/320 Year of construction bar feeder: 1995 Including KNOLL chip conveyor Machine was demonstrated during inspection under power Scope of delivery: TRAUB TNM 42 CNC automatic lathe with KNOLL bar feeder, KNOLL chip conveyor. Auction-ID: A1-47153-8006

new controler from 2021, turning length - 1100mm, turning diameter over the bed - 400mm turning diameter over slide - 225mm, lift of the claws over the bed guide - 260mm, bed width - 320mm, support length - 520mm Offer not include other machines and parts which are visible on the photos but not belong to the machine. Auction-ID: A7-48036-17

Fanuc 18i-TB control, 5 axes (X, Z, Z2, C main spindle, C counter spindle), max workpiece diameter X600, max turning diameter X330, max turning length 500, max length Z2 axis 500, 12-position tool head, 12-position driven tools, 10” main holder C axis, 6” counter spindle C axis Other machines, devices and tools unrelated to the subject of sale visible in the photos are not part of the offer. Auction-ID: A7-48036-6

maximum turning length: 1350 mm, rotating diameter over bed: 610 mm, rotating diameter over guide: 370 mm, maximum tool diameter: 25x250 mm Other machines, devices and tools unrelated to the subject of sale visible in the photos are not part of the offer. Auction-ID: A7-48036-10

Technical data Manufacturer: FMS Drehtechnik Schaffhausen AG, Switzerland Type: NDL-40/130 Machine Type: CNC Lathe Year of Make: 2003 Control: Siemens SINUMERIK Machine No.: 16212-51 Turning length: 1500 mm Turning diameter: 400 mm Swing diameter over bed: 630 mm Swing diameter over face slide: 410 mm Speed range: 40 – 3200 rpm Main drive: 68 kW Spindle bore: 90 mm Hydr. Clamping Cylinder Passage: 86 mm Tailstock: MK5, quill stroke 120 mm Rapid traverse: 16,000 mm/min Coolant tank: 400 l Dimensions (L x W x H): approx. 5350 x 2270 x 2670 mm Machine weight: approx. 14,000 kg Configuration Siemens SINUMERIK CNC control Heidenhain Digital Display Hydraulic clamping system Tool turret Coolant system Chip conveyor Hydraulic power unit Various clamping devices and tool holders Extensive technical documentation available Machine di ...

Manufacturer: TRAUB SONIM Type: TND 200 CNC control: TRAUB system TX 8F Year of construction: 1991 Serial Number: 710037-126 Operating hours: approx. 92,034 h 8-fold tool turret Coolant facility available Foot pedal available Fully clad CNC lathe Signs of wear due to age and use Control turned on at the time of recording Auction-ID: A1-47153-8014

turning diameter - 12 mm, turning length - 135 mm, approximate dimensions - 1500 mm x 770 mm x 1540 mm, machine equipped with bar feeder, machine dimensions - 2400x1200x2400, bar feeder dimensions - 4800x500x1500, Auction-ID: A7-48036-5

table: 1270 x 510 mm, traverses: 1000 x 510 x 520 mm, spindle speed: 25 - 4000 rpm, spindle motor power: 11/7.5 kW, tool magazine: ATC20, Auction-ID: A7-48036-9

turning length - 1000 mm, turning diameter - 250 mm Auction-ID: A7-48036-35

NC rotary table – ᴓ 630 mm, rotation – 360ᵒ x 0.001°, machining along the axes: X – 900 mm, Y – 630 mm, Z – 500 mm, table load – 500 kg, automatic spindle switching between horizontal and vertical positions, SK 40 taper, spindle speed – 20 – 6300 rpm, power – 15 kW, 4-speed gearbox, tool magazine – 40 positions, tool diameter – 80/140 mm, length – 200 mm, weight – 15 kg, coolant system with filtration, chip conveyor, machine dimensions – 2500 x 3900 x 2800 mm Auction-ID: A7-48036-8

Travel X/Y/Z: 800mm/800mm/800mm, feed force X/Y/Z: 15000N/15000N/17500N, feed speed X/Y/Z: 50m/min, max. rotary table speed: 25rpm, spindle diameter: 100mm, tool holder: HSK 100, spindle power S1-100%: 40kW, spindle speed: 6000rpm. Magazine capacity for a maximum tool diameter of 280mm: 23. Max. pallet dimensions X/Y: 630mm/630mm, max. pallets in the system: 6, coolant tank volume: 1500l, 50bar high-pressure pump delivery rate: 22l/min. Machine dimensions X/Y/Z: approx. 6300mm/4900mm/4000mm, weight: approx. 19,300kg, control: Siemens 840D powerline, operating hours: 74,637h. Includes integrated tool monitoring IPM, remote diagnostics via modem, Renishaw MP10 touch probe, RSP 4-position round storage, chip removal, coolant system with Knoll VRF 250 vacuum rotary filter, pallet changing device, 6 pallets, 4 of which are clamping towers with universal clamping bars, approx. 100 HSK 100 tool ...

Manufacturer: TRAUB Model: TNS 30/42 CNC lathe Year of construction: 1989 Control: TRAUB System TX-8D Operating hours: approx. 24,600 h Electrical connection: 380 V / 50 Hz Motor power: approx. 34 kW Coolant facility available Original documentation available Programming instructions included Schematics included Spare parts documents included Machine starts, control active Auction-ID: A1-47153-8011

A Mikron CNC vertical machining center is available. Travel X/Y/Z: 900mm/630mm/500mm, table dimensions X/Y: 1200mm/600mm, max. table load: approx. 500kg, tool holder: SK40, speed: 5000rpm, rapid traverse: 10m/min, feed: 10m/min. Machine dimensions X/Y/Z: approx. 2400mm/3400mm/2300mm, weight: approx. 5000kg, control: Mikron, operating hours: approx. 35580h. The main control board of the machine has a defect. Including approx. 100 SK40 tool holders and tools. An on-site inspection is possible.

A Schneeberger CNC profile and tool grinding machine including robot cell, coolant filtration system and cooling unit is available. Travel X/Y/Z: 420mm/310mm/340mm, spindle power: 15kW, speed: 6000rpm, spindle interface: HSK80, robot: Fanuc, tool positions: 10. Machine dimensions X/Y/Z: approx. 2500mm/2500mm/2200mm, weight: approx. 9000kg, control: Fanuc 160i-MB, software: Schneeberger Quinto 4, operating hours: approx. 31893h. Documentation available. An on-site inspection is possible.

x-travel: 1800 mm y-travel: 700 mm z-travel: 1200 mm : ja : 2 control: Heidenhain 155 table:: 700-2000 mm documentation: ja dismantled: ja weight of the machine ca.: 12,5 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 6 Monate ab Auftragse : Taiwan : 95950 € : 1813.46 € : 630 mm : 2000 mm : 85 mm : 400 mm : 350 mm : D1-8 : 1/16 MK : 3 : 37 - 2250 1/min : 5000 mm/min : 8000 mm/min : 280 mm : 75 mm : 5 MK : 190 mm : 9 / 13.5kW (S1 / S6 40%) kW : X: 0.02 Z: 0.04 mm : X: 0.01 Z: 0.035 mm : ISO3655 : 3840 mm : 1905 mm : 2235 mm : 4200 kg THREE OPERATING MODES: CNC / TEACH-IN / MANUAL Siemens 828D CNC control • 12-inch colour screen • Linear interpolation • Circular interpolation • Helical interpolation • Skip function • Workpiece coordinate system • Coordinate system rotation • Rigid tapping • Mirror image, scaling and rotation • Turning cycle • ShopTurn software Large spindle bore, with precision bearings for high accuracy and consistent cutting stability. Precision ball screw Ø 40 mm (Class C5) on the Z-axis and ball screw Ø 25 mm (Class C3) on the X-axis. 2-axis A ...

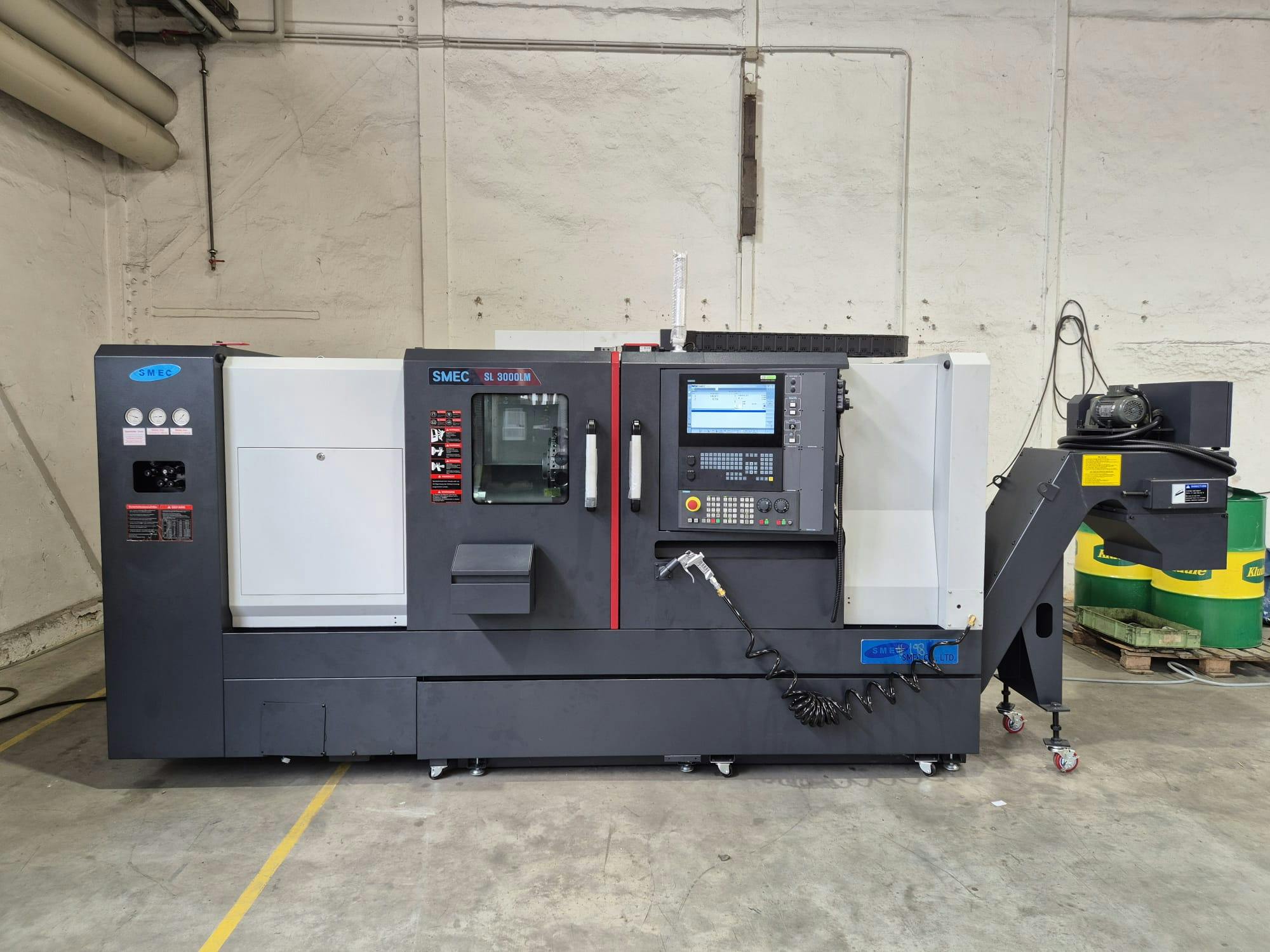

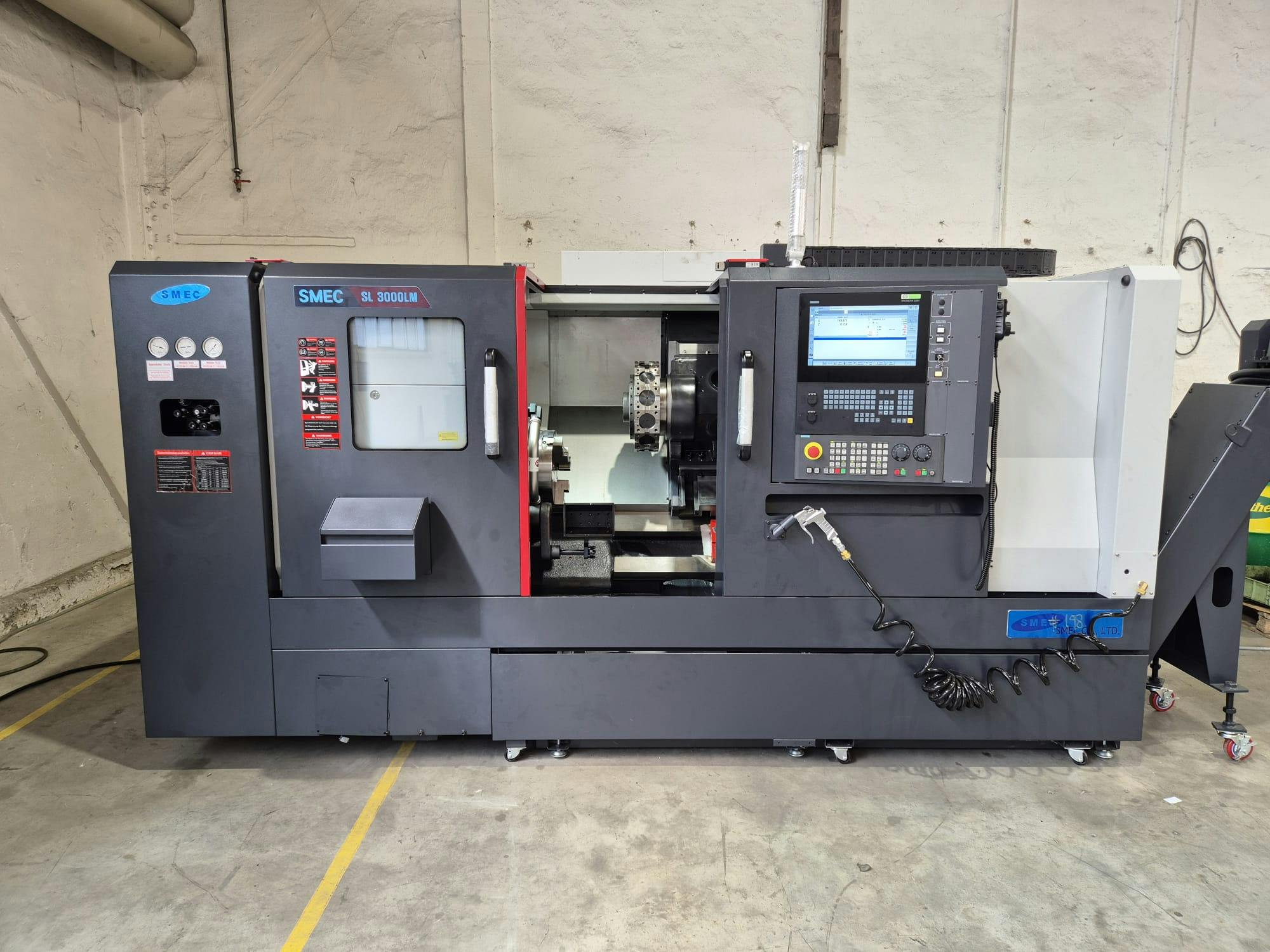

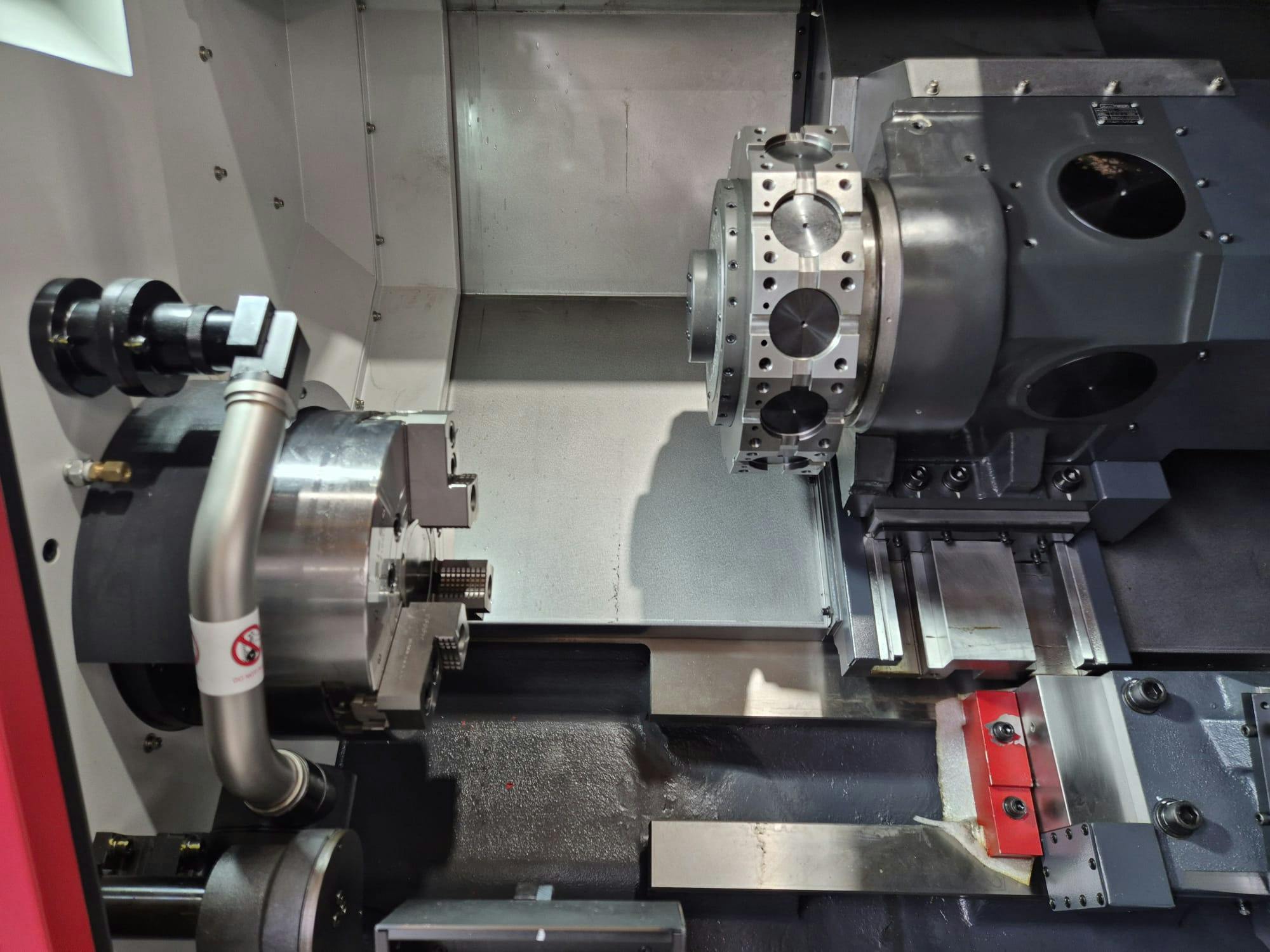

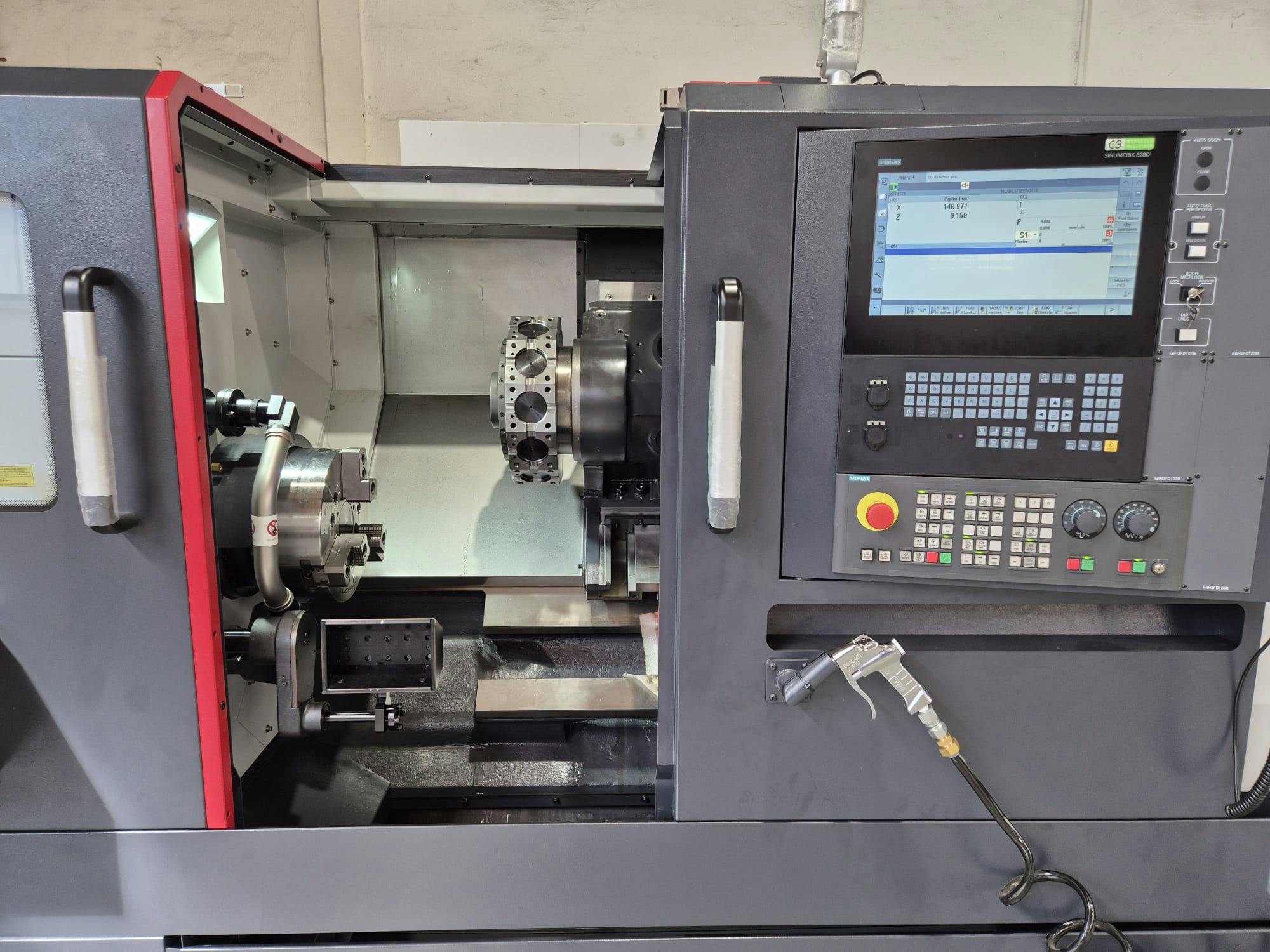

SMEC SL 3000 BLMYear of manuf. : 2023 Control : Siemens 828D - ShopTurn Turning diam. : 405 mmTurning length : 956 mm____________Description:Main Spindle:Technology:Belt-driven spindleSpeed (max.):3,000 rpmPower (max.):26 kWBar capacity:91 mmWorkpiece clamping:3-jaw chuck, SAMCHULLY HS-12Tool holder:Technology:12-station turretTool holder:BMT65Tool drive:5,000 rpmTravel in X/Y/Z:215/-/560Main Spindle:Technology:Trailed tailstockStroke:100 mmQuill diameter:110 mmTaper:MT5Main Spindle:Chip Management:Chip ConveyorCoolant Management:IKZ Pump with Oil Skimmer and High Pressure, 10 barTool Measurement:Automatic Measuring ArmAutomation:PreparedFinished Part Removal:Part Catcher with Collection BoxSetup Mode:Electronic Handwheel

CNC lathe Okuma LU 3000 EX- M2SC 1000 Control: OSP-P300LA Year of Make: 2022 Internal machine no. 66 Turning length: 1,000 mm Turning diameter: 340 mm Speed: 5 - 5,000 rpm Tool: VDI 40 2 Tool Turrets A-turret: 12 tool positions / all places driven B-turret: 8 tool positions - Tailstock - Hinged belt chip conveyor - 3-jaw chuck Kitagawa B-212 Z220 bore in chuck Ø 91 mm - Touchsetter - One Touch IGF - Handwheel on the control panel - Tool monitoring system - Reinforced coolant pump 8 bar

EMCO Hyperturn 65Year of manuf. : 2017 Control : Siemens 840Dsl Turning diam. : 500 mmTurning length : 800 mm____________Description:Mainspindle:Technology:MotorspindleSpeed:4.0 00 rpmPower (max.):29 kWTorque (max.):250 NmBarcapacity:76 mmSubspindle:Technology:MotorspindleSpeed:5.000 rpmPower (max.):29 kWTorque (max.):250 NmEjector:PneumaticMovement in Z:800 mmToolcarrier I (X/Y/Z):Technology:Turret with 12 stationsTaper:VDI30Tooldrive:5.000 rpm, 6,7 kW, 25 NmMovement in X/Y/Z:260/100/800 mmEilgang in X/Y/Z:30/12/30 m/minToolcarrier II (X/Z):Technology:Turret with 12 stationsTaper:VDI30Tooldrive:5.000 rpm, 6,7 kW, 25 NmMovement in X/Z:210/800 mmEilgang in X/Z:30 m/minEquipment/Accessory:Chipmanagement:Chip conveyorCoolingmanagement:Internal cooling unit with paperbeltfilter and High-pressure, 40 barRawmaterialfeed I:Robotinterface preparedRawmaterialfeed II:Barloaderinterface prepa ...

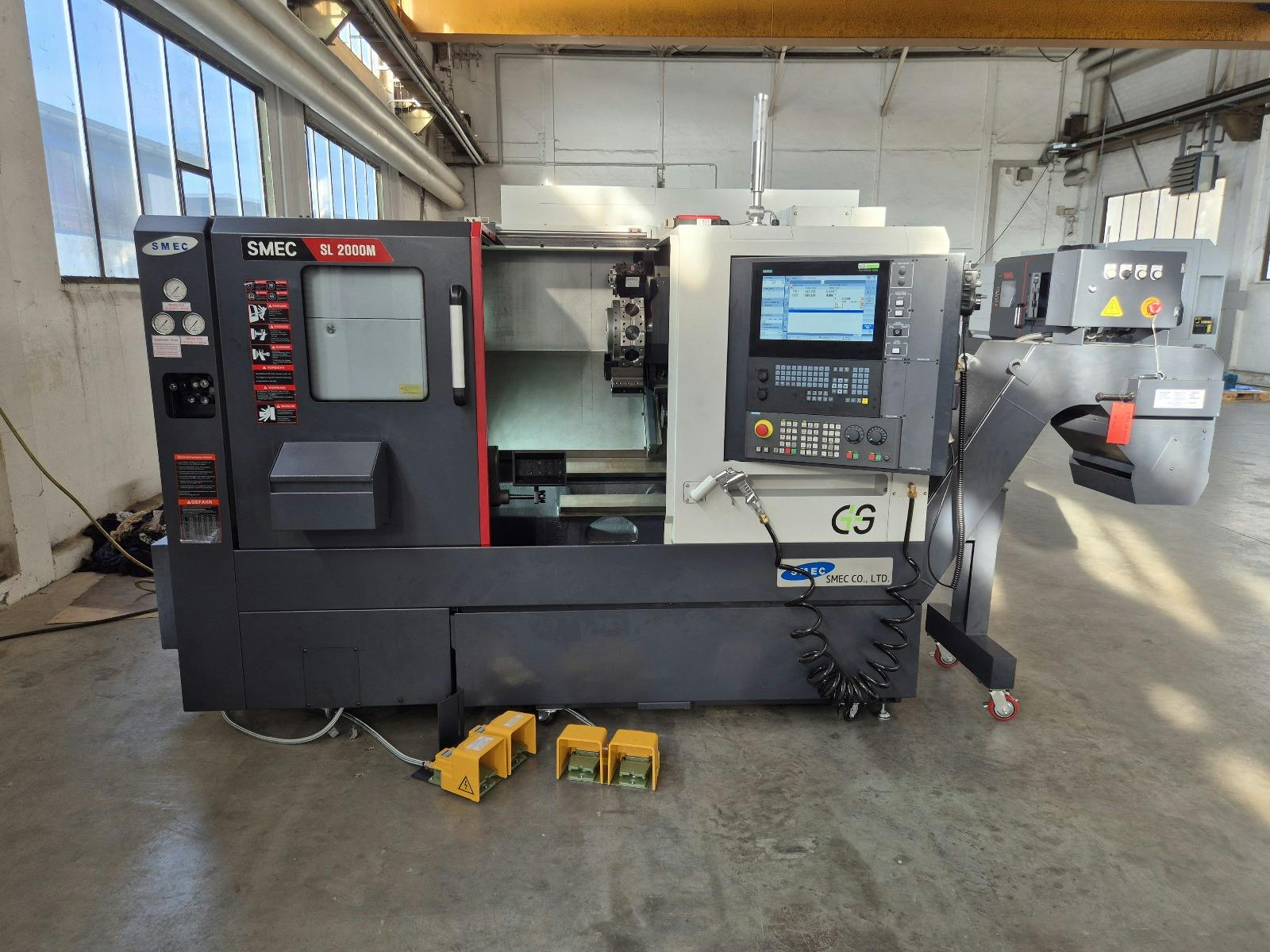

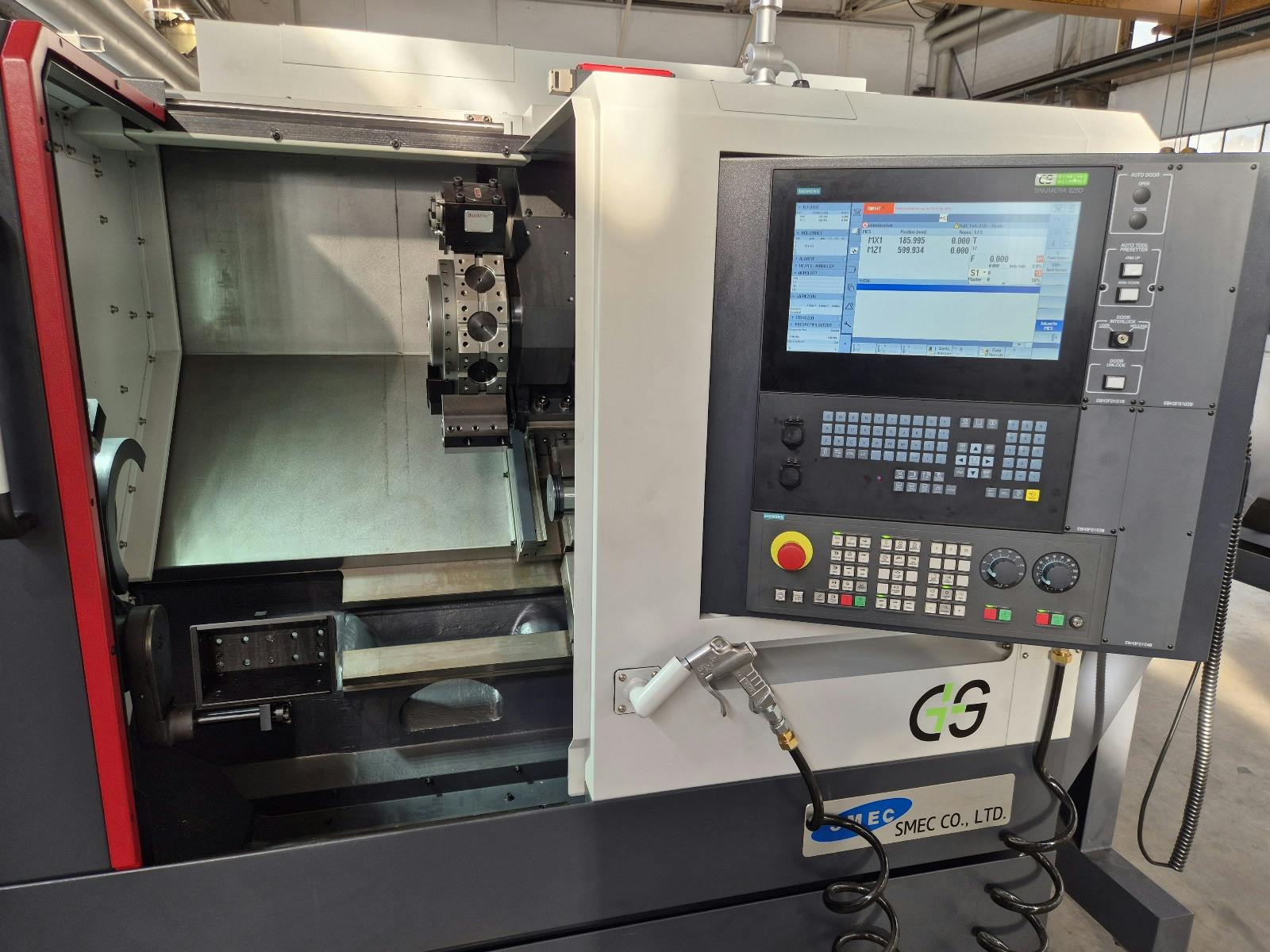

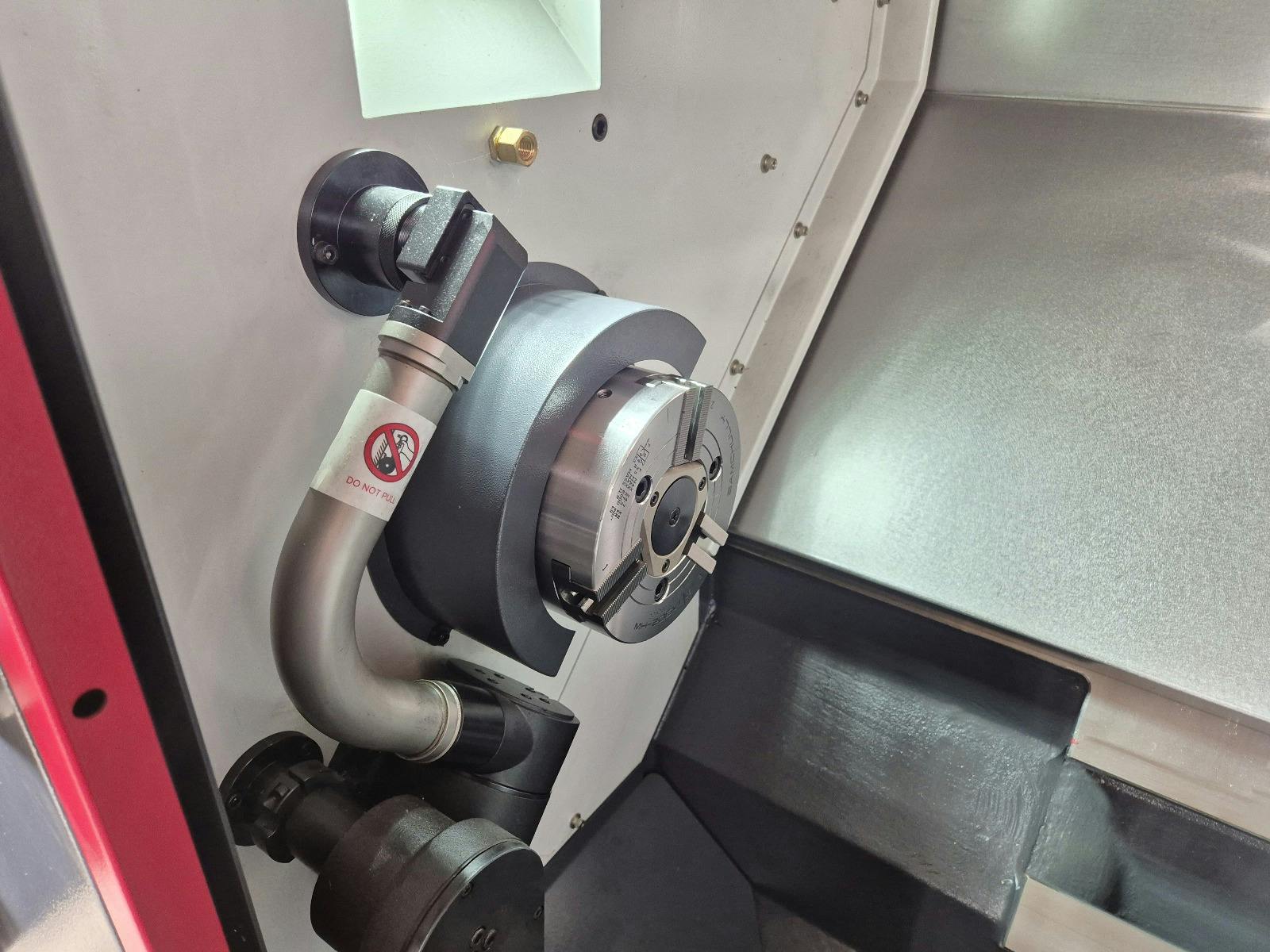

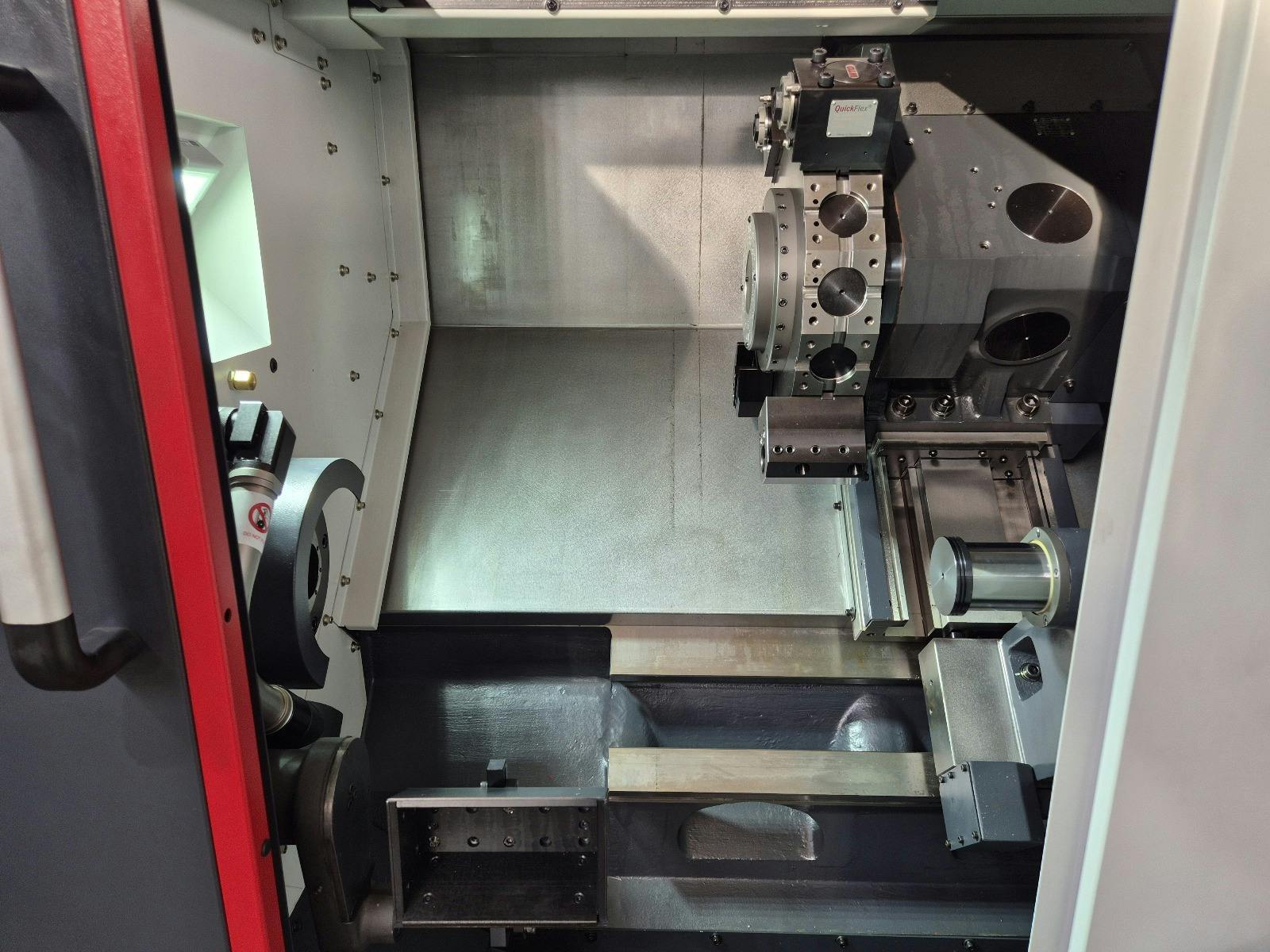

SMEC SL 2000 MYear of manuf. : 2023 Control : Siemens 828D - ShopTurn Turning diam. : 360 mmTurning length : 520 mm____________Description:Main spindle:Technology:Belt-driven spindleSpeed:6,000 rpmPower (max.):18.5 kWBar capacity:52 mmWorkpiece clamping:3-jaw chuck, Samchully MH-206 V1Tool holder:Technology:12-station turretTool holder:BMT55Tool drive:5,000 rpmTravel in X/Y/Z:215/-/560Tailstock:Technology:Trailed tailstockStroke:80 mmQuill diameter:75 mmTaper:MK4Features/Accessories:Chip management:Chip conveyorCoolant management:IKZ pump with oil skimmer and high pressure, 10 barTool measurement:Automatic measuring armAutomation:PreparedFinished part removal:Parts catcher with collection boxSetup operation:Electronic handwheel
