tur lathe used for sale

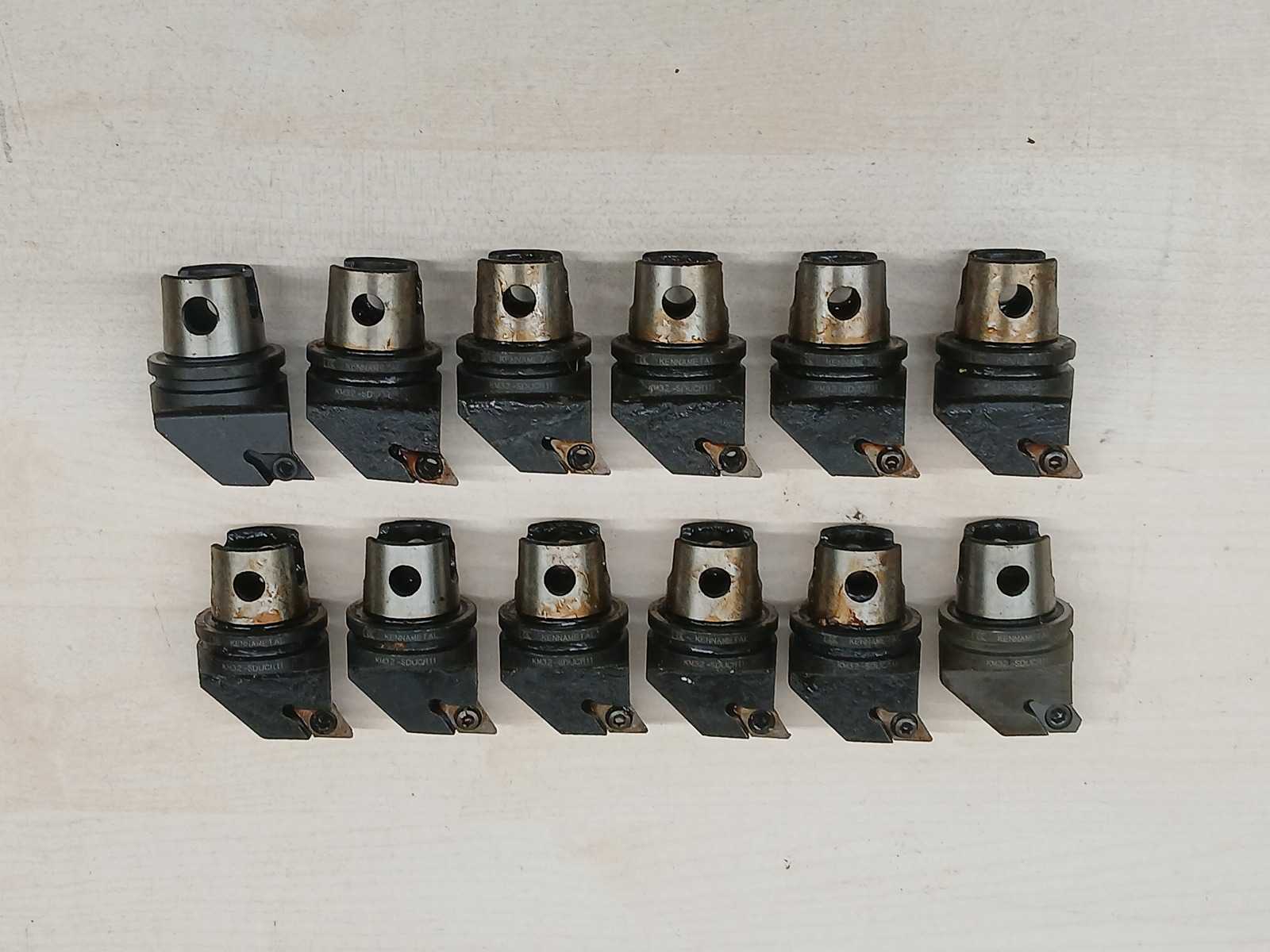

Haas SL-10T CNC Lathe New turning tools are also included(paid approx. €3440), chuck (packs) for individual production and chuck (cartridges) for working from bar. The machine is in operation and the condition and accuracy can be tested. The lathe has an arm with a probe for quick tool presetting. Maintained regularly.

Machining capacity - Maximum workpiece diameter: 6300 mm; - Maximum height of workpiece to be machined: 4600 mm; - Maximum weight of workpiece: 150000 kg; Faceplate - Faceplate diameter: 6000 mm; - Turning speed range: 30 rpm; - Main motor power: 125 kW; - C axis: 0-360°/min.; Cross rail - Cross rail vertical travel: 3500 mm; - Feed of cross rail: 1000 mm/min.; - Motor power: 18.5 kW; Turning and Milling RAM, 1 piece - Vertical RAM travel, Z1 axis: 2400 mm; - Horizontal RAM travel, X1 axis: 7200 mm; - RAM octagonal section: 310x310 mm; - Maximum milling speed: 3000 rpm; - Maximum milling power: 30 kW; - Maximum torque: 800 Nm; - Milling spindle taper: ISO-50 (DIN69871/DIN69872); - X1/ Z1axes rapid feed: 6000 mm/min; Turning RAM, 1 piece - Vertical RAM travel, Z2 axis: 2400 mm; - Horizontal RAM travel, X2 axis: 7200 mm; - RAM octagonal section: 310x310  ...

Inv. Num. : 7175 Type: DECO-2000/13 Producer: Tornos Created: 2001 Parameters: Control system: FANUC PNC DECO Max. rod diameter: 13 mm Number of synchronized axes: 10 pieces Maximum spindle speed: 10,000 1/min Length: 2000 mm Width: 1260 mm Height: 1950 mm Weight: 3000 kg Equipment: Robobar SSF 226 Bar Feeder (2000)

Inv. Num. : 7174 Type: DECO-2000/10 Producer: Tornos Created: 2001 Parameters: Control system: FANUC PNC DECO Max. rod diameter: 10 mm Maximum bar length: 2000 mm Maximum turning length: 180 mm Maximum turning diameter over bed: 200 mm Maximum spindle speed: 12000 1/min Length: 2000 mm Width: 1010 mm Height: 1950 mm Weight: 1500 kg Equipment: Robobar SSF 226 Bar Feeder (2000)

Proxxon Micromot PD 400 Precision Lathe 550 W Location of the machine: 76661 Philippsburg The machine can be viewed on site. It works perfectly. You can arrange a viewing appointment at any time. We'd love to hear from you.

Parallel Lathe MULLER & PESANT Between points: 1000 mm Maxi Ø on bench: 400 mm Maxi Ø over saddle: 220 mm Spindle exit: Ø 42 mm Spindle speed: from 40 to 2000 RPM Square turret 3-jaws chuck Ø 215 mm 2 speeds motor Threadings: Metric + Whitworth Tailstock: CM4 Autp Feeds longitudinal + transversal Delivered with 3 Tool holders Fixed steady Lubricant pump Voltage: 220 V Tri Length: 2300 mm Depth: 900 mm Total height: 1300 mm Weight: approx 1,7 T

Twin Turret and twin Spindle Controller fanuc 31iA Main spindle bore diameter 51 mm Maximum Cutting Length 125mm Spindle Nose A2-6 Spindle Speed 5000rpm B axis Travel 635mm X axis Travel 190mm X2 axis Travel 175mm Y axis Travel +/-40mm Z axis Travel 500mm Z2 axis Travel 500mm

Parallel Lathe MULLER & PESANT Between points: 2500 mm Maxi Ø on bench: 520 mm Maxi Ø over saddle: 280 mm Maxi diameter in brocken bed: 700 mm Spindle diameter: Ø 56 mm Spindle speed: from 12,5 to 1000 RPM TRIPAN Turret 3-jaws chuck Ø 250 mm Tailstock CM4 Auto feeds longitudinal + transversal Lubricant pump Voltage: 380 V Dimensions (L x W x H): 4000 x 1500 x 1600 mm Weight: approx 3,5 T

Maximum machining diameters: 4000 mm / 3500 mm (clamping plate) Clamping plate speed: max. 80 rpm Maximum workpiece height: 2000 mm Main drive power: 55 Kw Note grinding equipment Maximum workpiece weight: 40t Regular service and maintenance

Gildemeister GMC20 ONE, Options / Accessories, - 5 Cross-slides pos. 1;2;3;4;5, - 2 Radial slides pos. 6 for cutting and rear-working operations, - 1 C-axis for the pick up spindle, - Pneumatic work-piece unloading chute for pos. 6, - Work-piece conveyor belt, - Swarf conveyor, worm type, - 5x Frontal tool spindle, fix, - Pick- up spindle in pos. 6, - High pressure coolant device 70l / 50bar, Country of origin: Italy, Control: Siemens 840D, Number of spindles: 6, Max bar diameter [mm]: 25, Spindle speed [rpm]: 6.000, Spindle motor [kW]: 9,1, Z - travel [mm]: 70 / 140, Total power requirement [kVA]: 98, Weight of the machine ca. [kg]: 9.800, Auto bar loader: Cucchi Giovanni DBM.625

Weibert DB 460XL Vario Lathe Diameter max. 305mm Center Size x Height: 460 x 155mm Spindle head thread M33 x 3.5 MK2 3 speeds: 650-1430, 1240-2790, 1600-3800 rpm Electronically variable Rotating grain tip Four-pronged driver Swivel steel support 150mm, 300mm Clamping washer 145mm Quill adjustment: 55mm Motor 550W 230V 50Hz Dimensions (LxWxH): 900 x 340 x 410mm Net weight approx. 38kg G&STÜ-5920462

Control: SIEMENS 840D Max.turning length: 350 mm Max swing diameter over bed/slide: 320 mm/152mm Workpiece diametr: 310 mm Material passage through the spindle: 0 mm Rotation speed(max.) 6000 rpm Quick Change Toolposts:8 Taper ? VDI20 Coolant tank:80l p

Control: SIEMENS 840D Max.turning length: 350 mm Max swing diameter over bed/slide: 320 mm/152mm Workpiece diameter: 310 mm Material passage through the spindle: 0 mm Rotation speed(max.) 6000 rpm Quick Change Toolposts:8 Taper ? VDI20 Coolant tank:80l

Universal lathe GILDEMEISTER NEF 320 K With Siemens SINUMERIK 810 DE CONTROLLER (SIMATIC PANEL TOUCH SCREEN) Year of construction: 2001 Spindle bore: 52 mm Center width: 750 mm Circulation O above bed : 320 mm Circulation O over face slide: 150 mm Flat travel : 185 mm Speed range: 14 – 3550 rpm infinitely variable With the following accessories: Slide protection with interior lighting Multifix Tool Holder Coolant system 3 jaw chuck 0 200 mm Tailstock with retractable quill Chip pan Operating instructions THE MACHINE WAS ONLY USED FOR APPRENTICESHIP TRAINING THE MACHINE IS IN VERY GOOD CONDITION

Gurutzpe Super AT lathe. Distance between centers: 4000mm. Swing: 1020mm. Swing over carriage: 710mm. Swing in gap: 1320mm. Bore: 76,5mm. Motorized carriage. 4 independent jaws chuck. DRO Heidenhain.

Pinacho S90-310 lathe. Distance between centers: 1.625mm. Swing: 620mm. Swing over carriage: 425mm. Swing in gap: 880mm. Bore: 80mm. 12 speeds: 30-1500rpm. Motor power: 7,5cv. Equipped with chuck. Equipped with DRO Heidenhain. CE.

Wood milling and turning machine We will provide you with more information about the machine by phone or e-mail.

Partial excerpt machine description (details on request): 6 motor spindles 5.5 kW max. speed 8,000 rpm. Spindle capacity 16mm, Z 50mm stroke; 6 slides x 40mm stroke 1 carriage for counter operation, 75mm stroke. Counter spindle with integrated motor 6 kW Max. speed 8,000 rpm, 150mm stroke, Rotating ejector with flushing HP Numerical control Fanuc 30i Parts disposal and pneumatic Slide plastic-coated Outer distribution belt larger capacity Active rod preference device Collets type F16 for active Bar preferential device Various clamping and reduction tubes Turning Tool Holder Base (16x16) Transverse drilling unit ratio 2:1 Max. 8,000 rpm - max. 4.4 Nm Front drilling unit ratio 2:1 Max. 8,000 rpm - max. 4.4 Nm Electrical control cabinet Oil tank 1,100 litres Coolant pump 100 l/min., 4 bar Paper filter system 50 μm Fine filter system 5 μm hydrostatic circuit Hy ...

Component size: Max. diameter 150 mm, height 112 mm, min. diameter: 70 mm, height: 64.2 mm CNC Path Control Sinumerik 840 D For more technical data, see PDF Electrified viewing possible in Bielefeld

Key data: 1250 mm, 1400 mm, 1150 mm

Digital Workpiece weight 8 t Crossbar adjustment 800 mm Chisel travel 700 mm Swivel angle max. 45 +/- degrees Special equipment: wet turning device, Fine-tuning chisel device, incl. accessories Machine weight approx. 13.5 t Space requirement approx. 3.4 x 5.8 x 4.5 m

Lead and Pull Screw Lathe VOEST DA300 Year of construction ca 1980 Turning diameter over bed 600mm Effective turning length: 1850 mm Spindle Passage: 85mm Speeds: 14 - 1000 rpm Tailstock: MK5 Reversal backlash face spindle: 0.5 mm Reversal clearance upper slide: 0.25 mm Rapid traverse bed sledge: in both directions EQUIPMENT - Multifix C - 5 steel brackets - Rotating center tip MK4 - 4 jaw chucks Ø 400mm, plus 3 sets of jaws - 3 jaw chucks Ø 400mm - 3 sets of jaws - Both linings Röhm - Fixed bezel The machine is in good condition. The machine bed is in very good condition.

Key data: 280 mm

Year of construction 2015 Center height: 165 mm Center width: 650 mm Turning diameter over bed: 280 mm Face slide: 180 mm Spindle speed: 30 - 4000 rpm (infinitely variable) Spindle bore: 43 mm Feeds: 0.025 - 0.9 mm/rev Thread pitch: 0.2 - 7 mm Spindle head DIN 55027: Size 5 Bed sledge travel: 610 mm Sledge travel: 165 mm Upper slide travel: 115 mm Inner cone tailstock quill DIN 228: MK3 Quill stroke: 82 mm Dimensions: 1600 x 860 x 1450 mm Weight: 1000 kg Total power requirement: 18kVA Accessories: 3-jaw chuck, Multifix quick-change steel bracket with cassettes, bezel, coolant device, lighting, chip protection

Inv. Num. : 7302 Type: SV 18 RA Producer: TOS Created: 1977, GO 2023 Parameters: Maximum turning length: 1250 mm Maximum turning diameter over bed: 380 mm Maximum turning diameter over support: 215 mm Maximum workpiece weight: 250 kg Equipment: Digital Measurement

Year of construction 2008 Control system Siemens 840 D Rotational diameter. [mm] 2400 Turning length [mm] 2145 General: Year of construction 2008 Control system Siemens 840 D Turning diameter 2,400 mm Rotation height 2,145 mm (stand elevation 900 mm) Machine Table: Technology gear table, 2 stages Drive power 100 kW Torque 39,700 Nm Holding torque milling operation 44,800 Nm Speed 250 rpm Face plate diameter 2,200 mm Table load max. 17,000 kg C-axis 0.001° Drilling and milling equipment: Technology Gear Spindle Speed max. 3,000 rpm Power 37 kW Torque 1,230 Nm Tool holder Capto C8 Crossbar: Vertical travel 1,000 mm Grid spacing 100 mm Distance between milling spindle and table 2,350 mm Support: Travel X-axis +/- 1,350 mm Z-axis travel 1,500 mm Chisel slide cross-section 250 x 250 mm Immersion diameter 340 mm Rotate tool holder Capto C6 Tool Hold ...

CNC Vertical Lathe BERTHIEZ TFM 125 Numerical Command: NUM 1040 Maxi turning diameter: Ø 1550 mm Turning height: 1000 mm Vertical run of the slide: 800 mm Max turning height under crossbar: 1280 mm 2 speed ranges: 1 to 125 RPM - 1.6 to 200 RPM 4-jaws chuck Ø 1250 mm False platform diameter: Ø 1500 mm Maxi permissible weight on chuck: 10 T Motor: 22 kW Horizontal travel at right of chuck: 895 mm Horizontal travel at left of chuck: 935 mm Left coolant section: 180 x 180 mm Tool changer: non-functional Chip Conveyor Voltage: 380 V Weight: approx 20 T

Hwacheon Model: VT-550 2SP Serial No.: M088358K4G E Year of Manufacture: 2010 Maximum spindle speed : 2000 rpm Maximum turning length: Ø700 mm. Spindle height: 1230 mm Maximum tool diameter: Ø26 Magazine capacity: 2 magazines x 12 tools X axis: 350 mm Y axis: Z axis: 790 mm Control: Fanuc Series Oi-TD Machine weight: 13.000 kg (each machine) Power: 75 Kva Running hours: 45963 Hours. Cutting time: 20155 Hours.

Year of construction: 2015 Condition: very good (used) X-axis travel: 925 mm Y-axis travel: 1,050 mm Z-axis travel: 600 mm Spindle speed (max.): 8,000 revolutions per minute Spindle speed (min.): 25 revolutions per minute Motor power: 2,200 W Total height: 3,525 cm Total length: 4,850 cm Total width: 2,998 cm Workpiece weight (max.): 700 kg Table load: 700 kg Input Current Type: AC Table width: 630 mm Tool length: 400 mm Total weight: 175,000 kg Coolant supply: 70 bar Equipment: Documentation/manual, infinitely variable speed Neff The Okuma Specialist and NeffBuy In addition, we will be happy to provide you with the all-round carefree package, inspection in our showroom including demonstration and acceptance, loading, transport, assembly and commissioning of the machine as well as a briefing and subsequent service. We operate Okuma CNC service throughout Europe bo ...

Key data: 560 mm, 1200 mm, 380 mm

Lathe Core Three-jaw chuck Multifix B 2 Holder Spindle bore 52 mm Speeds 38 - 1900 rpm Steels Chuck Sharpen 380 V 25 A Length 2.80 m Width 1.00 m Height 1.60 m

Parallel lathe used Brand: AMUTIO Model: HB575 It includes: - Hydraulic plate 3 claws of 240mm - Conventional plate with 3 claws of 250mm - Lunette open Diameter on bench: 575mm Maximum diameter on carriage: 525mm Diameters on transversal carriage: 300mm Height of points: 250mm Distance between points: 1,500mm Bar step: 51mm No. Spindle speeds: 18

Vertical working stroke 435 mm Horizontal X working stroke 520 mm Recirculating ball screws diameter 40 mm Ball screw pitch 8 mm Axis movement motors 12 Newtons On-axis reading system with optional ballscrews optical scales CNC Fanuc Maximum lathe diameter 250 mm Max. put diameter 250 mm Spindle Asa 6 Max. electro spindle power 22 kW Maximum speed 6000 Rpm Maximum torque 119 nm

Three axes + revolver turret with twelve driven tools + automation. Turning diameter: 160 mm Turning height: 150 mm Table/pallet diameter: 100 mm Turning power: 19.5 kW Z axis carriage travel: 375 mm Number of tools: 12 Pallets: Yes Length: 7000 mm Width: 3500 mm Height: 3100 mm Weight: 5500 kg

The chuck is self-centering with 6 jaws and has a diameter of 1000 mm with the possibility of processing pieces up to a size of 1400 mm. The total electrical absorption of the lathe is approximately 130 A and includes: • spindle motor • x and z axis motors • head lubrication pump motors • refrigerant pump motor • hydraulic central pump motor • crosshead motor The CNC on the machine is FAGOR. Electrical diagrams and machine use and maintenance manuals are available

Tornos Multiswiss 8x26, Year of construction 2018, Control Tornos, 1 x counter spindle, 4 x reverse machining, Parts tape, 2 x 80 bar high-pressure pumps, fire extinguishing system, Bkhjrdnfq8o hinged belt conveyors, Bar feeders, paper tape filters,

Machine also is fitted with: -Span conveyor ; -Cooling device; -Fairing for cooling device. Last edition CNC Fanuc equipment. Delivery time: 2 months. Please send request for more technical details, price and photos. Machine can be seen in our workshop anytime.

Webster & Bennett 36” Fixed Rail vertical borer Table Diameter 36 ” with a set of standard jaws Max swing 46 ” gripped on the inside Max height under cross rail 23” Travel of ram 22” Cross travel 23” from centre and will travel 2” past centre Table speeds 185 to 400 RPM ( 12 ) Feeds 0.005” to 0.250” per rev ( 12 ) 25 HP main motor Volt 440

Description: Fabrication number: R3GL9012 Operating voltage: 400 V Frequency: 50/60 Hz Rated current: 27 A Control unit: FANUC SERIES 21-T Turning length: approx. 500 mm Travel distances: Z: approx. 300 mm X: approx. 300 mm Incl. 10-position tool turret Attention: the tool holders in the tool turret are not included in the scope of delivery Tool holder: VDI 30 Incl. bar loader from the manufacturer KUPA Type: 42R weight approx.: 1,500 kg, Approx. Onsite Dimension. (l x w x h): 4,000 x 1,400 x 1,900 mm

Description: Fabrication number: R2EV3202 Operating voltage: 3 x 400 V Frequency: 50/60 Hz Rated current: 33 A Control system: SIEMENS SINUMERIK Turning length: approx. 500 mm Travel distances: Z: approx. 400 mm X: approx. 400 mm Incl. a 12-position tool turret with driven tool stations The machine has a C-axis Attention: the machine is delivered without any visible tool holders Tool holder: VDI 30 weight approx.: 2,500 kg, Approx. Onsite Dimension. (l x w x h): 3,500 x 1,700 x 1,900 mm

Description: Factory number: R6ET1802 Operating voltage: 400 V Frequency: 50/60 Hz Rated current: 38 A Control: SIEMENS SINUMERIK Turning length: approx. 1000 mm Travel: X: approx. 400 mm Z: approx. 600 mm The machine is equipped with a tailstock and a two-jaw chuck from the manufacturer SCHUNK (diameter: 250 mm) Attention: without the tool holders on the tool turret Incl. chip conveyor Tool holder: VDI 30 weight approx.: 4,000 kg, Approx. Onsite Dimension. (l x w x h): 4,000 x 2,000 x 2,000 mm

Year of construction 2008 Vertical lathe type Working range 760 mm for two mandarins Spindle motor power 30 37 kW Asa 11 spindle connection Spindle revolutions 25 1500 Turret with 12 positions on each side FANUC numerical control Machine weight 23,500 kg Year 2008

The machine is in good technical condition, testing possible upon agreement. Clamping plate diameter: 1000 mm Max. diameter of peripheral turning: 1150 mm Max. workpiece height: 900 mm Performance of the main engine: 40 kW Machine weight: 12,000 kg

Total machine input:: 83 kW Clamping plate diameter: 2400 mm Max. workpiece diameter: 2600 mm Max. workpiece height: 1600 mm Max. workpiece weight: 15000 kg

The SK 125 carousel is in good technical condition. Can be seen by appointment. Machine weight: 556000 kg Total machine input:: 686 kW Clamping plate diameter: 125 mm Max. workpiece height: 4000 mm Max. workpiece weight: 120 kg Clamping plate speed: 0.35-14 rpm The largest av. lathe. cross and side support.: 12500 mm Avg. clamping plates:: 8000 mm The greatest distance between clamps. plate and knife. side holder support :: 4200 mm Machine dimensions lxwxh: required area 20000x20000x12000 mm

Key data: 1000 mm, 2000 mm, 800 mm

Heavy Lathe, Lathe, Lathe, Lead and Pull Screw Lathe, Lead and Pull Spindle Lathe -Manufacturer: Arad M.I.C.M., Type SN800x2000 -Turning length: 2000 mm -Swivel Ø over bed: 800 mm -Swivel Ø without bed: 1000 mm -Swivel Ø over support: 400 mm -Spindle bore: Ø 83 mm -Spindle speeds: 8 - 1250 rpm -Three-jaw chuck: Ø 400 mm -Quick change: Multifix steel bracket -Tailstock mount: MK5 -Drive motor: 18.5 kW -Dimensions: 4000/1450/H1430 mm -Weight: 4500 kg The machine can be viewed at any time. Free loading. Transport possible throughout Europe

Copy lathe model AHDK 125 with copying device Year 89

Inv. Num. : 6681 Type: SUS 63/5000 Producer: TOS Generated: Parameters: Maximum turning length: 5000 mm Maximum turning diameter over bed: 655 mm Maximum turning diameter over support: 390 mm Spindle diameter: 82 mm Equipment: Chuck Grasshopper Digital Measurement Knife Fixed bezel Movable bezel

Stock number: 3840 CNC LATHE Manufacturer: OKUMA, Type: LT 300 MY Machine NO.: 123046, Year of manufacture: 2006 Specifications: Main motor power 22/15 kw Main spindle speed range 38-5000 rpm Bore through drawing tube 70 mm dia. C Axis - Main Spindle Movement 0.001 Degree Y axis 160 mm +/- 80 mm Tool turret 1 with 12 stations Powered stations turret 1 12 pcs. Motor power driven tools 7/3.3 Kw Tool turret 2 with 12 stations Powered stations turret 2 12 pieces Driven werkzeuumdr. 45-4500 rpm Counter spindle Counter spindle speeds 38-3800 pr/min Motor Power Counter Spindle 22/15 Kw Control OSP P200L Fabr. Spindle operating hours 16692 hours Controlled in 7 axes Accessories: Hydr. Chuck main spindle Kitagawa B210 mm dia Hydr. Chuck Subspindle Kitagawa B-210 mm dia Tool holder VDI Chip conveying. Mayfran  ...

CNC turret lathe Okuma LB15 at call The OKUMA LB 15 CNC lathe has been professionally serviced regularly since its purchase and is in perfect technical condition. It has a hydraulic chuck with a diameter of 250 mm and a turret holder for 12 tools. The turning spindle rotates at a speed of 70-3800 rpm and has a diameter of 75 mm. Technical specifications of the CNC lathe OKUMA LB-15 – CNC control: OSP 5000L-G CNC system (German) – Data transmission: RS232 – Tool turret: 12-position type BOLT ON – Slain chuck: 250 mm – Spindle: 70-3800 rpm (11 kW, 30 min; 7.5 kW – continuous operation) – non-continuous spindle – Diameter of the spindle bore: fi 75 mm (at a depth of 70 mm, measured from the front of the lathe chuck and without jaws) – Diameter of the spindle bore: fi 28 mm (at a depth of 200 mm, measured from the front of the lathe chuck and without jaw ...

Lead & Pull Screw Lathe TOS SV 18 RA Year of construction approx. 1980 The machine is in good used condition and works perfectly. Transport or delivery can be arranged. Of course, loading technology is available at the time of collection. Specifications: Center height 180 mm Circumferential diameter over bed 380 mm Circulation diameter over support 215 mm Center width 1000 mm Spindle bore 41 mm Speed range 14 - 2800 rpm. Longitudinal feeds 0.02 - 5.6 mm/rev Feeds flat 0.01 - 2.8 mm/rev metric pitches 0.2 - 140 Inch thread 1/5 - 140/1" DP thread 1 - 224 DF Module thread 0.2 - 70 m Drive power 6.0 kW Dimensions approx. 2200 x 1000 x 1400 mm Weight approx. 1800 kg with -Arbor - Three-jaw lathe chuck - Moving grain tip The machine can be viewed at any time.

CNC Vertical Lathe Make: Hüller Hille Type: VDM 120 – 11 Year of construction: 2002 Control: Siemens 840 C Max. turning diameter: 1300 mm Max: Circulation diameter: 1400 mm Axle stroke: Z-1000 mm X-1500 mm Dimensions to top edge of spindle: 940 mm Bearing Ø in front bearing: 710 mm Max. speed: 500 rpm Max. torque: 30 000 Nm Main spindle motor AC max.: 100/40% ED 76/115 kW Chip diameter: 1600 mm Feed intake/centeringØ: 790 mm Max. feed force Z/X axis: 25000 N Axis speed Z-X-axis: 0.01 – 14000 mm/min Z-X-Axis Displacement Measuring System: Angle Position Sensor/Linear Measuring System Tool carrier: Disc turret with B-axis Tool holders: Modular system UTS 50 Machine weight: 30 000 kg

Control Mazatrol Fusion 640 TN Turning diameter 180 mm Turning length 100 mm Travel X/Z 320 +560 / 280 mm Speed 7000 min-1 12-speed turret Conveyor Accessories:
