tur lathe used for sale

turning diameter over bed:240 mm turning length:450 mm total power requirement:0,5 kW weight of the machine ca.:120 kg dimensions of the machine ca.:1500 x 600 x 1200 mm centre height:120 mm spindle bore:21 mm revolutions per minute: 75 - 2980 U/min

turning diameter:480 mm turning length:1250 mm control:H 645 weight of the machine ca.:8 t dimensions of the machine ca.:5 x 2 x 2 m centre distance:1580 mm swing over bed:495 mm swing diameter:üb.Querschlitten ca.350 mm working area:1600 mm control:H645 connected load:50 kW

control: Numeriksteuerung CNC 700 K total power requirement:28 KVA weight of the machine ca.:7,8 t dimensions of the machine ca.:6610 x 2280 x 2235 mm work height max.:1060 mm greates pass round over bed:305 mm spindle bore:82 mm Documents:vorhanden

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5

turning length:2000 mm control:- total power requirement:25 kW weight of the machine ca.:3 t dimensions of the machine ca.:3800 x 1800 x 1850 mm swing over bed:500 mm swing diameter over face slide:280 mm control:Zyklen-Steuerung Heidenhain bed width:350 mm Documents:vorhanden

turning diameter:1600 mm turning length:3000 mm centre height:800 mm turning diameter over bed:1600 mm turning diameter over bed slide:1400 mm turning dia. over face-slide:1200 mm max. workpiece weight between centers:20 to speeds:5,6 -800 1/min transmission ratio:3 spindle bore:112 mm turret (x-stations):8 / VDI 60 travel -x axis:850 mm travel -z axis:3020 mm rapid power traverse in X-and Z direction:6 / 10 m/min power maindrive:46 kW weight of the machine ca.:22 to. dimensions of the machine ca.:7,2 x 4 (3,11) x 2,7 m tech-in lathe, flatbed, tailstock, 8-pos. BARUFFALDI turret with 4 live tools, power 9kW, 4-pos. BARUFFALDI square-headed turret horizontal, C-axis, 3-jaw hydr. chuck SMW Autoblock KNCS 800/165, dia. 800mm, quick adjustment, power cylinder with 2 pressure clamping system, chipconveyor, coolant device, accessories

turning diameter:230 mm turning length:810 mm centre distance:1.000 mm turning diameter over bed:460 mm spindle passage:56 mm chucking diameter:200 mm turret head:8 x VDI 30 Pos. turning speeds:3.100 1/min max. workpiece weight:570 kg spindle motor:18 kW dimensions of the machine ca.:3,7 x 1,9 x 1,8 m weight of the machine ca.:2,9 t teach-in lathe, PARAT tooling-system, hand operated collet chuck, 3 jaw chuck, 4 toolholders

bar material dia.:65 mm turning length:644 mm turning dia. over bed:600 mm turning diameter over slide:430 mm y-axis:100 (+-50) mm turning speeds:2x 5.000 1/min positive location each:2x C-Achse, 0,001° Grad Sub spindle:ja/yes turret (x-stations):2x 12 VDI 30 Pos. driven tools:2x 12 Pos. turning speeds:2x 4.000 1/min control:FANUC 18 iTB total power requirement:30 kVA weight of the machine ca.:8 t dimensions of the machine ca.:3,5 x 2,5 x 2,3 m turning- milling center with Y-axis, collet device on main and subspindle, high pressure pumps 2x 14bar, parts catcher/conveyor, barloader ENTL 10-65, chip conveyor, lot of accessories approx. 54.500 hours "machine on", 30.500 h "automatic", 14.000 h "feeding"

turning diameter:1000 / 700 mm turning length:3000 mm face slide travel:600 mm turning diameter over slide:700 mm turning speeds:1-1.800 1/min transmission ratio:2 spindle:46 (60%) kW spindle bore:132 mm quill stroke:280 mm workpiece weight max.:2.560 kg total power requirement:38 kW weight of the machine ca.:6 t dimensions of the machine ca.:5 x 2,6 x 1,9 m teach in lathe, PARAT tooling system, SCHUNK ROTA NC 500-160 hydr. power chuck, tailstock, chipconveyor

turning diameter:80 mm turning length:235 mm max. bar capacity:42 mm power capacity - driven tools:1 kW speeds spindle 1:6000 1/min speeds spindle 2:5000 1/min numbers of turret head positions:8 pos drive capacity - spindle motor:SP1 11 / SP2 5,5 kW Tools speed:60-6000 1/min weight of the machine ca.:ca. 3 t dimensions of the machine ca.:2,4 x 1,5 x 1,6 m High Performance CNC Turning- and Milling Center - chipconveyor - subspindle - live tools - C-axis - brake - partscatcher and partsconveyor - tool eye - barloader LNS HYDROBAR MINI-SPRINT approx. 5000 working hours

turning diameter:420 turning length:1230 mm swing over bed:700 mm swing diameter over slide rest:550 mm centre distance:1390 mm y-axis:+/- 60 mm turning speeds:3500 1/min turret (x-stations):12 power capacity:22 / 18,5 kW :1 / 12 x BMT rapid traverse x + z axis:20 / 24 m/min :76 mm total power requirement:50 kVA weight:7,8 t dimensions of the machine ca.:4,10 x 2,05 x 2,21 m CNC lathe with Y-Axis and driven tools, C-axis, tool eye, hydraulic 3-chaw-juck D= 250 mm, reinforced pump 15 bar, pressure-compensated clamping cylinder , 2 step clamping pressure, prepared for steady (without steady), progr. tailstock (dragging device), live tool device (3,7 kW, 3.000 rpm), chipconveyor, 1 pcs. live tool included approx. 15.500 working hours

turning diameter over bed:1000 mm turning diameter over slide rest:745 mm turning length:3000 mm turning speed range:4,5 - 900 U/min spindle bore:110 mm max. workpiece weight between centres:12500 kg total power requirement:30 kW weight of the machine ca.:9 t dimensions of the machine ca.:5,2 x 2,3 x 2 m 3-axes digital readout rapid feed, feed at upper support 350 mm 1 fixed steady face plate diameter 1000 mm coolant attachment

turning diameter:830 mm turning length:4000 mm turning diameter over bed slide:540 mm spindle bore:130 mm turning speed range:2 - 1600 U/min rapid speed:4 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:55 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:7 x 2,2 x 2 m with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment

turning diameter:500 mm turning length:1500 mm turning diameter over bed slide:290 spindle bore:71 mm turning speed range:3 - 2800 U/min rapid speed:10 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:22 kW weight of the machine ca.:3,2 t dimensions of the machine ca.:3,0 x 1,6 x 2 m with Teach In controll R&D MTC-K PARAT toolpost 1 fixed steday dia. 100 mm 4 jaw face plate dia. 500 mm coolant attachment

turning diameter:800 mm turning length:2965 mm max. turning dia. over saddle:520 mm spindle bore:92 mm turning speed range:3 - 1800 U/min spindle head:Größe 11 total power requirement:37 kW weight of the machine ca.:6,5 t dimensions of the machine ca.:5,2 x 2,2 x 1,9 m Teach In Control MTC-K 3-jaw chuck ROTAS Dia. 400 mm face plate RÖHM Dia. 630 mm 4-station toolholder system PARAT 1 fixed steady coolant attachment and chip conveyor

turning diameter over bed:570 mm turning diameter over slide rest:365 mm turning length:2000 mm feed per revolution:0,06 - 58 / 0,03 - 28 mm spindle turning speed range:11,2 - 2240 U/min spindle bore:62 mm spindle head:8 nach DIN 55022 total power requirement:15 kW weight of the machine ca.:4,8 t dimensions of the machine ca.:4,5 x 1,5 x 1,4 m with digital readout HEIDENHAIN rapid feed, MULTIFIX toolholder system fixed steady dia. 160 mm 3 jaw chuck RÖHM TR 250 coolant attachment diverse toolholders, diverse jaws

turning diameter:1250 mm turning length:6000 mm spindle bore:130 mm Turning rate:5 - 710 U/min. turning diameter over bed slide:850 total power requirement:37/52 kW weight of the machine ca.:16 t dimensions of the machine ca.:12 x 4 x 2 m Teach In Controll HEIDENHAIN 1 fixed steady

turning diameter:325 mm turning length:600 mm total power requirement:35 kW spindle drive:25 kW spindle turning speed range:5000 U/min speeds of tool:4500 U/min rapid traverse X-axis:60 m/min diverse toolholders:VDI 40 rapid traverse Z-axis:45 m/min weight of the machine ca.:6,5 t dimensions of the machine ca.:3,5 x 2,5 x 2,1 m Machine with SIEMENS 840 D control power line with shopturn - C and Y-axis, driven tools - bar loader IRCO ILS-RBK - coolant device with coolant throough revolving head - Revolver - counter spindle - chip conveyor - collet clamping - part catcher

turning diameter:626 mm turning length:3000 mm Turning diameter:600 mm spindle bore:100 mm spindle turning speed range:2800 U/min weight of the machine ca.:18 t Machine overhold and retrofit in 2003 with SIEMENS 840 D control - NC steady rest - 12-fold revolving head - splash doors - tailstock - coolant device

turning diameter over bed:1450 mm turning diameter over slide rest:1000 mm turning length:8000 mm spindle bore:160 mm turning speed range:2,8 - 560 U/min bed width:850 mm faceplate diameter max.:1400 mm turning diameter in the gap:1800 mm length of gap:600 mm dimensions of the machine ca.:12 x 2 x 2,5 m with Digital Readout 2 fixed steadies dia 1070 mm chip conveyor

turning diameter over bed:400 mm turning diameter over slide rest:250 mm turning length:1000 mm max swing over gap:520 mm Height of centres:200 mm crossed path:230 mm bed width:218 mm main spindle bore:52 mm spindle size:MK 6 speeds::55-2000 U/min turning angle of tool post:90 grad tail stock:50 mm taper in tailstock:MK 4 threading metric:0,4-7 mm threading WHITWORTH:4-60 TPI total power requirement:2,2 kW dimensions of the machine ca.:1940 x 820 x 1545 mm weight of the machine ca.:750 kg tailstock quill:110 mm tapping modul:0,4-3 mm tapping diametral:8-84 Gang/Zoll

number of spindles:8 spindle passage:67 mm Cam controlled multi spindle automatic lathe, used 8 main spindles pick up in pos. 8 threading attachment CNC compound slide in pos. 5, also 2. speed in pos. 2 Hydraulic spindle brake in pos. 4 Incl. length measurement, incl. Brankamp cutting force monitoring tooling: could be different like pictures Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:51 mm Article: multi spindle automatic lathe Manufacturer: Schütte Type: AF51 Yob: 1987 eight main spindles max. bar diameter D=51mm control SIEMENS SIMATIC S5 pick up in pos. 7, for rear machining thread cutting drive independent feed in positions 2/3 electronical trip dog control ?Balluff? clear text display Wöhrle coolant pump magnetic cartridge filter oil running incl. bar loader IEMCA PRA 40/37/F, yob 1987, (bundle type) Painting in light blue and light grey The configuration of tooling will be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Tornos Type: MultiSwiss 8x26 Yob: 2016 full cross slide configuration, counter spindle, part-pre-drawing device, 2 x driven tools, 3 x Y-axis, 1 rigid backworking, 1 x driven backworking, 2x 80 bar high pressure pumps optional: setting robot, manufacturer HandlingTech. The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Tornos Type: MultiSwiss 8x26 Yob: 2019 full cross slide configuration, counter spindle, part-pre-drawing device, 2 x driven tools, 1 rigid backworking, 1 x driven backworking, 2x 80 bar high pressure pumps optional: setting robot make HandlingTech. The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:51 mm Schutte SF51 DNT, yob. 1987, our ID #61868 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SF51 DNT Yob: 1987 Six-spindle automatic lathe with 6 main spindles max. nominal diameter D=51mm electronic cam control Balluff gripper in position 6 for backworking, sorting chute independent longitudinal feed layer 5 screw chip conveyor Tapping couplings Interface for: Bar feeder IEMCA PRA Bar feeder IEMCA PRA40/33/F Scope of delivery without the blue chip conveyor The tooling will differ from the scope of delivery! Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 S DNT Yob: 1994 Eight-spindle automatic lathe with 8 main spindles max. nominal diameter D=32mm control: Siemens SIMATIC S7 electronic cam control Balluff gripper in position 8 for backworking CNC cross slide position 6 CNC cross slide position 7 Workpiece belt Coolant cooling Schimpke Chip conveyor with magnetic separator Tapping couplings The tooling shown may differ from the scope of delivery! Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 Dnt Yob: 1993 eight-spindle automatic lathe eight main spindles for bars up to D=32mm Modernized control: Siemens Sinumerik Motors: renewed modern motors suitable for modernized control system Electronic trip dog control: Balluff CNC cross slide position 5 cross CNC cross slide position 6 cross Preparation for gripper in position 8 (gripper optional) Independent feeds Thread cutting couplings integrated bar loader: Pietro CUCCHI; type: rack type magazine The scope of delivery regarding the tooling equipment could be different like pictures.

turning diameter:38 mm Article: CNC lathe Manufacturer: Hanwha Type: STL38H Year of construction: 2013 Control: Siemens 840SL for 8 axes Main spindle: max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48 Counter spindle: max. pick-up diameter: 38mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42 Tool turret: n max. 6,000 rpm Power max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120 Bar feeder FMB Turbo 5-55 High-pressure station SFB-301 eco 150bar Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:9 spindle passage:46 mm Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SC9-46 Yob: 2016 Six-spindle automatic lathe with 6 main spindles with max. nominal throughput D=46mm and 3 counter spindles Main spindles: 6 motor spindles D46mm, 5. 000 rpm, 35 Nm to 80 Nm Cross slide units, transverse: 6 units, in positions I to VI, Slide units, longitudinal: 5 units, in positions I to V, Slide units, longitudinal: 5 units, in positions I to V, Counter spindles: 3 units, one each in positions VI, VIII and IX, 7. 500 rpm Cross slide units, transverse: 2 units, in positions VIII and IX, Control: Siemens SINUMERIK 840SL with double NCU Software: Schütte SICS, Sinomerik Operate 4.5, Safety Integreted, Spindle coupling package ?CP-Expert?, for up to 8 spindle couplings (maximum expansion) Synchronous action package ?Level? 2, incl. cross-mode actio ...

turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2015 Machine was only used for reworking, so only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Chip processing container with coolant pump: 30l/min at 5bar Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading conveyor Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. Transmit function Adjusting microscope 16x magnification Coolant supply through the clamping cylinder of the spindle, sealing air, Speed increase of the motor spindle to 8,0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Kno ...

turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2016 Machine was only used for reworking, i.e. only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading belt Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. transmit function Adjusting microscope 16x magnification Coolant supply through the spindle clamping cylinder, Sealing air, Speed increase of the motor spindle to 8. 0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Knoll Compact coolant device Knoll MBE interface Small fire extinguishin ...

number of spindles:8 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AG20 Yob: 2002 eight-spindle automatic lathe 8 main spindles for bars up to D=20mm control: Siemens 840D 1x polygonal turning/thread milling device (new 2011) 1x polygonal turning/thread milling device for long turning (new 2011) 1x thread cutting/quick drilling spindle (new 2011) 1x pick-up device incl. various pick-up collets 4 cnc-cross slides Double cross slide in position 7 Loading magazine PRA 52/P type 33 (bar length 3m), year 2004 High-pressure system Knoll SF 2000/Turbo-3 up to 100 bar, year 2004 Tool monitoring Brankamp Air conditioning unit Rittal in the front switch cabinet incl. spare parts package with various collets, cams and various tool holders for longitudinal and cross slides The machine has been run with oil and has processed brass Please, con ...

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SFH130 Yob: 1995 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC Dnt drive loading and disloading in position 6 additional cooling pump with magnetic spark plug filter Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SG18 Yob: 1999 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC loading and disloading in position 6 spindle brake Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Gildemeister Type: GS20-6 Yob: 1989 six-spindle automatic lathe 8 main spindles for bars up to D=20mm All cross units are equipped with a tool holder (from Gildemeister or IMG Attachments) All longitudinal units are equipped, either fixed or rotating (without collets) An independent feed is installed at position 1 A gear set for one speed is installed A gear set for one cycle time is installed The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Gildemeister Type: GS20-6 Yob: 1989 six-spindle automatic lathe 8 main spindles for bars up to D=20mm All cross units are equipped with a tool holder (from Gildemeister or IMG Attachments) All longitudinal units are equipped, either fixed or rotating (without collets) A gear set for one speed is installed A gear set for one cycle time is installed The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SF20 S Dnt Yob: 1999 Six-spindle automatic lathe with 6 main spindles max. nominal diameter: D=20mm Spindle drum hirth coupled, CNC cross slide in positions 4, CNC cross slide in positions 5, pick up in position 6, sorting chute, 1x independent feed, thread cutting couplings, workpiece belt, Coolant tank with hinged belt chip conveyor Ruez, Oil/steel operation, PLC Siemens S7, Siemens CNC control, Siemens Simodrive 611, The scope of delivery regarding the tooling equipment could be different like pictures. Interface for: IEMCA PRA bar loading magazine (optional: IEMCA PRA40/31/ built in 1997 rear loader)

number of spindles:6 spindle passage:36 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2003 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=36mm! Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images; various collets are included in delivery up to D36mm Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2003 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=32mm Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2000 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=32mm pick-up unit, Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Package of 3 Schütte S32PC Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: S32PC Yob: 1998 One machine is operational; the other two can be used for spare parts Includes IEMCA PRA40/33/P loading magazine, built in 1997 (rack type loader) Includes IEMCA PRA40/42/F loading magazine, built in 1999 (bundle loader) Includes IEMCA SIR325 loading magazine (integral loader with bundle magazine) tooling included in delivery may differ from the pictures Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

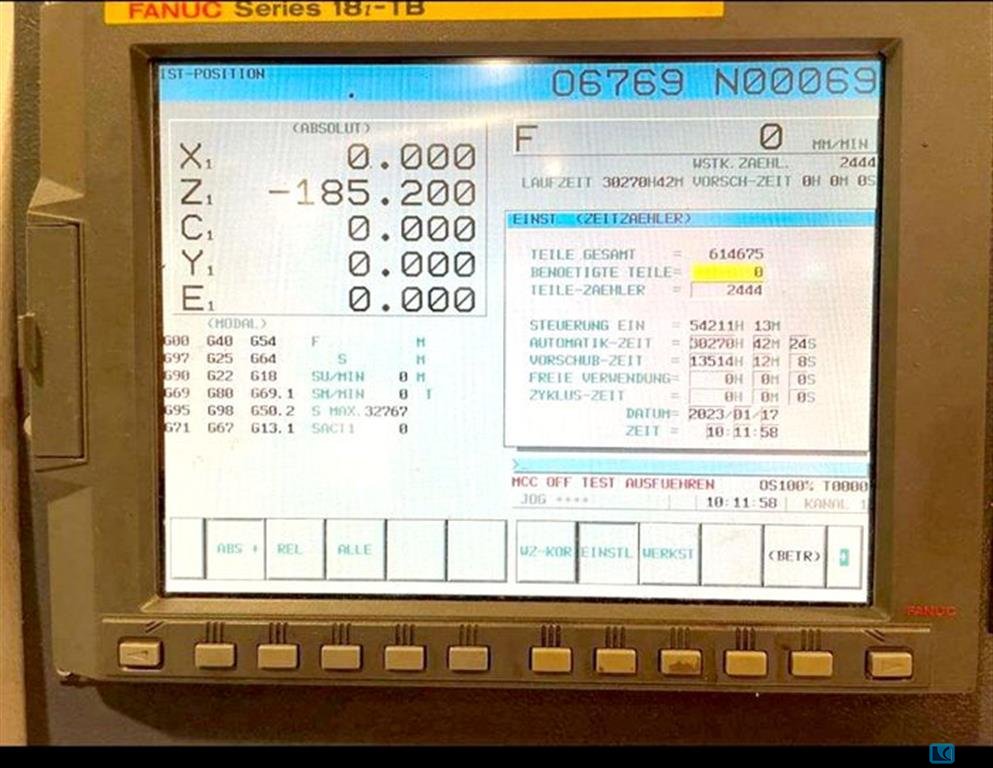

Control: Fanuc 18 iTB Max. turning diameter: 190 mm Max. turning length: 620 mm Greatest: pass round over bed: 190mm Swing dia. over traverse guideway: 190mm Standard turning diameter: 170mm Max. distance between spindles: 970mm Main spindle: - Max. spindle speed: 4.500rpm - Power capacity - main spindel: 18,5 / 15 kW - Spindle bearing diameter: 110mm - Spindle bore: 80mm - Max. bar capacity: 65mm - Spindle nose: A2-6 - Max. chucking diameter: 165mm - C-Axis 0,001 ° Subspindle: - max. spindle speed: 5000rpm - power capacity - Sub spindle 11 / 7,5 kW - spindle bearing diameter: 90mm - spindle bore: 63 mm - max. bar capacity: 51mm - spindle nose: A2-5 - max. chucking diameter: 165mm - C-Axis: 0,001 ° - Traverses Subspindle: 760mm Upper Turret 1: - number of toolpositions: (2x 12) 24 pos. - Number of driven toolspositions: 12 pos - Shank diameter: 25mm - Drill sha ...

Batch of two four-jaw lathe chucks for independent workpiece clamping. The chucks come from the manufacturers WMW and ROTO RECORD and are ideal for eccentric, asymmetrical or irregular clamping on lathes. Technical data:     •    Type: Four-jaw lathe chuck, independently adjustable     •    Included: &nbs p;   •    1× WMW DH 130×4-II, Ø130 mm     •    1× ROTO RECORD DH 160×4-II, Ø160 mm

Equipped with - 27 mm spindle passage - Adjustable guide tracks - Powerful motor with 0.75 kW - High resolution of the axis spindles for exact positioning - Attention without digital display Scope of delivery: 3-jaw chuck 100 mm, interchangeable wheel set, splash guard. Turning diameter over bed 250 mm Turning diameter over support 130 mm Turning length 700 mm Speed 115 - 1620 rpm Tip height 125 mm Spindle bore 27 mm Tailstock quill holder MK 2 Tailstock quill stroke 40 mm Metric threads 0.2 - 3.5 mm Thread - Inch 8 - 56 inch. Thread - Module 0.2 - 12.5 mm Swivel range +/- upper slide 45 ° Connection voltage 400 V Total power requirement 0.75 kW Machine weight approx. 0.15 t Dimensions approx. 1.41 x 0.61 x 0.41 m Condition: never used / new (5)

Professional Industrial Machine Digital display 3-jaw chuck 200 mm. 4-jaw chuck Face Plate Fixed bezel Steady bezel Multifix steel holder. Machine Light Foot brake Chip tray, chip protection wall Hardened and ground bed sheets Complete coolant system Feed protection Machine feet Machine Tool Turning diameter over bed 400 mm Turning diameter over support 260 mm Turning length 1500 mm Turning diameter in the offset 570 mm Speed 45 - 1800 rpm Tip height 210 mm Spindle bore 52 mm Tailstock quill holder MK 4 Connection voltage 400 V Total power requirement 3.5 kW Machine weight approx. 1.5 t Dimensions approx. 2.6 x 1.1 x 1.7 m

Lathes with: - Copying device - Forkardt 3-jaw chuck F250 - Multifix steel holder - Coolant system - Machine light - Feed protection - Chip tray - Chip protection wall - Foot brake Turning diameter over bed 410 mm Turning diameter over support 220 mm Turning length 1000 mm Center height 205 mm Circumferential diameter in offset mm Spindle bore 46 mm Spindle speeds 40 - 2000 rpm Total power requirement 22.0 kW Machine weight approx. 1.8 t Space requirement approx. 2.42 x 1.3 x 1.55 mm

SINO Digital Display 3-jaw chuck 200 mm. 4-jaw chuck 200 mm. Face Plate 250mm Fixed bezel Quick-change steel holder with 4 pcs steel holder Machine Light Chip tray, chip protection wall Hardened and ground bed sheets Feed protection Machine Tools Turning diameter over bed 320 mm Turning diameter over support 200 mm Turning length 900 mm Turning diameter in the offset 320 mm Speed 75 - 2000 rpm Tip height 160 mm Spindle bore 38 mm Tailstock quill mount MK 3 Connection voltage 400 V Total power requirement 1.5 kW Machine weight approx. 0.4 t Space requirement approx. 1.6 x 0.75 x 1.7 m Condition: never used / new (5)

Technical data Manufacturer: WEILER Model: Commodor B Machine Type: Lead and Pull Spindle Lathe Turning diameter over bed: 380 mm Turning diameter over slide: 190 mm Center width: 750 / 1000 mm Spindle bore: approx. 56 mm Spindle speed: 25 – 2000 rpm Connected load: 4 kW Voltage: 380 V Weight: approx. 1300 – 1500 kg Configuration Lead and pull spindle Tapping function (metric / inch) 3-jaw chuck Additional chuck Multifix tool holder Tailstock Coolant Setup Chip tray Note Technical data was taken from the nameplate and machine documentation. Specifications may vary depending on the version.
