turning diameter:200 mm swing diameter:260 mm turning height:200 mm Tool table:1054 x 400 mm Dimensions (L/W/H):2200 x 2300 x 2300 mm weight:3300 kg slide travel radial ( X-axis ):520 mm slide travel axial ( Z-axis ):200 mm no pallet circulating belt, no C-axis, no driven tools
turning diameter:250 mm swing diameter:250 mm turning height:200 mm total power requirement:37,7 kW chuck diameter:315 mm spindle speed max.:5500 1/min travel -x axis:625 mm travel -y axis:+100/-80 mm travel -z axis:250 mm worktool system:VDI 30+40 weight of the machine ca.:8 t The synchronous spindle is powered with 37.7 kW of power, a torque of 300 Nm and a maximum speed of 5,500 rpm. Typical components are ball cages, ball hubs, gear wheels, sliding sleeves, pump wheels, flanges, synchronizer rings, bearing rings and pivot pins. The machine bed is made of Hydropol, a mixture of special concrete and steel, which ensures the greatest smoothness and precision even with larger components and powerful machining.
turning diameter:1000 mm swing diameter:1000 mm Machine type: Vertical lathe Manufacturer: Hessapp Type: DV 62 Serial no.: 14.2308 Working range of the spindle Largest diameter 1000 mm Largest swing diameter 1000 mm Cross slide travel Stroke of the vertical slide 900 mm Stroke of the horizontal slide 1810 mm Total travel 2315 mm Turning spindle Spindle head with centering cone according to DIN 55021 A15 Spindle diameter in the front bearing 203 mm Main drive Via a controlled asynchronous motor and gear transmission with range switching. Spindle speeds Speed range I: 5 - 350 rpm. Speed range II: 30 - 1000 rpm. Travel speed X/Z axis: 10 m/min. W1 axis: 8 rpm No C-Axis Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urh ...
faceplate diameter:800 mm power requirement:110 kW weight of the machine ca.:37.000 / total 52.000 t transport measurements machine:5,07 x 2,98 x 3,90 m clamping diameter:800 mm :Ø 800 x 720 mm Tool bore:Capto C6 tools in tool magazin:2 x 80 With C-Axis
faceplate diameter:1600 mm power requirement:80 kW weight of the machine ca.:25 t dimensions of the machine ca.:4,4 x 4,62 m max. workpiece diameter:2000 mm max. diameter of face turning:1800 mm tool taper:ISO50 The machine has been regularly serviced and is in good technical condition. With C-Axis Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.
turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

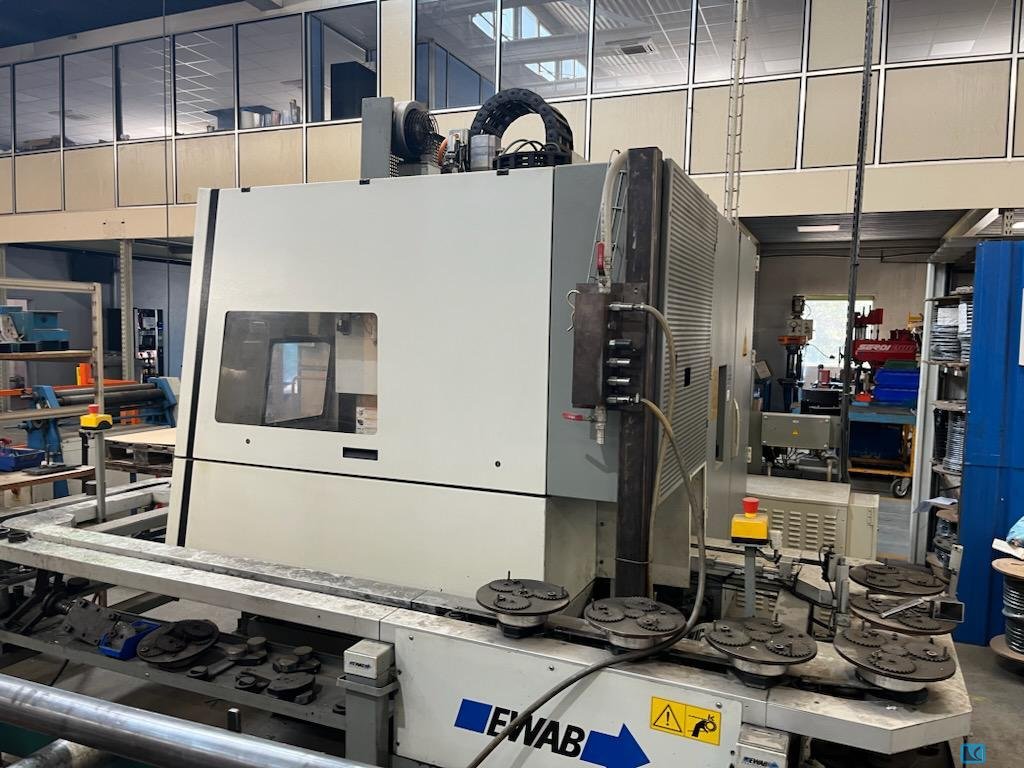

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.
turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.
turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.
turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.
turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours
faceplate diameter:1400 mm swing diameter:2000 mm turning height:1500 mm main drive:80 kW faceplate speeds from - to:1 - 365 U/min milling motor:37 kW ram head dimension:240 x 240 mm max. ram stroke:1250 mm total power requirement:133 kVA weight of the machine ca.:50 t dimensions of the machine ca.:11 x 5 x 6,4 m Machine was overhauled in 2008 by OEM New control CNC SIEMENS 840 D automatic tool changer 72-pcs C-axis with driven tools Angle-, straight tool holders with CAPTO holder Coolant device Chipconveyour
turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package
turning diameter:760 mm turning length:1.524 mm spindle speeds::3.300/12.000 MILL/3.300 spindle diameter:78/78 mm no. of tools in magazin:80 tool taper:Capto max. tool length:400 mm max. tool diameter:125/90 mm weight of the machine ca.:13,4 t Machine with Mazak Matrix CNC control Main and counter spindles Milling unit (milling spindle) Kitagawa QJ-312 dual-action chuck Pallet pool with robot IKZ Exhaust system not included
turning length:630 mm total power requirement:16 kW weight of the machine ca.:5 t dimensions of the machine ca.:3400 x 1500 x 1600 mm swing diameter over slide rest:Hinterdrehschlitten 250 mm centre height:über Hinterdrehschlitten 150 mm center height over bed:300 mm turning spindle:Kopf DIN 55021 Gr. 8 centre distance:1000 mm accessories::2 Schränke Wechselräder
swing diameter:320 mm control:840 D SIEMENS turning speeds:5000 1/min spindle drive:20 / 27 kW chucking diameter:250 mm travel -x axis:650 mm travel -z axis:300 mm turret head:12 Pos. tool holder:VDI 40 toolpiece turning speed range:4000 1/min work piece power:max. 11,7 kW weight of the machine ca.:8 t CNC vertical lathe, live tools, C-axis, high pressure pump 20 bar, 500l, filter, flush gun, 3-jaw chuc, EWAB loading station right, chipconveyor, approx. 23.500h "machine on", approx. 8.000h "spindle on" (in total) MACHINE WILL GET NEW (OVERHAULED) SPINDLE (0 hours)
bar material dia.:38 mm turning length:350 mm turning speeds:7.000 / 7.000 U/min number of tools:30 (3 x 10) driven tools:ja / yes control:FANUC 31i-B5 rapid traverse:30 m/min total power requirement:10,5 kVA weight of the machine ca.:6,5 t dimensions of the machine ca.:2,50 x 1,45 x 1,75 plus Lademagazin m work piece power:4 kW toolpiece turning speed range:5.700 1/min main spindle power:11 kW sub spindle power:7,5 kW CNC sliding headstock machine STAR ST 38, 3 turrets, 12 CNC Axis (X1/Z1/Y1/C1/X2/Z2/Y2/YA2/C2/X3/Z3/Y3, Fireextinguisher KRAFT und BAUER FB 703, partscatcher and conveyor belt (for long parts), LTA oilmist suction, chiller for oil, machining with oil as coolant, reading hours: approx. 14.500 hours "machine on", approx. 4.100 hours "machining"

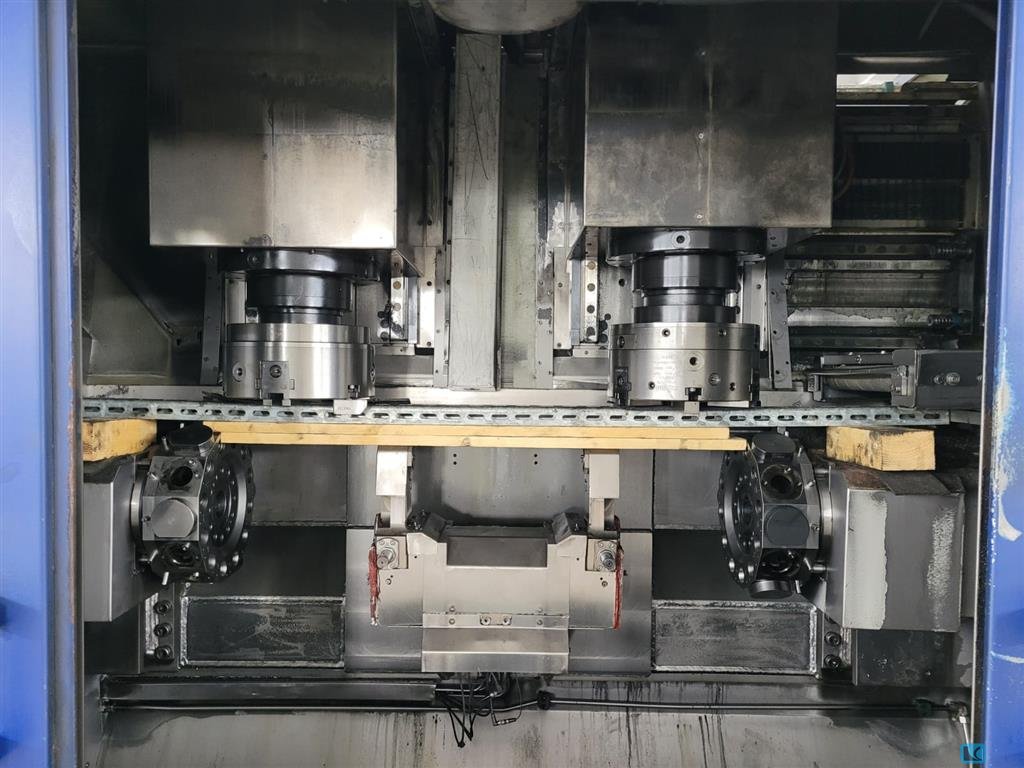

swing diameter:260 mm control:840 D SIEMENS turning speeds:3.500 1/min spindle drive:36 / 28 kW chucking diameter:260 mm travel -x axis:900 mm travel -z axis:400 mm turret head:12 Pos. tool holder:VDI 40 rapid power traverse in X-and Z direction:100 / 30 m/min dimensions of the machine ca.:5,3 x 2,4 x 3,31 m CNC vertical lathe with 2 spindles, 2x RÖHM power chucks dia. 315mm,
bar material dia.:13 mm turning length:205 mm turning speeds:12.000 / 12.000 U/min number of tools:29 driven tools:ja / yes 19 control:FANUC 16 iT total power requirement:9 kVA weight of the machine ca.:1,7 t dimensions of the machine ca.:2,7 x 1,4 x 1,7 m CNC sliding headstock machine, subspindle,Year 2003 (0450) FANUC 16i-T control with 9 axes, 9 axes (X / C1 / Y / E / B / A / X / c2), Main spindle, speed max. 12,000 rpm, C-axis, Counter spindle with collet, speed max. 12,000 rpm, C-axis, 4-fold tool holder 3 transverse drilling apparatuses Revolver with 8 stations various additional tool holders, quills, Extinguishing system Kraft and Bauer High pressure system SF-Systeme Büchele /SHD 150/ 150bar / 2 x 40 um /3 valves, Parts conveyor belt Manuals Operation/Programming/Electrical/Spare Parts Operating tool machine Up to 29 turning tools and up to 19 attachments possible 9.0KVA Tank ca ...
turning diameter over bed:20 mm spindle passage:3-20 mm turning length:250 mm control:FANUC 31 i-A main-spindle speed:10.000 1/min subspindle speed:10.000 1/min Main spindle capacity:3,7 kW subspindle power:2,2 kW number of tools:35 weight of the machine ca.:3,3 t dimensions of the machine ca.:2,11 x 1,2 x 1,89 m CNC sliding headstock turning/milling centre with B-axis Control system: Fanuc 31i-A Machining length: max. 250 mm Number of controlled axes: 7 axes and max. 5 axes simultaneously B-axis: 0°-130° freely programmable Rod passage: Ø 3 mm to max. Ø 20 mm Drive power main spindle: 3.7 kW Drive power counter spindle: 2.2 kW Main spindle speed: 10,000 rpm Counter spindle speed: 10,000 rpm C-axis: Main and counter spindle Number of linear supports: 2 pieces Total number of tools: 35 pieces Dimensions (LxWxH) in mm: 2,110×1,200×1,885 Weight: 3,300 kg Conversion from long to short ...
faceplate diameter:1000 mm swing diameter:1600 mm turning height:1200 mm main drive:75 kW faceplate speeds from - to:7 - 800 U/min milling motor:25 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 mm ram head dimension:240 x 240 mm weight of the machine ca.:40 to dimensions of the machine ca.:9 x 7,8 x 6,0 m Machine general overhould in 2004 and equiped with Siemens 840 D control - tool changer rack magazine - C-axis, live tooling, - Transmit function electronical Y-axis - angular milling head - complete splash housing - coolant device, chip conveyor
faceplate diameter:1400 mm swing diameter:2000 mm turning height:1270 mm main drive:80 kW faceplate speeds from - to:1 - 355 U/min max. workpiece weight:6.000 kg milling motor:37 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 (8 x 100 mm) mm ram head dimension:240 x 240 mm max. ram stroke:1250 mm weight of the machine ca.:50 to total power requirement:133 kVA dimensions of the machine ca.:11 x 5 x 6,4 m Machine general overhould in 2008 and equiped with CNC SIEMENS 840 D control - tool changer for 72 tools - C-axis, live tooling - angular- and straight tool holder head with CAPTO taper - Transmit function - complete splash housing - coolant device, chip conveyor - diverse accessories
turning diameter:300 mm swing diameter:350 mm turning height:275 mm x-axis:925 mm z-axis:250 mm clamping chuck diameter:200 mm Feed speed:30 m/min. total power requirement:45 kW weight of the machine ca.:7 t Machine was used just from time to time in the last years - very good condition! with CNC SIEMENS 840 D 12-station turret head with driven toolings workpiece in and out conveyor belt coolantattachment and chip conveyor diverse accessories
turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and ...
faceplate diameter:4000 mm swing diameter:4300 mm turning height:330 mm faceplate turning speed range:1 - 92 U/min workpiece weight:18 t feeds:1 - 4000 mm/min main drive motor:55 kW total power requirement:85 kVA weight of the machine ca.:64 t dimensions of the machine ca.:90, x 7,2 x 5,5 m with CNC SIEMENS 840 D for 4 axis 2 Vertical Supports tool Basic holder chip conveyor
faceplate diameter:4770 mm swing diameter:7000 mm turning height:1000 mm slide stroke:1000 mm workpiece weight max.:100000 kg faceplate turning speed range:2 - 20 U/min feed speeds:1 - 10000 mm/min rapid traverse:10 m/min ram head dimension:250 x 250 mm main drive:100 kW total power requirement:200 kW with CNC SIEMENS 840 D 2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpm Chip conveyor and coolant attachment
faceplate diameter:2500 mm swing diameter:2500 mm swing diameter:2500 mm turning height:2500 mm turning speed range - faceplate:1,8 - 140 U/min workpiece weight max.:15.000 kg feeds: 0,03 - 6,3 mm/U rapid speed:2 m/min cross rail adjustment:2150 mm max. ram stroke:1500 mm power capacity:55 kW weight of the machine ca.:32 t dimensions of the machine ca.:4,1 x 7,6 x 6,0 m 1 turret head 1 RAM head
faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders
turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment
Article: Vertical turning and grinding centre Manufacturer: EMAG Type: VSC 250 DS Yob: 2008 Control: SIEMENS 840D Grinding spindle speed: 30,000 rpm Rotation spindle speed: 3,000 rpm Tool places turret: 12 Cooler for spindle and machine bed cooling Cooling lubricant - lifting station (no independent cooling lubricant supply) Chip conveyor Parts handling Air through the spindle Two clamping circuits through the spindle (air and oil) Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
" Conventional lead and tension spindle lathe – turning length approx. 1,200 mm – Ø 475 mm Chuck lead and tension spindle lathe made by Boehringer Bros. (VDF), industrial version. Equipment: • 3-jaw chuck Ø 475 mm • Tailstock • Rotating center punch • Extensive accessories in the side cabinet (jaws, holders, inserts, etc.) • Coolant device • Controls on the support Turning length approx. 1,200 mm.Condition: Used machine with age-related signs of use. Visually appropriate to the age. Manufacturer: Gebr. Boehringer GmbH Type: Lead and pull spindle lathe Turning length: approx. 1,200 mm Chuck diameter: Ø 475 mm Spindle bore: approx. 80 mm • Dimensions in mm (LxWxH) approx. 3,450 x 1,300 x 1,700 mm "
Serial number: 07510001241 operating hours read: 72,899 Spindle hours read: 39,361 Control: SIEMENS SINUMERIK 840 D Rotation diameter: 640 mm Turning diameter: max. 640 mm Turning diameter Sub-spindle: 400 mm Spindle distance: 1500 mm Turning length: 1185 mm Max. workpiece weight: 150 kg Slide path X1: 550 mm Slide path Y1: 180 mm Slide path Z1: 1185 mm Slide path B1: 240 ° Slide path X2: 180 mm Slide path Z2: 1050 mm Slide path Z3: 1150 mm Spindle speed range: 3200/4000 rpm Rapid traverse speed of slide 1 (X/Y/Z): 40/24/70 m/min Rapid traverse speed of slide 2 (X/Z): 24/36 m/min Rapid traverse speed of slide 3 (Z): 36 m/min Tool holder: HSK 63 Spindle speed: 12,000 rpm incl. the tool holders on the turret incl. bar feeder, manufacturer: COCCHE GIOVANNI, type: CNC-DB 110, Year of manufacture: 2008, Serial number: CNCDB-08.306, Weight: 1500 kg Number of tool positions in the chain magazi ...
This 5-axis Mazak INTEGREX i-200 S was manufactured in 2017. It features full 5-axis simultaneous machining, a maximum machining diameter of Ã658 mm, and a maximum machining length of 1519 mm. The machine includes a robust tool magazine capacity of 72 positions and is equipped with both main and second spindles for enhanced capabilities. If you are looking to get high-quality turning and milling capabilities, consider the Mazak INTEGREX i-200 S turn-mill centre. Contact us for further details.
