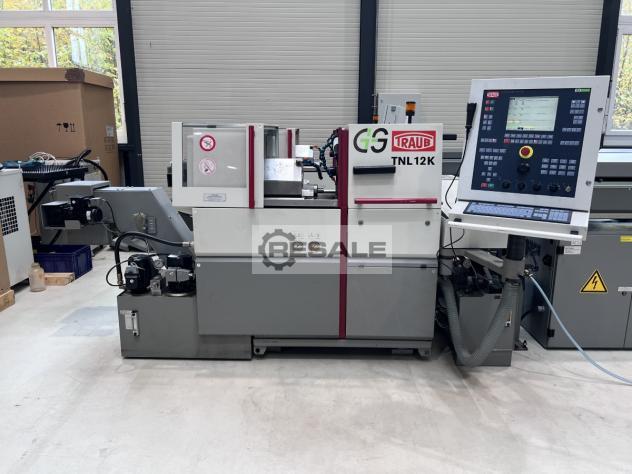

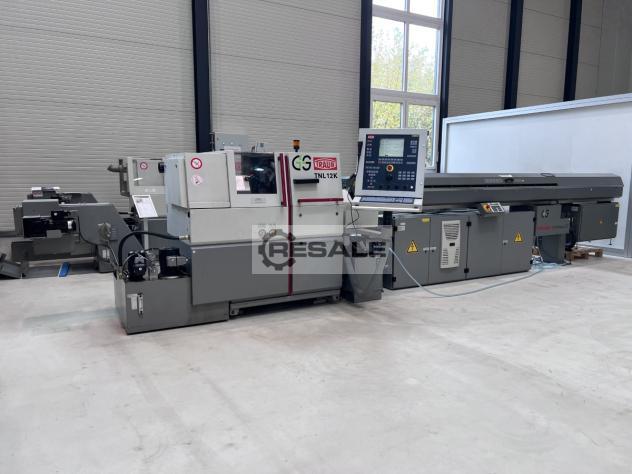

CNC Turning Machines TRAUB TNL 12K

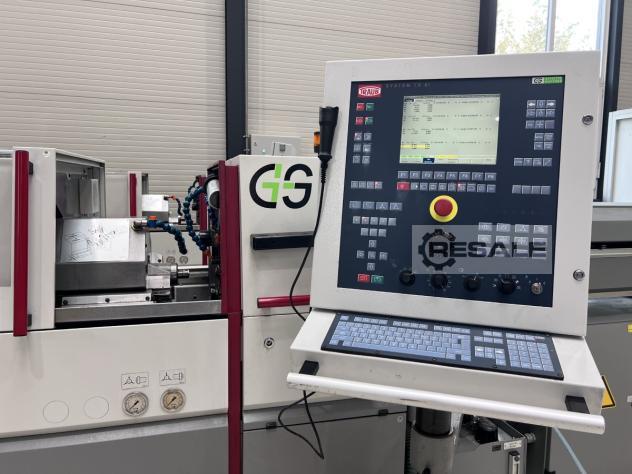

Control Mitsubishi TX-8i
Turning length [mm] 50

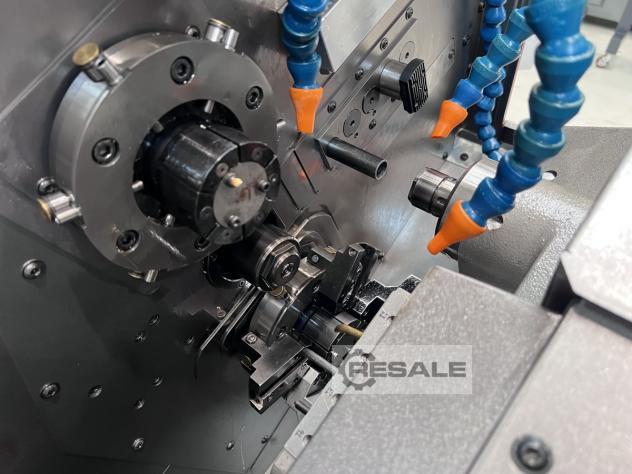

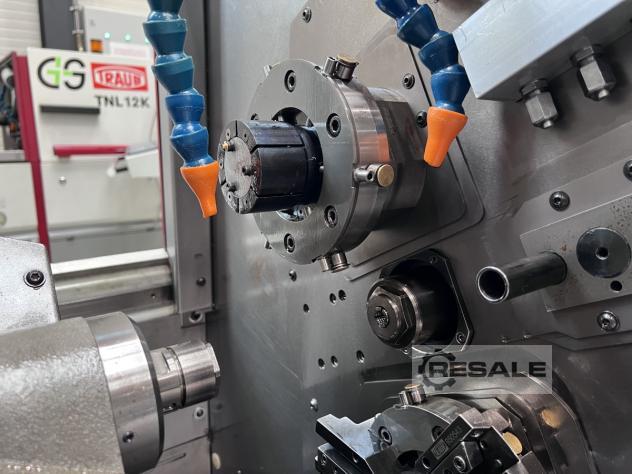

Main spindle:
Belt spindle technology
Speed 12,000 rpm
Power 4 kW
Torque 7 Nm
Bar passage 15 mm
Travel in Z1 50 mm
Workpiece Clamping Collet Chuck

Sub-spindle:
Belt spindle technology
Speed 12,000 rpm
Power 4 kW
Torque 7 Nm
Travel in X3/Z4 222/139 mm
Rapid traverse in X3/Z4 15 m/min
Workpiece Clamping Collet Chuck

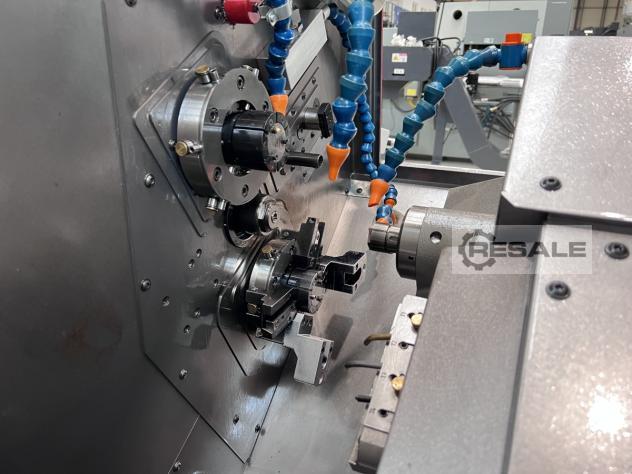

Tool carrier I (X/Y):
Technology Turret with 6 stations (total drive)
Tool holder ø25 mm
Tool drive 8,000 rpm, 1.5 kW, 2.4 Nm
Travel in X1/Y1 35/37.5 mm
Rapid traverse in X1/Y1 15 m/min

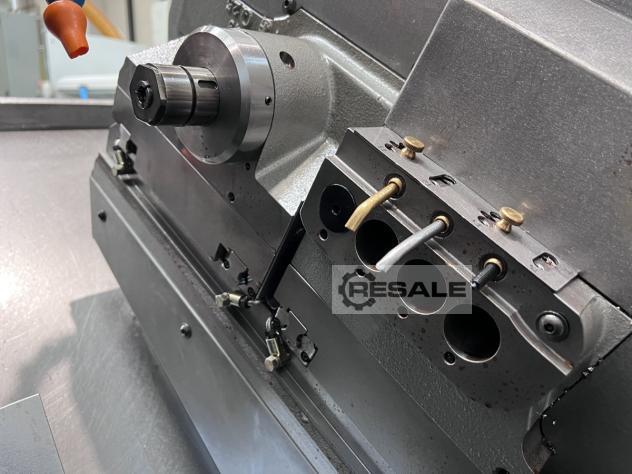

Residual apparatus:
Number of stations 4
Tool holder ø28 mm
Pitch distance 32 mm
Tool drive 8,000 rpm, 1.5 kW, 2.4 Nm
Number of driven stations 4
Travel in X4 39 mm
Rapid traverse in X4 15 m/min

Equipment/accessories:
Chip Management Chip Conveyor

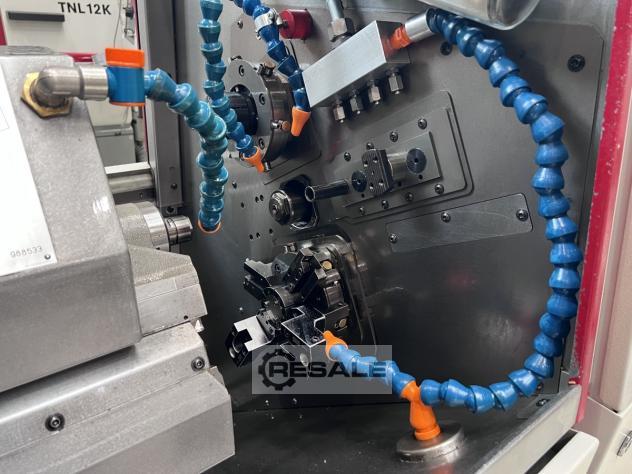

Coolant Management KSS Pump
Raw material feed bar feeder, FMB minimag 20/3200
Workpiece removal system (pipe)
Emulsion mist extraction interface mechanically prepared
Tool G51229481 holders Div. rigid and G51229481 driven holders

Tool carrier II (X/Z):
Technology Turret with 6 stations (total drive)
Tool holder ø25 mm
Tool drive 8,000 rpm, 1.5 kW, 2.4 Nm
Travel in X2/Z2 35/50 mm
Rapid traverse in X2/Z2 15 m/min

Front apparatus:
Number of stations 4
Tool holder ø28 mm
Pitch distance 32 mm
Tool drive 12,000 rpm, 4 kW, 7 Nm
Number of driven stations 4
Travel in X3/Z3 222/139 mm
Rapid traverse in X3/Z3 15 m/min

seller offer No. resale 89-001568
