transfer printing used for sale

bushing cut-off , PKO diameter range 14 mm number of dies 4 number of stations (incl. cut off) 5 cutting length 127 mm shaft length under head 90 mm output - pieces/min 200

bushing cut-off , PKO diameter range 16 mm number of dies 5 number of stations (incl. cut off) 6 cutting length 160 mm shaft length under head 125 mm output - pieces/min 150

bushing cut-off diameter range 8-18 mm number of dies 5 number of stations (incl. cut off) 6 shaft length under head 120 mm cutting length 140 mm output - pieces/min 60-170 press power 100 to

bushing cut-off diameter range 23 mm number of dies 5 number of stations (incl. cut off) 6 cutting length 175 mm shaft length under head 130 mm output - pieces/min 86 - 130 press power 220 to

diameter range 10- 18 mm number of dies 4 number of stations 5 cutting length 155 mm shaft length under head 125 mm output - pieces/min 90 press power 200 to max diameter of the head 35 mm

bushing cut-off , PKO diameter range 16-30 mm number of dies 4 number of stations (incl. cut off) 5 cutting length 235 mm shaft length under head 180 mm output - pieces/min 90 press power 380 to

bushing cut-off , PKO , IFO diameter range 6-14 mm number of dies 4 number of stations (incl. cut off) 5 cutting length 280 mm shaft length under head 220(260) mm output - pieces/min 40-75 press power 100 t

bushing cut-off , PKO diameter range 8-22 mm number of dies 4 number of stations (incl. cut off) 5 cutting length 175 mm shaft length under head 155 mm output - pieces/min 105 press power 250 to

bushing cut-off , PKO , IFO diameter range 17 mm number of dies 4 number of stations 5 cutting length 30-230 mm shaft length under head 40-190 mm output - pieces/min 70-110 press power 160 t

bushing cut-off , PKO diameter range 2-6 mm number of dies 4 number of stations (incl. cut off) 5 cutting length 95 mm shaft length under head 75 mm output - pieces/min 80-200

diameter range 12 mm number of dies 4 number of stations 5 cutting length 100 mm shaft length under head 80 mm output - pieces/min 125 press power 65 to

PKO diameter range 3,8 - 6,5 number of dies 4 number of stations 4 cutting length 52 mm shaft length under head 6-35 mm output - pieces/min 250 press power 55 to

bushing cut-off , PKO in 2nd and 3rd diameter range 14 mm number of dies 2 number of stations (incl. cut off) 4 cutting length 100 mm shaft length under head 90 mm output - pieces/min 100 press power 120 to

bushing cut-off , PKO diameter range 8,5 mm number of dies 2 number of stations 4 cutting length 55 mm shaft length under head 55 mm output - pieces/min 200 press power 30 to

bushing cut-off diameter range 8-16 mm number of dies 2 number of stations (incl. cut off) 4 cutting length 160 mm shaft length under head 130 mm output - pieces/min 100

diameter range 10 mm number of dies 2 number of stations (incl. cut off) 4 cutting length 100 mm shaft length under head 80 mm output - pieces/min 150 press power 60 t

PKO , Stripper , Variable speed diameter range 8 (9,5) mm number of dies 2 number of stations (incl. cut off) 4 max. cut-off length 80 mm shaft length under head 60 mm output - pieces/min 50-120 press power 70 to

with PKO diameter range 3-8 mm number of dies 3 number of stations (incl. cut off) 4 cutting length 70 mm shaft length under head 12-60 mm output - pieces/min 300 press power 28 t

bushing cut-off , PKO diameter range 7-15 mm number of dies 4 number of stations (incl. cut off) 5 cutting length 10-160 mm shaft length under head 15-130 mm output - pieces/min 130 press power 150 to

bushing cut-off , PKO diameter range 8 mm number of dies 4 number of stations (incl. cut off) 5 cutting length 65 mm shaft length under head 45 mm output - pieces/min 350 press power 48 to

bushing cut-off , PKO , IFO diameter range 10-26 mm number of dies 4 number of stations (incl. cut off) 5 cutting length 220 mm shaft length under head 165 mm output - pieces/min 35-70 press power 380 to

diameter range 12 mm number of dies 2 number of stations (incl. cut off) 4 cutting length 120 mm shaft length under head 40-120 mm

PKO diameter range 3-8,5mm number of dies 2 number of stations (incl. cut off) 4 cutting length 60 mm shaft length under head 55 mm output - pieces/min 250

bushing cut-off , PKO diameter range 3-8,5 mm number of dies 2 number of stations 4 cutting length 55 mm shaft length under head 55 mm output - pieces/min 200 press power 30 to

diameter range 10 mm number of dies 2 number of stations (incl. cut off) 3 cutting length 110 mm shaft length under head 100 mm output - pieces/min 170

bushing cut-off , PKO diameter range 8,5 mm number of dies 2 number of stations (incl. cut off) 3 cutting length 100 mm shaft length under head 80 mm output - pieces/min 300 press power 30 t

3 x various pipe transfer trolleys, heavy duty steel construction, approx. .9m W x 1.4m D x max height 870mm. ANR 2149 Auction-ID: A1-45187-85

Corner transfer unit, roller conveyor, roller track, powered roller conveyor, roller track, roller track with pull-off conveyor -stable design -electrically powered -Drive motor for roller conveyor: 0.37 kW 71 rpm -Drive motor for conveyor belt: 0.37 kW 88 rpm -Roller width: 1440 mm -Conveyor length: 1400 mm -Conveyor belt transfer: 1400 mm -pneumatic lifting -Roller diameter: 105 mm -Rollers: rubberized -Shaft diameter: 25 mm -Adjustable delivery height: 950 mm -driven: via timing belt -Dimensions: 1450/1650/H1000 mm -Weight: 420 kg

Corner transfer unit, roller conveyor, roller track, powered roller conveyor, roller track, roller track with pull-off conveyor -Design: stable -Drive: electric -Drive motor for roller conveyor: 0.37 kW 71 rpm -Drive motor for conveyor belt: 0.37 kW 88 rpm -Roller width: 1440 mm -Conveyor length: 1400 mm -Conveyor belt transfer: 1400 mm -pneumatic lifting -Roller diameter: 105 mm -Rollers: rubberized -Shaft diameter: 25 mm -Delivery height: 2150 mm, adjustable -driven: via timing belt -Dimensions: 1600/1750/H2150 mm -Weight: 500 kg

Corner transfer unit, roller conveyor, roller conveyor, powered roller conveyor, roller conveyor, roller conveyor with extraction conveyor -stable execution -electrically driven -Drive motor roller conveyor: 0.18 kW 71 rpm -Drive motor conveyor belt: 0.18 kW 88 rpm -Roll width: 1440 mm -Conveying length: 1550 mm -Transfer of conveyor belts: 1400 mm -pneumatic lifting -Diameter roller: 105 mm -Rollers: rubberized -Diameter shaft: 25 mm -Delivery height: 950 mm adjustable -driven: via toothed belt -Number: 1x roller conveyors available -Price: per piece -Dimensions: 1550/1650/H950 mm -Weight: 420 kg

Corner transfer unit, roller conveyor, roller conveyor, powered roller conveyor, roller conveyor, roller conveyor with extraction conveyor -Execution: stable -without drive motor roller conveyor -Roll width: 590 mm -Conveying length: 1800 mm -Diameter roller: 80 mm -pneumatic lifting: 30 mm -Delivery height: mm adjustable -Number: 1x stations available -Price: per piece -Dimensions: 2070/925/H205 mm -Weight: 266 kg

Corner transfer unit, roller conveyor, roller conveyor, powered roller conveyor, roller conveyor, roller conveyor with extraction conveyor -Drive: electric -2x drive motor roller conveyor: 0.75 kW -without drive motor conveyor chain -without conveyor chain -without raising -Roll width: 840 mm -Conveying length: 2300 mm -Transfer of conveyor chain: 4700 mm -Diameter roller: 50 mm -Delivery height: 400 mm adjustable -Dimensions: 2400/5400/H400 mm -Weight: 1200 kg

Corner transfer unit, roller conveyor, roller conveyor, powered roller conveyor, roller conveyor, roller conveyor with extraction conveyor -stable execution -electrically driven -Drive motor roller conveyor: 0.37 kW 71 rpm -Drive motor conveyor belt: 0.18 kW 88 rpm -Roll width: 1440 mm -Conveying length: 1550 mm -Transfer of conveyor belts: 1400 mm -pneumatic lifting -Diameter roller: 105 mm -Rollers: rubberized -Diameter shaft: 25 mm -Delivery height: 950 mm adjustable -driven: via toothed belt -Number: 2x roller conveyors available -Price: per piece -Dimensions: 1550/1650/H950 mm -Weight: 420 kg

Conveyor belt, belt conveyor belt, conveyor belt, belt conveyor, blind conveyor belt, slat conveyor belt, transfer station -Transfer station: Conveyor belt with tipping function, comes from blind production -Speed: 10 m/min -Conveyor belt width: 6050 mm -Conveyor belt length: approx. 880 mm, dimensions see technical photo. drawing -Drive/gearbox: 2x Nord, see photos of nameplates -Transport dimensions: 6050/910/H960 mm -Weight: 520 kg

Corner transfer, roller conveyor, roller conveyor, driven roller conveyor, roller conveyor, roller conveyor with puller conveyor -Transfer station: roller conveyor with conveyor belt, solid base frame, height adjustable -Speed: roller conveyor 51 m/min / conveyor belt 45 m/min -Conveyor rollers. Ø86 x 1415 mm rubberized wheels -Roller distance/axle distance: 205 mm -Belt spacing: 200 mm -Conveyor belt length: approx. 2290 mm, dimensions see technical photo. drawing -Drive/gearbox: 2x Nord, see photos of nameplates -Raising: hydraulic, without drive unit -Transport dimensions: 2480/2380/H810 mm -Weight: 1180 kg

Corner transfer, roller conveyor, roller conveyor, driven roller conveyor, roller conveyor, roller conveyor with puller conveyor, transfer station -Transfer station: 1x roller conveyor with conveyor belt, 1x conveyor belt -Base: solid base frame, height adjustable -Speed: roller conveyor 20 m/min / conveyor belt 23 m/min -Roller track: conveyor track rollers. Ø63 x 2500 mm, conveyor belt 17 x 2815 mm -Conveyor track: 6 belts 17 x 2830 mm -Drive/gearbox: North, see photos of nameplates -Transport dimensions: 2810/1660/H870 mm / 2900/920/H870 mm -Weight: 569 kg / 258 kg

Corner transfer unit, roller conveyor, roller conveyor, driven roller conveyor, roller conveyor, roller conveyor with discharge conveyor, transfer station -Manufacturer: Grenzebach, transfer station roller conveyor type WRSZP -Drive motor: 0.18 kW 88 rpm -Intermediate dimension: 1480 mm -Conveyor length: 1250 mm -Axle distance: 250 mm -Roller spacing: 250 mm -Rollers: rubberized -Lifting: pneumatic -Belt conveyor length: 1400 mm / belt spacing 500 mm -Transport dimensions: 1780/1420/H2180 mm -Weight: 508 kg

Corner transfer unit, roller conveyor, roller conveyor, driven roller conveyor, roller conveyor, roller conveyor with discharge conveyor, transfer station -Manufacturer: Grenzebach, transfer station roller conveyor type WRSZP -Drive motor: 0.18 kW 88 rpm -Intermediate dimension: 1480 mm -Conveyor length: 1250 mm -Axle distance: 250 mm -Roller spacing: 250 mm -Rollers: rubberized -Lifting: pneumatic -Belt conveyor length: 1400 mm / belt spacing 500 mm -Number: 2x Transfer station conveyor available -Price per piece -Transport dimensions: 1750/1570/H2020 mm -Weight: 496 kg/pc.

Corner transfer unit, roller conveyor, roller conveyor, driven roller conveyor, roller conveyor, roller conveyor with discharge conveyor, transfer station -Manufacturer: Grenzebach, transfer station roller conveyor type WRS -Roller conveyor drive motor: 0.18 kW 88 rpm -Drive motor conveyor belt: 0.37 kW 71 rpm -Intermediate dimension: 1500 mm -Conveyor length: 1250 mm -Axle distance: 250 mm -Roller spacing: 250 mm Rollers: rubberized -Lifting: pneumatic -Belt conveyor length: 1400 mm / belt spacing 500 mm -Transport dimensions: 1700/1440/H690 mm -Weight: 348 kg

Corner transfer unit, roller conveyor, roller conveyor, driven roller conveyor, roller conveyor, roller conveyor with discharge conveyor, transfer station -Manufacturer: Grenzebach, transfer station roller conveyor type WRS -Roller conveyor drive motor: 0.18 kW 88 rpm -Drive motor conveyor belt: 0.37 kW 71 rpm -Intermediate dimension: 1500 mm -Conveyor length: 1250 mm -Axle distance: 250 mm -Roller spacing: 250 mm Rollers: rubberized -Lifting: pneumatic -Belt conveyor length: 1400 mm / belt spacing 500 mm -Transport dimensions: 1700/1500/H700 mm -Weight: 397 kg

Corner transfer unit, roller conveyor, roller conveyor, driven roller conveyor, roller conveyor, roller conveyor with removal conveyor, transfer station -Manufacturer: Grenzebach, transfer station roller conveyor type WRS -Drive: SEW-Eurodrive 0.18 kW 1380/88 rpm / 0.18 kW 71 rpm -Intermediate dimension: 1500 mm -Conveyor length: 1250 mm -Axle distance: 250 mm -Roll spacing: 250 mm -Rollers: rubberized -Lifting: pneumatic -Belt conveyor length: 1400 mm / belt spacing 2x 480 mm -Number: 1x transfer station available -Transport dimensions: 1740/1550/H680 mm -Weight: 410 kg

Corner transfer unit, roller conveyor, roller conveyor, driven roller conveyor, roller conveyor, roller conveyor with removal conveyor, transfer station -Manufacturer: Grenzebach, transfer station roller conveyor type WRS -Drive: SEW-Eurodrive 0.18 kW 1380/88 rpm / 0.18 kW 71 rpm -Intermediate dimension: 1500 mm -Conveyor length: 1250 mm -Axle distance: 250 mm -Roller spacing: 250 mm -Rollers: rubberized -Lifting: pneumatic -Belt conveyor length: 1400 mm / belt spacing 2x 480 mm -Number: 3x transfer station available -Price per piece -Transport dimensions: 1700/1500/H1040 mm -Weight: 412 kg

Corner transfer unit, roller conveyor, roller track, powered roller conveyor, roller track, roller track with pull-off conveyor -stable design -electrically powered -Drive motor for roller conveyor: 0.37 kW 71 rpm -Drive motor for conveyor belt: 0.37 kW 88 rpm -Roller width: 1440 mm -Conveyor length: 1400 mm -Conveyor belt transfer: 1400 mm -pneumatic lifting -Roller diameter: 105 mm -Rollers: rubberized -Shaft diameter: 25 mm -Adjustable delivery height: 950 mm -driven: via timing belt -Dimensions: 1450/1650/H1000 mm -Weight: 420 kg

6 cleaning stations, cleaning agent demineralized water, power consumption 45 kW, filling capacity approx. 1200 l, clamping surface cleaning stations approx. 500x1000 mm, incl. water treatment, drip tray and control system Auction-ID: A7-45263-22

Two similar CNC rotary transfer machines Winema are available. 1) Winema RV20 Evolution Flexmaster, year of manufacture: 2016, stations: 8, cycle time: 12s, machining scope: turning/drilling/milling/grooving/slot machining, collet feed stroke: 400mm, bar diameter: 25mm, length: 4200mm, coolant pressure: 30bar, production output: approx. 2100parts/8h, control: Bosch MTX CNC. Including material handling, Knoll turbo filter system, cooling unit, discharge conveyor, oil mist extraction and bar loading magazine. 2) Winema RV20 Evolution Flexmaster, year of manufacture: 2015, stations: 8, cycle time: 12s, machining scope: turning/drilling/milling/grooving/slot machining, collet feed stroke: 400mm, bar diameter: 25mm, length: 4200mm, coolant pressure: 30bar, production output: approx. 2100parts/8h, control: Bosch MTX CNC (Sinumerik). Including material handling, Knoll turbo filter system, cooli ...

- Usable length approx. 4200 mm. - Roller width 800 mm. - 0.55 KW feed motor. - Working height from the ground approx. 850 mm. - Adjustable height. - Operating conditions of this machine: unchecked. - This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs. Auction-ID: A7-44536-63

Witzig & Frank TriFlex 5XYear of manuf. : 2018 Control : Fanuc 30i-B ____________Description:In General:Year of construction:2018Control system:FanucProcessing stations:5 piecesLoading station:1 pieceTravelling range:X-axis:450 mmY-axis:500 mmZ-axis:450 mmRapid traverse X/Y/Z:50 m/minTurret:Number of stations:8Speed:13,300 rpmTorque:58 NmTool holder:HSK 63 CWorkpiece/device:Dimensions max.:350 x 350 x 350 mmMax. permissible mass:250 kgMedia supply line:6 piecesNC swivelling rotary table:A-axis:+/- 150°B-axis:360°Max. load:250 kgTable diameter:320 mmEquipment:Loading/unloading:Fanuc Robot M20i-AChip removal:2x chip conveyorsCoolant supply:IKZ system, 20 barPosition measuring systems:Direct in all axes

Pfiffner RT 100-12Year of manuf. : 2013 Control : Siemens 840 D ____________Description:Rotary-Indexing-table/Spindle:Clamping stations:12 motorised spindlesDrive:Torque drive, water-cooledPosition measuring system:DirectSwitching time:1.5 secondsSpindles:Water-cooled motor spindlesC-axes:0.001°, hydraulic clampingSpeed:5,500 rpmPower:11 kWClamping device:ChuckBasic modules:Technology:Positioning module, 3-axisX-axis:50 mmY-axis:100 mmZ-axis:100 mmPosition measuring systems:Direct in all axesCoolant supply:Integrated::Workpiece size (max.):100 x 100 x 100 mmStation 1:Horizontal:feeding of raw parts (indexing conveyor + Stäubli robot)Vertical:Measuring raw partStation 2:Horizontal:4-fold turret without driveVertical:Measuring reclamping error (C-axis zeroing)Station 3:Horizontal:4-fold turret without driveVertical:Not usedStation 4:Horizontal:4-fold turret without driveVertical: ...

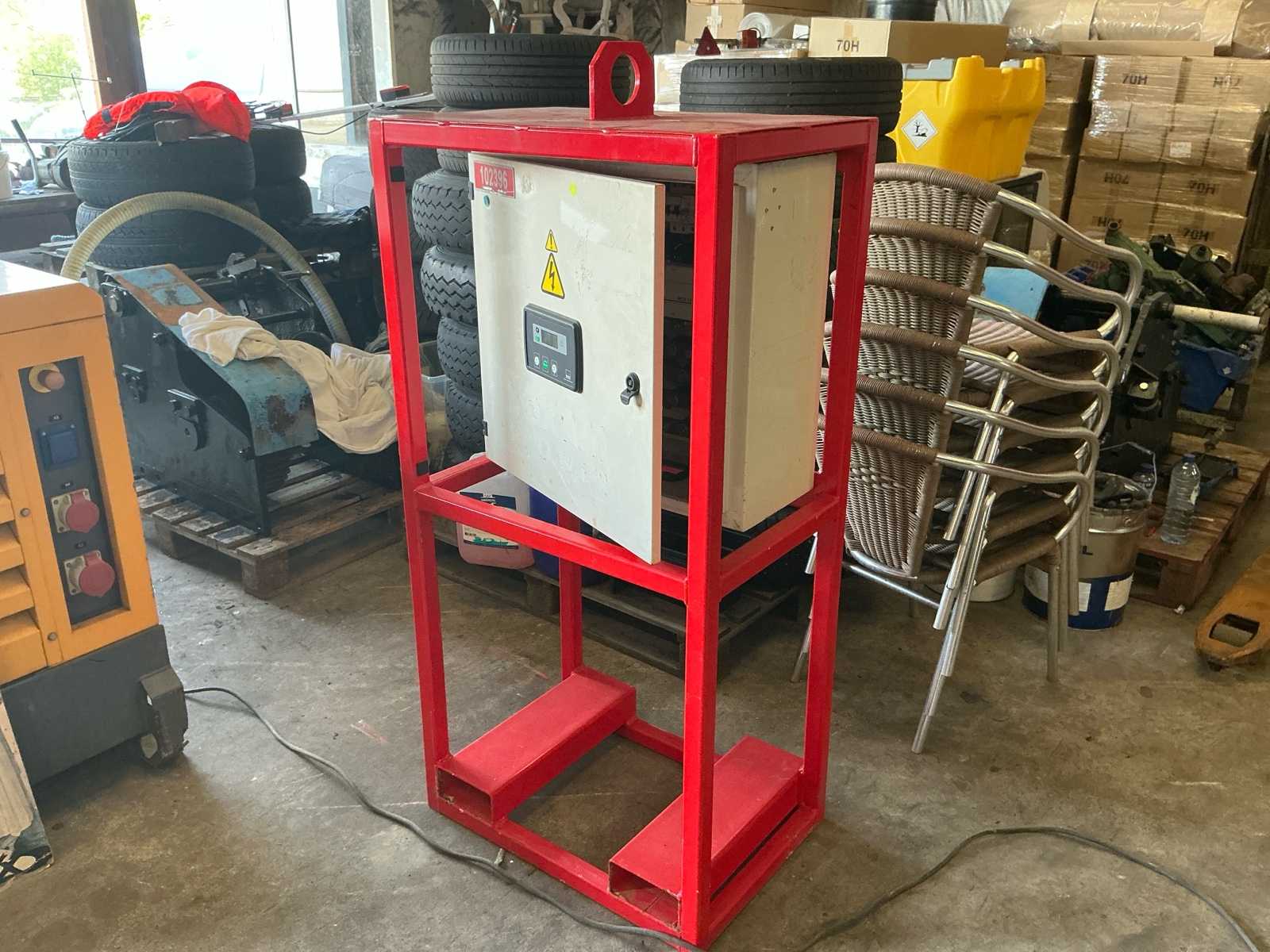

ATS control cabinet (grid ↔ generator) Equipped with DSE control module (Deep Sea Electronics) Suitable for 3-phase applications (±63–125A estimated) Including: Lifting eye (crane movement) Fork Sleeves (Forklift) 12V lead-acid battery Auction-ID: A1-41992-142

pressure:1000 t table length:4000 mm table width:1600 mm Controls:SIEMENS S7-1500F PRESS DESIGN:. - frame design : Transfer press :. - Drive type : mechnical :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. - number of tables:2 PRESS FORCES:. - total force (nominal):1000 to PRESS TABLE:. - clamping surface (left-right):4000 mm - clamping surface (front-back):1600 mm - height above floor level:600 mm - autom. tool clamping device : yes :. RAM:. - stroke:400 mm RAM (MECHAN. PRESS):. - ram adjustment:300 mm - ram adjustment:100 mm - number of strokes min:8 /min - number of strokes max:50 /min - hydraulic overload protection : yes :. TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):900 mm - shut height (stroke down, adjustment up):766 mm - distance between columns (H-frame):4250 mm - Free passage between side c ...
