tos lathe used for sale

Gear hobbing machine OFE 22, with accessories

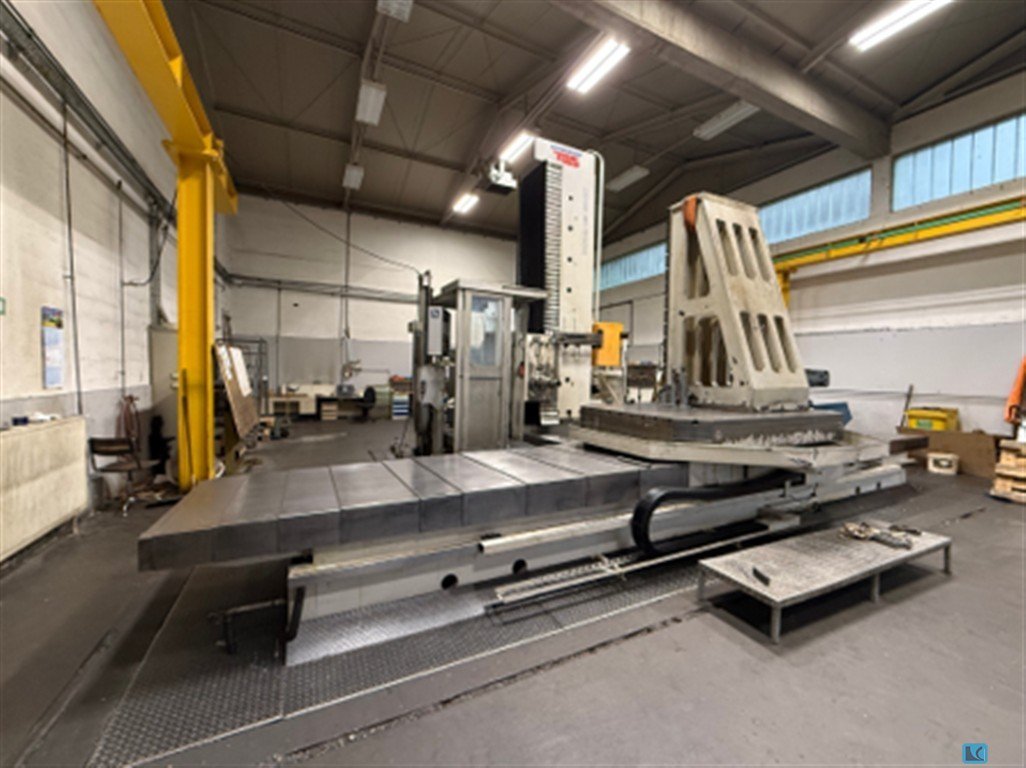

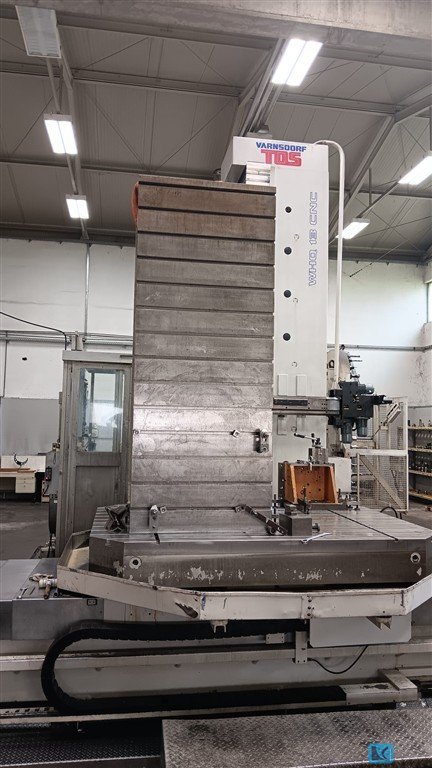

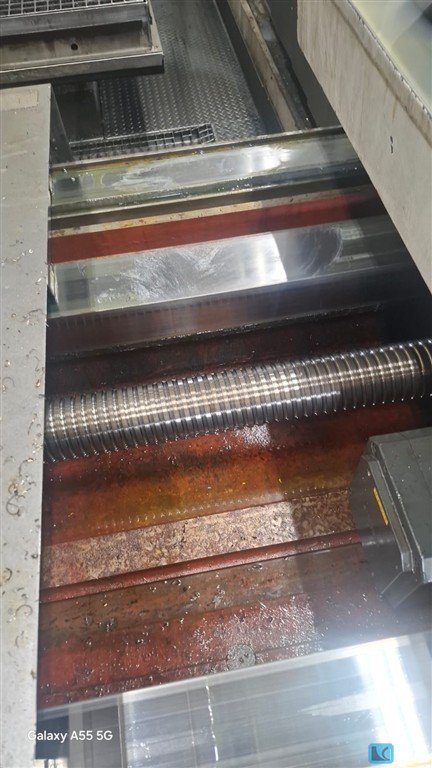

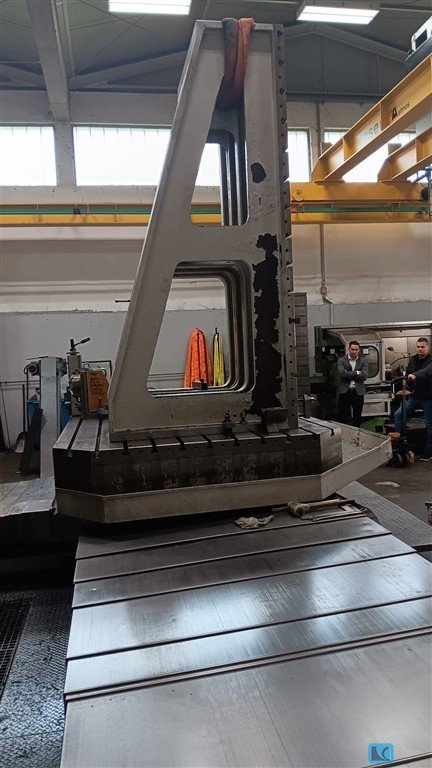

Inv. Num. : 6345 Type: WHN 13.4.C Producer: TOS Produced: 1988 Parameters: Control system: MEFI CNC 836 Work table length: 2200 mm Work table width: 1800 mm Spindle drive power: 37 kW Maximum spindle speed: 2800 1/min Travel X-axis: 2000 mm Travel Y-axis: 1600 mm Travel Z-axis: 1200 mm Machine weight: 32.000 kg Replaced ball screw. Measurement of each ESSA axis separately. Drive for each XYZ axis.

Drilling capacity: 130 mm Throat: 10 mm Spindle taper: 50   CNC Brand: Heidenhain X - Travel:    3500mm Y - Travel:    2000mm Z - Travel:    800mm W - Travel:    1250mm Table Length:  1800mm Table Width:   1600mm Table load:    12000 Speeds / ranges:1365Rpm Power:         37kW Spindle Taper: 50ISO/Bt/Mk

Year of manufacture/SO/GO: -/-/2005 The machine is in good technical condition, it is possible to test it by agreement. Modernization in 2005, digitally controlled horizon. Machine weight 13400 kg. Diameter of the working spindle 100mm. ISO 50 spindle taper. Maximum workpiece weight 3000kg.

The machine is in good technical condition. Working spindle diameter: 100mm Transverse table adjustment: 1250mm

The machine is in good technical condition. Working spindle diameter: 90mm Transverse table adjustment: 1120mm. After agreement, the possibility of testing. Accessories: digital measuring, angles.

The machine is in good technical condition, it is possible to test it by agreement. Work table 1800 x 1800mm. Machine dimensions: 7150 x 6280mm, height 5164mm. Main engine 80kW.

Machine weight: 13400 kg Total power of the machine:: 20 kW Diameter of the working spindle: 100 mm Spindle taper: ISO 50 Spindle speed: 4 - 1400 rpm Table clamping surface: 1000 x 1120 mm

The machine is in good technical condition. Working spindle diameter: 100m Clamping surface of the table: 1000x1120 By prior arrangement, the possibility of a tour in progress.

The machine is in good technical condition. Working spindle diameter: 80mm Table dimensions: 900x1120mm By prior arrangement, the possibility of a tour in progress.

in good technical condition. Working spindle diameter: 100m Clamping surface of the table: 1000x1120 A tour is possible by prior arrangement.

Machine weight: 17500 kg Total power of the machine:: 10 kW Diameter of the working spindle: 100 mm Spindle taper: ISO 50 Spindle speed: 7.1 - 1200 rpm Table clamping surface: 1250 x 1250 mm

Spindle diameter: 50 mm Cross X: 1600 mm Vertical Y: 1120 mm Table length: 1250 mm Table width: 1250 mm Positions ATC: 1   Number of pallets: 1   Table type boring millTOS VARNSDORF - W100A X - Travel:    1600mm Y - Travel:    1120mm Z - Travel:    1250mm Table Length:  1250mm Table Width:   1250mm Table load:    3000 Speeds / ranges:1120Rpm Power:         11kW Spindle Taper: 50ISO/Bt/Mk Length:        6000mm Width:         3700mm Height:        3200mm Weight:        13600kg

Mas Tos VR2 Mk4 Admission in drilling-spindle (morse): Mk4 Driven gear (from -- to): 90 > 4500 rpm Max drilling depth: 230 mm

Tos HOV 25 Ø 500 mm Strokelength: 250 mm Table dia: 500 mm Longitudinal travel table X-axes: 560 mm Crosstravel table Y-axes: 450 mm Length : 2270 mm Depth : 1425 mm Weight: 2850 kg

Type: 2UD/750 Parameters: 290 mm, 750 mm Year of manufacture/SO/GO: -/-/- Location: Czech Republic

turning diameter over bed: 655 mm turning diameter over slide rest: 390 mm turning length: 1250 mm spindle bore: 82 mm spindle turning speed range: 9-1120 U/min feeds: 0,049-3 mm/U total power requirement: 12 kW weight of the machine ca.: 5,2 t required space: 3,5 x 1,9 x 1,7 m m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Hmotnost stroje: 3000 kg Celkový příkon stroje:: 4 kW Max. průměr broušení: 280 mm Vzdálenost hrotů: 630 mm Max. hmotnost obrobku: 60 kg

x-travel: 720 mm y-travel: 255 mm Z-Travel: 400 mm clamping surface area: 1000 x 250 mm range of revolution per miute: 40...3150 / 8 step U/min tool taper: ISO 40 (SK40) milling head swivable : +/- 90 ° Quill Stroke: 127 mm feed:Z: 8,5...136 / with 9 step rapid traverse:: X/Y/Z: 2500 mm/min feed:: X/Y: 28...450 / with 9 step mm/min. total power requirement: 3.2 (4 kVA) kW dimension machine approx. LxWxH: 1.8 x 1.6 x 2.4 m Weight of the machine approx.: 1,5 t

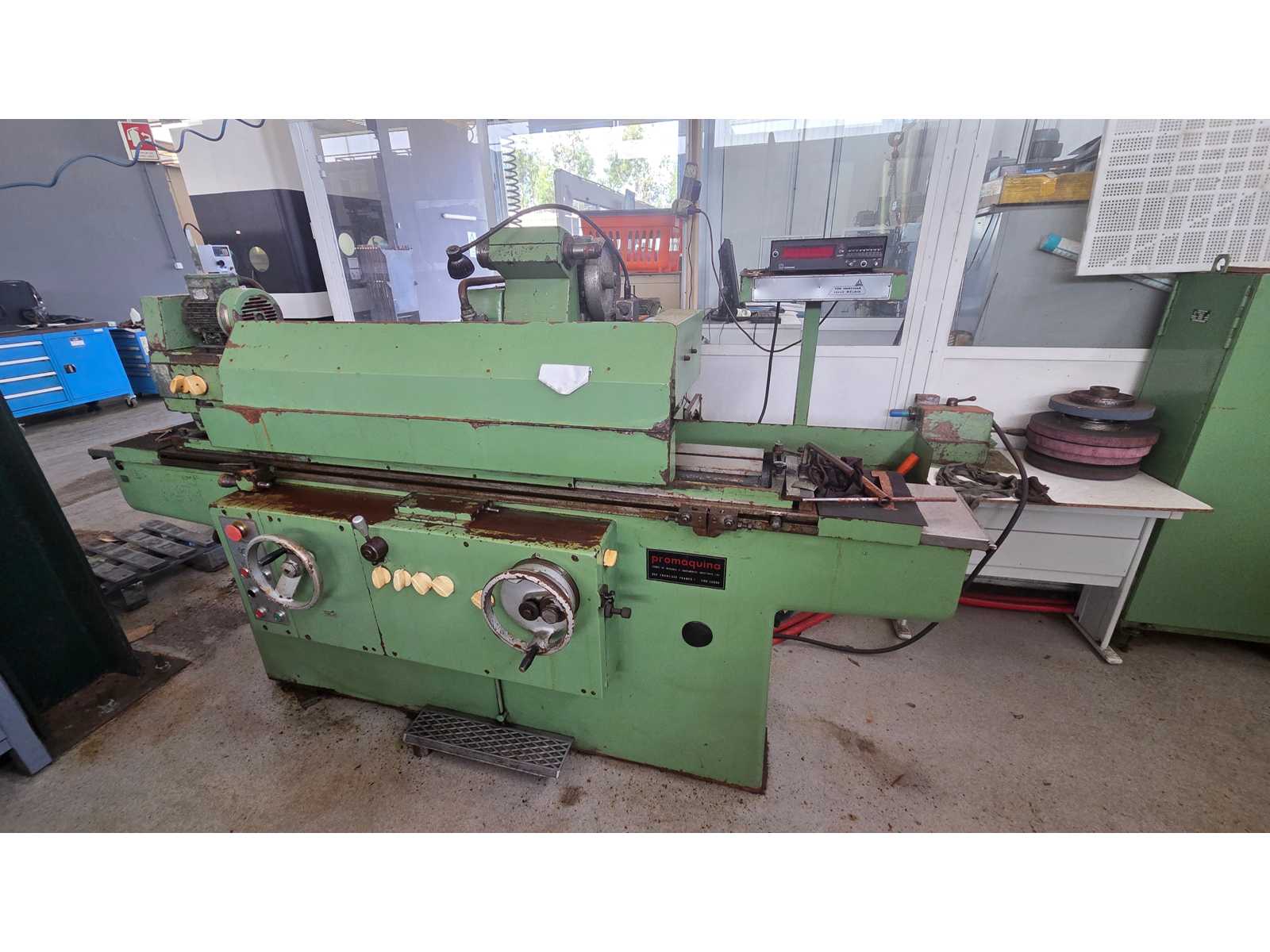

Type: BUA 31/1000 Parameters: 310 mm, 1000 mm Manufacturer: Tos Description: Surface grinding machine. Max. workpiece diameter: 315mm Max. tip distance: 1000mm. Machine in good technical condition.

Hmotnost stroje: 3200 kg Celkový příkon stroje:: 6,2 kW Upínací plocha stolu: 320 x 1000 mm Otáčky brousícího vřetena: 2280 , 2600 ot/min Max. hmotnost obrobku: 280 kg

Table size: 630 x 200 mm. Table load capacity: 200 kg. The machine is in good technical condition, currently disconnected.

Name of the machine BRUSKA HROTOVÁ Manufacturer TOS Hostivař Machine type BUC 63 A / 4000 Year of manufacture Basic parameters 630 mm; 4000 mm

Name of the machine BRUSKA HROTOVÁ Manufacturer TOS Hostivař Machine type BUB 32/1000 Year of production 1988 Basic parameters 320mm, 1000mm

Capacity 4100 x 6 mm Cybelec DNC 60 CNC control Pneumatic elevation table at the rear Electric cutting gap and angle adjustment

spindle diameter: 130 mm x-travel: 2000 mm y-travel: 2000 mm z-travel: 1250 mm w-axis: 800 mm Control: Heidenhain type: TNC 135 table surface area: 1800x1800 mm Table load: 12000 kg power capacity: 30 kW 09-08 machine number The techn. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively.About usMore than 400 of our own machines in the warehouseMore than 12,000 m² of storage space, crane capacity 70 tMore than 1000 items Accessories for your workshopYou want to sell machines, production lines or your company,then contact us. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Universal milling machine SN55/2000 with steady rest.

MAX DIAMETER 550 MAX MODULE 6

Film shrinking machine, TOSA GROUP / Mimi, Uniblock for articles up to 1.20m width and length unlimited – used- : Price on request or against bid! Manufacturer: TOSA GROUP / Mimi Supplier: AUSLOOS Year of construction: 2019 Type number: Uniblock 1623-NF FA5786 Serial Number: 185786 Dimensions: Length: 5650mm, Width: 2960mm, Height: 1850mm The maximum width is 1.2 m and the length is unlimited, but additional roller conveyors must be installed for packing long pieces. Not part of the sale: Feed and discharge roller conveyors All Handling & Handling Equipment (Column Slewing Crane) Plan is available and will be sent on request New price of the system was approx. 90,000€ Condition: good - very good Available: now Location: Roselare – Belgium

MAX DIAM 550 MAX MODULE 6

Inv. Num. : 6702 Type: WHN 9B Producer: TOS Created: 1975 Parameters: X-axis travel: 1250 mm Y-axis travel: 900 mm Z-axis travel: 1000 mm Equipment: DRO

Inv. Num. : 6710 Type: WH 80 Producer: TOS Created: 1964 Parameters: Working table length: 1090 mm Working table width: 1000 mm Maximum table load (uniform): 2500 kg Maximum spindle speed: 1400 1/min X-axis travel: 1250 mm Y-axis travel: 900 mm Z-axis travel: 1250 mm Spindle diameter: 80 mm Machine height: 2550 mm Machine length: 5000 mm Machine width: 2500 mm Machine weight: 10850 kg Equipment: HE.

Inv. Num. : 6737 Type: WHN 11 Producer: TOS Created: 1970 Parameters: Working table length: 1250 mm Working table width: 1250 mm Maximum table load (uniform): 8000 kg Maximum spindle speed: 900 1/min X-axis travel: 1600 mm Y-axis travel: 1250 mm Z-axis travel: 1000 mm Spindle power: 34 kW Spindle diameter: 110 mm

The machine is in good technical condition. Working spindle diameter: 90mm Transverse table adjustment: 1120mm accessories for the machine include a column crane A tour is possible by prior arrangement.

Inv. Num. : 6762 Type: WHN 9 B Producer: TOS Created: 1975 Parameters: Repair history: 30.8.2021: Repair of the rotary table 31.5.2021: Repair of the lubrication system for guide surfaces 18.02.2021: Adjustment of the rotary table coupling 22.10.2020: Replacement of the sealing elements of the hydraulic cylinder of the tool clamping Replacement of the tool support bearings Replacement of hydraulic hoses for tool clamping 21.10.2019: Replacement of the electromagnetic clutch 09.10.2019: Brush holder - carbon 31.1.2017: adapted quick-shift clutches with replaced spark plugs and shift knobs on the "Y" axle 11.03.2017: Lockshift clutch

Double Column Machining Center TOSHIBA MPC-3180B Table mm.8000 x 2700 Distance between columns mm.3100 X mm.9000 Y mm.3900 Z Verticaal RAM stroke mm.900 W Vertical Crossrail stroke mm.1600 Automatic indexed every 5 degrees 5 face head Distance table to spindle nose mm.2440 Table load Kg. 20.000 Spindle speed 5-3000 rpm 2 ranges Spindle taper BT 50 Ram section 380 x 380 Machine dimensions mm.29110 x 9900 x 7260 Machine weight Kg. 151.000 Year 2007 Standard options : 5-face cutter head Automatic attachment (5-face cutter head or other attachments)index (AAI) (4-position index by 90.) Automatic tool loading/unloading device for vertical spindle and horizontal spindle) CNC controller including standard and pack specifications Pendant operation box with electrically-driven free arm Hydraulic unit Oil cooling unit (AKZ 908) Hydraulic crossrail servo balancing s ...

CNC Heidenhain TNC 426 with handwheel HR 410 X = 3500 mm Y = 2500 mm Z = 1250 mm W = 800 mm Table dimensions 1800 x 2200 mm Spindle diameter 130 mm Max. spindle speeds 2500 RPM External coolant 2-axis manual milling head TOS HUR 50 year 2004 almost unused.

CNC controller: FANUC 15i-M Axes; X-axis travel mm: 9.000 Y-axis travel mm: 3.900 Z-axis travel mm: 900 W-axis travel mm: 1.600 (distance between columns 3.100 mm) Distance spindle nose - table surface mm: 2.440 Feed rates m/min: 6 (X,Y,Z) 3 (W) Rapid traverse m/min: 20/9 (X,Y) 10(Z) 6(W) Worktable; Number of pallets: 2 (table automatic changer) Table dimensions mm: 2.700x8.000 Max. workpiece weight kg: 20.000 Spindle; Spindle speed rpm: 5-3.000 (2 ranges) Spindle drive power kW: 30(50% ED)/22 Spindle torque Nm: 2.170 Tool system; Tool holder: MAS BT50 Tool magazine slots: 180 Equipment; Chip conveyor Signal lamp High pressure pump Tool breakage probe Preapared for RENISHAW sonde RENISHAW Measuring probe Rated power kVA: 150 AAC (Automatic Attachement Changer): Capacity = 5 Attachements and their cases: 1) Snout 190 2) Small Angle head 5 Faces Cutter Head ...

Spindle diameter: 120 mm Cross X: 3500 mm Vertical Y: 2500 mm Table length: 2200 mm Table width: 1800 mm Positions ATC: 60   Number of pallets: 1   CNC Brand: Heidenhain X - Travel:               3500mm Y - Travel:               2500mm Z - Travel:               1250mm W - Travel:               800mm Table Length:             2200mm Table Width:              1800mm Table load:               12000 Speeds / ranges:          3000Rpm Power:                    37kW Spindle Taper:            50ISO/Bt/Mk Feed rate  ...

This TOS WHN 13.4A from Czech Republic was manufactured in 1985, is operated through a Heidenhain 355 control unit. It is equiped with 4 axis.

Moving steady rest, moving steady rest, steady rest, lynette -Max. Passage: Ø 120 mm -Edition: gray cast iron -Hole spacing: 135 mm -Tip height: 145 mm -Drawing with the photos -Number: 3x bezels available -Price: per piece -Dimensions: 370/280/H90 mm -Weight: 10 kg

Moving steady rest, moving steady rest, steady rest, lynette -Max. Passage: Ø 120 mm -Edition: gray cast iron -Hole spacing: 135 mm -Tip height: 145 mm -Drawing with the photos -Dimensions: 370/280/H90 mm -Weight: 10 kg

grinding diameter: 500 mm grinding length: 2900 mm centre height: 250 mm Control: Siemens Sinumerik 840D centre distance: 3000 mm stroke of the table: max. 3200 mm table feed: 0,001 - 4000 mm/min rapid traverse of table: 9 m/min table swivelling +/-: +4/-2 Grad grinding wheel size: 500x100x203 mm peripheral speed: 18 - 36 m/sec spindle speeds: 6 - 900 U/min grinding head swivelling: 90 Grad tailstock quill taper MT: 5 tailstock quill stroke: 80 mm grinding spindle drive: 9,5 kW working spindle drive: 0,1 - 3,1 kW hydraulic motor: 2,2 kW max. workpiece weight between centers: 500 kg workpiece weight in steadies max.: 840 kg total power requirement: 58 kVA weight of the machine ca.: 14,1 t dimensions of the machine ca.: 8,9 x 3,42 x 1,94 m CNC control SIEMENS SINUMERIK 840D with operating panel OP 10 and color flat screen TFT 10,4 with machine control panel MPC 19 remote control panel  ...

Round Dividing Table, Rotary Table, Circular Dividing Table TOS SM500 Ø 500 mm 360° Division used, tested ! Dimensions: 700 x 700 x 200 mm

turning diameter over bed: 500 mm turning diameter over slide rest: 320 mm turning length: 1000 mm centre height: 250 mm centre distance: 1000 mm spindle bore: 56 mm spindle turning speed range: 14 - 2240 U/min spindle nose: DIN 55027 Gr. 6 feeds - longitudinal: 0,023 - 4,8 mm/U feeds - cross: 0,011 - 2,4 mm/U face slide travel: 300 mm upper slide travel: 140 mm thread - mm pitch: 0,25 - 60 mm thread - inch: 120 - 1/2 Gg/ thread - module: 0,125 - 15 mm tailstock quill diameter: 80 mm tailstock quill stroke: 180 mm tailstock taper MT: 5 total power requirement: 7,5 kW weight of the machine ca.: t dimensions of machine L x W x H: 2,42 x 1,23 x 1,93 mm Accessories: 3-jaw chuck 250 mmø, MULTIFIX-toolpost with various inserts, drill chuck, running center, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Hydraulic pump TOS RAKOVNIK GAR1-020-41PS-1K Nominal pressure: 16 MPa ( 160 bar ) Nominal displacement volume: 20 cm3 rated speed: 1500 rpm shaft: Ø 22 mm shaft length: 40 mm groove width: 6 mm flange: Ø 110 / 144 x 150 mm bolt circle diameter: Ø 148 mm hole diameter: Ø 13 mm control valve: VTK 20-6-350 New ! Dimensions: 390 x 275 x 150 mm

Dividing head with 3 jaw chuck and centering point TOS DU-250 AS ( DU-250AS ) Ø 125 IU 125 M 1- 1 max 4500 rpm center height 135 mm used, tested ! Dimensions 600 x 400 x 320 mm

Drilling capacity: 30 mm Throat: 30 mm Spindle taper: 30   CNC Brand: Heidenhain CNC Model: HeidenHain TNC 430 5 Axis CNC Horizontal borer Spindle Hours 18.300 Optional HU 50 Universal milling head ( rotation 1 direction C-Axis) Hydraulic tool clamping External coolant system X - Travel:              1250mm Y - Travel:              900mm Z - Travel:              630mm W - Travel:              1000mm Table Length:            1120mm Table Width:             1000mm Table load:              3000 Speeds / ranges:         2500Rpm Power:                   30kW Spind ...

MAX DIAM 500, MAX MODUL 8 , PLC , DRO

grinding diameter:630 mm grinding length:3000 mm centre height:315 mm total power requirement:35 KVA weight of the machine ca.:13,3 t
