Automatic motor spindle lathe: Tornos
Type / Model: MultiAlpha 8x20
Condition: used
Year of Make: 2008
Machine hours: 45017 h
Technical data
Capacities & Travel Distances
Bar passage (round material) up to max. 22 mm
(with turned rods up to max. 25 mm)
Workpiece length max. 100 mm
Longitudinal travel (Z-axis) 80 mm
Cross slide path (X-axis) 50 mm
End units (longitudinal slide) 200 mm
Spindle & Axes

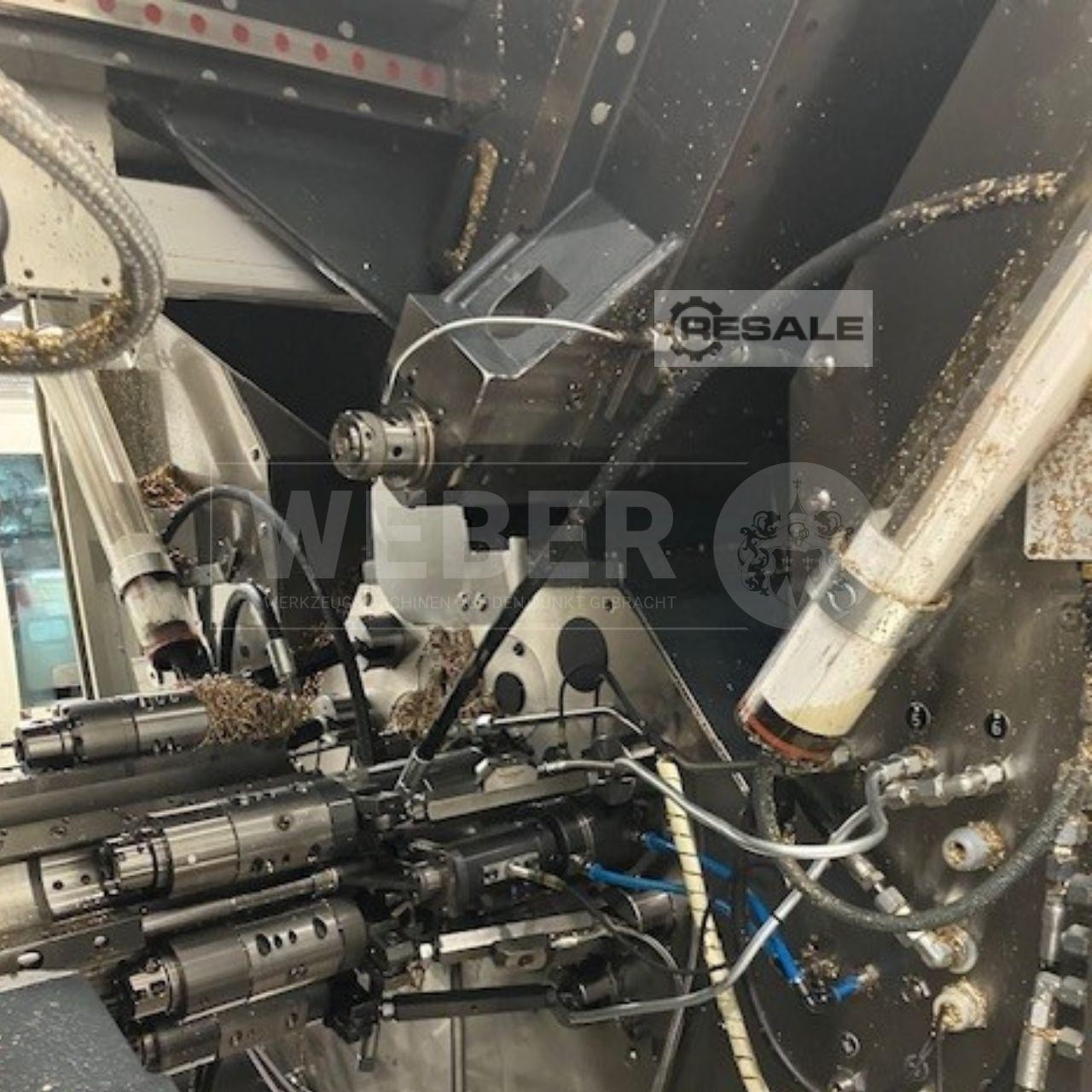

Main spindle 8 independently driven motor spindles
Sub-spindle one sub-spindle, with max. 5 machining tools and max. 3
driven machining operations possible
Total axles 34 axles
Tool slide 7 Cross slide X/Y (position 1 - 7)
1 parting carriage X (position 8)
7 longitudinal slides (positions 1- 7)
Drive power & speeds
Main spindle speed 0 - 8,000 1/min
Power main spindle motor 11.2 kW
Torque main spindle 17Nm (optionally up to 25 Nm)
Speed of sub-spindle max. 8,000 1/min
Power counter-spindle motor 3.7 kW
Torque sub-spindle 8.3 Nm
Equipment / Accessories:
Control Fanuc 30i
4x Motoquill
8x Fixed Drilling Spindle with Modular 40 Holder
Göltenbodt base holder (permanently installed on axles)

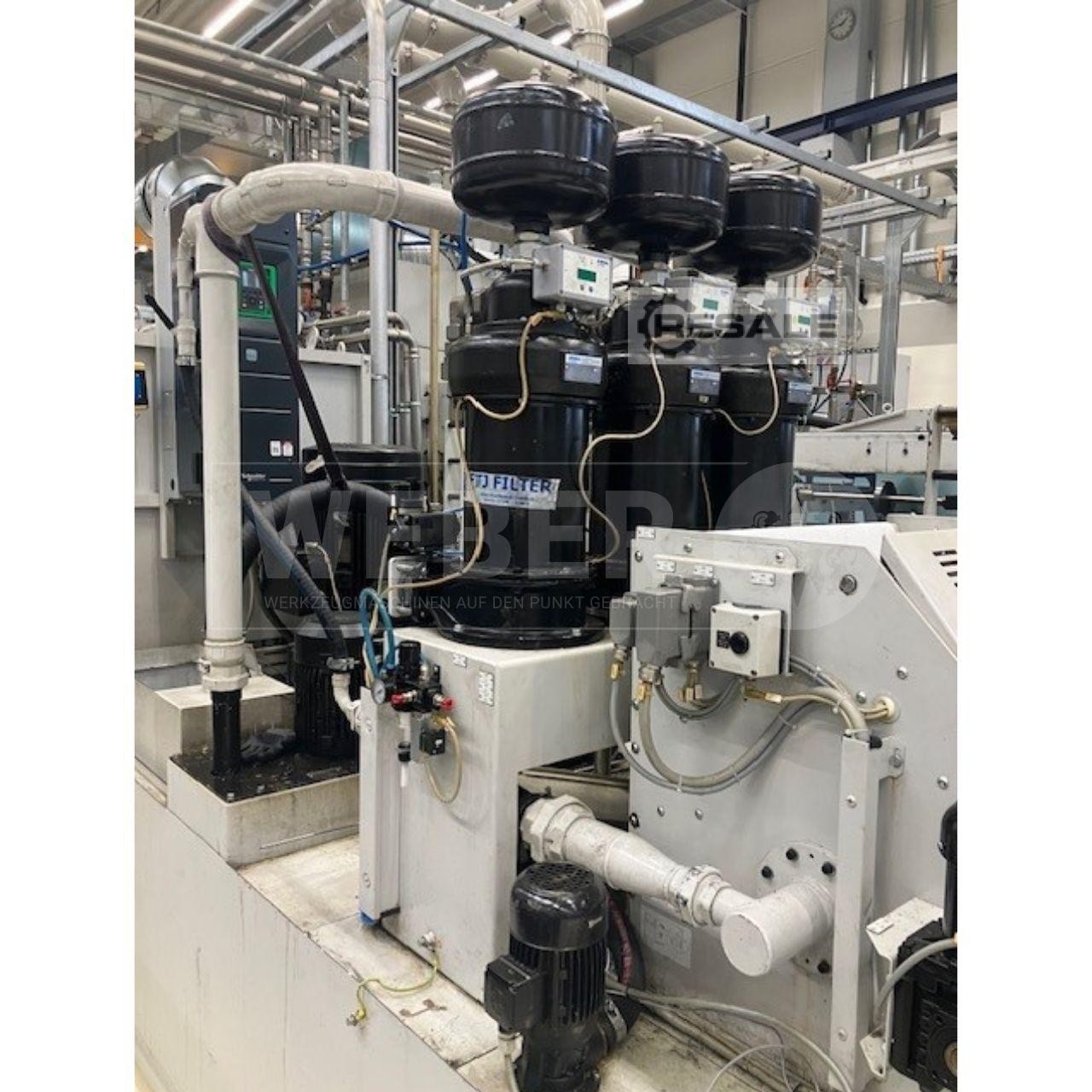

Knollanlage with turbo filter system
Partial handling manipulator
max. bar passage Ø 20 mm
max. part length 100 mm
1 x Y-axis can be installed
Costs for delivery by freight forwarder free curbside see shopping
cart or for inquiry items in the individual offer.
Germany
