tool grinding used for sale

Tool grinding machine WMW SWA 200 grinding diameter max Ø 600 mm grinding length max 470 mm table movement longitudinally 470 mm Tool holder MK2 swivel 0-6 °, 90° Speed range: 1260 - 3100 rpm 0,0.0 4 kW 220 / 380 V used, tested ! Dimensions: 1100 x 1100 x 1500 mm

Tool grinding machine HENDEL+KUBASCH WBV year: 1961 grinding diameter max: 50 mm grinding length: 250 mm workpiece length: 300 mm motor: 0.0.00 mm 7 kW 380 V used, tested !' Dimensions: 1000 x 1000 x 1400 mm

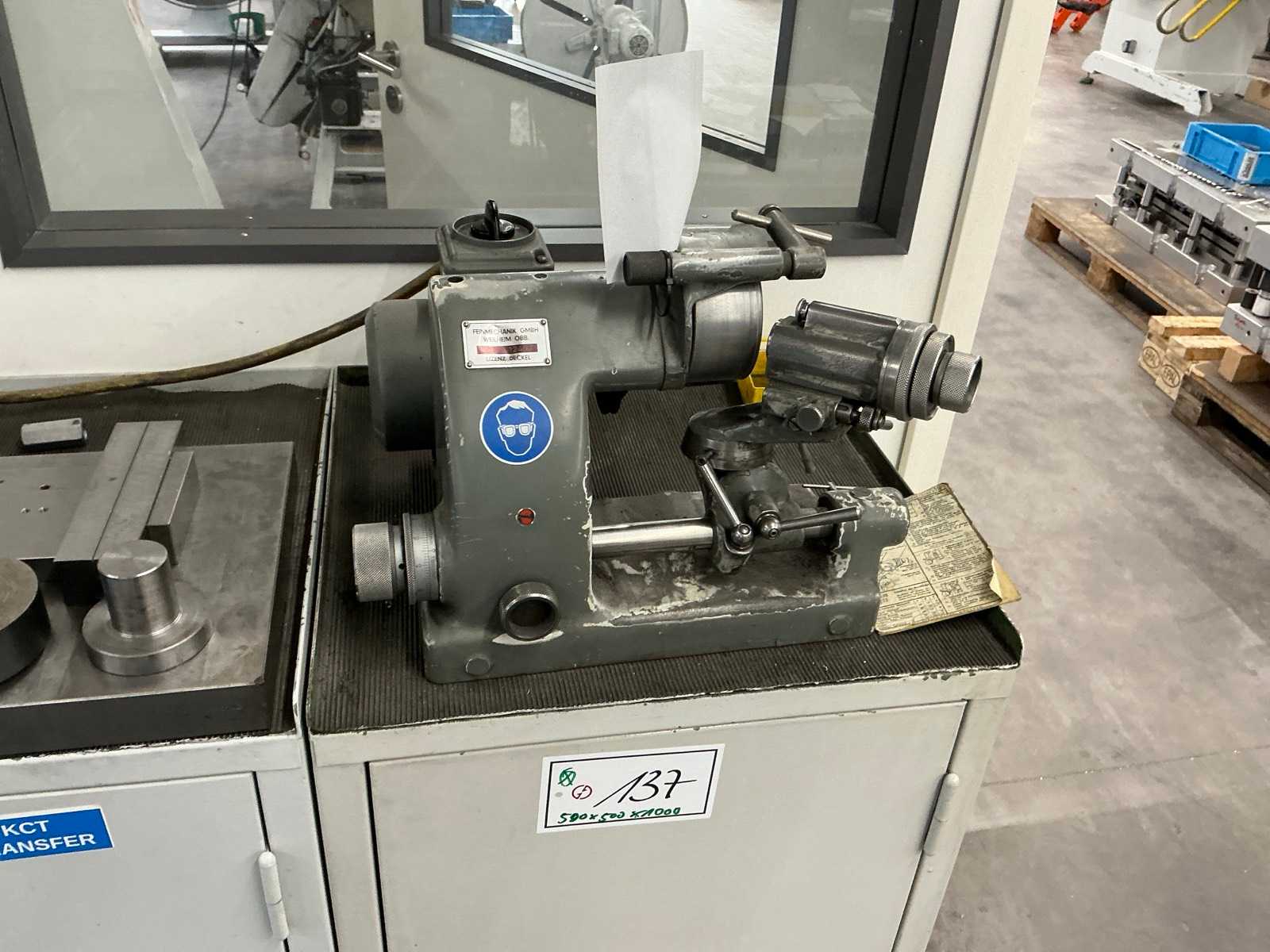

Michael Deckel S0E Stylus Tool Grinding Machine, SOE Weilheim TOP Condition Total weight approx. 90kg Top grinding wheels with an outer diameter of up to max. 100mm are used Absolute top condition! Only one overhauled machine has a slightly superficial patina the bare metal parts. The pictures speak for themselves. The workshop dream in Reseda green :-) Plug with phase inverter

max. grinding diameter: 0 mm grinding length: 0 mm workpiece length: 970 mm total power requirement: 12 kW weight of the machine ca.: 5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. grinding diameter: - mm grinding length: - mm workpiece length: - mm Control: total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

WALTER Helitronic Power Diamond CNC Sharpener TECHNICAL FEATURES: Year: 2015 NC Type: FANUC Series 31i-B5 Software version installed: Tool Studio 2.1 R8 Color Touch Screen: 15 ["] Number of axes: 5 X-axis travel: 460 [mm] X-axis resolution: 0.0001 [mm] Y-axis travel: 320 [mm] Y-axis resolution: 0.0001 [mm] Z-axis travel: 660 [mm] Z-axis resolution: 0.0001 [mm] X, Y and Z fast travel speed: 15000 [mm/min] A-axis travel: 360 [°] C-axis travel: +/- 200 [°] C-axis resolution: 0.0001 [°] Max. length Workpiece: Face grinding: 280 [mm] Max. length of sharpening: 350 [mm] Max. diameter of sharpening: 320 [mm] Wheel Holder Spindle Attachment: HSK-50 Maximum speed Grinding spindle: 10500 [rpm] Wheel spindle power: 14.5 [kW] Max. diameter Grinding wheel: 200 [mm] Workpiece Spindle Nose: ISO 50 Max. weight permissible workpiece headstock: 20 [Kg] Working time:  ...

max. grinding diameter: 300 mm grinding length: 500 mm workpiece length: mm Number of axles: 6 St. centre height: 220 mm centre distance: 500 mm x-axis: 500 mm y-axis: 320 mm z-axis: 320 mm total power requirement: 5 kW weight of the machine ca.: t dimensions of the machine ca.: m Height of centres 200 mm Distance between centres / clamping length 750 / 500 mm Table size 290 x 1,600 mm Intermediate table 110 x 1,200 mm X / Y / Z axes 500 / 320 / 320 mm Feed speeds, X, Y & Z axes 0.005 - 5 m/min Grinding head swivelling, vertical axis (B axis) 300 ° Grinding head tilting (C axis) +/- 30 ° Speed range of R axis 0 - 50 rpm Grinding spindle speeds, approx. 5,000 - 10,000 rpm Workpiece holding fixture 50 ISO Indexing 1 - 999 ° Leads 0.5 - 10,000 mm Spindle drive 4 kW Total electrical load, approx. 10 kW - 380 V - 50 Hz Weight, approx. 4,000 kg Accessories / Special Features SCHÜTTE CNC ...

Auction-ID: A1-51062-108

Suitable for automatic cutting and surface grinding of hard metal and HSS rods with high precision for standard and special solutions Accessories: Total enclosure,, Automatic feed (hydro-pneumatic),, Rapid traverse adjustable via touch panel, Automatic fire extinguishing system Kraft & Bauer FB 703,, Length positioning freely programmable,, Control system Siemens Simatic HMI,, Preparation for connection to central coolant system., Workpiece diameter with loading magazine: 3 - 20 mm, Workpiece length without loading magazine: 3-32mm, Workpiece length with loading magazine: 3-350mm, Workpiece length without loading magazines: 1-450mm, Spindle speed grinding spindle: 2000 rpm,, mass: approx. 1,700 kg, weight: approx. 1,700 kg, Dimensions L x W x H: 1900 x 1200 x 2400 mm, colour: Gray

Suitable for chamfering and surface grinding of hard metal rods. Accessories: Full cladding, Wet grinding device, Loading magazine for workpieces from 30 - 150 mm, Hydraulic feed of the grinding head, Hydraulic feed of the workpiece spindle head, Hydraulic workpiece clamping of the cylindrical grinding device, Preparation for connecting an extraction system, Automatic fire extinguishing device, Touch panel TP 177 A., workpiece diameter automatic mode: 3 - 20 mm, workpiece diameter semi-automatically: 3-32mm, workpiece length semi-automatic: 3-32mm, workpiece length: 30-150 mm, Drive power grinding spindle: 4.0 kW, Spindle speed grinding spindle: 2000 rpm,, speed of the cylindrical grinder: 1500 rpm., cutting wheel diameter: Max. 200 mm, Electrical connection: approx. 7 kW (400 V / 50 Hz), Dimensions L x W x H: 2000 x 1500 x 1500 mm, mass: approx. 1,600 kg, colour: gray RAL 7035, Dimensio ...

max. grinding diameter: 200 mm centre height: 100 mm centre distance: 525 mm weight of the machine ca.: 700 kg dimensions of the machine ca.: 120x100x150 cm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. grinding diameter: 200 mm grinding length: 525 mm centre height: 102 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

centre height: 140 mm max. grinding diameter: 279 mm centre distance: 750 mm weight of the machine ca.: 1000 kg dimensions of the machine ca.: 1.5 x 1.25 x 1.5 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. grinding diameter: - mm grinding length: - mm workpiece length: - mm total power requirement: 1,5 kW weight of the machine ca.: 1 t dimensions of the machine ca.: 1,3 x 1,1 x 2 m Movie: https://www.youtube.com/watch?v=rWhWg4H_tos No. 5042 Universal tool and steel grinding machine SIMON VSR 3 2-fold digital display + optics Drive: 1.1 kW 2-station pendulum table grinding / measuring Cross slide 1 with Z1 + Y 1 Cross slide 2, rotatable, with Z2 + Y2 Height-adjustable grinding headstock Space requirement approx. 1.3 x 1.1 x 2 m Weight approx. 500 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. grinding diameter: / mm grinding length: / mm workpiece length: / mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC Univ. Tool Grinding Machine SCHÜTTE Type BU 400 CNC 4Machine - Defect - without ControlMachine not ready for operation - electric without function - without CNC controlFabr. No: 03-02 Year of manufacture 19904 axes (X, Y, Z and R)Table clamping surface 1300 x 250 mmCenter width 700 mmCenter height 155 mmGrinding length (X-axis) max. 400 mmGrinding width (Y-axis) max. 260 mmGrinding spindle speed max. 6000 rpm. Grinding spindle drive 3 kWNet connection 380 Volt, 50 Hz, 25 Amp.- CNC control

4-position tool grinding machine Fabr. SOLID Type DS 3 CD incl. cooling device and base with adjustable tables Grinding wheel pre-grind C: 200 x 50 x 51 mm Table: 400 x 150 mm Grinding wheel regrinding C: 200 x 50 x 51 mm Table: 400 x 150 mm Grinding wheel lap cut diamond: 125 x 12.5 x 51 mm Table: 400 x 150 mm 1 grinding wheel: 100 x 8 x 51 mm 2 engine speeds: 1400 / 2800 rpm. Drive power: 0.6 kW Dimensions L x W x H/: 1120 x 1000 x 1300 mm Weight: approx. 330 kg

max. grinding diameter: 200 mm grinding length: 450 mm workpiece length: / mm workpiece height: 220 mm total power requirement: 1,14 kW weight of the machine ca.: 1,5 t dimensions of the machine ca.: 1,7 x 1,6 x 1,6 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

SPECIFICATIONS: Machinable tool: max. 230 mm Tool length: max. 240 mm Installed power: 1.1 kW EQUIPMENT: Replacement Grinding Wheels

A bench grinding machine is available. Grinding wheel dimensions X/Y/Z: 125mm/20mm/20mm, speed: 3420rpm, travel X/Y/Z: 130mm/80mm/65mm, clamping angle range: -10°/25°. Machine dimensions X/Y/Z: approx. 400mm/510mm/360mm, weight: 75kg. Including accessories, three grinding wheels and transport box. Documentation available. An on-site inspection is possible.

A used manual tool grinding machine from Saacke is offered. Table size X/Y approx.: 850mm/145mm, travels X/Y/Z approx.: 450mm/250mm/250mm, center height approx.: 125mm, max. grinding length approx.: 500mm, machine dimensions X/Y/Z approx.: 1500mm/1100mm/1500mm, weight approx.: 850kg. Inspection by appointment possible.

tool diameter: 18 mm adjustability of the setting guage: 130 mm max. dia. of grinding wheel: 100 mm weight of the machine ca.: 0.15 t dimensions of the machine ca.: 0.55 x 0.4 x 1.11 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Suitable for automatic grinding of all types of tools. Accessories:, Total enclosure, Knoll E53319 bandfilter system, Numroto 3D Simulation Software,, Numroto 3D Collision Detection Software,, Numroto Form Cutter Software,, Pallet loader, CNC handwheel, Control cabinet cooler,, automatic tailstock, automatic central lubrication, Glass scales on the X, Y, Z linear axes, Measuring probe, Hydraulic workpiece clamping, Oil collection tray, 2 loading pallets,, 1 grinding wheel holder., X axis travel: 800 mm, Y axis travel: 270 mm, Z-axis travel: 660 mm, B axis travel: 400 °, Rapid traverse: 30/15/30 m/min, Workpiece mount: ISO 50, Tool holder cone: ISO 50, Grinding spindle drive power: 12 kW, Grinding spindle speed stepless: max. 9000 rpm,, Grinding wheel diameter: max 203mm, Connected load approx.: (400V/50Hz), Dimensions L x W x H: 1900 x 2300 x 2300 mm, Weight approx: 5400 kg, Colour: Gre ...

A small universal tool grinding machine Haas Trossingen is available. Grinding spindle diameter: 60mm-90mm, grinding wheel diameter: 175mm, taper: 15mm. The machine has been overhauled. An on-site inspection is possible.

Grinding machine, angle grinder, lathe steel grinder, thread drill grinder, milling grinder, surface grinder, drill grinder, bench grinder -Manufacturer: Strohm -Handover: as is as seen -Protective window: damaged on one side -Binding bench: missing -Motor: AEG 0.22/0.3 kW -Speed: 680/1400 rpm -Coolant device: switchable, adjustable -Dimensions: 590/490/H1370 mm -Weight: 222 kg

Tool grinding machine, grinding machine, angle grinder, turning steel grinding machine, steel grinding machine -Elysier grinding possible with the machine -Diamond grinding wheel -1x angle tables: 220 x 310 mm -Angle adjustment: +15° bis -5° -Oscillation: 0-35 mm -Water cooling with: electrolytes -Sanding dust extraction -Max. Steels cross section: mm -Number: 1x grinding machines available -Price: per piece -Dimensions: 850/700/H1400 mm -Weight: 580 kg

Tool grinding machine, grinding machine, angle grinder, turning steel grinding machine, steel grinding machine -Transfer in current condition as seen -Machine must: be overhauled electrically (FI circuit breaker trips) -Grinding points: 4 -Angled tables on vibrating tables: 3 -Vice for chip breaker groove: 1 -Max. Steel cross section: mm -Number: 1x grinding machines available -Price: per piece -Dimensions: 1500/1500/H1400 mm -Weight: 1004 kg

Cup grinding machine, swivel arm grinding machine, carbide chip breaker groove grinding machine, tool grinding machine, grinding machine, angle grinding machine, turning tool grinding machine -Clamping table: 440 x 300 mm -Max. intermediate dimension: 130 mm -Grinding disc diameter: 125 mm -Dimensions: 1200/840/H1680 mm -Weight: 380 kg

Grinding machine, angle grinder, turning steel grinding machine, thread drill grinding machine, milling cutter grinding machine -Angle adjustment -Grinding device -Disc: Ø 150 mm -Drive: 0.5 kW -Speed: 2800 rpm -Magnetic plate: 250 x 100 mm -Grinding length: 290 mm -Dimensions: 1050/800/H1600 mm -Weight: 294 kg

Grinding machine, angle grinder, lathe tool grinding machine, thread drill grinding machine, milling cutter grinding machine, surface grinder, drill grinding machine, bench grinder -Manufacturer: Wilhelm Simon, 2-station tool grinding machine -Motor power: 1 kW -Speed: 2800 rpm -Grinding discs: Ø max. 150 mm -Coolant system: Pump missing, can be replaced for an additional charge -Dimensions: 1430/780/H1380 mm -Weight: 456 kg

Spare part for grinding machine, angle grinder, lathe tool grinder, tap and die grinder, milling cutter grinder, surface grinder, drill grinder -sold as a source of spare parts -Adjustment device: for grinding machine -Type: unfortunately without a type designation -Details: see photos -Dimensions: 580/400/H500 mm -Weight: 120 kg

Grinding machine, angle grinder, for chipper knives, planer knives, saw blade grinder, lathe grinder, milling cutter grinder, surface grinder, drill grinder, bench grinder -Manufacturer: Chuet Nevers, tool grinding machine -Speed: 3000 rpm -Grinding wheels: Ø max. 200 mm -Accessories: included, see photos -Dimensions: 680/590/H1560 mm -Weight: approx. 121 kg

Spare part for grinding machine, angle grinder, lathe tool grinder, tap and die grinder, milling cutter grinder, surface grinder, drill grinder -Clamping angle: for tool grinding machine -Type: unfortunately without a type designation -Details: see photos -Dimensions: 150/150/H215 mm -Weight: 8.2 kg

Grinding machine, angle grinder, rotary steel grinder, thread drill grinder, milling cutter grinder, surface grinder, drill grinder, bench grinder, double bench grinder -Manufacturer: Gebr. Bayer, tool grinding machine with 2 stations -Motor power: 0.75 kW -Speed: 2800 rpm -Grinding discs: Ø max. 225/160 mm -Coolant device: -Dimensions: 1210/710/H1340 mm -Weight: 195 kg

Dividing head, spiral milling device, dividing head, tool holder for grinding, drill grinding machine, milling cutter grinding machine, drill grinding holder -Manufacturer: Stankoimport, holder for tool grinding machine -Type: 36642.M7 -swivelling: up to 105° -Mounting: Ø 35 mm / M16 see photos -Dimensions: 150/140/H85 mm -Weight: 3.9 kg

Dividing head, spiral milling device, dividing head, tool holder for grinding, drill grinding machine, milling cutter grinding machine, drill grinding holder -Manufacturer: Stankoimport, holder for tool grinding machine -Type: 36642.M26 -Recording: Dimensions see photos -Dimensions: 110/65/H110 mm -Weight: 2.0 kg

Dividing head, spiral milling device, dividing head, tool holder for grinding, drill grinding machine, milling cutter grinding machine, drill grinding holder -Manufacturer: Stankoimport, holder for tool grinding machine -Type: 36642.M62 -Recording: Dimensions see photos -Dimensions: 195/95/H135 mm -Weight: 2.0 kg

dia. of draw-in collets: - mm internal taper of cone draw-in collets: - max. radius to grind: - mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m Stichelschleifmaschine The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Center height: 150mm, center distance: 800mm, max. grinding length: 400mm, table dimensions X/Y: 1245mm/200mm, grinding spindle diameter: 80mm, grinding spindle length: 400mm, workpiece carrier: ISO50, spindle speed: 8000rpm. Documentation available. An on-site inspection is possible.

centre height: 140 mm table-size: 610 x 100 mm grinding length: 250 mm grinding head - revolution: 360 ° weight of the machine ca.: 0.47 t dimensions of the machine ca.: 0.9 x 0.95 x 1.4 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Reinecker Universal Tool Grinding Machine WZS-50 CNC Precision Grinding Machine Profile Grinding Machine Hersteller [manufacturer]: Reinecker Type [ type]: WZS-50 CNC Control unit: Siemens Sinumerik 880G Baujahr[construction year]: 10/1992 Incl. extinguishing system Incl. various accessories Travel axis: X – Y – Z – C – E Interface Type: E32R Weight [weight]: 3000kg Approx. (L x D x H): 3m x 3m x 3m Full documentation is available. Inspection under power can be done at short notice. We will be happy to answer any further questions you may have. Price, from stock here plus VAT. Condition: good - ready for demonstration Delivery: from stock - as seen Payment: purely net - upon receipt of invoice Prior sale, errors excepted. We ask for your order. Other machines and systems available from stock – please inquire. We look forward to seeing you. Phon ...

2005 ANCA TX7 + CNC GRINDER # Axis 5 Swing 12" Centers 15.75" Grinding Wheel Dia. 8" Power 49 hp Max RPM 10,000 RPM

A Strausak CNC 5-axis tool grinding machine for the production and resharpening of solid carbide, HSS and special tools is available. Travel X/Y/Z: 420mm/250mm/485mm, B-axis: 340°, C-axis: 360°, Rapid traverse X/Y/Z: 15m/min, max. tool diameter production/resharpening: 32mm/150mm, max. tool length: 500mm, max. cutting length: 300mm, Tool holder: HSK63F/SK50, Speed: 12000rpm, Tool positions: 6. Machine dimensions X/Y/Z: approx. 2250mm/2200mm/2200mm, Weight: approx. 4350kg. Documentation available. An on-site inspection is possible.

A Strausak CNC 5-axis tool grinding machine for the production and resharpening of solid carbide, HSS and special tools is available. Travel X/Y/Z: 420mm/250mm/485mm, B-axis: 340°, C-axis: 360°, Rapid traverse X/Y/Z: 15m/min, max. tool diameter production/resharpening: 32mm/150mm, max. tool length: 500mm, max. cutting length: 300mm, Tool holder: HSK63F/SK50, Speed: 12000rpm, Tool positions: 6. Machine dimensions X/Y/Z: approx. 2250mm/2200mm/2200mm, Weight: approx. 4350kg. Documentation available. An on-site inspection is possible.

A CNC tool grinding machine Ewag for rotationally symmetrical tools is available. Travel X/Y/Z: 460mm/190mm/730mm, Rapid traverse: 6m/min, Max. tool length: 500mm, Spindle interface: ISO50. Machine dimensions X/Y/Z: approx. 3300mm/2300mm/2500mm, Weight: approx. 3000kg. Documentation available. An on-site inspection is possible.

A Schneeberger CNC 5-axis tool grinding machine is available. 1) Schneeberger Corvus GDS 650 turning machine, year of manufacture: 2017, grinding spindle interface: HSK80, grinding spindle power: 26kW/32kW, max. A-axis swing: 700mm, software: Quinto5.4.6, spindle hours: approx. 10400h. Including extensive accessories, Zeno precision 3D coordinate probe, quick clamping with tailstock, electrostatic extraction system, fire protection system, double grinding wheel capacity, integrated measurement and documentation. 2) Vomat FA 120EKSd filtration system, year of manufacture: 2016, filtration capacity: 120l/min, filling capacity: 500l, filtration fineness: 5µm, machine dimensions X/Y/Z: approx. 1600mm/1000mm/1200mm, weight: approx. 500kg. 3) Vomat HSSV3 filter module, year of manufacture: 2016, max. filling capacity: 350l, max. filtration capacity: 120l/min, operating pressure range: 6bar-10 ...

VIZAS VZ-818 tool grinding machine was manufactured in 2014 in Belarus by OJSC «VIZAS» Works. The machine has worked for a small number of hours and is in very good technical condition. The VIZAS VZ-818 is designed for grinding cutting tools and performing other grinding operations in workshops and tool rooms. It enables the machining of workpieces with a maximum diameter of 200 mm and a length of 500 mm, clamped onto a magnetic plate or directly onto the worktable. The grinding wheel spindle features 4-step rotational speed adjustment in the range from 2800 to 8000 rpm, enabling precise adjustment of parameters to the type of machining performed. The VIZAS tool grinding machine is offered with a comprehensive range of equipment, consisting of, among others, a tailstock and a grinding wheel dressing device, which restores the grinding wheel’s original geometry and properties. The  ...

: 1640 weight: 280 kg : ja Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offered is a WALTER 5-axis CNC tool grinding machine for the production and resharpening of rotationally symmetrical cutting tools such as drills, milling cutters, reamers and special tools. Travels X/Y/Z: 400mm/250mm/580mm, C-axis swivel range: +/-200°, A axis: 360°, rapid traverse X/Y/Z: max. 15m/min, linear axis resolution: 0.0001mm, center height range: 130mm-165mm, max. workpiece diameter: 190mm, workpiece mounting: ISO 50, spindle motor power: 4.4kW, grinding spindle speed: 6000rpm, spindle diameter: 70mm, max. grinding wheel diameter: 200mm, control: WALTER HMC 400. Overall dimensions X/Y/Z: approx. 1420mm/2010mm/2150mm, weight: approx. 3100kg. An on-site inspection is possible.
