AS/RS, TGW with 2xMustang RBG's, 22,756 parking spaces, box size 60x
40x 35cm – used - :
Price from location: only 99.500.-€ (net), plus dismantling etc.!
Manufacturer: TGW
Type: AS/RS,
Year of Make: 2011
Device type: Mustang stacker crane
Number of stacker cranes: 3 pieces
Lanes: 3
Dimensions of the system: length x width x height: 64 x 13 x 7.90m
Storage locations: 22,756 pieces
Payload: 50kg/crate
Load units (dimensions max.): 600 mm x 400 mm x 350 mm
Double-deep storage
Condition: good
Available: immediately
Location: Würzburg area
Plan is available as DWG – also further technical descriptions

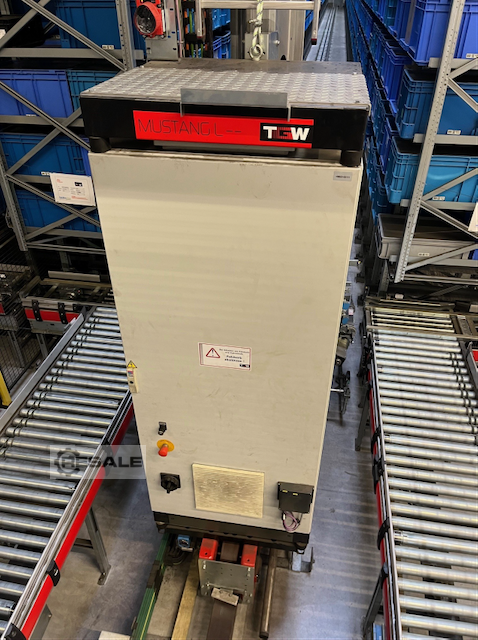

Stacker crane Mustang
Basic unit:

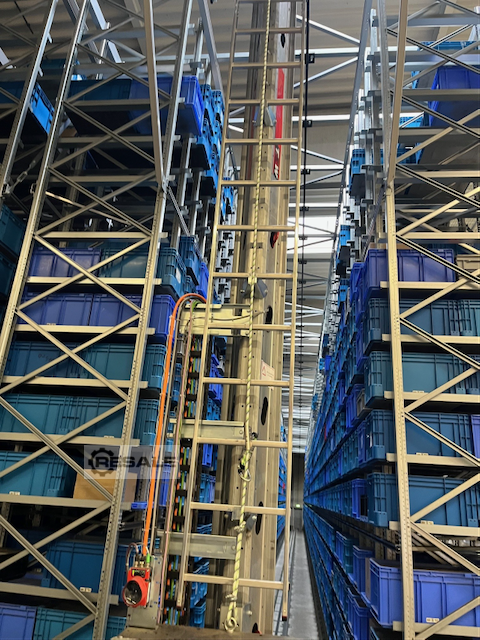

The Mustang single-mast storage and retrieval machine is used for
automatic loading and retrieval
Retrieval of containers to a high-bay or flow warehouse. This storage
system can also be used to feed workstations in assembly lines.
Summary
u. Save time and read a summary. is of Use and Privacy Policy
1. Device Type Combination
Mustang_L HS 7.8m & 1 KTC (6x4 2L 2x50kg) // Mustang_L HS & KTC (6x
TW
Total weight (incl. payload): 1.665kg
Total lifting capacity (incl. payload): 396kg
Payload (incl. loading equipment): 100kg
Travel speed in x 4.80 m/s
Travel acceleration in x 2.80 m/s2
Travel deceleration in x 2.80 m/s2
Wear time in x 1.5 s
Lifting speed in y 3.00 m/s
Lifting acceleration in y 3.00 m/s
Stroke delay in y 3.00 m/s
Grinding time in y 0.5 s
Waiting time: 1.0 s
Theoretical playing time: 56.2s
RGB games: 58 per h
FLG 2: Loading aids (LHM): Plastic trays, loaded with cartons or
containers in some cases
Dimensions LxWxH 600 A6326837 mm x 400 mm x 350 mm
This includes the possible overloads max, 5mm.
Total weight: min. 2 kg / max. 50 kg / per LHM
Loading: with plastic parts
Special features: The loading aids have a flat, smooth, bottom that is
dry, oil- and grease-free. The max. deflection is max. 5 mm with the
above total weight.
These charge carriers are only placed in 3 levels.
Device performance
Storage and retrieval machine: 122 storage and retrieval operations/h
in double cycle, incl. 61 stock transfers based on FEM 9.851
Lifters: 210 containers/h from top to bottom and 210 from bottom to
top
Availability The guaranteed system availability is 98% based on FEM
9221 and 9222 after completion of trial operation.
