table xyz used for sale

x-travel:3500 mm y-travel:2500 mm z-travel:1250 mm w-axis:800 mm bore spindle speeds:2500 U/min table load:12 t dia. of rotary table:1800 x 2200 mm numbers of positions in the tool changer:60 ? Overhauled in 2025 and 2026 ? The spindle was relubricated and new spindle bearings fitted in 2025 by technicians from TOS Varnsdorf ? 12-month warranty and guarantee on geometric accuracy Scope of repairs to the X, Z and B axes 1. Complete dismantling and cleaning of the machine bed for the X and Z axes as well as the B axis 2. Regrinding of X and Z axis guide ways at Czech manufacturer of CNC horizontal boring machines 3. Removal of the old lining from the X- and Z-axis slides and the B-axis 4. Anchoring of re-grinded X and Z axis machine bed 5. New, hand-scraped lining made from Biplast-V on the X- and Z-axis slides, and from new Biplast-V on the B-axis 6. Installation of ball screws, lin ...

spindle diameter:150 mm x-travel:3.000 mm y-travel:2.000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 mm column travel:1.500 mm high speed spindle taper ISO:50 bore spindle turning speed range:3,2 - 1.600 U/min table surface area:2.000 x 2.500 mm max. table load:25.000 kg rapid traverse speed:5/10 m/min feed speeds:1 - 1.500 mm/min faceplate speeds from - to:3,2 - 140 U/min dimensions of the machine ca.:8,4 x 6,8 x 5,9 m weight of the machine ca.:57 t total power requirement:100 kW Full B-axis Aerostatic guides Coolant system with IKZ

spindle diameter:130 mm x-travel:5000 mm y-travel:3000 mm z-travel:2000 mm The TOS Varnsdorf WHQ 13 CNC is a high-performance CNC-controlled horizontal table drill press fitted with a Siemens Sinumerik 840D CNC control system, designed for the precise machining of large and heavy workpieces. The machine is suitable for drilling, boring and milling complex components and is typically used in heavy machinery manufacturing, plant engineering, toolmaking, and in the energy and heavy industries. With generous travel ranges of 5,000 mm on the X-axis, 3,000 mm on the Y-axis and 2,000 mm on the Z-axis, the machine offers an extensive working area. The worktable, measuring 2,500 × 1,800 mm, can accommodate workpieces weighing up to 20 tonnes. The horizontal spindle achieves a speed of up to 3,000 rpm. In combination with the supplied milling head, even demanding milling operations and various ma ...

table length:2200 mm table width:2500 mm table load:16 t total power requirement:6,5 kW feed speeds:1,25 - 160 mm/min rapid traverse speed:2000 mm/min longitudinal adjustment:1500 mm weight of the machine ca.:12 t dimensions of the machine ca.:4,1 x 2,65 x 0,95 m Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

spindle diameter:150 mm x-travel:3000 mm y-travel:2000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 column travel:1500 mm spindle taper ISO:50 bore spindle turning speed range:3,2 - 1600 U/min table surface area:2000 x 2500 mm max. table load:25000 kg rapid speed:5 / 10 m/min feed speeds:1 - 5000 mm/min total power requirement:100 kW weight of the machine ca.:57 t dimensions of the machine ca.:8,4 x 6,8 x 5,9 m with CNC SIEMENS 840 D full B-axis aerostatic guideways facing head ( 3,2 - 140 rpm ) angular milling head 1000 Nm coolant attahcmnet with internal cooling supply

spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-axis:1520 mm w-axis:1000 mm table surface area:2000 x 1800 mm workpiece weight:8 t spindle motor:18 kW spindle taper ISO:50 spindle turning speed range:4,5 - 900 U/min faceplate diameter:785 mm rapid traverse:5 m/min total power requirement:40 kW dimensions of the machine ca.:5,5 x 6,9 x 5,2 m weight of the machine ca.:35 t Machine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control - inf. variable spindle spped - 4 x 90° table positioning - diverse toolholders - dDust exhauster

spindle diameter:120 mm x-travel:1250 mm y-travel:1250 mm z-travel:800 mm W-axis (spindle longitudinal):600 mm Speed of boring spindles:1- 2000 U/min. spindle taper ISO:50 table surface area:1000 x 1000 mm total power requirement:55 kW weight of the machine ca.:18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment

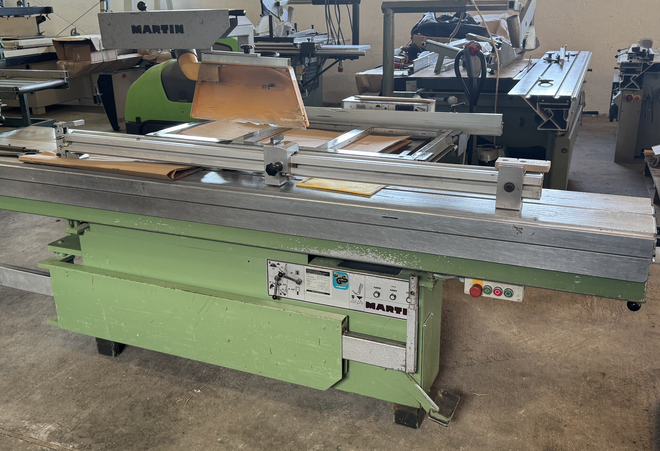

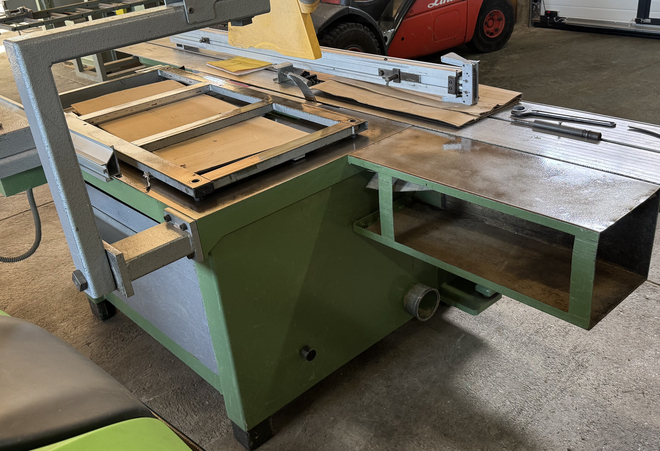

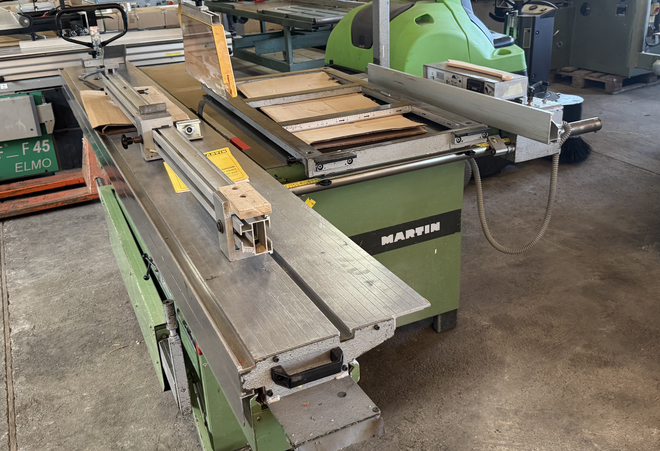

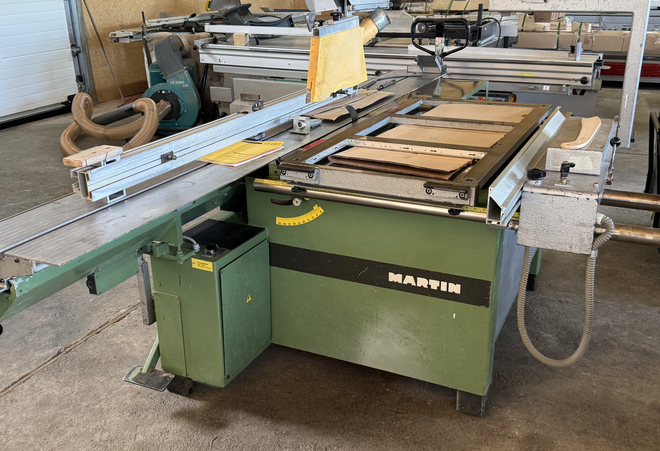

sliding table length: 3300 mm; cutting width at the fence: 1000 mm; cutting width at the cross cut: 2800 mm; cutting depth: 170 mm; scoring unit: nein; height adjustment sawblade: hydraulisch; tilting adjustment sawblade: hydraulisch; adjustment fence: manuell; read out sawblade tilting: Scala; read out cutting height: Scala; read out fence: Scala; read out crosscut: Scala; sawbladediameter: 500 mm; sawblade speeds: 2800 / 4000 / 5500; motorpower: 5,5kW; suction connection: 80 und 120mm; machine lenght: 4000 mm; machine width: 2200 mm; weight: ca. 1300kg;

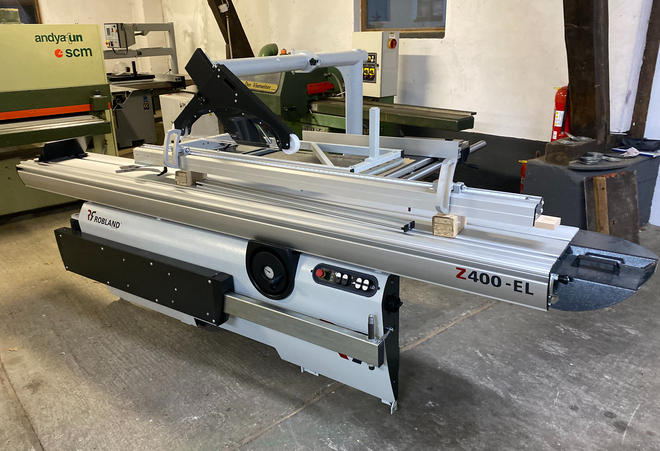

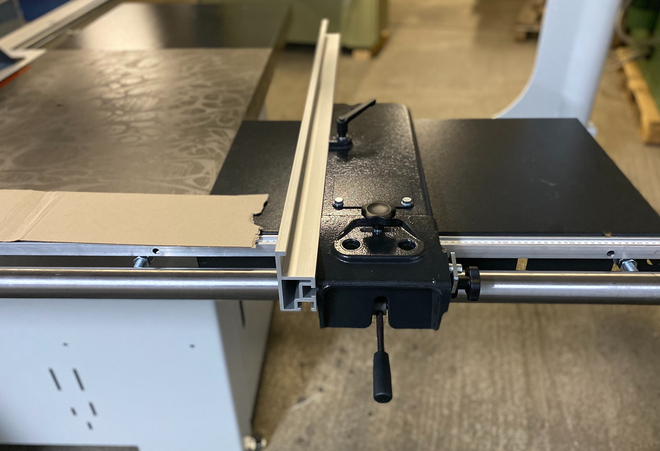

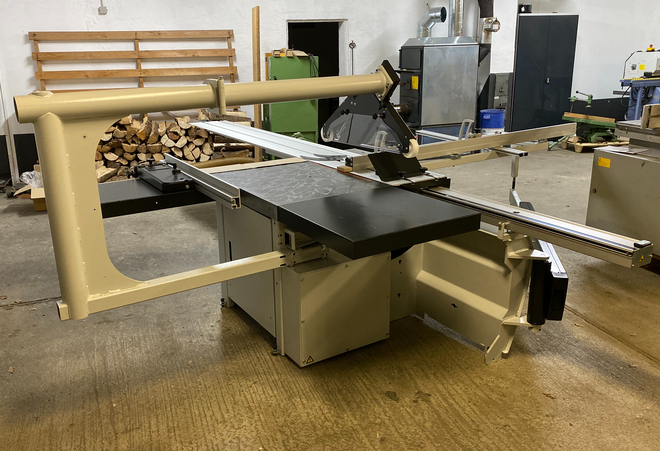

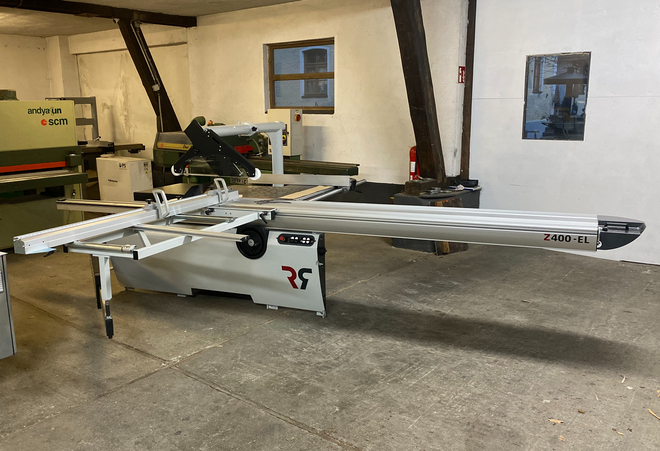

sliding table length: 3200 mm; cutting width at the fence: 1350 mm; cutting width at the cross cut: 3200 mm; cutting depth: 125 mm; scoring unit: ja; sawblade diameter: electric; tilting adjustment sawblade: electric; adjustment fence: manuell; readout sawblade tilting: Scala; read out sawblade height: -; read out fence: Scala; read out crosscut stop: Scala; sawblade diameter: 400mm; number of speeds: 3000 / 4000 / 5000 U/min; motor power: 7 kW; motor brake: yes, automatic; suction connection: 80mm und 120mm; machine length: 3400mm; machine width: 2000mm; weight: 900kg;

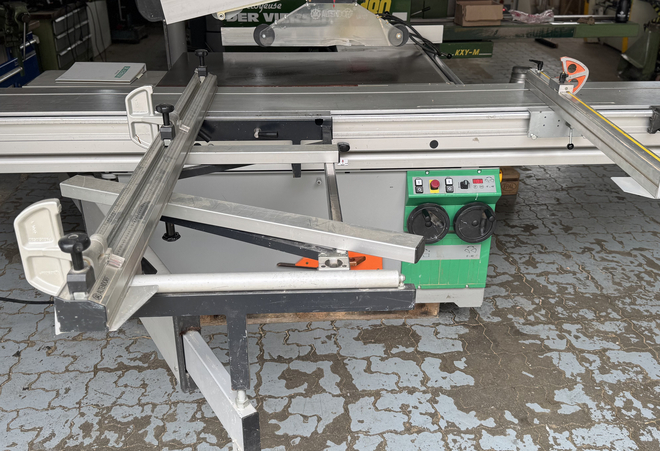

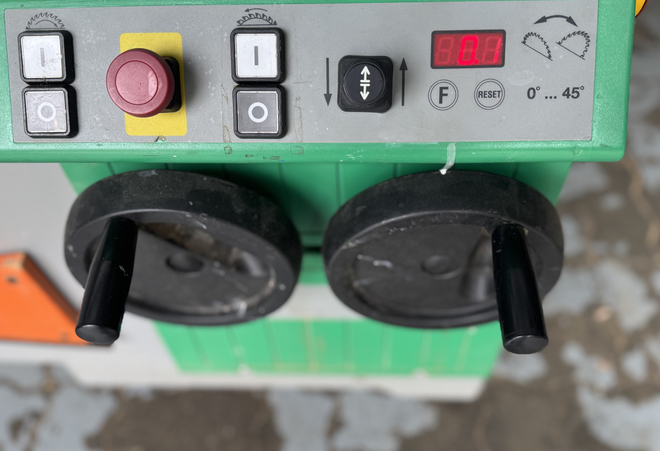

sliding carriage length: 3200 mm; cutting width with rip fence: 1200 mm; cutting width at the cross cut: 3450 mm; Schnittiefe: scoring unit: yes; height adjustment: manual / crank; tilt adjustment: manual / crank; rip fence adjustment: manual; display saw blade tilt: digital; display saw blade height: -; display rip fence: scala; display at the cross cut: Scala; saw blade diameter: speeds: 3200 / 4200 / 5000 U/min; motor power: 5 kW; motor brake: yes - automatically; suction connection: 80 mm and120 mm; machine length: 3350mm; machine width: 1800 mm; weight:

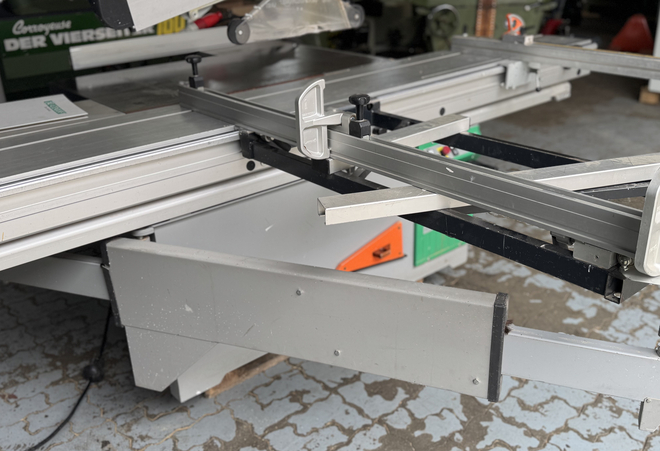

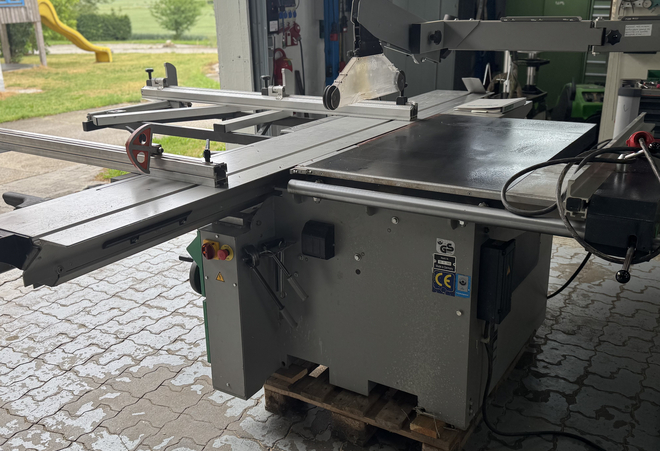

sliding table length: 3000 mm; cutting width at the fence: 1000 mm; cutting width at the cross cut: 3200 mm; cutting depth: scoring unit: ja; height adjustment sawblade: manuell / Kurbel; tilting adjustment sawblade: manuell / Kurbel; adjustment fence: manuell; readout sawblade tilting: Digital; read out sawblade height: -; read out fence: Scala; read out crosscut: Scala; sawbladediameter: 450 mm; number of speeds: 4000 U/min; motor power: 4 kW; motor brake: ja - automatisch; suction connection: 80 mm und 120 mm; machine length: 3000 mm; machine width: 2100 mm; weight: ca. 1100 kg;
