surface heat used for sale

Equipped with magnetic clamping table 1000x300 mm; Auction-ID: A1-44050-805

X-axis travel [mm] 450 Y-axis displacement [mm] 250 Z-axis travel [mm] 280 Magnet width [mm] 450 Magnet depth [mm] 250 Auction-ID: A1-40982-68

X-axis travel [mm] 2000 Z-axis displacement [mm] 400 Table width [mm] 1600 Table depth [mm] 300 Magnet width [mm] 600 Magnet depth [mm] 200 Max. grinding wheel diameter [mm] 355 Auction-ID: A1-40982-122

Control Conventional X-axis travel [mm] 670 Y-axis displacement [mm] 250 Z-axis displacement [mm] 400 Magnet width [mm] 630 Magnet depth [mm] 200 Max. grinding wheel diameter [mm] 240 Auction-ID: A1-40982-64

X-axis travel [mm] 500 Y-axis travel [mm] 230 Z-axis travel [mm] 330 Table width [mm] 735 Table depth [mm] 200 Magnet width [mm] 500 Magnet depth [mm] 200 Options External cooling Auction-ID: A1-40982-51

Auction-ID: A1-40982-133

Number of axles [pcs.] 3 X-axis travel [mm] 500 Y-axis travel [mm] 230 Z-axis travel [mm] 330 Table width [mm] 720 Table depth [mm] 200 Magnet width [mm] 460 Magnet depth [mm] 180 Options External cooling Auction-ID: A1-40982-36

Control Conventional Power [kW] 1.9 Z-axis travel [mm] 500 Table width [mm] 500 Table depth [mm] 300 Max. grinding wheel diameter [mm] 250 Options bowl grinder Auction-ID: A1-40982-98

X-axis travel [mm] 500 Y-axis travel [mm] 200 Z-axis displacement [mm] 400 Magnet width [mm] 400 Magnet depth [mm] 140 Auction-ID: A1-40982-74

Includes cabinet with tools and accessories Auction-ID: A1-44050-804

Conventional surface grinder Travel X: 1000mm Travel Y: 250mm Travel Z: 750mm Grinding diameter: 190mm Admission: 75 Magnet size: 510x145mm Auction-ID: A1-40982-83

This 3-axis KNUTH HFS 50100 F NC was manufactured in 2023. It features a magnetic table measuring 1000 mm x 500 mm and a powerful total power of 14 kW. The machine includes a coolant system with a paper belt filter and magnetic separator, along with essential accessories such as grinding wheel flanges and precision vises. If you are looking to get high-quality surface grinding capabilities, consider the KNUTH HFS 50100 F NC machine we have for sale. Contact us for further details.

Conveyor belt, belt conveyor, transport belt, belt conveyor, belt conveyor, flat belt conveyor, conveyor belt with vacuum connection -Belt conveyor: Vacuum section for suctioning the material to be conveyed -Belt width: 250 mm -Conveyor length: 2460 mm -Drive shaft: Ø 30 x 100 mm -Individual components: see photos -Dimensions: 2460/470/H300 mm -Weight: 152 kg

CONTROLS   CNC controls WORKING RANGE SURFACE GRINDING   grinding length: 600 mm   grinding width: 250 mm   vertical travel: 280 mm TABLE (SURFACE GRINDING)   magnetic table: yes SPINDLESTOCK GRINDING SPINDLE   X-axis travel: 600 mm GRINDING TOOL   type of grinding tool: wheel DRESSING DEVICE   dressing tool: single diamond ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   total weight approx.: 2500 kg ATTACHMENTS (GRINDING)   coolant unit: yes

grinding length: 450 / 400 mm grinding width: 300 mm workpiece height: 375 mm electro magnetic clamping plate: 400 x 250 mm grinding wheel size: Ø 300 x 50 x 76,2 mm dressing device automatic: + Kompensation coolant tank: 210 l oil volume: H-LP 68 / ca. 110 l Control: SPS NK total power requirement: 12 kW weight of the machine ca.: 3 t dimensions of the machine ca.: 3,5 x 2,5 x 2,5 m From a training workshop—first-hand The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Surface Grinding Machine Manufacturer: Elbschliff Elb Type SHW4 VA Grinding length 450mm Grinding width 200mm Grinding height 250mm Machine still works very precisely, so geometrically it is still top. Machine will be available from mid-October.

working width: 510 mm; cutter head: strip knive; number of blades: 2; surface table length: 2600 mm; adjustment table: hydraulic; Hollow and pointed joints adjustment: ja; read out table hight: Scala; read out Hollow and pointed joints: Scala; fence tilting: yes; motor power: 5,5 kW; motor brake: yes, automatic; machine length: 2600 mm; machine width: 1000mm; weight: 1050 kg;

Niederberger two stations surface grinding machine NCS-P2/2. Strap length 6300mm & belt width 200mm. Year of construction: 1979. Connection voltage 400V. Transport speed adjustable. End magnetization device and two magnetic disks from 2003.

working width: 530 mm; cutter head: Leitz - Centrofix; number of blades: 4; surface table length: 2900 mm; adjustment table: Hebel; read out out table height: Scala; surface fence tiltable: ja; motor power: 4 kW; machine length: 2900 mm; machine width: 1000mm; weight: 800 kg;

working width: 500 mm; cutter head: Leitz - Centrofix; number of blades: 4; surface table length: 2800 mm; table adjustment: lever; read out table height: scala; sourface fence adjustable: yes; motor power: 5,5 kW; machine length: 2800 mm; machine width : 1000mm; weight: 900 kg;

working width: 500 mm; cutter head: strip knive; number of blades: 4; surface table length: 2700 mm; adjustment surface table: Hebel; read out: table height; fence tilting: yes; motorpower: 4 kW; motorbrake: yes, automatic; machine length: 2800 mm; machine width: 1000mm; weight: 1050 kg;

working width: 510 mm; cutter head: Streifenmesser; number of blades: 4; surface table length: 2000 mm; fence tilting: ja; surface table fold up: manuell; maxilum thickness planing height: 230 mm; height adjustment thickness table: electric; read out table height: digital; feed speed: 7 / 14m/min; infeed roller: Stahl; outfeed roller: stahl; pressure beam: durchgehend; table roller: ja; motor power: 5,5 kW; motor brake: ja; suction connection: 160mm; machine legth: 2200 mm; machine width: 950 mm; weight: 800;

Longitudinal grinding path (X-axis) 600 mm, transverse travel (Z-axis) 230 mm, vertical travel (Y-axis) 400 mm, max. table load 100 kg, bore diameter grinding wheel 51 mm, feed X-axis 1-24 m/min, travel speed X-axis 5 m/min, travel speed Z-axis 2000 mm/min, Y-axis travel speed 2000 mm/min, CNC dresser Auction-ID: A1-50575-3

Manual Surface Grinding MONOPRECIS type 1 Travel X: 350 mm Travel Y: 160 mm Travel Z: 220 mm Magnetic chuck dimensions: Length 255 mm x Width 130 mm Grinding wheel dimensions: Max Ø 140 mm Manual movement on X - Y - Z Electrical cabinet redone in 2017 Equipped with1 vacuum system Voltage: 220 V Tri Vaccum system dimensions: L 500 x W 500 x H 800 mm Width: 1200 mm Depth: 1000 mm Height: 1600 mm Weight: approx 500 KG

Manual Surface Grinding Machine MONOPRECIS type 1D Travel X: 350 mm Travel Y: 200 mm Travel Z: 220 mm Magnetic chuck dimensions: Length 255 mm x Width 130 mm Grinding wheel dimensions: Max Ø 140 mm Manual movement on X - Y - Z Electrical cabinet redone in 2017 Equipped with1 vacuum system Voltage: 220 V Tri Vaccum system dimensions: L 500 x W 500 x H 800 mm Width: 1300 mm Depth: 1200 mm Height: 1600 mm Weight: approx 500 KG

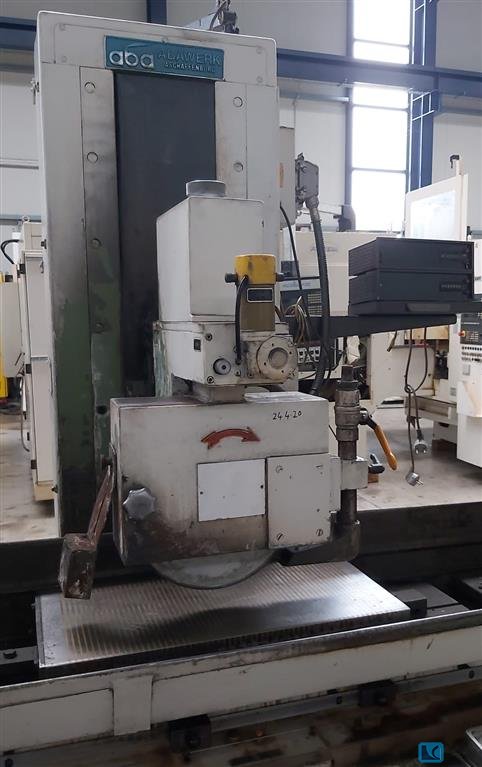

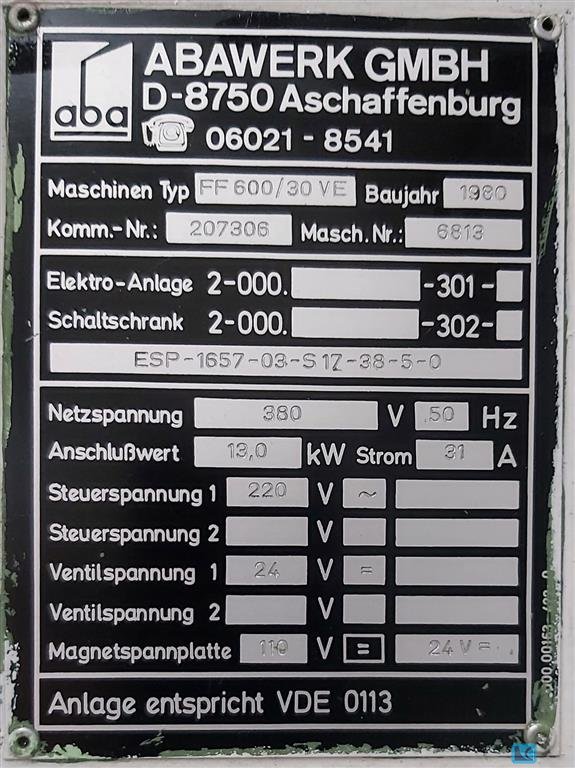

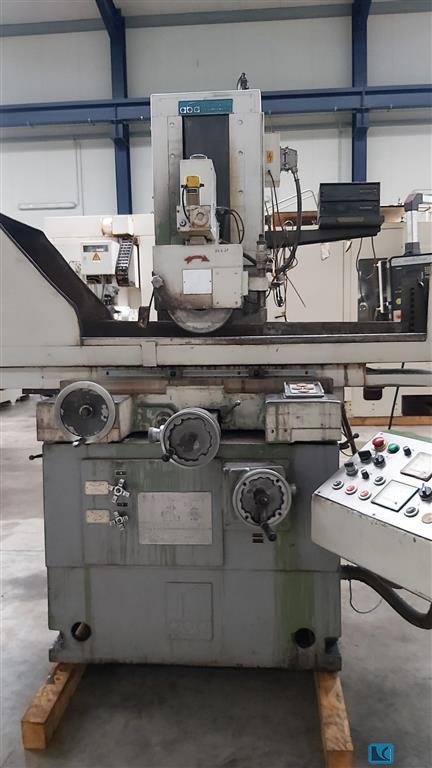

grinding length:600 mm grinding width:300 mm total power requirement:7,5 kW number of spindle speeds:0-3000 grinding wheel motor:7,5 kW grinding wheel diameter:300 mm dimensions of grinding wheel:76 x 20 mm ABA magnetic table flat grinding machine

grinding length:450 mm grinding width:250 mm workpiece height:280 mm Table area:760 x 250 mm grinding spindle drive:2,5 kW grinding wheel dia. x width:250x 25 mm grinding spindle speed:1430/2900 U/min way of grinding spindle saddle, vertical:400 mm total power requirement:4,5 kW weight of the machine ca.:1,8 t dimensions of the machine ca.:1,8 x 1,4 x 2,0 m Machine equiped with magnetic plate - dresser

grinding length:450 mm grinding width:250 mm workpiece height:280 mm Table area:760 x 250 mm grinding spindle drive:2,5 kW grinding wheel dia. x width:250x 25 mm grinding spindle speed:1430/2900 U/min way of grinding spindle saddle, vertical:400 mm total power requirement:4,5 kW weight of the machine ca.:1,8 t dimensions of the machine ca.:1,8 x 1,4 x 2,0 m Machine equiped with magnetic plate - dresser

grinding length:600 mm grinding width:250 mm workpiece height:380 mm :Sinumerik max. dia. of grinding wheel:300 mm weight:4000 kg total power requirement:12,5 kW grinding wheels:Ø 400 mm max. width of grinding wheel:100 mm grinding wheel hole diameter:127 mm turning speeds:470 - 12030 1/min x-axis:600 mm y-axis:300 mm z-axis:250 mm grinding range:450 x 200 mm distance spindle nose and table:500 mm table load:250 kg dimensions of the machine ca.:2600 x 2100 x 2400 mm switchgear cabinet:1300 x 800 x 2000 mm hydraulical unit::450 x 350 x 500 mm Documents:vorhanden

grinding length:1250 mm grinding width:400 mm workpiece height:550 mm workpiece weight:750 kg table-size:1720 x 400 mm magnetic clamping plate:1250 x 400 mm dist. center of grinding spindle - table:750 mm turning speed range - grinding wheel:3000 U/min Length movement of the table:1300 mm grinding wheel size:Ø 400 x 50 x 127 mm switchgear cabinet:inkl. hydraulic power unit:inkl. coolant:inkl. voltage:380 V table load:max. 1100 total power requirement:13,8 kW weight of the machine ca.:6000 kg dimensions of the machine ca.:5000 x 3400 x 2400 mm Documents:inkl.

grinding length:1000 mm grinding width:250 mm workpiece height:400 mm total power requirement:12 kW weight of the machine ca.:3,8 t dimensions of the machine ca.:3.300 x 1.800 x 2.300 mm hydraulic power unit:400 x1000 x 1500 mm control cabinet:2 Stück, 1000 x 1400 x 1500 mm

grinding length:600 mm grinding width:300 mm workpiece height:450 mm total power requirement:8 kW weight of the machine ca.:2,2 t dimensions of the machine ca.:2,8 x 3,0 x 2,0 m grinding spindle speed:1440 / 2905 U/min with magnetic plate 600 x 200 mm autom. vertical feed coolant attachment Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

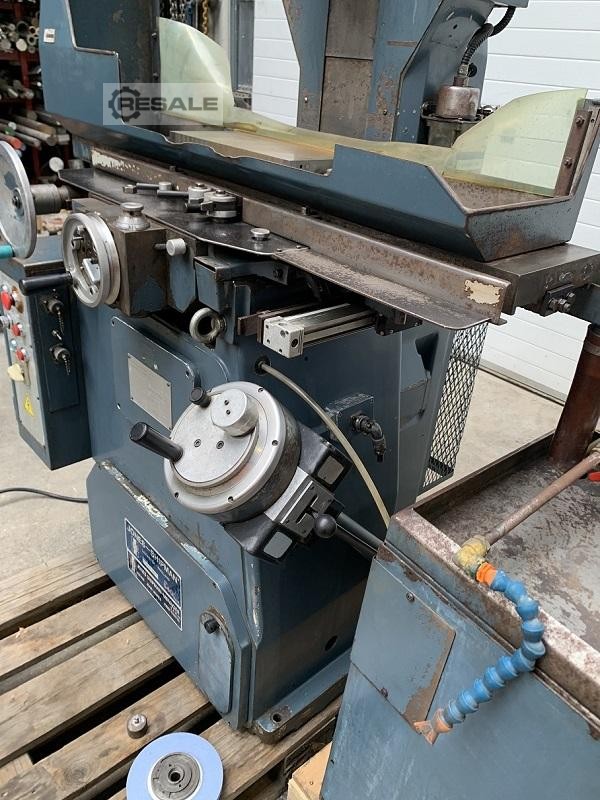

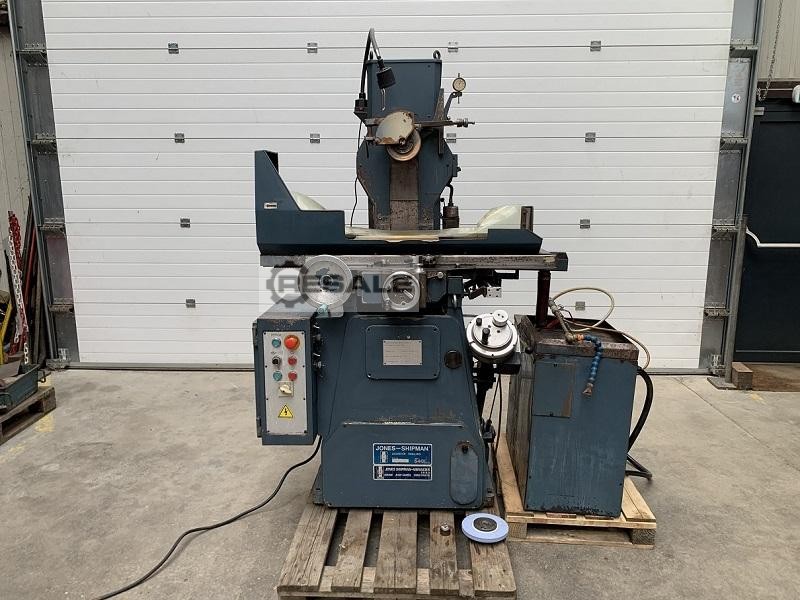

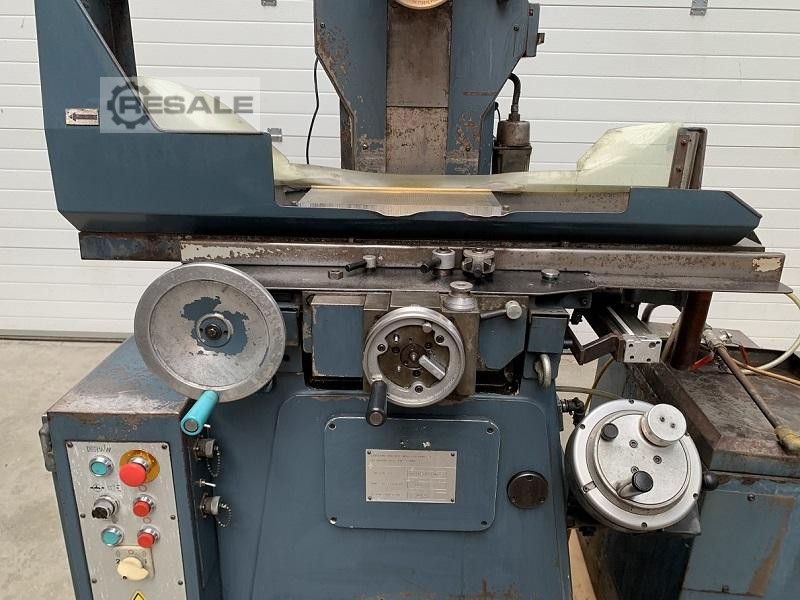

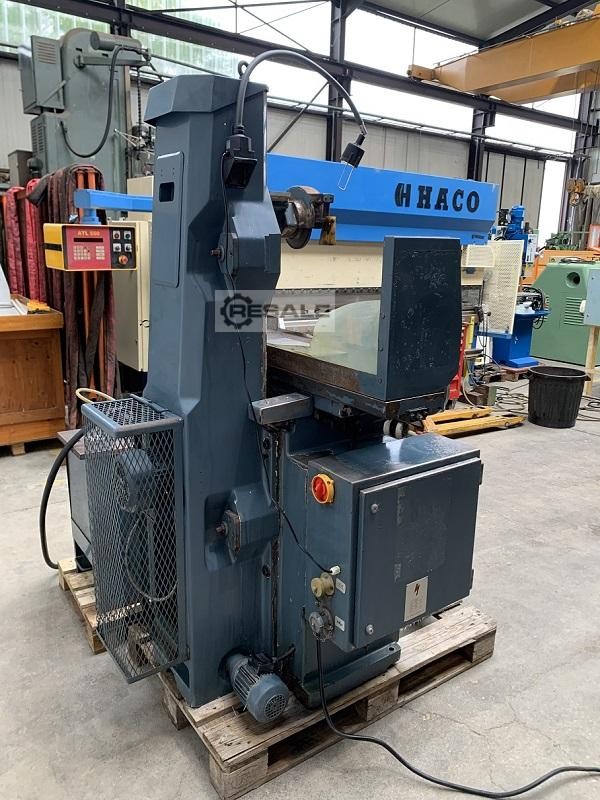

Surface Grinding JONES & SHIPMAN 540 L Travel X: 406 mm Travel Y: 470 mm Travel Z: 168 mm Year of construction: 1981 Magnetic chuck dimensions: Length 355 mm x Width 150 mm Grinding wheel diameter: Ø 180 mm Spindle motor: 2 speeds motor Motorised raising/lowering Equipped with: Lubricant tank Voltage: 220 V Tri Dimensions (L x W x H): 1300 x 1300 x 1900 mm Total width with lubricant tank: 2000 mm Weight: approx 1,2 T
