surface grinder used for sale

CHEVALIER FSG-618M Manual Surface Grinder Type: Manual surface grinder Manufacturer: Chevalier Model: FSG-618M Grinding length: 457 mm / 18.0 in Grinding width: 152 mm / 6.0 in Table size: 150 x 460 mm / 5.9 x 18.1 in Maximum table travel: 482 mm / 19.0 in Maximum transverse travel: 180 mm / 7.1 in Distance from table to wheel centreline: 450 mm / 17.7 in Maximum table load: 210 kg / 462 lbs Spindle and Grinding Wheel Spindle speed: 2,850 rpm at 50 Hz / 3,450 rpm at 60 Hz Spindle motor: 1.5 kW / 2 HP Grinding wheel size: Ø205 x 12.7 x Ø31.75 mm / Ø8 x 0.5 x Ø1.3 in Machine Data Machine dimensions: approx. 1,900 x 1,400 x 2,130 mm / 74.8 x 55.1 x 83.9 in Net weight: approx. 674 kg / 1,480 lbs This item is delivered loaded on truck or container 20`OpenTop. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-49190-19

Plant has already been partially dismantled Incl. 4 grinding wheels and magnetic table Auction-ID: A1-49674-59

grinding length: 400 mm grinding width: 300 mm workpiece height: 375 mm electro magnetic clamping plate: 400 x 250 mm grinding wheel size: Ø 300 x 50 x 76,2 mm dressing device automatic: + Kompensation coolant tank: 210 l total power requirement: 12 kW weight of the machine ca.: 3 t dimensions of the machine ca.: 3,5 x 2 x 2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Machine ready for transport Auction-ID: A1-48648-4

Auction-ID: A1-49000-29

Working width: 410 mm Length of the planing table: 1450 mm Number of knives: 4 St. Motor output: 4 kW Dimensions (L/W/H): 2650x850x1100 mm weight of the machine ca.: 750 kg SCM Surface planer F 410 N ----------------------------- Technical manufacturers description: Planing width: 410 mm Total table length: 2600 mm Table height: 855 mm Feed table length: 1450 mm Aluminum planing fence swivels up to 45° Planing fence dimensions: 1100 x 170 mm 4-knife planing shaft diameter: 120 mm Knife shaft speed: 5000 rpm Motor power: 4 kW TERSA monobloc one-way reversible cutterhead SCM dressing protection device integrated in machine stand 120 mm diameter extraction nozzle Manual star-delta switch Motor protection switch, undervoltage release Lockable main switch Automatic motor brake Pivoting auxiliary fence ----------------------------- Price of the above machine on request! ---------------------- ...

On steel stand, total height 935mm Auction-ID: A1-48959-489

KENT KGS-63AHD Hydraulic Surface Grinding Machine Type: Hydraulic surface grinding machine Manufacturer: Kent Industrial Co., Ltd. Country of manufacture: Taiwan R.O.C. Model: KGS-63AHD, to be confirmed Control type: Conventional / automatic hydraulic surface grinder Table size: 600 x 300 mm Longitudinal table travel: 710 mm Cross feed travel: 340 mm Distance from spindle centre to table: 600 mm Table load including magnetic chuck: 420 kg Grinding wheel size: 355 x 38 x 127 mm Spindle motor: 3.7 kW Voltage: 380 V Phase: 3 phase Frequency: 50 Hz Total power: approx. 6 kW, to be confirmed Machine height: approx. 1,830 mm Floor space / overall footprint: approx. 2,600 x 2,500 mm Machine dimensions: approx. 2,600 x 2,200 x 1,830 mm Net weight: approx. 1,750 kg Gross weight: approx. 2,200 kg Condition: Used This item is delivered loaded on truck. ...

Make: ELB-SCHLIFF Type SWR -60 NC Year of Make: 1982 Control: conventional Location: Velen-Ramsdorf (46342) Origin: Germany Shipping time: immediately Freight base: ex stock Description: Surface Grinding Machine - Magnetic plate - Coolant system - Belt filter system Grinding length 600 mm Grinding width 350 mm Table clamping area 900 x 300 mm Grinding wheel dimensions 400 x 50 x 127 mm Table height above floor mm Magnetic Plate 600 x 300 mm Grinding spindle speed 3000 rpm Machine weight approx. 2.5 t Space requirement approx. 3.0 x 2.0 x 2.2 m Auction-ID: A7-49782-402

On steel stand, total height 935mm Auction-ID: A1-48959-483

ELB-Schliff SWB 015 VA II Surface Grinding Machine Type: Hydraulic surface grinding machine Manufacturer: ELB-Schliff Model: SWB 015 VA II Serial No.: 696710 Control type: Conventional / hydraulic Grinding length: approx. 1500 mm Grinding width: approx. 500 mm Table size: approx. 1500 x 500 mm Grinding wheel size: approx. Ø350 x 30 x Ø127 mm Table type: Magnetic grinding table Machine configuration: Horizontal spindle surface grinder Condition: Used This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-49190-25

Displacement x = 1180MM Displacement Y = 644MM Displacement Z = 480MM table length 1000x595MM machine on viewing day for proper review. Auction-ID: A1-48648-120

MININI large surface grinding machine with guarding and control panel. Magnetic chuck. Travels 1800 mm x 800 mm Exact model, grinding capacity, coolant system approx. 4500 x 2500 x 2600 Auction-ID: A1-49190-18

1500 x 2500 surface plates complete with 2 feet cube not included Auction-ID: A1-48745-36

x-travel: 500 mm y-travel: 300 mm workpiece height: mm w-axis: 450 mm total power requirement: kW weight of the machine ca.: 3,1 t dimensions of the machine ca.: m Steuerung FANUC 16i-M Mit Erowa Wechsler Laufzeit 68.798h Lader nicht im Lieferumfang Feuerlöschanlage Papierbandfilter GAP-Control Maschine ab Standort Transportsicherung und Verladung zu Lasten des Käufers The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

General Description Precision hydraulic surface grinding machine manufactured by Chevalier , model FSG-1640 ADII . Designed for accurate surface grinding of flat components and equipped with a large magnetic chuck, hydraulic longitudinal table movement and automatic cross travel. Technical Details Manufacturer: Chevalier Model: FSG-1640 ADII Machine type: Hydraulic surface grinding machine Year: 2007 Serial number: GC 968003 Spindle drive: 5 HP, 4-pole Table size: 400 × 1,000 mm Magnetic chuck: 400 × 1,000 mm Maximum grinding length: 1,015 mm Maximum grinding width: 405 mm Maximum table-to-spindle distance: 620 mm Hydraulic longitudinal table stroke: 1,050 mm Maximum manual longitudinal stroke: 1,100 mm Table speed: 5–25 m/min Automatic cross travel: 405 mm Maximum transverse movement: 460 mm Spindle speed: 1,450 rpm at 50 Hz Grinding wheel diameter: 355 mm Gr ...

Maximum working pressure: 7 kg/cm2, compressed air consumption: 1150 L/min Equipped with: extra lift (rack), flush gun. Auction-ID: A1-47361-13

Equipped with: 6x pallets with different cans (470 pieces approximately) coating of 5L each, with a new value of approximately 90,000 Euro Auction-ID: A1-47388-248

Key data: 630 mm, 230 mm, 5 kW

For sale is a heavy, robust and precise industrial dresser thickness planer of the traditional brand Kölle type HK 63, dressing table length 2100 mm, thickness planer width 630 mm, height 230 mm, 4 knives, 5.5 KW, steel puller and pull-out rollers. Test run and help with loading possible, only pick-up, prepayment or cash on pick-up, No guarantee or warranty. Price plus VAT

Surface Grinding Machine JONES & SHIPMAN 540 P Travel X: 480 mm Travel Y: 170 mm Travel Z: 405 mm Mounted grinding wheel diameter: Ø 140 mm Max Grinding wheel diameter: Ø 180 mm Manual magnetic tray Magnetic chuck dimensions: Length 250 mm x Width 160 mm Scale: 2 axes HEIDENHAIN Y and Z Serial number: BO 74221 Manual + automatic Z-axis ascent X and Y auto stepover Voltage: 380 V Width: 1500 mm Depth: 1200 mm Total height: 1800 mm Weight: approx 1,2 T

Stand-alone and automated device for routine and repetitive surface analysis, ideal for measuring thin films THE LIST OF LOTS IS NOT DEFINITIVE, IMPORTANT LOTS WILL BE ADDED LATER, PLEASE CHECK THE ADDED LOTS. The sale includes only what appears in the photos. The buyer, by purchasing the equipment, agrees that the device must be used according to the standards and legislation in force in his country. The seller will not be held responsible in any way for misuse that does not comply with the safety conditions and the standards and legislation in force Auction-ID: A1-49883-14

Surface Grinding Machine - Magnetic plate - Coolant system with filter Grinding length 600 mm Grinding width 400 mm Workpiece height 525 mm Table clamping area 960 x 400 mm Grinding wheel dimensions 350 mm Magnetic plate 600 x 400 mm Grinding spindle speed 3000 rpm Table load 1100 kp Total power requirement 8.0 kW Machine weight approx. 2.1 t Space requirements approx. 2.4 x 1.9 x 2.1 m Auction-ID: A7-49782-434

Operating voltage: 3 x 380 V Frequency: 50 Hz Nominal current: 25 A Grinding wheel diameter: approx. 250 mm Magnet dimensions: 600 x 300 mm incl. documentation and suitable machine accessories Reference: Option - Lot 78 Auction-ID: A7-49882-115

ABH Chico (Beuving) Planer Manufacturer: ABH Type: Chico A3 YouTube:

Martin T52 Jointing planner Brand: Martin Type: T52 Year: 1986 M. Nr: V144098 Motor: 5,5 kW (7,5HP) Cutterhead speed: 5.000 tpm Cutterblock: Z-4 Tersa Diameter of cutterhead: ø125 mm Jointing width: 500 mm Cutterlenght.: 510 mm Max. depth of cut: Praxis 16 mm, footpedal table height setting with counter in table (Health Safety regulations limited to 8 mm) Length of Table: 2840 mm Length of infeed table: 1640 mm Length of outfeed table: 1200 mm Table Height: 800 mm Fence: 1.100 165 mm Fence-tilting: 45° Weight: ca. 950 KG

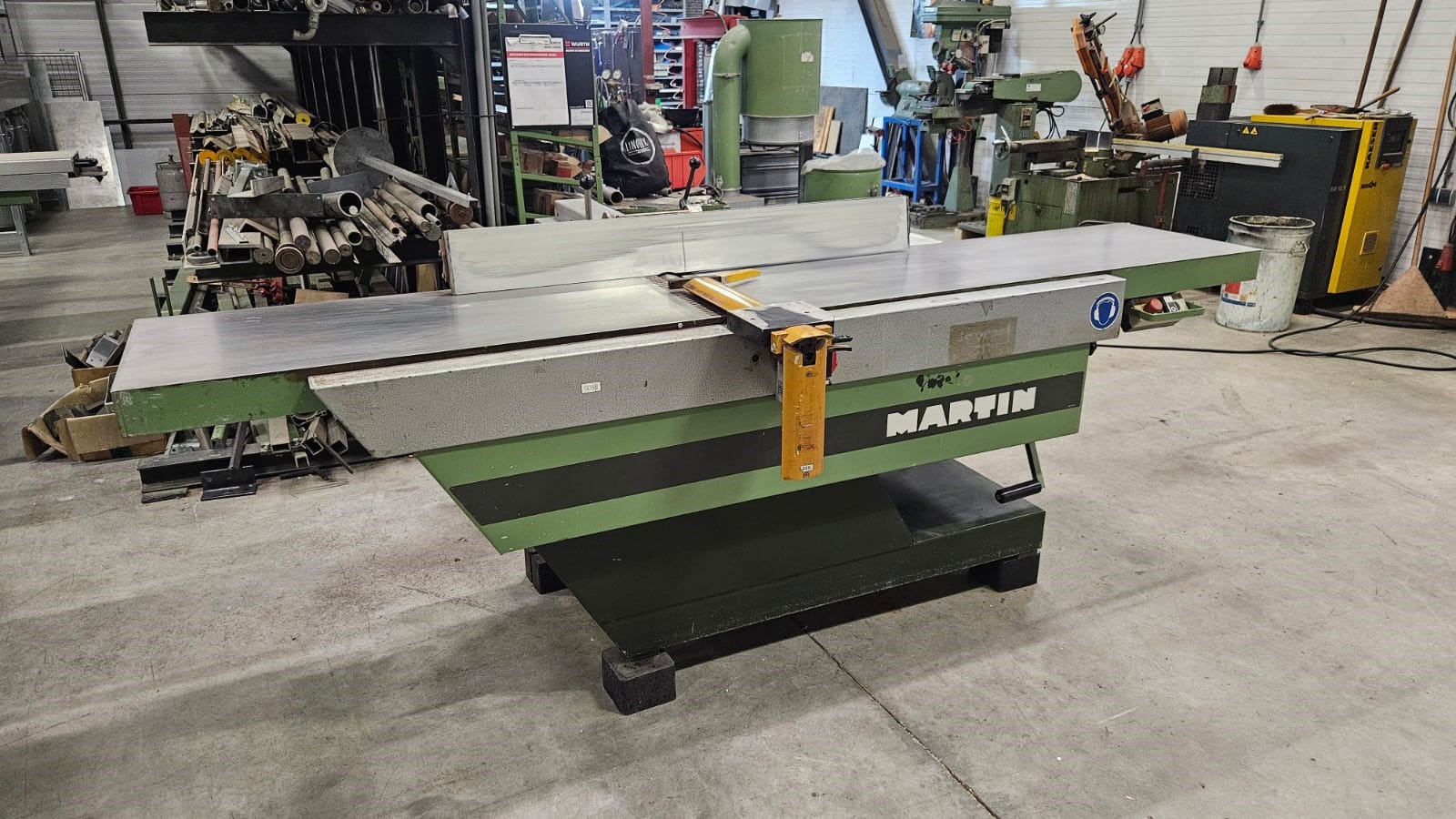

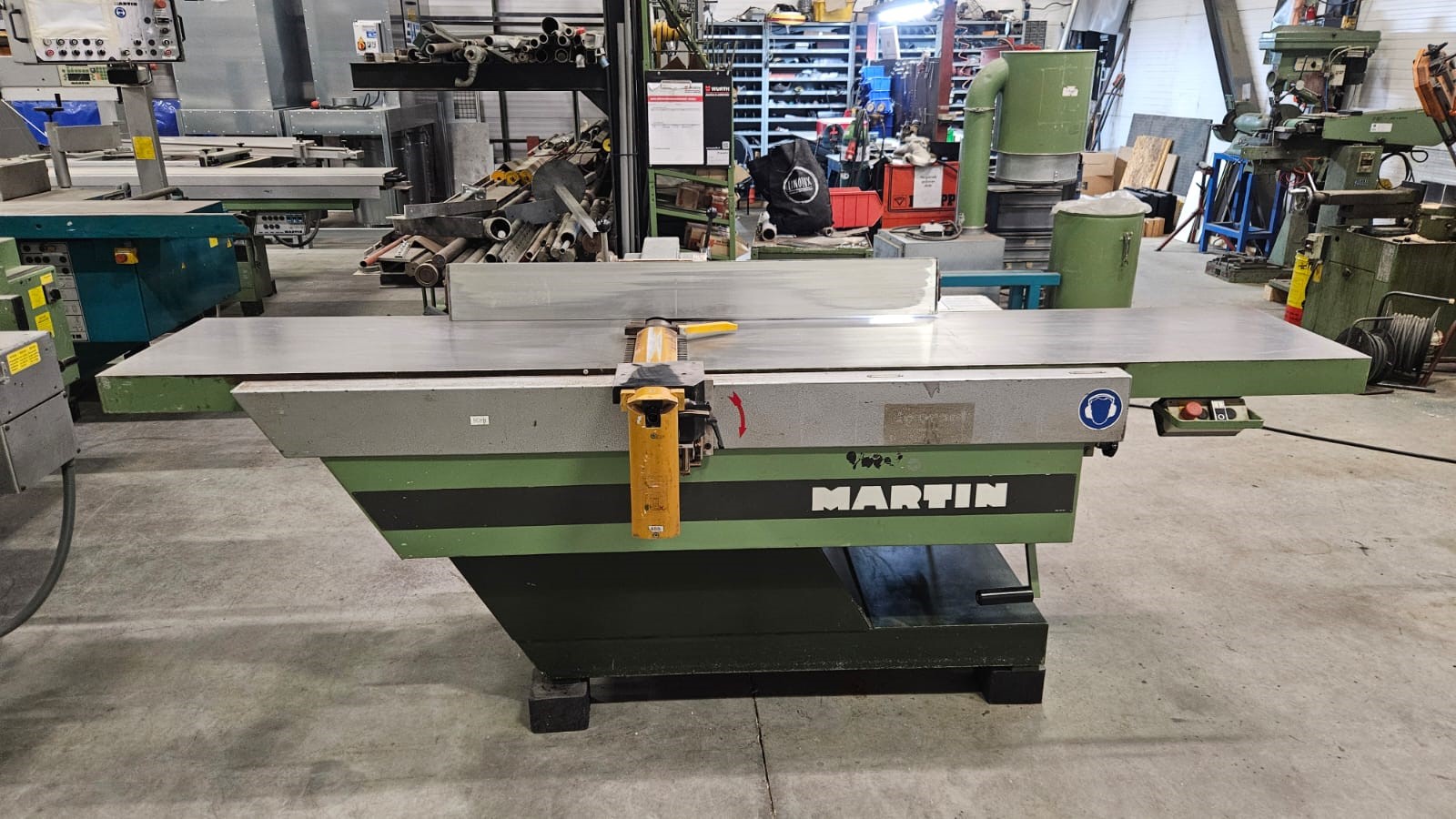

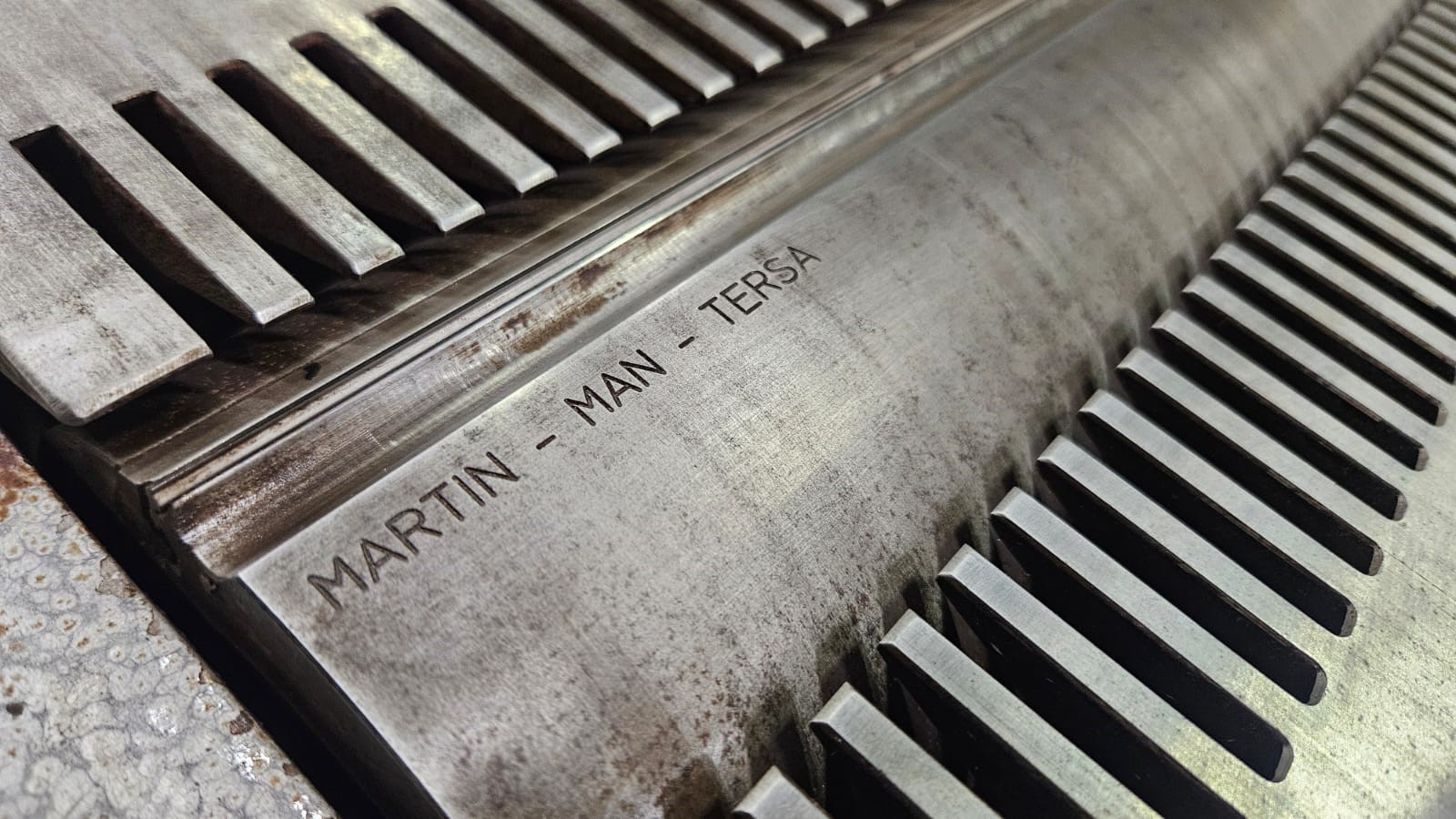

Martin T54 Planer Brand: Martin Type: T54 Year: 2018 M. Nr.: V555076 Control: Electric with digital reading mobile control panel Motor: 5,5 kW Cutterhead speed: 6.000 rpm X-Plane Diameter of cutterhead: ø125 mm Safety: Suvamatic bridge guard Width: 500 mm Fence: Aigner edging fence with thin workpieces fence Max. depth of cut: 8 mm Length of table: 2.850 mm Infeed table: 1.640 mm Outfeed table: 1.200 mm Table height: 850 mm Weight: ca. 1.400 KG

Martin T52 Jointing planner Manufacturer: Martin Type: T52 Year: 1988 Machine Nr: V 155643 Motor: 5,5 kW (7,5HP) Cutterhead: 5.000 rpm Z-4 Tersa Diameter of cutterhead: ø125 mm Working width: 500 mm Cutterlenght.: 510 mm Planing dept: 8 mm (max. allowed by law, but technically upt 16 mm) Length of Table: 2840 mm Length of infeed table: 1640 mm Length of outfeed table: 1200 mm Table Height: 800 mm Fence: 1.100 165 mm Fence-tilting: 45° Weight: ca. 950 KG Condition: Fully functional

Martin T52 Jointer/planner Manufacturer: Martin Type: T52 Year: 1987 Machine Nr: V 151674 Motor: 5,5 kW (7,5HP) Cutterhead: 5.000 rpm Z-4 Diameter of cutterhead: ø125 mm Working width: 500 mm Cutterlenght.: 510 mm Planing dept: 8 mm, footpedal table height setting with counter in table Length of Table: 2840 mm Length of infeed table: 1640 mm Length of outfeed table: 1200 mm Table Height: 800 mm Fence: 1.100 165 mm Fence-tilting: 45° Weight: ca. 950 KG Condition: Fully functional

Auction-ID: A3-46161-9277

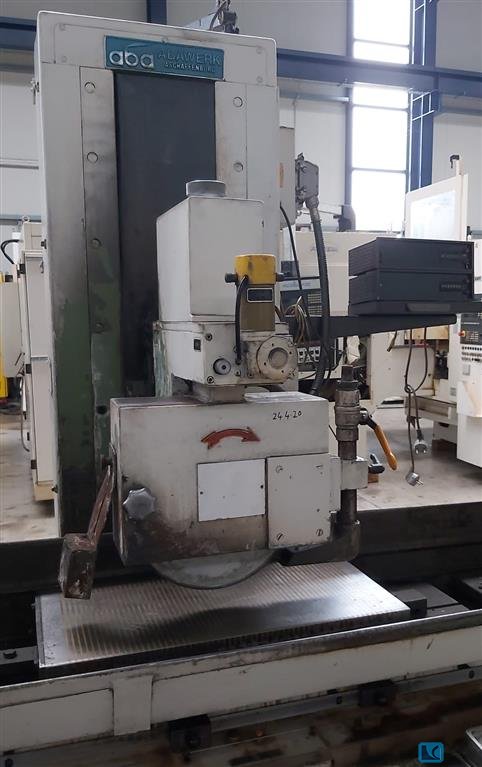

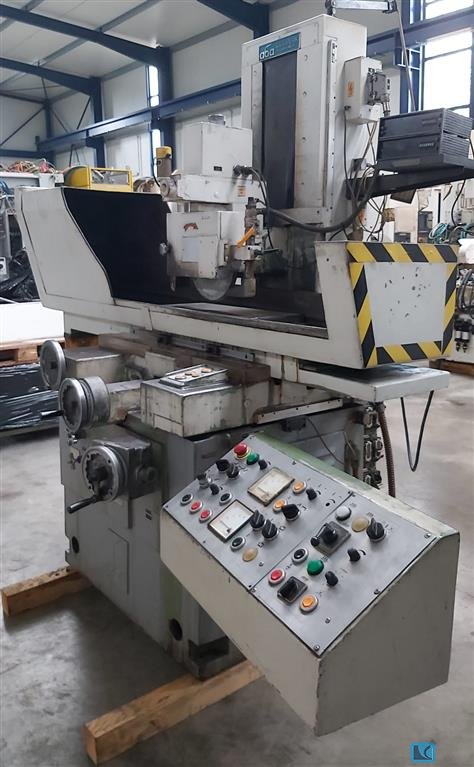

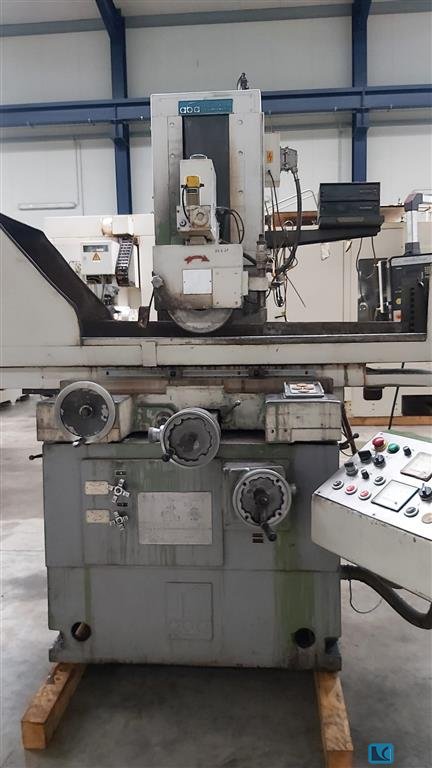

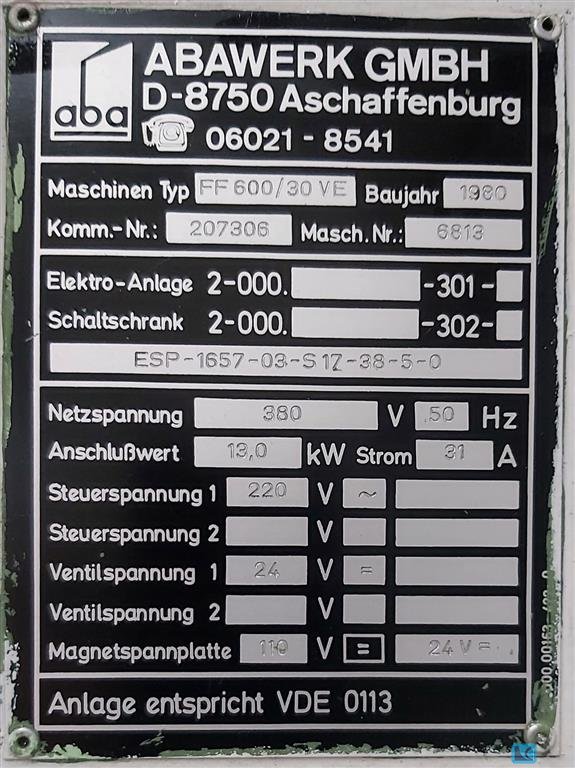

grinding length:600 mm grinding width:300 mm total power requirement:7,5 kW number of spindle speeds:0-3000 grinding wheel motor:7,5 kW grinding wheel diameter:300 mm dimensions of grinding wheel:76 x 20 mm ABA magnetic table flat grinding machine

grinding length:450 mm grinding width:250 mm workpiece height:280 mm Table area:760 x 250 mm grinding spindle drive:2,5 kW grinding wheel dia. x width:250x 25 mm grinding spindle speed:1430/2900 U/min way of grinding spindle saddle, vertical:400 mm total power requirement:4,5 kW weight of the machine ca.:1,8 t dimensions of the machine ca.:1,8 x 1,4 x 2,0 m Machine equiped with magnetic plate - dresser

grinding length:450 mm grinding width:250 mm workpiece height:280 mm Table area:760 x 250 mm grinding spindle drive:2,5 kW grinding wheel dia. x width:250x 25 mm grinding spindle speed:1430/2900 U/min way of grinding spindle saddle, vertical:400 mm total power requirement:4,5 kW weight of the machine ca.:1,8 t dimensions of the machine ca.:1,8 x 1,4 x 2,0 m Machine equiped with magnetic plate - dresser

grinding length:600 mm grinding width:250 mm workpiece height:380 mm :Sinumerik max. dia. of grinding wheel:300 mm weight:4000 kg total power requirement:12,5 kW grinding wheels:Ø 400 mm max. width of grinding wheel:100 mm grinding wheel hole diameter:127 mm turning speeds:470 - 12030 1/min x-axis:600 mm y-axis:300 mm z-axis:250 mm grinding range:450 x 200 mm distance spindle nose and table:500 mm table load:250 kg dimensions of the machine ca.:2600 x 2100 x 2400 mm switchgear cabinet:1300 x 800 x 2000 mm hydraulical unit::450 x 350 x 500 mm Documents:vorhanden

grinding length:1250 mm grinding width:400 mm workpiece height:550 mm workpiece weight:750 kg table-size:1720 x 400 mm magnetic clamping plate:1250 x 400 mm dist. center of grinding spindle - table:750 mm turning speed range - grinding wheel:3000 U/min Length movement of the table:1300 mm grinding wheel size:Ø 400 x 50 x 127 mm switchgear cabinet:inkl. hydraulic power unit:inkl. coolant:inkl. voltage:380 V table load:max. 1100 total power requirement:13,8 kW weight of the machine ca.:6000 kg dimensions of the machine ca.:5000 x 3400 x 2400 mm Documents:inkl.

grinding length:1000 mm grinding width:250 mm workpiece height:400 mm total power requirement:12 kW weight of the machine ca.:3,8 t dimensions of the machine ca.:3.300 x 1.800 x 2.300 mm hydraulic power unit:400 x1000 x 1500 mm control cabinet:2 Stück, 1000 x 1400 x 1500 mm

grinding length:600 mm grinding width:300 mm workpiece height:450 mm total power requirement:8 kW weight of the machine ca.:2,2 t dimensions of the machine ca.:2,8 x 3,0 x 2,0 m grinding spindle speed:1440 / 2905 U/min with magnetic plate 600 x 200 mm autom. vertical feed coolant attachment Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.
