turning diameter over bed: 280 mm turning diameter over slide rest: 150 mm turning length: 500 mm center height over bed: 140 mm centre distance: 500 mm bed width: 205 mm spindle bore: 40 mm turning speed range - stepless: 30 - 4.000 U/min 3-jaw-chuck diameter: 140 mm quick change toolholder: MULTIFIX Typ A drive capacity - spindle motor: 4,0 kW taper in tailstock-quill: MK 3 dia. of quill: 40 mm quill stroke: 85 mm voltage: 400 V total power requirement: 7,5 kW weight of the machine ca.: 800 kg dimensions of the machine ca.: 1,40 x 0,95 x 1,55 m - Serial-No.: 154 - SIEMENS 3-axis digital display - MULTIFIX quick-change tool holder - rotating centering tip The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter over bed: 280 mm turning diameter over slide rest: 170 mm turning length: 650 mm center height over bed: 140 mm centre distance: 650 mm bed width: 155 mm spindle taper: KK 4 CAMLOCK DIN 55029 spindle bore: 40 mm turning speed range - stepless: 4.000 U/min 4-jaw-chuck diameter: 140 mm quick change toolholder: MULTIFIX Typ A drive capacity - spindle motor: 7,5 kW taper in tailstock-quill: MK 2 dia. of quill: 30 mm quill stroke: 80 mm voltage: 400 V total power requirement: 7,5 kW weight of the machine ca.: 400 kg dimensions of the machine ca.: 1,30 x 0,70 x 1,60 m - Serial-No.: C7D W13 02 - 3-axis digital display - Stepless speed adjustment - Digital speed display - MULTIFIX quick-change tool holder The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

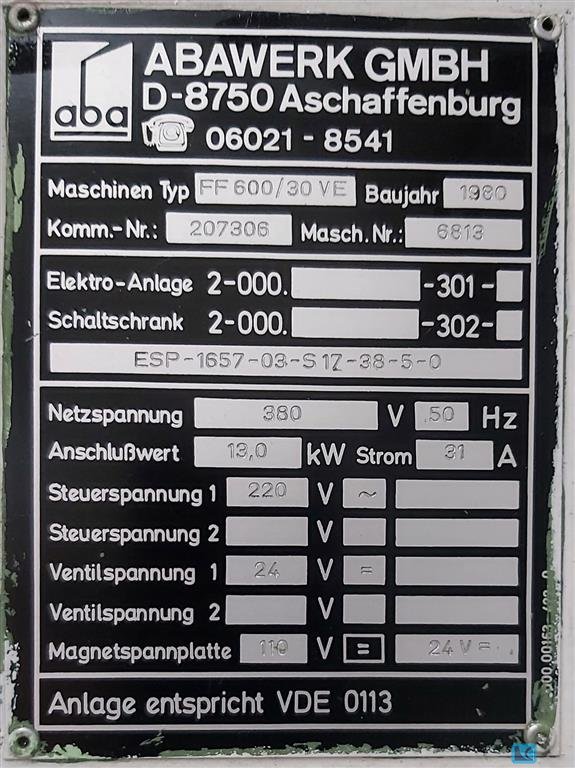

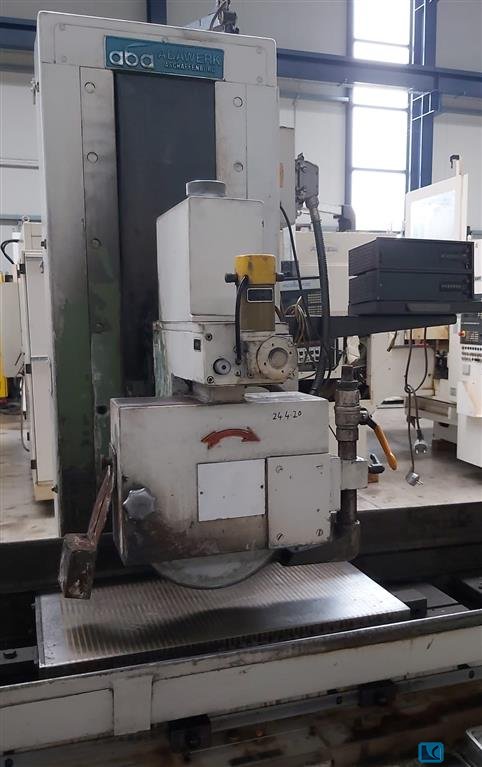

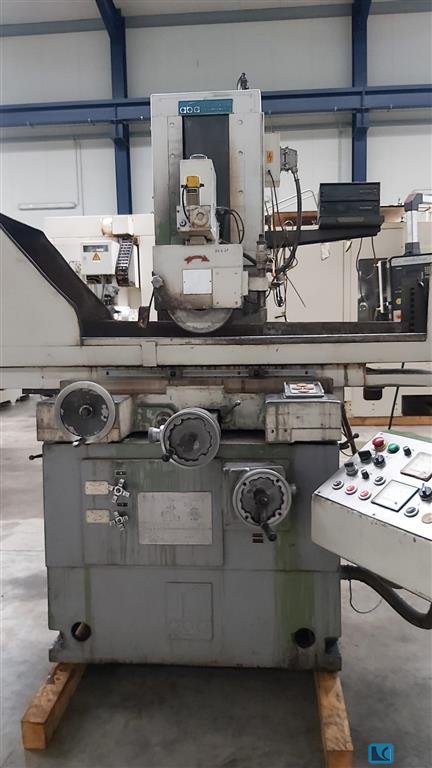

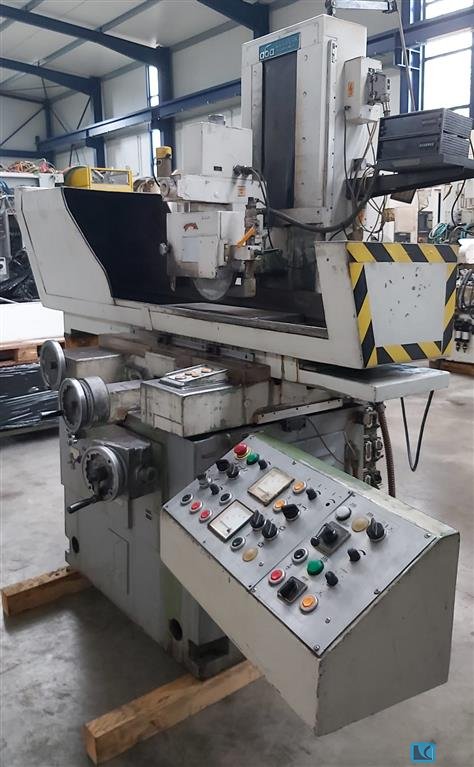

grinding length:600 mm grinding width:300 mm total power requirement:7,5 kW number of spindle speeds:0-3000 grinding wheel motor:7,5 kW grinding wheel diameter:300 mm dimensions of grinding wheel:76 x 20 mm ABA magnetic table flat grinding machine

workpiece diameter:26 mm swing diameter:- mm workpiece length:66 mm total power requirement:12 kW weight of the machine ca.:4 t dimensions of the machine ca.:3,14 x 1,69 x 2,2 m The machine has so far processed the parts in a stream, i.e. without interruption. Piston rods are usually machined with a clearance, requiring the finishing stone to be placed only when the part passes under the stone. 1. Feed Roller 2. Stone holder, 10 pieces, 50 mm new guides can be made between approx. 15 to 40 mm The Roller of Nagel: Dia: approximately 120 mm L: app. 880 mm

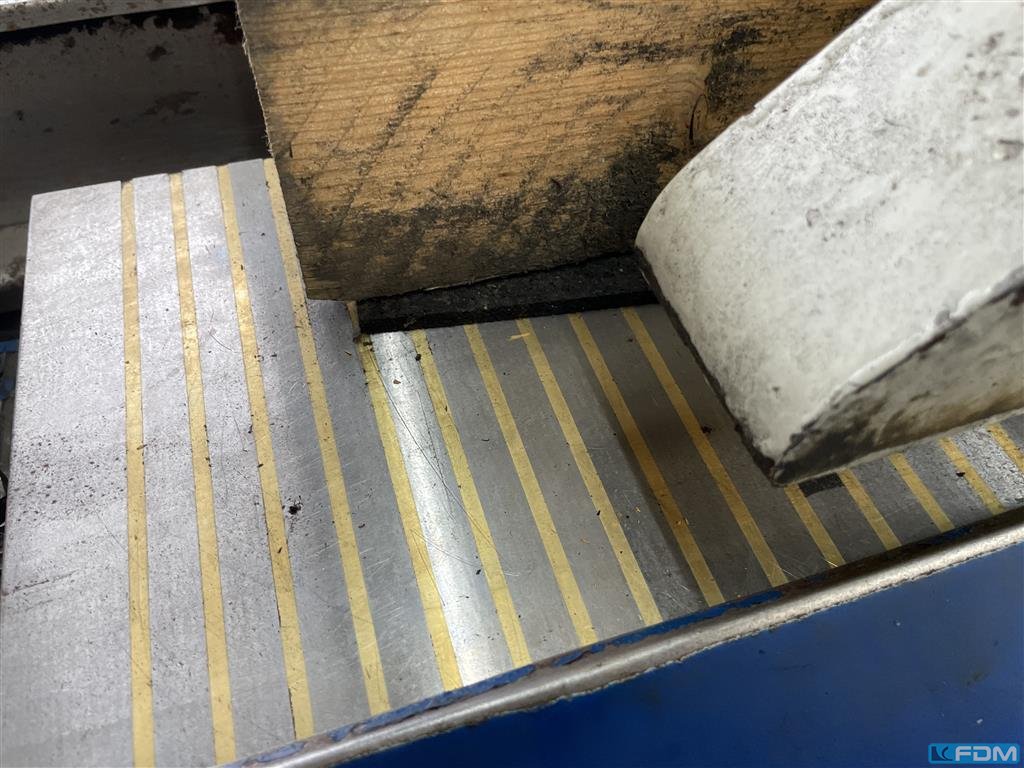

grinding length:450 mm grinding width:250 mm workpiece height:280 mm Table area:760 x 250 mm grinding spindle drive:2,5 kW grinding wheel dia. x width:250x 25 mm grinding spindle speed:1430/2900 U/min way of grinding spindle saddle, vertical:400 mm total power requirement:4,5 kW weight of the machine ca.:1,8 t dimensions of the machine ca.:1,8 x 1,4 x 2,0 m Machine equiped with magnetic plate - dresser

grinding length:450 mm grinding width:250 mm workpiece height:280 mm Table area:760 x 250 mm grinding spindle drive:2,5 kW grinding wheel dia. x width:250x 25 mm grinding spindle speed:1430/2900 U/min way of grinding spindle saddle, vertical:400 mm total power requirement:4,5 kW weight of the machine ca.:1,8 t dimensions of the machine ca.:1,8 x 1,4 x 2,0 m Machine equiped with magnetic plate - dresser

grinding length:600 mm grinding width:250 mm workpiece height:380 mm :Sinumerik max. dia. of grinding wheel:300 mm weight:4000 kg total power requirement:12,5 kW grinding wheels:Ø 400 mm max. width of grinding wheel:100 mm grinding wheel hole diameter:127 mm turning speeds:470 - 12030 1/min x-axis:600 mm y-axis:300 mm z-axis:250 mm grinding range:450 x 200 mm distance spindle nose and table:500 mm table load:250 kg dimensions of the machine ca.:2600 x 2100 x 2400 mm switchgear cabinet:1300 x 800 x 2000 mm hydraulical unit::450 x 350 x 500 mm Documents:vorhanden

grinding length:1250 mm grinding width:400 mm workpiece height:550 mm workpiece weight:750 kg table-size:1720 x 400 mm magnetic clamping plate:1250 x 400 mm dist. center of grinding spindle - table:750 mm turning speed range - grinding wheel:3000 U/min Length movement of the table:1300 mm grinding wheel size:Ø 400 x 50 x 127 mm switchgear cabinet:inkl. hydraulic power unit:inkl. coolant:inkl. voltage:380 V table load:max. 1100 total power requirement:13,8 kW weight of the machine ca.:6000 kg dimensions of the machine ca.:5000 x 3400 x 2400 mm Documents:inkl.

grinding length:1000 mm grinding width:250 mm workpiece height:400 mm total power requirement:12 kW weight of the machine ca.:3,8 t dimensions of the machine ca.:3.300 x 1.800 x 2.300 mm hydraulic power unit:400 x1000 x 1500 mm control cabinet:2 Stück, 1000 x 1400 x 1500 mm

grinding length:600 mm grinding width:300 mm workpiece height:450 mm total power requirement:8 kW weight of the machine ca.:2,2 t dimensions of the machine ca.:2,8 x 3,0 x 2,0 m grinding spindle speed:1440 / 2905 U/min with magnetic plate 600 x 200 mm autom. vertical feed coolant attachment Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

: neu : 2025 : 010105 : prompt, Zwischenverkauf v : Bulgarien : 50210 € : 863.32 € : 1 : 45200 € : 600 mm : 2000 mm : 300 mm : 80 mm : 400 mm : 400 mm : 8 : 90 MK : 21 : 20 - 2000 1/min : 120 : 0.04 - 12 mm/U : 0.02 - 6 mm/U : 64 : 0.5 - 120 mm : 60 - 1/4 Gänge/ : 0.125 - 30 : 315 mm : 130 mm : 90 mm : 5 MK : 230 mm : 7.5 kW : 3600 mm : 1250 mm : 1400 mm : 3110 kg driven by conventional gearbox 3-axes digital readout Fagor 40i quick change toolpostAmestra Multisuisse type C with 4 holders (3 square, 1 round) 3-jaw chuck Bison3204/DIN6350, Ø 250 mm spindle dead center four way rapid traverse device electromagnetic brake longitudinal stop for 1 position coolant equipment full length rear splash guard leadscrew and shaft protection safety guard for the chuck toolholder guard levelling bolts and plates quick release tailstock low voltage machine lamp operating manual machine accordin ...
