Code: 0271
Brand: STROMAB
Model: TR 600 MATRIX 2 PLUS - CE Standard

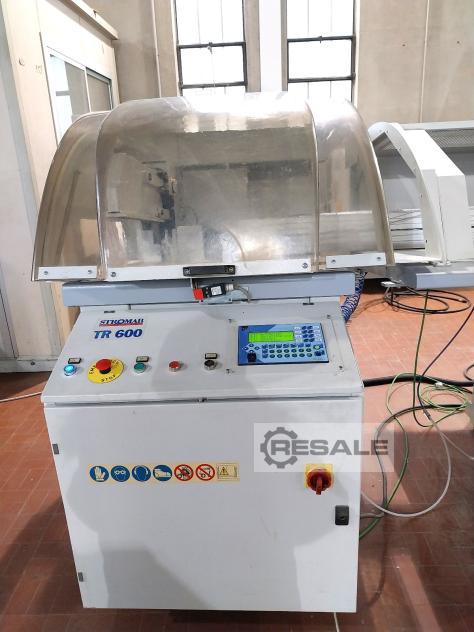

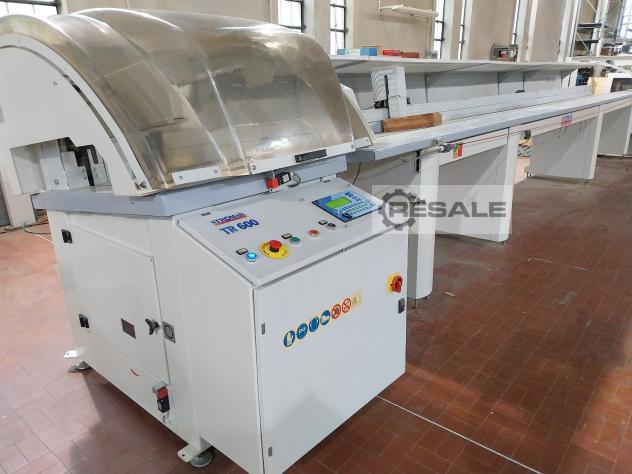

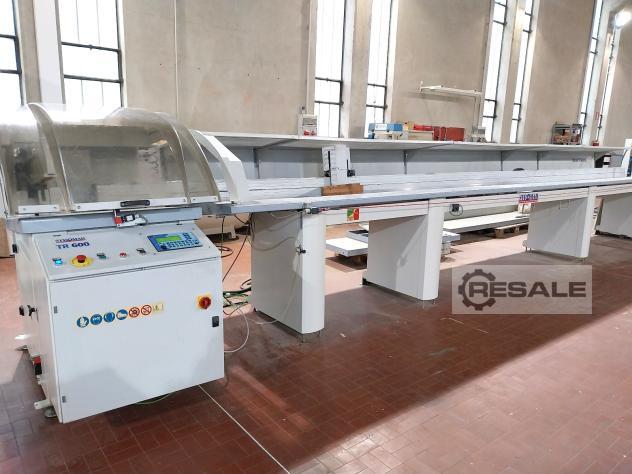

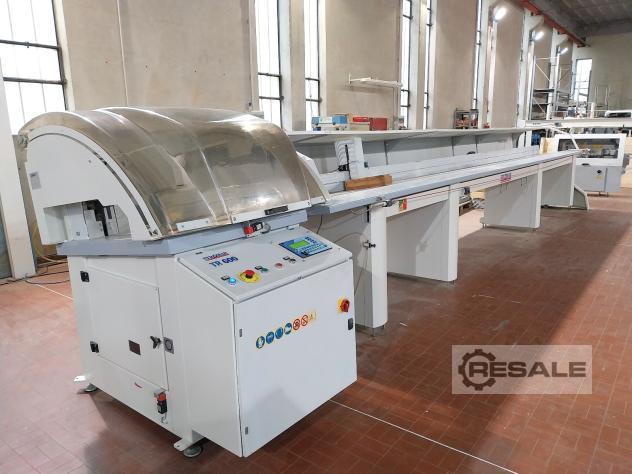

Automatic cut-off saw with electronic pusher MATRIX 2 PLUS ( mm 8000)
for the production of pallets, packaging, door and window frames,
furniture and garden furniture, carpentry and various - CE
Standard
Technical data:
Blade diameter mm 600
Motor Hp 12,5
Blade speed min 3000
Working table height mm 850
Hydraulic blade unit drive
Blade lifting speed regulator

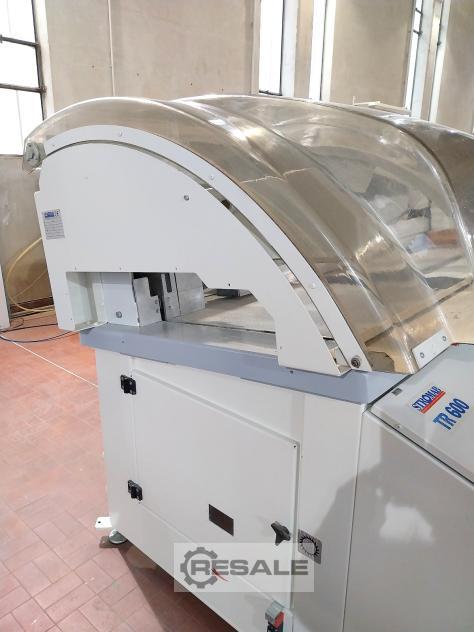

Cutting area protection cover
Bimanual hand guard control
Cutting capacity
Width 610 mm - Height 30 mm
Width 580 mm - Height 60 mm
Width 530 mm - Height 100 mm
Width 490 mm - Height 120 mm
Width 450 mm - Height 140 mm
Width 380 mm - Height 160 mm
Outfeed flat table
Suction ports n° 3 diameter mm 100

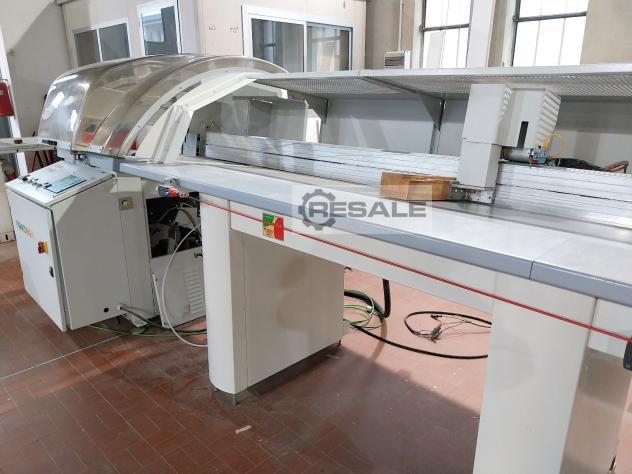

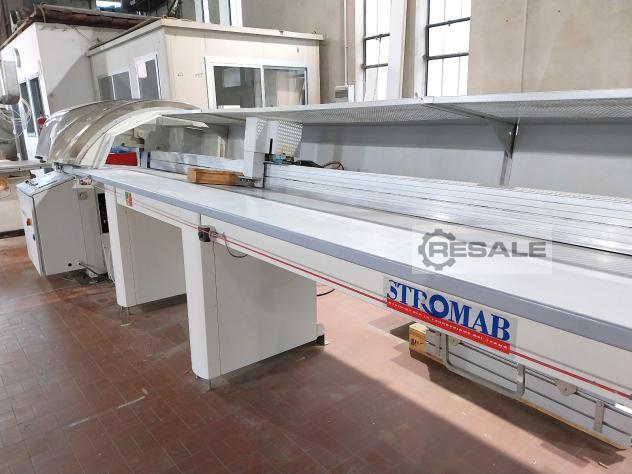

Numerically controlled pusher MATRIX 2 PLUS
Technical data:
Maximum working length mm 8000
Feeding system featuring precision rack and brushless motor
Positioning reading on magnetic stripe
Positioning precision +/-0,4 mm
Pneumatic rising of the pusher with workpiece measurement sensor
Main system:
Cutting cycle (pattern) editing by keypad, by remote PC via serial
port (RS232) or by Ethernet T51246512
Working software:
A) N° 99 programmable cutting cycles with 15 sizes (lines) per cycle
- Example of cutting cycle: Board length, trim cut , 1 size
(line)..15° size
B) N° 1 cutting cycle with 100 programmable sizes to be cutted in
sequence
Exit surface 4000 x 600 mm
Compressed air 7 bar
Overall dimensions of assembled machine: mm 13000 x 2000 x 1600 h
Overall dimensions for transport : Machine mm 1200 x 1700 x 1600 h -
Matrix pusher mm 8800 x 1500 x 1500 h
Weight kg 1600
