Code: 0444
Brand: STROMAB
Model: TR 500 MATRIX 4 - CE Standard

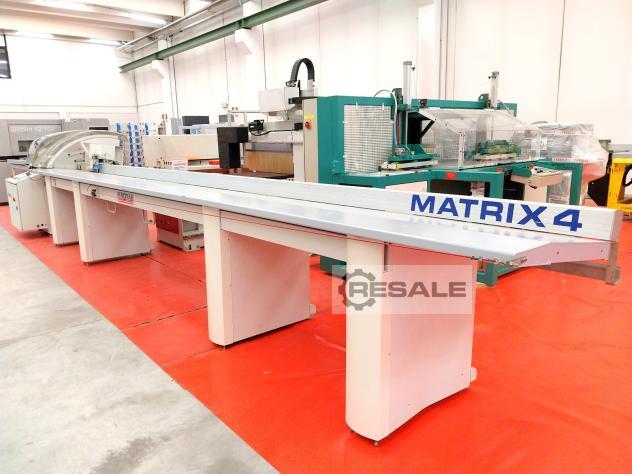

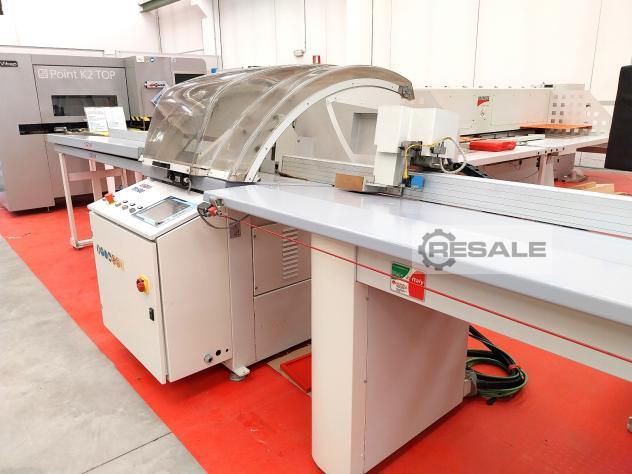

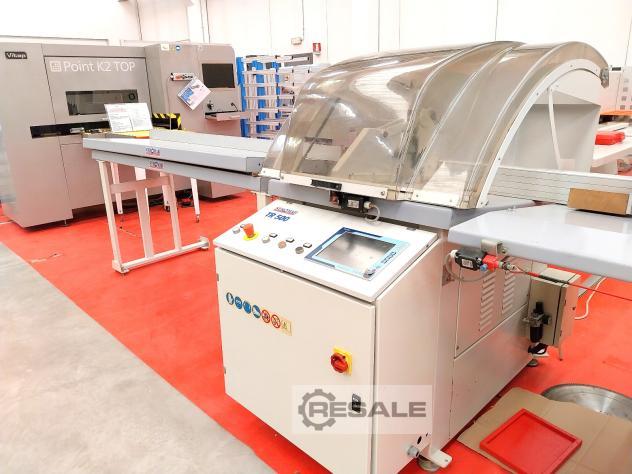

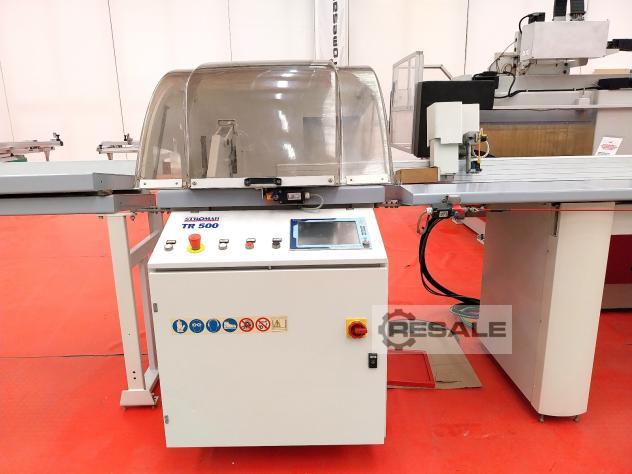

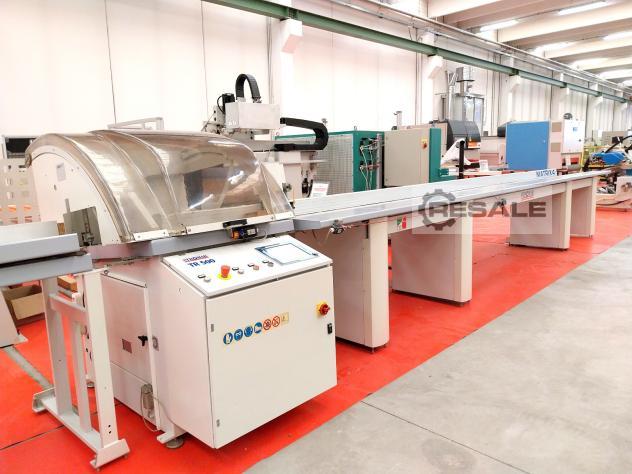

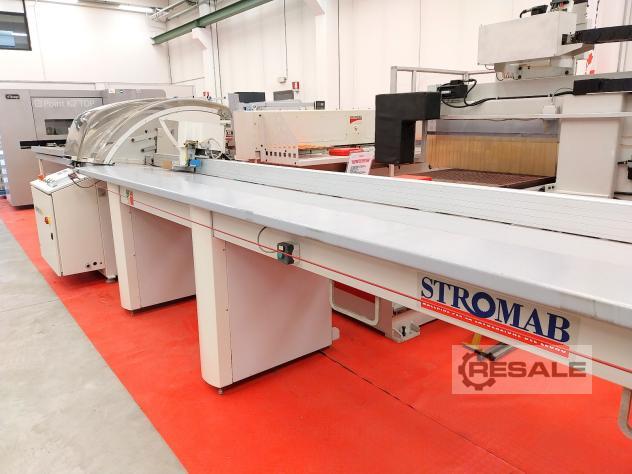

Automatic cut-off saw equipped with pusher Matrix 4 - with defects
removal and 4 optimizing criterials - CE Standard
For the sizing and end-trimming of boards, strips, squares of solid
wood or timber products
Blade diameter 500 mm - Motor Hp 10 – Blade revolutions n° 3000
Cutting dimensions : With thickness 60 mm cutting width mm 360 –
With thickness 100 mm cutting width mm 325 – With thickness 115 mm
cutting width mm 300 – With thickness 135 mm cutting width mm 250
Worktable height mm 1000
Speed from right to left
Electronic programmed pusher Matrix 1 for programmed cutting in
sequence
Technical data MATRIX:
Automatic or semi-automatic cutting cycles
Stored cutting cycles 99
Programmable measures for each cycle 15
Useful stroke mt. 7
Positioning speed mt/min 0-40
Max return speed mt/min 40
Precise positioning mm +/- 0,5
Speed control with inverter
Measuring photocell
Table mt .7
Outfeed table without rollers 4 mt
"OPTI" function: automatic measurement of the workpiece to be cut with
full optimisation – photocell for reading workpiece length
"OPTI PLUS" function for the removal of knots and defects –
photocell for detecting chalk marks during the pusher’s return
stroke – marking with fluorescent chalk
Label printer: printing on thermal paper labels

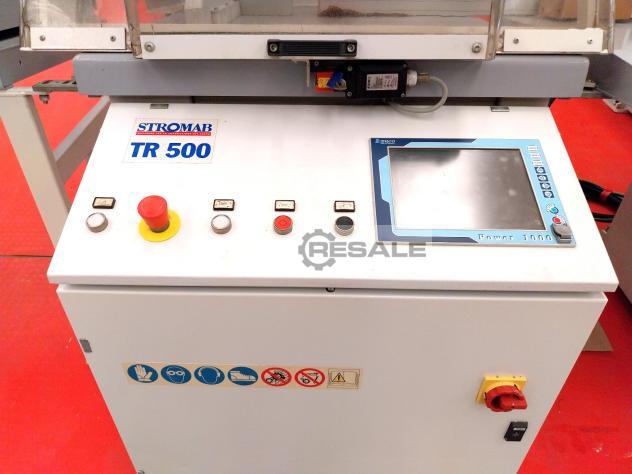

Data input management: Elco touchscreen programmer 12-inch– USB
port – Ethernet port
Software for creating cutting lists
4 suction inlets diameter 100 mm
Compressed air 6 bar
Overall dimensions of assembled machine mm 11880 x 1650 x 1600 h
Overall dimensions for transport: machine mm 880 x 1650 x 1600 h –
Matrix pusher mm 7600 x 1300 x 1350 h – stacked outfeed tables mm
2100 x 900 x 1100 h
Italy
