stanko sedin used for sale

OIL LATHE STANKO SPINDEL BORE 300 mm

CAPASITY 11 KJ 400 KG

- Table rotation 360 Gr - Head tilting possible up to 10 Gr - Big Cabinet with slotting key way tools - Lubrication  - Complete Overhauled in 1994

sheet width: 2050 mm plate thickness: 8 mm distance between columns: mm electrical: . weight of the machine ca.: 6,3 t Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Upsetter STANKO RYAZAN B1141 Nominal effort 1250t Max. workpiece diameter 140 mm Max. upset flange diameter 180 mm Stroke of moving slider 220 mm Stoke of upsetting slider: total/working - 460/310 mm Strokes per min 30 Matrix dimensions 700x260x820 mm (LxWxH) Distance upsetting slider and matrixes 180 mm Electric motor power 75 kW Machine overall dimensions 6400x4365x3340 mm Weight 135t Excellent condition. Very little use- it shows from the gears. Can be inspected in operation

faceplate diameter: 2200 mm swing diameter: 2500 mm turning height: 1600 mm Control: Siemens chip conveyor: total power requirement: 100 kW weight of the machine ca.: 35 t dimensions of the machine ca.: m vertical lathe with two RAM, faceplate Ø 2000 mm, SPS supported control for storable cycles, RAM/channel 1 two Capto recordings C8 with Internal tool cooling, RAM/channel 2, two Capto mounts C8 with internal tool cooling, Chip conveyor / spindle Z-axis as new The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us ...

bore capacity in steel (diameter): 75 mm total power requirement: 14 kW weight of the machine ca.: 10 t spindle speed:: 12,5 - 1.600 U / min throat: 2000 mm - capacity at boring: 75 mm ( St 45 ) - spindle diam. 115 mm - taper in spindle: 110 mm/ Morse 6 - distance column to drilling spindel: 500.. . 2000 mm - vertical adjustment of arm: max. 1100 mm - distance column to drilling spindel: 450.. 2000 mm - drilling depth: 450 mm - range of speeds: 12,5 ...1600 U/ min // rpm - feed: 0,63 ... 3,15 mm / U - angle of arm: 360 ° The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

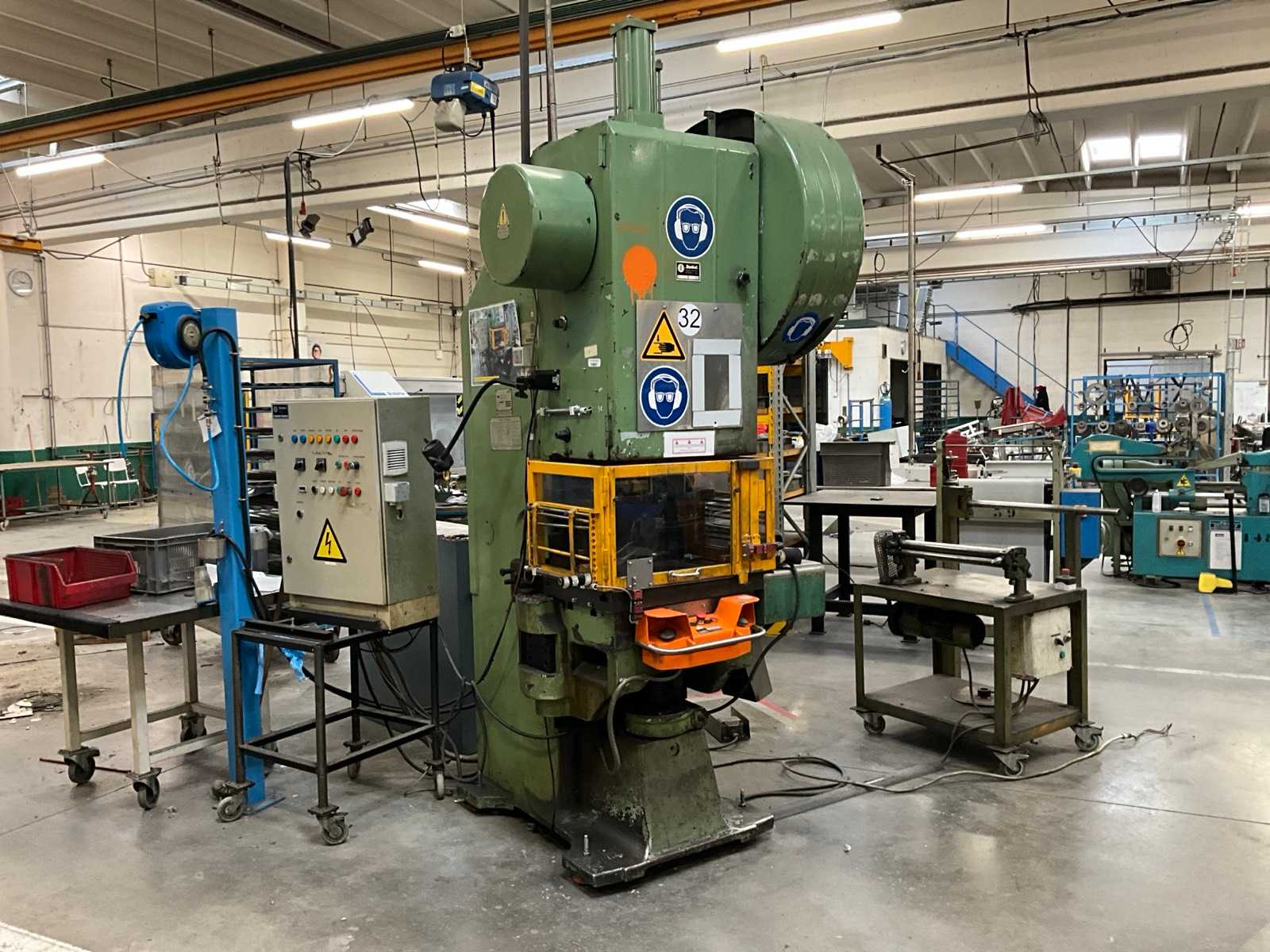

pressure: 100 t throat: 355 mm stroke: mm total power requirement: 11,5 kW weight of the machine ca.: 8,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

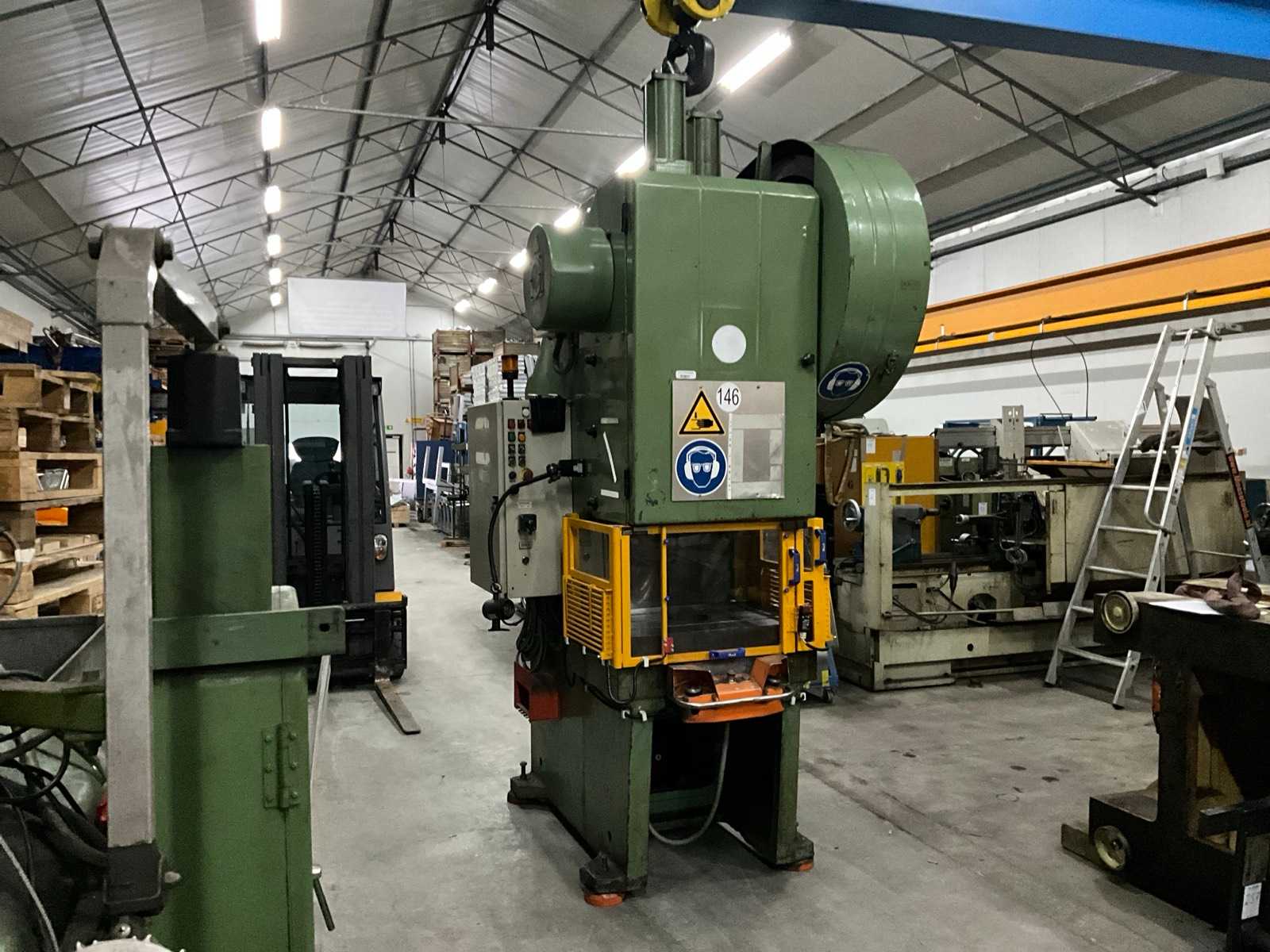

pressure: 40 t throat: 225 mm stroke: 100 mm total power requirement: 4,7 kW weight of the machine ca.: 3,45 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

STANKO 2N 150 ist eine Ständerbohrmaschine ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Arbeitskapazität: Tisch 570 x 500 mm, 3 T-Nuten (Abstand 110 mm, Breite 22 mm), Ausladung 300 mm, Bohrtiefe (Pinolenhub) 300 mm, Pinolendurchmesser 100 mm, 3-Backenfutter Ø 315 mm. Technische Daten: Spindelaufnahme MK 5, 12 Stufen 22–1000 t/min, 12 Vorschübe 0,05–2,24 mm/t, Spindelmotor 3 CV, Anschluss 3x380 V 50 Hz, Maschinengewicht ca. 1200 kg, Abmessungen 1200 x 1200 x 2500 mm. Zubehör: Tiefenanschlag, Teilapparat mit motorischem Antrieb, Fusspedal. Ermöglicht enge Toleranzen; typische Einsatzzwecke: Automotive, Werkzeugbau, Luftfahrt, Medizintechnik, Feinmechanik. Technische Daten ohne Gewähr

snelle verplaatsing voor langsbeweging Distance between centers: 3000 mm Swing over bed: 630 mm Swing over cross-slide: 350 mm Diametre of main spindle bore: 80 mm Power on main spindle: 13 kW Number of speeds: 10 > 1250 rpm Digital screen: Heidenhain Length: 4950 mm Width : 1780 mm Height: 1490 mm Weight: 5,6 ton

General Description Conventional vertical turning lathe manufactured by POLYMETA C LTD in Sofia, Bulgaria. Model SEDIN 1512 , designed for machining large cylindrical workpieces, rings, flanges, wheels and similar rotational parts. The machine layout matches the SEDIN 1512 family. Technical Details Manufacturer: POLYMETA C LTD Model: SEDIN 1512 Type: Vertical Turning Lathe (VTL) / vertical turret lathe Year of refurbishing: 2001 Factory No.: 3524 Control: Conventional (manual) Condition: Used Condition Good industrial used condition. The machine appears complete and installed in production. Ways and machined surfaces look clean, handwheels and graduations show limited wear, and fresh lubrication is visible. The tool slide appears in good condition, with no obvious crash damage. Normal cosmetic paint wear and age-related wear are visible. Spindle accuracy and gearbox condi ...

General Description Conventional vertical turning lathe manufactured by POLYMETA C LTD , Sofia, Bulgaria. Model SEDIN 1512 , designed for machining large rings, flanges, bearing housings and other heavy cylindrical workpieces. The machine is equipped with a single vertical ram, cross rail and large rotary table, making it suitable for turning, facing, boring and grooving operations. Technical Details Manufacturer: POLYMETA C LTD Model: SEDIN 1512 Machine type: Vertical Turning Lathe (VTL) Year: 2001 Factory No.: 3524 Control: Conventional (manual) Single vertical ram with cross rail Large 4-jaw independent chuck / rotary table Modernized electrical control cabinet Suitable for machining large-diameter rotational components Condition Very good industrial used condition. The machine is shown operating under power with an active machining process. The rotary table, ram an ...

General Description Heavy-duty vertical gear shaping machine manufactured by STANKOIMPORT / Komsomolets , model 5A140 . Designed for generating internal and external gear teeth using a reciprocating gear-shaped cutting tool. Suitable for spur gears and other toothed components in industrial gear and transmission production. Technical Details Manufacturer: STANKOIMPORT / Komsomolets Model: 5A140 Machine type: Vertical gear shaping machine Maximum gear diameter: 500 mm Maximum module: 8 mm Maximum gear rim width: 100 mm Spindle travel: 150 mm Maximum working spindle travel: 125 mm Table / work spindle flange diameter: 560 mm Table bore: 110 mm Double-stroke range: 55–560 strokes/min, 18 settings Peripheral feed: 6–590 mm/min Radial feed: 0.02–0.2 mm/stroke Maximum tool/table axis distance: 355 mm Rapid table travel: 1.5 m/min Rapid table rotation: 4.5 rpm Spindl ...

General Description Horizontal milling machine, exported by Stankoimport . Designed for milling, slotting and general machining operations. The machine is equipped with a horizontal arbor spindle and supplied with installed milling tooling and a table-mounted clamping fixture. Technical Details Machine type: Horizontal milling machine Exporter: Stankoimport Horizontal arbor spindle T-slotted work table Multiple milling cutters mounted on the arbor Table-mounted clamping fixture included Manual X/Y/Z table feeds Mechanical feed gearbox with feed and spindle speed selectors Condition Used industrial condition. The machine appears complete with horizontal spindle, arbor, milling cutters, T-slotted table and clamping fixture installed. Operational status, spindle condition and machining accuracy have not been tested. Auction-ID: A7-49124-24

table diameter: 320 mm, maximum module: 6 mm, minimum module: 0.2, maximum pitch diameter of cut circles: 250 mm, maximum width of cut rim: 50 mm, number of double strokes per minute: 195-1200 Auction-ID: A7-49398-48

max. diameter of machined gear: 320 mm, max. vertical feed: 250 mm, max. length of machined gears: at a 30-degree angle: 220 mm, at a 45-degree angle: 150 mm, at a 60-degree angle: 100 mm, max. module of machined gears: 6, bore diameter: 160 mm, taper: Morse 5 Auction-ID: A7-49398-43

Lathes with: - 4-fold steel holder - 3-jaw chuck 315mm - Centering tip Turning diameter over bed 500 mm Turning diameter over support 320 mm Turning length 2100 mm Center height 250 mm Spindle bore 60 mm Spindle speeds 11 - 2000 rpm Total power requirement 7.0 kW Machine weight approx. 2.9 t Dimensions approx. 4.3 x 1.2 x 1.3 mm Auction-ID: A7-49782-438

Band saw with - Saw blade welding machine - Whetstone - Saw blades - Documentation Roll diameter 440 mm Projection 420 mm Workpiece height 200 mm Cutting speed 20 - 1550 m/min Table clamping area 560 x 560 mm Saw blade length 3250 mm Total power requirement 1.5 kW Machine weight approx. 0.8 t Space requirements approx. 1.2 x 0.8 x 2.1 m Condition: unchecked (6) Auction-ID: A7-49782-470

maximum milling diameter: 320 mm milling length: 220 mm maximum module: 6 mm maximum tooth angle: +/- 60° maximum cutter diameter: 160 mm Auction-ID: A7-49398-45

General Description Heavy-duty horizontal spindle rotary table surface grinder of Soviet manufacture, exported by Stankoimport, Moscow, USSR . Designed for precision grinding of flat surfaces on large workpieces. The machine is equipped with two rotary work tables and a horizontal grinding spindle, making it suitable for grinding rings, discs and other circular components. Technical Details Manufacturer: Unknown (exported by Stankoimport, USSR) Model: Not identified Machine type: Horizontal spindle rotary table surface grinder Year: Not confirmed Origin: USSR Two independent rotary work tables Horizontal grinding spindle Manual longitudinal table movement Mechanical/manual cross feed Manual feed controls Coolant system Hydraulic/mechanical feed system Condition Used industrial condition. The machine appears mechanically complete with both rotary tables, grinding spin ...

General Description Universal cylindrical grinding machine of Soviet manufacture, exported by Stankoimport, Moscow, USSR . Designed for precision external cylindrical, tapered and thread grinding of shafts, mandrels and other rotational components. The machine is equipped with a universal workhead, tailstock, wheel dresser and coolant system. Technical Details Machine type: Universal cylindrical grinding machine Origin: USSR Exporter: Stankoimport, Moscow Grinding wheel speeds: 1,440 / 1,680 / 2,010 / 2,360 rpm Grinding wheel peripheral speeds: Approx. 30 / 35 / 42 / 50 m/s (400 mm wheel) Universal workhead Tailstock Grinding wheel dresser Coolant system Automatic and manual operating modes Metric, inch and module thread grinding capability Thread grinding/change gear chart Condition Good used industrial condition. The machine appears mechanically complete with workh ...
