x-travel:1530 mm
y-travel:530 mm
z-travel:465 mm
side by
side, right side fixed table X =:925 mm
side by side left side 2
axis table X =:780 mm
control:Heidenhain TNC 640
tool
magazin::122 SK 40
spindle turning speed - stepless:12.000
1/min
Spindle Torque:120 Nm
power capacity:22 kW
Fixed
Table Dimensions:920 x 540 mm
Table load fixed table:2000
kg
Max. parts size on fixed table:900 x 500 x 400 mm
Diameter
of integrated 2-axis rotary table:650 mm
Table load rotary
table:500 kg
B-axis swivel angle:-90°/+110° ° / deg
Max.
parts size on rotary table:600 x 500 x 400 mm
Max. Parts size over
both tables:1500 x 500 x 400 mm

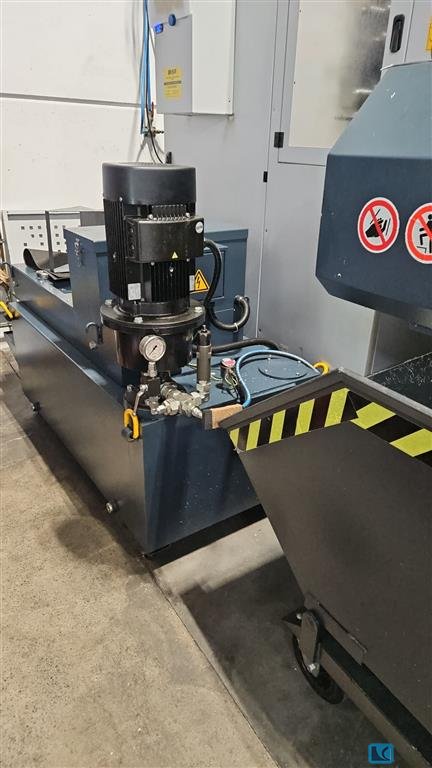

internal coolant system feed:70
bar bar
weight of the machine ca.:10,5 t
dimensions of the
machine ca.:3,65 x 2,53 x 2,81 m
pendant hand wheel:HR 510 FS
Measuring probe for work piece:Blum TC 52
The SpinnerU5
1530 5-axis machine with Heidenhain iTNC 640 control is as new, in
excelllent condition.
122 tool holdersr SK 40 come with the
machine.
A special vice from Gressel for 5-axis machining for the
rotary table also comes with the machine.
